User Manual for Levenhuk D320L Monocular Microscope with 3.1MP Camera Click to enlarge the picture
Contents of the user manual for the Levenhuk D320L Monocular Microscope with 3.1MP
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk D320L Monocular Microscope with 3.1MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

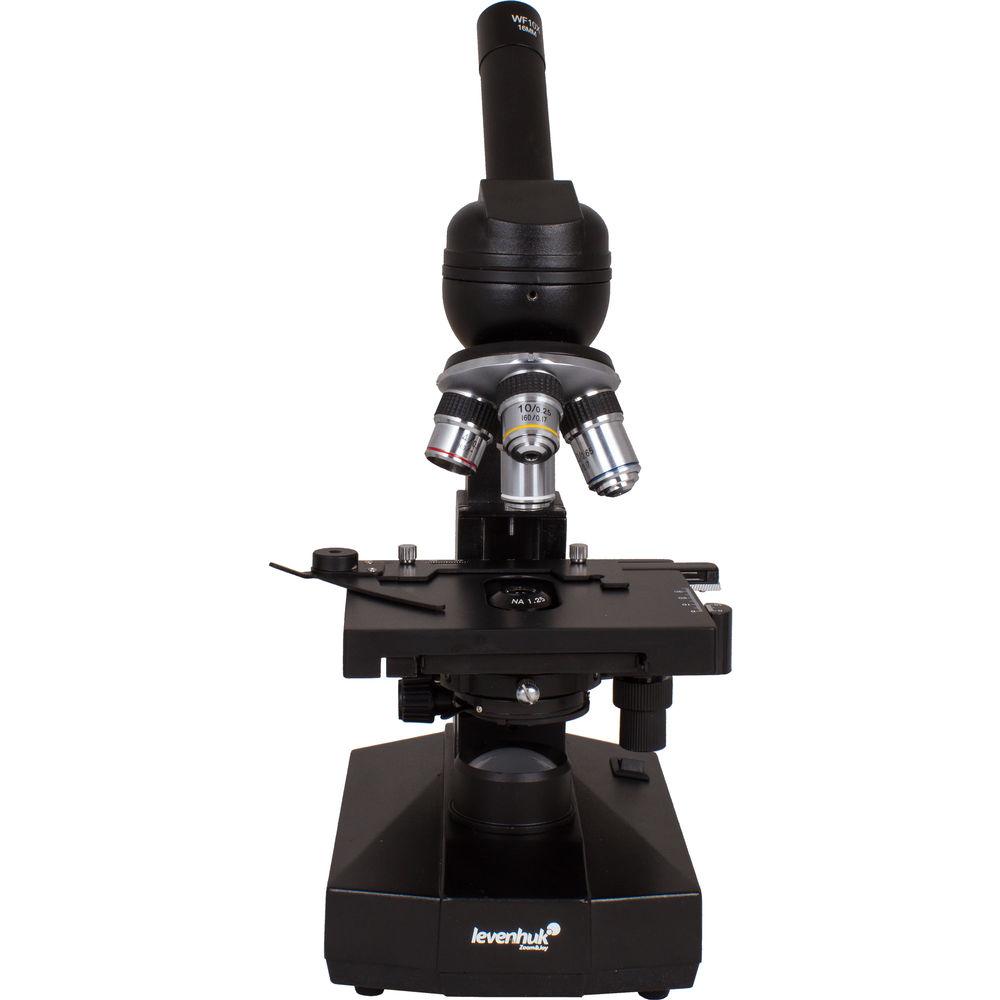

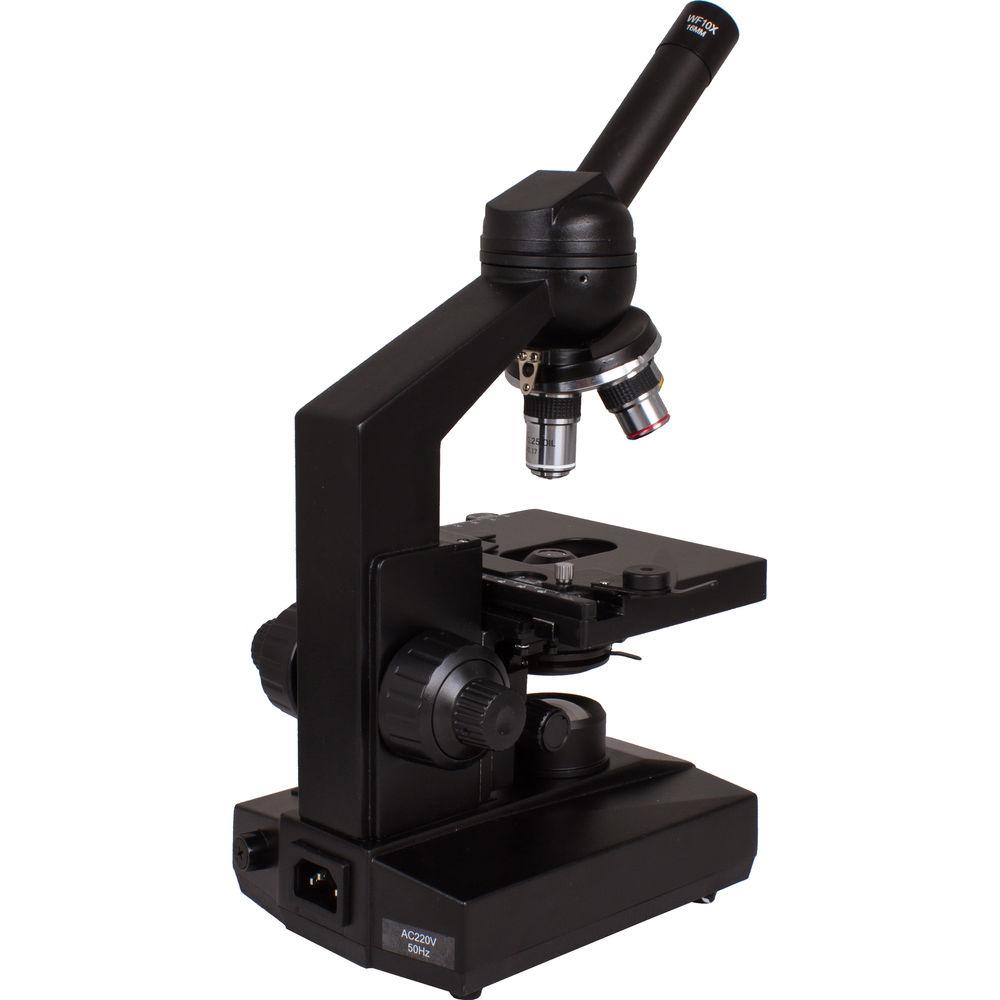

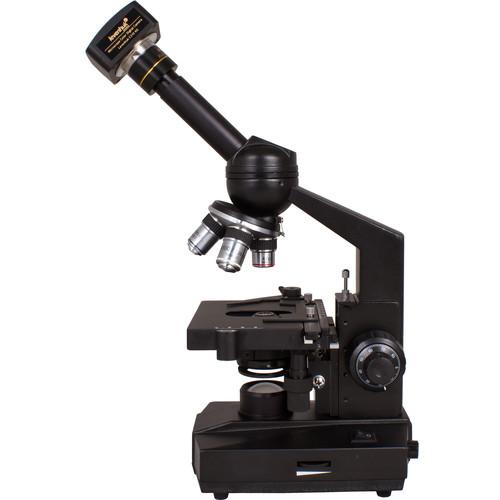

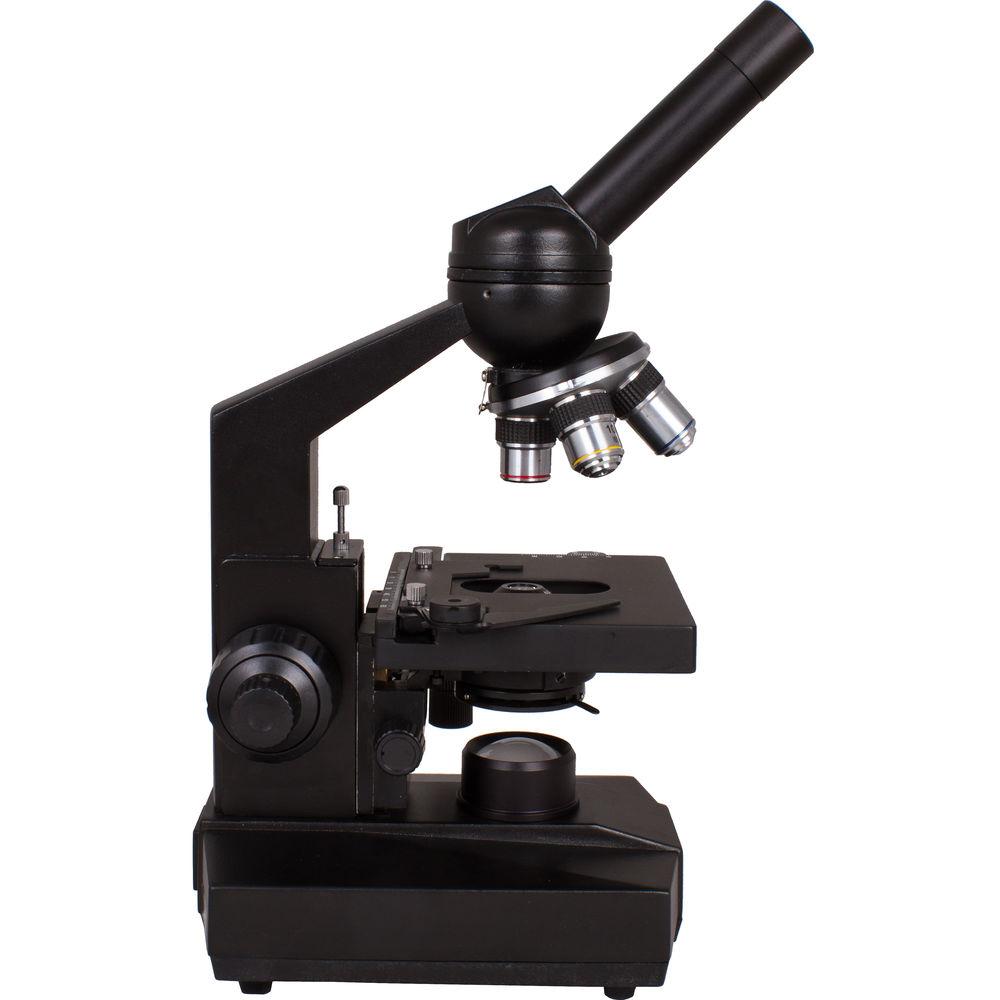

Product description Levenhuk's D320 Biological Monocular Microscope and 3.1MP Camera includes a lab-grade microscope and a digital CMOS camera that easily attaches to the microscope's eyepiece. It allows you to capture images and videos in a variety of formats, save them on your computer, and adjust some of the more advanced imaging parameters such as white balance and exposure. The optical system of the microscope features four achromatic objectives (4x,10x, 40x, and 100x) and two pairs of eyepieces (10x and 16x), which together can produce high-resolution images with low color distortion at magnifications of up to 1600x. Users should take note that its 100x objective ought to be used with a special immersion oil (included) to achieve maximum resolution. For holding your samples, the scope offers a square specimen stage with full motion control in two dimensions via Vernier adjustments, and a lockable slide bracket. You can obtain bright and high-contrast images using its halogen illumination system with a 1.25 NA Abbe condenser and built-in iris diaphragm. For obtaining precise image sharpness, the scope provides both coarse and fine focusing, adjustable using the knurled coaxial knobs. - Digital Camera
-
- 3.1MP digital camera
- White balance: automatic and manual
- Exposure control: automatic and manual
- Connects to your computer via a USB 2.0 cable
- Captures images and videos via the included software, or other compatible software
- Compatible with select Windows, Mac, and Linux versions
- Optical Performance
-
- Achromatic glass optics

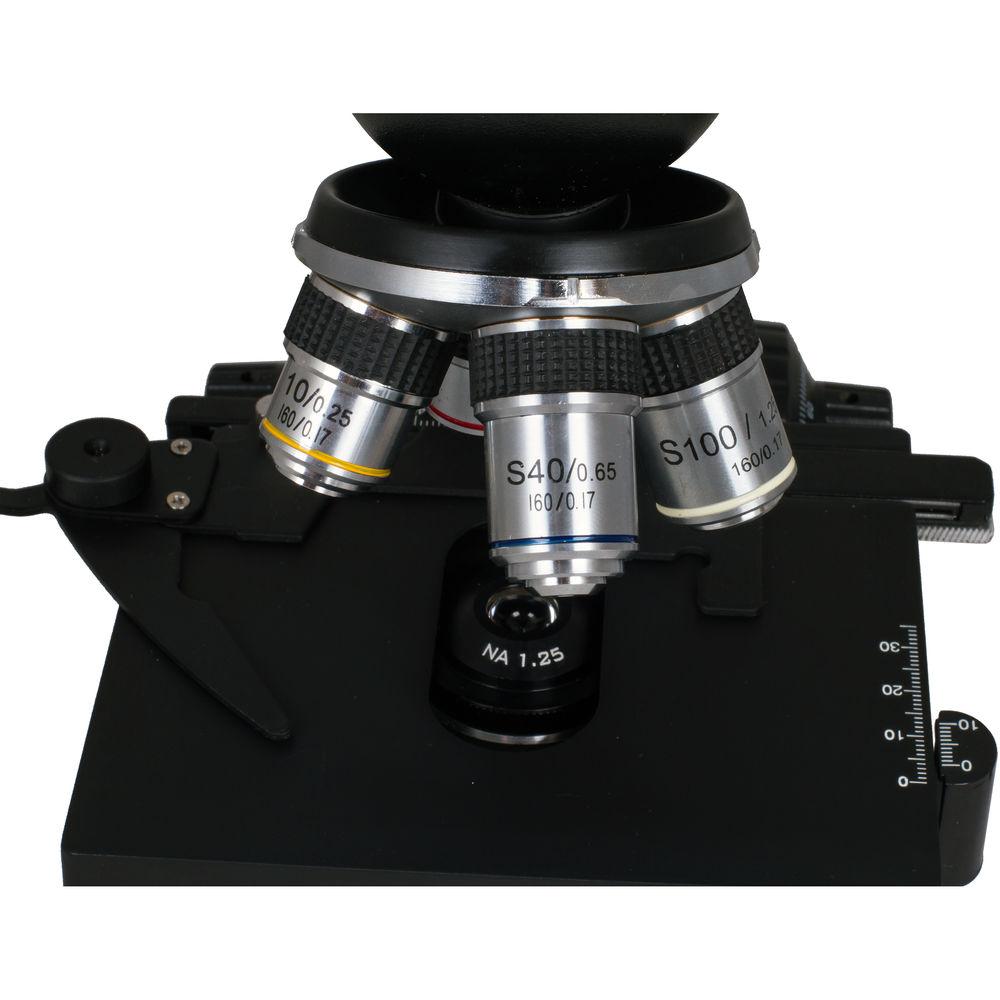

- 4x, 10x, 40x, and 100x objectives
- 100x objective ought to be used with the included immersion oil

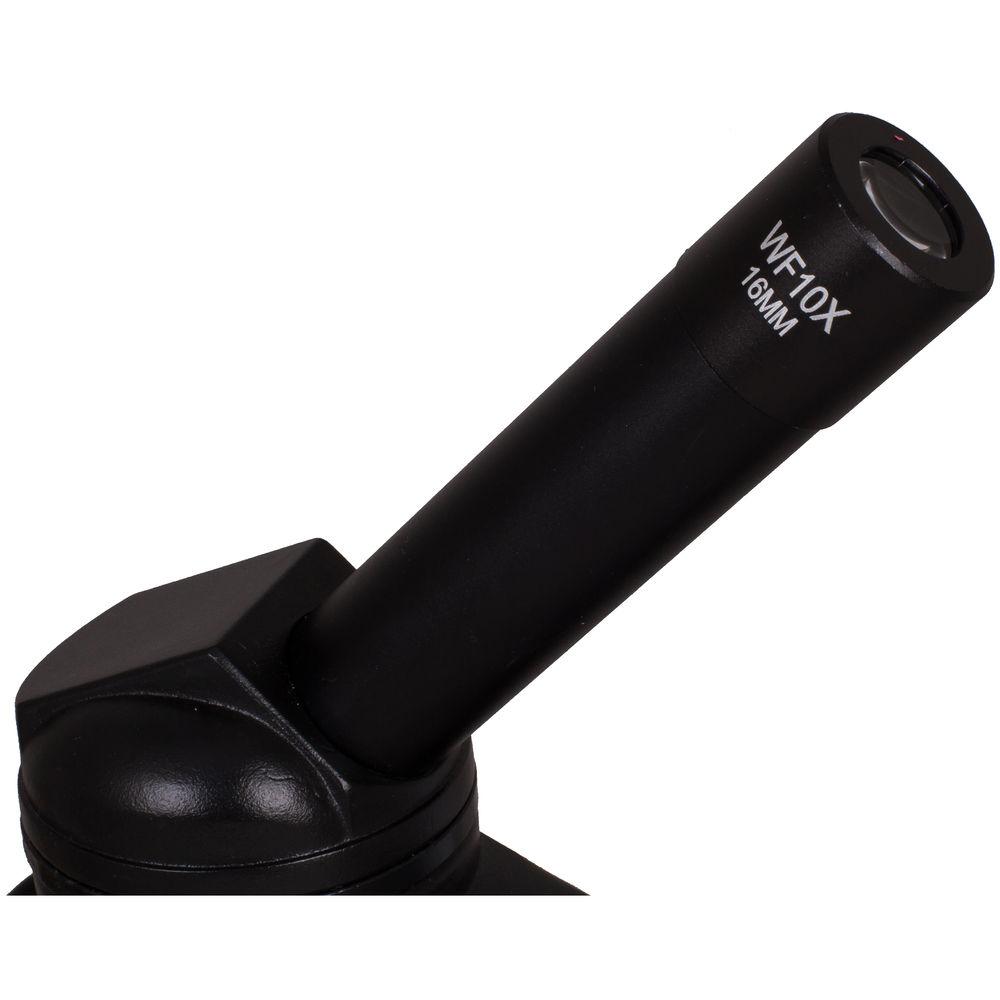

- 10x and 16x widefield eyepieces
- 40-1600x magnification range
- 1.25 NA Abbe condenser
- Use and Handling
-
- Monocular viewing
- 45°-inclined eyepiece
- Head rotates 360°
- External 110V outlet required
- 12W halogen illumination with adjustable brightness

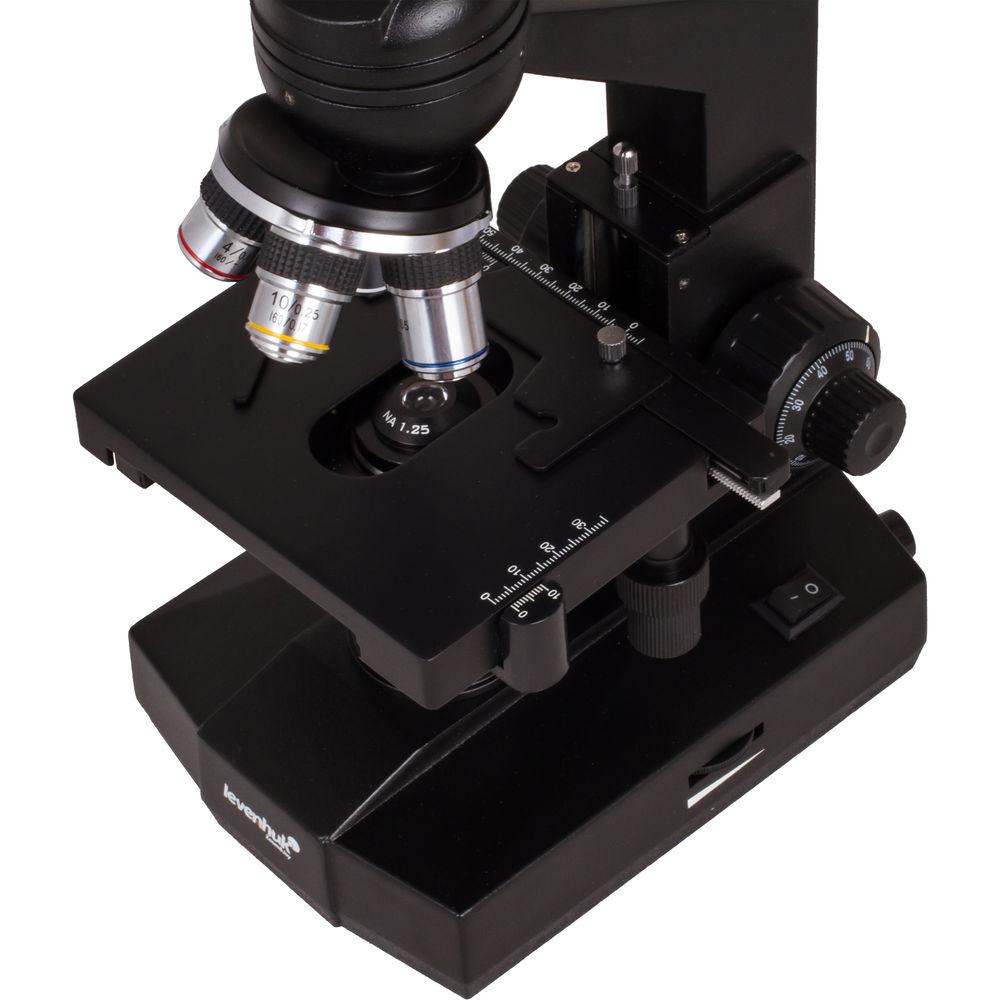

- Stage
-
- Mechanical precision stage
- Vernier motion controls for both axes
- Lockable specimen bracket
- Built-in iris diaphragm
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability

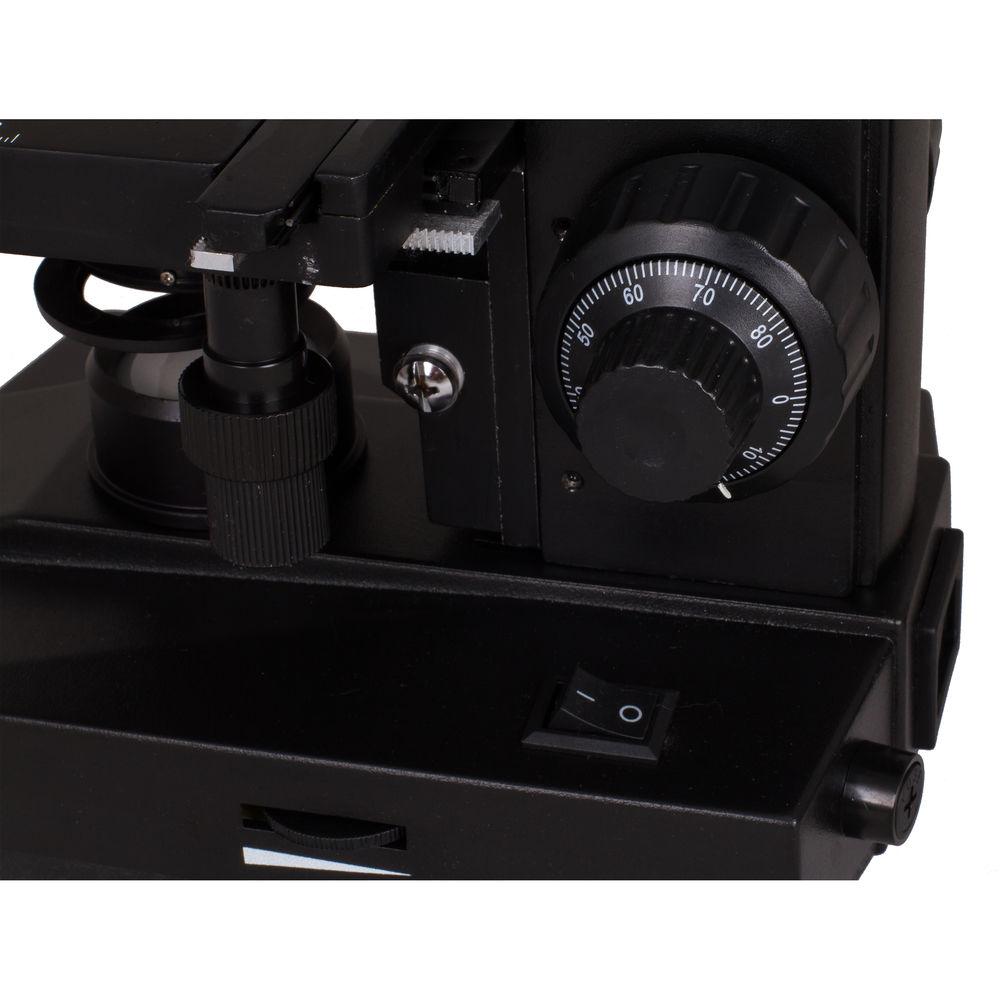

- Knurled oversized focusing knobs

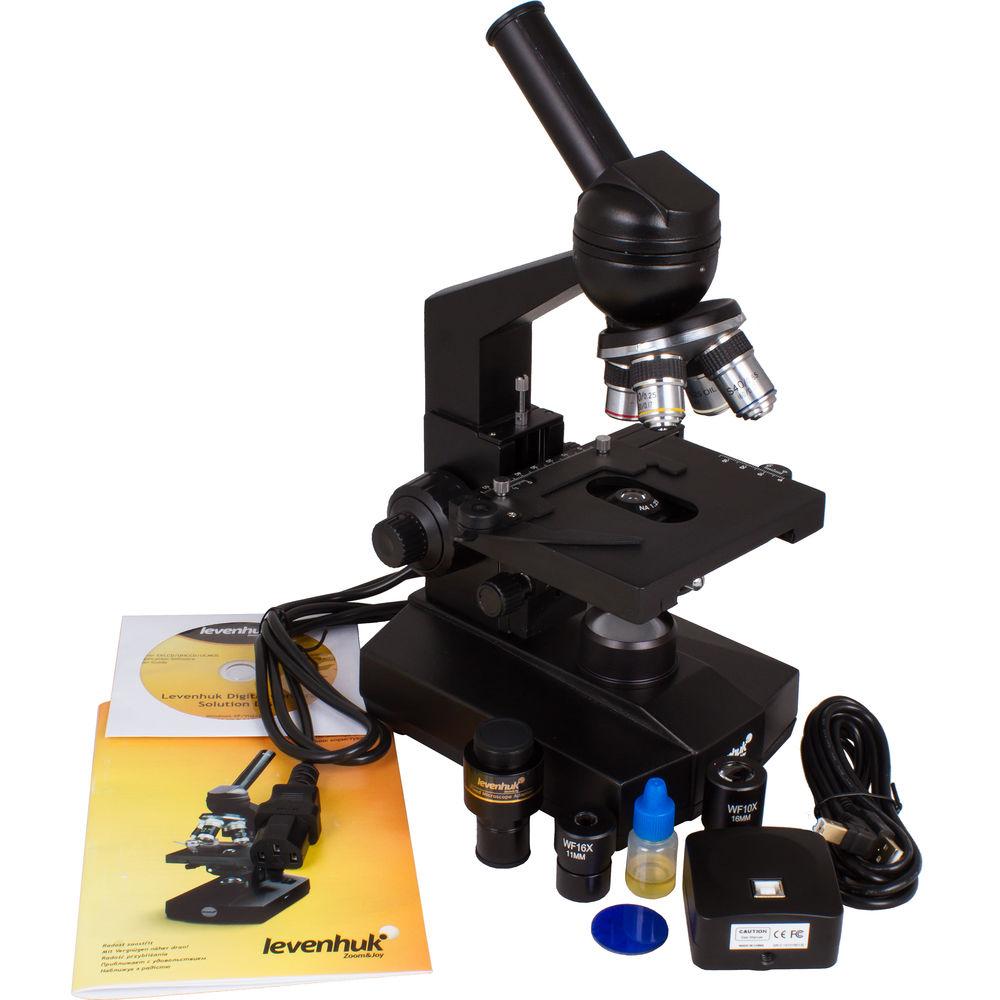

In the Box Levenhuk D320L Monocular Microscope with 3.1MP Camera (110V, Matte Black) - 3.1MP C310 NG Camera
- Power Cable
- USB Cable
- 2 x 16x WF Eyepieces
- Immersion Oil
- Software Installation CD
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk D320L Monocular Microscope with 3.1MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk D320L Specs | Microscope Type | Compound | | Eyepiece | 10x WF, 16x WF | | Nosepiece | Rotating, ball-bearing | | Objectives | 4x: 0.1 NA
10x: 0.25 NA
40x: 0.65 NA
100x: 1.25 NA | | Head | Rotates 360° | | Focuser | Coaxial fine and coarse | | Light Source | 12 W halogen lamp | | Light Control | Rheostat | | Imager | Resolution: 3.1MP, 2048 x 1536 (max sill)
Type: CMOS
Frame Rate: 11 fps
Active Range: 75 dB
Pixel Size: 3.2 x 3.2 µm
Chip Format: 1/2"
Spectral Range (Visible): 400 - 650 nm
Sensitivity: 1.5 V/lux.sec @ 550 nm
Image File Type: BMP, TIFF, JPG, PICT, SFTL
Video File Type: WMV, H264, AVI
Filed of View: 18 mm
White Balance: Auto, manual
Exposure: ERS
Exposure Control: Auto, manual
Power: USB 2.0
Operating System: Windows 2000, XP (SP2), 2003, Vista 7, 8, and 10; Mac OS 10.6 - 10.10; Linux 2.6
Operating Temperature: -22 to 158°F / -30 to 70°С | | Specimen Stage | Mechanical | | Overall Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
