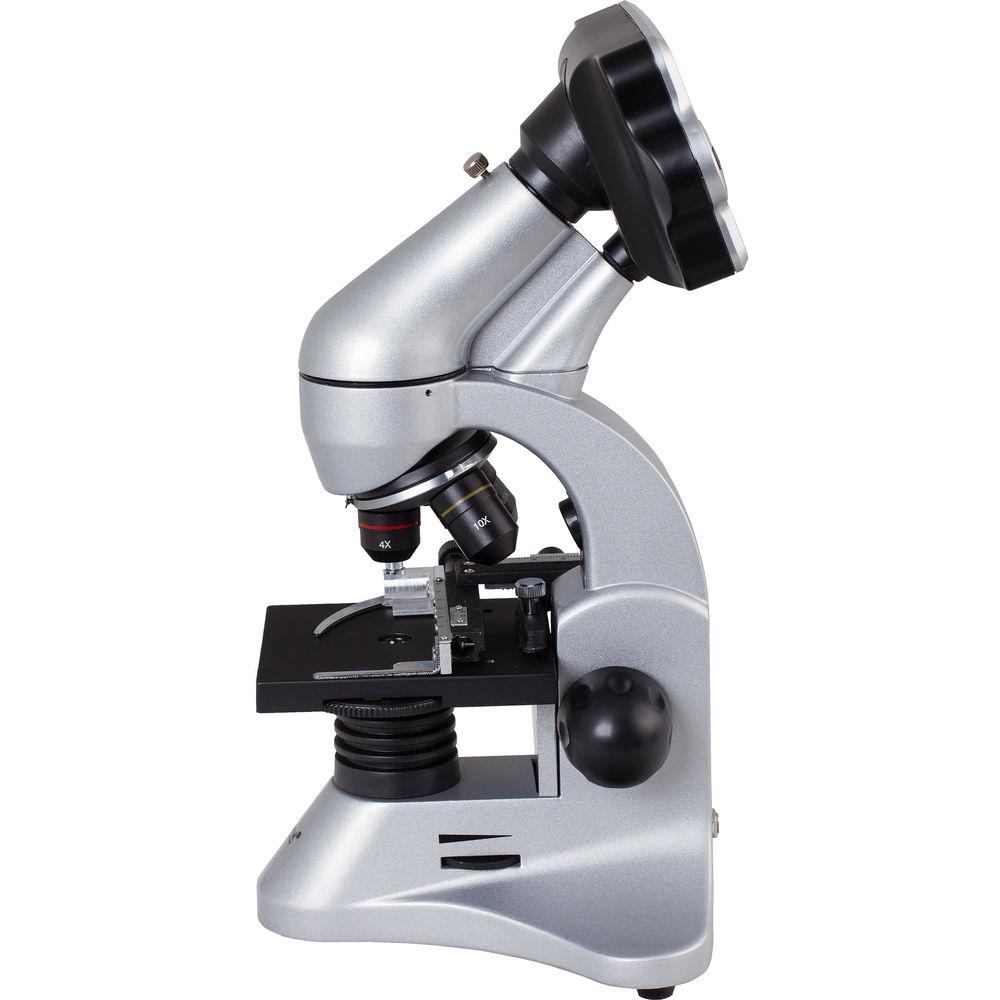

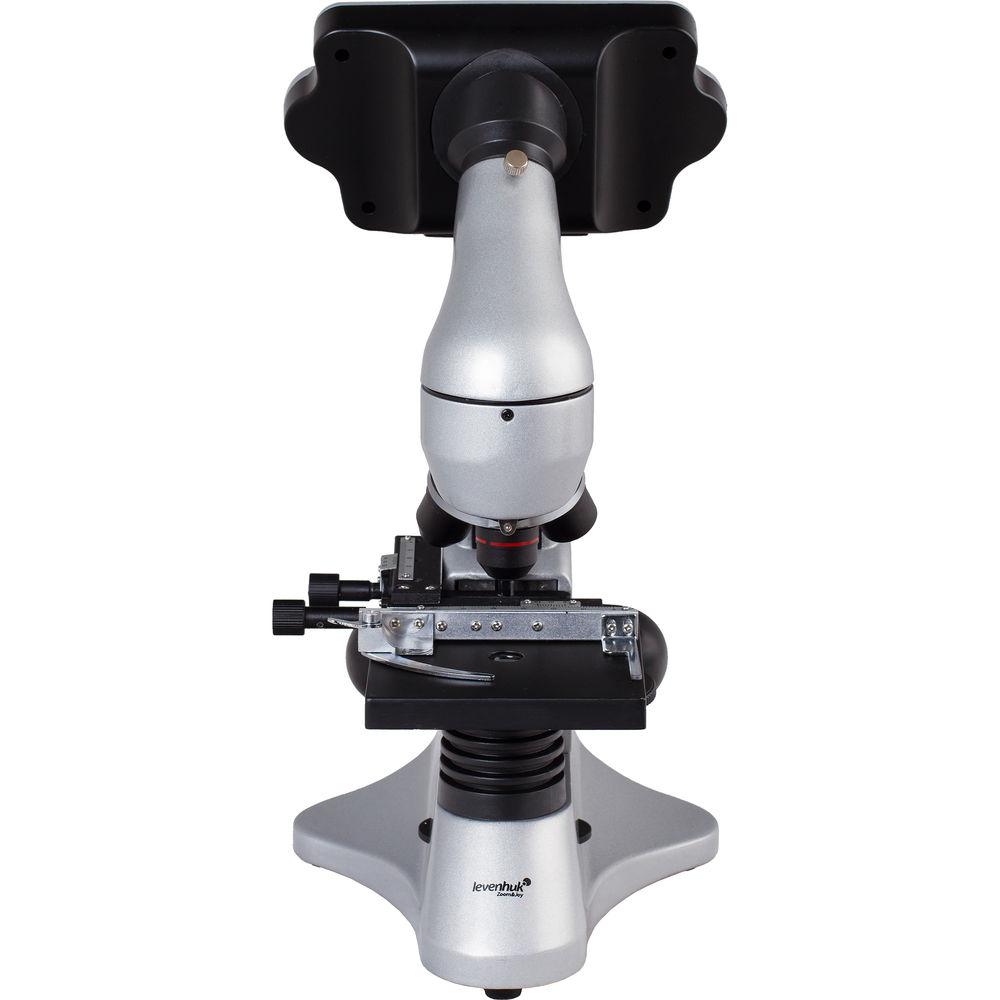

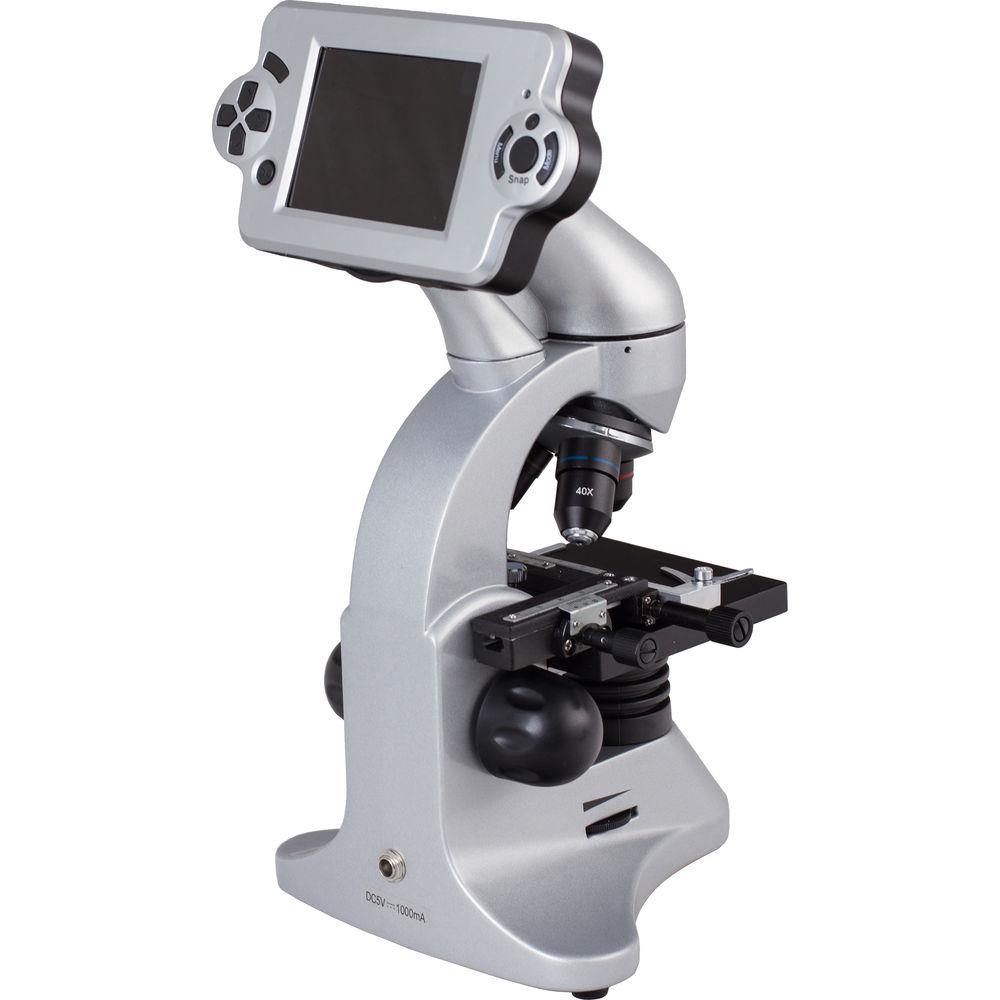

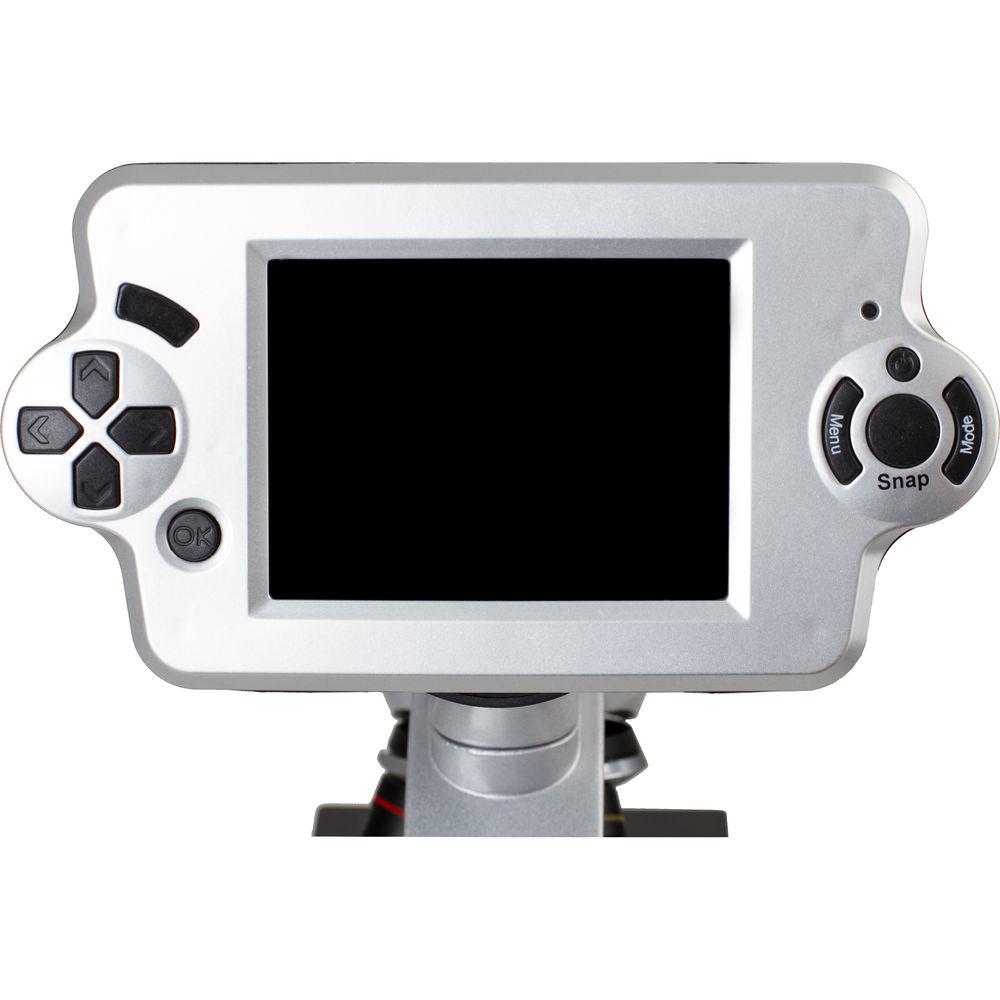

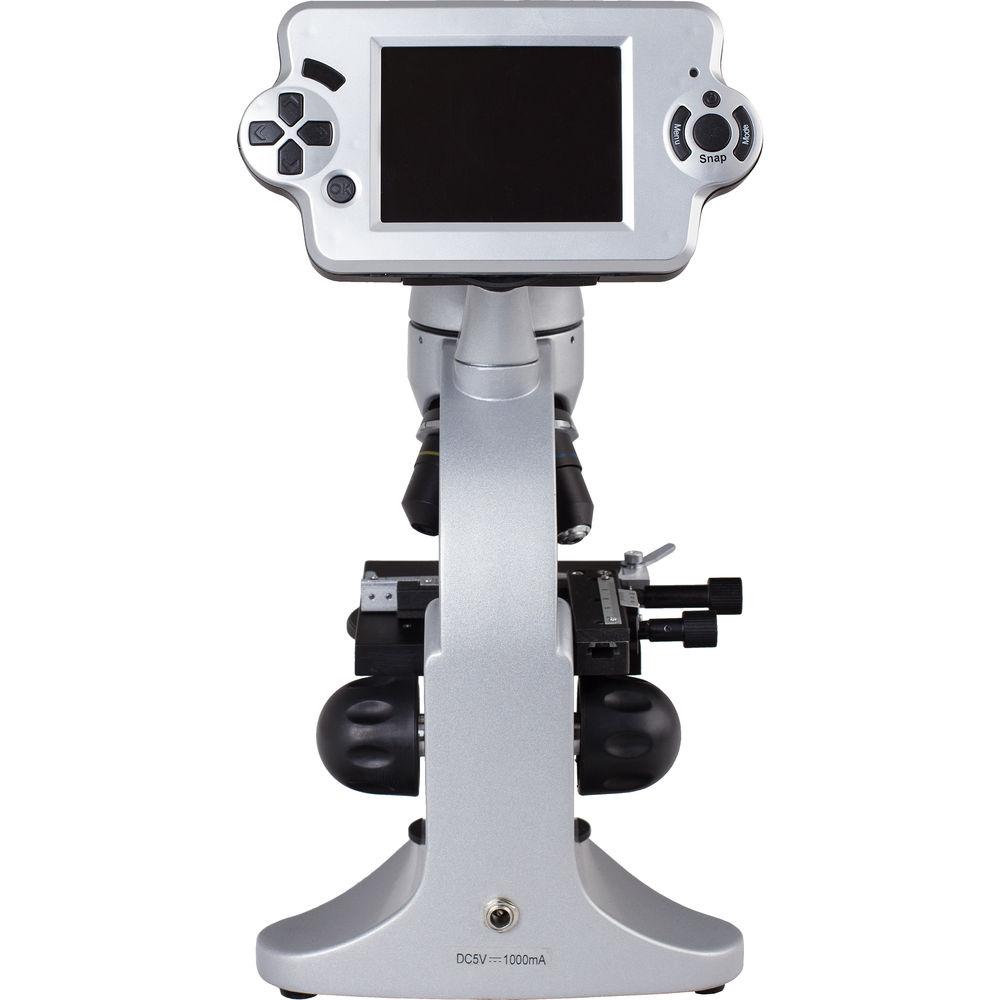

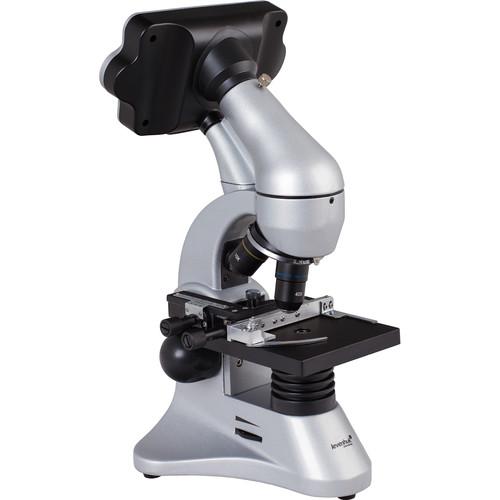

Product description Use the Levenhuk D70L Digital Biological Microscope Kit to expand your professional capabilities or educational pursuits. The kit contains everything one needs to get a streamline introduction to microscopy and get started with more advanced projects right away. You will get a lab-grade microscope with a precision stage, a 2.0MP digital camera module, and a set of accessories and tools. The optical system of this microscope features three objective lenses (4x, 10x, and 40x) on a rotating nosepiece that together with a 10x widefield eyepiece provide up to 400x optical magnification. You can bump up the total magnification to 1600x by using the digital zoom. Using the included 2.0MP camera you can view your slides on the 3.6" LCD display or capture images and videos of the micro-structures and save your data to the microSD memory card. Should you decide to use the device as regular optical microscope, you can easily detach the digital camera module from the head and use the included 10x widefield eyepiece instead. For delivering images with a high visibility of details, the microscope offers bottom and top LED illumination lamps with adjustable brightness.
The beauty of this microscope is that it can be used as a cordless field microscope or as a stationary instrument. For cordless operation, the scope can be powered by 2 user-supplied AA batteries, and for standard corded tabletop operation, the scope includes a 110V power supply. Underneath the objective turret, you will find a 3.7 x 3.5" stage with precision motion controls for the 2 axes and a lockable slide bracket. The stage also has a built-in wheel with 5 color filters for contrasting various microscopic structures on your slides. To help users transfer this instrument from place to place, the metal housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled fine and coarse focusing. - Imager & Optical Performance
-
- 2.0MP CMOS sensor
- Glass optics
- 4x, 10x, and 40x objectives
- 10x widefield eyepiece
- 40-400x total magnification
- Up to 1600x with digital zoom
- Fine and coarse focusing
- Wheel with 5 color filters

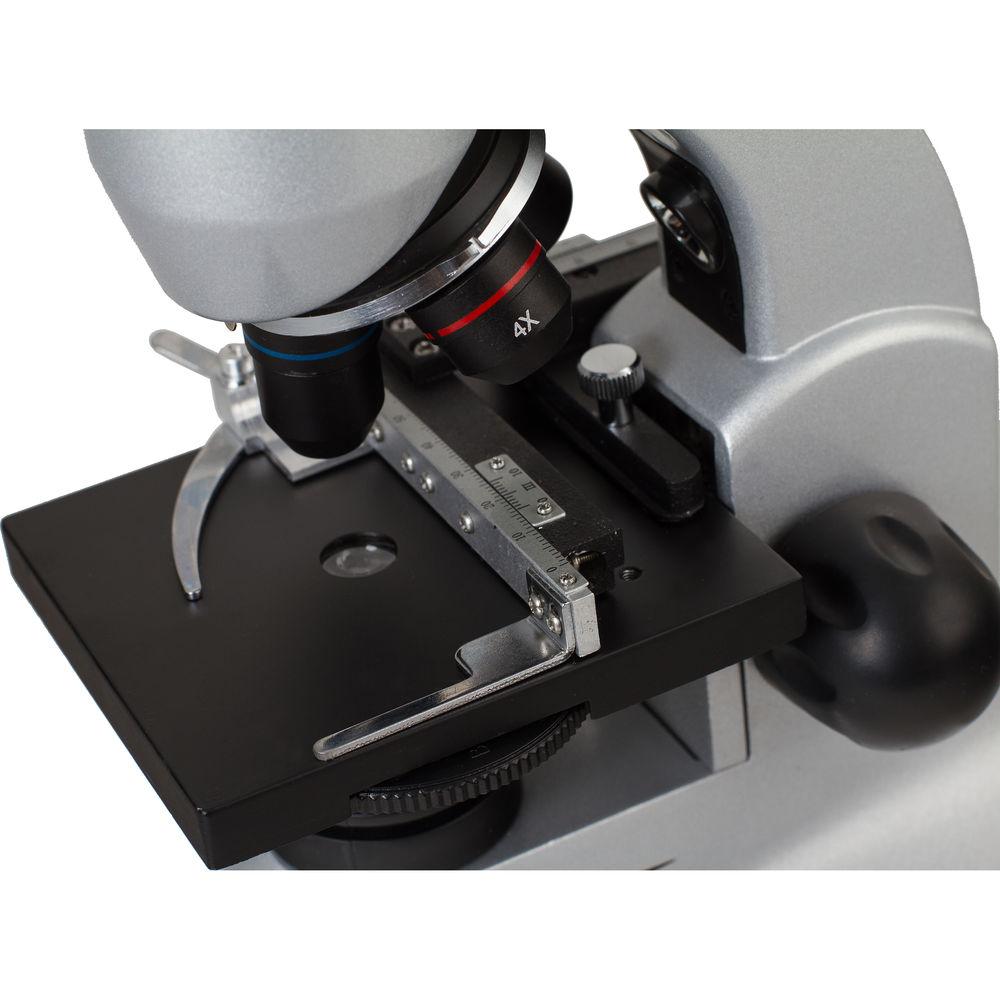

- Stage
-

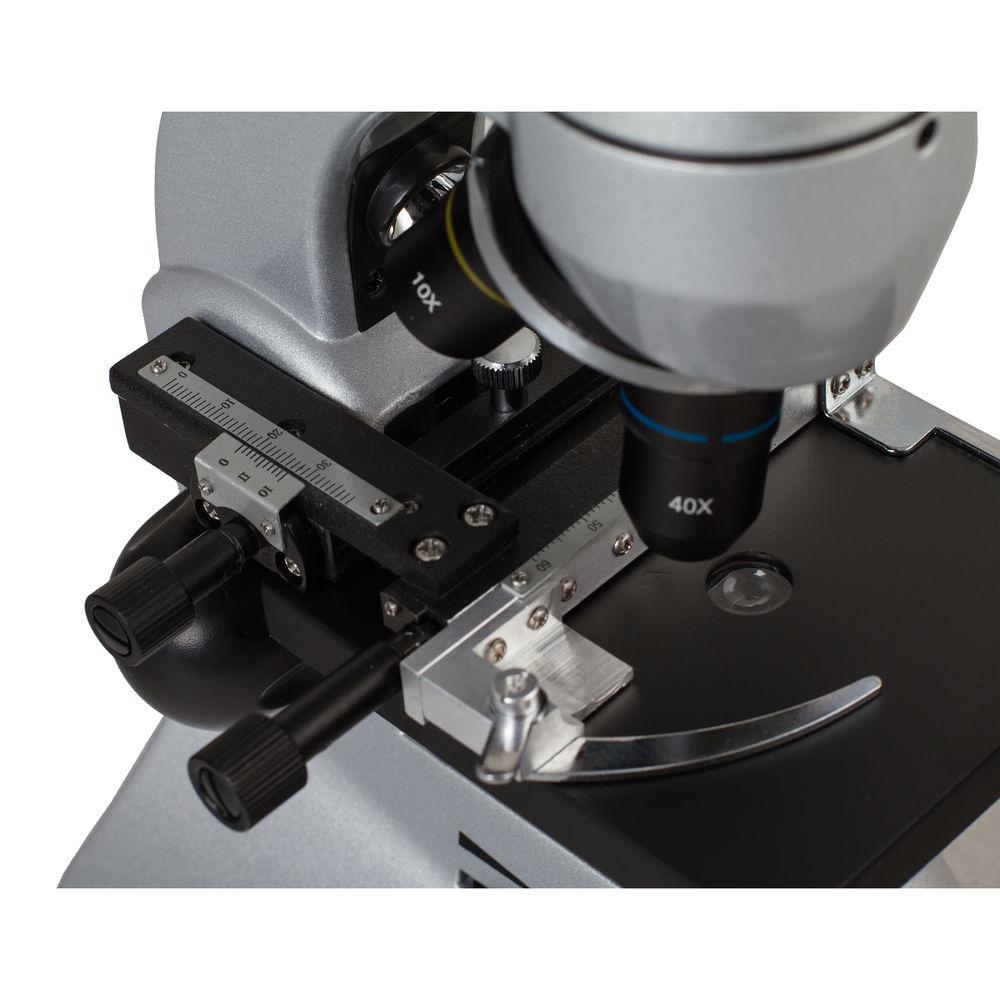

- 3.7 x 3.5" stage
- Vernier motion controls
- Locking-screw stage stop
- Rack-and-pinion mechanism
- Locking specimen bracket
- Use and Handling
-
- Top and bottom LED illumination

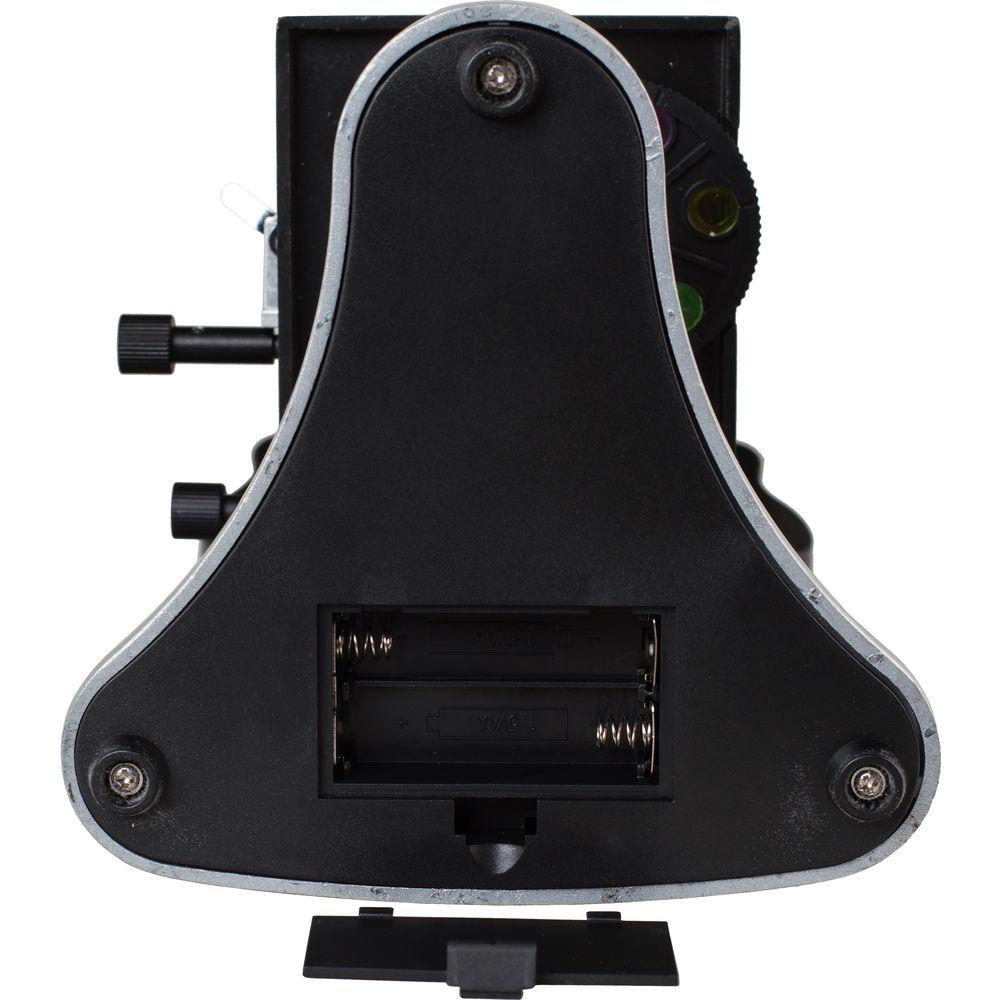

- Cordless operation powered by 2 user-supplied AA batteries

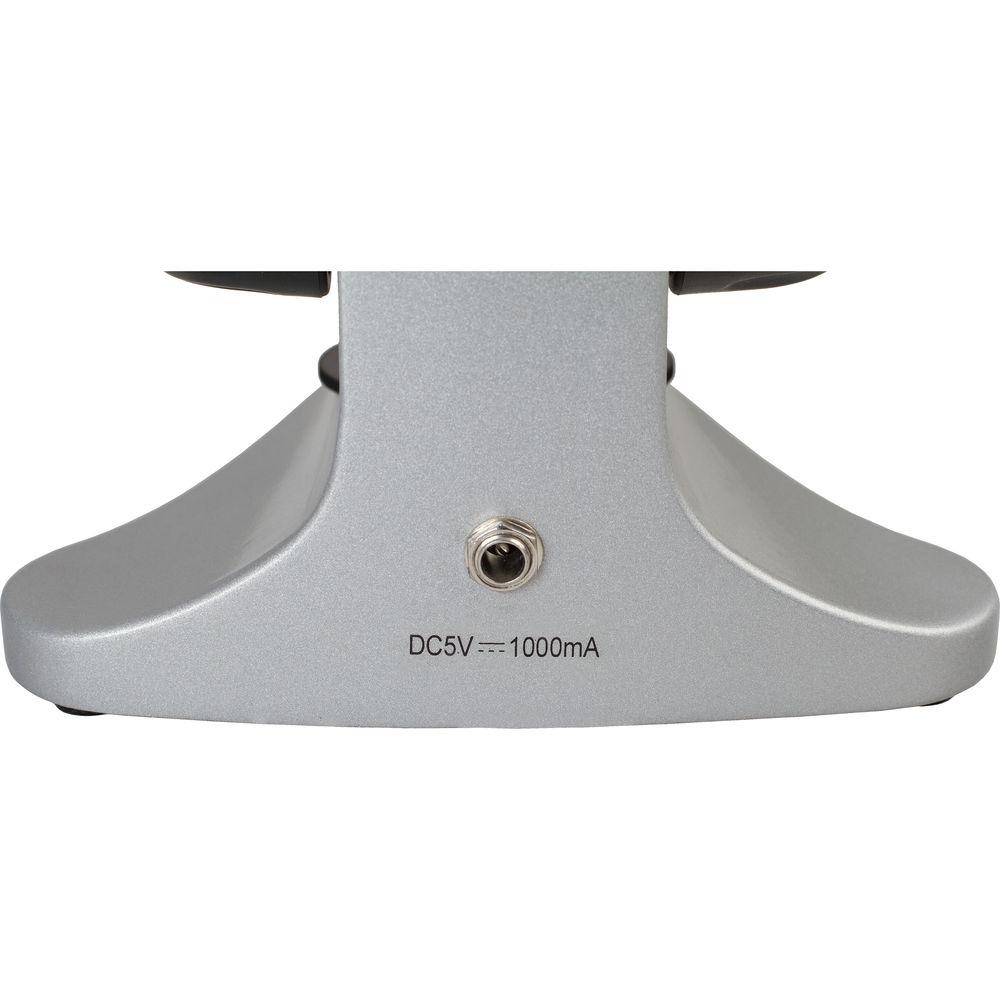

- 110V power supply included
- microSD memory card slot
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability
- Oversized focusing knobs
- Included Levenhuk K50 Accessory Kit
-
- Forceps
- Dropper
- Hatchery for brine shrimp
- Microtome - a tool for making thin slices of specimens for making slides
- Vial with yeast
- Vial with pitch for making specimens
- Vial with sea salt
- Vial with brine shrimp
- 5 prepared specimens
- 5 blank slides
UPC: 611901508634 In the Box Levenhuk D70L Digital Biological Microscope Kit (Cordless, Gray) - K50 Experiment Set
- Plastic Storage Case
- 110V Power Supply
- USB Cable
- 10x WF Eyepiece
- Eyepiece Adapter
- 2.0GB microSD Card
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk D70L Digital Biological Microscope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk D70L Specs | Sensor | Type: CMOS
Resolution: 2.0MP, 1600 x 1200, 800 x 600
Image Format: JPG
Video Format: AVI | | Microscope Type | Compound, digital | | Eyepiece | 10x WF | | Display | 3.6" LCD display | | Nosepiece | Rotating | | Objective(s) | 4x, 10x, 40x | | Magnification | Optical: 40 - 400x
Digital: Up to 1600x | | Focuser | Fine and coarse | | Light Source | LED, top and bottom | | Light Control | Rheostat | | Power | Internal: 2 x AA batteries
External: 110 V power supply | | Specimen Stage | 3.7 x 3.5" / 95.0 x 90.0 mm
Movement range: 0 - 0.6" / 0 - 10.0 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Package Weight | 7.765 lb | | Box Dimensions (LxWxH) | 16.1 x 10.7 x 7.2" |
