User Manual for Levenhuk DTX 500 LCD Digital Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk DTX 500 LCD Digital Microscope
- Product category: Digital Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Digital Microscopes
 |
User manual for the Levenhuk DTX 500 LCD Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

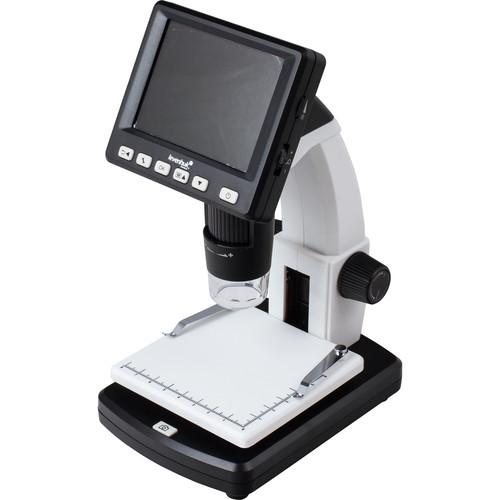

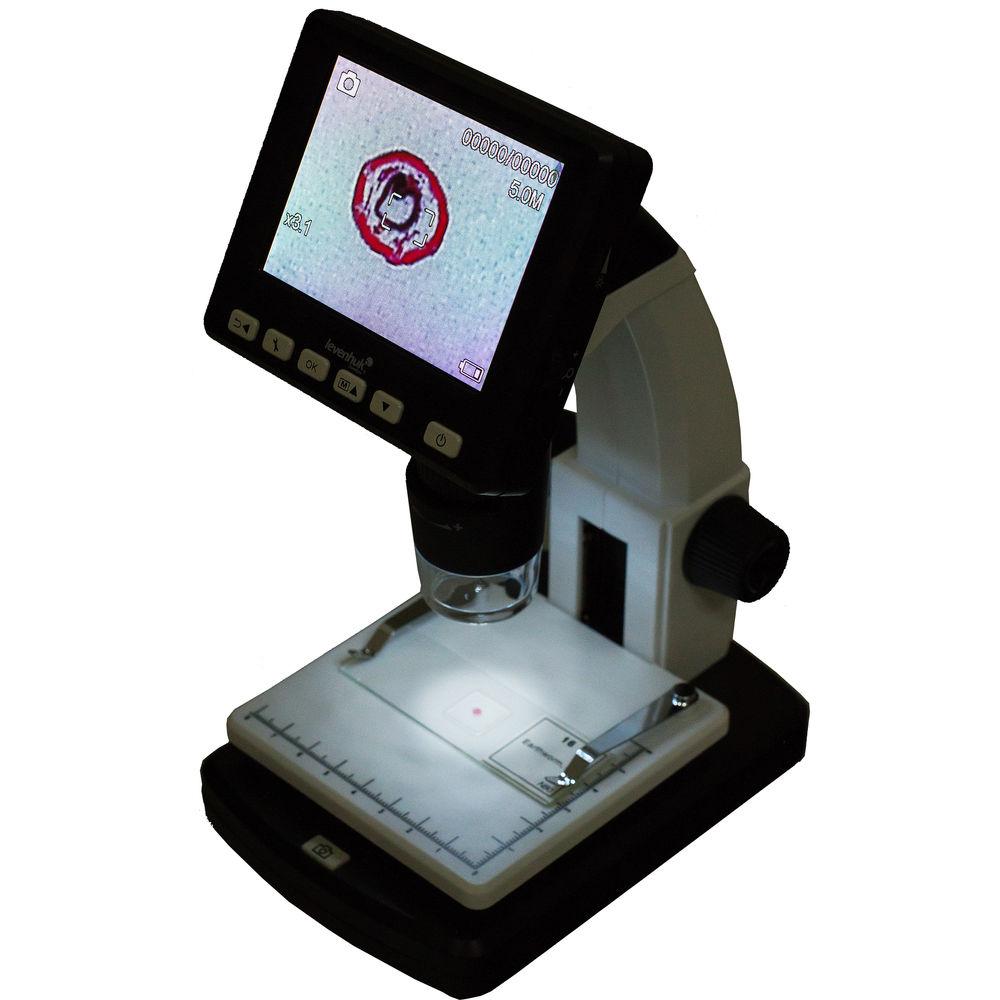

Product description Rock your field trip, lab, or classroom with Levenhuk's DTX 500 LCD Digital Microscope. This full-size digital microscope is built around a 5.0MP digital imaging sensor, capable of capturing high-resolution color images and videos at 30 fps. You can view them on the built-in 3.5" color LCD display or on an external monitor. The maximum magnifying power of 500x even allows you to study cellular structures. To make saving your findings and observations a seamless experience, the LCD module offers an easy-to-use control panel, a microSD slot (supports up to 32GB), and a mini-USB data port. To provide vivid and crisp images, the optics feature an all-glass lens system and an 8-LED illumination system with adjustable brightness. You are also empowered with fine and coarse focusing and a generous focusing range to ensure that no details are left unseen. This scope features an AV video-out port in the back.
This versatile device does not cut short on comfort and ergonomics. It features an arched frame to serve as a carry handle and packs a 1050mAh rechargeable battery for two hours of uninterrupted cordless operation. To provide enough room for movement, its sturdy wide polymer stage is extra-wide and offers two pre-loaded metal clips for securing your specimens. It also has printed graduations for accurate positioning and measurements. Using the knob on the right, you can move the stage up or down to reach an ideal sharpness of focus and then lock it with the left knob. - Image Sensor and TFT LCD Display
-
- 5.0MP image sensor
- Captures 5.0, 3.0, 1.3MP, and VGA images
- 8.0 and 12.0MP images using interpolation
- Records 5.0MP videos at 30 fps

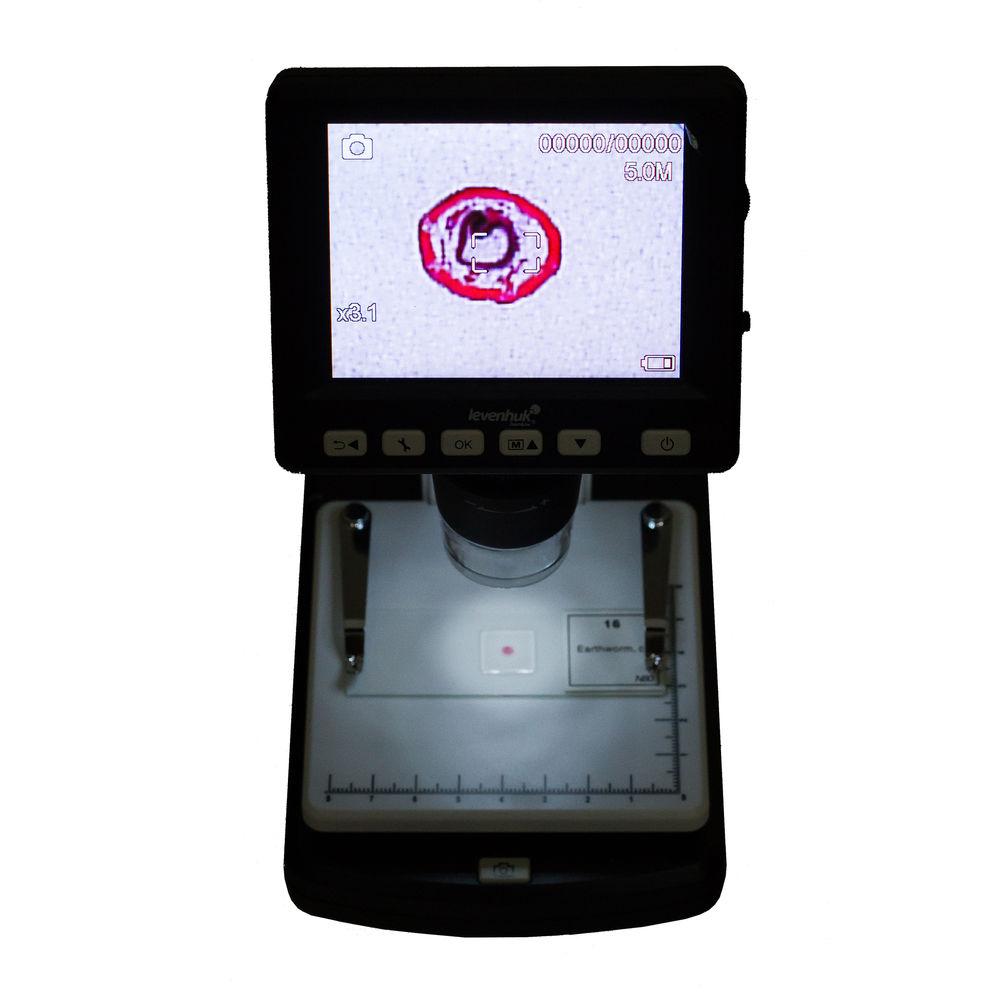

- 3.5" color LCD display
- Optical System & Illumination
-
- 20 - 500x magnification
- All-glass lens system
- Fine and coarse focusing
- Focusing range of 0 - 6"
- 8-LED illumination ring with adjustable brightness
- Construction Details
-
- Full-sized polymer frame
- Ergonomic body design

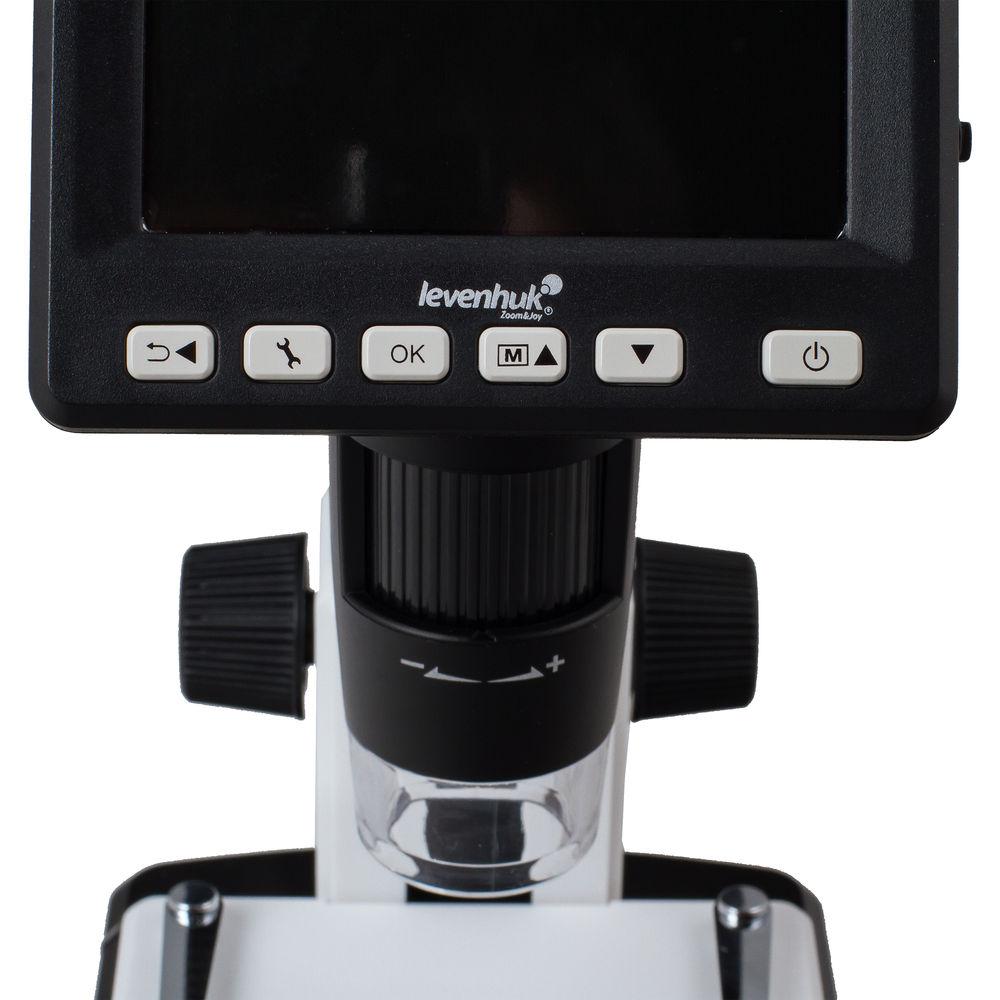

- Fine focusing wheel is located on the objective module
- Stage lock knob is located on the left side of the frame
- Stage height knob is located on the right side of the frame
- Arched frame can serve as a handle

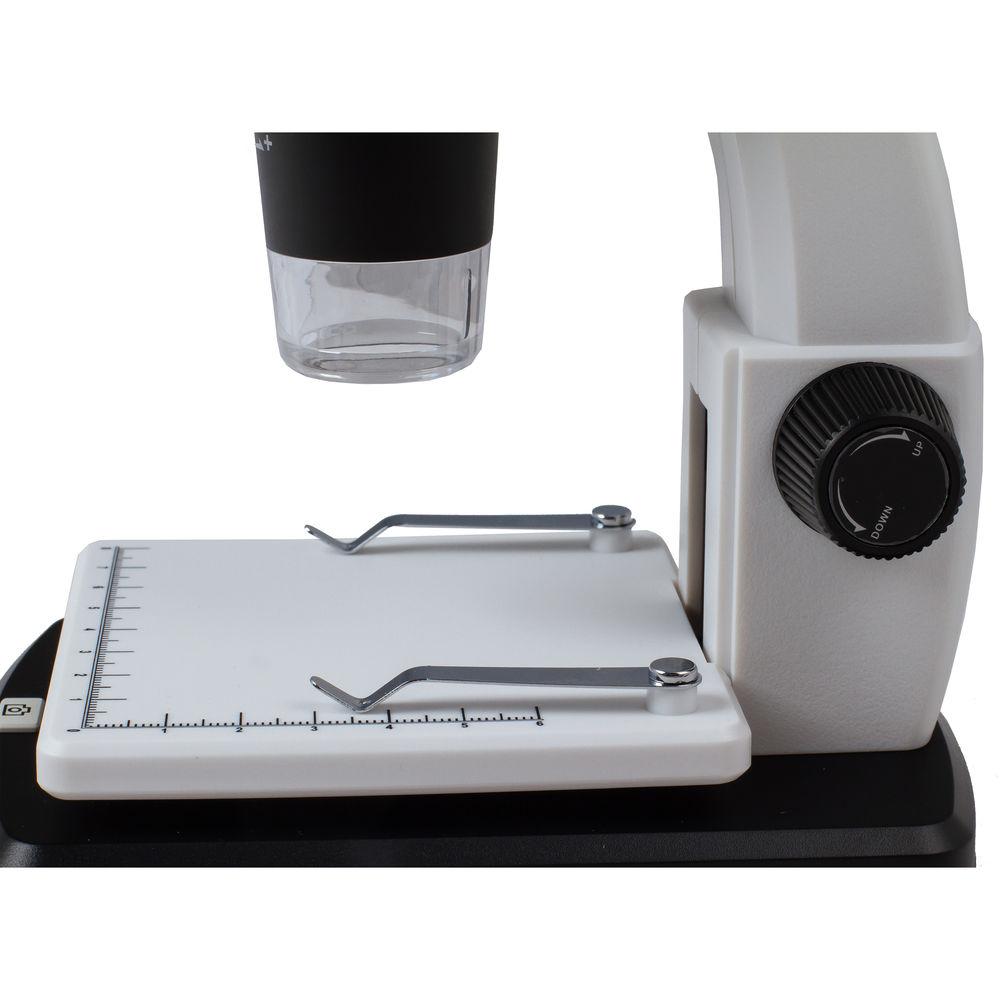

- Two pre-loaded metal clips for holding slides
- Built-in shutter control on base

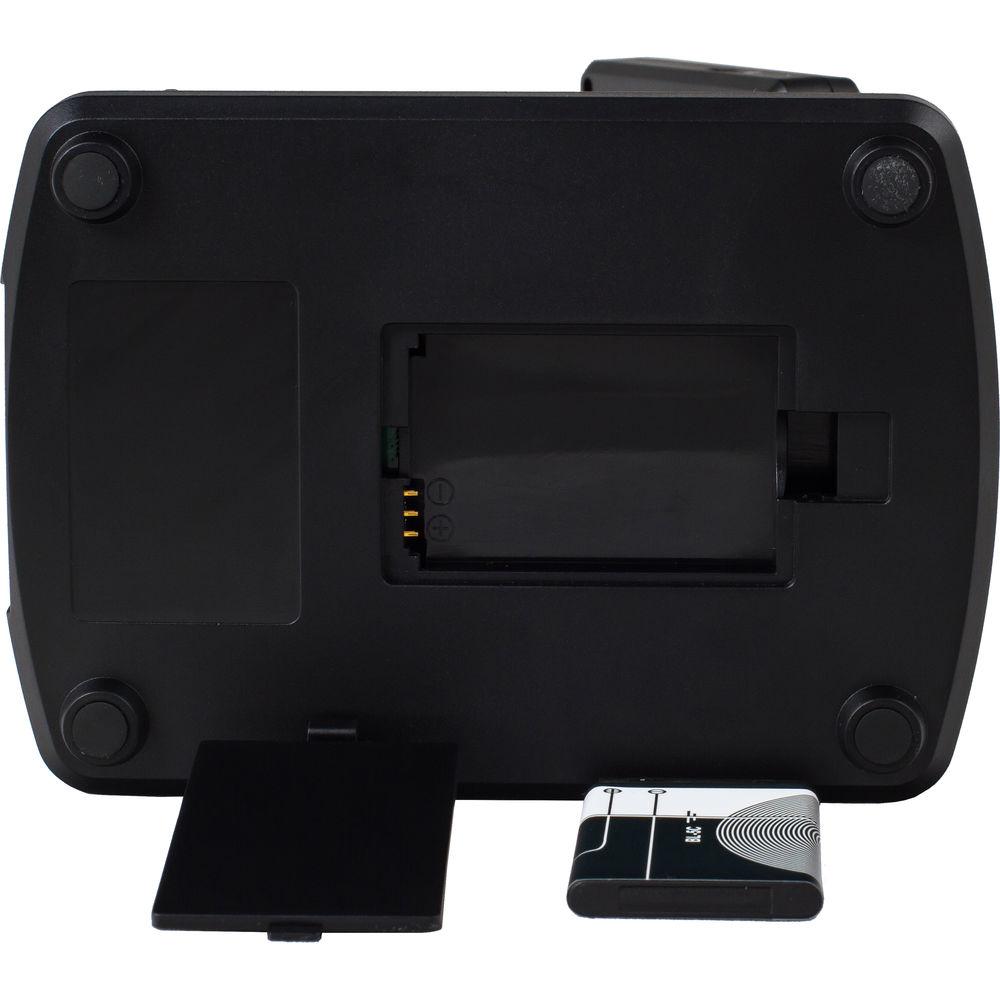

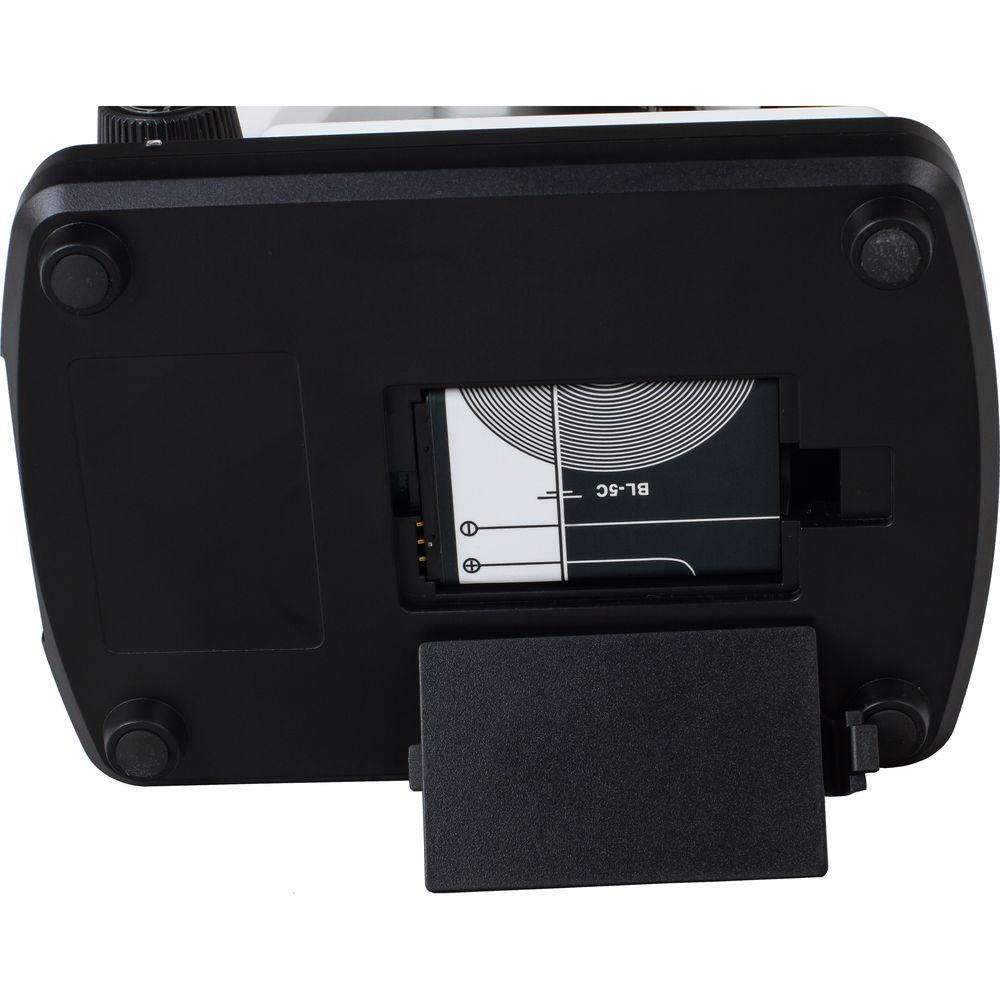

- Rechargeable 1050mAh battery allows cordless operation for two hours

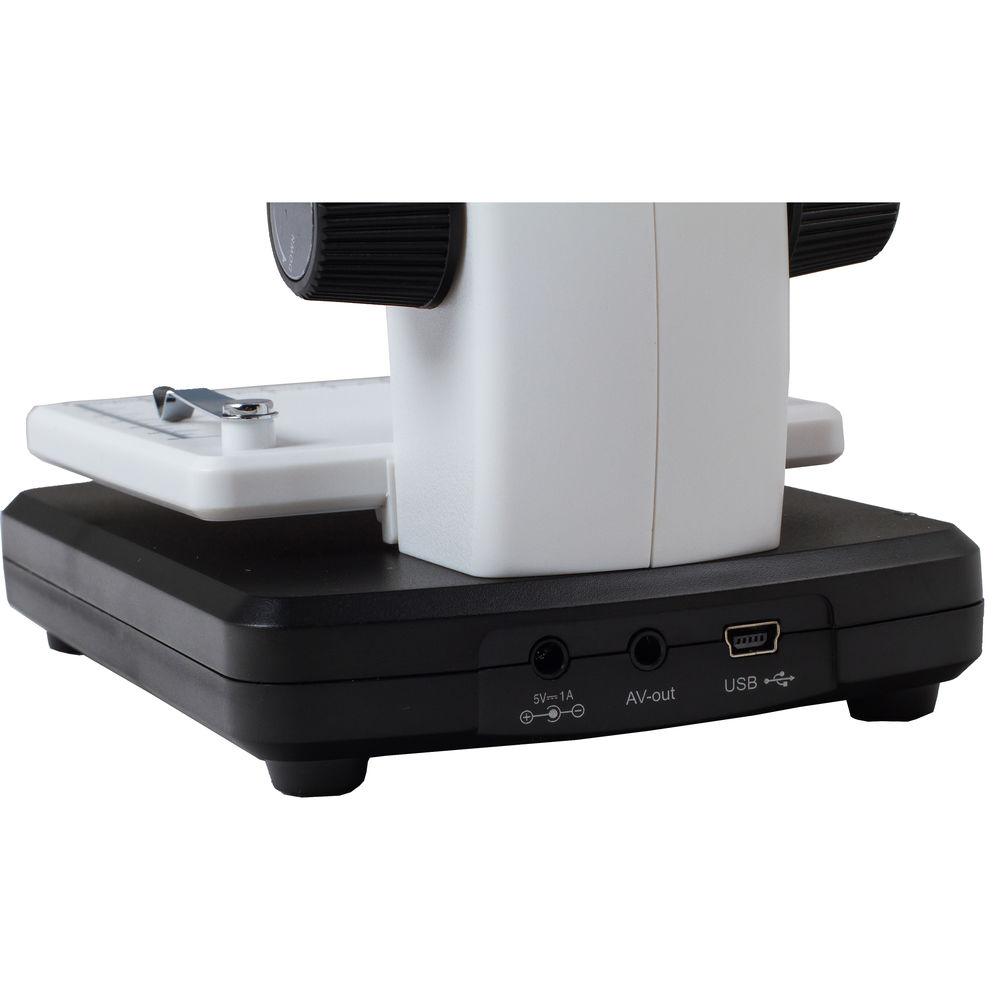

- Mini-USB port for PC connectivity
- Video-out AV port
In the Box Levenhuk DTX 500 LCD Digital Microscope (Gray) - AC Adapter
- Rechargeable Li-ion Battery
- AV Cable
- USB 2.0 Cable
- Calibration Ruler
- Software CD
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk DTX 500 LCD Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk DTX 500 Specs | | | Optical Magnification | 20x to 500x | | Max Resolution | 5 MP | | Additional Resolutions | 3 MP (Interpolated)
1.3 MP (Interpolated)
0.3 MP
8 MP (Interpolated)
12 MP (Interpolated) | | Sensor | CMOS | | Working Distance | 0 to 6" / 0 to 150 mm | | | | Video Format | 640 x 480 at 30 fps | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | USB 2.0 | | Memory Card Type | microSD (Up to 32 GB) | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.6 | | | | Battery | 1 x Rechargeable (2-Hour Runtime) | | Power | USB Power | | Display | Yes, 3.5" / 89 mm Color | | Dimensions | L: 5.9 x W: 4.1 x H: 8.9" / L: 14.9 x W: 10.4 x H: 22.7 cm | | Weight | 26.8 oz / 760 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.1 x 7.8 x 5.5" |
