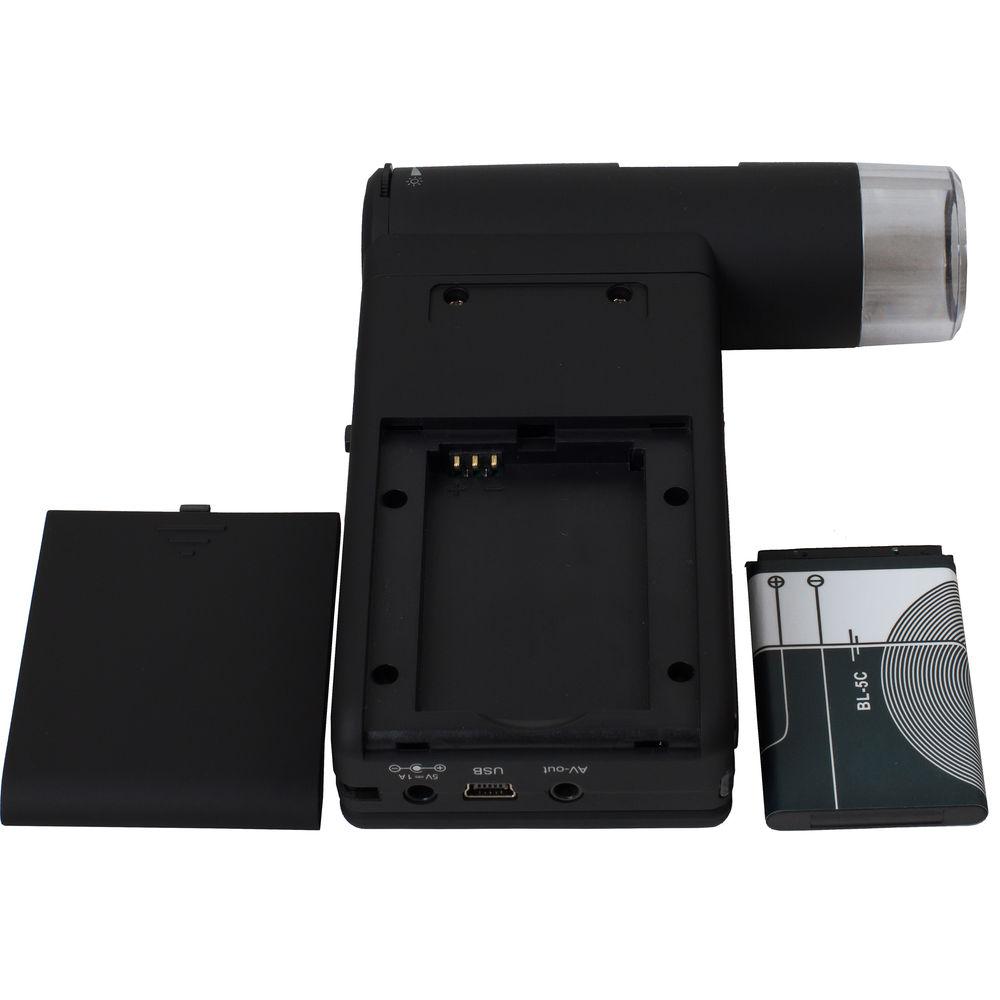

Product description Advance your hobbies and professional pursuits using the ultra-compact and portable DTX 500 Mobi Digital Microscope from Levenhuk. The device can easily fit into your pocket or purse and can be set up for use anywhere (in your office, a park, or at home) using the included stand and an articulating deployable color 3.0" LCD display. Its imaging system features all-glass optics, a high-resolution 5.0MP digital camera with a ring of 8 LED illuminators, and a 500x maximum magnification power. It can scream live on its TFT display, on your PC, or on an external monitor via the built-in mini-USB or AV-out port. It can also capture images or 30 fps videos and save them on a microSD memory card. Another highlight is its removable lithium-ion battery that can power this gadget for approximately 4 hours of uninterrupted cordless operation after a full recharge. Operating this scope and navigating through its menu options is easy, thanks to the control pad on the left side. Also included with the microscope, is a multi-language imaging software that allows users to stream, capture, and edit images and videos. - Imager and Display
-
- 5.0MP color sensor
- 12.0MP resolution attainable with interpolation
- JPEG image format and AVI video format
- 30 fps video frame rate
- Built-in 8-LED illumination ring

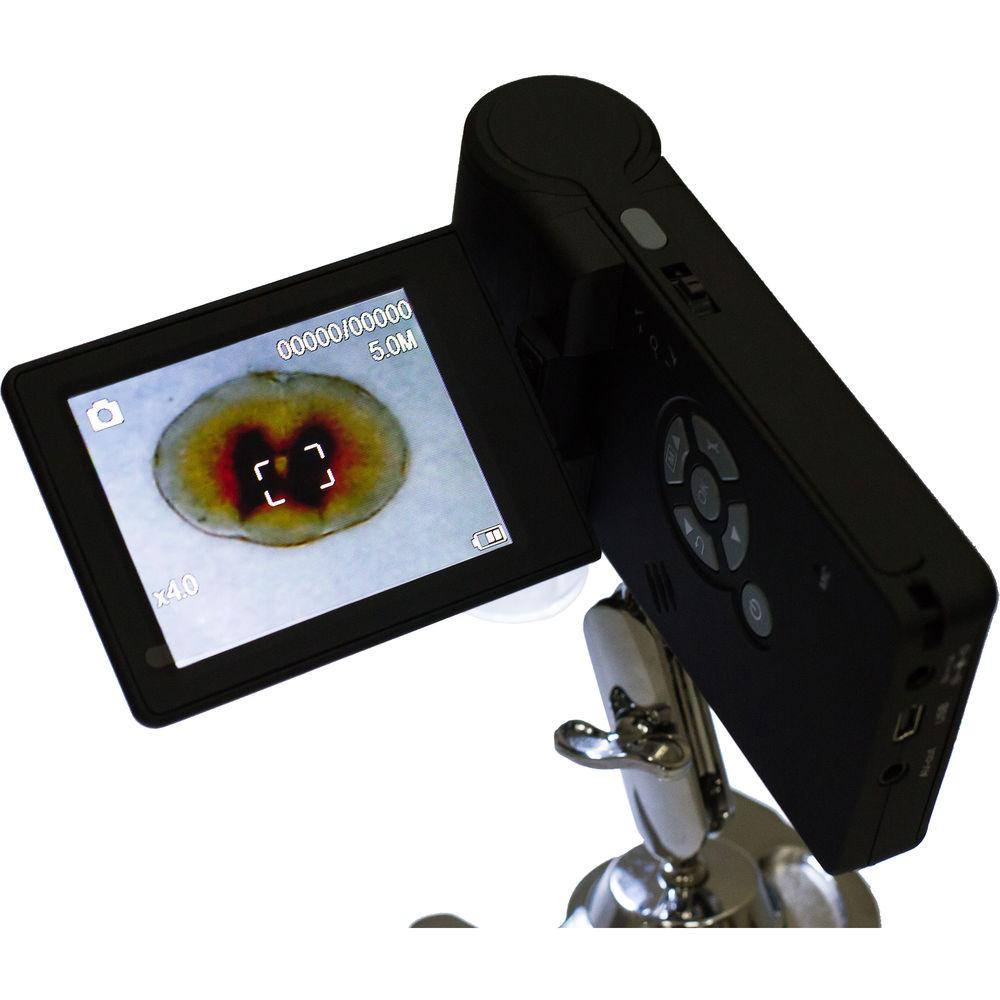

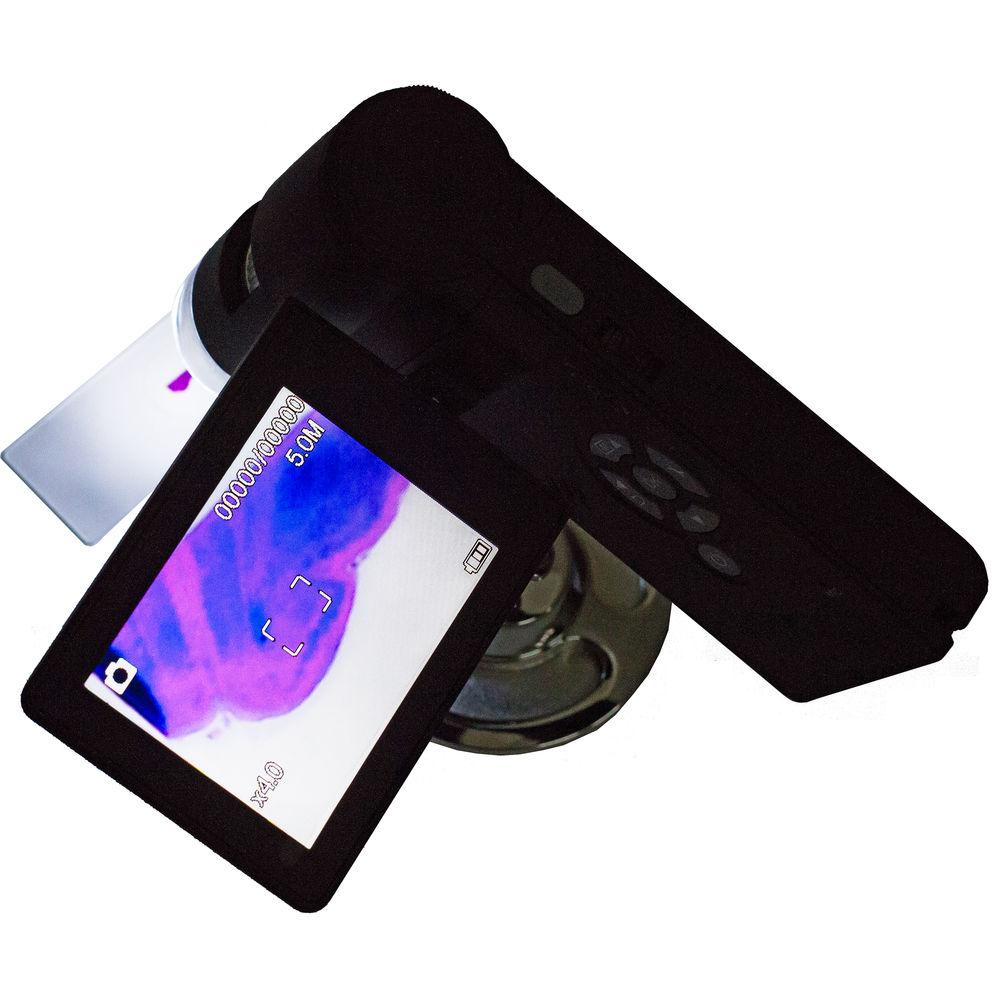

- Deployable articulating 3.0" TFT color LCD display
- Optics and Illumination
-
- Glass optics
- 20 - 500x magnification
- 0 - 1.2" focusing distance range
- Use and Handling
-
- Imaging software provides capturing and editing options
- Compatible with select Windows and Mac operating systems
- Internal rechargeable battery provides 4 hours of runtime
- Multi-language support
- Construction Details
-
- Ergonomic rubberized body

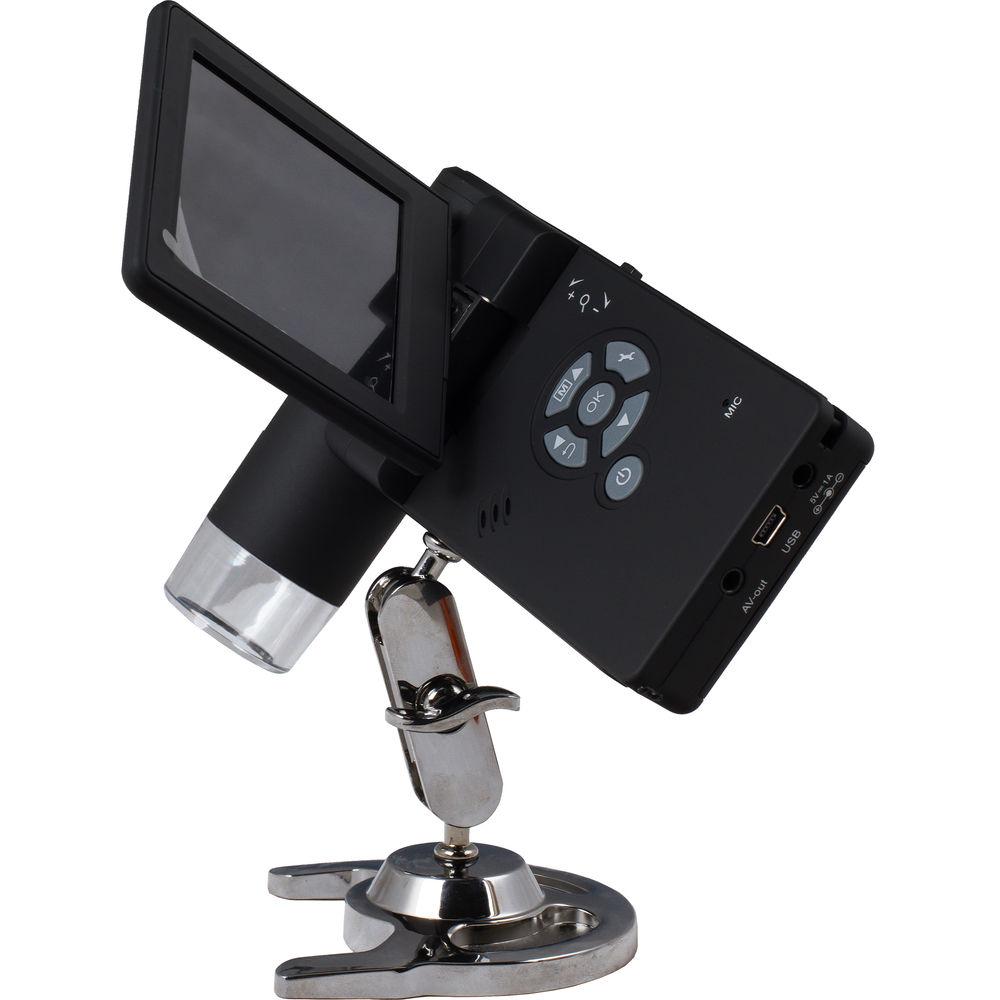

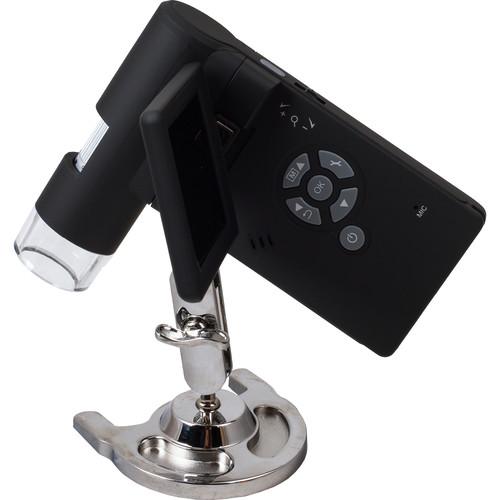

- Metal articulating stand included
- Articulating display provides a wide range of positions
In the Box Levenhuk DTX 500 Mobi Digital Microscope (Matte Black) - Articulating Stand
- Pouch
- Strap
- Mini-USB Cable
- External Power Supply
- Rechargeable Li-Ion Battery
- Software CD
- AV Cable
- Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk DTX 500 Mobi Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk DTX 500 Specs | | | Optical Magnification | 20x to 500x | | Max Resolution | 5 MP | | Additional Resolutions | 12 MP (Interpolated) | | Image File Format | JPEG | | | | Frame Rate | 30 fps | | File Format | AVI | | | | Wired Connectivity | AV Port, Mini-USB | | Memory Card Type | microSD (Up to 32 GB) | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.6 | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish | | | | Battery | 1 x Rechargeable (4-Hour Runtime) | | Dimensions | L: 6.0 x W: 2.8 x H: 12.9" / L: 15.0 x W: 7.0 x H: 33.0 cm | | Weight | 24.7 oz / 700 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 13.0 x 5.7 x 2.5" |
