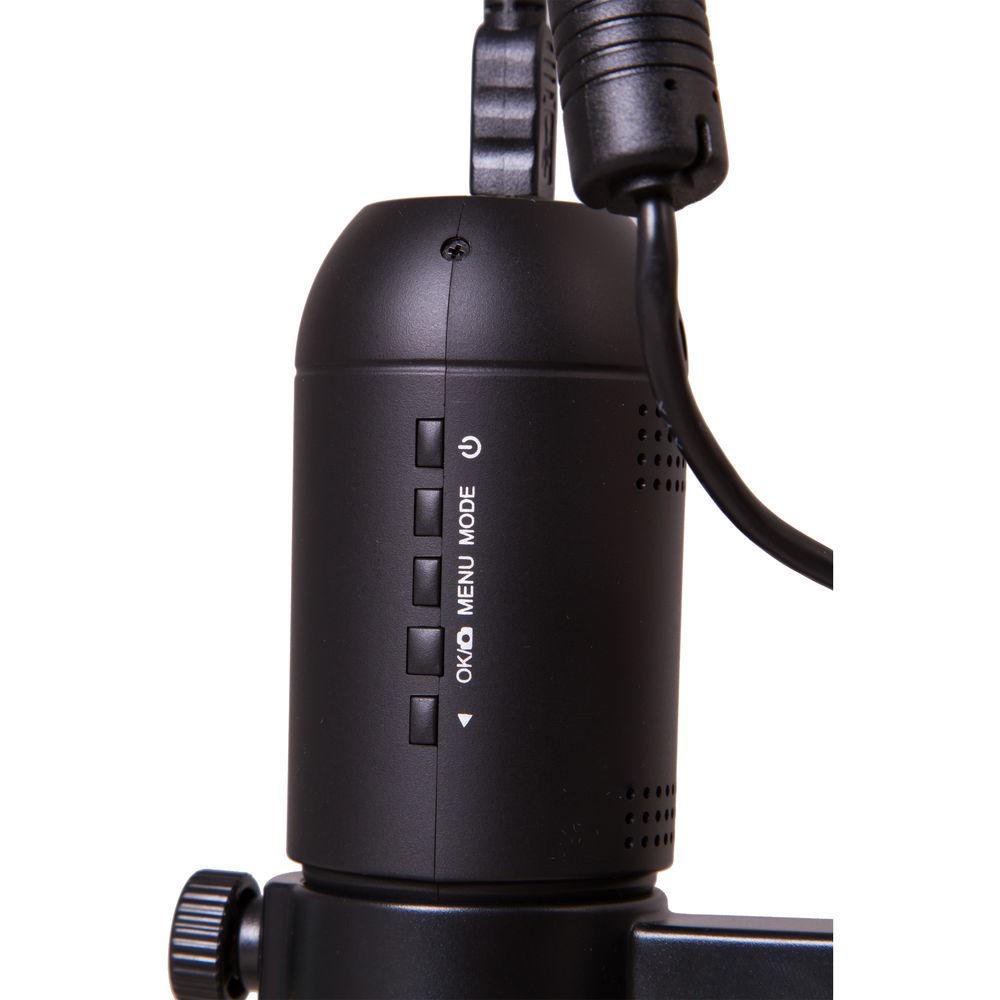

User Manual for Levenhuk DTX TV Digital Microscope Click to enlarge the picture
Contents of the user manual for the Levenhuk DTX TV Digital Microscope
- Product category: Digital Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Digital Microscopes
 |
User manual for the Levenhuk DTX TV Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

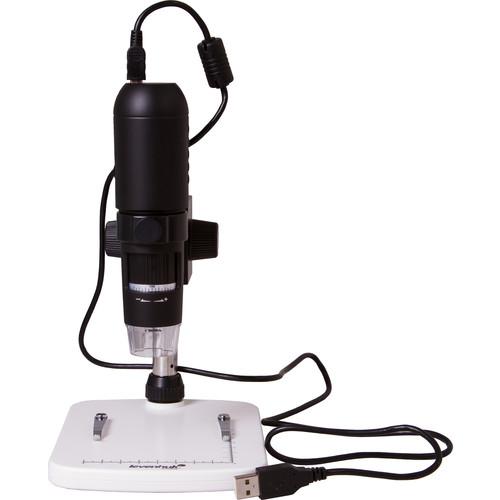

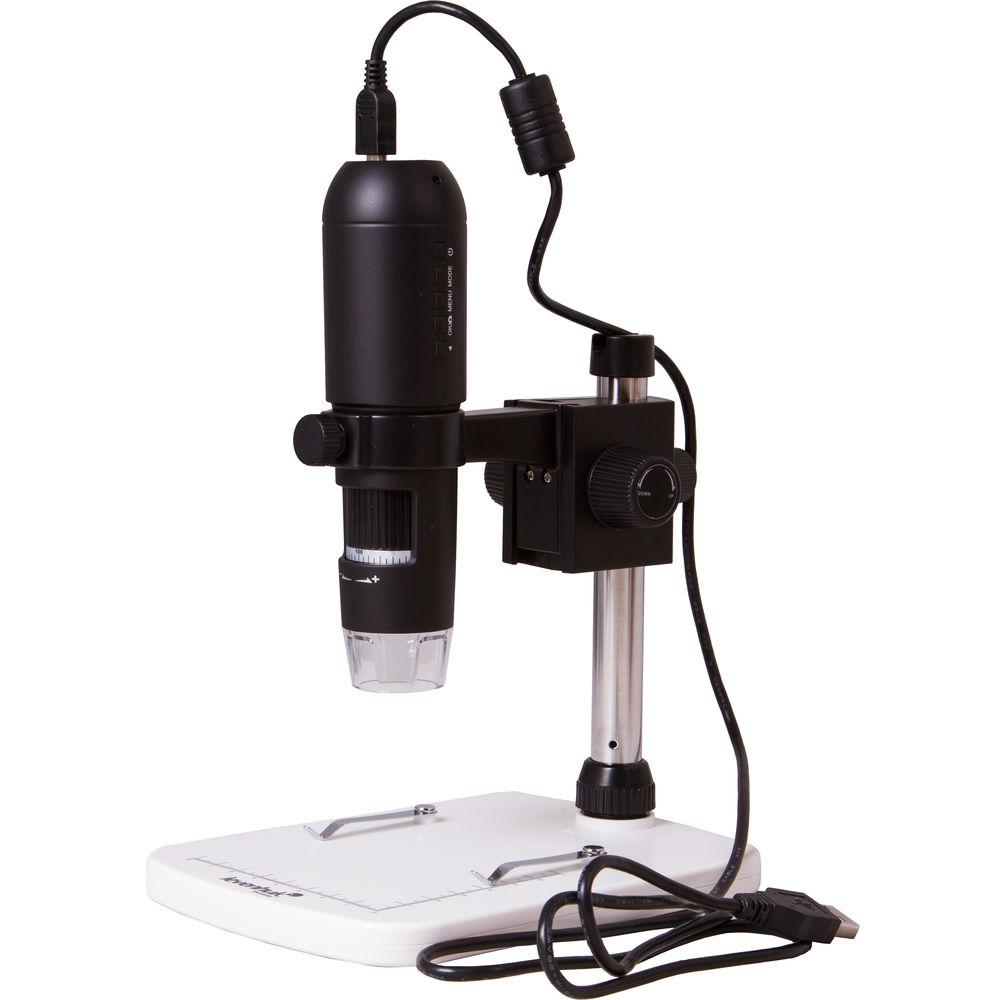

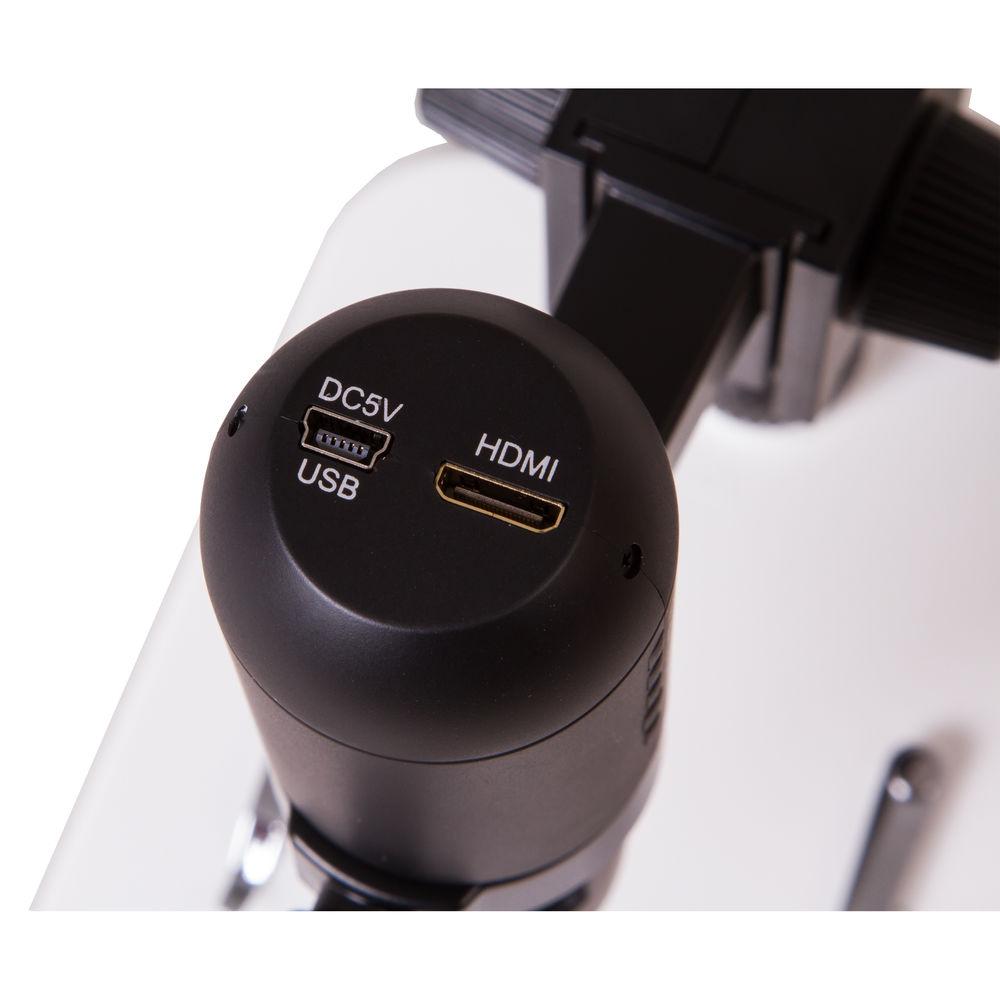

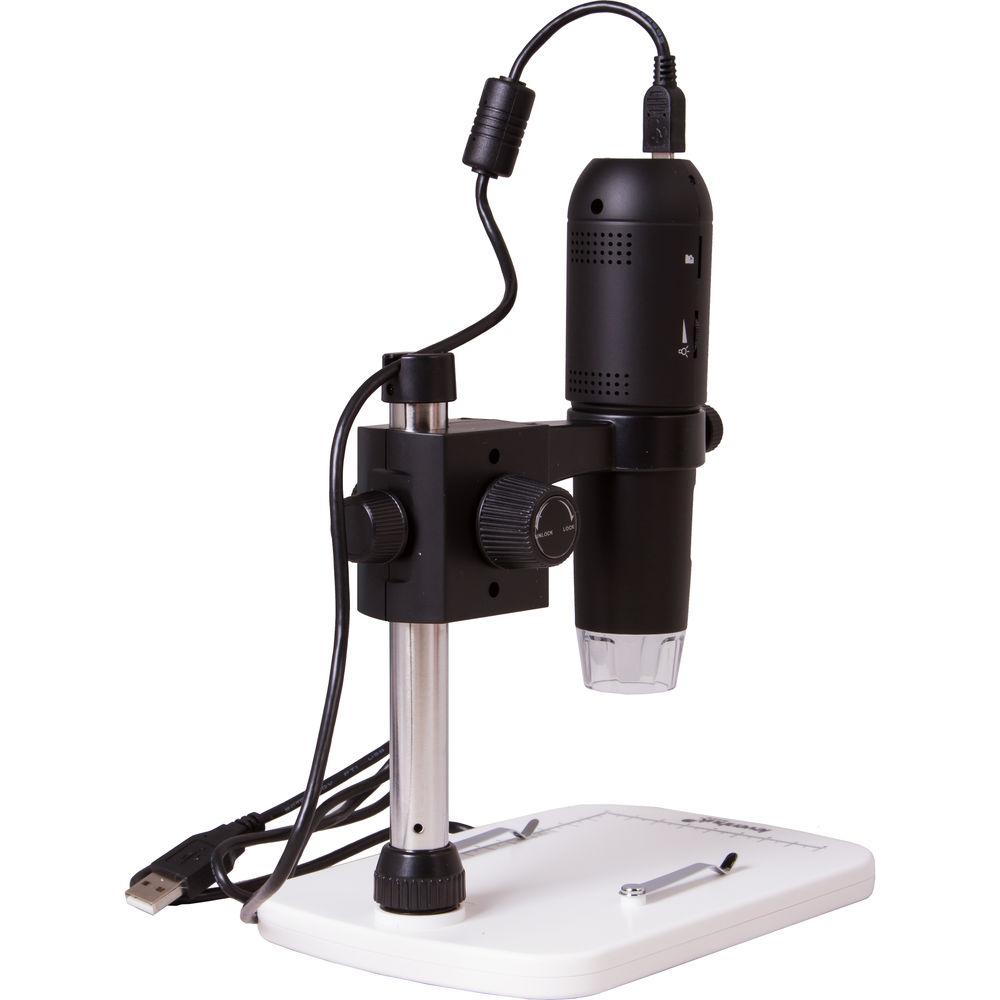

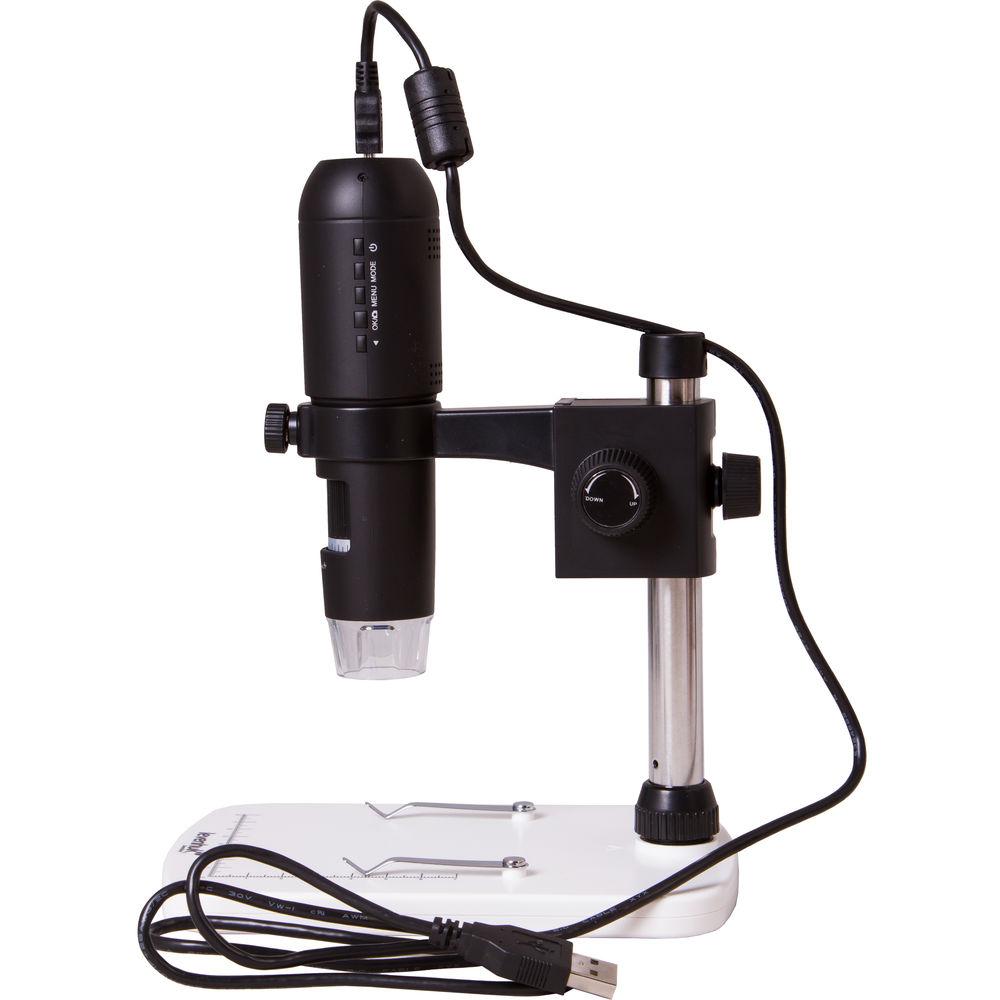

Product description Capture high-resolution still images and videos of your discoveries using the 3.0MP Levenhuk DXT TV Digital Microscope. This compact and ergonomic microscope relays your imaging data to computer or TV monitors using its USB or HDMI outputs. It can also serve as a handheld device or be attached to the included stand for hands-free operation. The stands pillar configuration allows users to adjust the work distance (height) of the microscope above the sample, and some horizontal rotation around the axis is possible.The optics provide a magnifying power range from 10x to 200x, and the illumination ring system offers 8 white LEDs. The microscope is powered through a USB 2.0 cord and works with select versions of Mac OS and Windows. Use the included software to adjust menu settings and acquire images or videos. The software offers multi-language support for English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, and Chinese. - Imager
-
- 3.0MP color sensor
- JPEG image format
- Interpolated image resolution: 14MP, 8MP, 5MP, 3MP, 2MP
- H.264 HDMI video format
- MJPEG USB video format
- Video resolution: 1080P HD, 720p, VGA
- Optics and Illumination
-
- 10 - 200x magnification

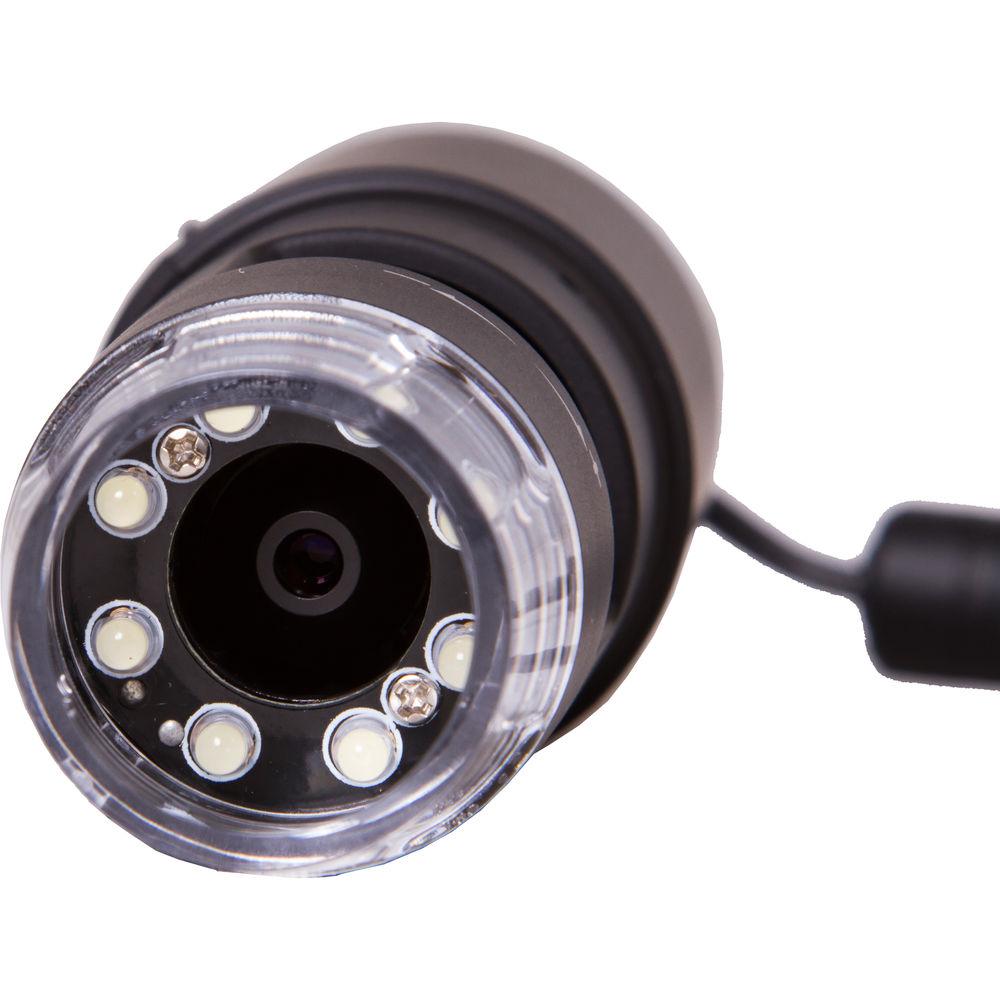

- Built-in ring of 8 white LEDs provides illumination
- 0 - 20" coarse manual focusing range
- Use and Handling
-
- USB 2.0 power cable
- Included imaging software provides multi-language support
- Compatible with select Windows and Mac operating systems
- Software Language Compatibility
-
- English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, and Chinese
- Construction Details
-
- Ergonomic body
- Designed for handheld operation

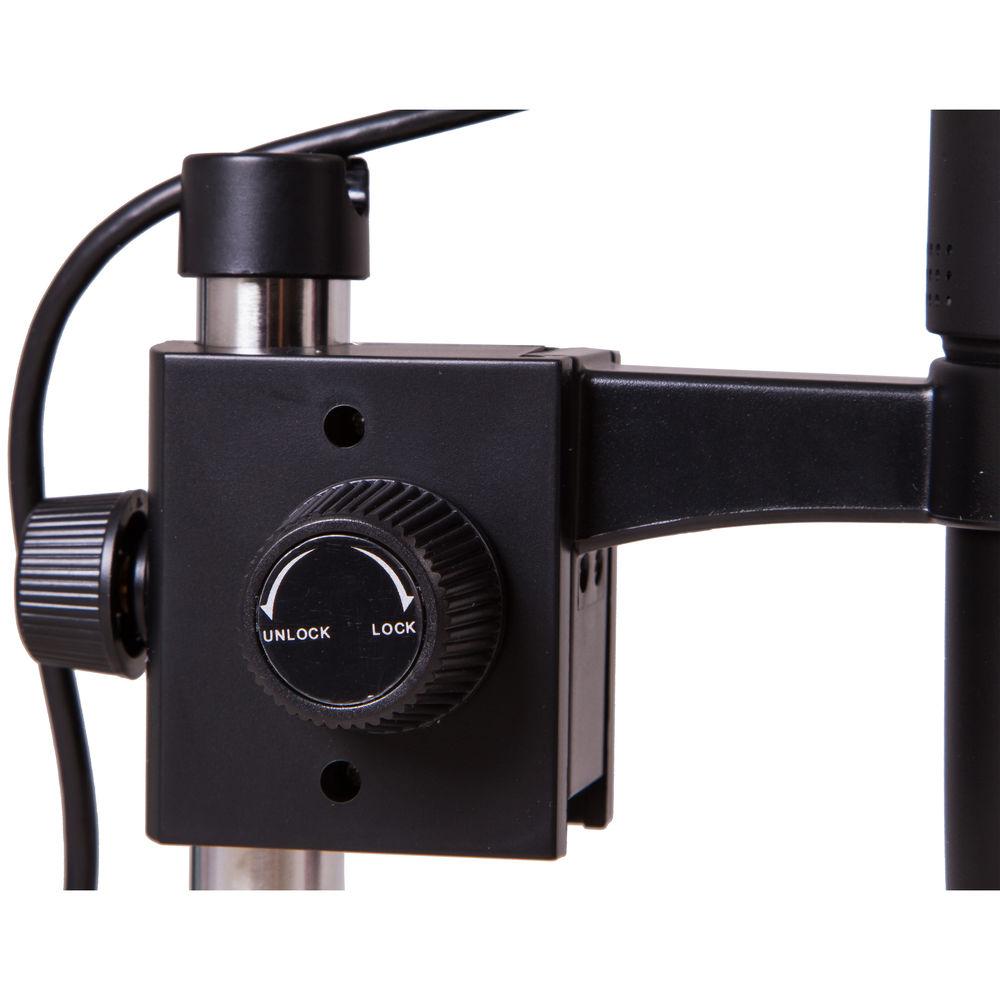

- Pillar type stand with a metal post
- Post allows adjusting height and position in horizontal plane

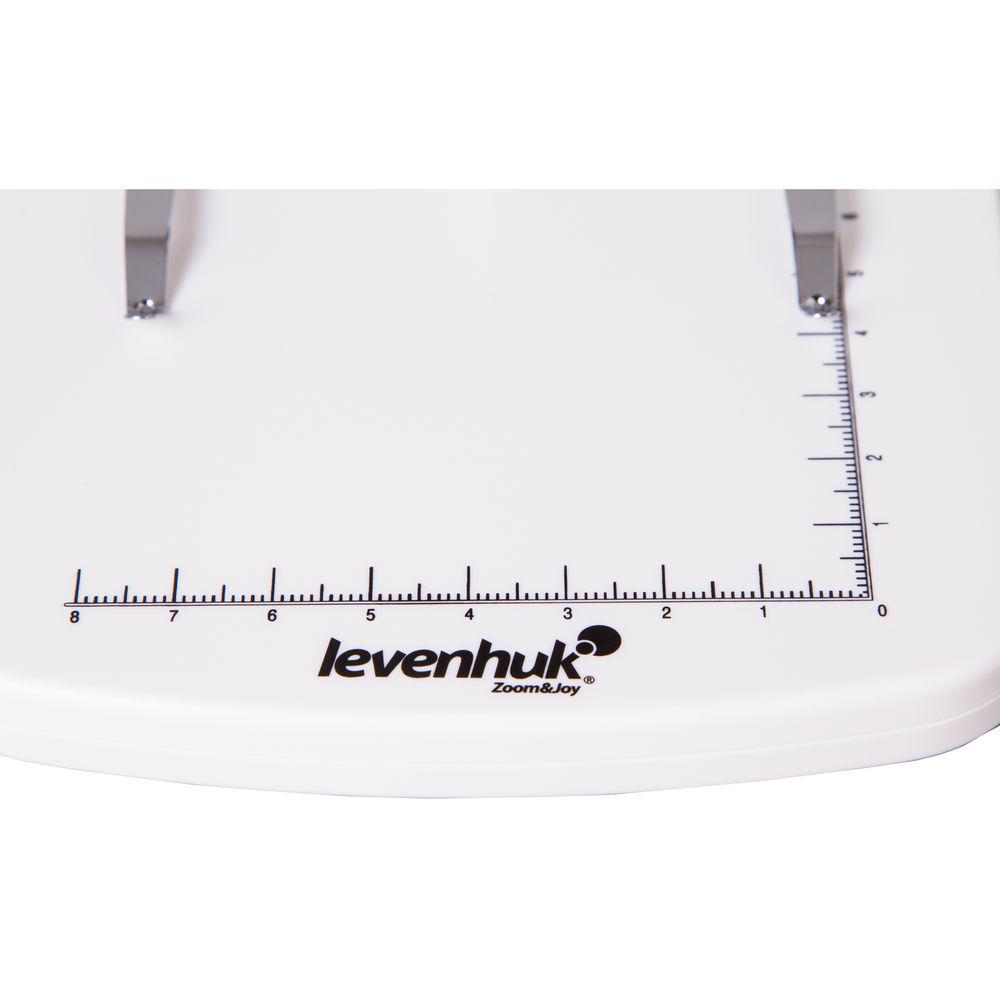

- Wide base with 2 metal specimen clips
UPC: 611901505640 In the Box Levenhuk DTX TV Digital Microscope (Black) - Stand
- HDMI Cable
- USB Cable
- Calibrating Scale
- Software CD
- 110V Adapter
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk DTX TV Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk DTX TV Specs | | | Optical Magnification | 10x to 200x | | Max Resolution | 3 MP | | Additional Resolutions | 14 MP (Interpolated)
8 MP (Interpolated)
5 MP (Interpolated)
3 MP (Interpolated)
2 MP (Interpolated) | | Image File Format | JPEG, WVGA | | Working Distance | 0 to 20" / 0 to 500 mm | | | | Video Format | 1920 x 1080p
1280 x 720p
640 x 480 | | Frame Rate | 30 fps (Max) | | File Format | H.264, MJPEG | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | HDMI, USB 2.0 | | Memory Card Type | microSD (Up to 32 GB) | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.7 or Later | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish | | | | Operating Temperature | 23 to 122°F / -5 to 50°C | | | | Power | USB Power | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.7 x 6.8 x 5.4" |
