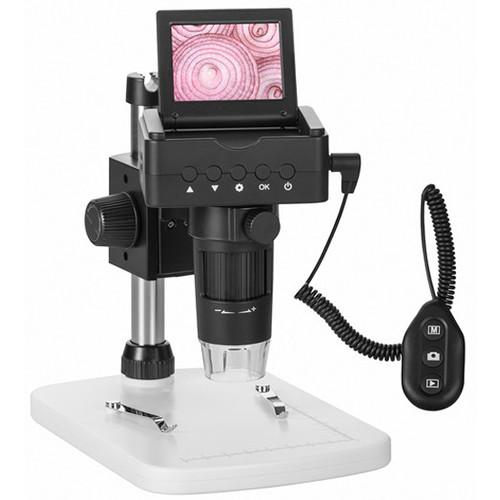

Product description Make detailed observations of coins, stamps, gems, jewelry, insects, flowers, even circuit boards, with the Levenhuk DTX TV LCD Digital Microscope.This versatile magnification device is outfitted with a 3MP imaging sensor that can produce still images in interpolated resolutions of up to 12MP or full HD 1080p videos at 30 frames per second (fps) at magnifications from 10x to 220x. Files can be saved to an on-board microSD card or downloaded to a PC running the included software suite for Windows and Mac, which offers editing and measuring tools. Photos and videos may be viewed on the flip-out 2.4" color LCD screen, or streamed live to a computer, laptop, TV, or monitor utilizing the included cables. A simple cabled remote control gives you the ability to activate the camera without causing vibrations caused by touching the device.Six LEDs illuminate your specimen with a dimmer dial, allowing you to select the perfect amount of light for the type of sample you have and the ambient light conditions that are present. It is powered by a built-in rechargeable battery for up to 120 minutes of use or directly powered by a standard 5 VDC USB power cable. The microscope can be used handheld or mounted on the stand and base for use as a conventional microscope. - Performance
-
- 3MP digital camera sensor catches jpeg still images and avi video at 30 fps
- 10 to 220x magnification range is ideal for examining coins, jewelry, flowers, insects, circuit boards, and other specimens
- Manual focus with a range between 0.4" and 2"
- Six LEDs provide specimen illumination, with adjustable brightness
- Manual exposure control
- Date or Date/Time stamp capability
- Auto power-off conserves battery charge
- Viewing Specimens
-

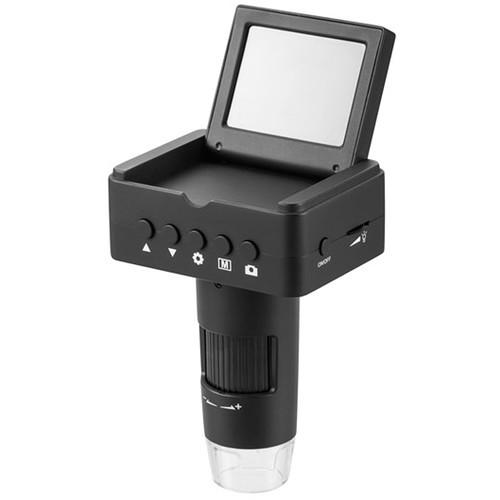

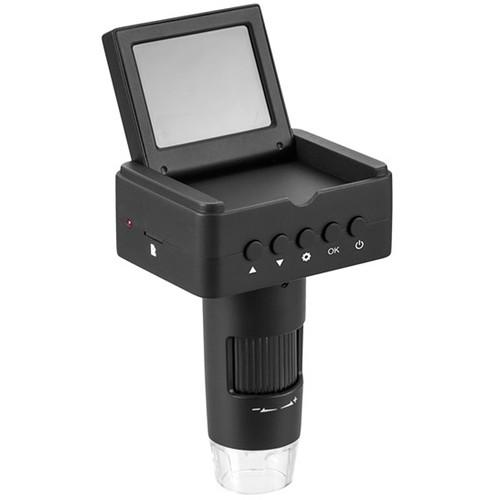

- Built-in flip-up 2.4" color LCD screen

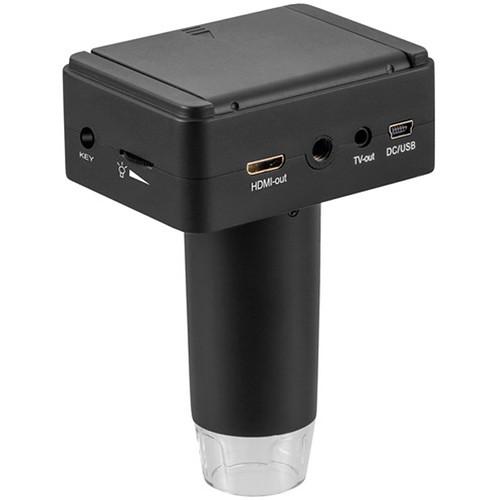

- HDMI and video-out ports enable you to view specimens on larger monitors and TVs
- USB output port allows you to connect to a computer running included software suite to import images, with measuring and editing tools
- Still image resolution of 3MP native with up to 12MP interpolated
- microSD card slot supports cards up to 32GB, 4GB card included
- Computer System Requirements
-
- Windows XP/7/8/10
- Mac 10.7 and above
- P4 1.8 GHz and above
- 512 Mb RAM and above
- 64 Mb video card and above
- USB 2.0 port
- CD-ROM
- Monitor with HDMI input
- Supported languages: English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, Chinese
UPC: 643824212916 In the Box Levenhuk DTX TV LCD Digital Microscope Stand Power Adapter Measuring Scale Li-Ion Battery Remote Control HDMI Cable USB Cable TV Cable 4GB microSD Card Software CD Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk DTX TV LCD Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk DTX TV LCD Specs | Magnification | 10 to 220x | | Resolution | 3 MP
5 MP / 8 MP / 12 MP (Interpolated) | | Video Resolution | 1080p, 720p (VGA) | | Frame Rate | 30 fps | | External Memory | microSD Card Slot
Supports Cards up to 32 GB | | Display | Color LCD
2.4" / 6.1 cm | | Focus Range | 0.4 to 2.0" / 10 to 50 mm | | Illumination | 6 x LED | | Output Ports | 1 x HDMI
1 x VGA
1 x USB | | Power Source | Built-In Rechargeable Li-Ion Battery
5 VDC USB Power | | Runtime | 120 Minutes (Max) | | Image Format | Still: *.jpg
Video: *.avi | | Operating temperature | 32 to 122°F / -5 to 50°C | | | | Package Weight | 2.43 lb | | Box Dimensions (LxWxH) | 8.3 x 6.8 x 5.5" |
