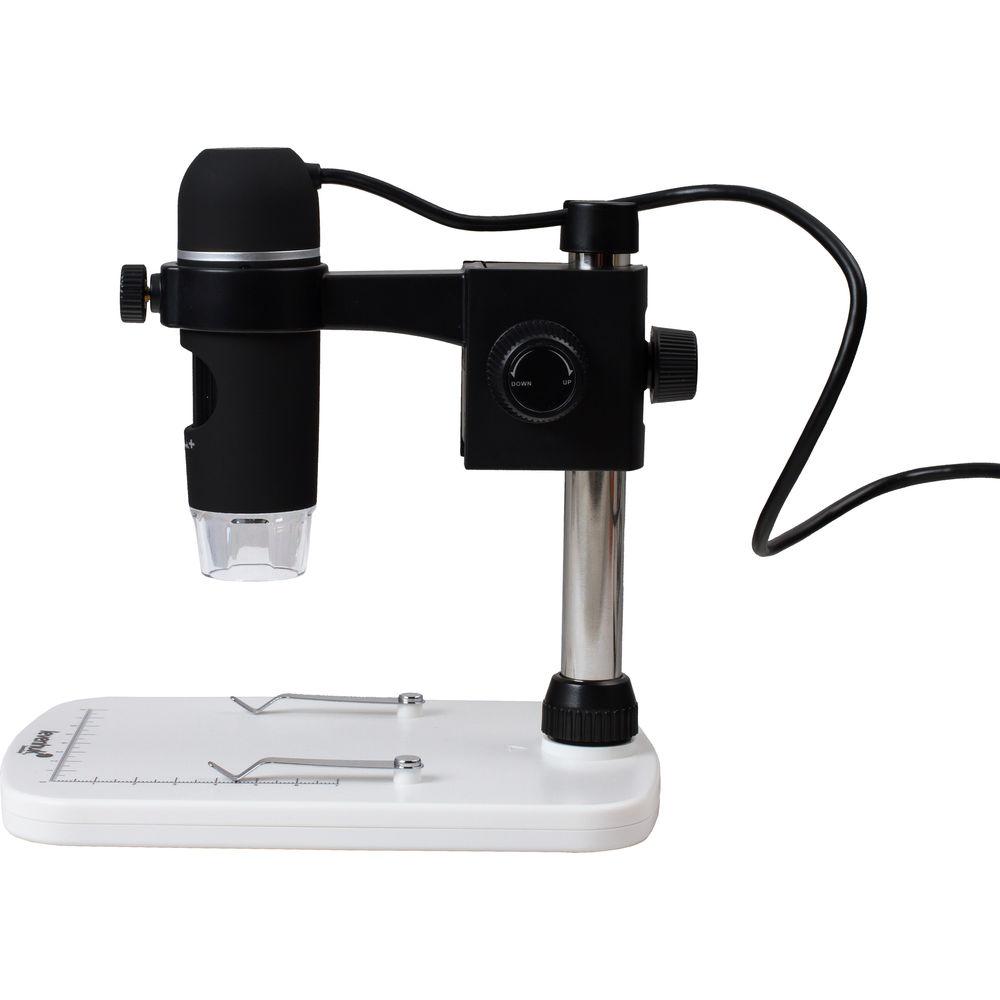

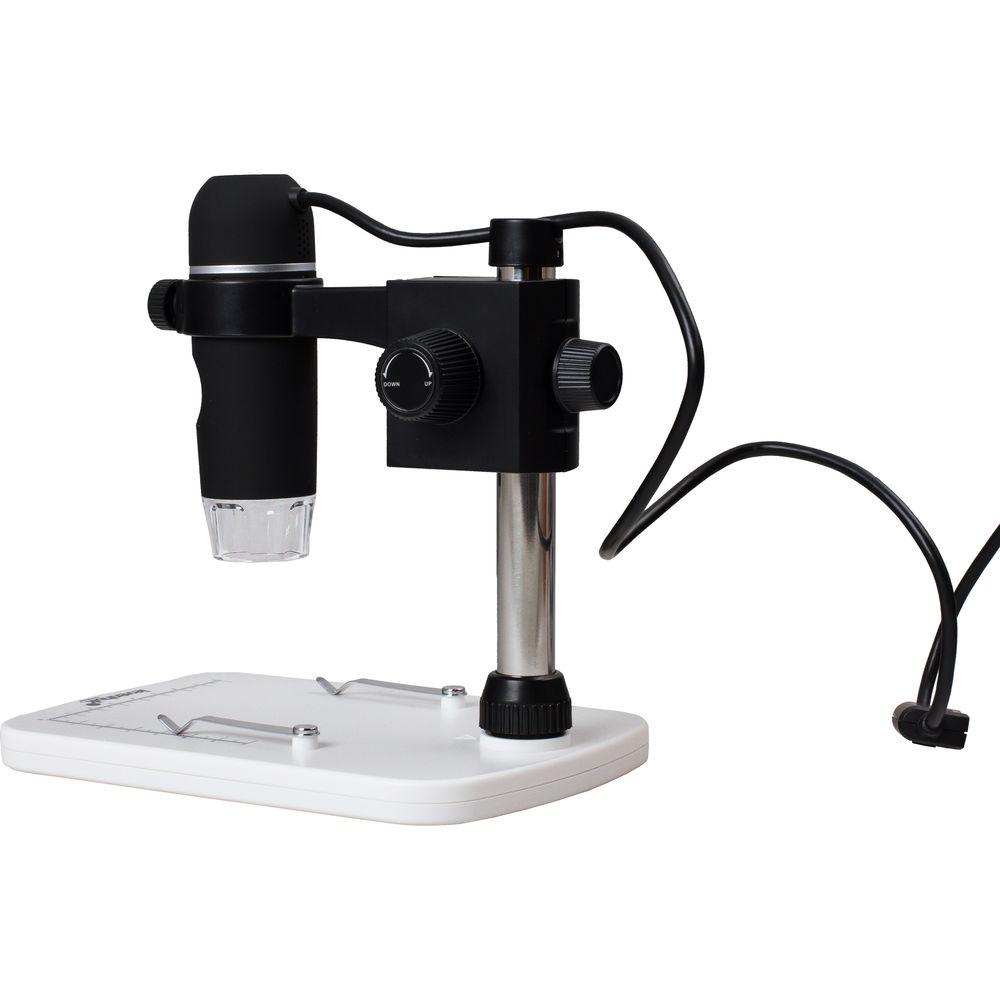

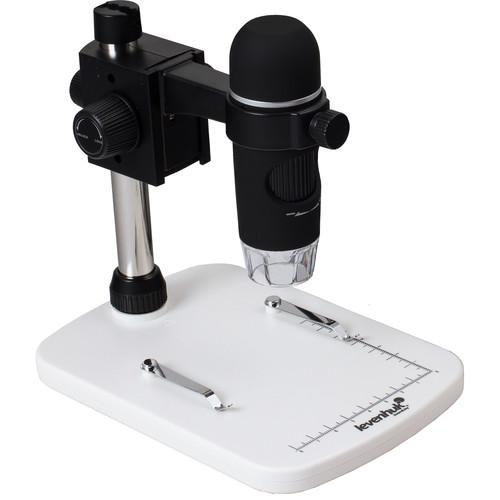

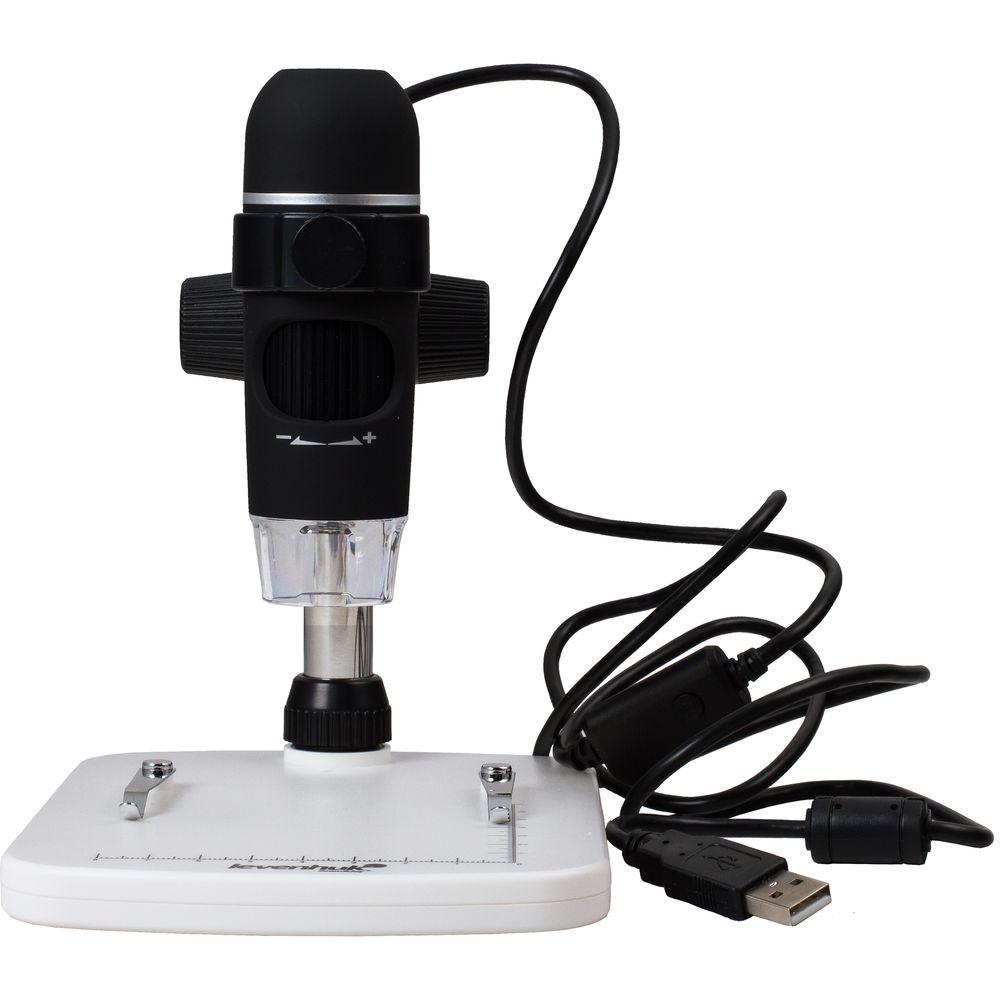

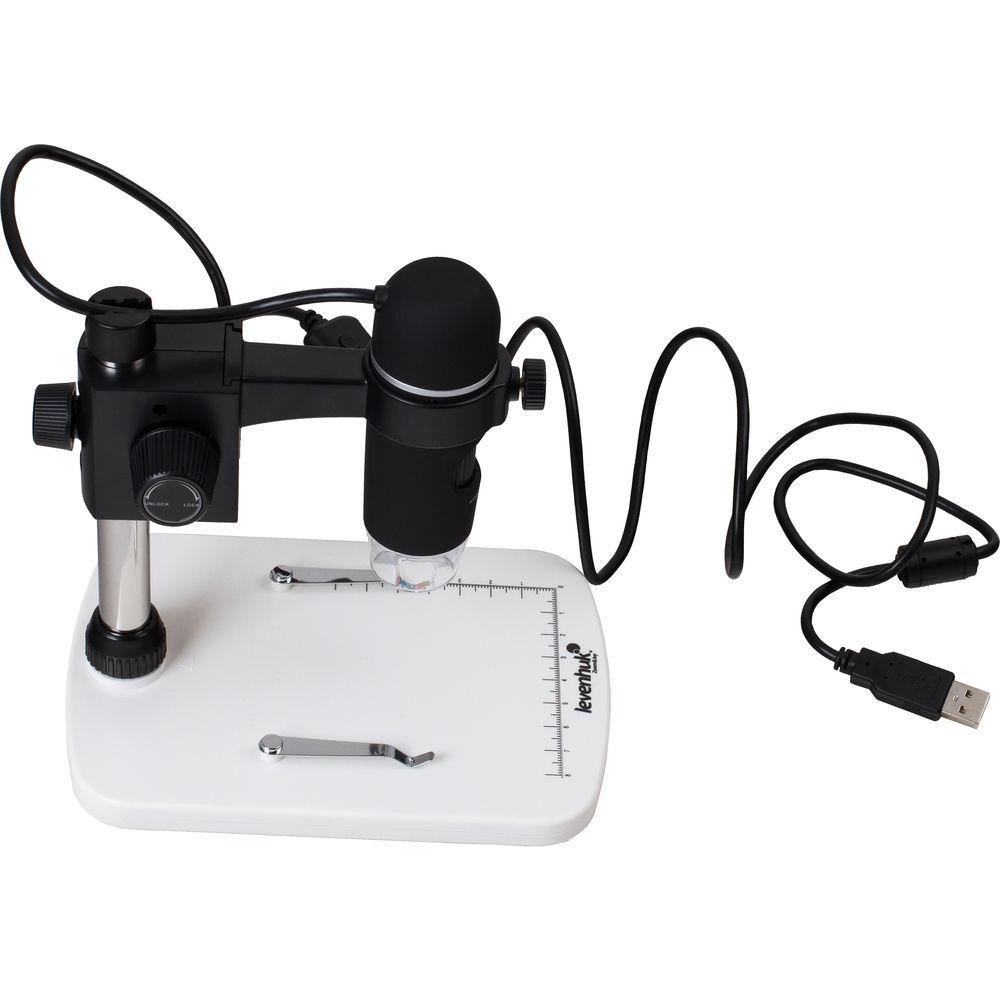

Product description The Levenhuk DXT 90 Digital Handheld Microscope features a 5.0MP color CMOS sensor, which can take high-resolution still images and videos of your discoveries. This compact and ergonomic microscope can be used as a handheld device or attached to the included stand for a hands-free operation. The optics provide a magnifying power range from 10x to 300x and the illumination ring system offers 8 white LEDs. The microscope is powered through an attached USB 2.0 cord and works with select versions of Mac OS and Windows. Use the included software to adjust menu settings and acquire images or videos. The software offers a multi-language support for English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, and Chinese. - Optics and Illumination
-
- Glass optics
- 10 - 300x magnification
- Built-in ring of 8 white LEDs provides illumination
- 0 - 6" coarse manual focusing range
- Imager
-
- 5.0MP color sensor
- 2592 x 1944 maximum image resolution
- JPEG image format and AVI video format
- 1280 x 960 video resolution
- Use and Handling
-
- Attached USB 2.0 power cable
- Included imaging software provides multi-language support
- Compatible with select Windows and Mac operating systems
- Construction Details
-
- Ergonomic body
- Designed for handheld operation
- Pillar type stand with a metal post
- Post allows adjusting height and position in horizontal plane

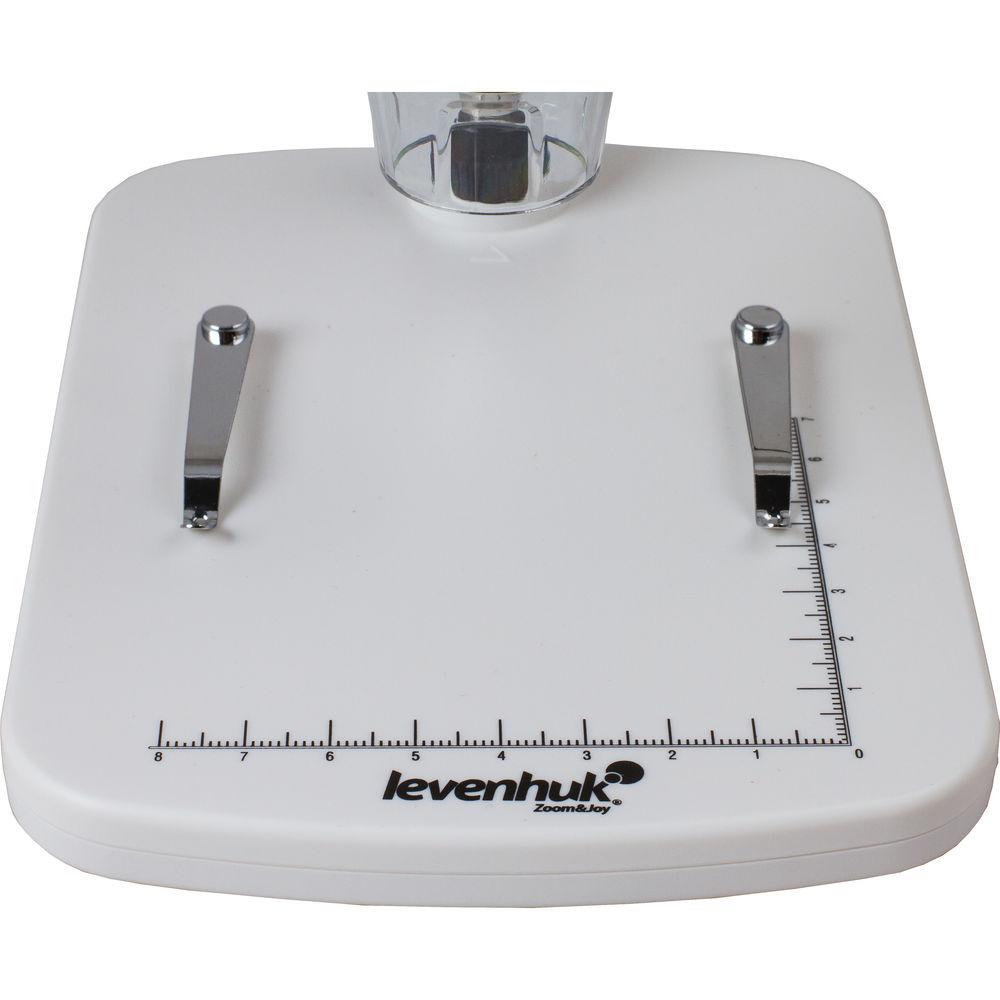

- Wide base with two metal specimen clips

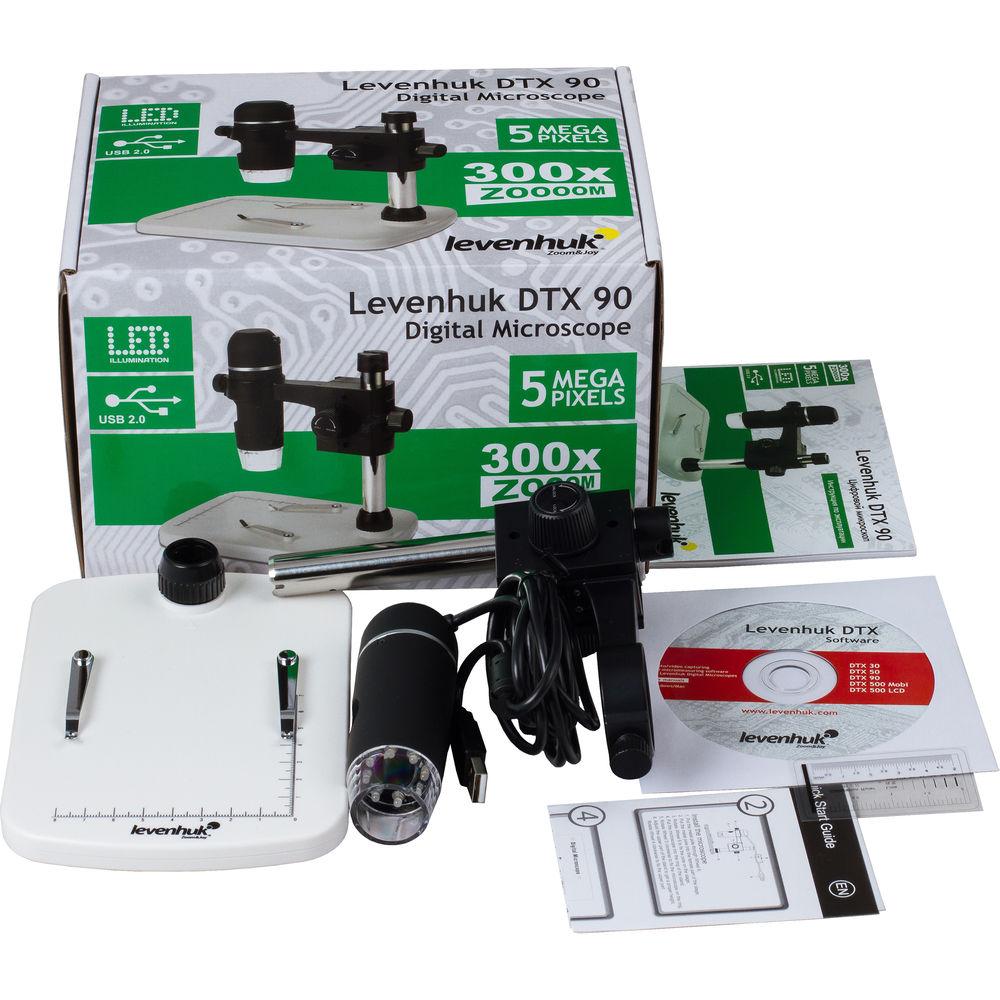

UPC: 611901508580 In the Box Levenhuk DXT 90 Digital Handheld Microscope (Matte Black) - Adjustable Stand
- USB Cable
- Software CD
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk DXT 90 Digital Handheld Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk DXT 90 Specs | | | Optical Magnification | 10x to 300x | | Max Resolution | 5 MP: 2592 x 1944 | | Additional Resolutions | 2048 x 1536 (Interpolated)
1600 x 1200 (Interpolated)
1280 x 960 | | Image File Format | JPEG | | Working Distance | 0 to 6" / 0 to 150 mm | | | | Video Format | 1280 x 960 | | File Format | AVI | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | USB 2.0 | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.6 | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish | | | | Power | USB Power | | Dimensions |
