User Manual for Levenhuk LabZZ D1 76mm f 4 Alt-Az Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk LabZZ D1 76mm f 4
- Product category: Reflectors Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Reflectors
 |
User manual for the Levenhuk LabZZ D1 76mm f 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

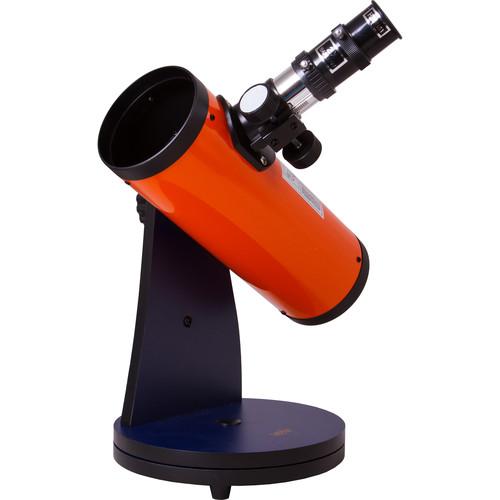

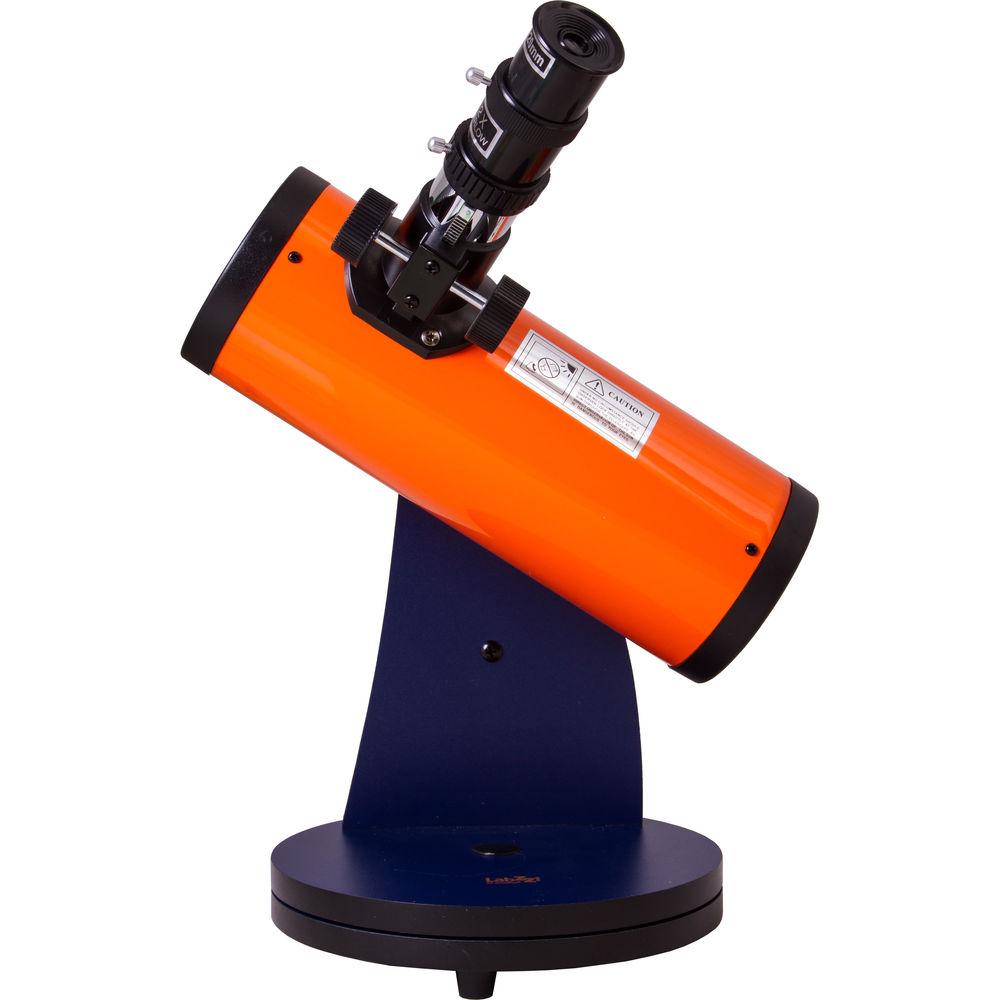

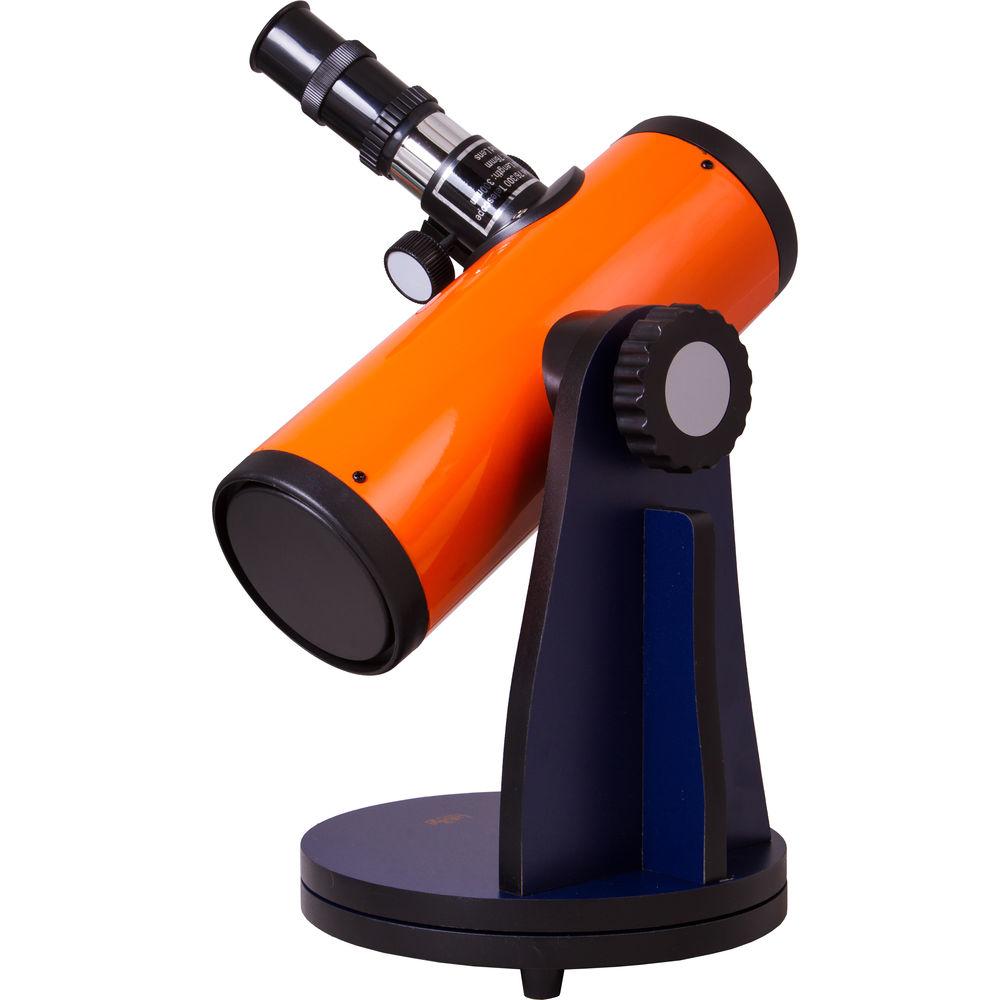

Product description An ideal starter scope for new amateur astronomers, the Levenhuk LabZZ D1 76mm f/4 Alt-Az Reflector Telescope opens up the heavens to curious minds. This complete observational platform provides all the tools required to view the moon, planets, satellites, comets, meteor showers, and bright deep-sky objects like star clusters. For maximum convenience and ease-of-use, the optical tube assembly (OTA) is supported by a manual alt-azimuth tabletop mount that can rotate a full 360° allowing fast access to any point in the night sky. Two eyepieces provide a low 15x magnification and high 50x power, while the 2x Barlow lens effectively doubles the power of any eyepiece used with it, giving users the ability to see more detail without sacrificing eye relief or requiring additional eyepieces. The focuser has a 1.25" holder to make it compatible with the most common size eyepieces and accessories from a wide variety of manufacturers. - Optical Tube Assembly
-
- 76mm aperture is ideal for lunar viewing
- 300mm focal length ensures a compact and easy-to-manage optical tube length
- Fast focal ratio reduces internal light diffusion for brighter views
- Fully multi-coated optics maximize light transmission to ensure bright and clear, high-contrast images

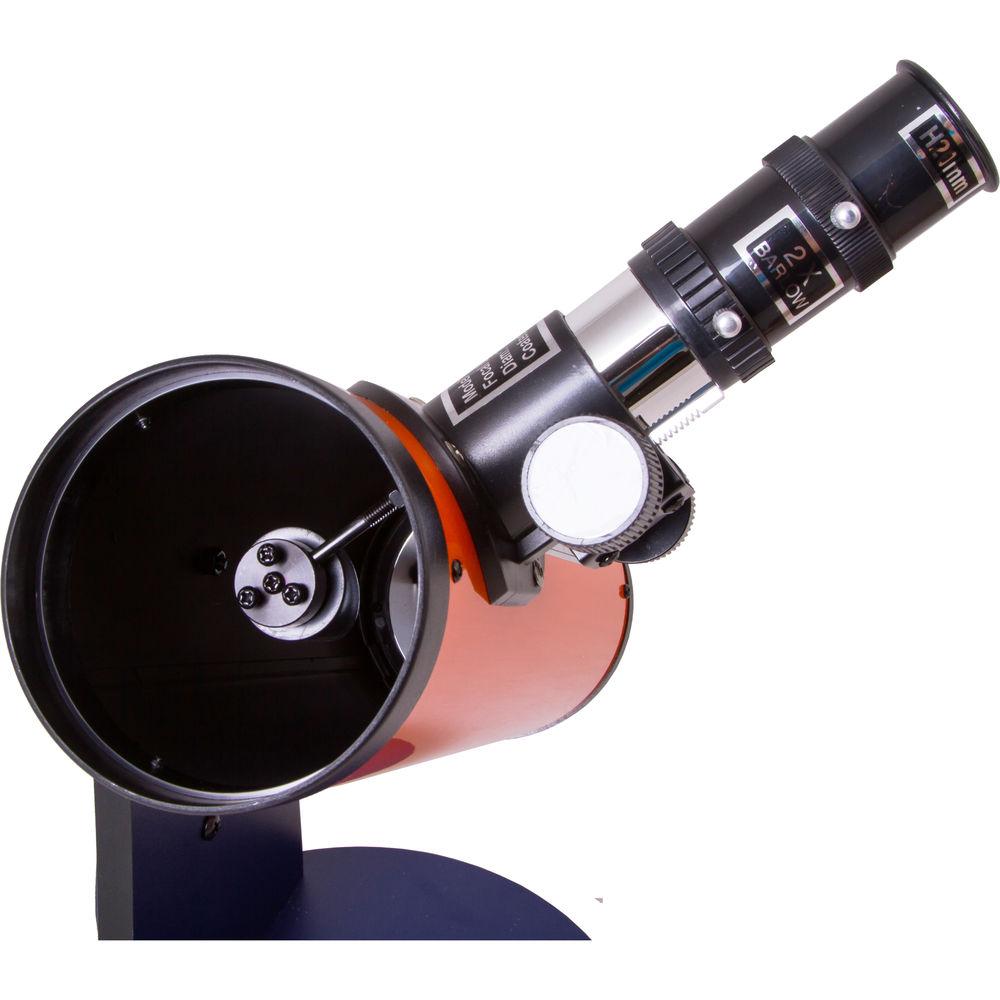

- Reliable and sturdy rack-and-pinion focuser
- 1.25" eyepiece holder accepts the most common size eyepieces and accessories

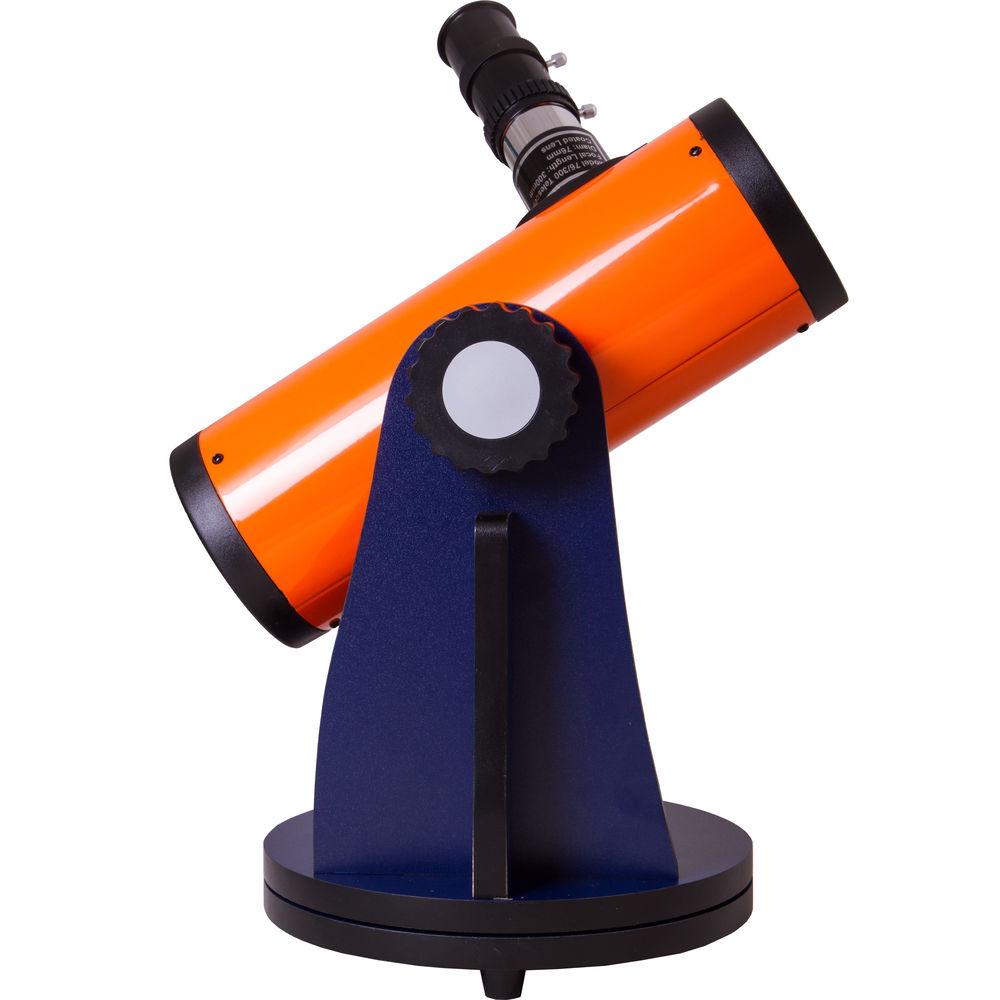

- Mount
-
- Highly-mobile tabletop design
- Manual alt-azimuth configuration enables easy tracking by simply moving mount by hand
- Single arm reduces weight without sacrificing strength or stability
- 360° base axis rotation enables easy viewing of any point in the night sky
- Control knob allows precise altitude adjustment
- Sturdy wood base offers natural vibration dampening
- Included Accessories
-

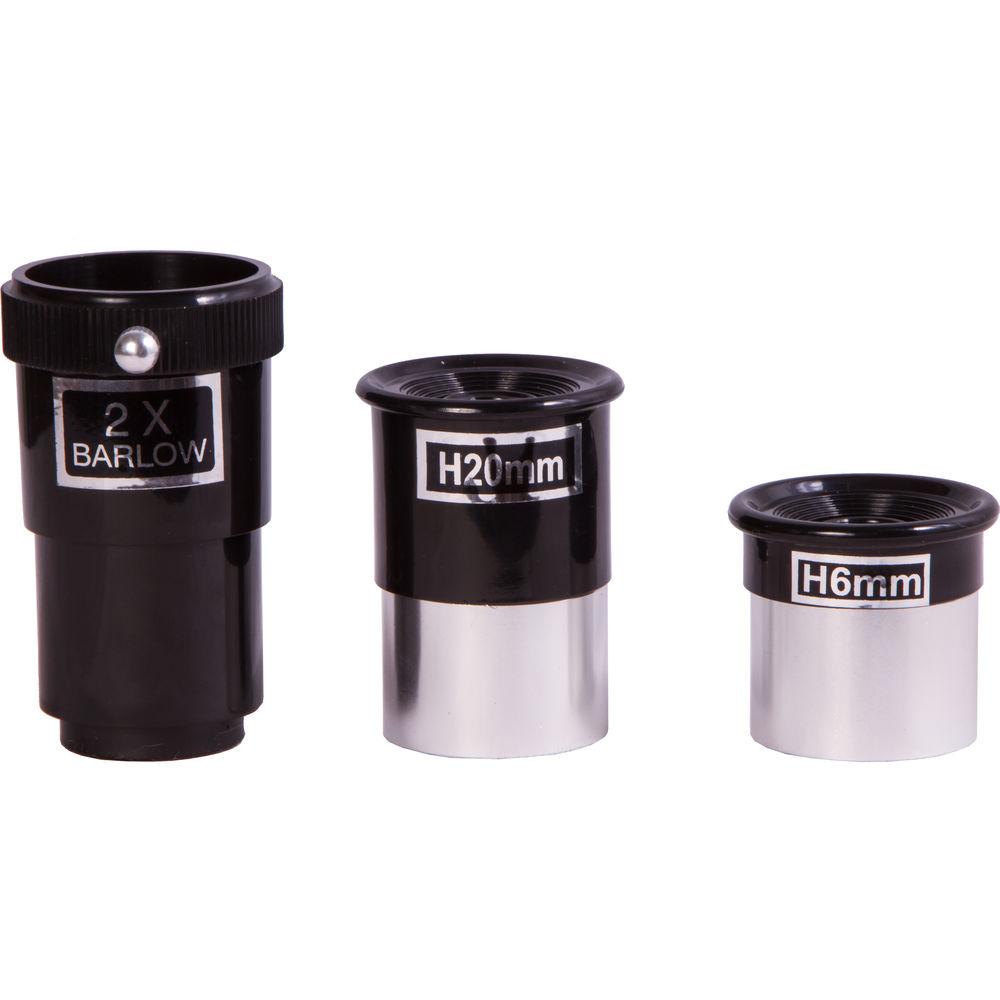

- 6mm eyepiece yields high 50x magnification for making detailed observations of lunar features and planetary viewing
- 20mm low-power eyepiece produces 15x power that enables full-disk viewing of the moon and wide-field astronomy uses such as comet hunting and satellite spotting

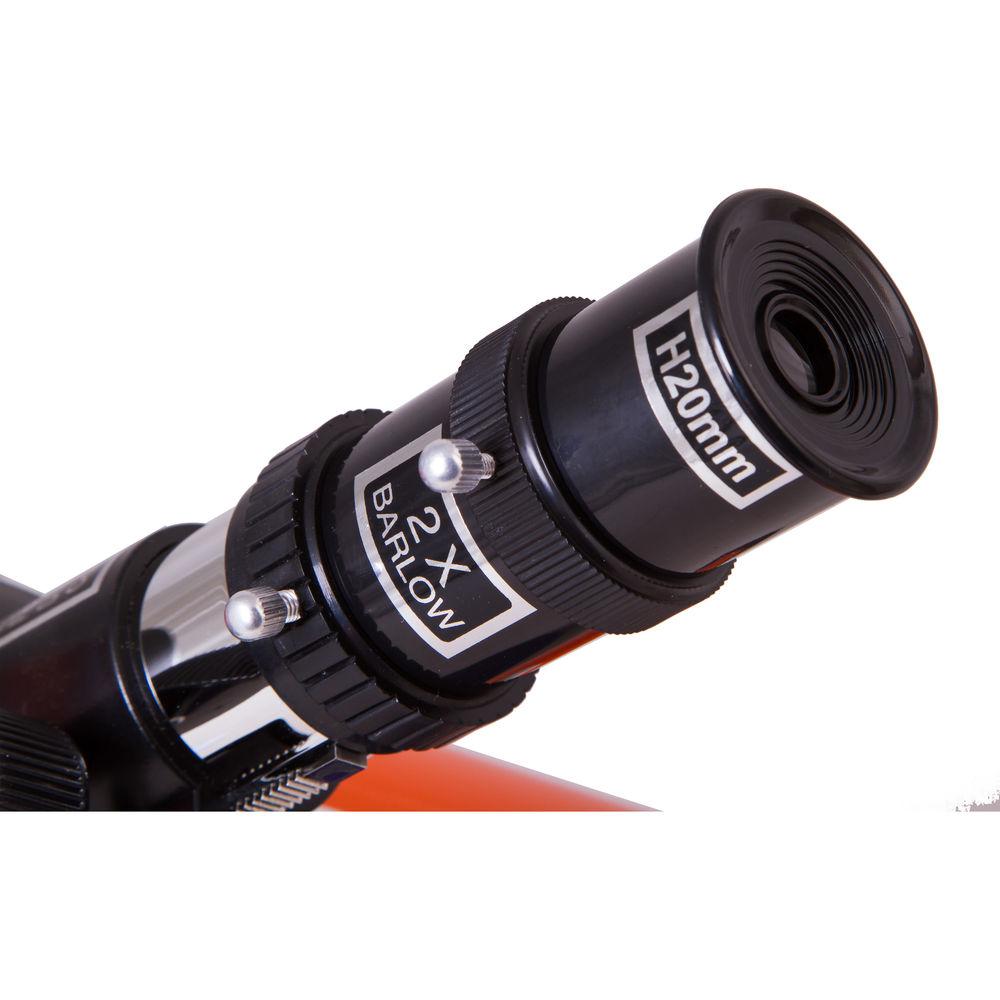

- 2x Barlow lens effectively doubles the magnification of any eyepiece used to bring objects closer without affecting eye relief

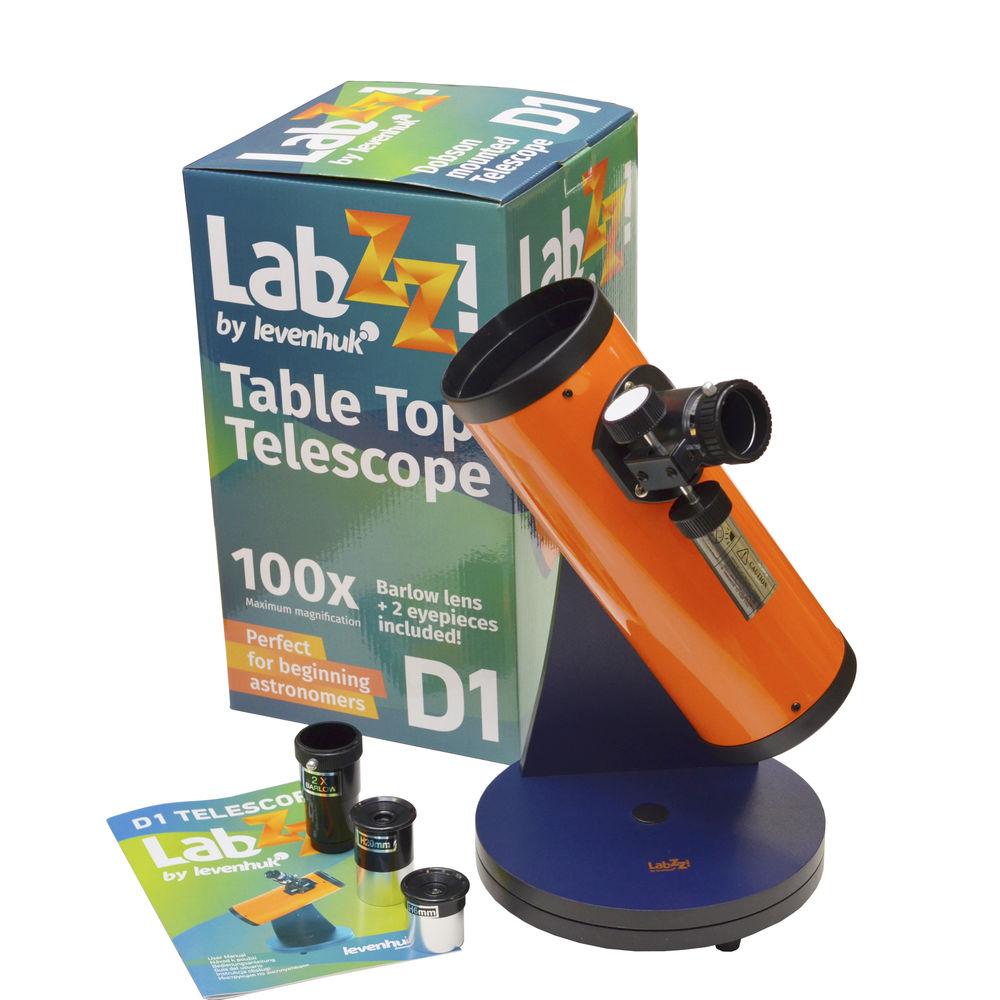

UPC: 611901505701 In the Box Levenhuk LabZZ D1 76mm f/4 Alt-Az Reflector Telescope 20mm Eyepiece 6mm Eyepiece 2x Barlow Lens Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk LabZZ D1 76mm f 4 Alt-Az Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk LabZZ D1 Specs | Optical Design | Reflector | | Aperture | 76mm | | Focal Length | 300mm | | Focal Ratio | f/3.95 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | Tabletop alt-azimuth | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 4.2 lb / 1.9 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
