User Manual for Levenhuk LabZZ MTB3 Compound Microscope, 50mm Refractor AZ Telescope, 4x30 Roof Binocular Kit Click to enlarge the picture
Contents of the user manual for the Levenhuk LabZZ MTB3 Compound Microscope, 50mm
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk LabZZ MTB3 Compound Microscope, 50mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description The Levenhuk LabZZ MTB3 Compound Microscope, 50mm Refractor AZ Telescope, 4x30 Roof Binocular Kit comes with a compound microscope, a refractor telescope, and a pair of binoculars to give budding young scientists and explorers the three primary tools they need to spur their interest in the natural world around them.The microscope is capable of 150x, 450x, and 900x magnifications, making this entry-level instrument well-suited for viewing a wide range of specimens. A set of accessories is included with the microscope to provide the user with a range of specimen collecting and preparation tools.This kit's 50mm refractor-style telescope includes 5x and 10x eyepieces for terrestrial and celestial observations, a manual alt-azimuth mount, and an adjustable-height aluminum tripod. Use the scope to observe craters and features on the moon's surface; and see the rings of Saturn, as well as larger planets such as Venus and Mars.The final component is a pair of 4x30 compact binoculars. The center hinge allows them to be comfortably used by a wide variety of people, especially those with narrow faces like children and young adults. The low magnification, when combined with the objective lens diameter, translates to a wide exit pupil to make it easy to view through for long periods of time.From the sky above, to the nature and wildlife around us, to the microscopic world hidden from our gaze, the LabZZ MTB3 allows you to explore it all. - Microscope
-

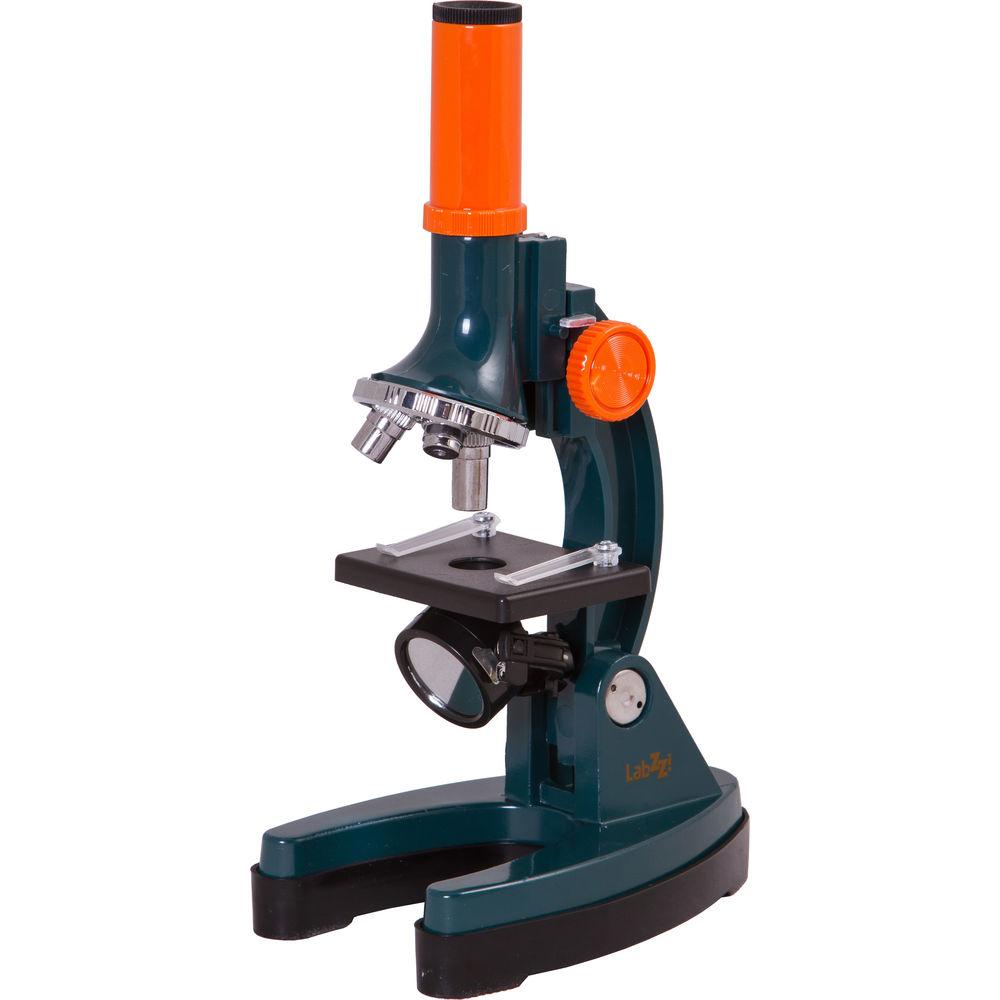

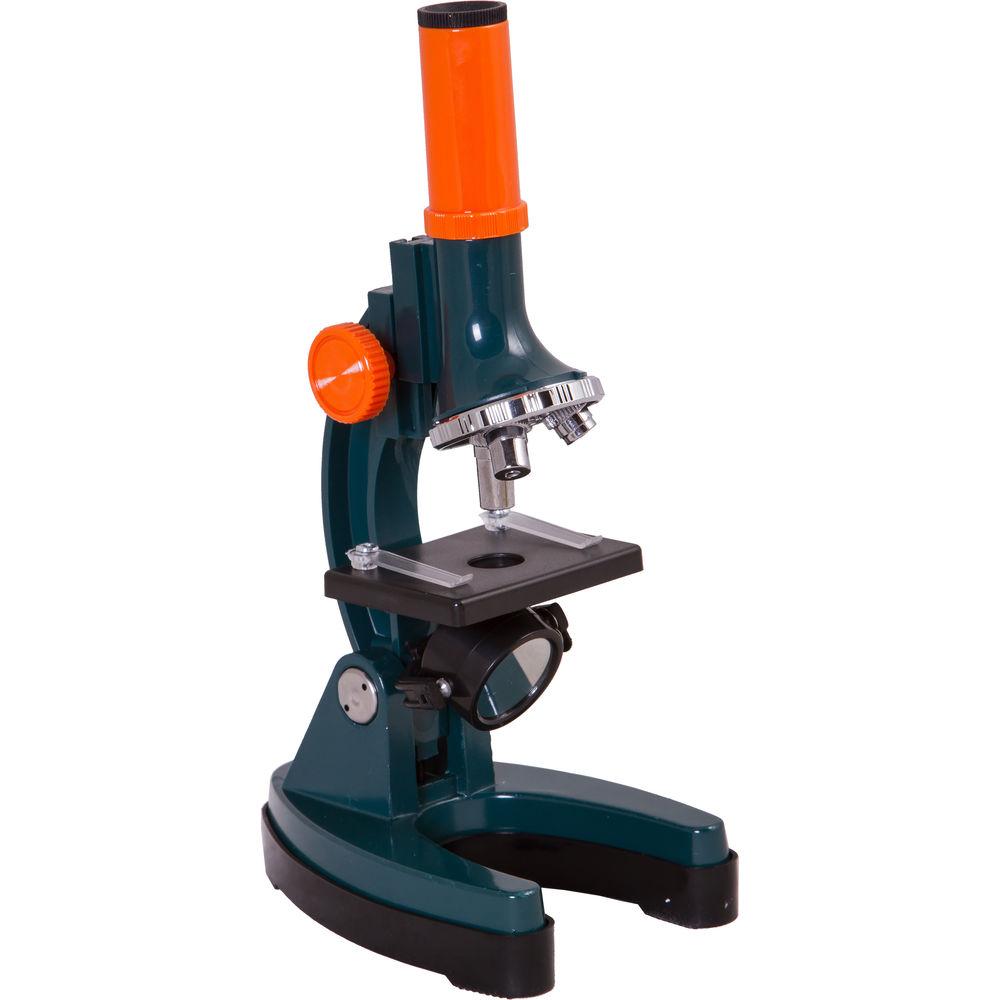

- One-piece compound design
- 10x power eyepiece
- 15x, 45x, and 90x objectives
- 150x, 450x and 900x magnifications
- 3-objective rotating nose piece
- Large specimen stage with slide clips
- Specimen kit included
- Battery-powered specimen stage incandescent light, with mirror on opposite side
- Simple contact switch - when light is turned to face stage, light goes on automatically
- Single-speed rack-and-pinion focuser
- Runs on two user-supplied AA batteries
- Includes one spare bulb
Specimen Kit:- 3 x Empty flasks
- 3 x Blank slides
- 3 x Cover slips
- 3 x Slide stickers
- Scalpel
- Pipette
- Spatula
- Forceps
- Dissecting needle

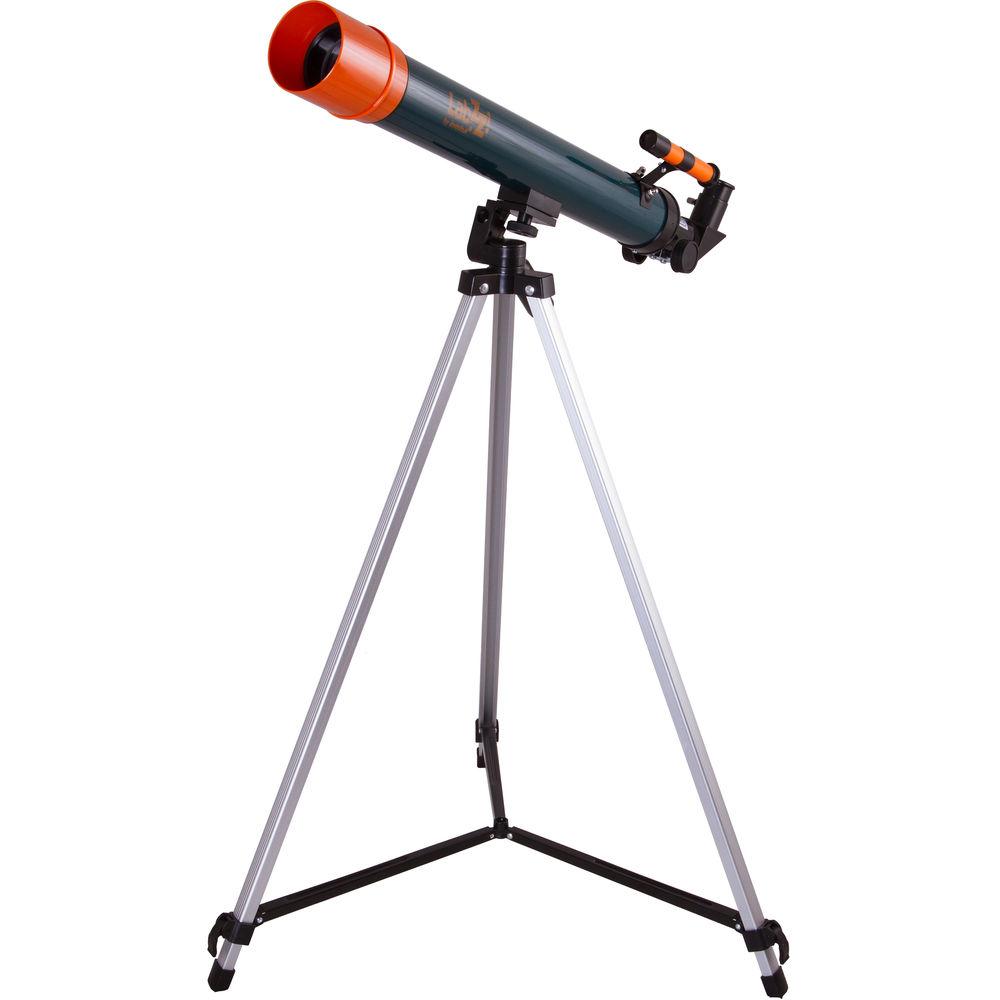

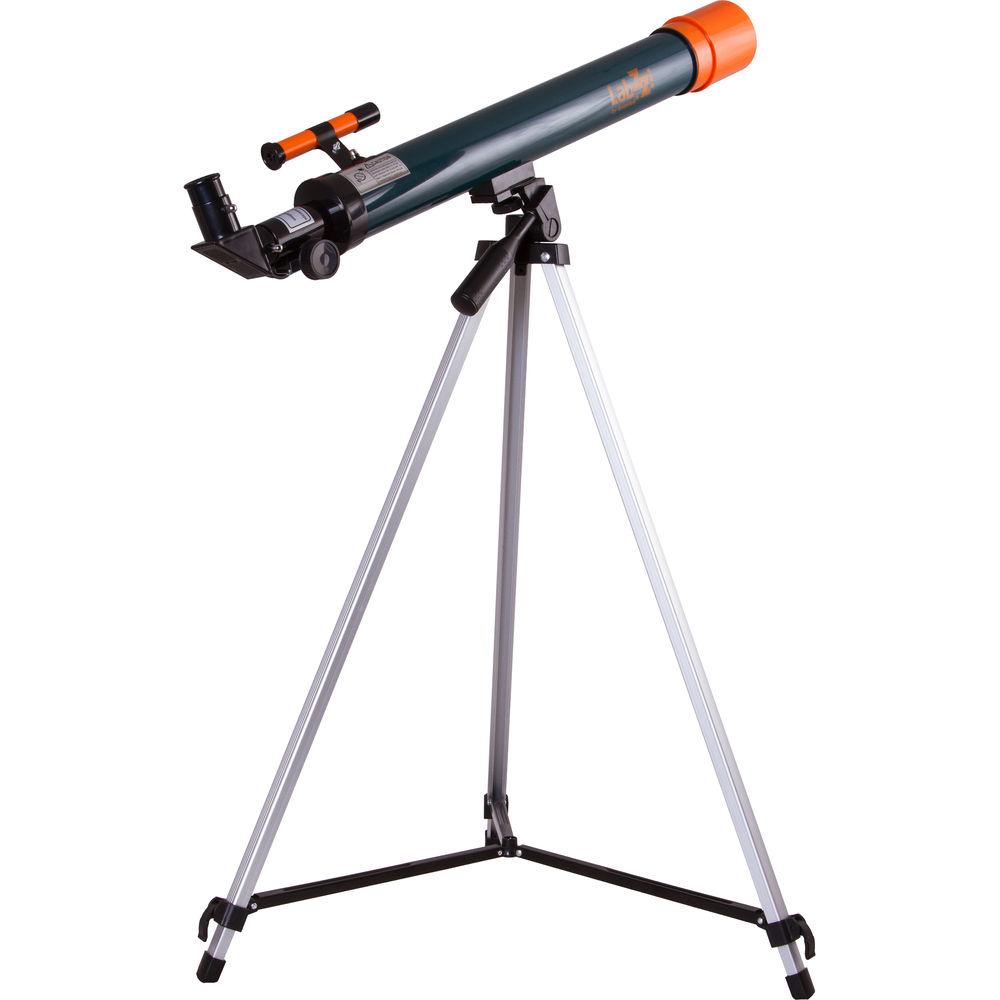

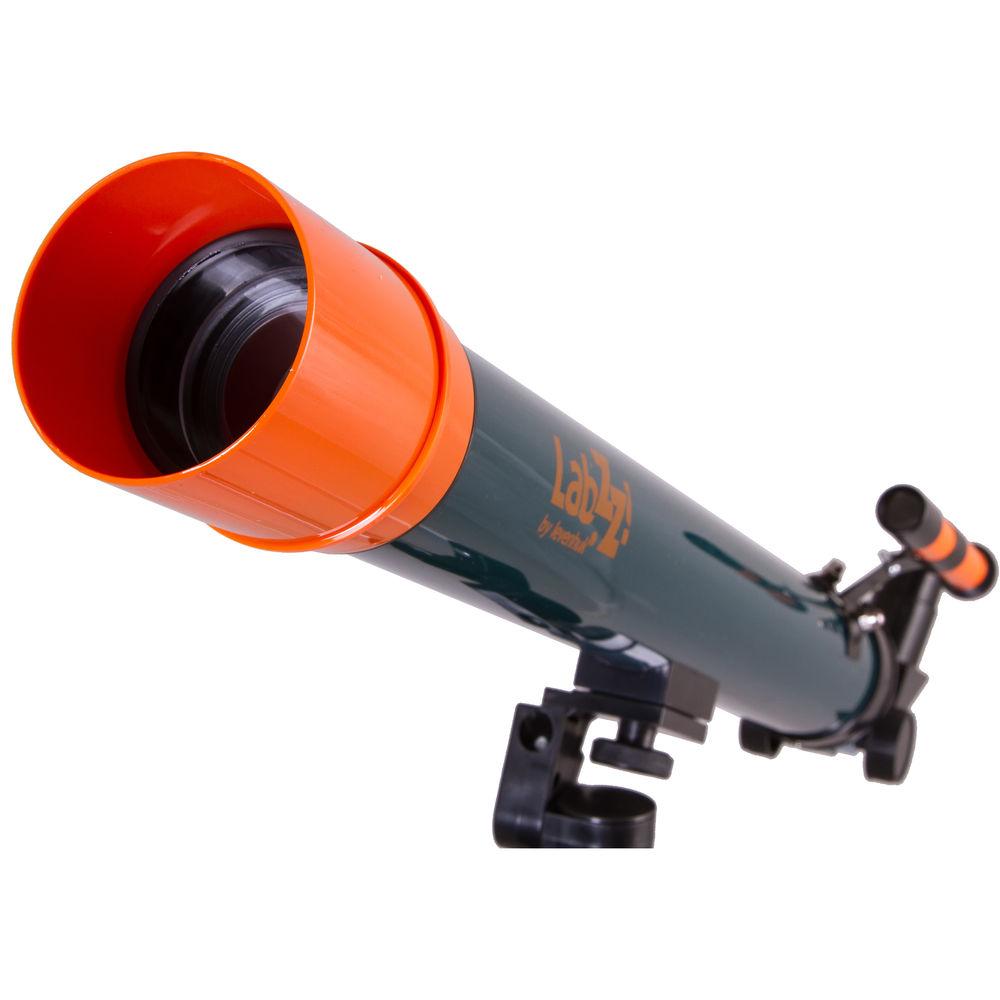

- Telescope
-
- Ideal for lunar and planetary viewing
- 50mm aperture
- f/12 focal ratio
- 600mm focal length
- Refractor-style optical path
- Anti-reflection coated lenses improve light transmission through optical path
- Single-speed rack-and-pinion focuser

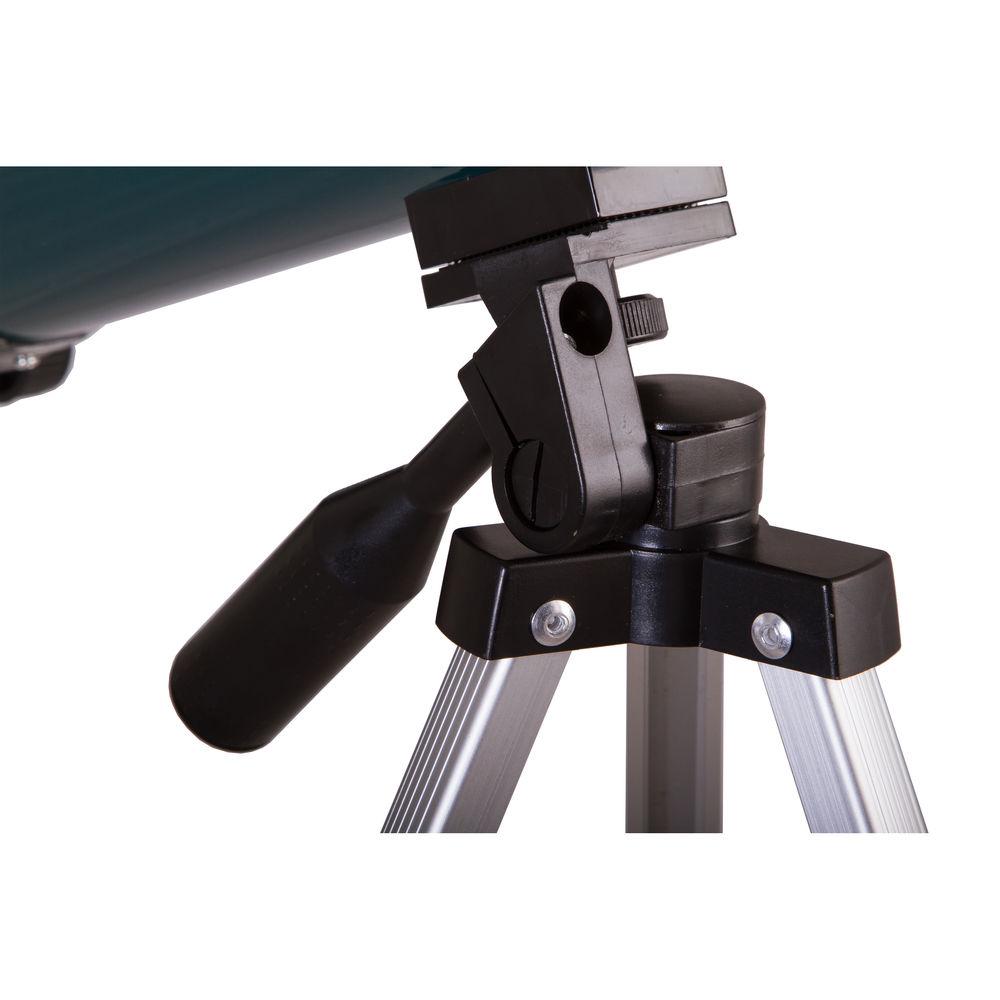

- Manual locking alt-azimuth mount

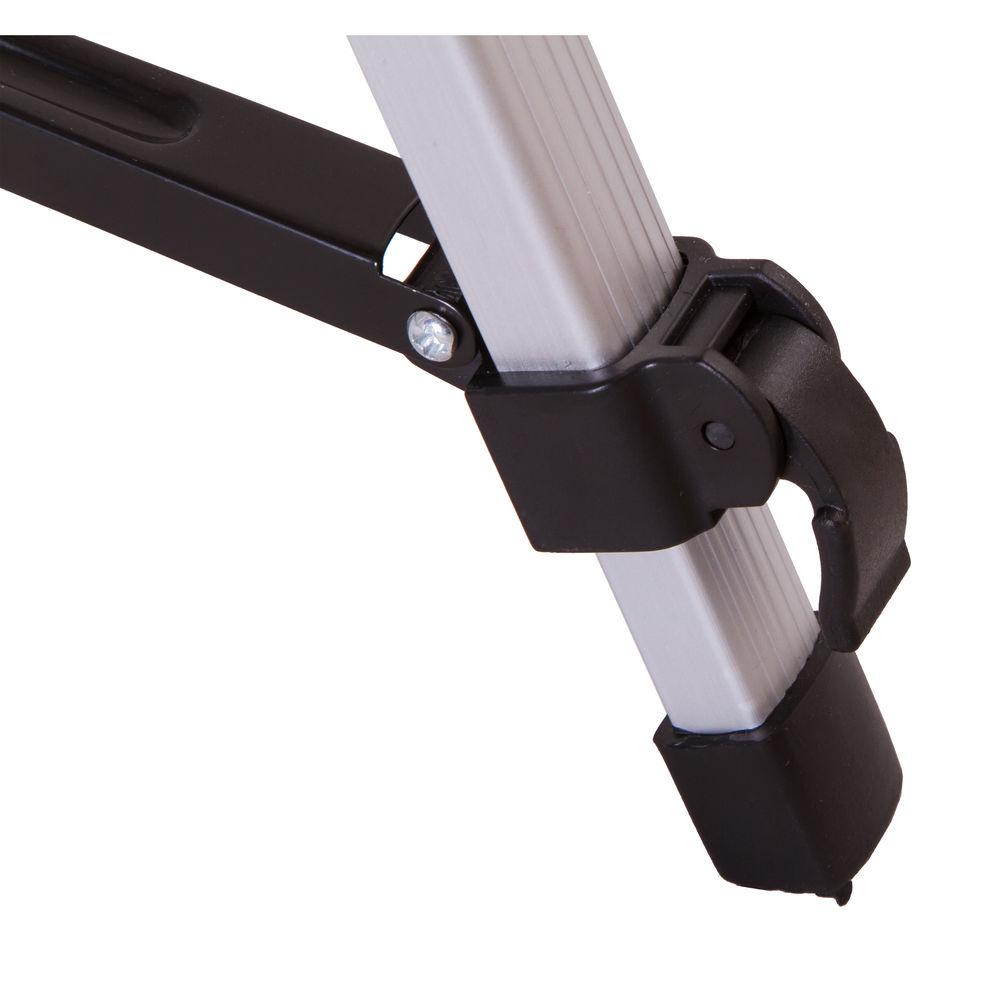

- Aluminum adjustable-height tripod, 25.5" to 45" (65 to 115cm)
- 60x power, 10mm eyepiece
- 120x power, 5mm eyepiece with integrated erecting prism for easy use on terrestrial objects

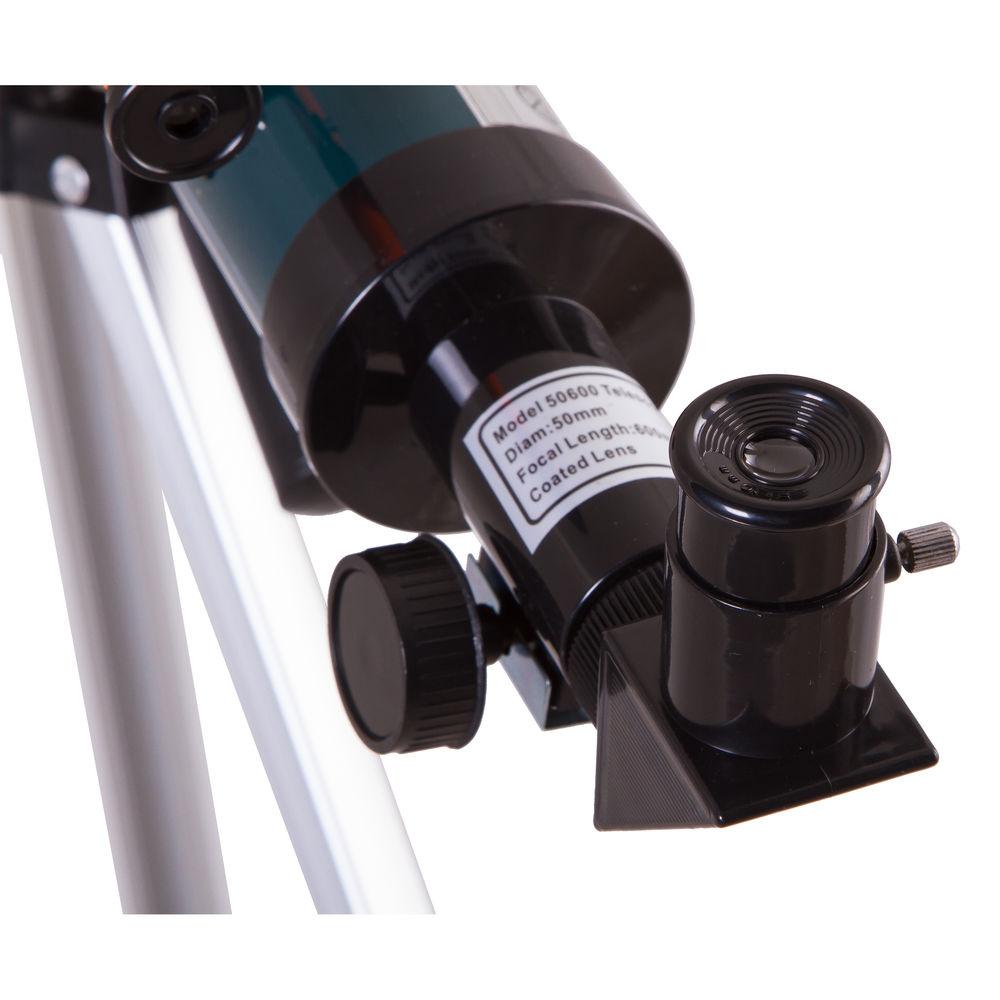

- 90° star diagonal places head in a comfortable viewing position

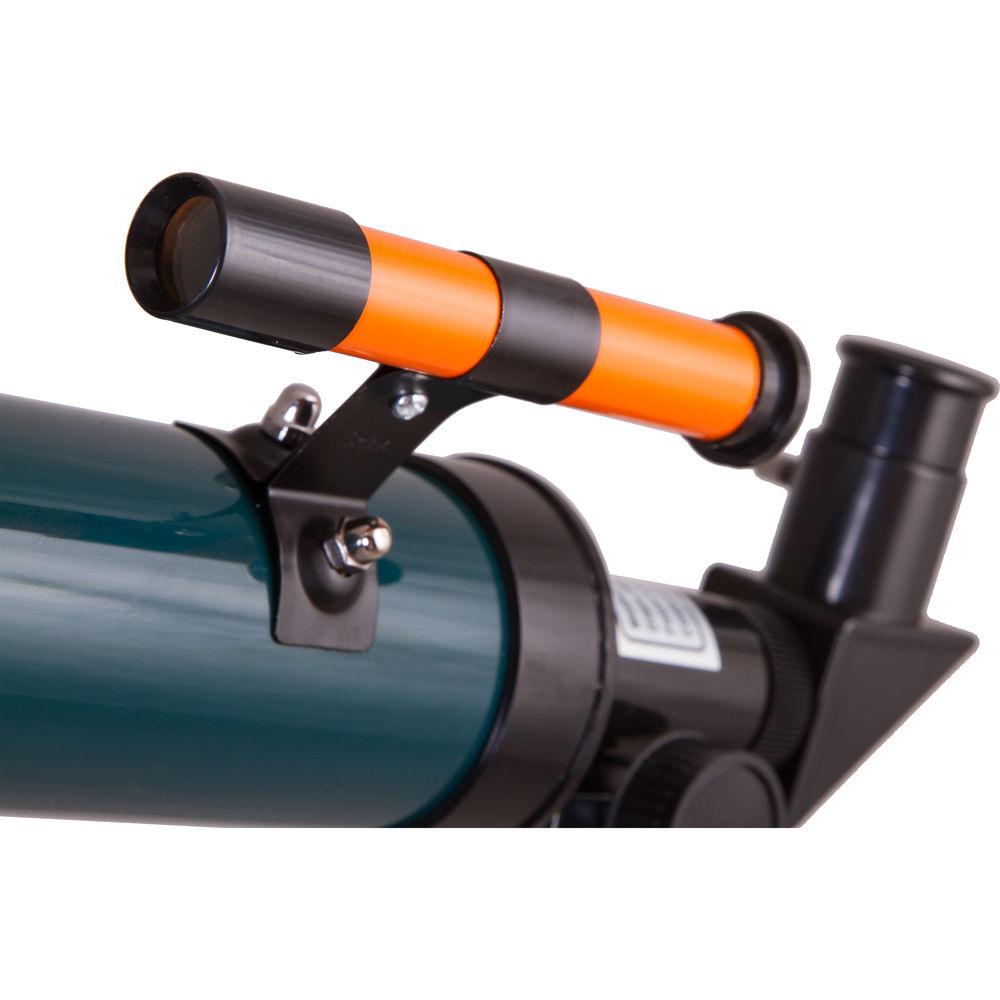

- 2x finderscope with bracket
- Binocular
-
- 4x magnification
- 30mm objectives
- Compact roof prism light path
- Anti-reflection coated optics
- Optical glass lenses
- Wide 7.5mm exit pupil for comfortable viewing by children and adults
- Large textured center focusing wheel
- Fold-down rubber eyecups are comfortable to use with or without eyewear
- Impact-resistant plastic housing
- Textured palm pads with finger grooves improve stability and provide a slip-resistant grip
- Case and strap included

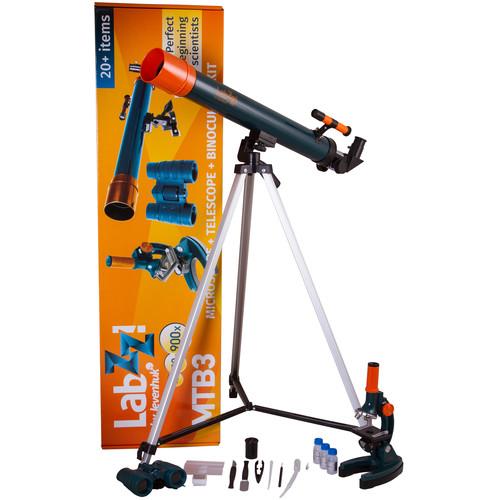

UPC: 611901504889 In the Box Levenhuk LabZZ MTB3 Compound Microscope, 50mm Refractor AZ Telescope, 4x30 Roof Binocular Kit Compound Microscope 3 x Empty Flasks 3 x Blank Slides 3 x Cover Slips 3 x Slide Stickers Scalpel Pipette Spatula Forceps Dissecting Needle Spare Bulb 50mm f/12 Telescope 5mm Eyepiece 10mm Eyepiece 90° Star Diagonal 2x Optical Finder with Bracket Adjustable-Height Aluminum Tripod 4x30 Binocular Soft Pouch Cleaning Wipe Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk LabZZ MTB3 Compound Microscope, 50mm Refractor AZ Telescope, 4x30 Roof Binocular Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk 69698 Specs | | | Microscope Type | Compound | | Body Type | Rigid one-piece | | Eyepiece | 10x | | Nosepiece | 3-lens rotating | | Objective(s) | 15x, 45x, 90x | | Head | Monocular | | Focuser | Single-speed, rack-and-pinion | | Light Source | Battery-powered light
Adjustable-angle mirror | | Light Control | On/off contact switch | | Power | 2 x AA batteries | | Specimen Stage | Fixed with slide clips | | | | Optical Design | Refractor | | Aperture | 50mm | | Focal Length | 600mm | | Focal Ratio | f/12 | | Eyepiece Barrel Diameter | Not specified by manufacturer | | Diagonal | 90° star | | Finderscope | 2x | | Tripod | Aluminum, adjustable height from 25.6 - 45.3" / 65.0 - 115.0 cm | | Mount Type | Manual alt-azimuth | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | | | Prism Type | Roof | | Magnification | 4x | | Objective Lens Diameter | 30mm | | Field of View | Not specified by manufacturer | | Exit Pupil | 7.5 mm | | Eye Relief | Not specified by manufacturer | | Focus Type | Center | | Tripod Mount | None | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 35.2 x 10.2 x 4.3" |
