User Manual for Levenhuk Ra ATZ Alt-Azimuth Mount Click to enlarge the picture
Contents of the user manual for the Levenhuk Ra ATZ Alt-Azimuth Mount
- Product category: Mounts Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Mounts
 |
User manual for the Levenhuk Ra ATZ Alt-Azimuth Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

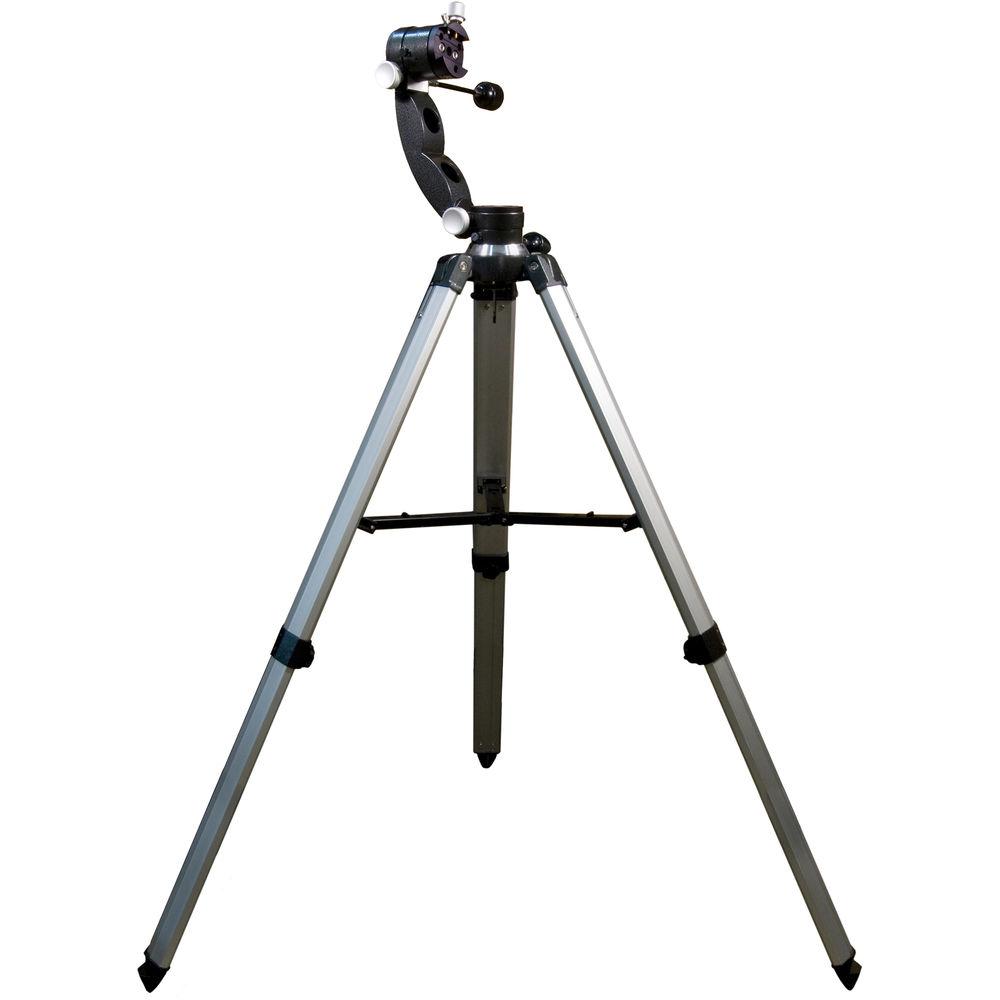

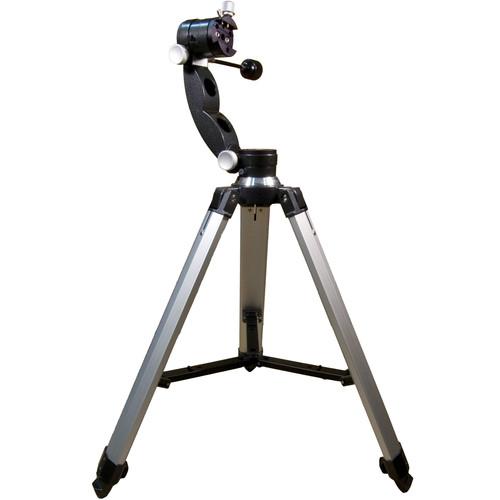

Product description For fast observation sessions, the Levenhuk Ra ATZ Alt-Azimuth Mount is an ideal grab-and-go option for reflector, refractor, or catadioptric optical tube assemblies (OTAs) up to 150mm (5.9"). This manual mount features a Vixen-style dovetail saddle to accept the most common-sized plates, and can carry equipment up to 15 pounds—including the OTA and accessories. It has dual-axis slow-motion adjustment knobs and a secondary easy-to-reach altitude cable to help make tracking more precise. Weighing in at just 18 pounds when fully assembled, the mount is easy to carry and transport and comes with an aluminum tripod that can be adjusted in height from 35.4 to 51.1 inches. - Mount
-
- Manual alt-azimuth style
- Recommended for OTAs up to 150mm (5.9"), including reflectors, refractors, and catadioptrics
- Maximum payload capacity of 15 pounds including OTA and all accessories

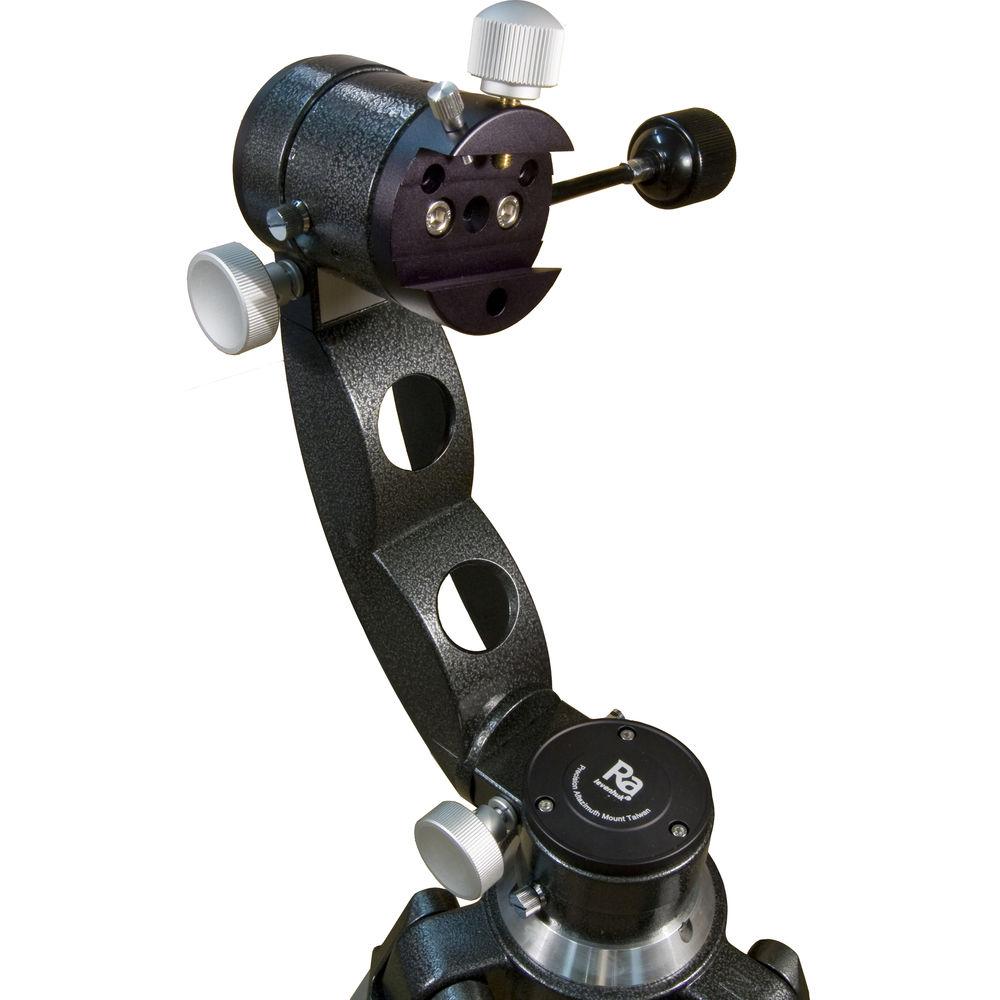

- Single fork arm reduces interference and lowers weight

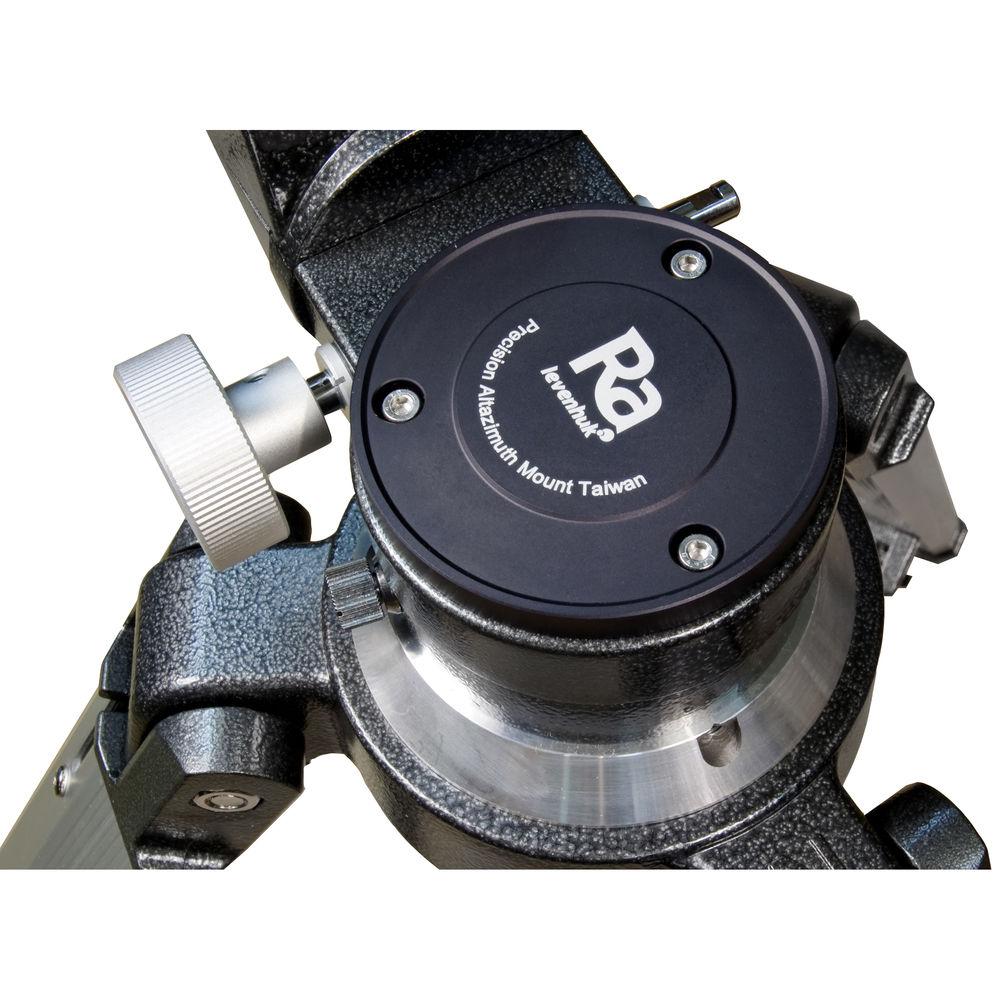

- Large dual-axis control knobs for slow-motion mechanism make tracking easier and more precise
- Easy-to-reach flexible slow-motion altitude control cable

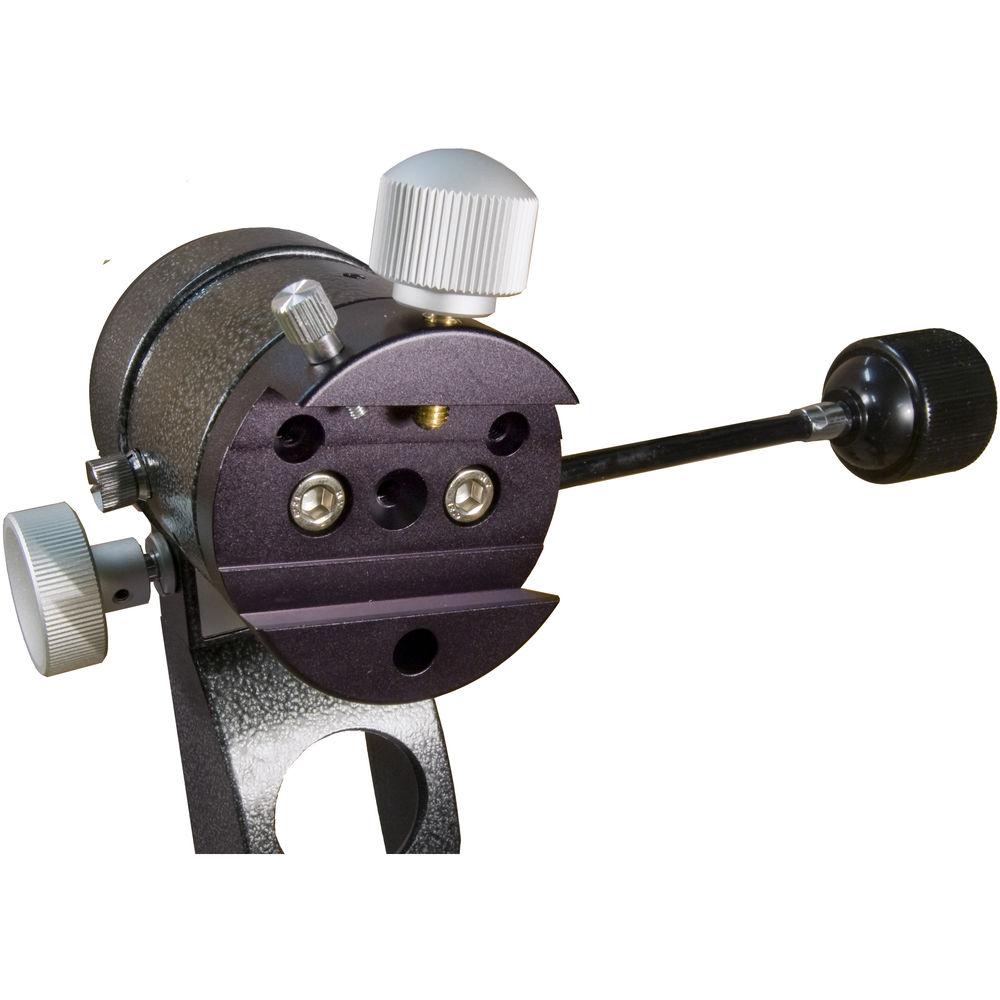

- Vixen-style dovetail saddle is compatible with a wide array of OTAs
- Large primary and smaller secondary dovetail plate locking knobs
- Tripod
-
- Lightweight and durable aluminum legs
- Adjustable height from 35.4 to 51.1"

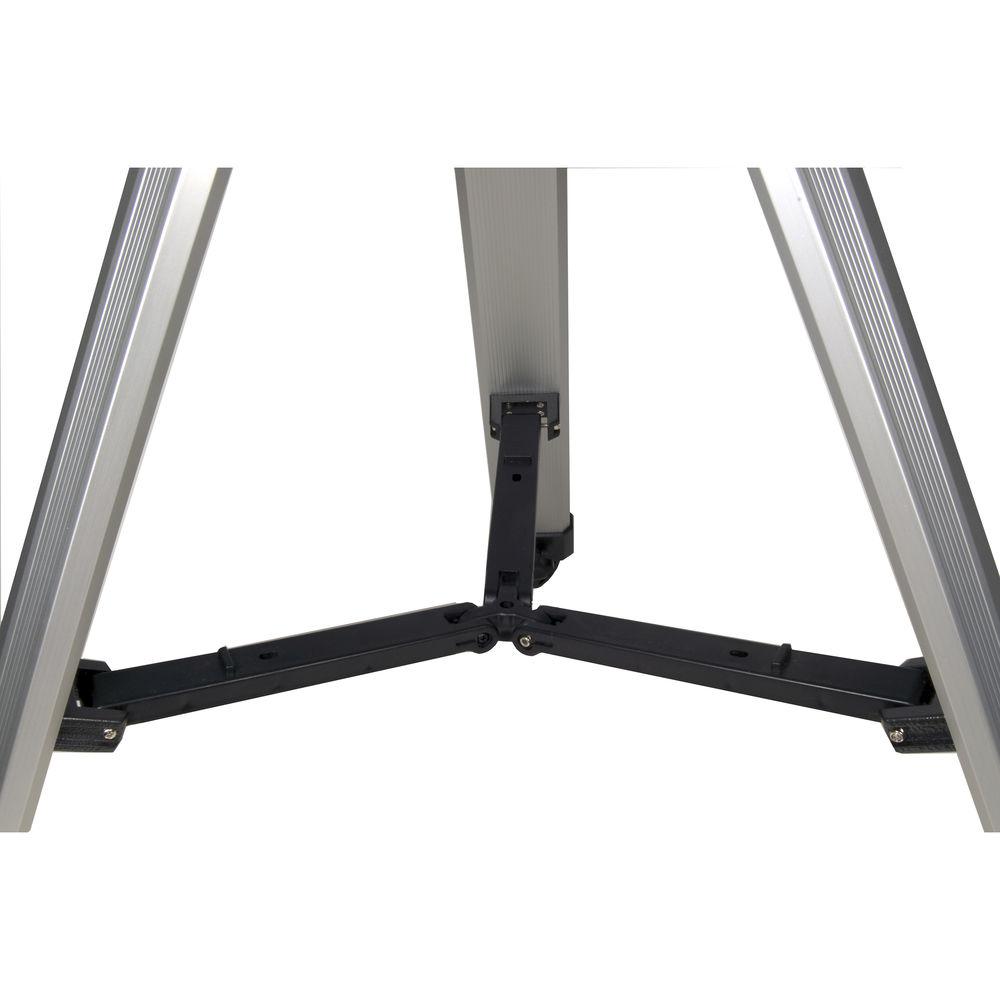

- Center stabilizing bracket
In the Box Levenhuk Ra ATZ Alt-Azimuth Mount Mount Tripod Control Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Ra ATZ Alt-Azimuth Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Ra ATZ Specs | Mount Type | Manual alt-azimuth | | Load Capacity | 15.0 lb / 6.8 kg | | Motor | None | | GoTo Capability | None | | Polar Axis Scope | None | | Includes Tripod/Pier | Aluminum
Leg Sections: 2
Adjustable Height: 51.1 - 35.4" / 130.0 - 90.0 cm | | Power Source | None | | Weight | 18.0 lb / 8.0 kg, total |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
