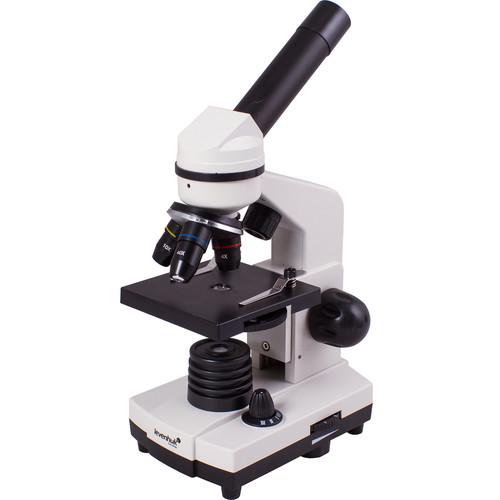

User Manual for Levenhuk Rainbow 2L Microscope Kit Click to enlarge the picture
Contents of the user manual for the Levenhuk Rainbow 2L Microscope Kit
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk Rainbow 2L Microscope Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

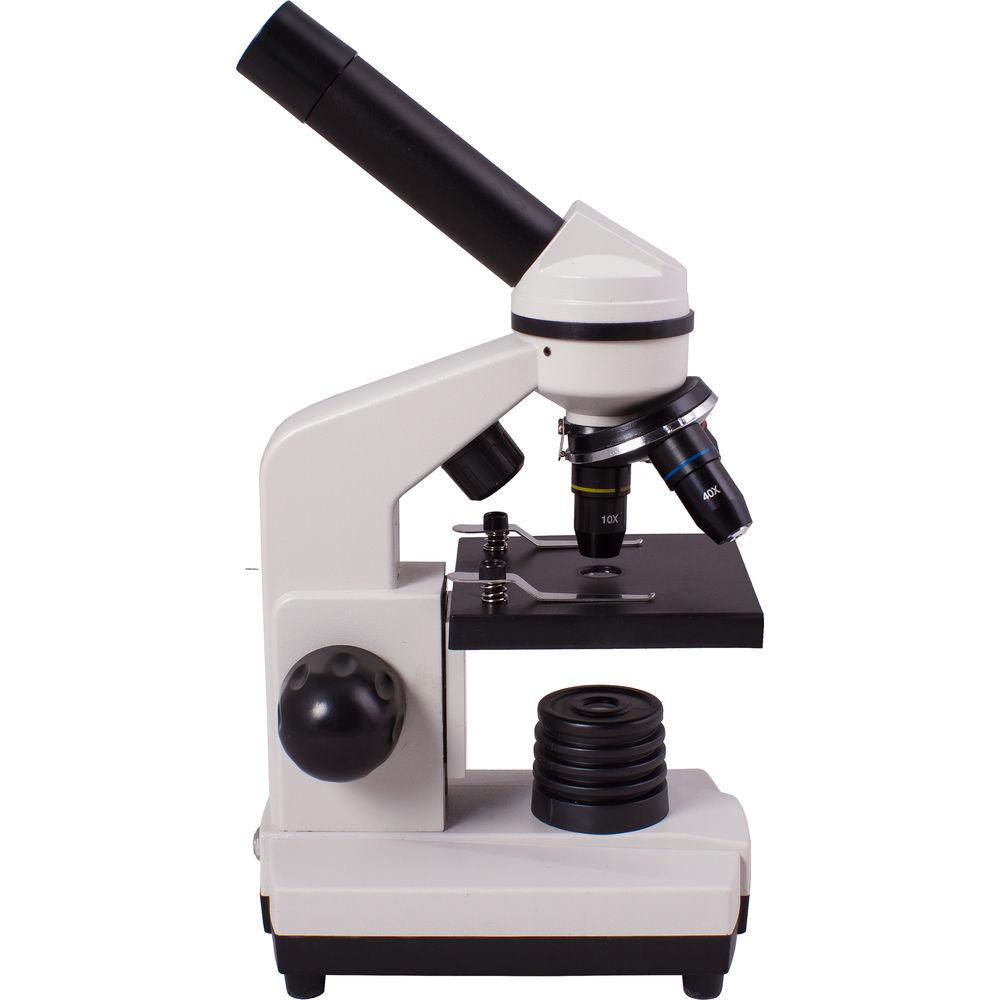

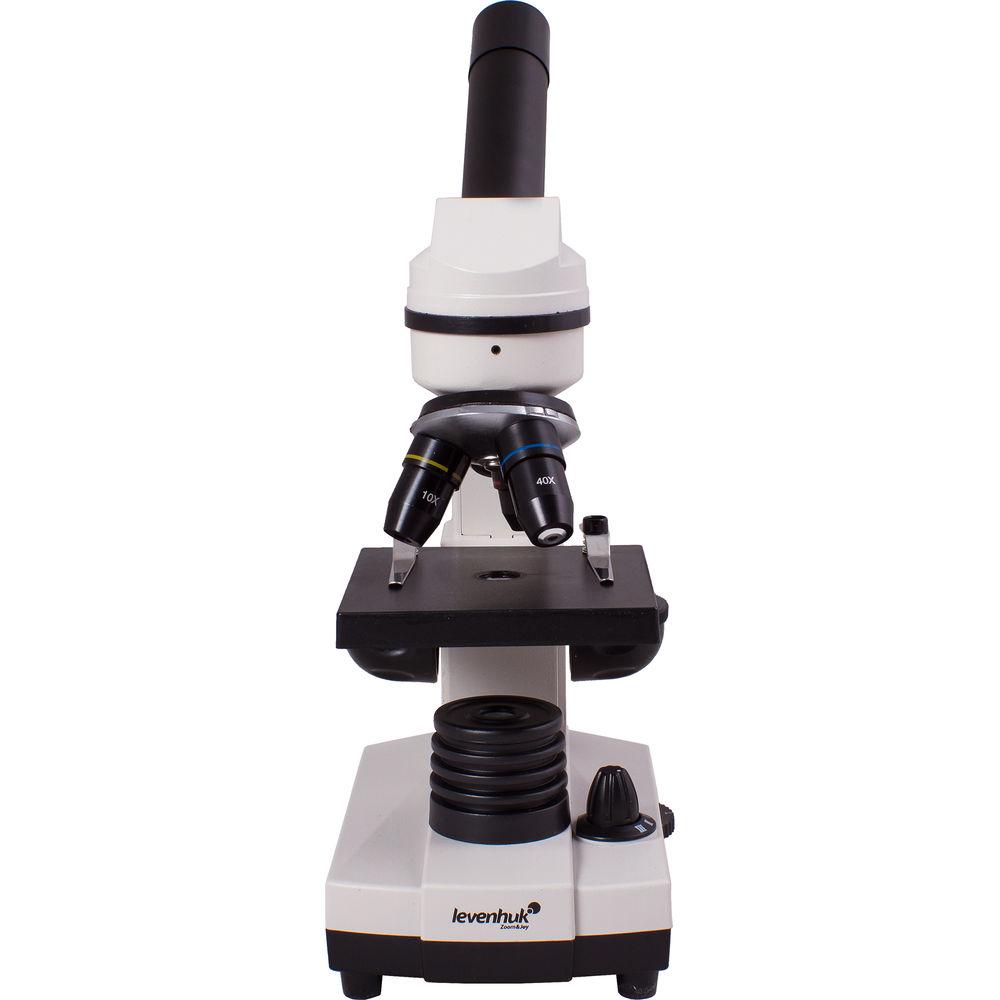

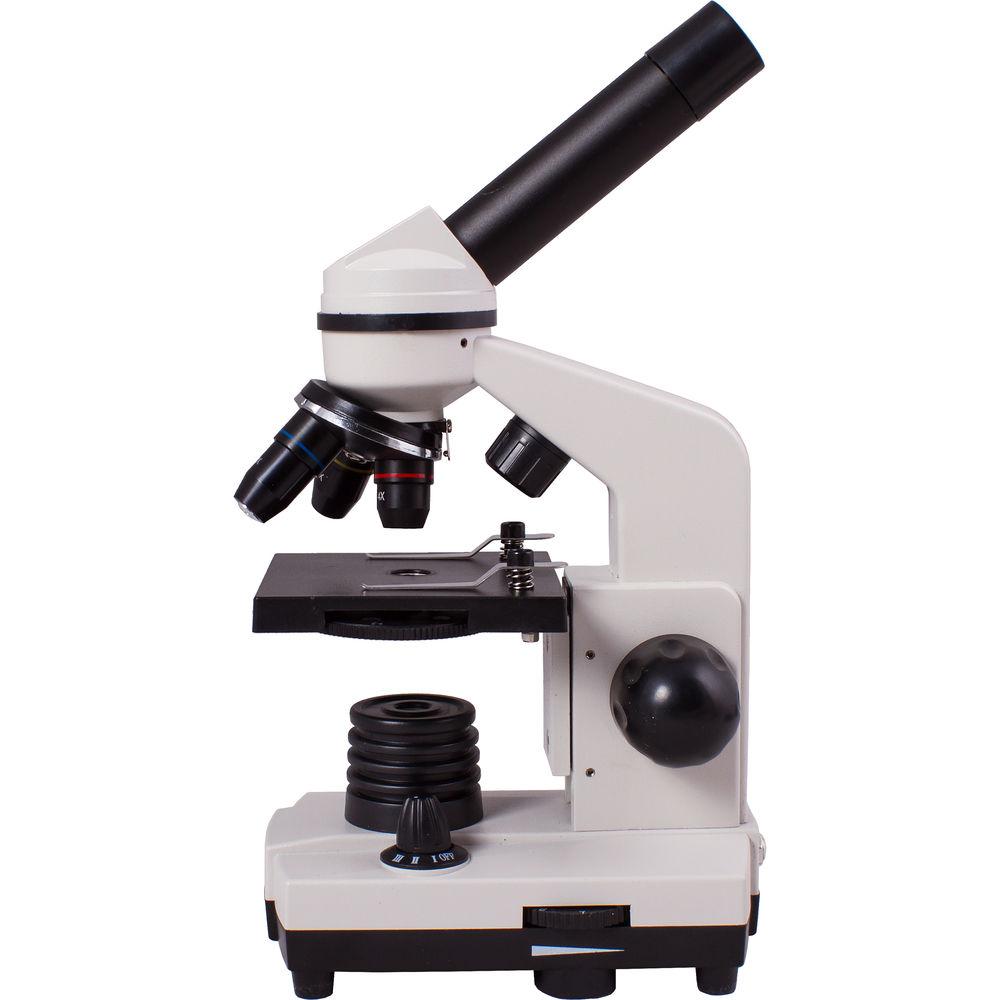

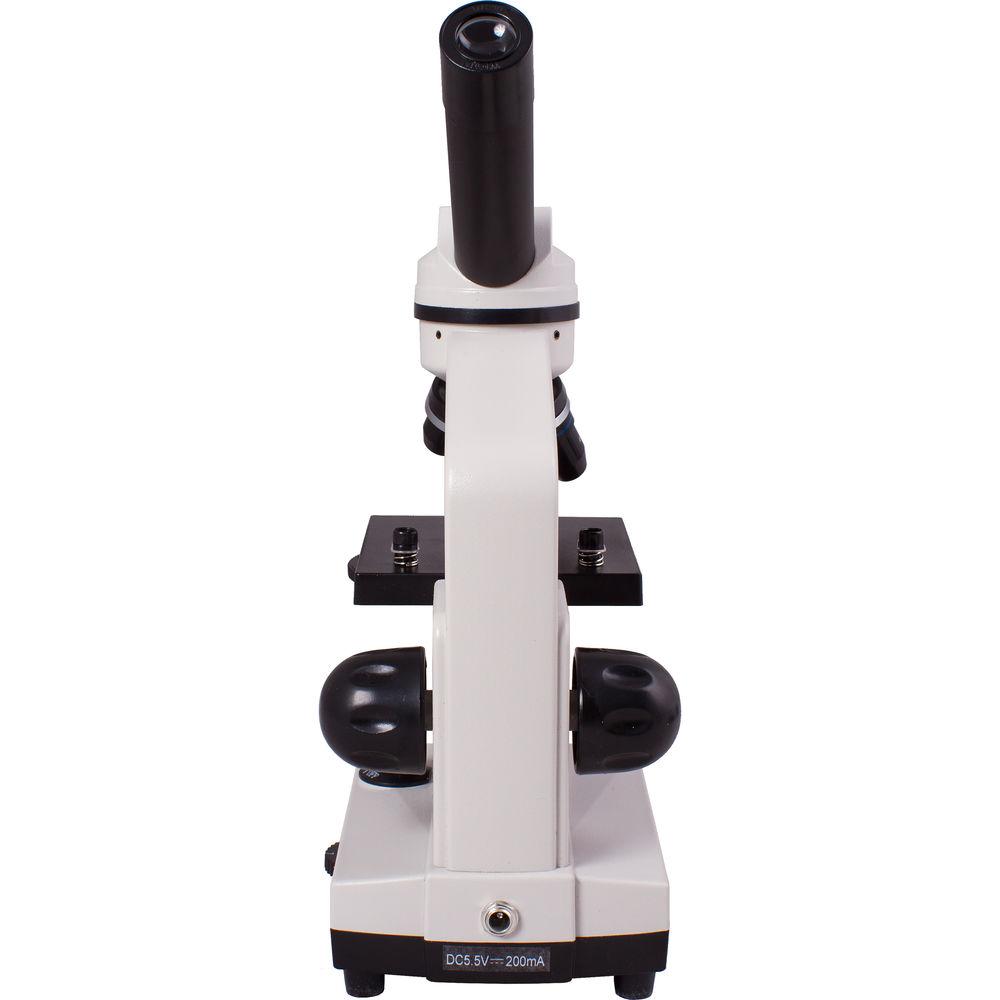

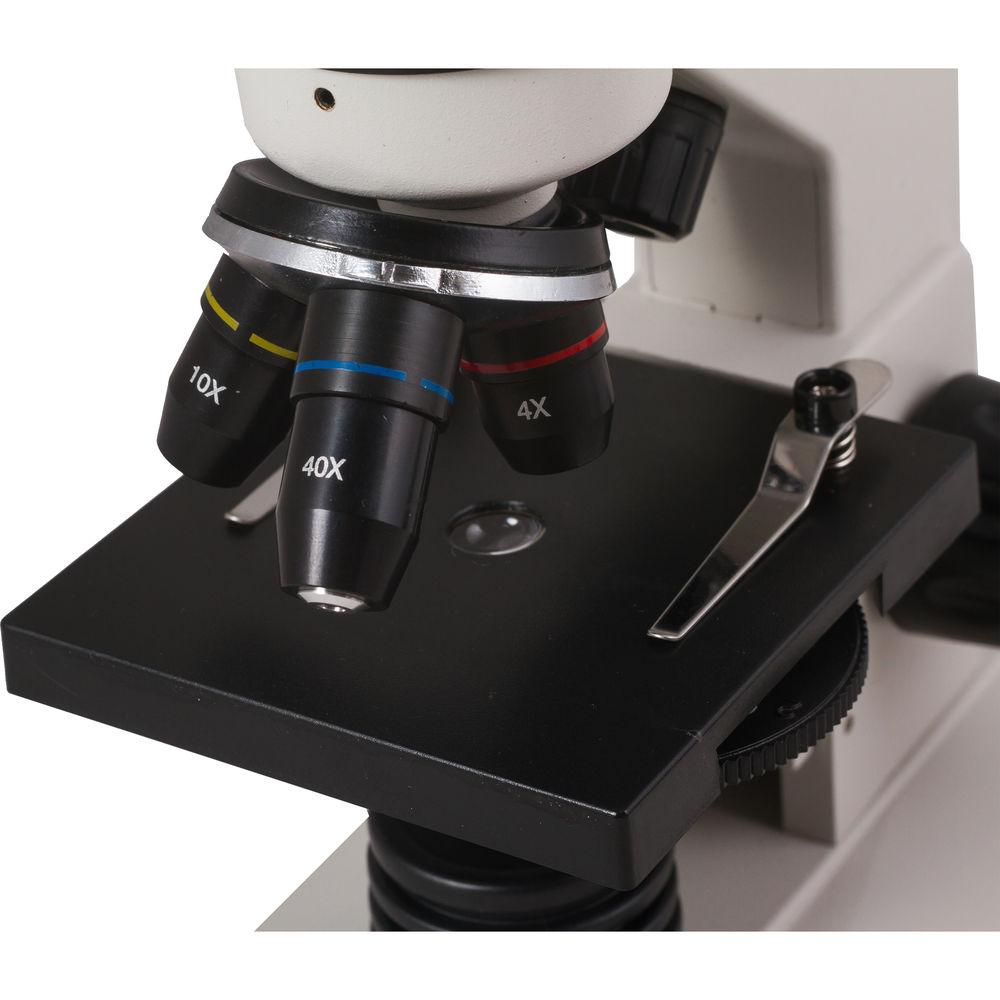

Product description Explore microscopy using the colorful Levenhuk Rainbow 2L Microscope Kit. The kit contains a microscope with a colorful housing and the Levenhuk K50 Experiment set, containing many useful lab accessories and a dust cover for the microscope. This microscope features three objective lenses (4x, 10x, and 40x) on a rotating ball bearing nosepiece, which together with a 10x widefield eyepiece provide up to 400x magnification. For delivering images with high visibility of details, the microscope offers bottom and top LED illumination lamps with adjustable brightness. The illumination can be powered by three AA batteries in a cordless operation mode or by using the included 110V power supply. For firmly securing your slides, the 3.5 x 3.5" stage offers two metal slips. Use a built-in diaphragm wheel with 6 apertures to adjust illumination and contrast of the field of view. For convenience, the housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled coarse focus knobs.
This microscope is ready to use out of the box because it ships with three AA batteries and the K50 Experiment Set, which includes a number of prepared and blank slides, and helpful tools for creating and handling your own specimens. - Optical Performance
-
- Glass optics
- 4x, 10x, and 40x objectives

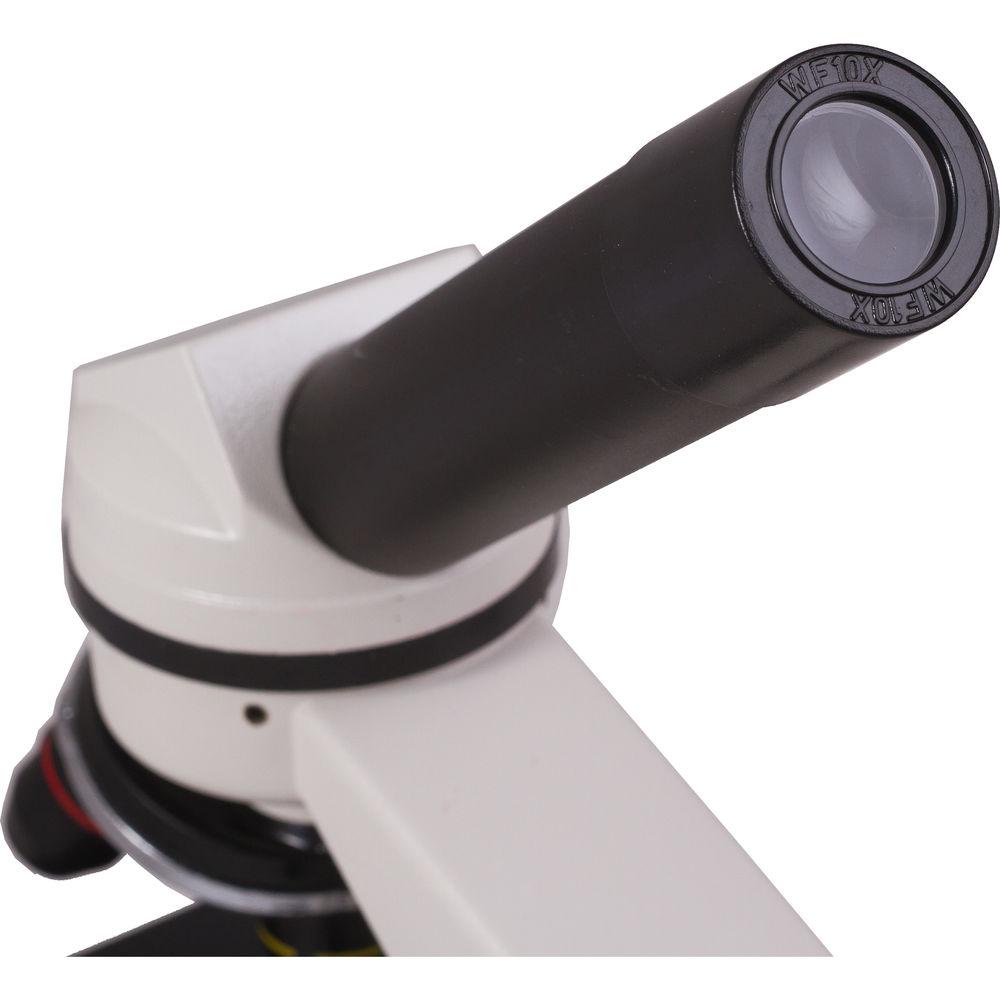

- 10x widefield eyepiece
- 40-400x total magnification
- Stage
-
- 3.5 x 3.5" stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with 6 apertures
- Vertical travel of focus: 0.4"
- Use and Handling
-
- Monocular viewing
- 45°-inclined eyepiece
- Powered by 3 AA batteries via internal battery compartment

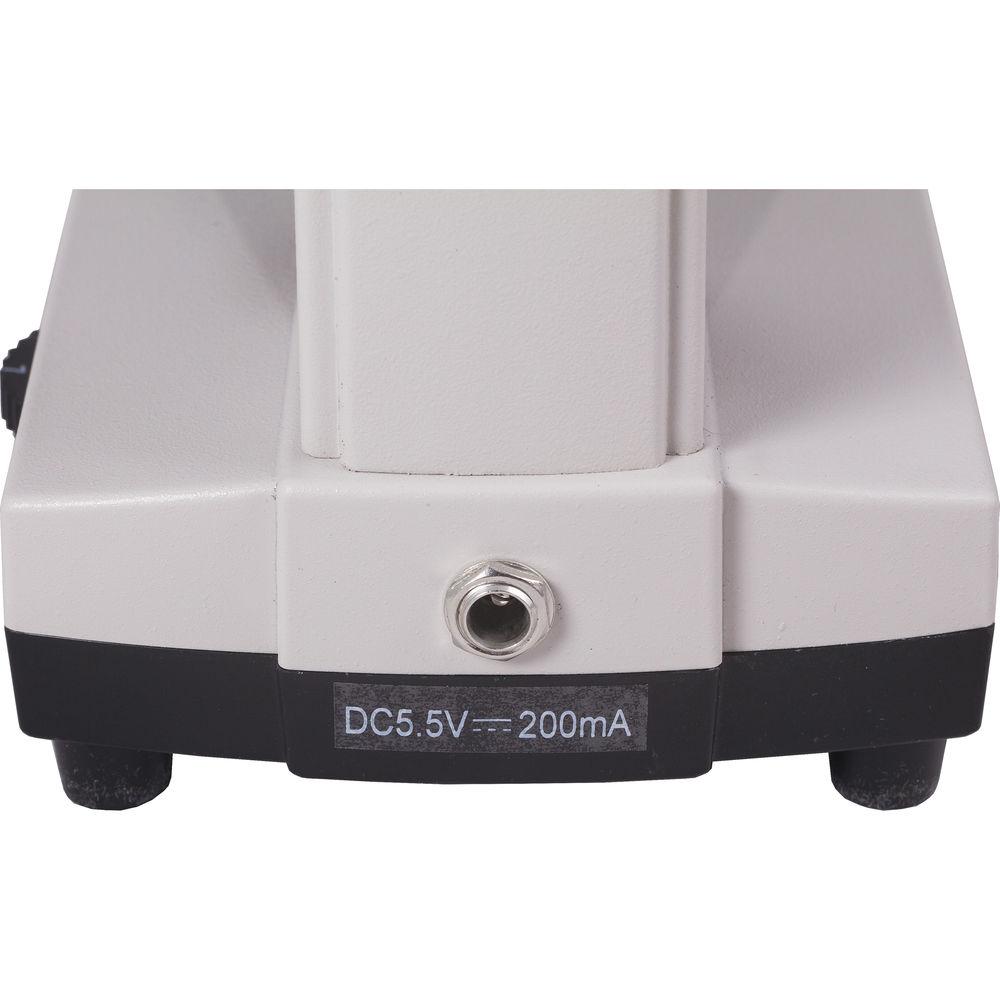

- External 110V power supply included for stationary use

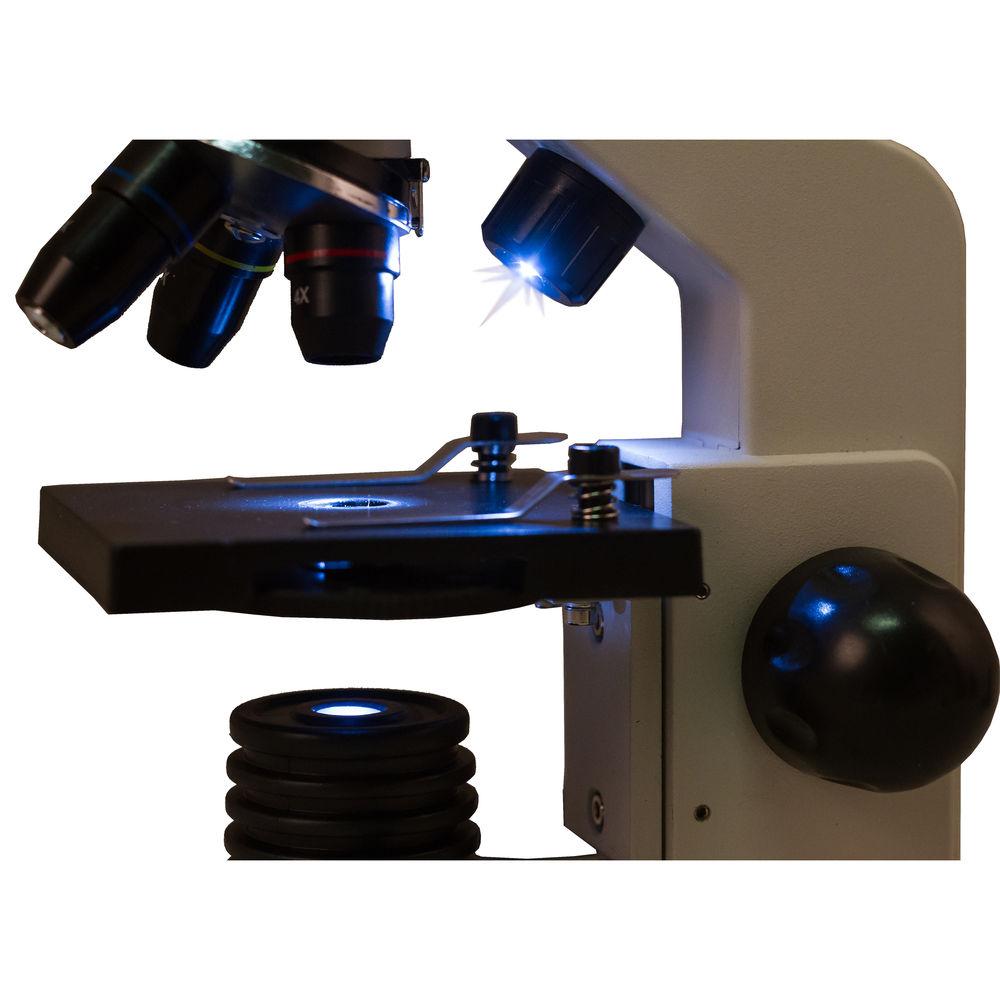

- Top and bottom LED illumination

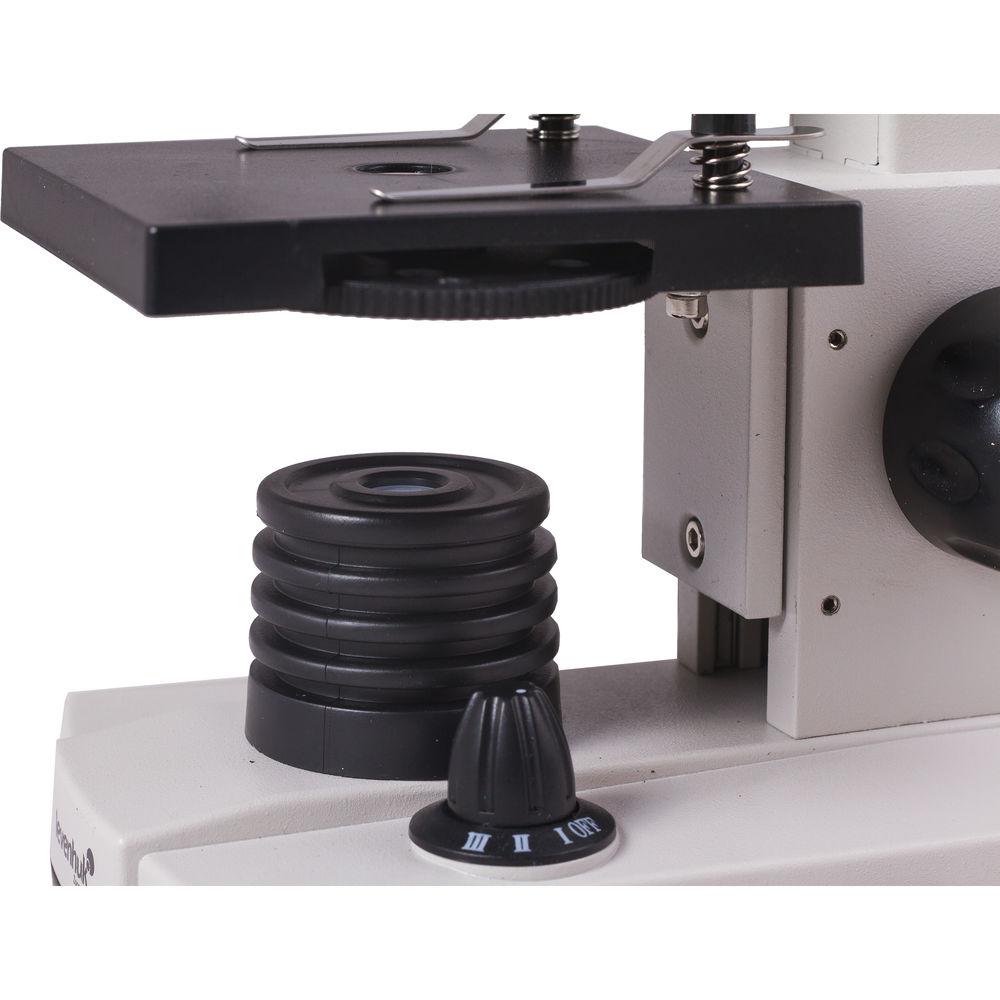

- Conical dial knob on the base serves as the illumination selector switch
- Construction Details
-
- Plastic body
- Arched back serves as a handle
- Wide base provides stability
- Ball bearing rotating nosepiece
- Knurled oversized focusing knobs
- Included Levenhuk K50 Experiment Set
-
- Forceps
- Microtome
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- 5 ready-to-use specimens
- 5 blank slides
- Dropper
- Dust cover
In the Box Levenhuk Rainbow 2L Microscope Kit (Moonstone) - K50 Experiment Set ayurcbrcuqdzvqtucfatwxzubebvdfwszrvsdy
- 3 x AA Batteries
- 110V Power Supply
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Rainbow 2L Microscope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Rainbow 2L Specs | Microscope Type | Compound, monocular | | Eyepiece | 10x widefield
Diameter: 0.91" / 23.2mm | | Nosepiece | Rotating | | Objective(s) | 4x, 10x, 40x | | Head | Monocular, inclined 45° | | Focuser | Coarse | | Light Source | LED, top and bottom | | Condenser System | NA 0.65 | | Light Control | Rheostat | | Power | Internal: 3 x AA batteries
External: 110 V power supply | | Specimen Stage | 3.5 x 3.5" / 90 x 90 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
