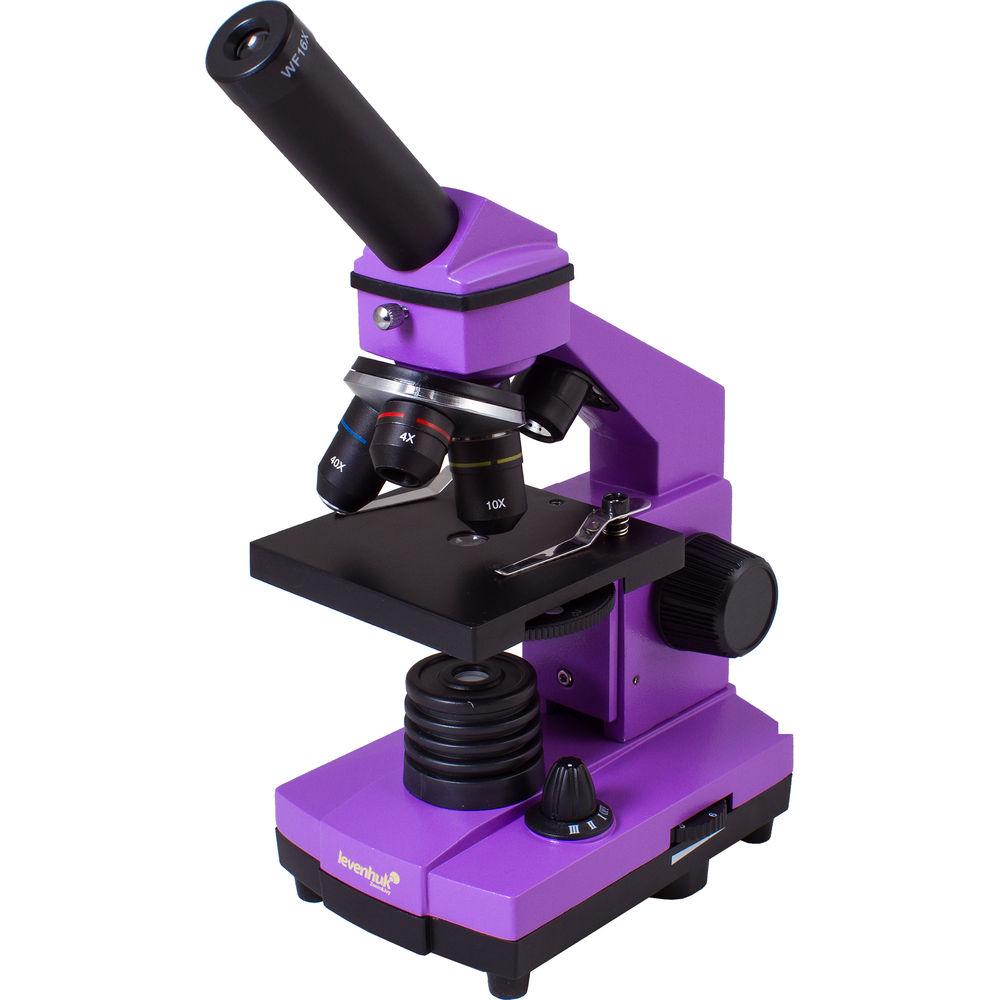

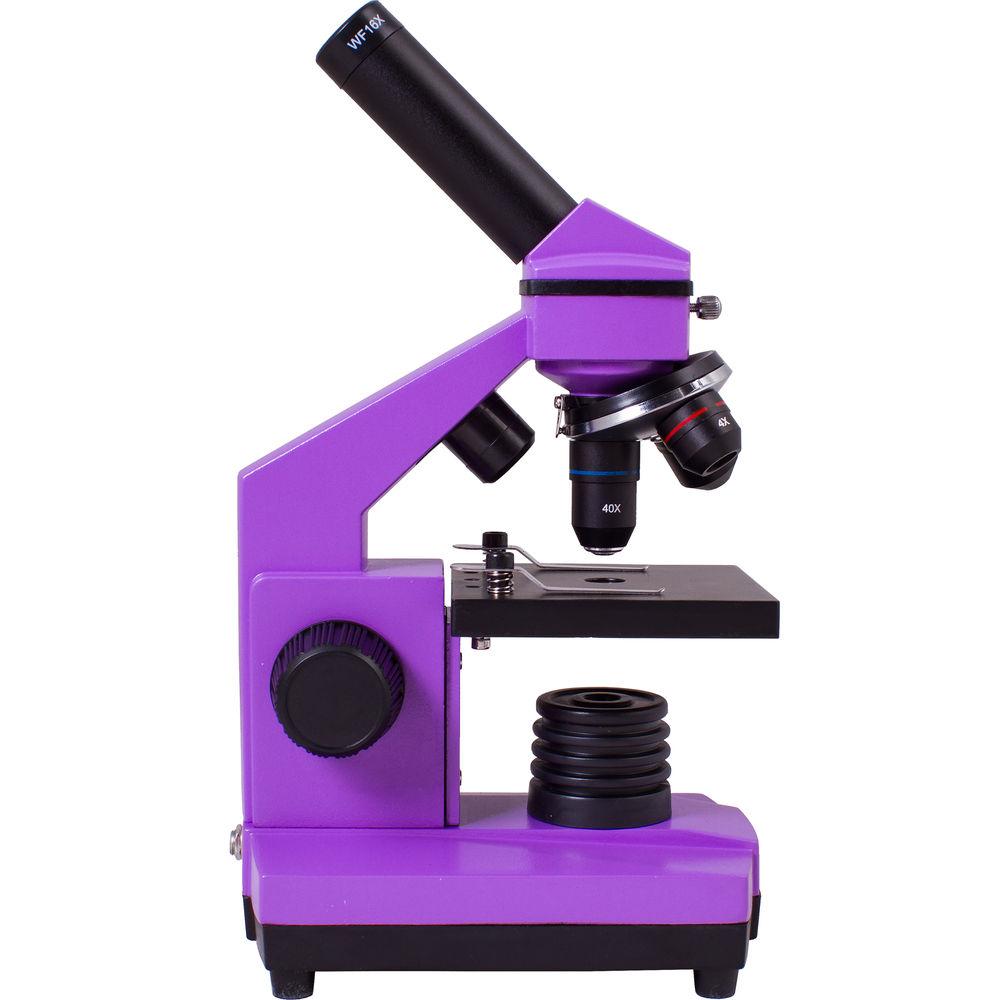

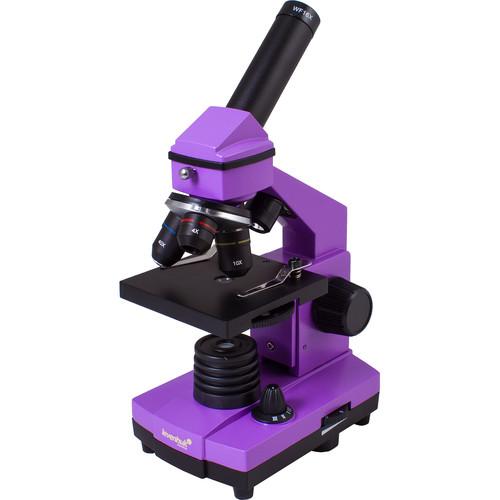

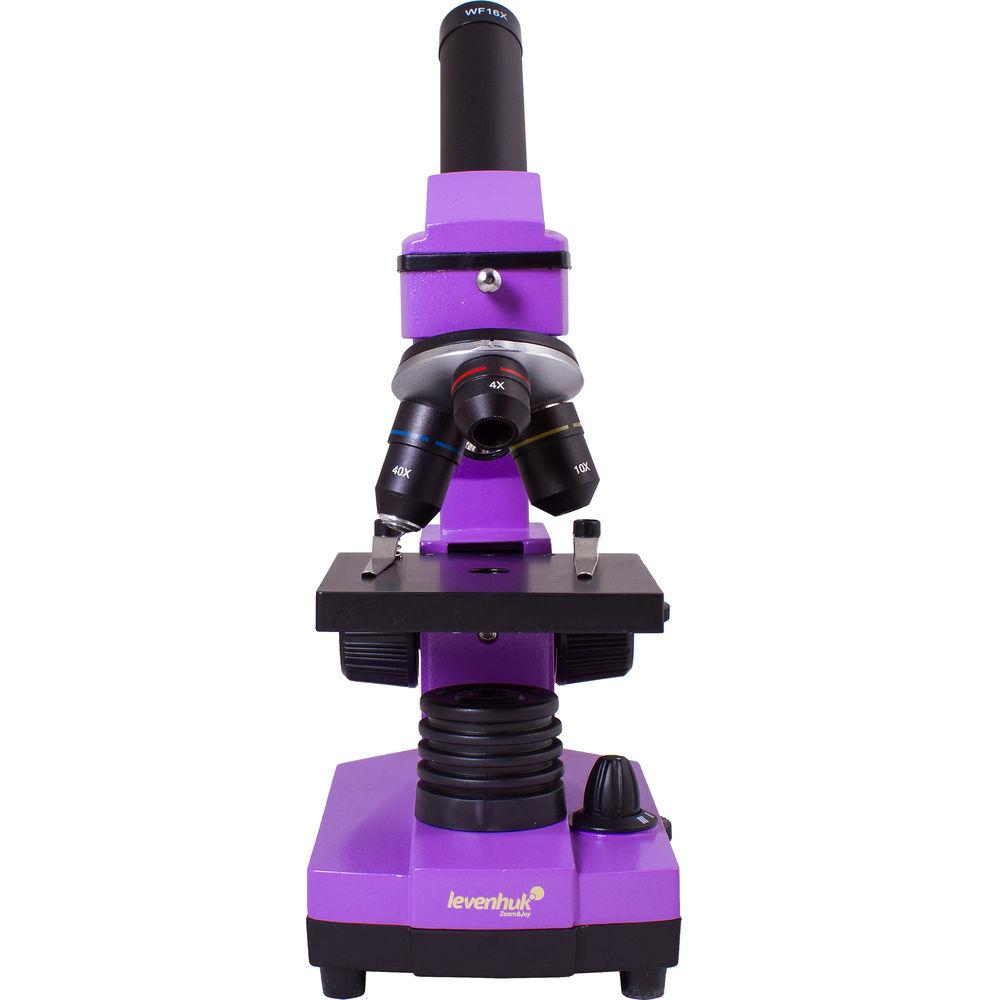

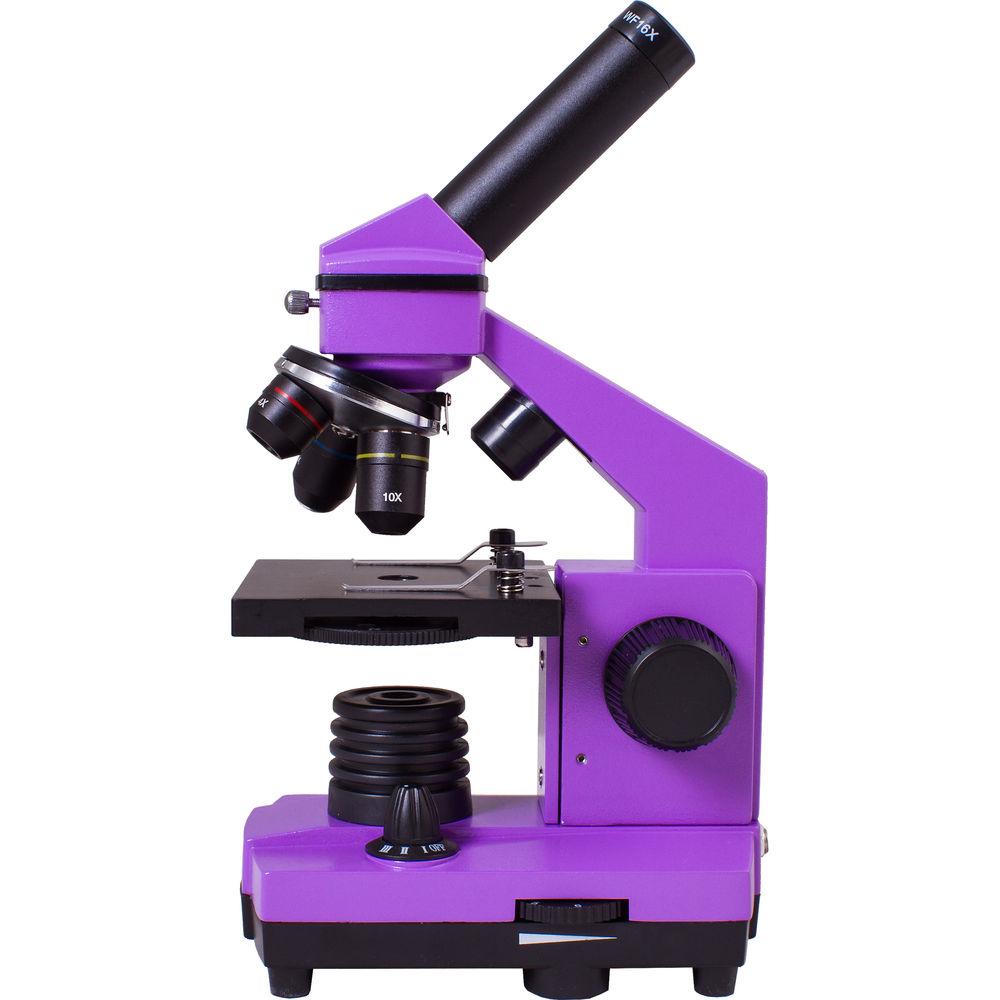

Product description Explore microscopy using the colorful Levenhuk Rainbow 2L Plus Microscope Kit. The kit contains a microscope with a bright amethyst housing and the Levenhuk K50 Experiment set, containing many useful lab accessories and a dust cover for the microscope. This microscope with a bright housing provides three objective lenses (4x, 10x, and a spring-loaded 40xs) on a rotating ball bearing nosepiece, which together with a 10x widefield eyepiece provide up to 640x magnification. To provide great visibility of your specimens, the microscope offers bottom and top LED illumination lamps with adjustable brightness. The illumination can be powered by three AA batteries for cordless operation or by using the included 110V power supply. For holding your slides securely, the 3.5 x 3.5" stage offers two metal slips and has a built-in diaphragm wheel with 6 apertures. To ensure strength and accuracy, the housing features an arched metal frame that can be used as a handle. Other highlights are a wide and stable base and knurled coarse focus knobs.
This microscope is ready to use out of the box because it ships with three AA batteries and the K50 Experiment Set, which includes a number of prepared and blank slides, and helpful tools for creating and handling your own specimens. - Optical Performance
-
- Glass optics
- 4x, 10x, and 40xs objectives
- 40xs objective has a spring-loaded retraction

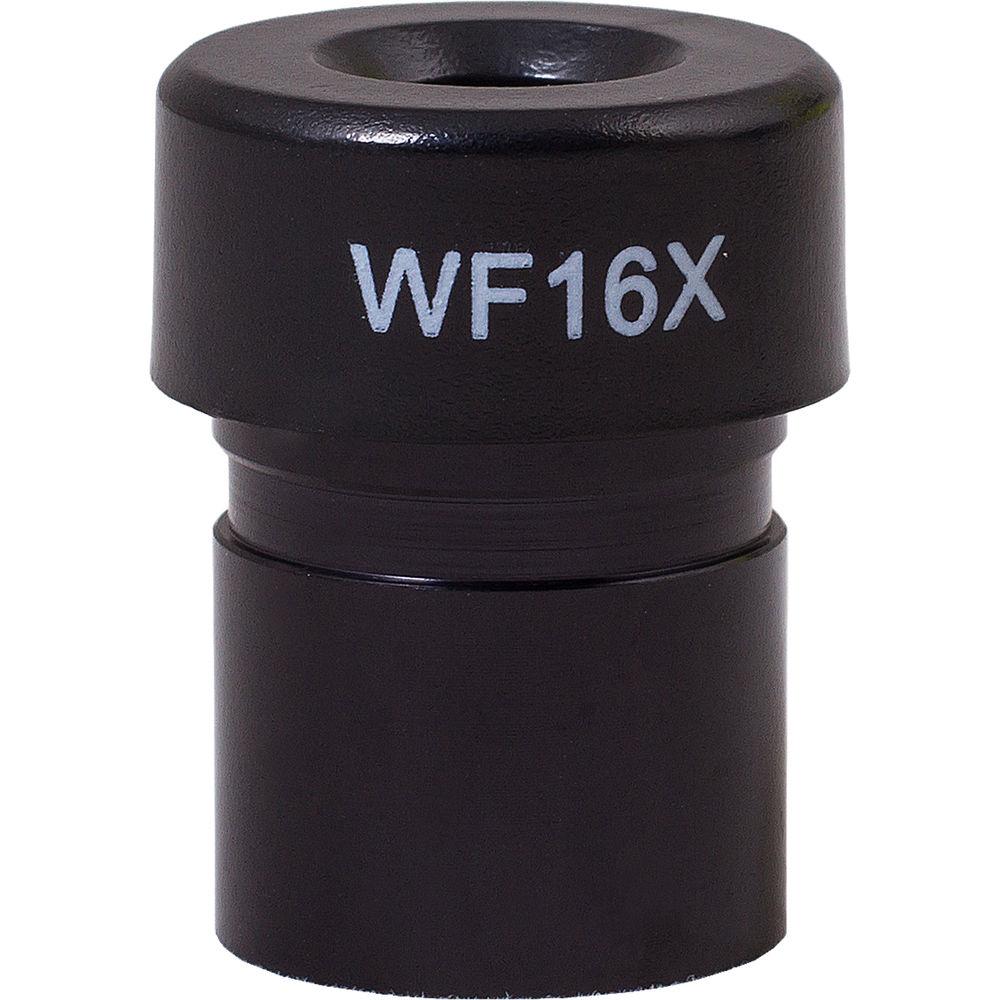

- 16x widefield eyepiece
- 64-640x total magnification
- Stage
-
- 3.5 x 3.5" metal stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with 6 apertures
- Vertical travel of focus: 0.3"
- Use and Handling
-
- Head rotates 360°
- Monocular viewing
- 45°-inclined eyepiece
- Powered by 3 AA batteries via internal battery compartment

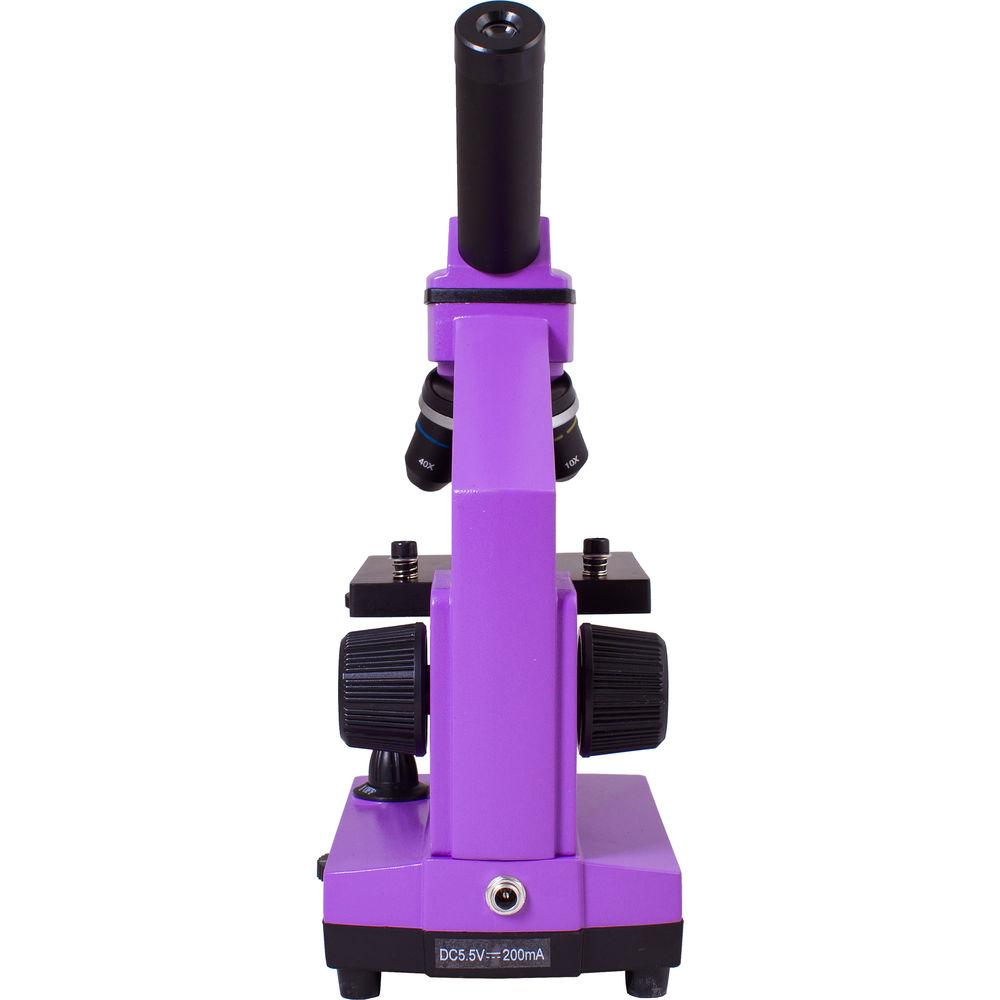

- External 110V power supply included for stationary use

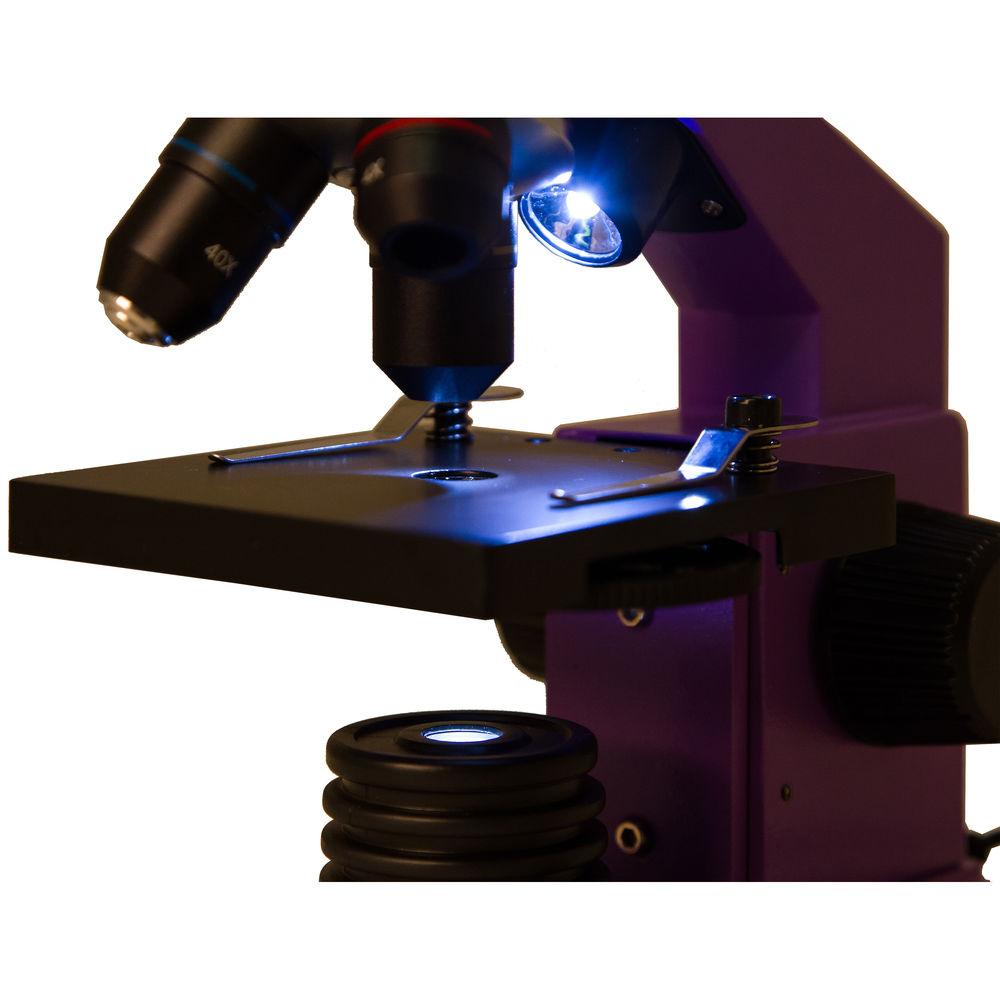

- Top and bottom LED illumination

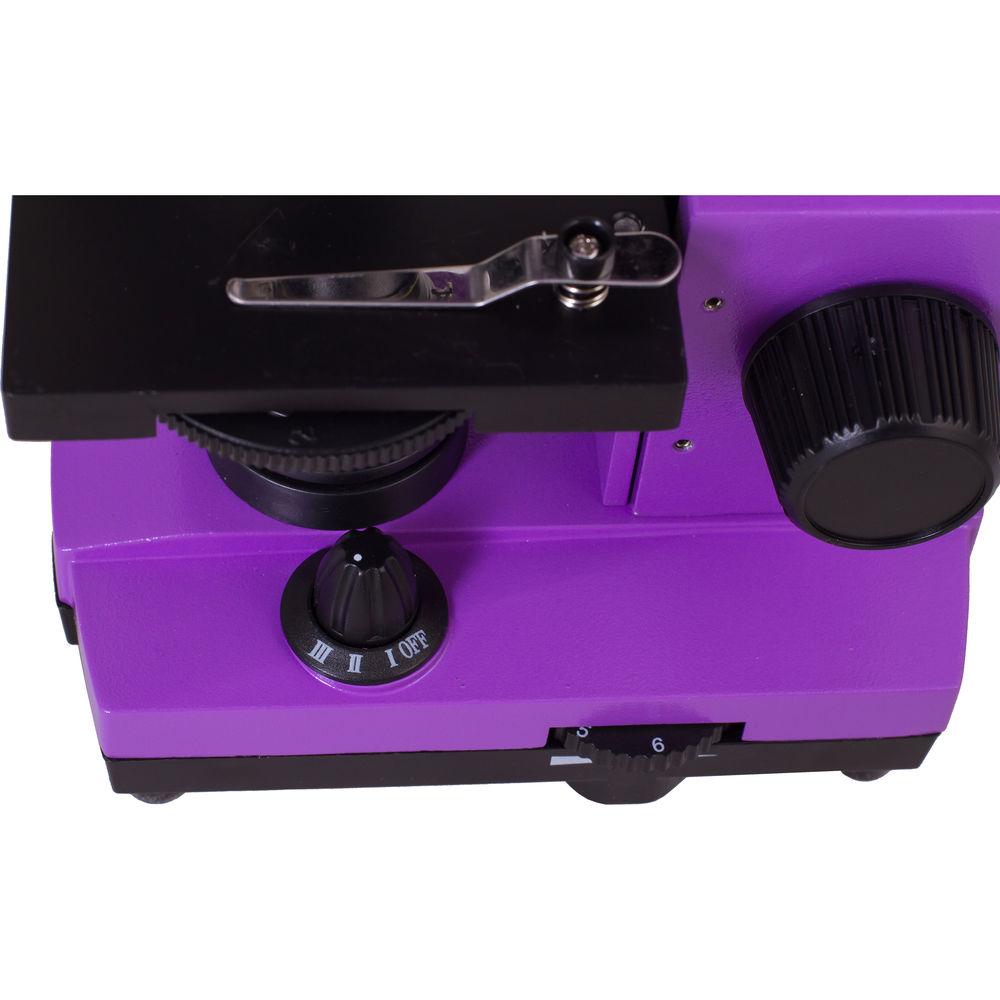

- Conical dial knob on the base serves as the illumination selector switch
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability

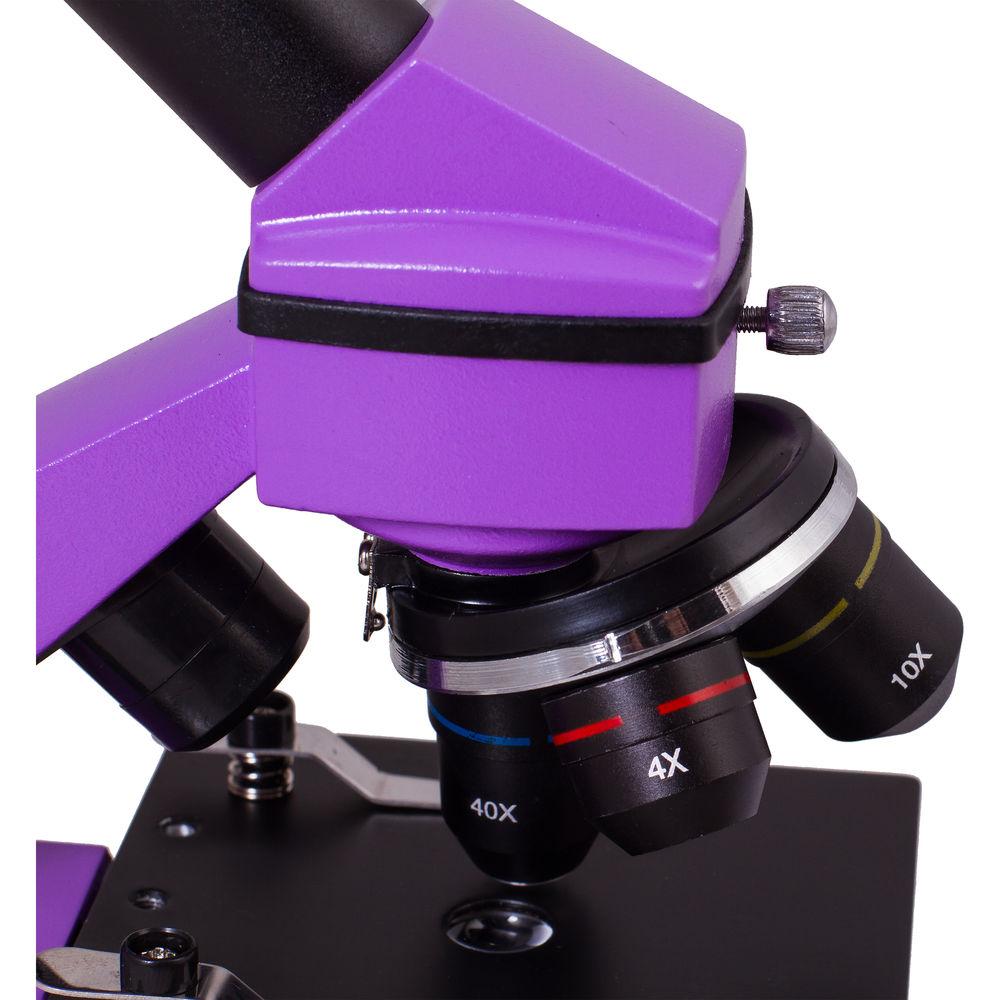

- Rotating nosepiece
- Knurled oversized focusing knobs
- Included Levenhuk K50 Experiment Set
-
- Forceps
- Microtome
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- 5 ready-to-use specimens
- 5 blank slides
- Dropper
- Dust cover
In the Box Levenhuk Rainbow 2L Plus Microscope Kit (Amethyst) - K50 Experiment Set
- 3 x AA Batteries
- 110V Power Supply
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Rainbow 2L Plus Microscope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Rainbow 2L Plus Specs | Microscope Type | Compound, monocular | | Eyepiece | 16x WF with a 0.91"(23.2 mm) tube diameter | | Nosepiece | Rotating | | Objective(s) | 4x, 10x, 40xs (spring-loaded) | | Magnification | 64-640x | | Head | Monocular, inclined 45° | | Focuser | Coarse | | Light Source | LED, top and bottom | | Condenser System | NA 0.65 | | Light Control | Rheostat | | Power | Internal: 3 x AA batteries
External: 110 V power supply | | Specimen Stage | 3.5 x 3.5" / 90 x 90 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Package Weight | 4.025 lb | | Box Dimensions (LxWxH) | 14.5 x 7.4 x 5.4" |
