User Manual for Levenhuk Rainbow 50L Monocular Microscope Kit Click to enlarge the picture
Contents of the user manual for the Levenhuk Rainbow 50L Monocular Microscope Kit
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk Rainbow 50L Monocular Microscope Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

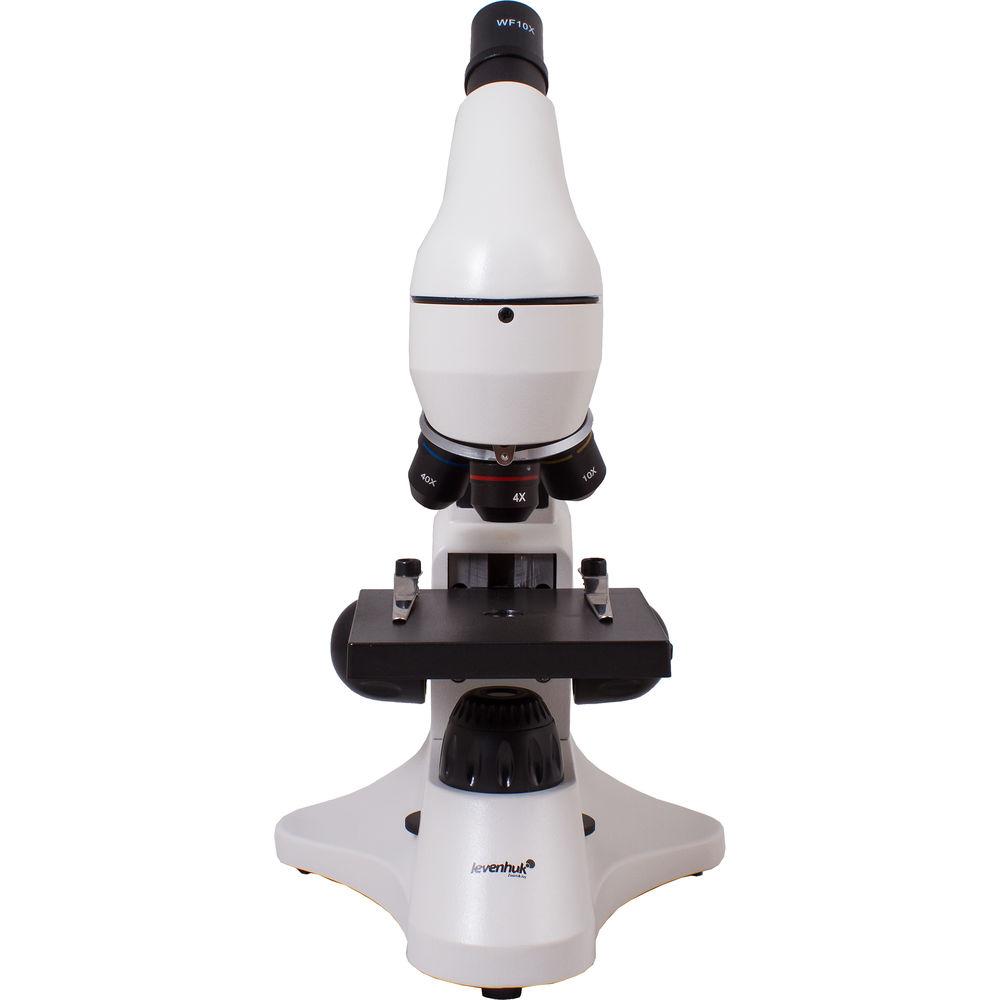

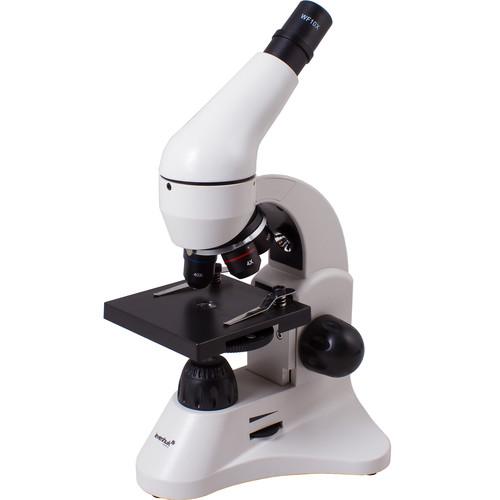

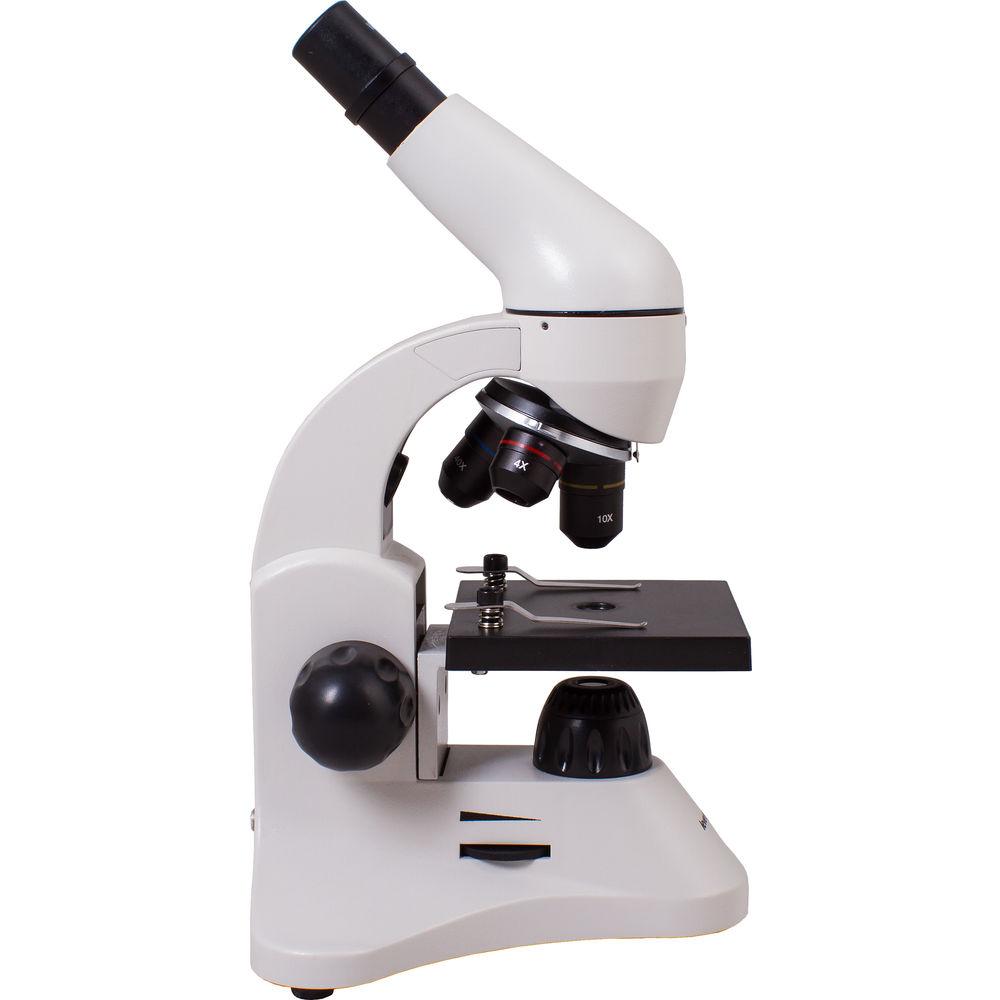

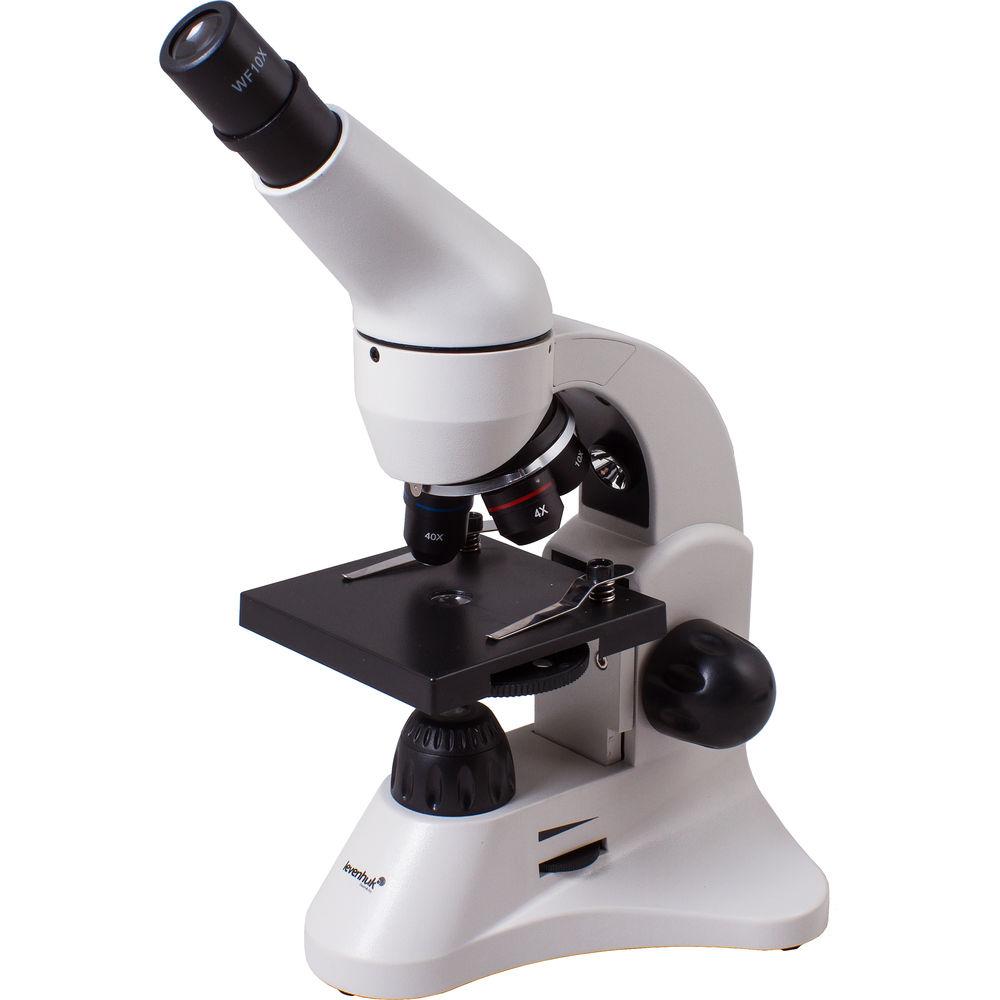

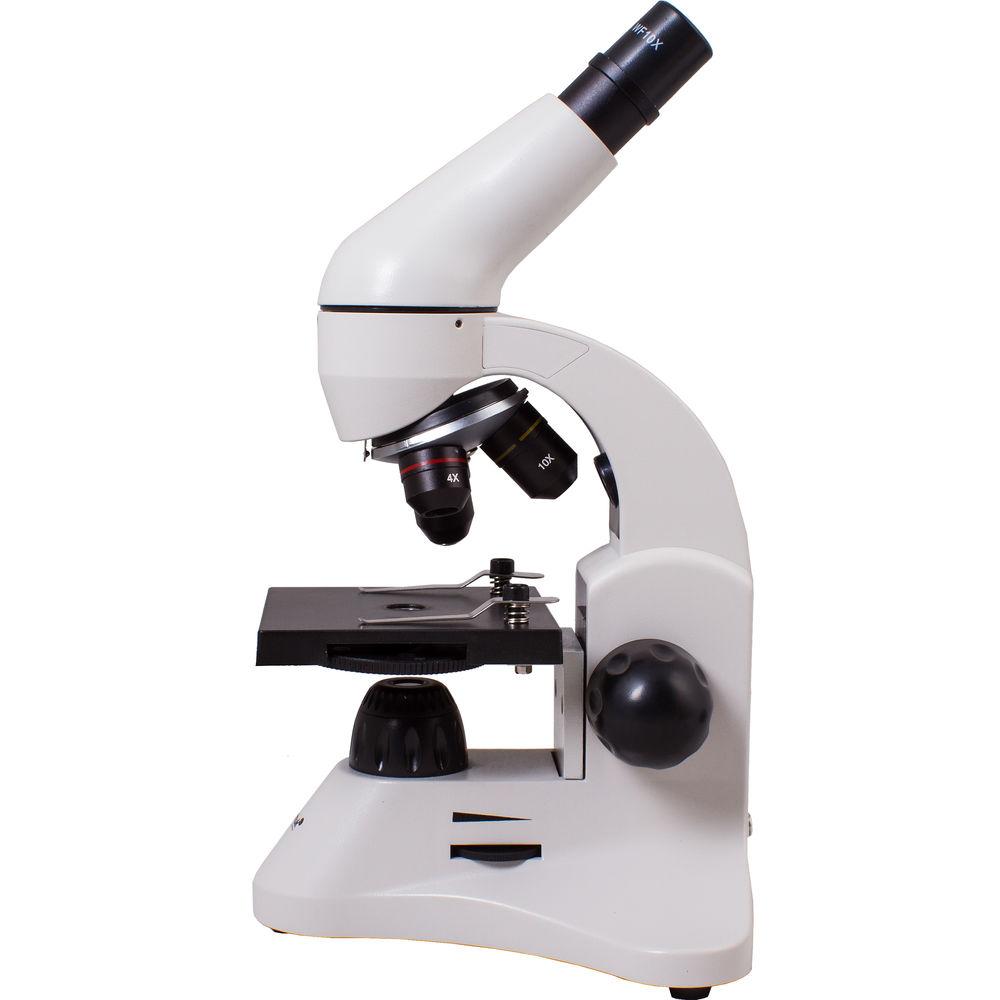

Product description Explore microscopy with the 40-800x Levenhuk Rainbow 50L Monocular Microscope Kit. The kit contains everything you need to get a streamline introduction to microscopy and get started right away, including a bright microscope and a Levenhuk K50 Experiment set, containing many useful lab accessories and a dust cover for the microscope. The optical system of this microscope features three objective lenses (4x, 10x, and 40x) on a rotating nosepiece, that together with a 10x widefield eyepiece, provide up to 400x magnification. You can bump up the total magnification with each objective lens by another factor of 2x using the included Barlow lens. For easy sharing, the head can be rotated 360°; and for ergonomics, the eyepiece is inclined by 45 degrees. For delivering images with a high visibility of details, the microscope offers bottom and top LED illumination lamps with adjustable brightness. The beauty of this microscope is that it can be used as a cordless field microscope or as a stationary instrument. For cordless operation, its illumination can be powered by the two included AA batteries. For a standard tabletop operation, use the included 110V power supply. Underneath the objective turret, you will find a 3.5 x 3.5" stage with two metal clips for securing you slides. It has a built-in diaphragm wheel with six apertures to adjust illumination and contrast of the field of view. For convenience, the housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled coarse focus knobs.
This microscope is ready to use out of the box because it ships with two AA batteries and the K50 Experiment Set, which includes several prepared and blank slides, and helpful tools for creating and handling your own specimens. - Optical Performance
-
- Glass optics
- 4x, 10x, and 40x objectives
- 10x widefield eyepiece
- 2x Barlow lens included
- 40-800x total magnification
- Stage
-
- 3.5 x 3.5" stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with six apertures
- Vertical travel of focus: 0.4"
- Use and Handling
-
- Monocular viewing
- 45°-inclined eyepiece
- Head rotates 360°
- Powered by two AA batteries via internal battery compartment

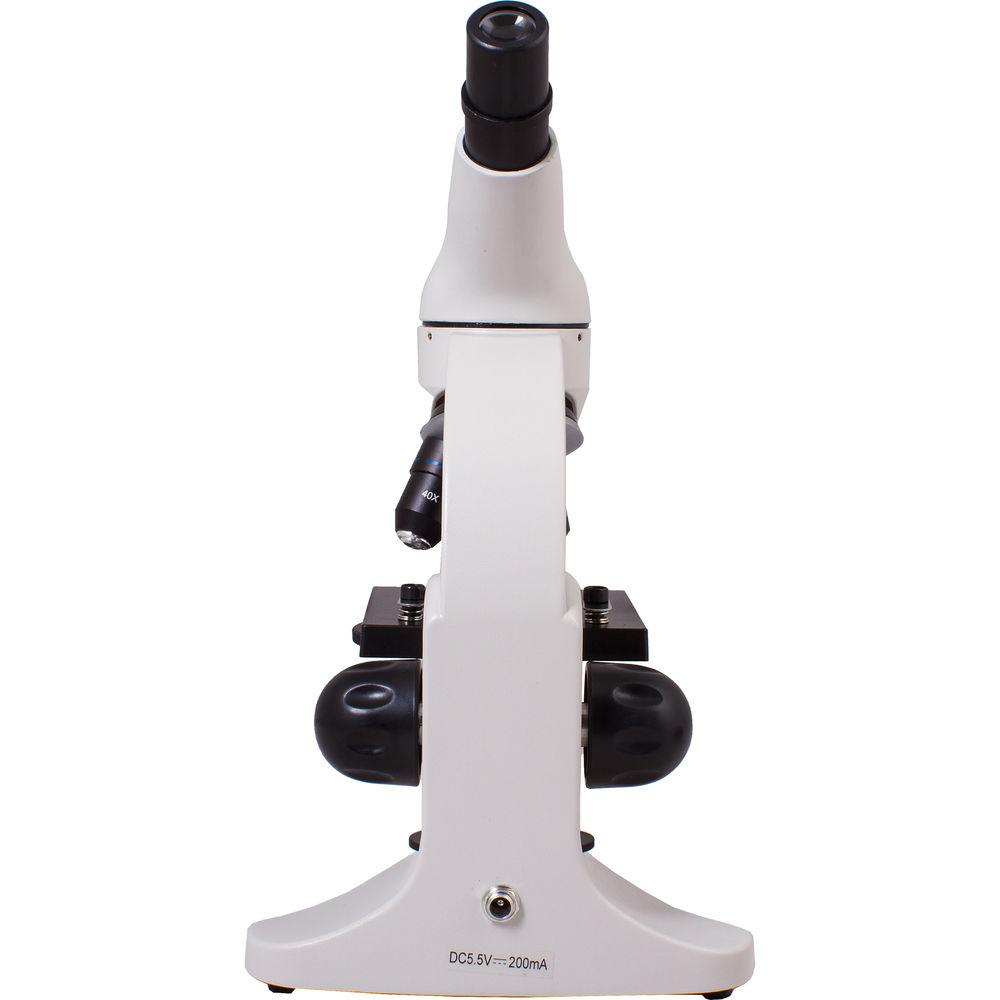

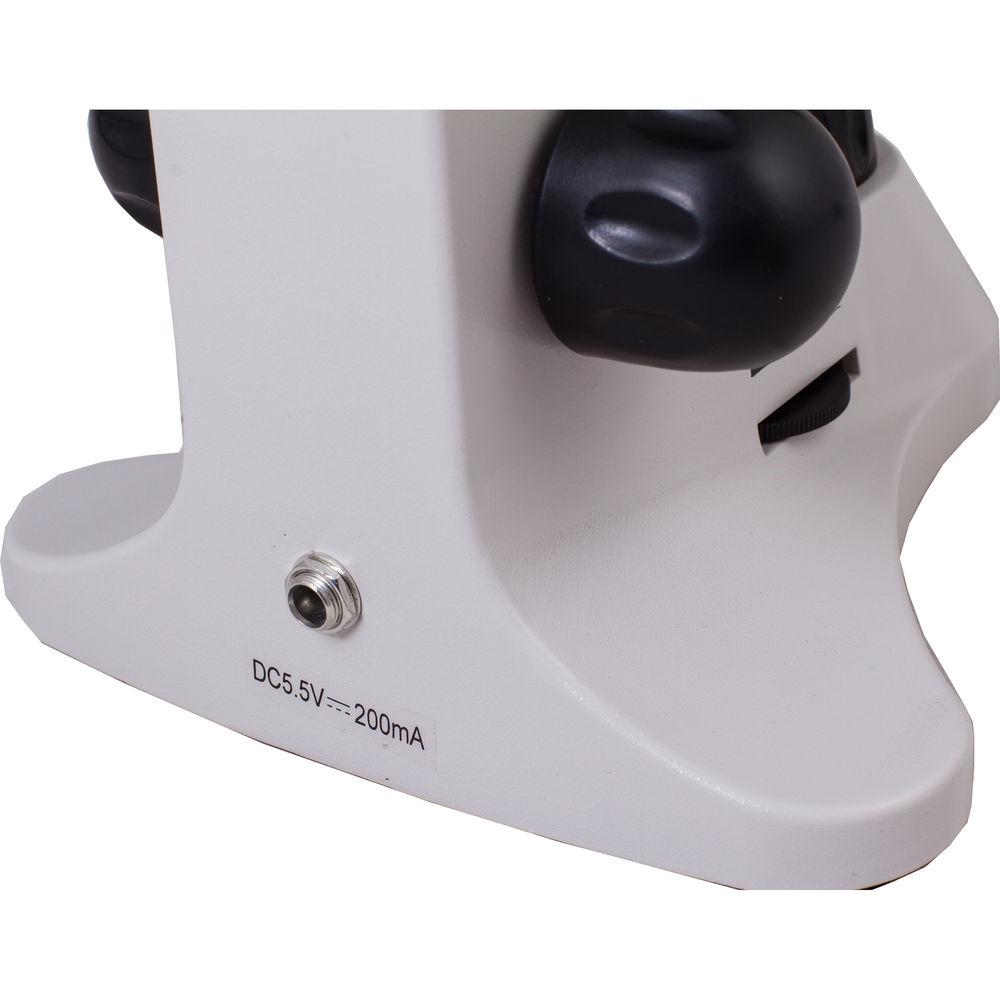

- External 110V power supply included for stationary use

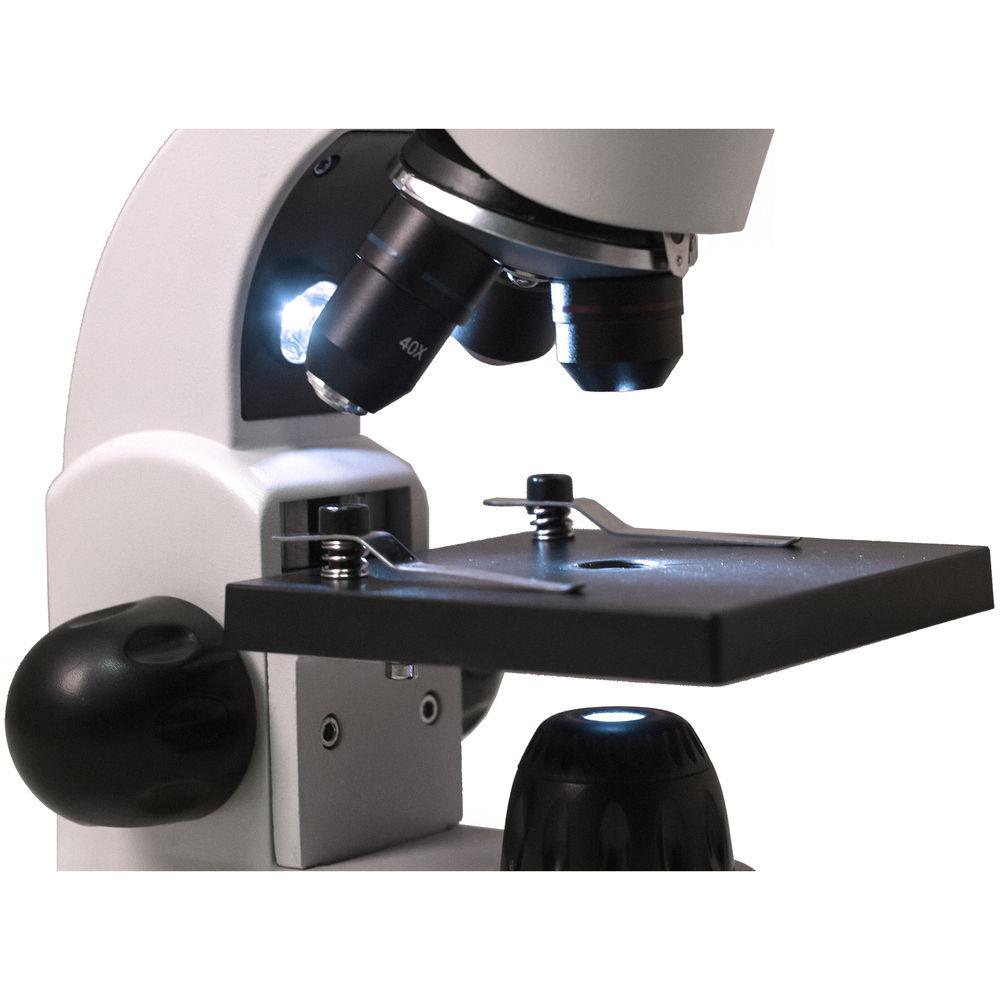

- Top and bottom LED illumination

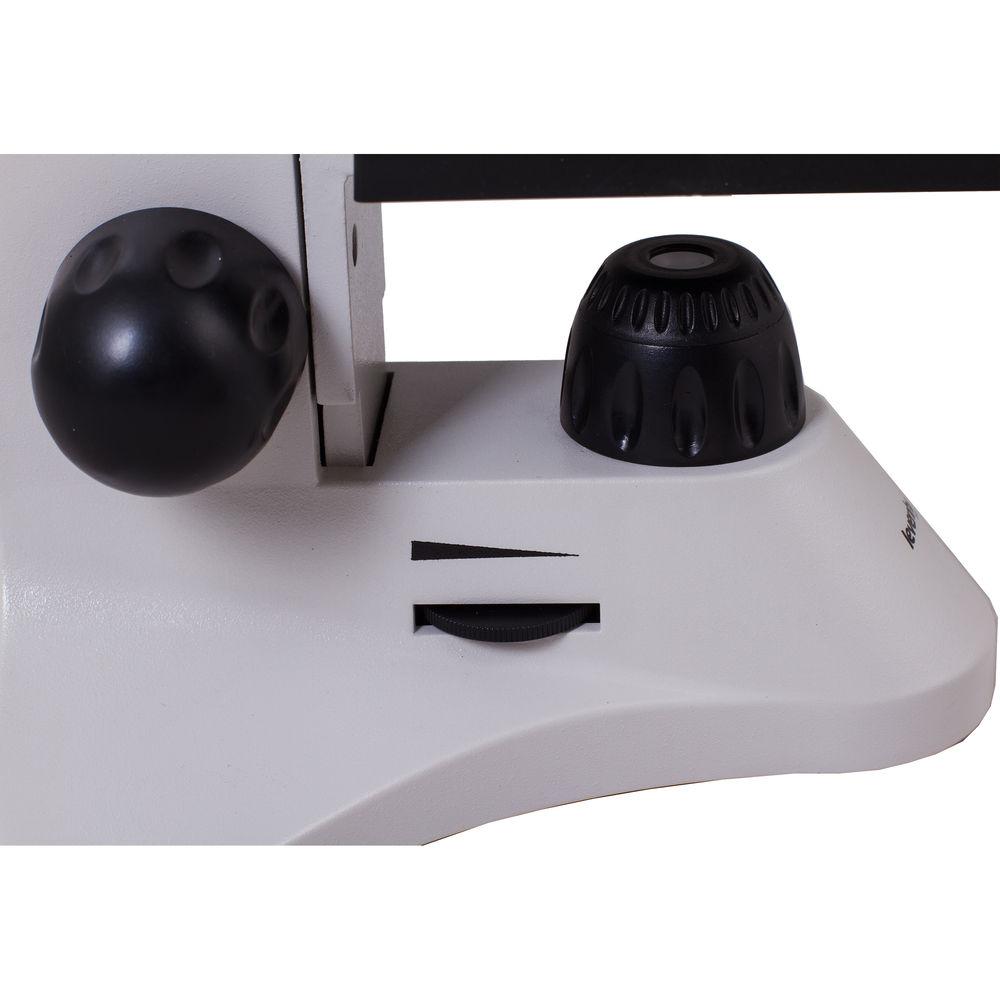

- Conical dial knob on the base serves as the illumination selector switch
- Construction Details
-
- Plastic body
- Arched back serves as a handle
- Wide base provides stability
- Rotating nosepiece
- Knurled oversized focusing knobs
- Included Levenhuk K50 Experiment Set
-
- Forceps
- Microtome
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- 5 ready-to-use specimens
- 5 blank slides
- Dropper
- Dust cover

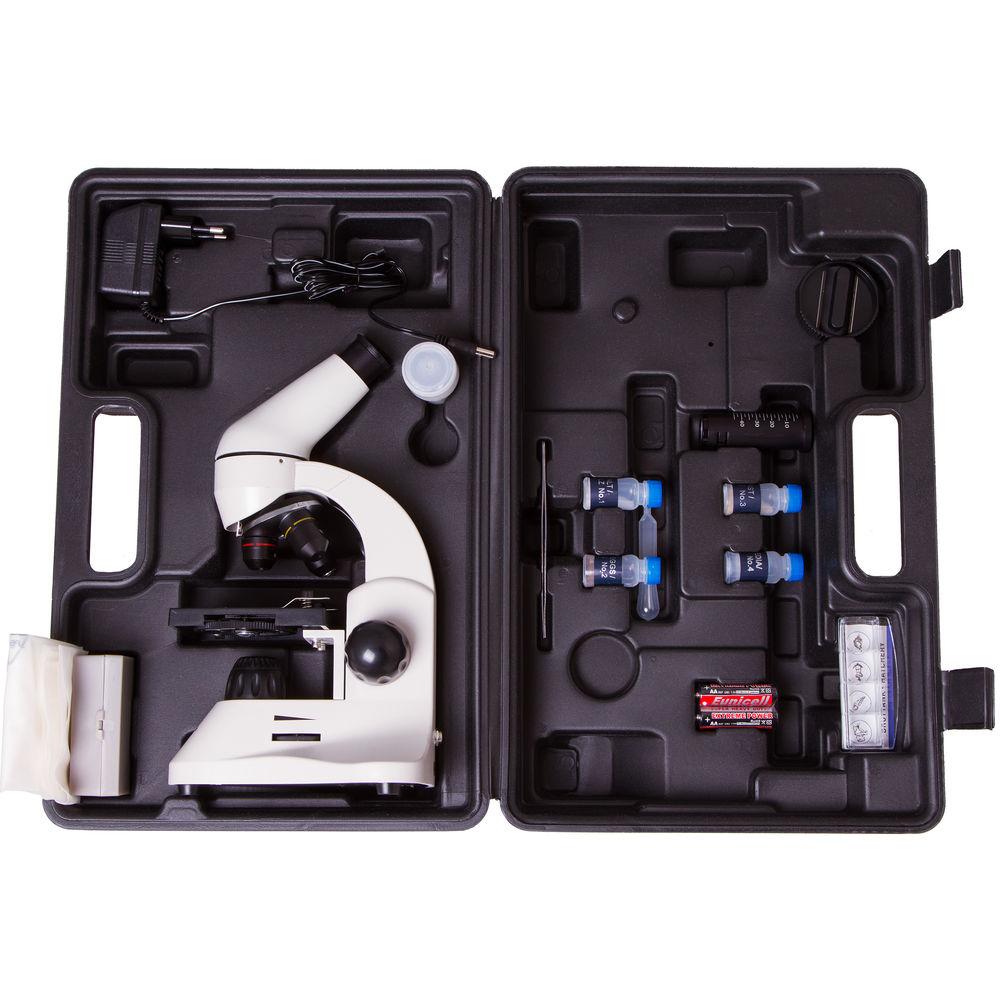

In the Box Levenhuk Rainbow 50L Monocular Microscope Kit (Cordless, Moonstone) - K50 Experiment Set uxrsuazbtzcxczsrsbvuyauydfzusqbzvfwau
- Plastic Case
- 2x Barlow Lens
- 2 x AA Batteries
- 110V Power Supply
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Rainbow 50L Monocular Microscope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Rainbow 50L Specs | Microscope Type | Compound, monocular | | Eyepiece | 10x WF | | Nosepiece | Rotating | | Objective(s) | 4x, 10x, 40x | | Head | Monocular, inclined 45° | | Focuser | Coarse
Range | | Light Source | LED, top and bottom | | Condenser System | NA 0.65 | | Light Control | Rheostat | | Power | Internal: 2 x AA batteries
External: 110 V power supply | | Specimen Stage | Dimensions: 3.5 x 3.5" / 90.0 x 90.0 mm
Travel Range: 0.4" / 11.0 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
