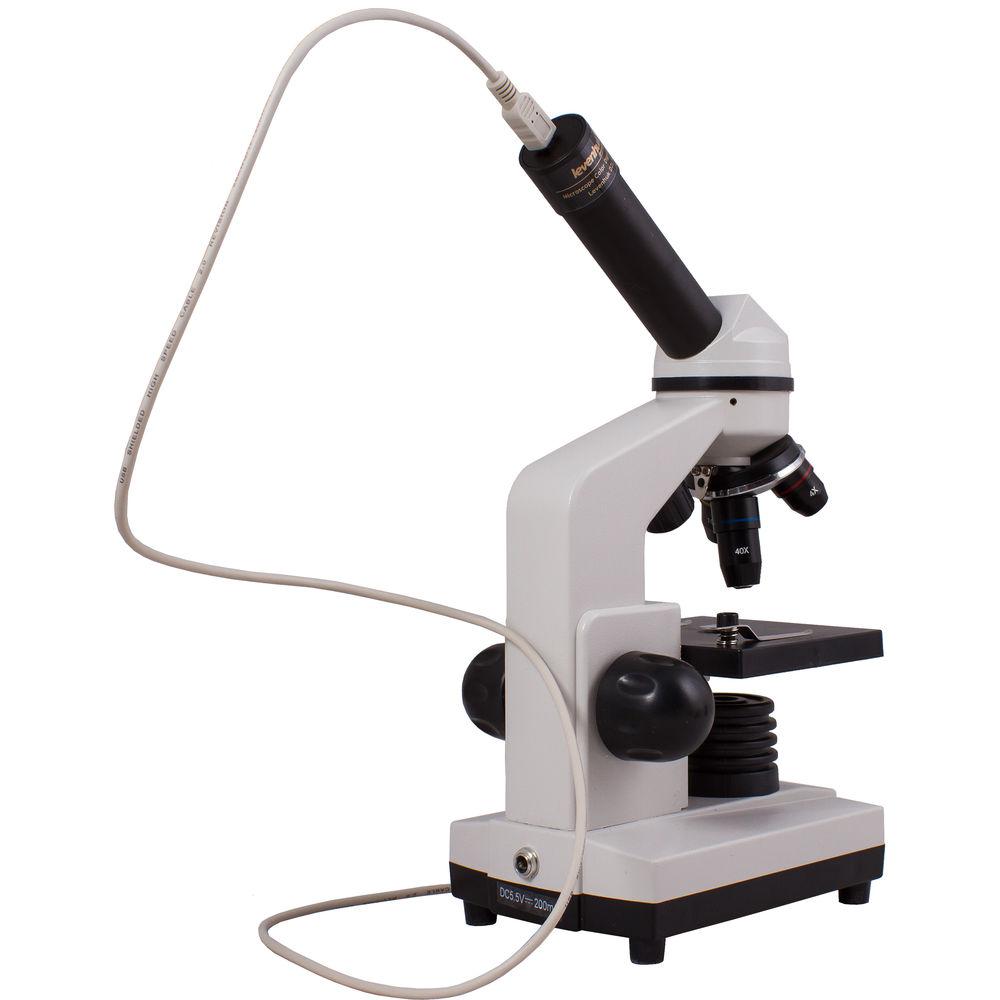

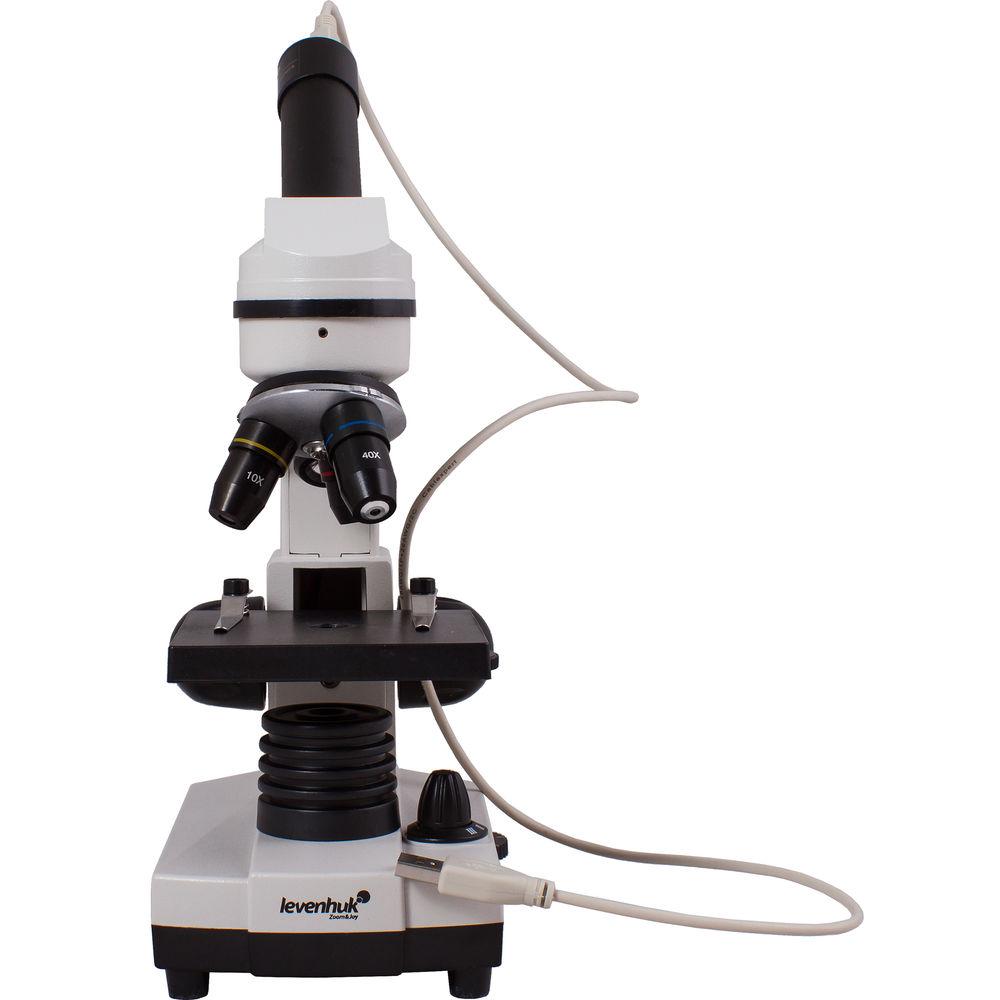

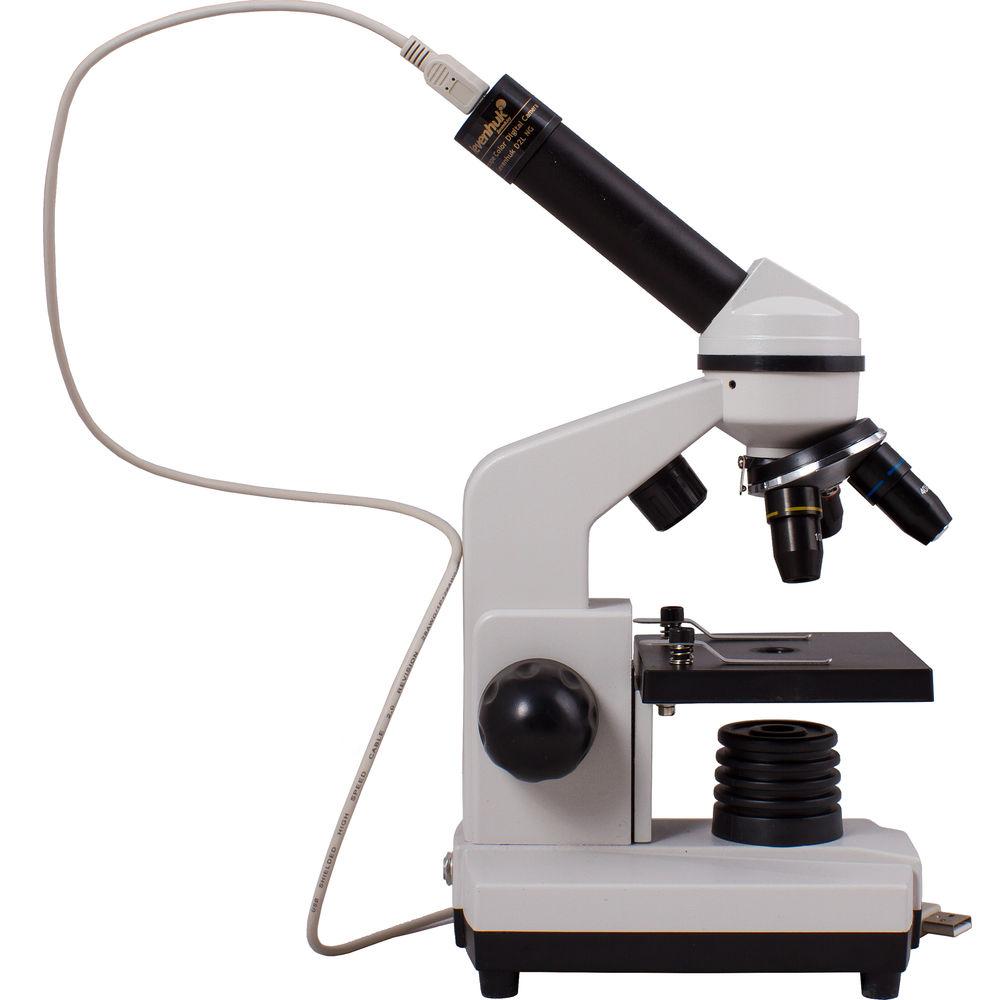

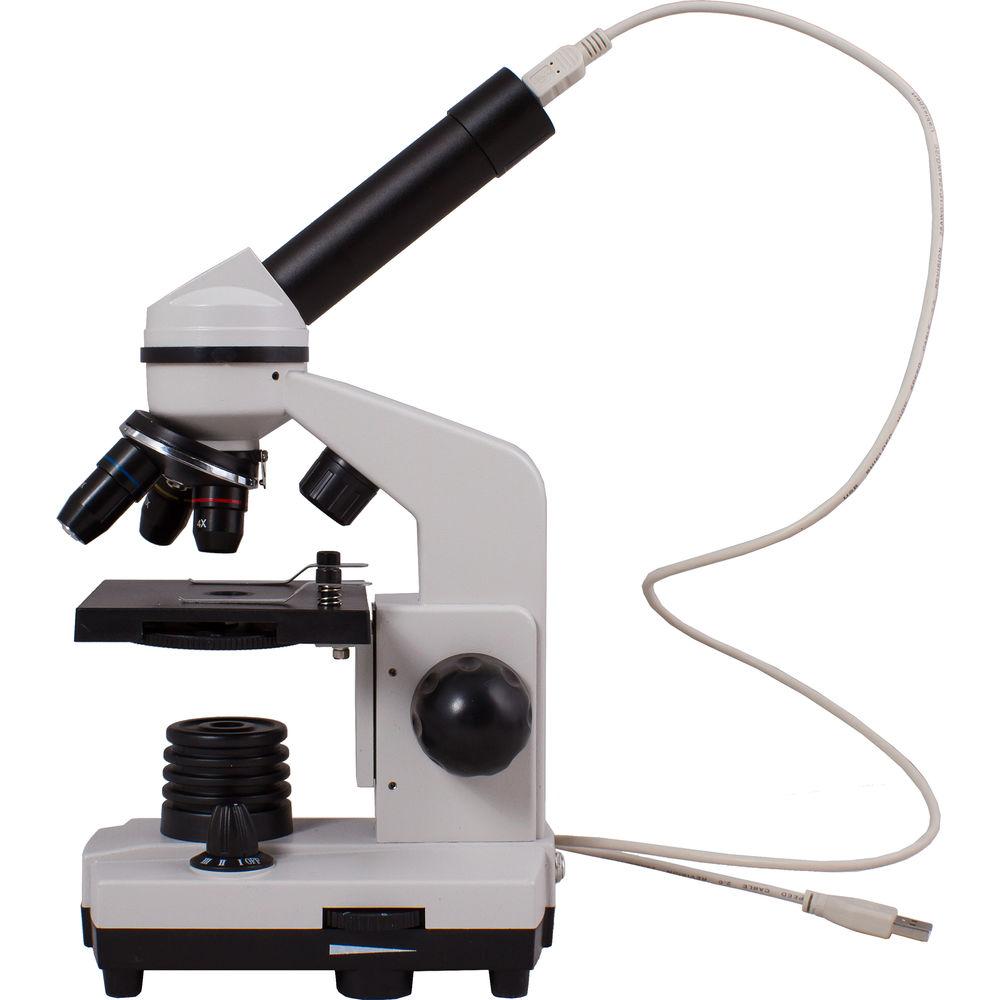

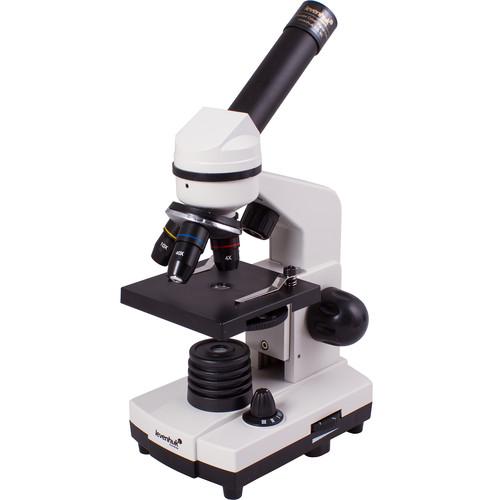

Product description Advance your hobbies and professional pursuits using the Levenhuk Rainbow D2L Microscope and 0.3MP Camera Kit. The kit includes a microscope with a 0.3MP digital camera and the Levenhuk K50 Experiment set, containing many useful lab accessories and a dust cover for the microscope. A special feature of this device is the included digital camera that can be attached directly to the eyepiece. The camera and the included imaging software allow you to capture images and videos in a variety of formats, save them on your PC, and adjust some of the more advanced imaging parameters such as white balance and exposure. This microscope's optical system features three objective lenses (4x, 10x, and 40x) on a rotating ball bearing nosepiece, which together with a 10x widefield eyepiece provide up to 400x magnification. For delivering images with a high visibility of details, the microscope offers bottom and top LED illumination lamps with adjustable brightness. The illumination can be powered by three AA batteries in a cordless operation mode or by using the included 110V power supply. For firmly securing your slides, the 3.5 x 3.5" stage offers two metal clips. Use the built-in diaphragm wheel with six apertures to adjust illumination and contrast of the field of view. For convenience, the housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled coarse focus knobs.
This microscope is ready to use out of the box because it ships with three AA batteries and the K50 Experiment Set, which includes several prepared and blank slides, and helpful tools for creating and handling your own specimens. - Digital Camera
-

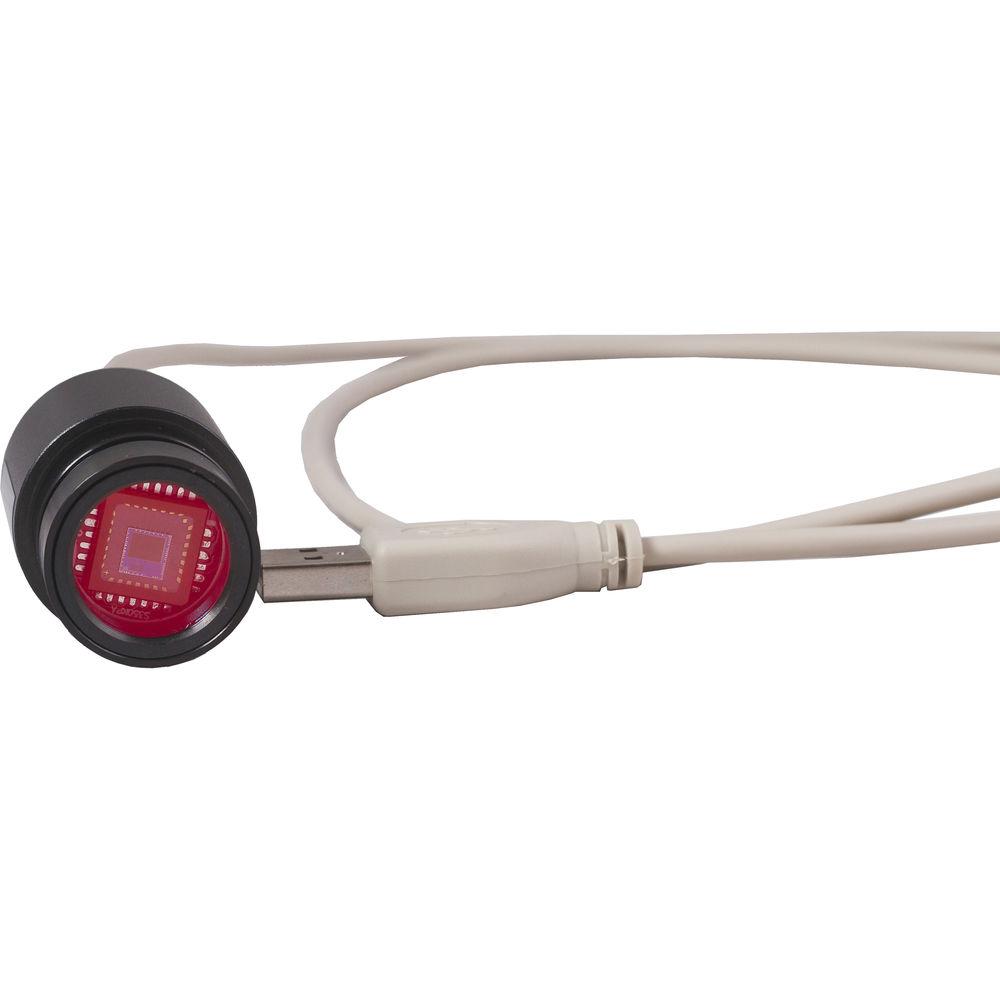

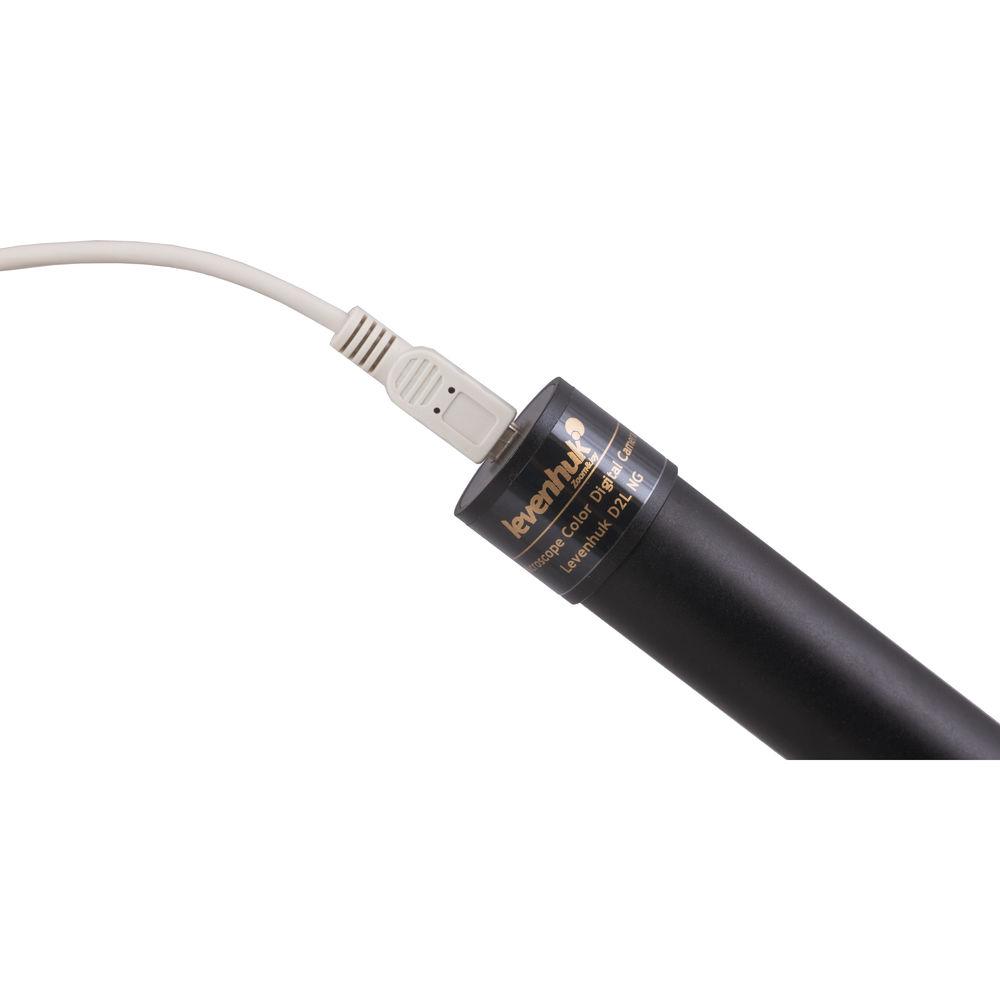

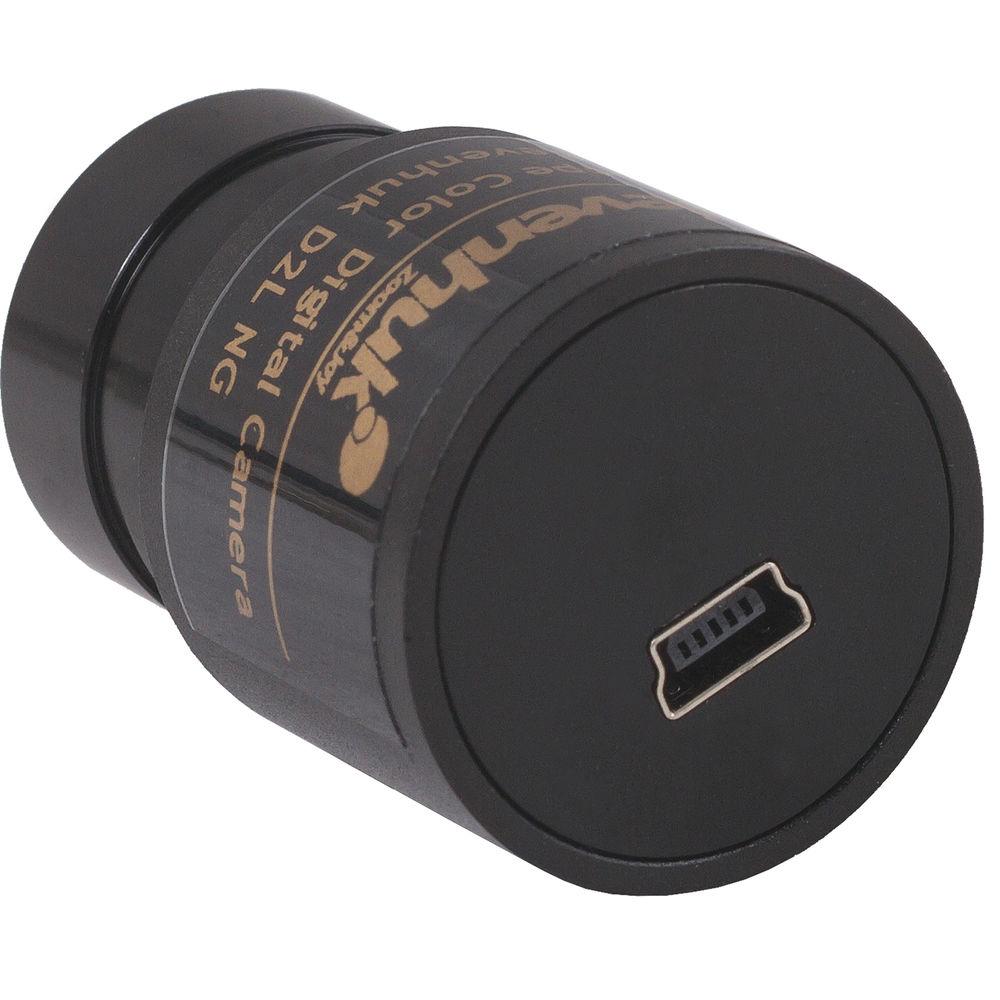

- 0.3MP digital camera
- White balance: automatic and manual
- Exposure control: automatic and manual
- Connects to your computer via a USB 2.0 cable
- Captures images and videos via the included software or other compatible software
- Compatible with Windows XP, Vista, 7, 8, 10 (32- and 64-bit)
- Optical Performance
-
- Glass optics
- 4x, 10x, and 40x objectives

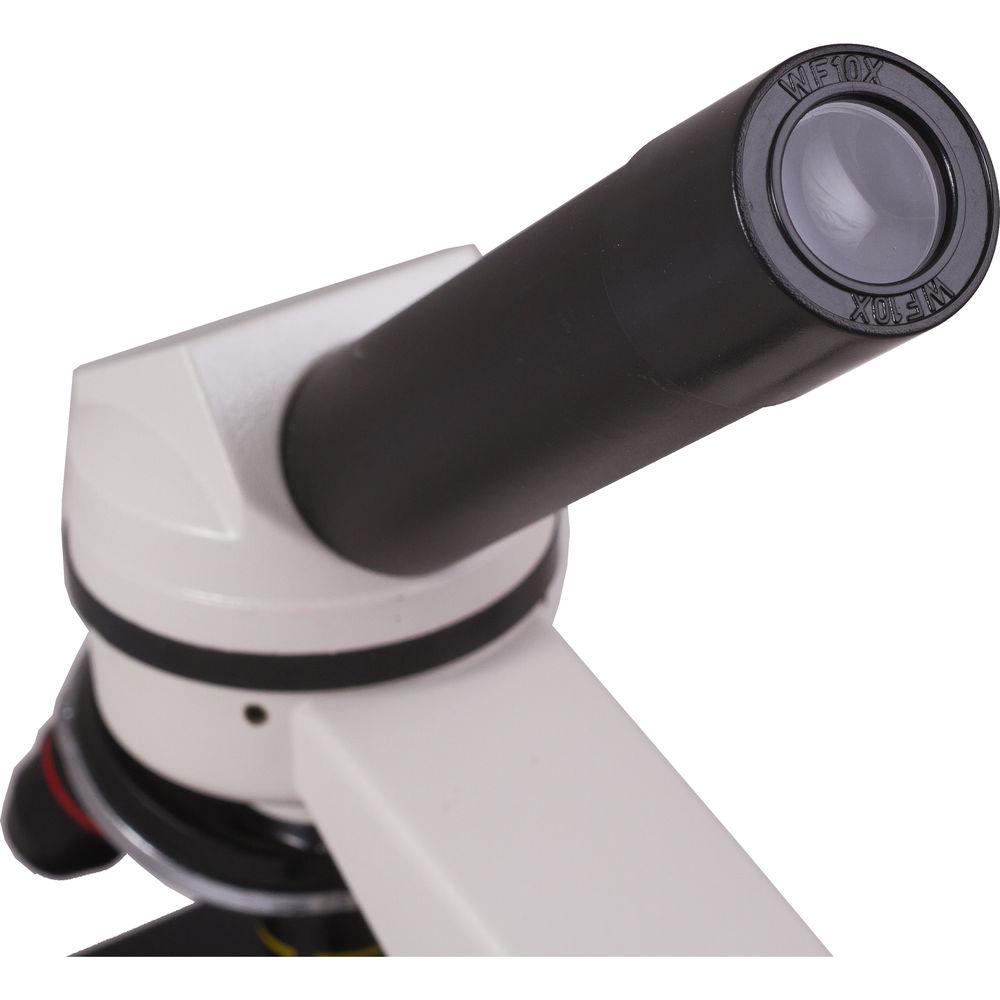

- 10x widefield eyepiece
- 40-400x total magnification

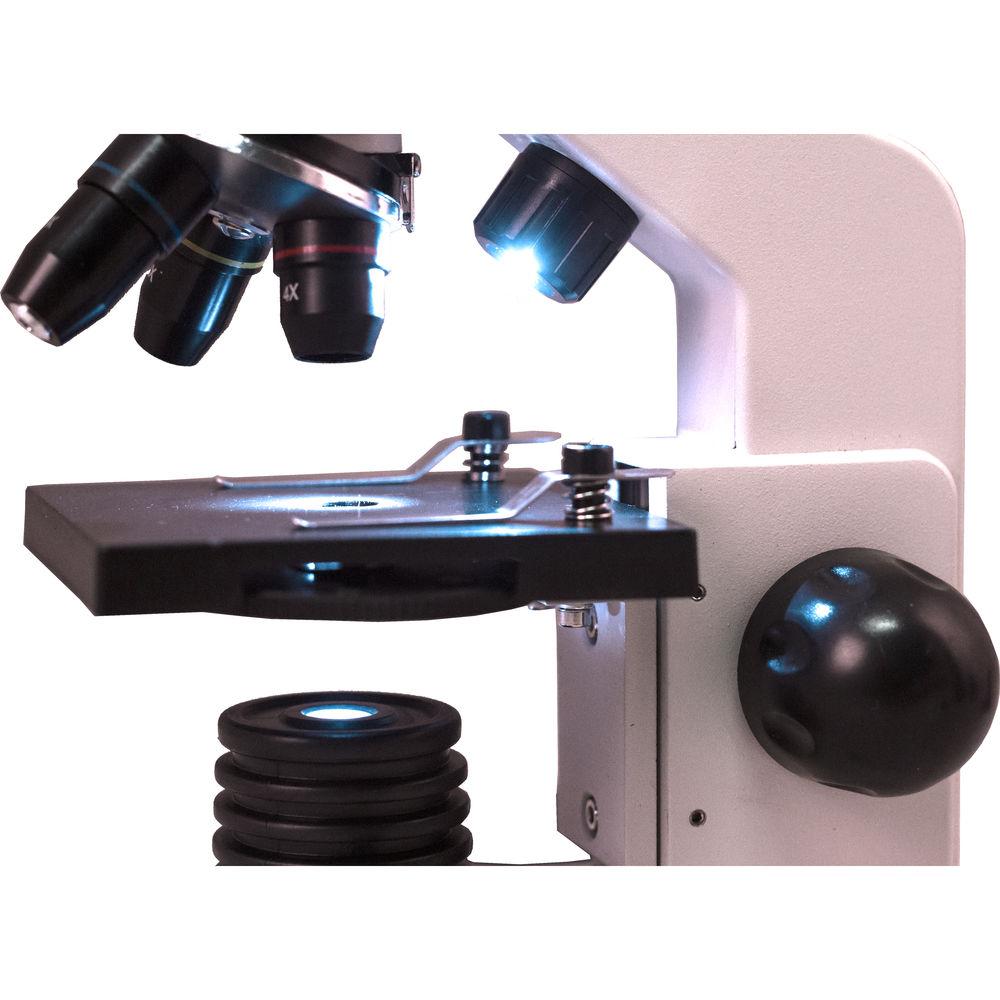

- Stage
-
- 3.5 x 3.5" stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with six apertures
- Vertical travel of focus: 0.6"
- Use and Handling
-
- Monocular viewing
- 45°-inclined eyepiece
- Powered by three AA batteries via internal battery compartment
- External 110V power supply included for stationary use
- Top and bottom LED illumination
- Conical dial knob on the base serves as the illumination selector switch
- Construction Details
-
- Plastic body
- Arched back serves as a handle
- Wide base provides stability
- Ball bearing rotating nosepiece
- Knurled oversized focusing knobs
- Included Levenhuk K50 Experiment Set
-
- Forceps
- Hatchery for Artemia: brine shrimp or sea-monkeys
- Microtome
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- Five ready-to-use specimens
- Five blank slides
- Dropper
- Dust cover
In the Box Levenhuk Rainbow D2L Microscope and 0.3MP Camera Kit (Moonstone) - K50 Experiment Set actaufvqzefrycyuxwrwrdrrecfusdudsstv
- 0.3MP Digital Camera
- USB Cable
- 3 x AA Batteries
- 110V Power Supply
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Rainbow D2L Microscope and 0.3MP Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Rainbow D2L Specs | Microscope Type | Compound, monocular | | Eyepiece | 10x widefield
Diameter: 0.91" / 23.2mm | | Nosepiece | Rotating | | Objective(s) | 4x, 10x, 40x | | Head | Monocular, inclined 45° | | Focuser | Coarse | | Light Source | LED, top and bottom | | Condenser System | NA 0.65 | | Light Control | Rheostat | | Imager | Resolution: 0.3 MP
Image File Type: BMP, TIFF, TIF, JPG, JPEG, PNG, GIF, PSD, ICO, EMF
Video File Type: Not provided by manufacturer
White Balance: Auto, manual
Exposure: ESR
Exposure Control: Auto, manual
Power: USB 2.0
Operating System: Windows (32- and 64-bit) XP, Vista, 7, 8, 10 | | Power | Internal: 3 x AA batteries
External: 110 V power supply | | Specimen Stage | 3.5 x 3.5" / 90 x 90 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
