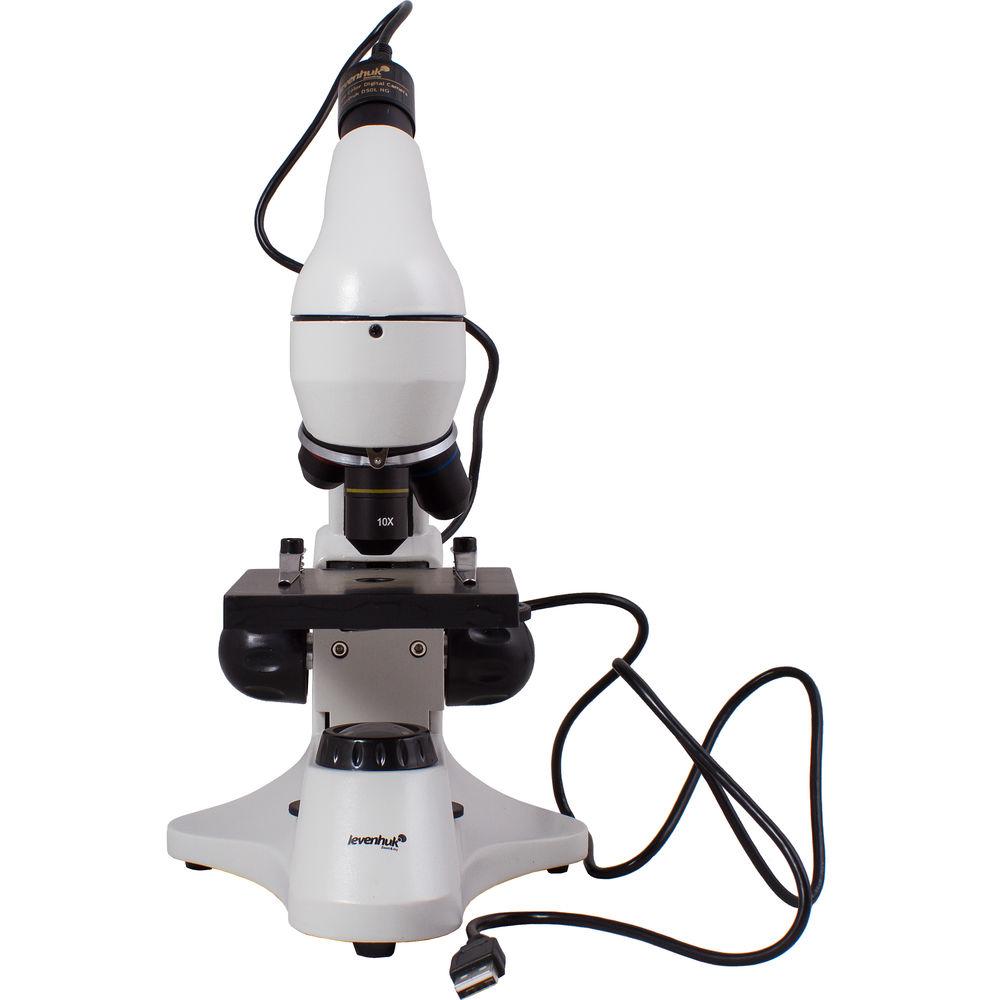

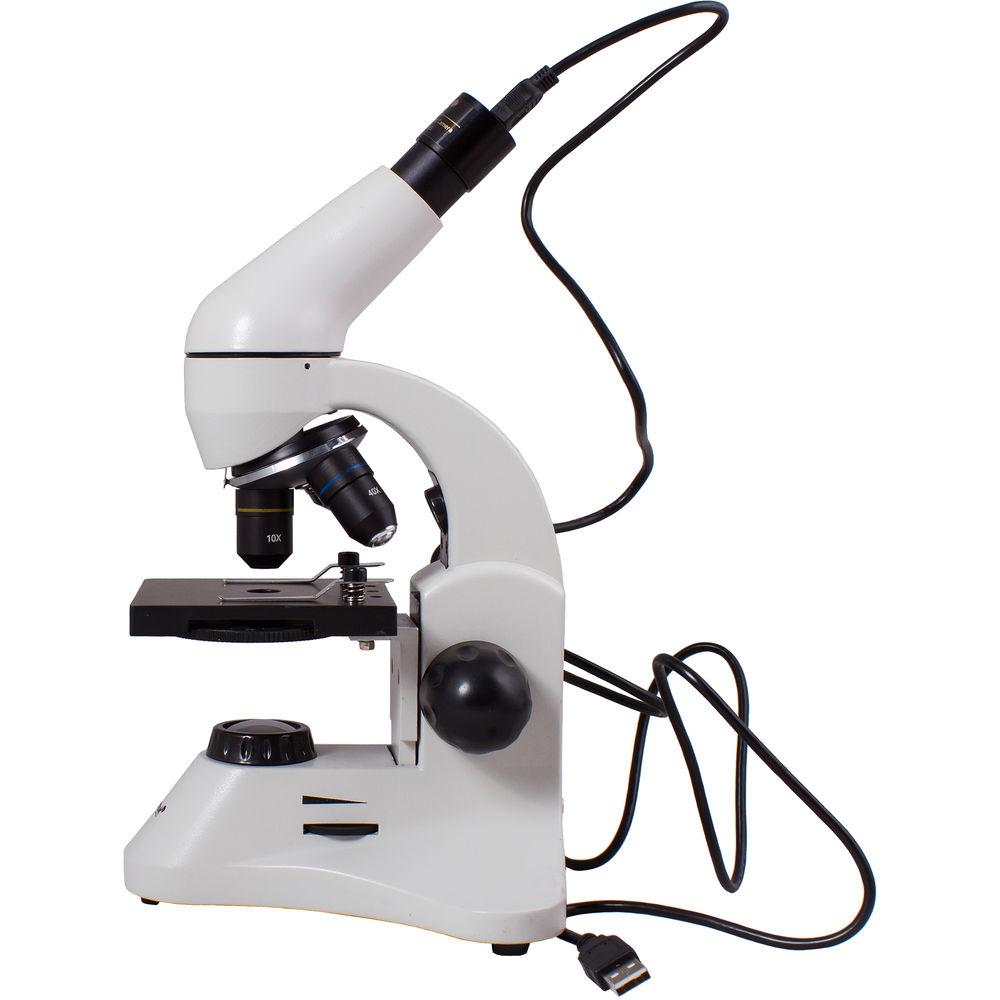

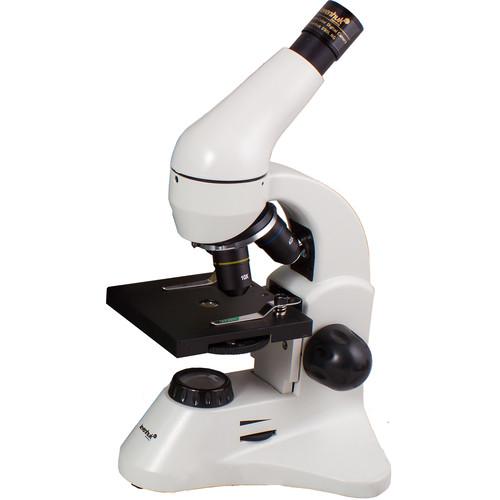

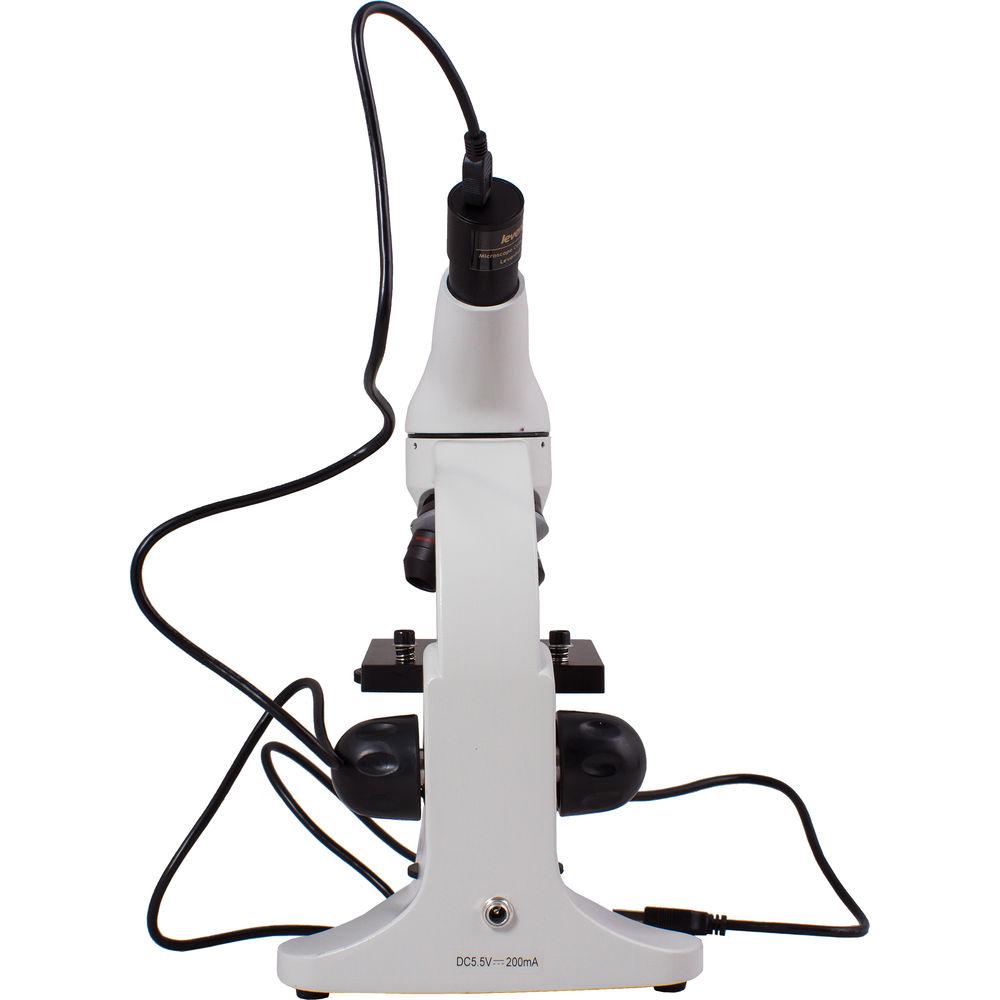

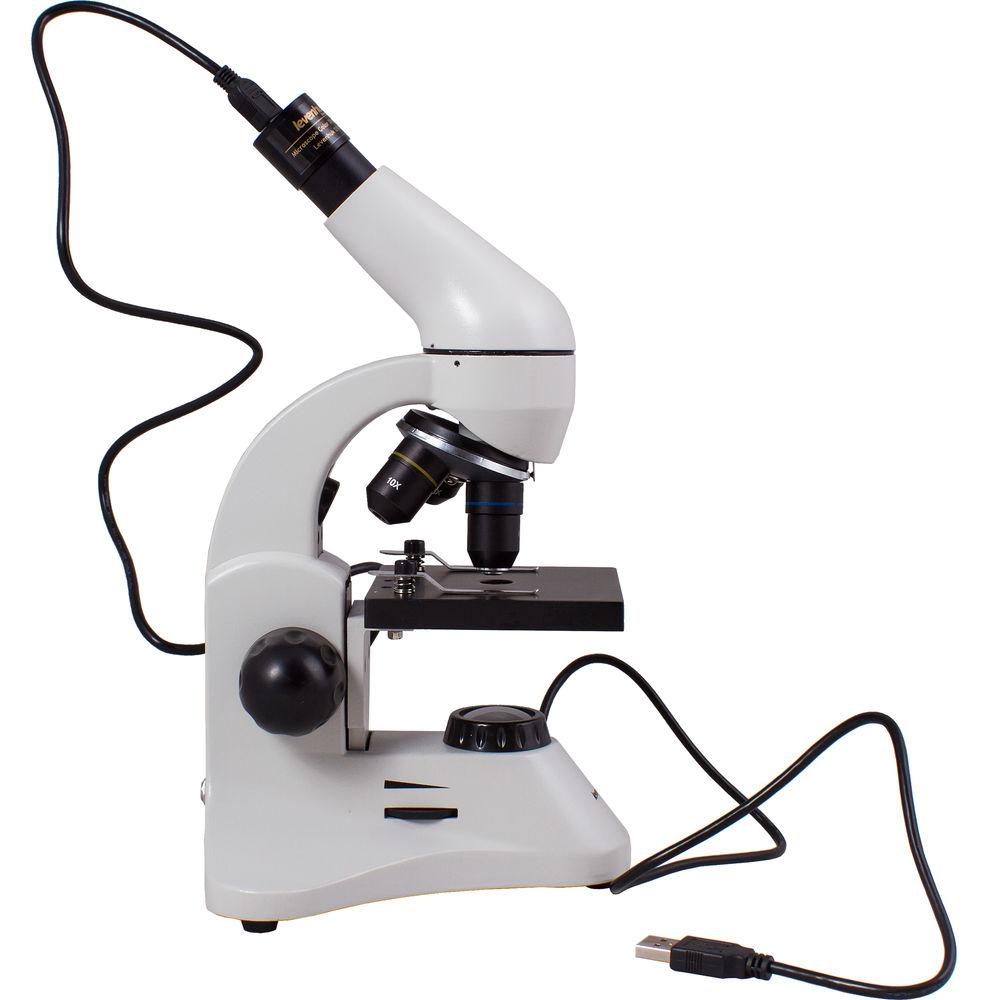

User Manual for Levenhuk Rainbow D50L PLUS Digital Microscope with 2MP Camera Click to enlarge the picture
Contents of the user manual for the Levenhuk Rainbow D50L PLUS Digital Microscope
- Product category: Microscopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Microscopes
 |
User manual for the Levenhuk Rainbow D50L PLUS Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description Explore the microworlds using the 1280x Levenhuk Rainbow D50L Plus Monocular Microscope Kit. The kit contains everything one needs to get a streamline introduction to microscopy and get started right away, including a bright microscope, a 2MP digital camera module, and a Levenhuk K50 Experiment Set, containing many useful lab accessories and a dust cover for the microscope. The optical system of this microscope features three objective lenses (4x, 10x, and 40xs) on a rotating nosepiece that together with a 16x widefield eyepiece provide up to 640x magnification. You can bump up the total magnification with each objective lens by another factor of 2x using the included Barlow lens. For easy sharing, the head can be rotated 360° and for an ergonomic head position, the eyepiece is inclined by 45 degrees.Using the included 2.0MP camera you can stream or capture stunning images and videos of micro-structures and save them on your PC. Its module easily attaches over the eyepiece and connects to your computer via a USB cable. For delivering images with a high visibility of details, the microscope offers bottom and top LED illumination lamps with adjustable brightness. The beauty of this microscope is that it can be used as a cordless field microscope or as a stationary instrument. For cordless operation, its illumination can be powered by the two included AA batteries, and for standard corded tabletop operation, the scope includes a 110V power supply. Underneath the objective turret, you will find a 3.5 x 3.5" stage with two metal clips for securing you slides. It has a built-in diaphragm wheel with six apertures for adjusting illumination and contrast of the field of view. To help users transfer this instrument from place to place, the metal housing features an arched back that can be used as a handle. Other highlights are a wide and stable base and knurled coarse focus knobs.
This microscope is ready to use out of the box because it ships with the K50 Experiment Set, which contains several prepared and blank slides, and helpful tools for creating and handling your own specimens. - Optical Performance
-
- Glass optics
- 4x, 10x, and 40xs objectives

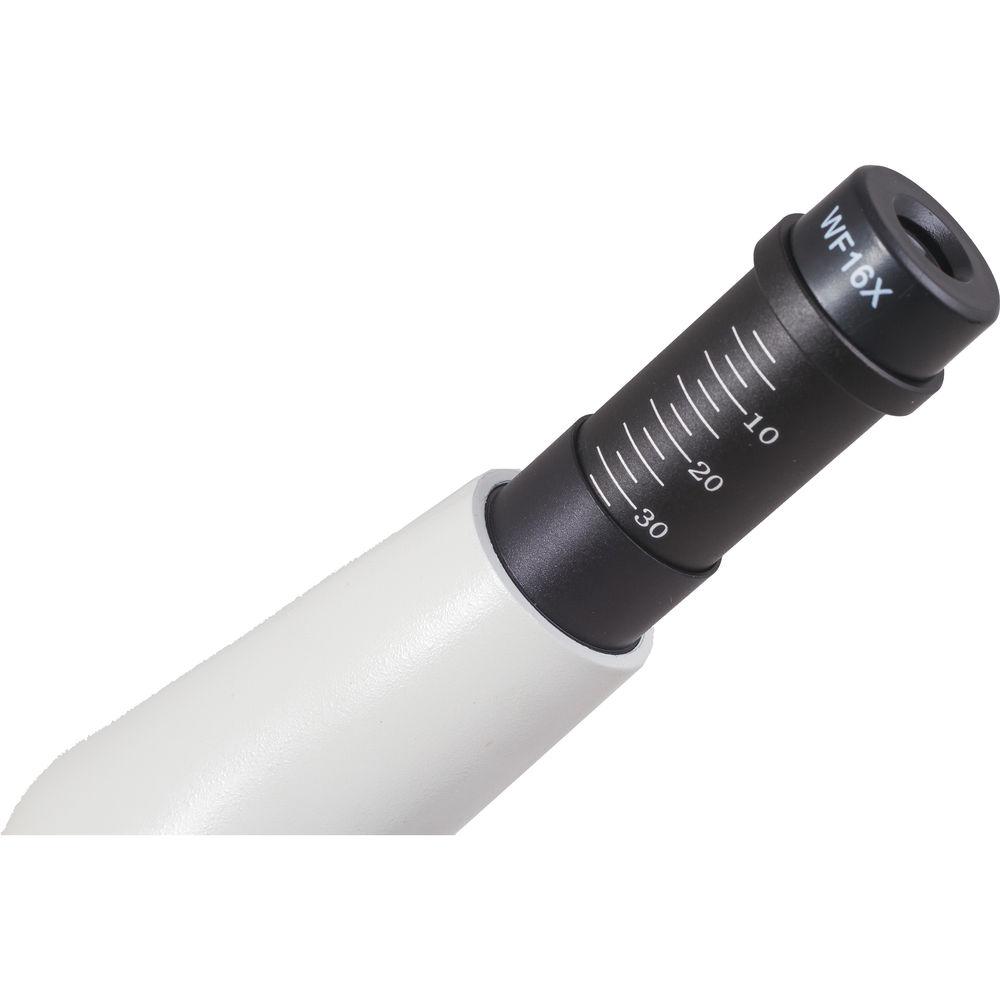

- 16x widefield eyepiece
- 2x Barlow lens included
- 64-1280x total magnification

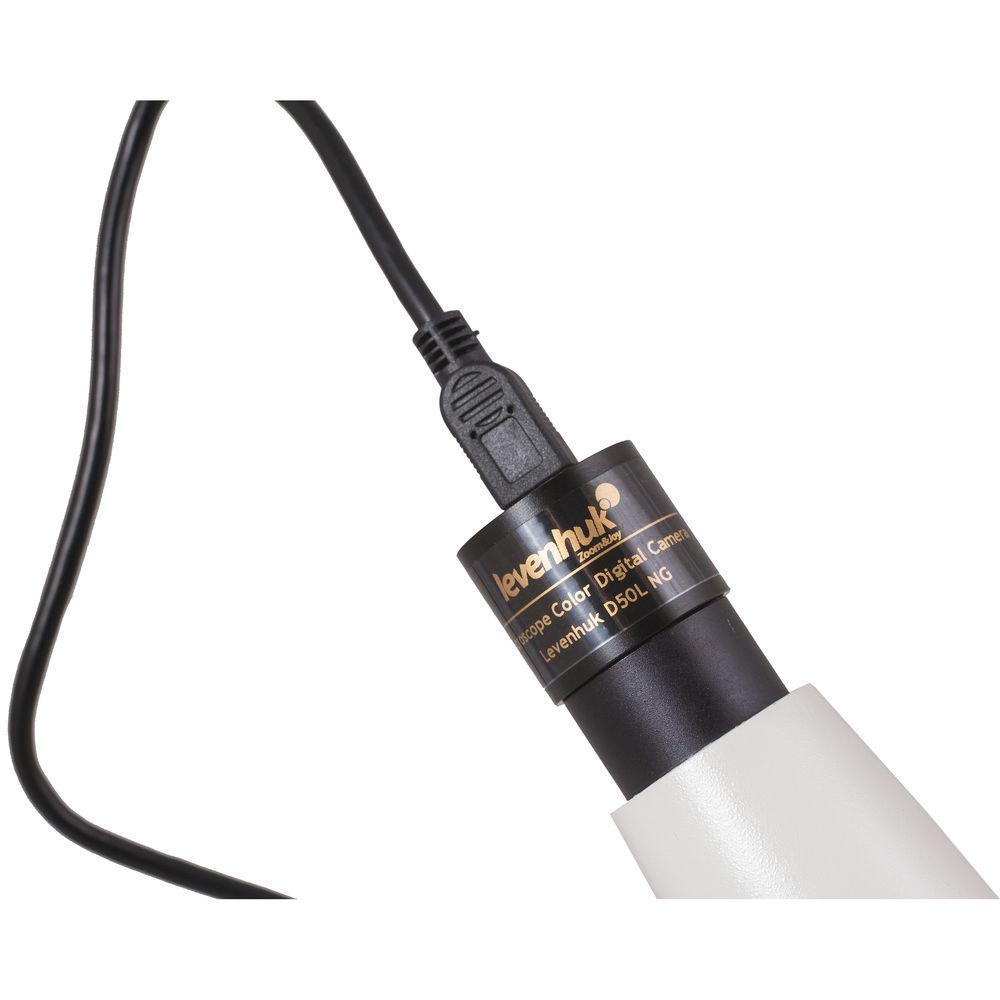

- Camera
-
- 2.0MP digital sensor
- Captures images and videos
- Can be easily connected to your PC via a USB 2.0 cable
- Included imaging software allows capturing your data
- Stage
-
- 3.5 x 3.5" stage
- Two spring-loaded metal clips
- Built-in diaphragm wheel with six apertures
- Vertical travel of focus: 0.43"
- Use and Handling
-
- Monocular viewing
- 45°-inclined eyepiece
- Head rotates 360°

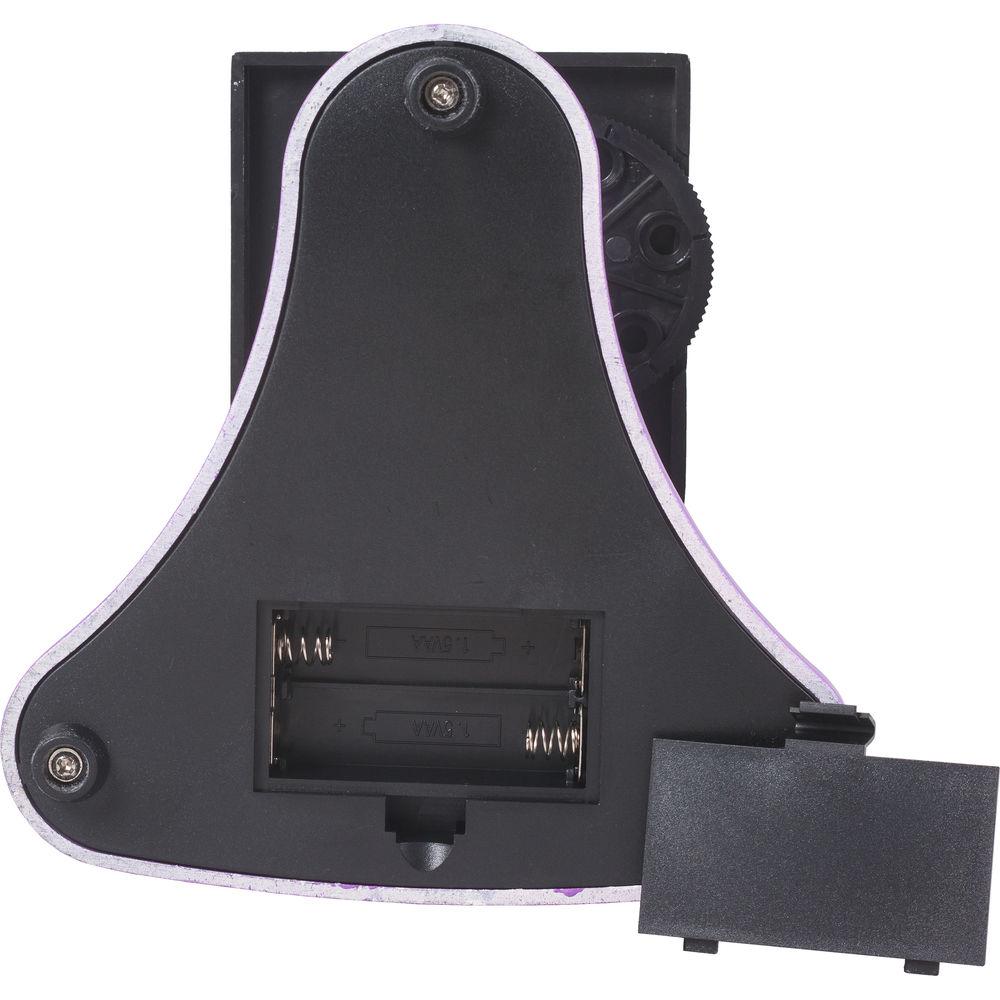

- Powered by two AA batteries via an internal battery compartment
- External 110V power supply included for stationary use

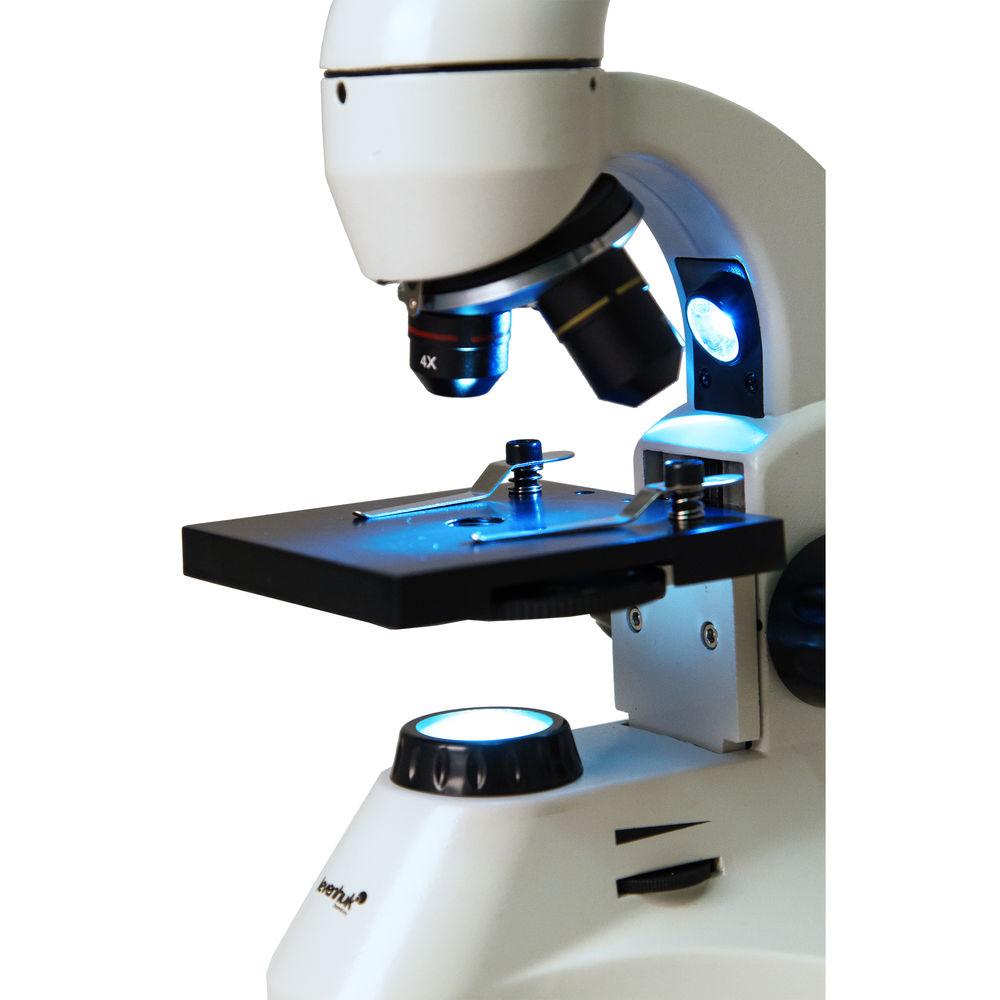

- Top and bottom LED illumination

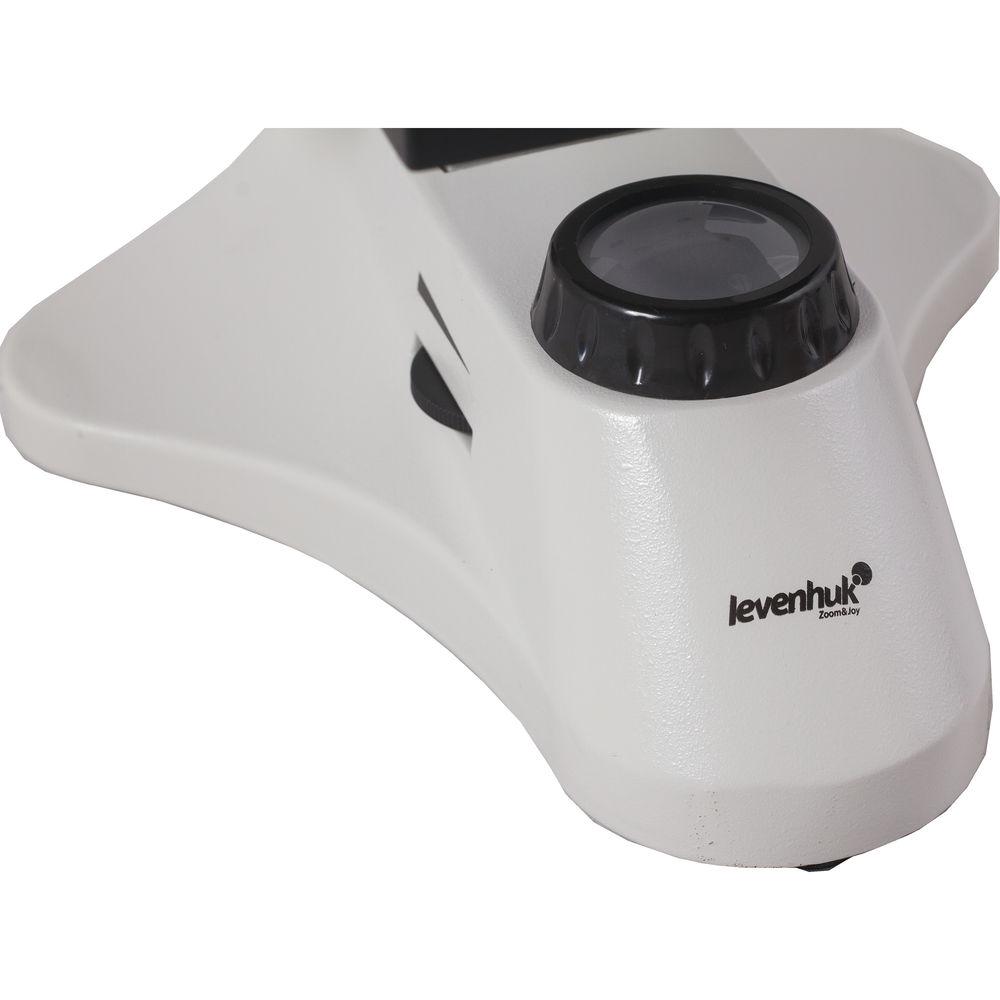

- Conical dial knob on the base serves as the illumination selector switch
- Construction Details
-
- Metal frame
- Arched back serves as a handle
- Wide base provides stability
- Knurled oversized focusing knobs
- Included Levenhuk K50 Experiment Set
-
- Forceps
- Microtome
- Hatchery for Artemia: Brine shrimp or sea-monkeys
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- Five ready-to-use specimens
- Five blank slides
- Dropper
- Dust cover
In the Box Levenhuk Rainbow D50L PLUS Digital Microscope with 2MP Camera (Cordless, Moonstone) - 2.0MP Digital Camera
- USB Cable
- Imaging Software
- 2x Barlow Lens
- K50 Experiment Set
- Plastic Case
- 2 x AA Batteries
- 110V Power Supply
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Rainbow D50L PLUS Digital Microscope with 2MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Rainbow D50L Plus Specs | Microscope Type | Compound, monocular | | Eyepiece | 16x WF with 0.9" / 23.2 mm tube diameter | | Nosepiece | Rotating | | Objectives | 4x, 10x, 40xs | | Magnification | 64-1280x | | Head | Monocular, inclined 45° | | Focuser | Coarse | | Camera | Resolution: 2.0MP
Image Format: BMP, JPG, JPEG, PNG, TIF, TIFF, GIF, PSD, ICO, EMF
Exposure: ERS (Electronic Rolling Shutter)
White Balance: Auto/manual
Exposure Control: Auto/manual
Power: USB 2.0
PC Requirements: Windows (32- or 64-bit) XP, Vista, 7, 8, 10; 2.8 GHz Intel Core 2 processor or higher; USB 2.0 port
Programmable Options: Image size, brightness, exposure control | | Light Source | LED, top and bottom | | Condenser System | NA 0.65 | | Light Control | Rheostat | | Power | Internal: 2 x AA batteries
External: 110 V power supply | | Specimen Stage | 3.5 x 3.5" / 90 x 90 mm | | Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer |
