User Manual for Levenhuk Skyline 70x900 EQ Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk Skyline 70x900 EQ Telescope
- Product category: Refractors Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Refractors
 |
User manual for the Levenhuk Skyline 70x900 EQ Telescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

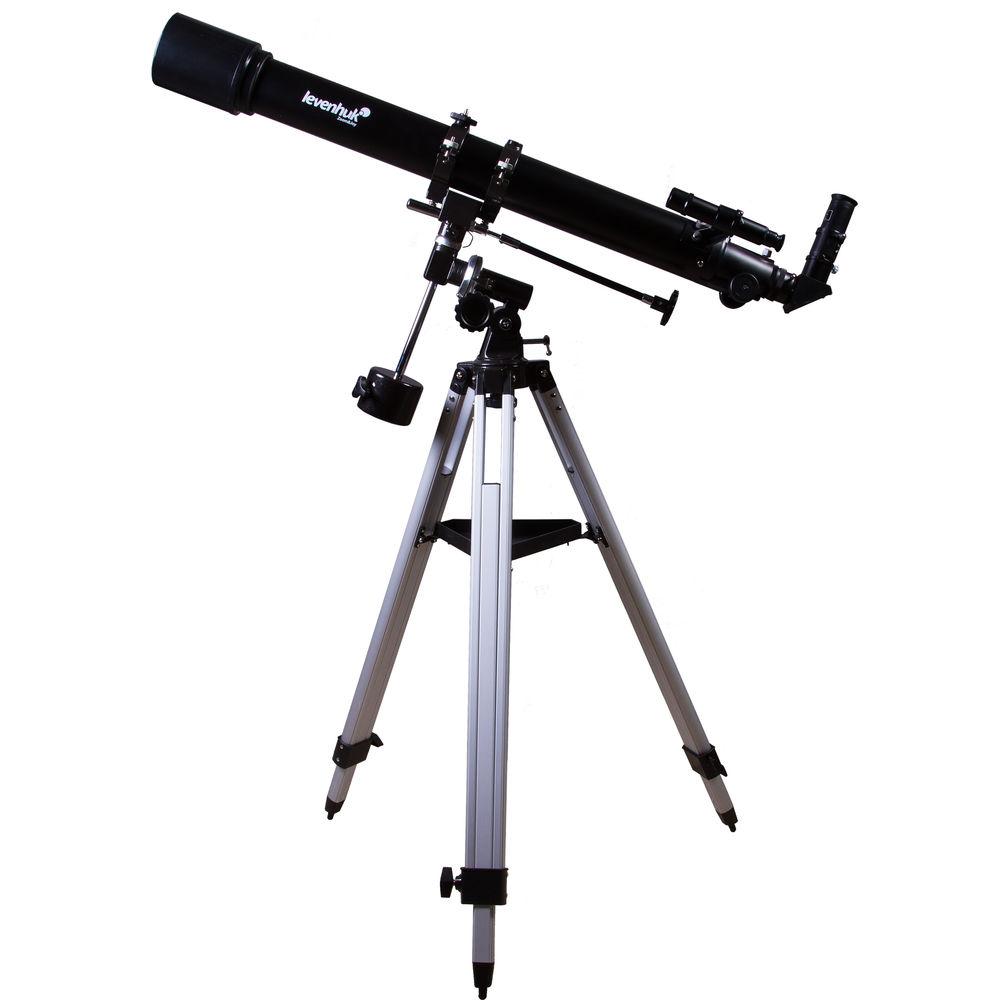

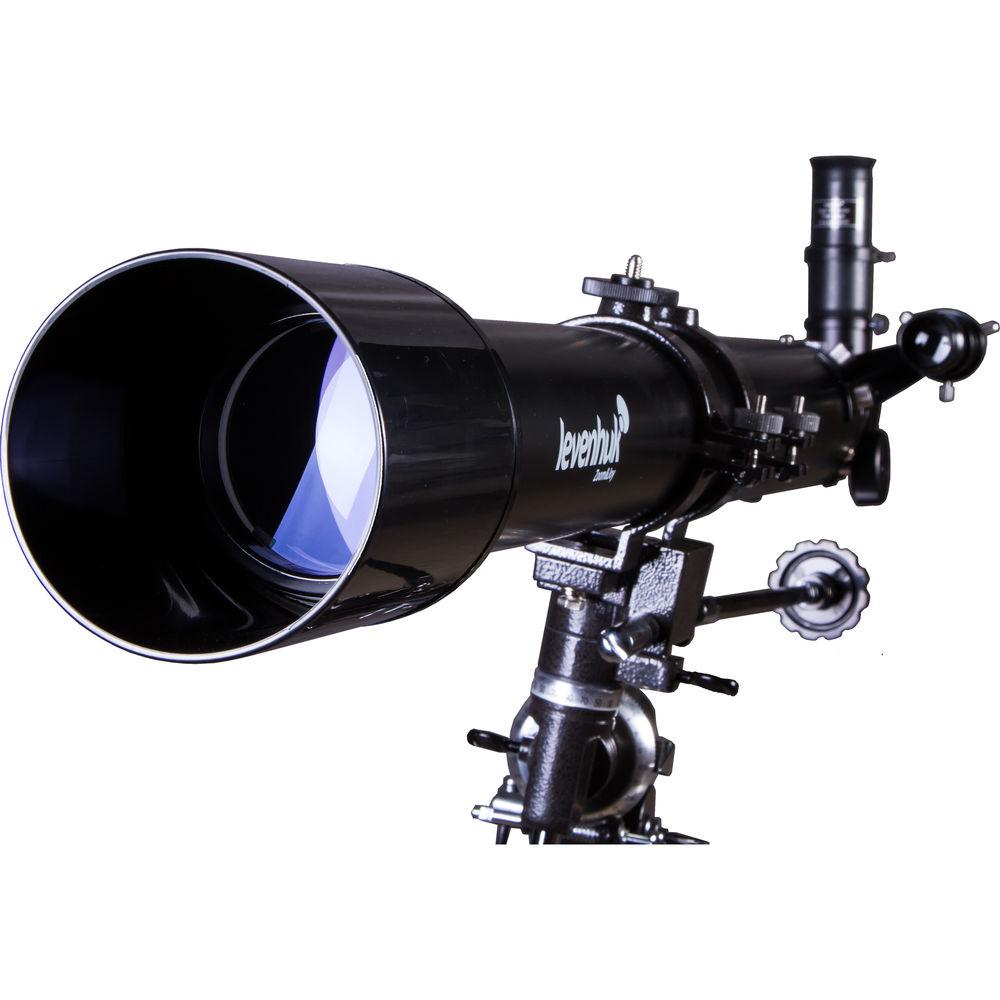

Product description Suitable for beginners, the Skyline 70x900 EQ Telescope from Levenhuk provides a complete setup for viewing planets, lunar craters, seasonal changes on Mars, star clusters, nebulae, and galaxies, including Messier objects. Two eyepieces provide 36x and 90x magnifications, and the 2x Barlow lens can double that power for more detailed observations. The manual equatorial mount compensates for the rotation of the Earth and allows for tracking of astronomical objects, keeping them within sight through the eyepiece. An adjustable-height aluminum tripod provides a stable platform for sky-watching, and telescope's diagonal makes looking through the scope more comfortable, especially when aiming the telescope directly overhead. Use the 6x24 optical finderscope to locate the objects you wish to observe. - Optical Performance
-
- 70mm aperture
- 900mm focal length
- f/12.9 focal ratio
- Refractor-style optical design
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, sharpness, and contrast
- 1.25" rack-and-pinion focuser

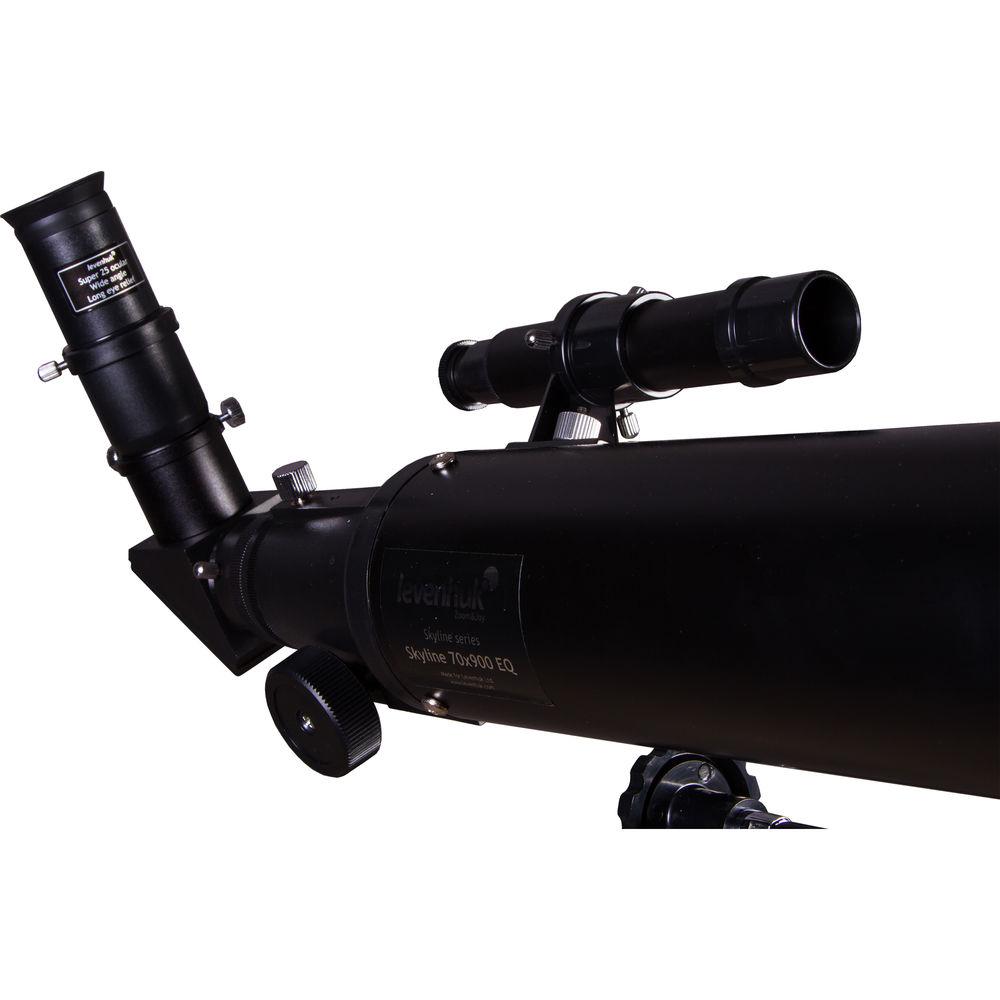

- 6x24 optical finderscope aids in locating celestial objects
- Integrated dew-shield

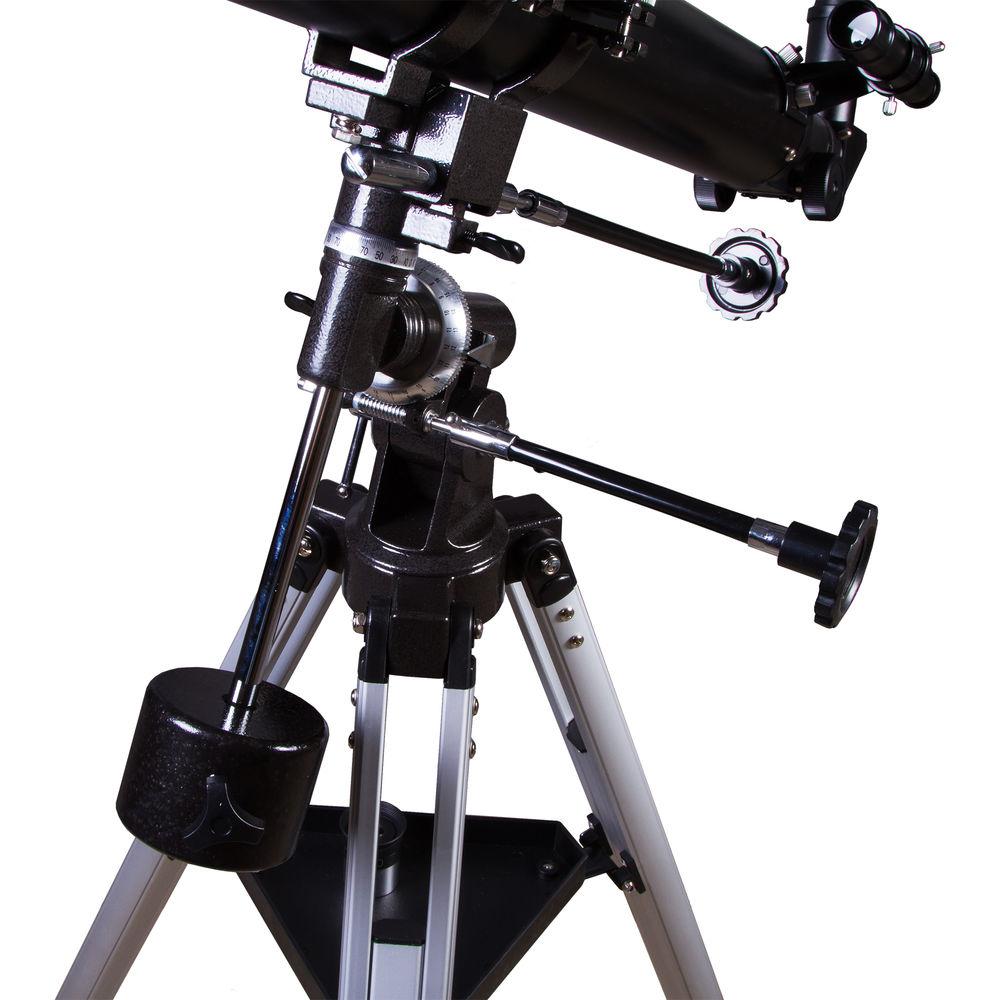

- Mount and Tripod
-
- Manual equatorial mount
- Altitude and azimuth controllers with large knurled knobs allows for precise control with reduced vibrations
- Lightweight and durable aluminum tripod
- Two-stage adjustable height allows for easy use by most people

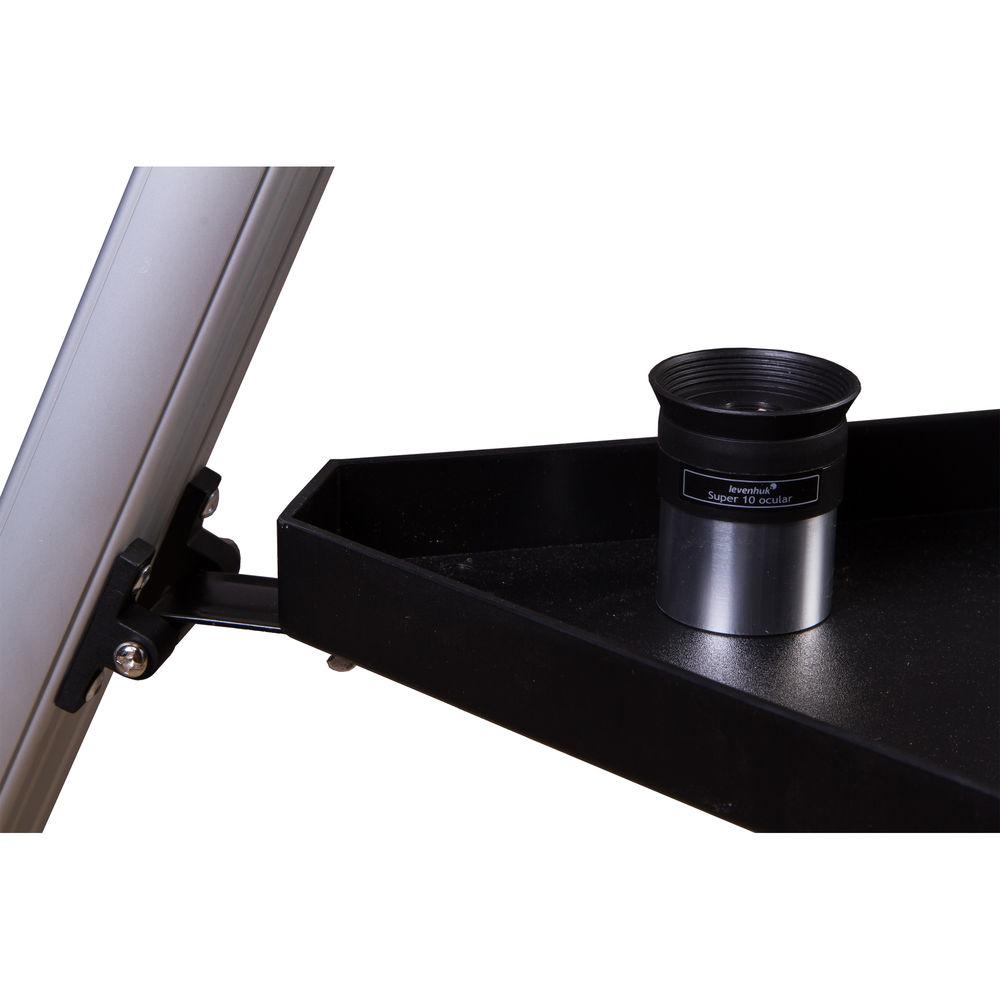

- Tray to hold accessories such as eyepieces, filters, and lights

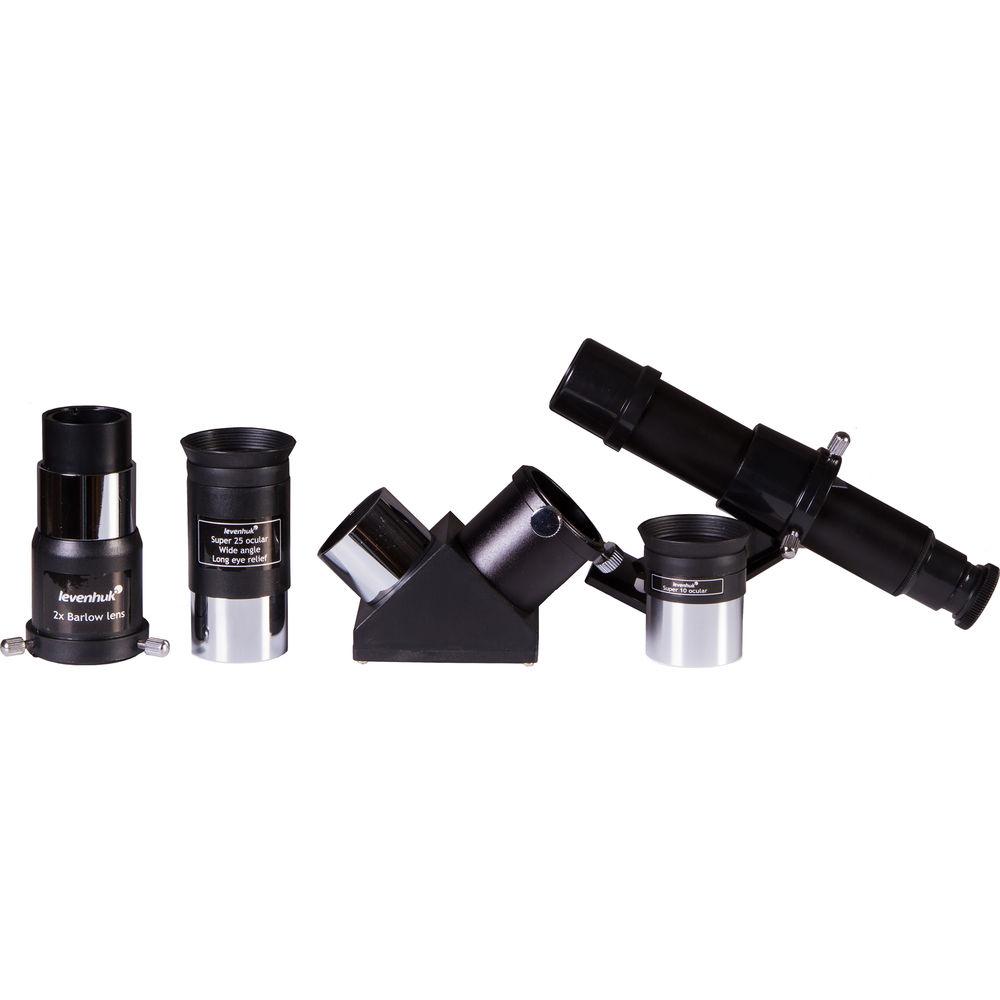

- Eyepieces and Accessories
-
- 1.25" barrel diameter accepts more astronomical filters
- 25mm eyepiece: 36x magnification
- 10mm eyepiece: 90x magnification
- 2x Barlow lens doubles the power of any eyepiece used with it
In the Box Levenhuk Skyline 70x900 EQ Telescope Super 10mm Eyepiece Super 25mm Eyepiece EQ1 Equatorial Mount Aluminum Tripod 2x Barlow Lens Diagonal Mirror 6x24 Finderscope Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Skyline 70x900 EQ Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Skyline Specs | Optical Design | Refractor | | Aperture | 70 mm | | Focal Length | 900mm | | Focal Ratio | f/12.9 | | Eyepiece Barrel Diameter | 1.25" | | Finderscope | 6x24 | | Tripod | Height Adjustment: 25.6-47.3" / 65.0-120.0 cm | | Mount Type | Manual equatorial | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
