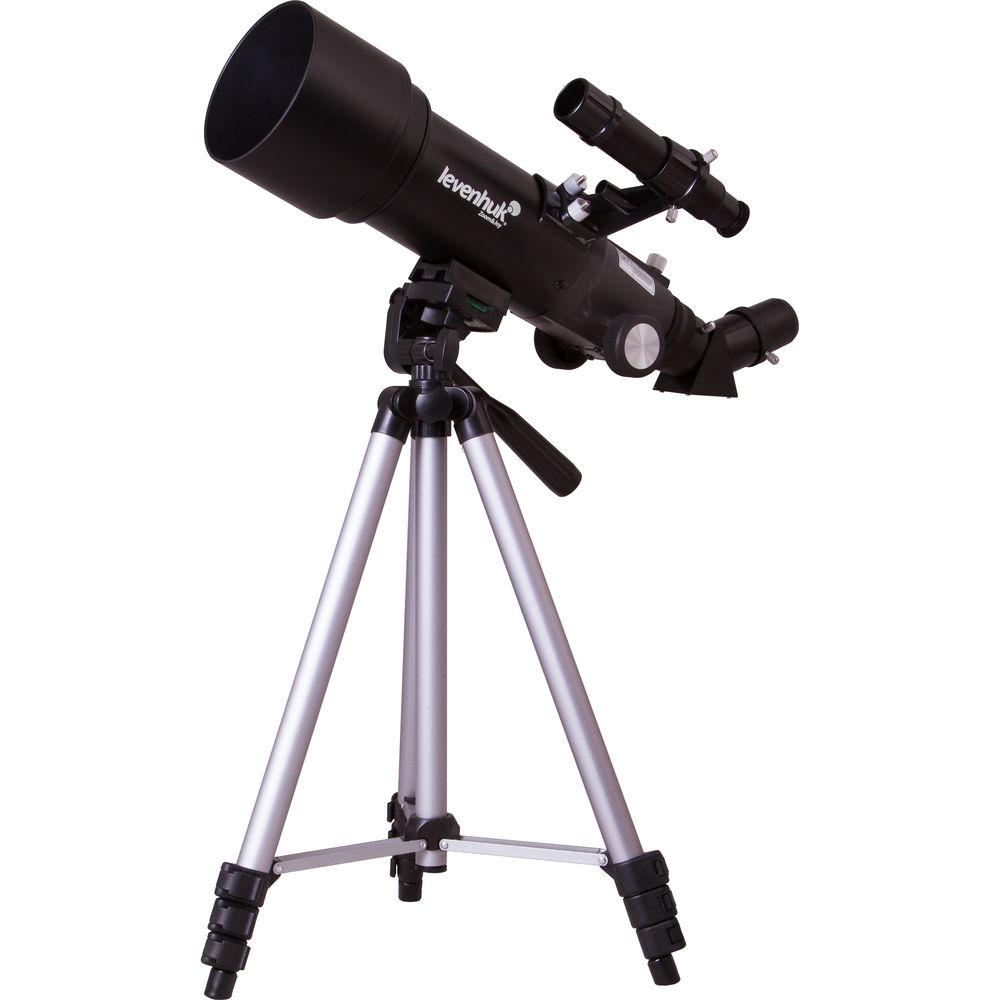

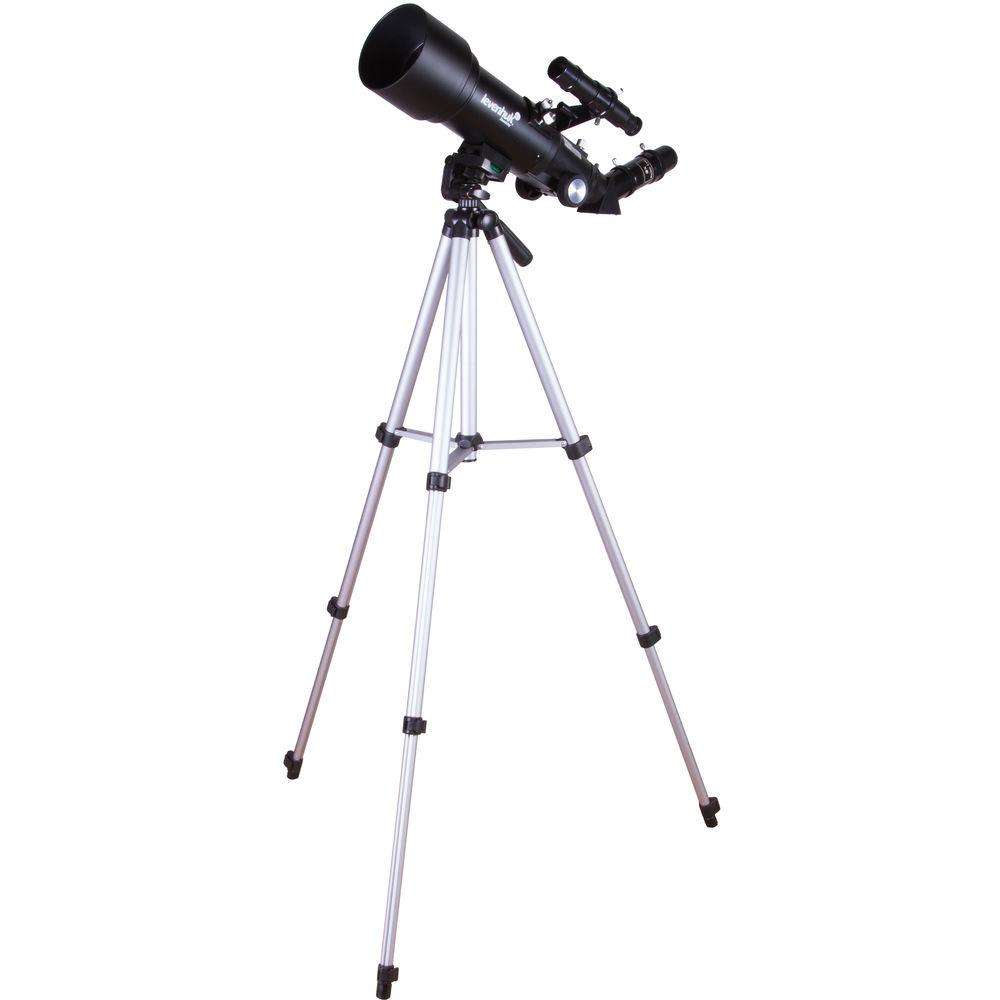

User Manual for Levenhuk Skyline Travel 70 70mm f 6 Alt-Az Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk Skyline Travel 70 70mm f
- Product category: Refractors Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Refractors
 |
User manual for the Levenhuk Skyline Travel 70 70mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

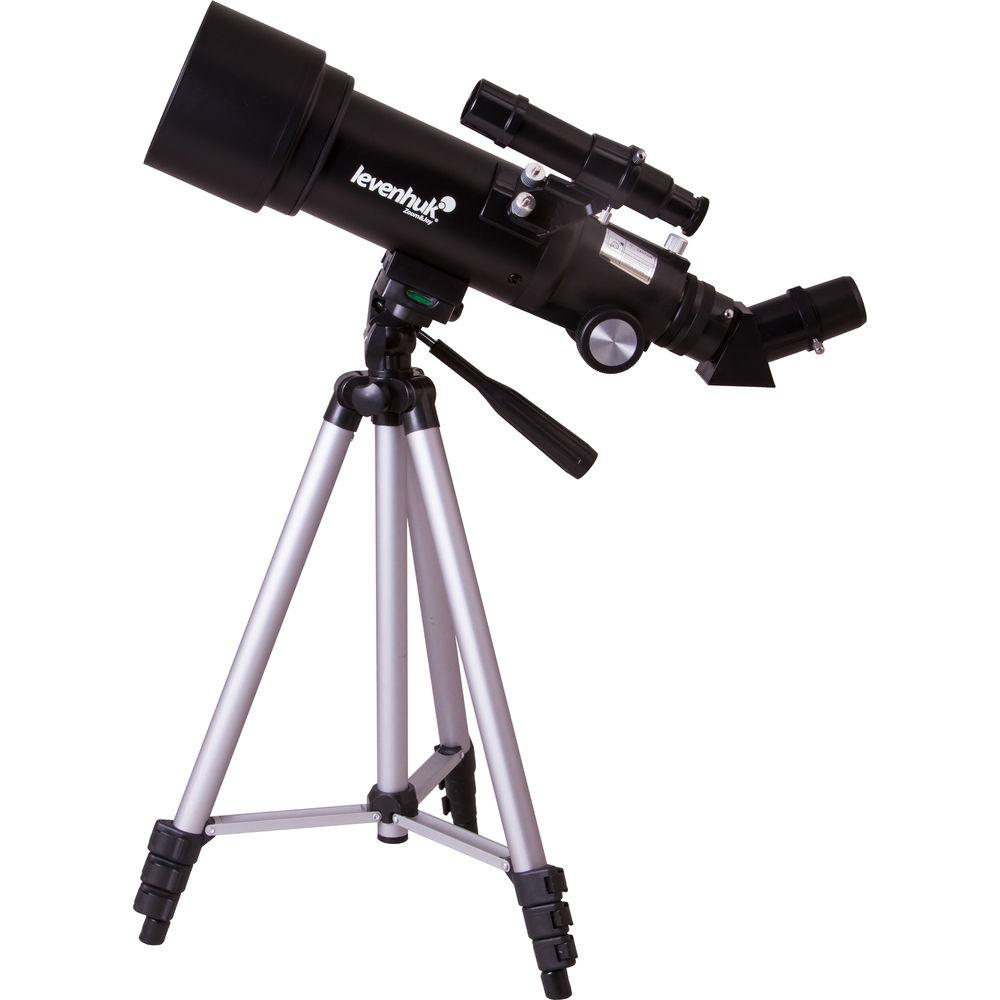

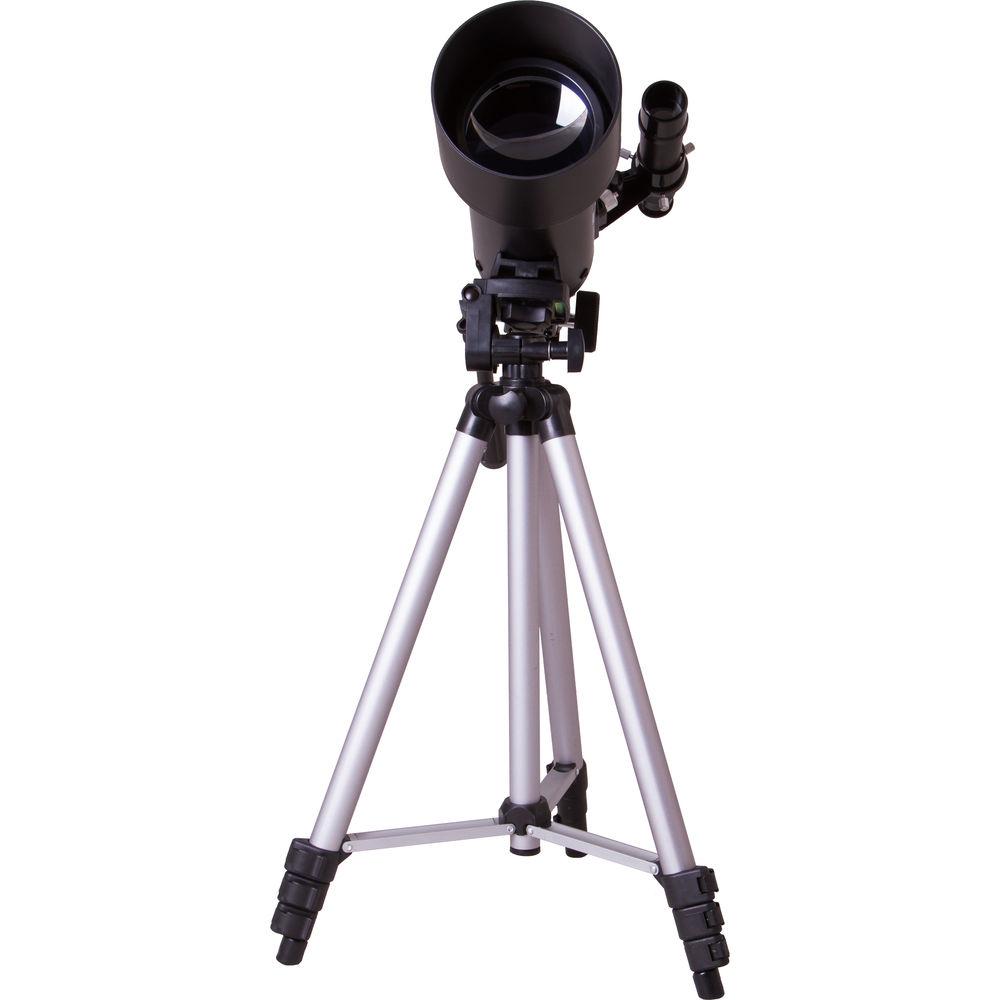

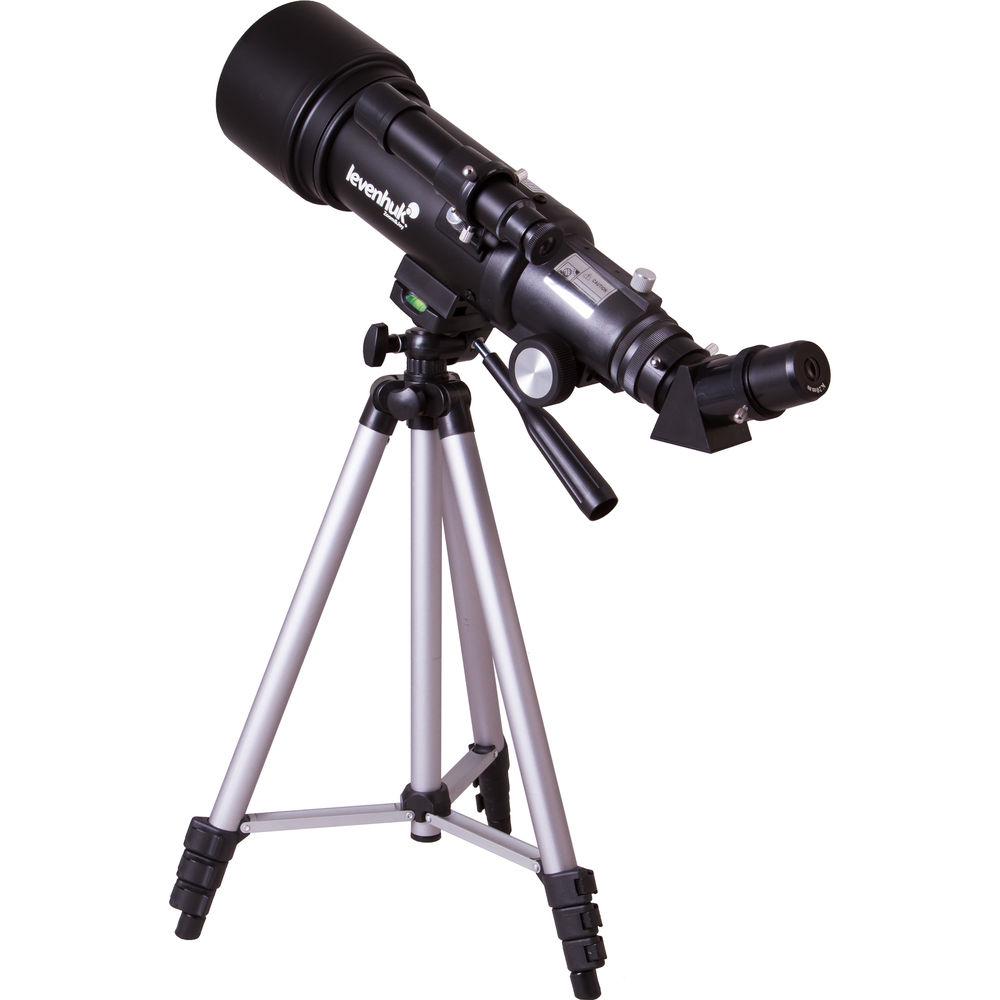

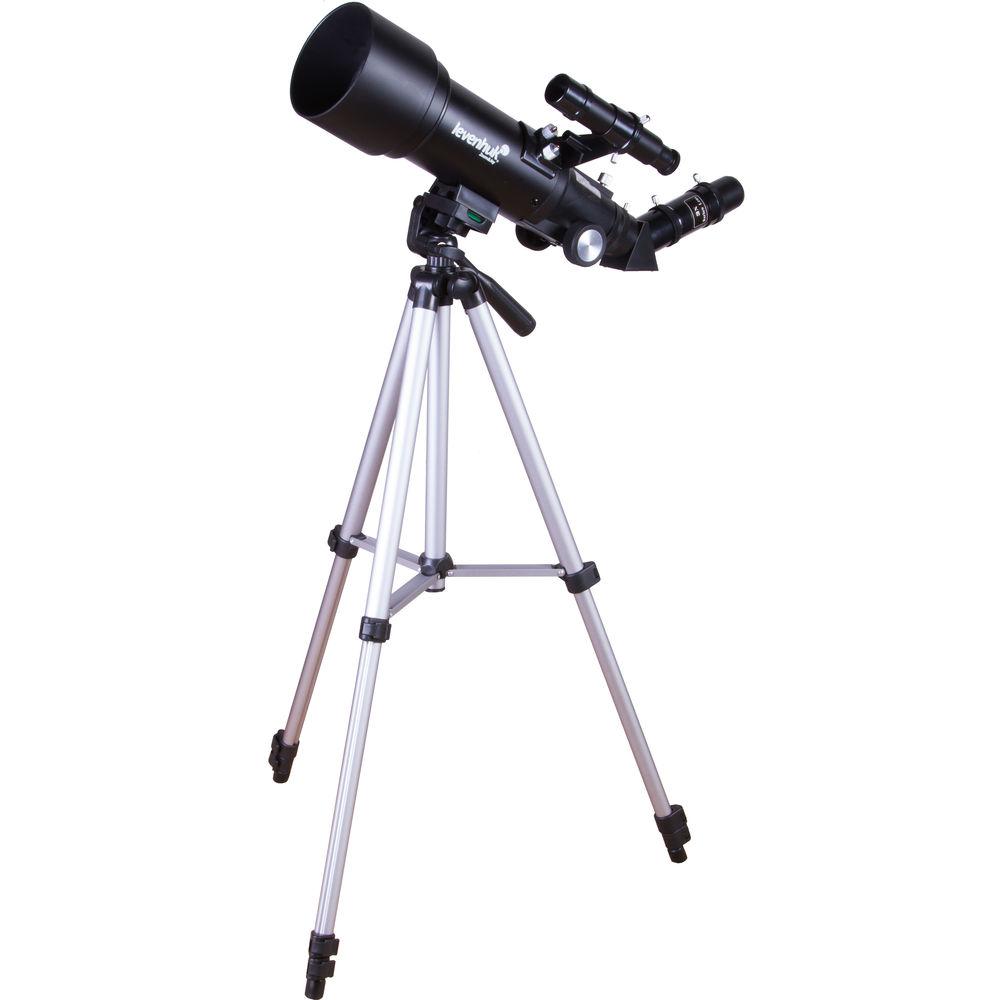

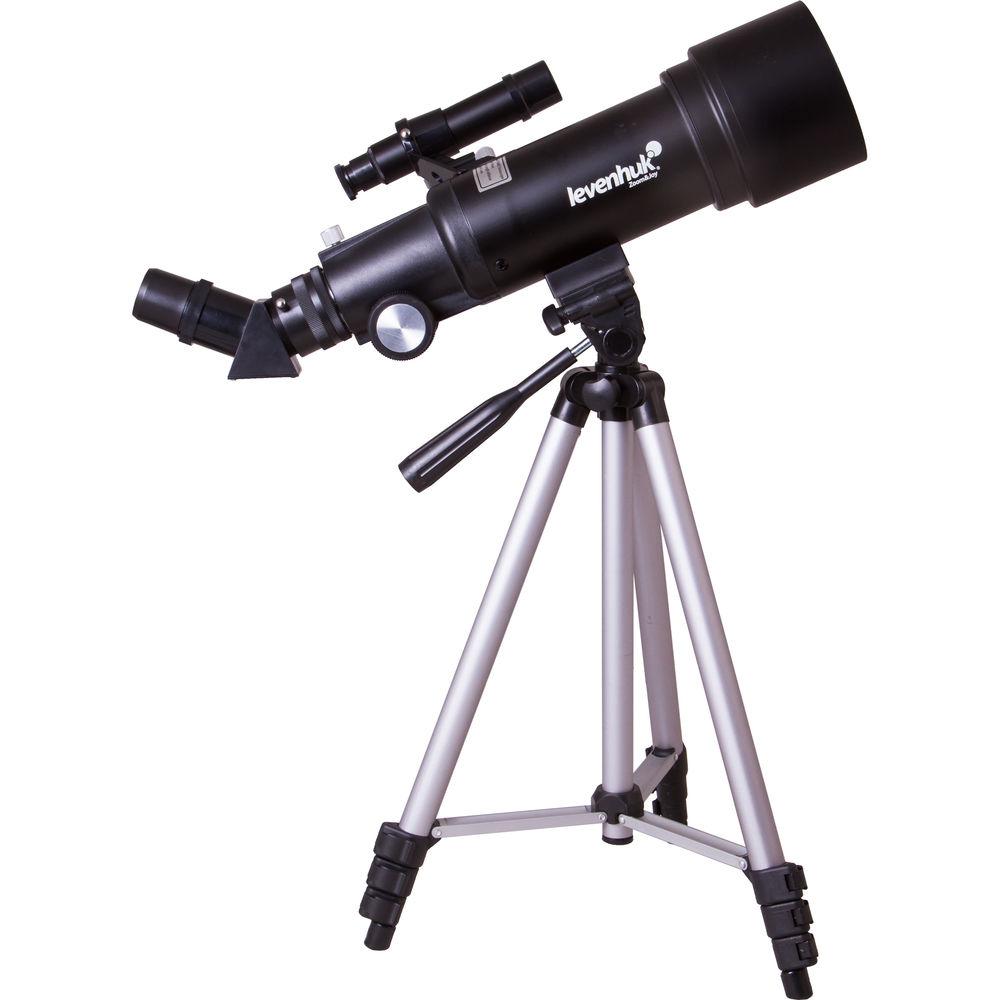

Product description A step up in light-gathering ability and power from the smaller iteration, the Levenhuk Skyline Travel 70 70mm f/6 Alt-Az Refractor Telescope is designed for portability and ease-of-use for both astronomical and terrestrial observations. Its refractor-style optical tube has a respectable aperture that gathers enough light to easily view the moon, planets, and bright deep sky objects like stars and clusters; with a focal length that still makes it easy to handle, pack, and carry. A photo-style alt-azimuth pan/tilt head easily mounts the optical tube assembly (OTA) with a simple screw, has a control handle to enable smooth movement, and locks the altitude in place for hands-free use to minimize vibration.Supporting it all is a photo-style tripod that collapses low enough for tabletop use and extends to full-sized height. The included prism has an integrated erecting prism enabling the scope to be used as a conventional terrestrial spotting scope, and it comes with two eyepieces offering low 20x and high 40x magnifications, although any 1.25" astronomical eyepiece may be used. Everything in this kit — OTA, tripod, head, and accessories — fit inside the included backpack to make it as portable and easy-to-carry as possible. - Optical Tube
-
- 70mm aperture is ideal for lunar and planetary viewing, and for observing bright deep-sky objects such as stars, star clusters, and nebulae
- 400mm focal length keeps the overall length relatively short to be easier to set up and transport
- Refractor optical design produces clearer views with reduced chromatic aberration and fringing versus reflector designs
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, sharpness, and contrast
- Reliable and sturdy rack-and-pinion focuser

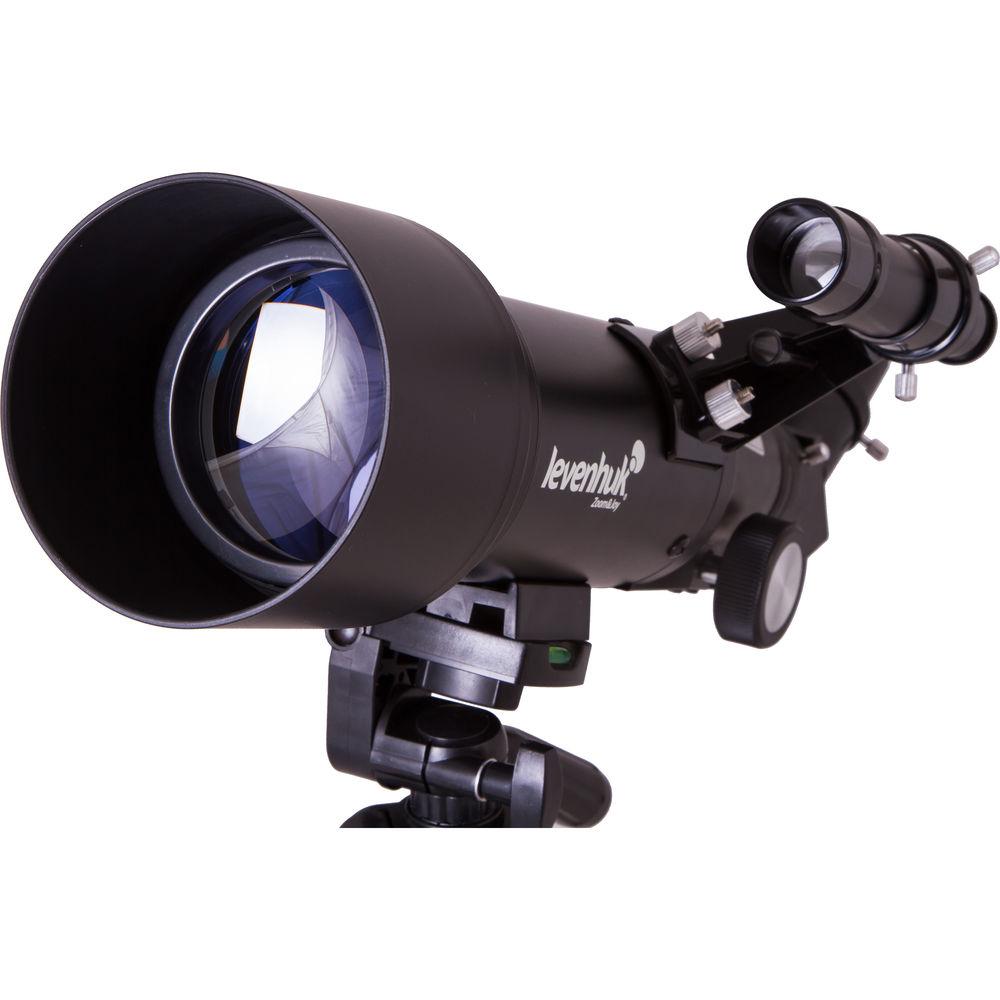

- Integrated dew shield prevents condensation at night, and minimizes glare during the day
- Mount and Tripod
- Mount:
- Manual pan/tilt photo-style alt-azimuth
- Control handle for easier adjustment and tracking
- Locking handle sets altitude
- Integrated level
Tripod:- Easy-use photo-style
- Lightweight and durable aluminum legs
- Four leg sections

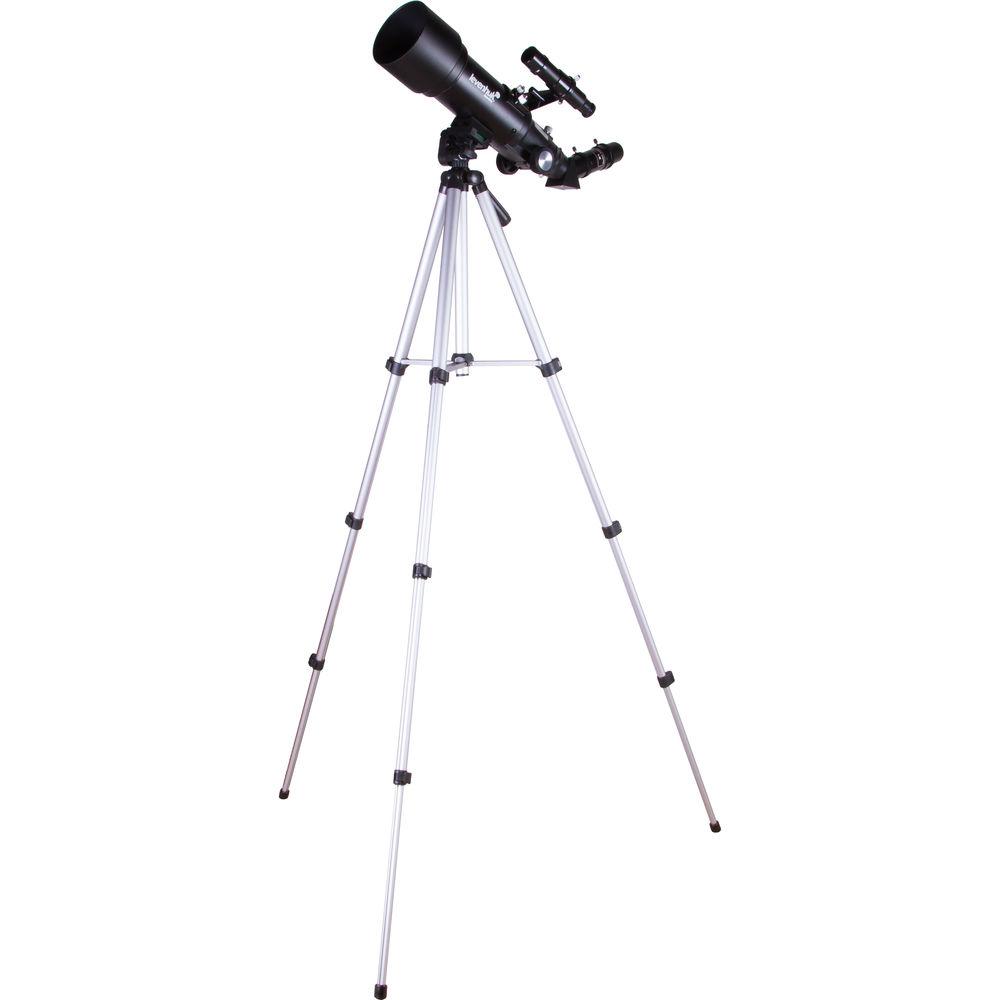

- Adjustable height from 15.5-49" (40-125cm) allows it to be set on a table or extended to full height
- Simple snap-locks allow for fast setup and breakdown
- Included Accessories
- Eyepieces:
- 1.25" diameter barrel accepts most astronomical filters
- 10mm produces high 40x power
- Low-power 20mm yields 20x magnification
Diagonal:- Integrated erecting prism corrects view for use as a conventional spotting scope
- 1.25" eyepiece holder to accept larger, more popular eyepieces
- 45° angle puts head in comfortable position for celestial and terrestrial viewing
Barlow lens:- 3x magnification triples the power of any eyepiece
- 1.25" snout and holder makes it compatible with most eyepieces, accessories, and eyepiece holders
Finderscope:- 5x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- 24mm objective lens
- Straight-through viewing
Backpack:- Water- and tear-resistant
- Holds scope, tripod, mount, and accessories
- Padded interior protects gear
UPC: 611901506197 In the Box Levenhuk Skyline Travel 70 70mm f/6 Alt-Az Refractor Telescope 5x24 Finderscope 3x Barlow Lens 45° Diagonal 20mm Eyepiece 10mm Eyepiece Tripod Backpack Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Skyline Travel 70 70mm f 6 Alt-Az Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Skyline Travel 70 Specs | Optical Design | Refractor | | Aperture | 70mm | | Focal Length | 400mm | | Focal Ratio | f/5.7 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45° erecting | | Finderscope | 5x24 | | Motors | None | | GoTo System | None | | Tripod | Yes | | Mount Type | Manual alt-azimuth | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 6.0 lb / 2.7 kg, assembled |
