User Manual for Levenhuk Skyline Travel 80 80mm f 5 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk Skyline Travel 80 80mm f
- Product category: Refractors Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Refractors
 |
User manual for the Levenhuk Skyline Travel 80 80mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

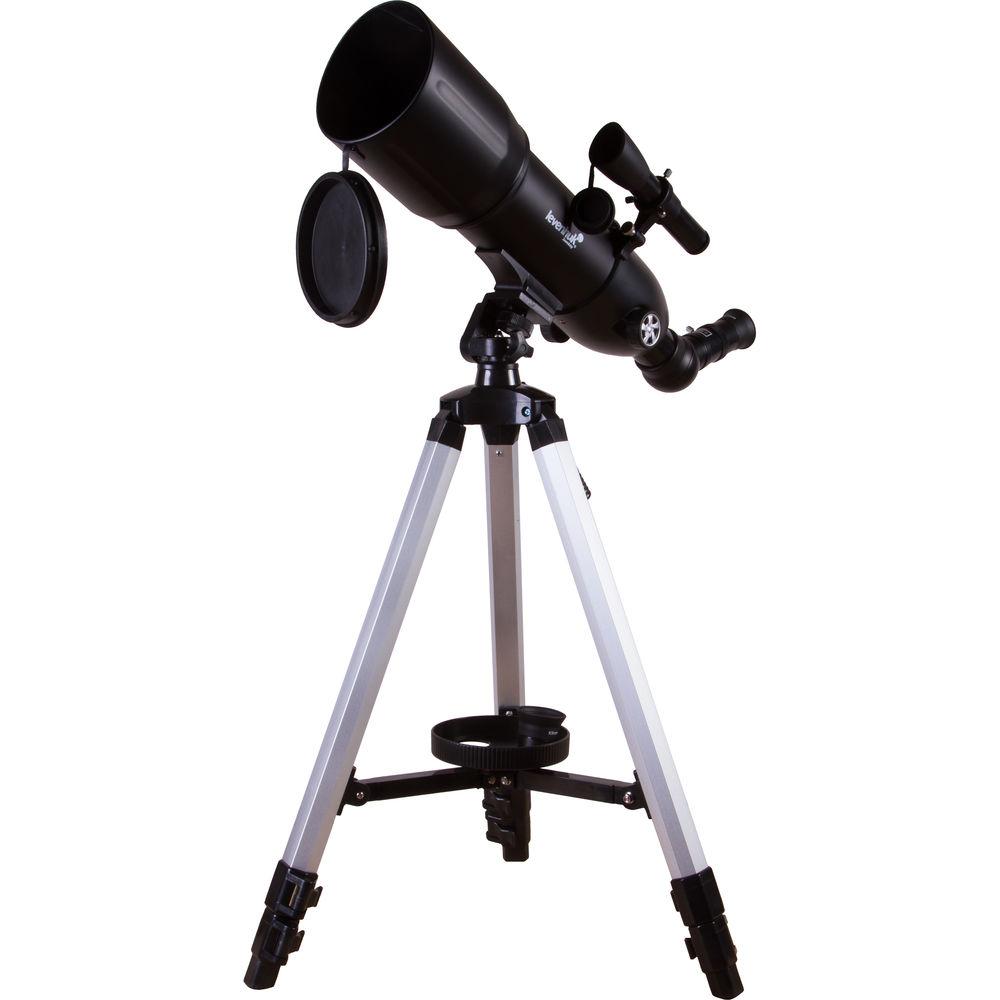

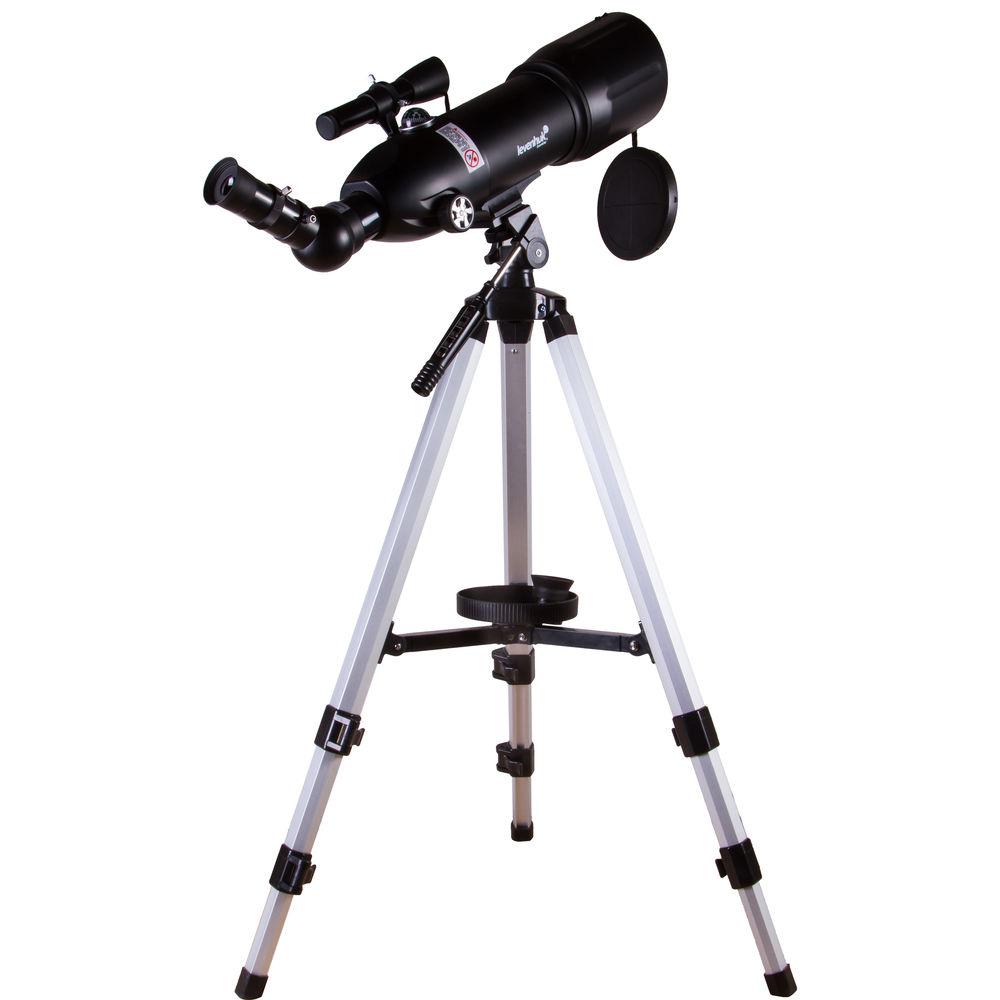

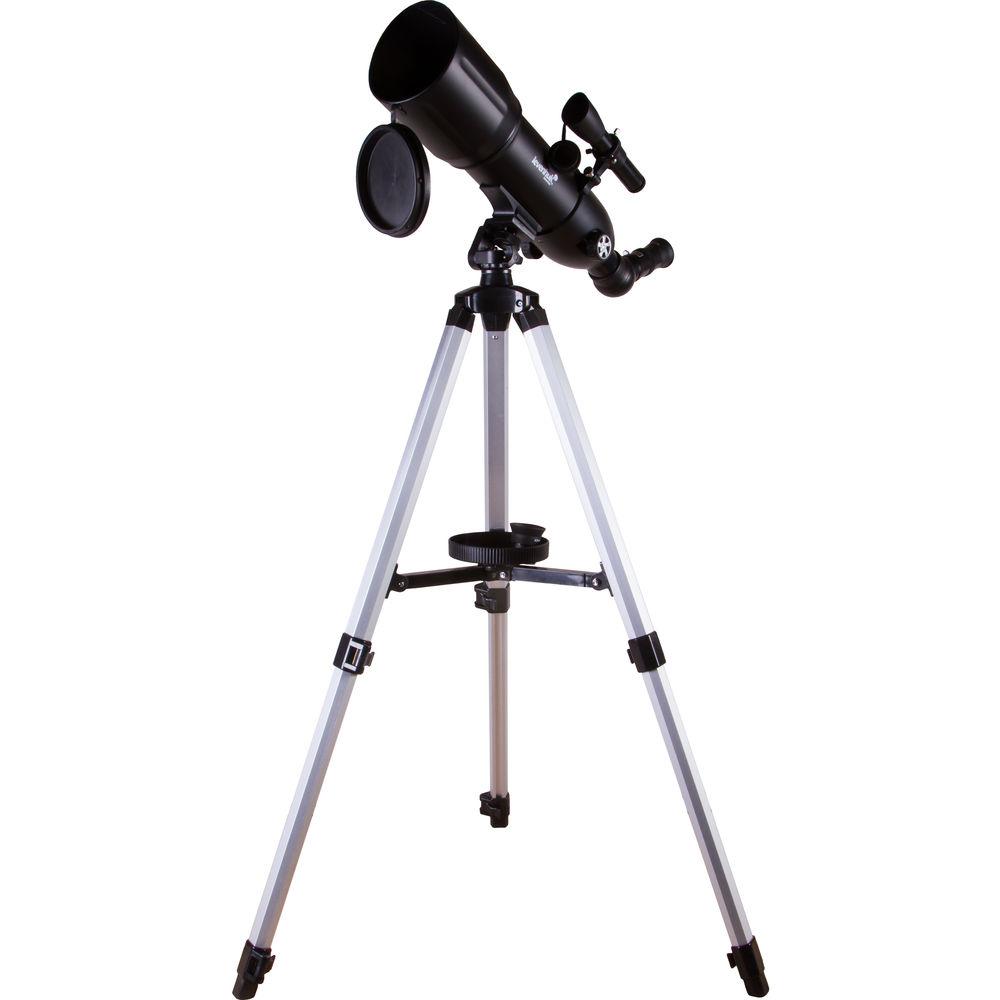

Product description Designed for easy transport and quick set up, the Levenhuk Skyline Travel 80 80mm f/5 Refractor Telescope is a complete observation rig for making observations of the moon and planets at night, and to serve as a conventional spotting scope during the day. The scope features a respectable 80mm aperture with a reliable and virtually maintenance-free refractor optical tube assembly (OTA) with a short 400mm focal length and fast f/5 focal ratio. Its rack-and-pinion focuser accepts any 1.25" accessories like the two included eyepieces, Barlow lens, and 45° erect-image diagonal.Supporting the OTA and accessories is a manual alt-az mount with a simple thumbscrew to connect the OTA to the photo-style head for fast set up and break down. The mount is attached to an adjustable-height 3-stage aluminum tripod. Levenhuk includes a shoulder bag to safely store and easily carry all the components in this kit including the OTA and tripod, with room for all the included accessories. Versatile, powerful, and easy to use, the Levenhuk Skyline Travel 80 is ready to take in the splendor of the night sky, or to enjoy boats on the bay in your backyard or far off the grid. - Optical Performance
-
- 80mm aperture is ideal for viewing the moon and larger planets
- 400mm focal length keeps the optical tube short for brighter views and easier use and handling
- Reliable refractor design requires very little maintenance
- Anti-reflection fully multi-coated optics improve light transmission through the optical path for brighter images and increased contrast
- Rack-and-pinion focuser with 1.25" drawtube
- Integrated dew shield reduces condensation on objective and reduces glare
- Mount and Tripod
- Mount:
- Manual alt-az
- Pan-tilt photo style head

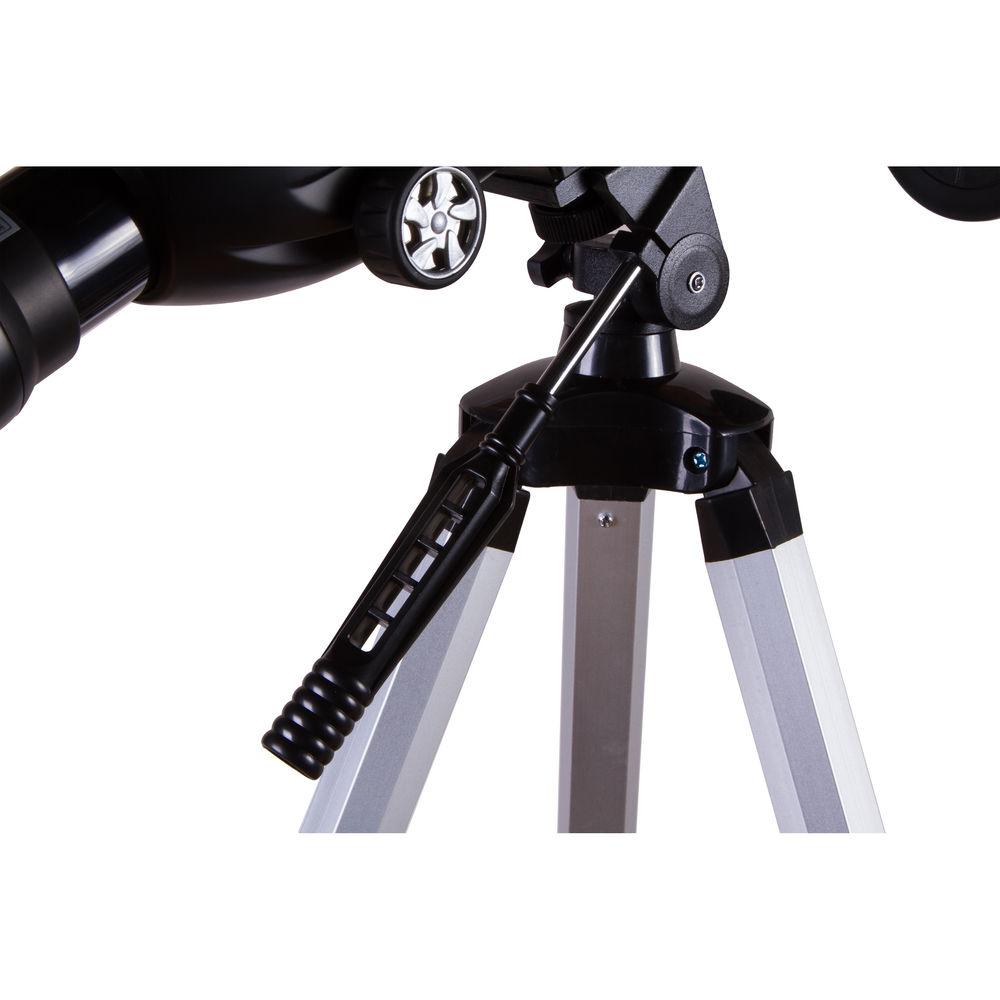

- Control handle allows for precise movement and tracking while helping to limit vibrations
- Thumbscrew mounting for OTA makes set up and break down easy

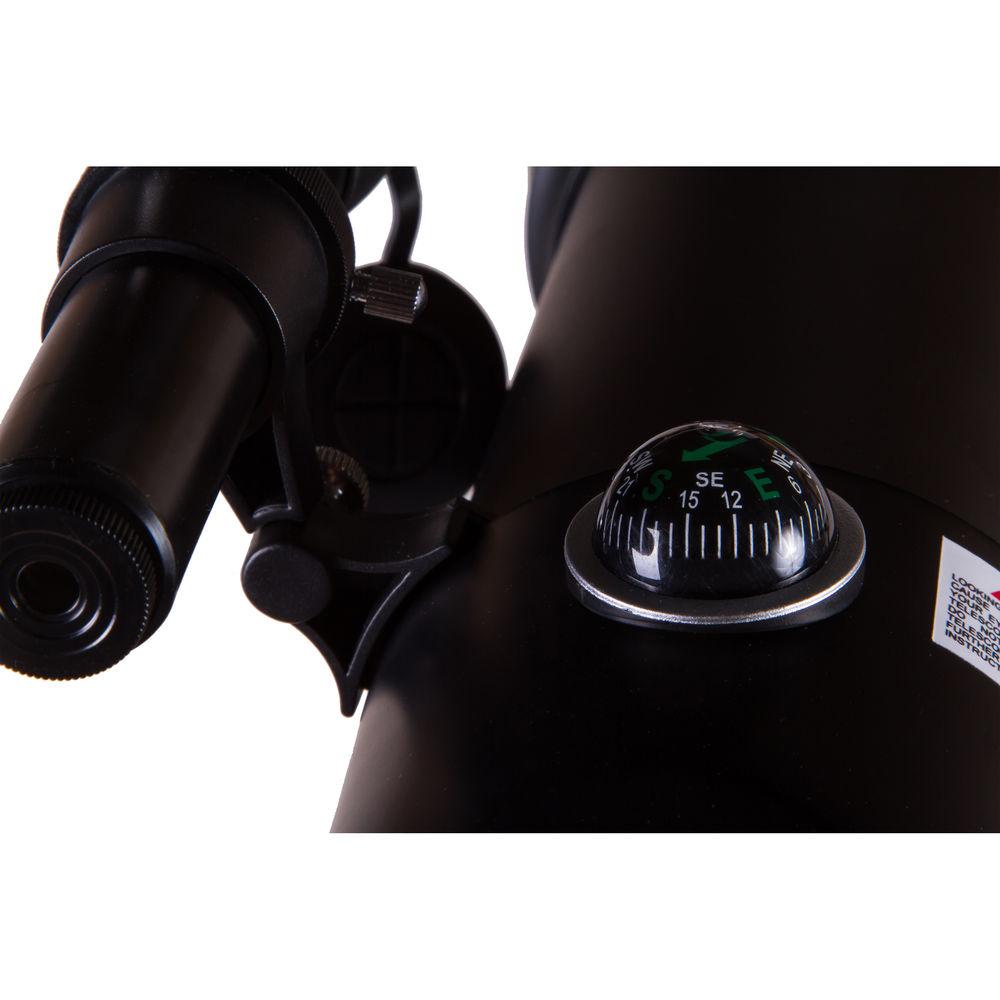

- Compass to aid with land navigation and searching for celestial objects
Tripod:- Lightweight and durable aluminum construction

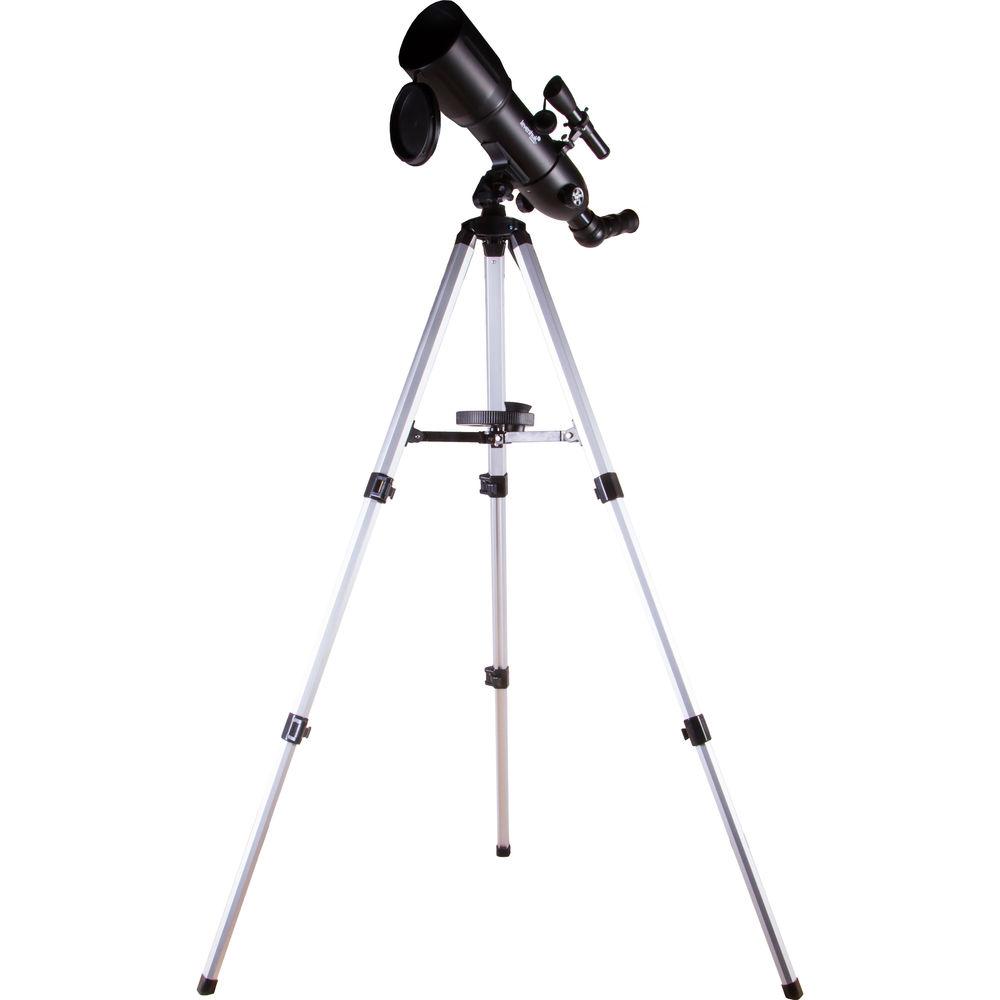

- Adjustable height from 22 to 47"
- Individual snap locks on each leg section
- Included Accessories
- Eyepieces:
- 1.25" diameter barrel accepts most filters

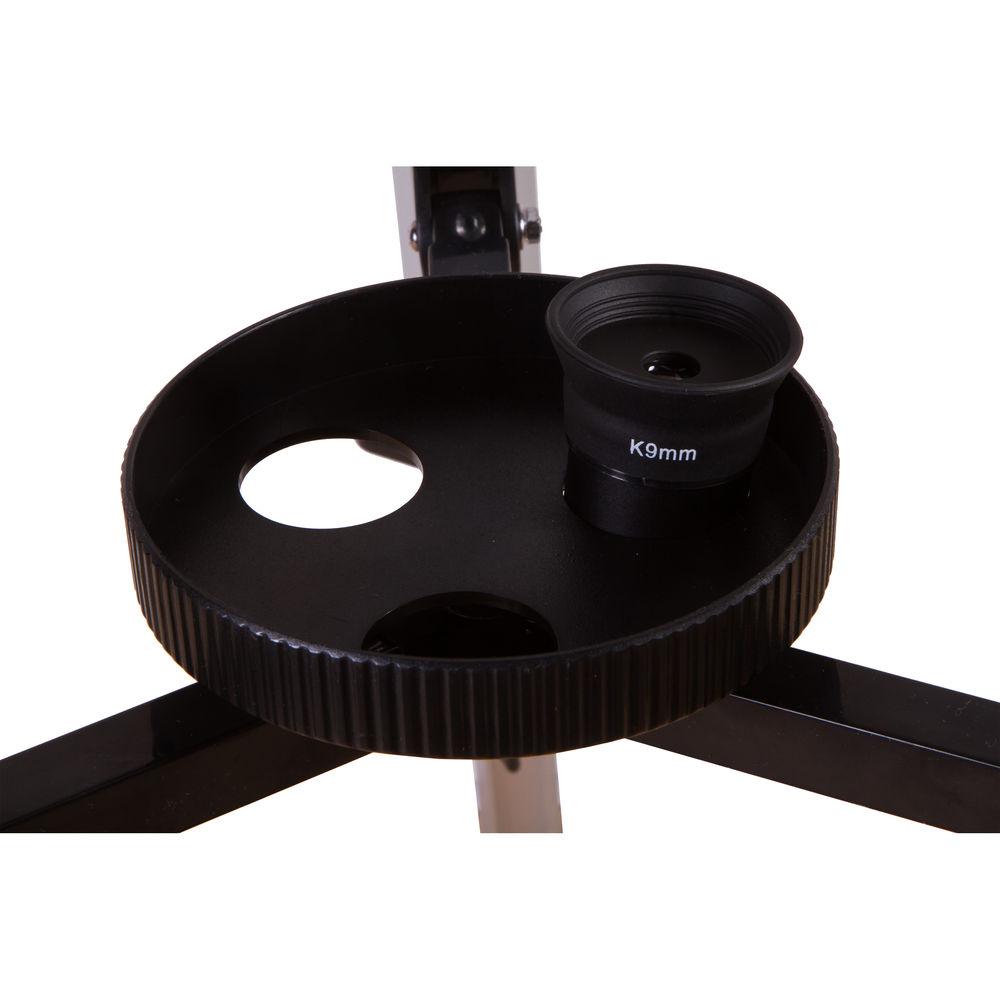

- High-power 9mm eyepiece yields 44x power
- Low-power 25mm eyepiece produces 16x magnification

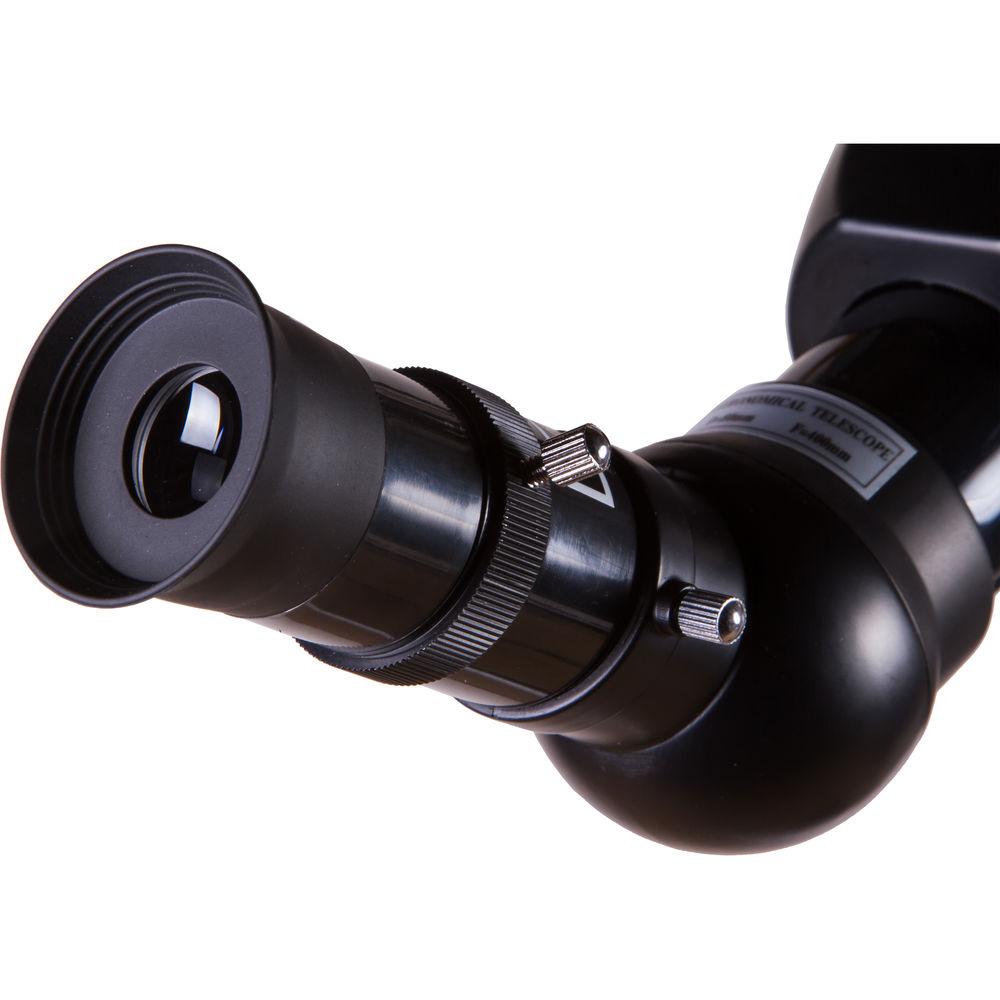

Diagonal:- 45° angle puts head in comfortable position when directly, or almost directly overhead
- Built-in erect-image prism corrects the image horizontally and vertically for use as a conventional spotting scope
- 1.25" nosepiece and eyepiece holder
Barlow lens:- Triples the magnification of any eyepiece put in it
- Magnifies without affecting eye relief for easier high-power viewing
- 1.25" nosepiece and eyepiece holder
Additional accessories:- 5x20 finder enables quick set up and star hopping
- Shoulder bag fits all components including OTA and tripod, with room for accessories

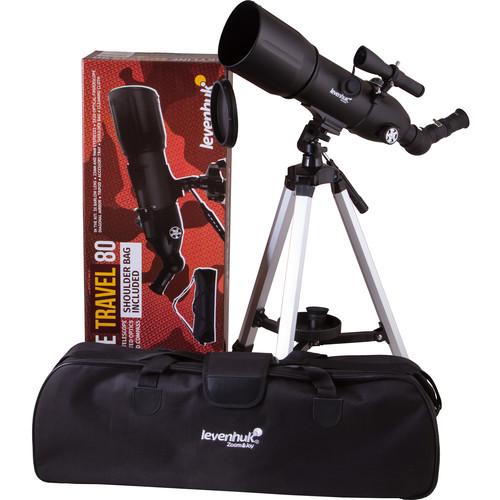

In the Box Levenhuk Skyline Travel 80 80mm f/5 Refractor Telescope 3x Barlow Lens 9mm Eyepiece 25mm Eyepiece 45° Erect-Image Prism 5x20 Finder with Bracket Adjustable Aluminum Tripod Shoulder Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Skyline Travel 80 80mm f 5 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Skyline Travel 80 Specs | | | Optical Design | Refractor | | Aperture | 80 mm / 3.1" | | Focal Length | 400 mm | | Focal Ratio | f/5 | | Resolution | 1.47 Arcsec (Dawes) | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
