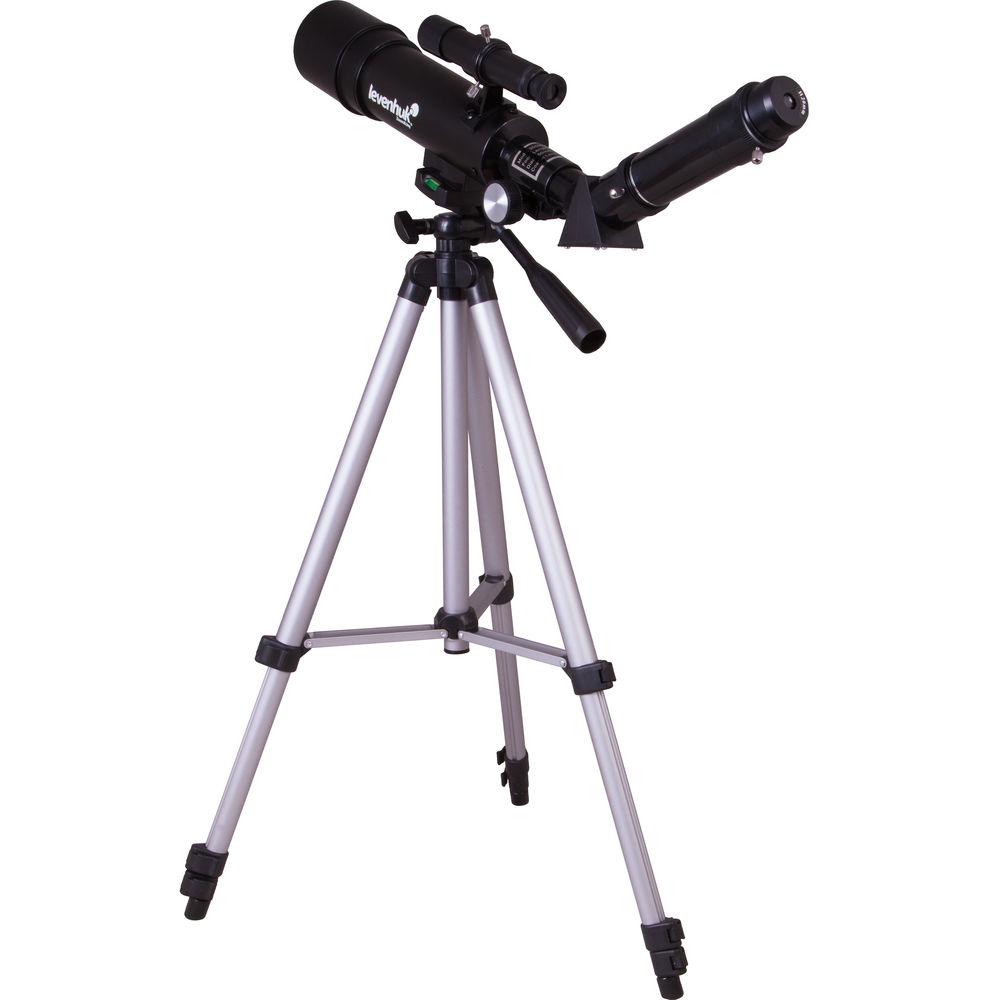

User Manual for Levenhuk Skyline Travel Sun 50 50mm f 7 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Levenhuk Skyline Travel Sun 50 50mm
- Product category: Solar Telescopes Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Solar Telescopes
 |
User manual for the Levenhuk Skyline Travel Sun 50 50mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

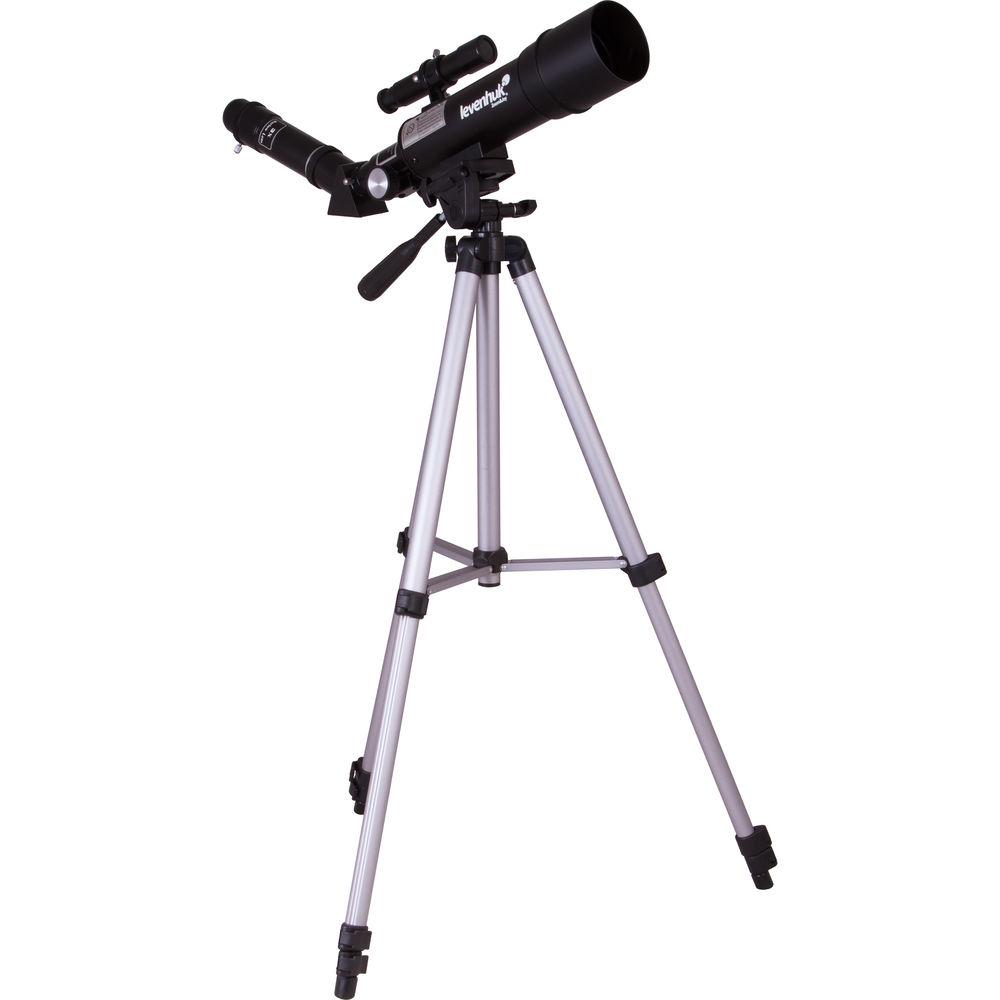

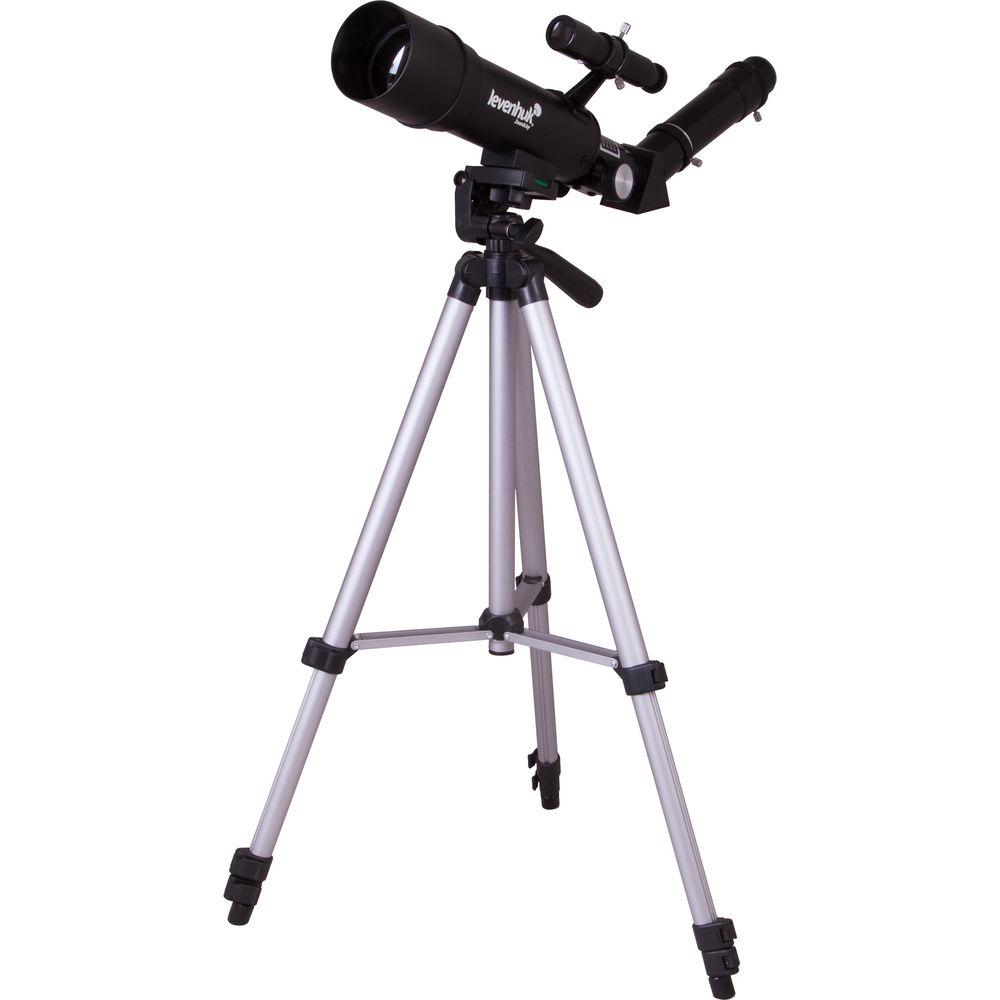

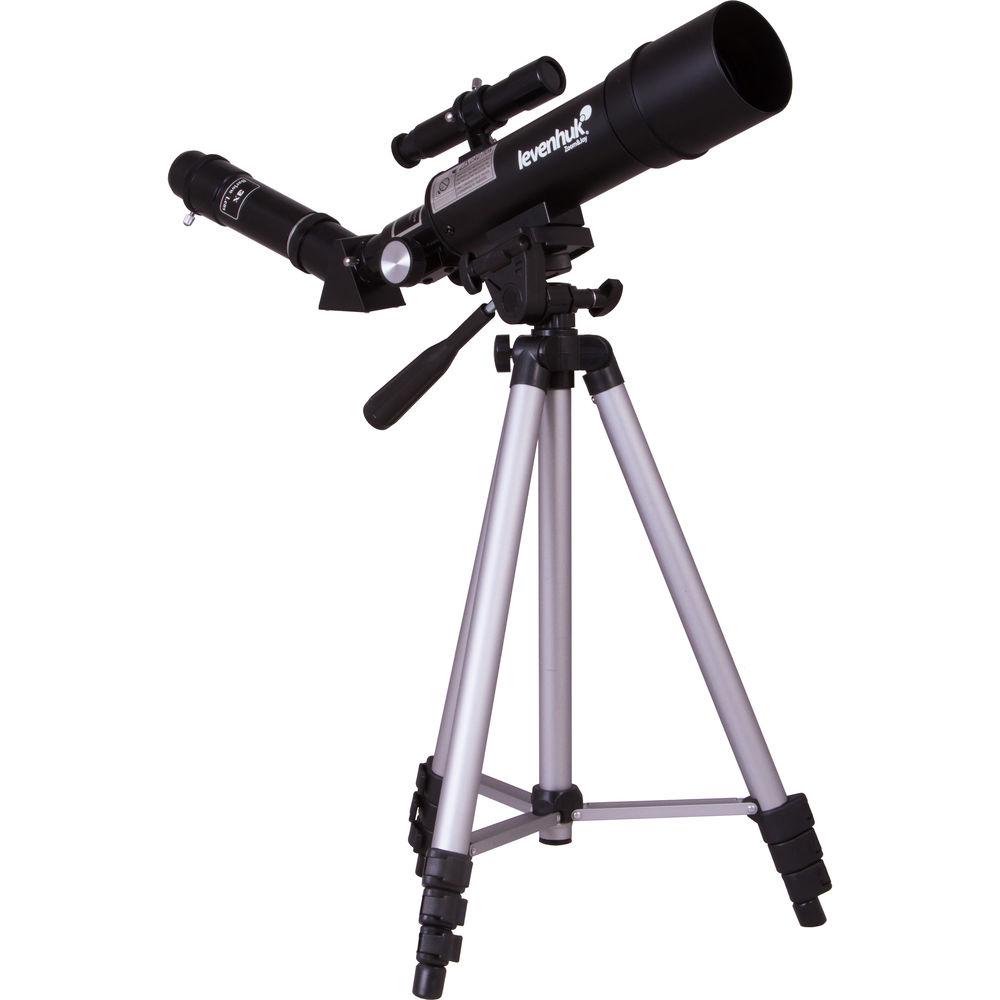

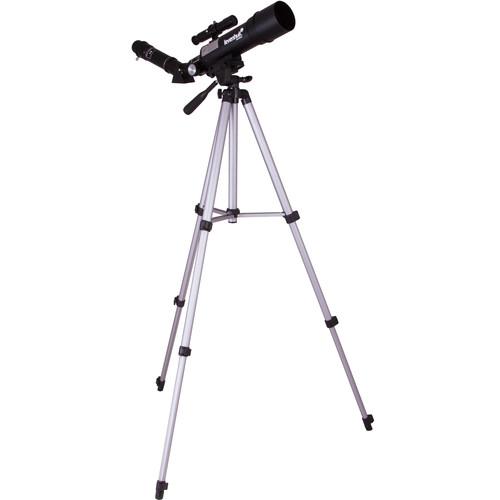

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Designed for beginner astronomers, the Levenhuk Skyline Travel Sun 50 50mm f/7 Refractor Telescope can be used for regular nighttime viewing or, with the simple installation of the included filter, observing the sun. The white-light filter fits on the front of the optical tube (OTA) and allows for safe viewing of sunspots, granulations, planetary transits, and all phases of solar eclipses. With the filter removed, the telescope can be used to view celestial subjects such as the moon.The OTA is attached to a manual alt-azimuth mount equipped with a slow-motion handle to increase tracking precision and reduce vibrations. Supporting the mount and OTA is an adjustable height aluminum tripod. A suite of accessories are included to enrich your viewing experiences including high and low power eyepieces, a Barlow lens that triples the power of each eyepiece, a 45° diagonal that improves viewing comfort, and a backpack to put everything in and safely transport it. - Optical Tube Assembly
-
- Removable solar filter allows the scope to be used day or night
- 50mm aperture is ideal for viewing details of the moon and sun
- 360mm focal length produces a moderate magnification potential while still being light and highly portable
- Refractor-style optical tube is simple to use and maintain
- Anti-reflection fully multi-coated optics improve light transmission, color representation, resolution, and contrast
- Sturdy and reliable rack and pinion focuser, accepts standard 1.25" eyepieces and accessories
- Mount and Tripod
- Mount:

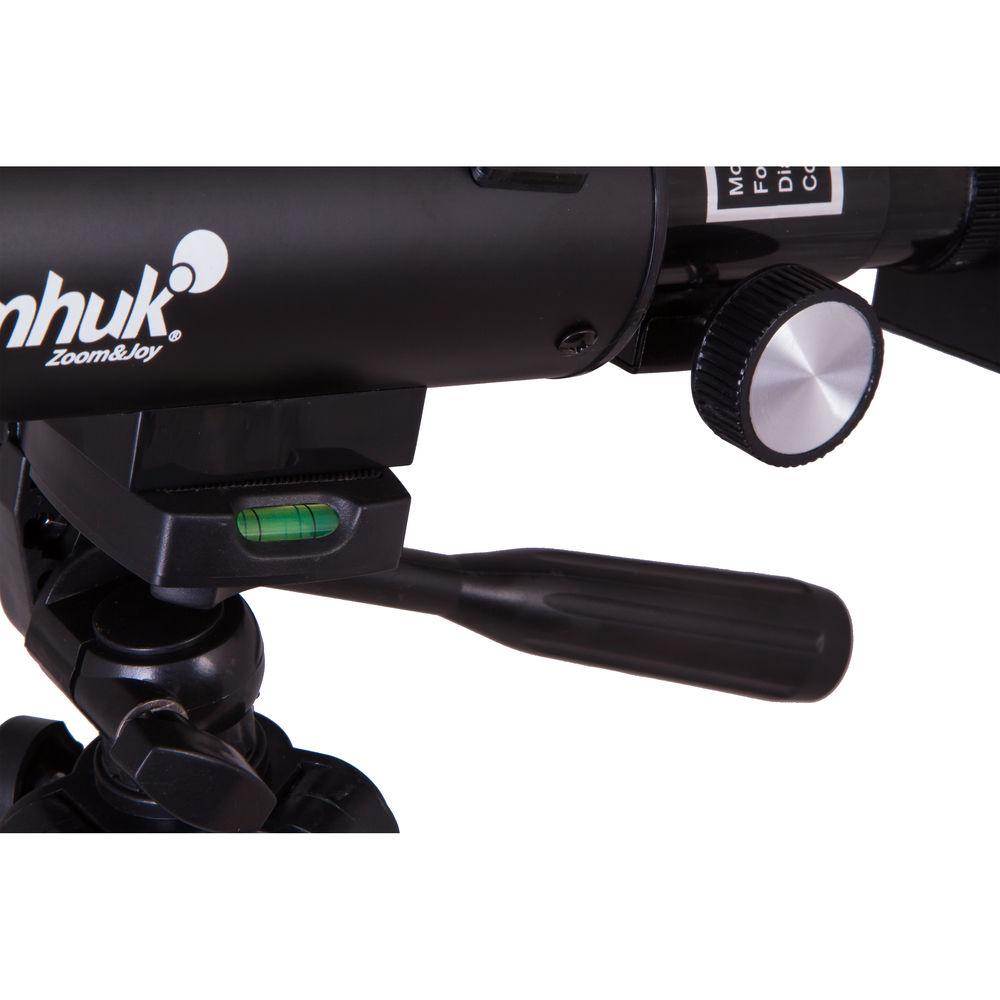

- Simple manual alt-azimuth design is easy to set up and use
- Photo-style head enables easy pan and tilt for finding and tracking your subject
- Control handle improves tracking precision with reduced vibrations

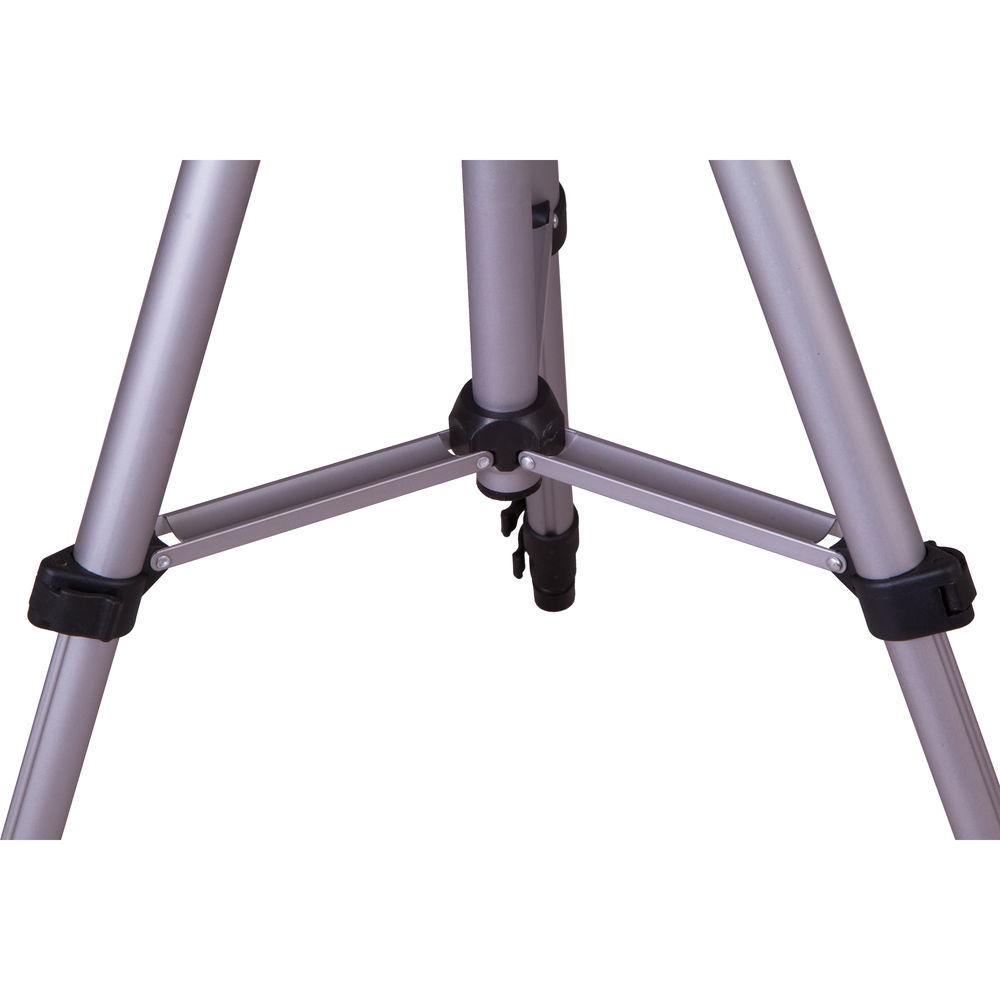

Tripod:- Adjustable height from 16 to 49" to accommodate a variety of viewing positions and users
- Lightweight aluminum is easy to transport and carry
- Three leg sections allow it to be collapsed very small
- Easy and fast flip-lever leg section latches
- Included Accessories

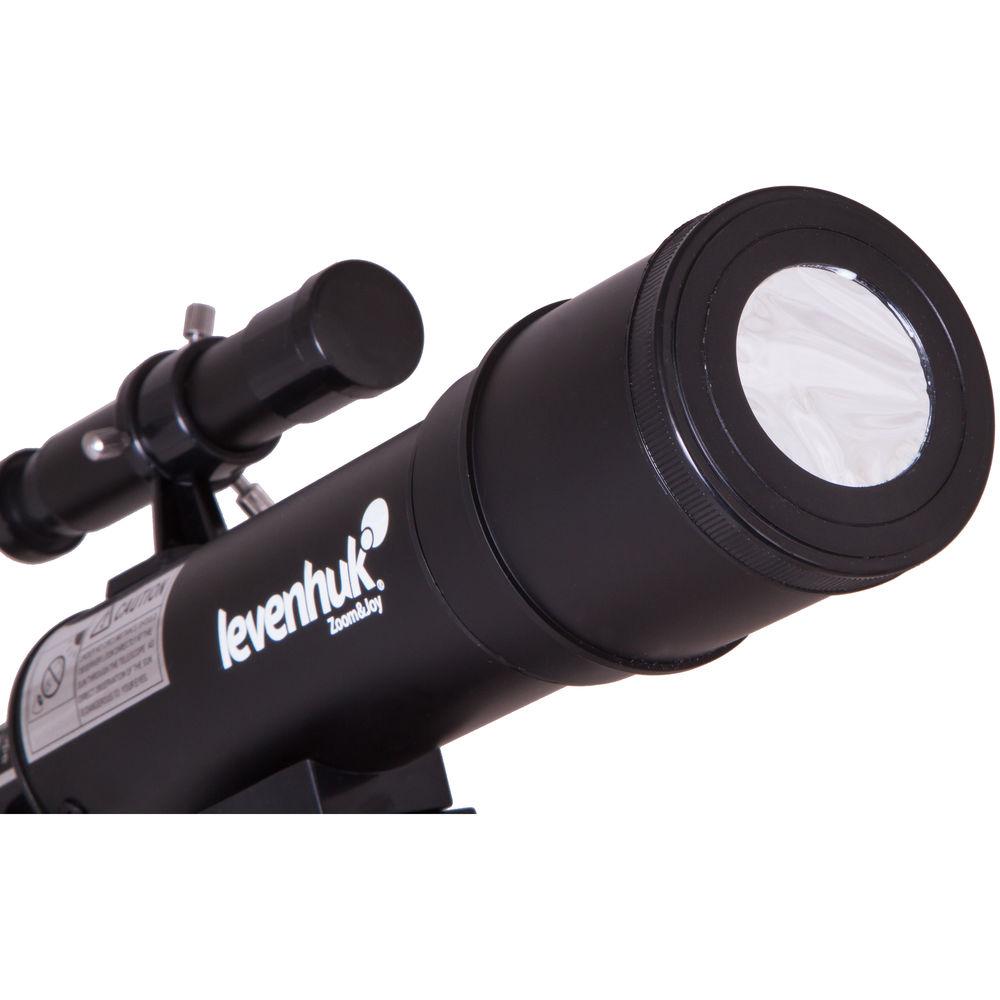

- Solar filter:
- Install to use scope for solar viewing
- Broadband full-spectrum white light reveals sunspots and surface texture (granulation)
- Fits over objective lens without tools
- Remove to use the scope for conventional nighttime use
Eyepieces:- Accepts most 1.25" astronomical filters
- 8mm eyepiece produces a high 45x power
- 20mm eyepiece yields a low 18x magnification
Barlow lens:- 1.25" nosepiece and holder accepts most 1.25" eyepieces and accessories
- Effectively triples the power of any eyepiece installed in it without affecting eye relief to make high-power observations easier and more comfortable
Diagonal mirror:- 1.25" nosepiece and holder
- 45° angle places your head in a comfortable viewing position, whether you are viewing the sky or more Earth-based objects

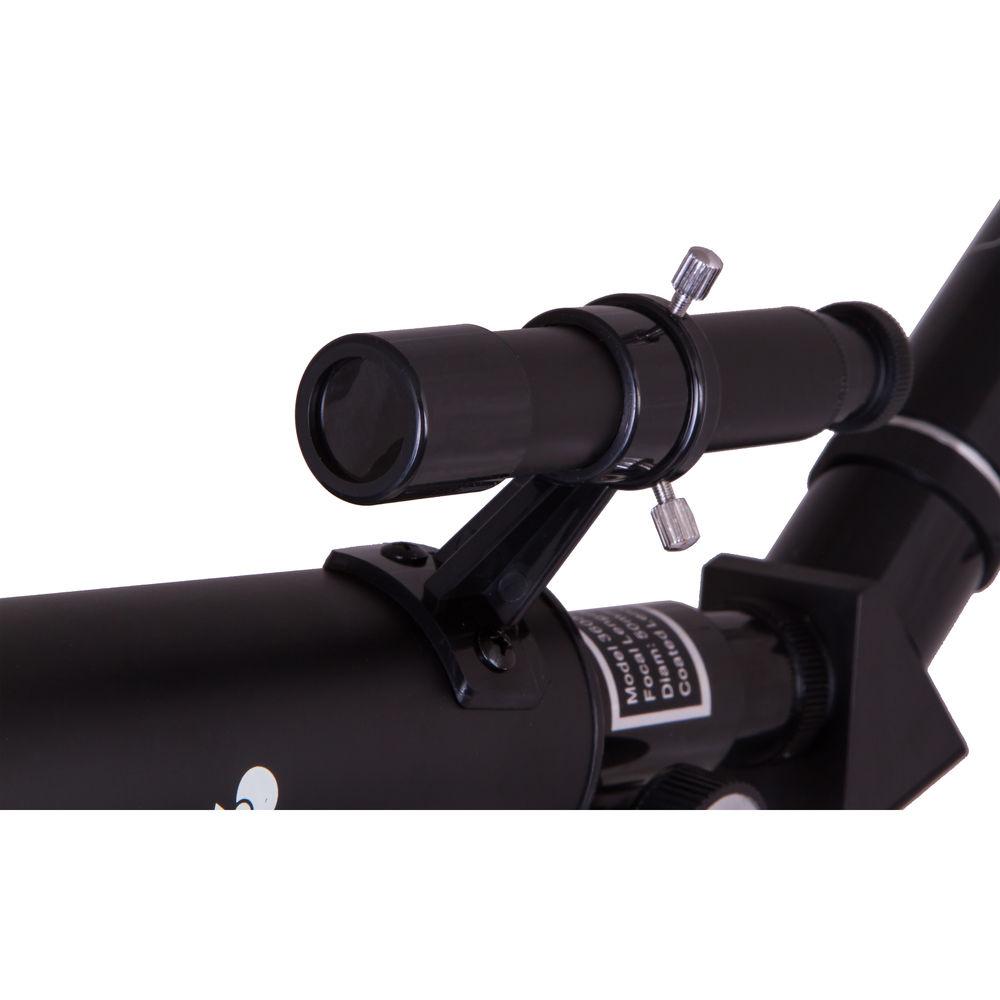

Finder:- 2x power magnifies the view slightly to maintain a wide field of view and make star hopping navigation easier
- Includes mounting bracket
Backpack:- For easy storage and transportation
- Hold telescope, mount, tripod, and all accessories
UPC: 643824213012 In the Box Levenhuk Skyline Travel Sun 50 50mm f/7 Refractor Telescope Backpack Tripod with Head Finder with Bracket 8mm Eyepiece 20mm Eyepiece 45° Diagonal Mirror 3x Barlow Lens White-Light Solar Filter Limited Lifetime Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Skyline Travel Sun 50 50mm f 7 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk Travel Sun 50 Specs | | | Optical Design | Refractor | | Aperture | 50 mm / 2" | | Focal Length | 360 mm | | Focal Ratio | f/7.2 | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45
