User Manual for Levenhuk T800 PLUS 8MP Eyepiece Imaging Camera Click to enlarge the picture
Contents of the user manual for the Levenhuk T800 PLUS 8MP Eyepiece Imaging
- Product category: Accessories Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Accessories
 |
User manual for the Levenhuk T800 PLUS 8MP Eyepiece Imaging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|
Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More With the highest resolution in the series, live stream your views of the cosmos and cosmic events, or capture still photos and videos for editing and sharing later with the Levenhuk T800 PLUS 8MP Eyepiece Imaging Camera. Outfitted with a standard 1.25" snout, the camera installs in your focuser, drawtube, or imaging accessories in place of a regular eyepiece, and is ideal for all types of telescopes from refractors and reflectors, to catadioptrics, and even large-aperture Dobsonians. The camera connects to your laptop or PC via an included USB 2.0 cable, which also provides the required power; and a software suite is also included with image capture and editing programs formatted for Windows, Mac, and Linux operating systems.This model features a large 8MP 1/2.5" color CMOS sensor and represents the highest resolution in the T Plus series. It is sensitive enough to allow you to image the moon and planets, while the adjustable settings and exposure times enable it to capture dim deep-sky objects such as galaxies and nebulae. You can select one of three resolutions: 3264x2448, 1600x1200, and 800x600 depending on your needs and available memory. Images are captured in popular formats including jpeg, png, and tif; while standard wmv, avi, and other formats are available for videos. - Camera
-
- Watch images on your screen in a real-time mode, or capture and save still photos or videos

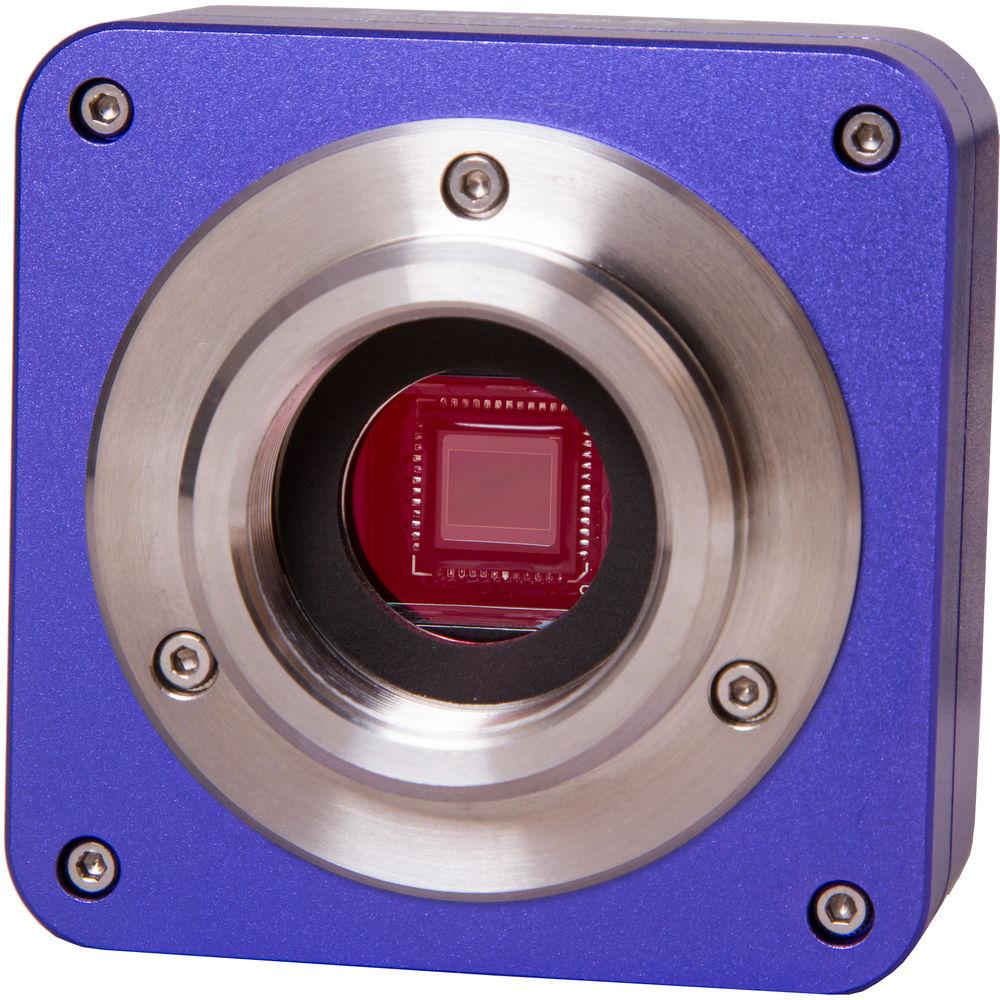

- 8MP 1/2.5" CMOS color sensor
- Variable and selectable exposure times from 0.4 to 2000 ms
- Selectable resolutions: 3264x2448, 1600x1200, 800x600
- Variable frame rate: 1.9 fps @ 3264x2448; 8 fps @ 1600x1200; 27 fps @ 800x600
- Broad 380-650nm spectral range, with built-in IR filter, enables imaging of dimmer deep-sky objects, plus the moon and planets
- 1.67x1.67mm pixel size
- Operating temperature: 14 to 122°F (-10 to 50°C)
- Use and Handling
-

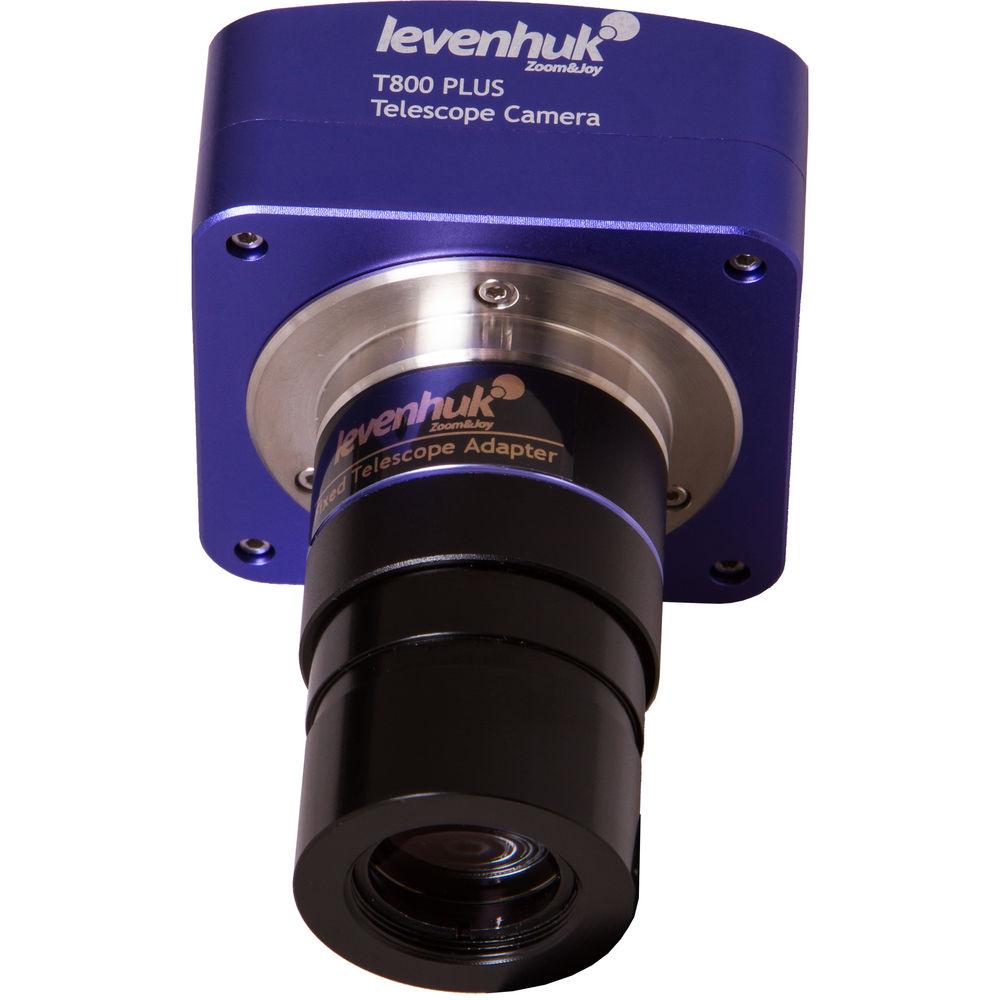

- Includes a 1.25" removable snout to fit into telescope drawtubes or other accessories like diagonals or Barlow lenses

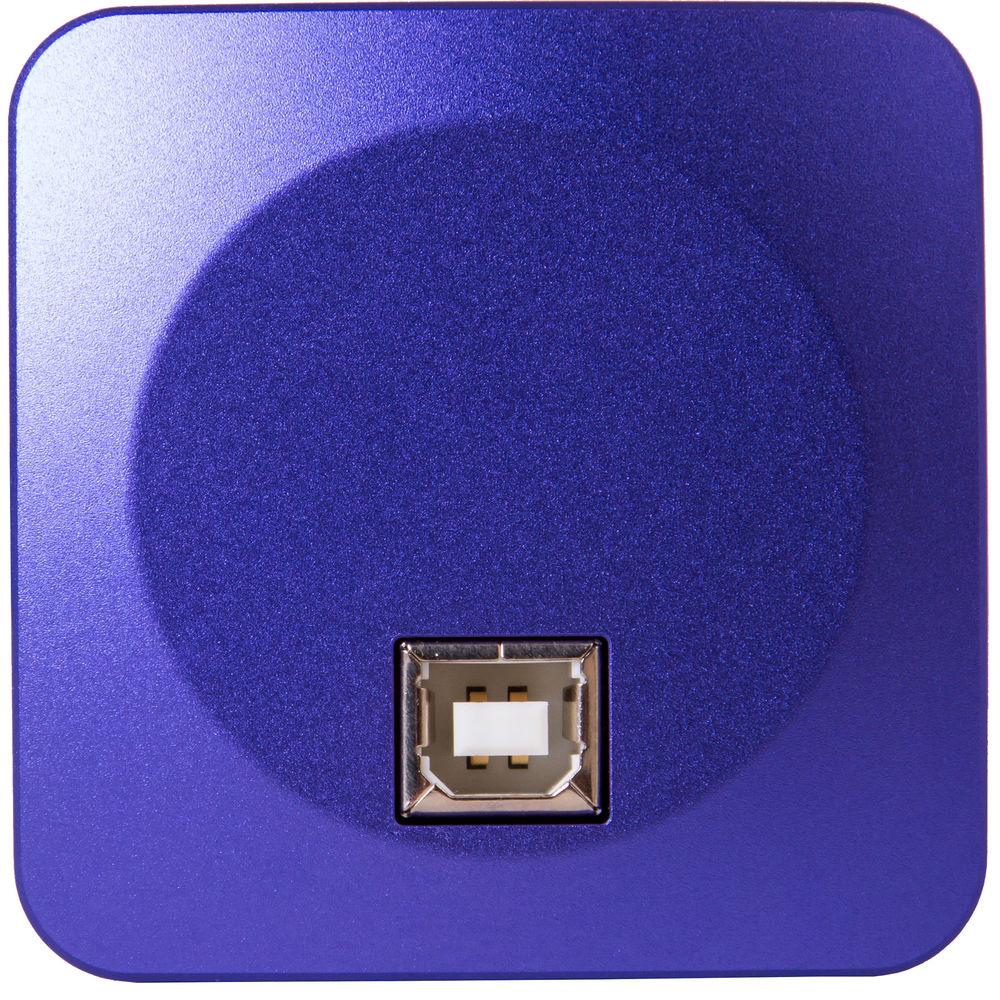

- Connect to laptop or PC via included USB 2.0 cable with a 480 Mb/s transfer rate; cable also provides power to camera
- CD-ROM included with image editing software and all required drivers
- Windows version supports English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, and Turkish
- System Features
-
- Video recording with three preset modes featuring different image resolution and frame rates
- 65.2 dB dynamic range to better capture light/dark contrasts
- Electronic rolling shutter
- Auto or manual white balance control
- Auto or manual exposure control — especially useful when shooting the planets so you can avoid overexposure of the picture
- Image editing software allows user to adjust image size, brightness, exposure time for better image quality and control
- Still image formats: .jpg, .bmp, .png, .tif
- Video formats: .wmv, .avi, .h264 (Win 8 or later), .h265 (Win 10 or later)
- System Requirements
-
- Operating system: Mac OS 10.12; Linux Ubuntu 14.04; Windows XP/Vista/7/8/10 (32-bit or 64-bit)
- CPU IntelCore 2 or above
- 2GB RAM
- USB 2.0 port
- CD-ROM drive

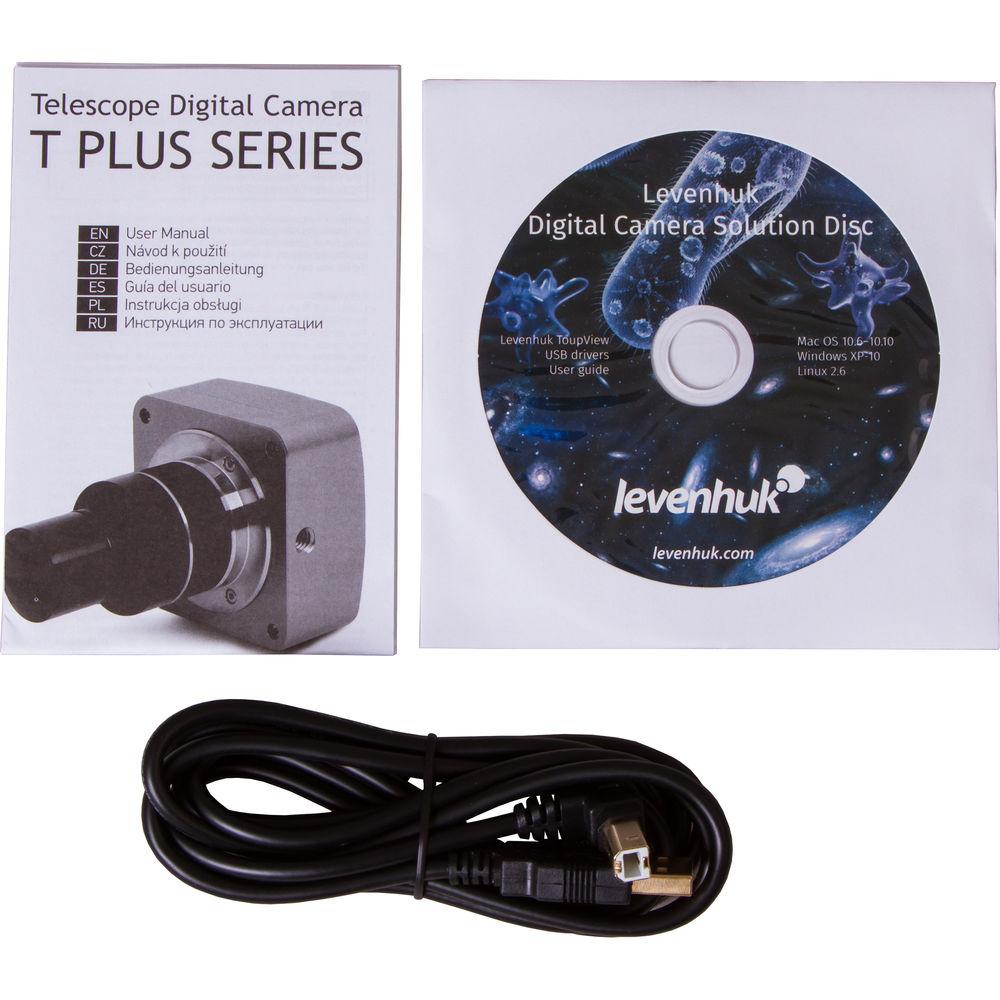

UPC: 611901505619 In the Box Levenhuk T800 PLUS 8MP Eyepiece Imaging Camera (1.25") USB Cable 1.25" Eyepiece Snout Installation CD with Image Editing Software and Drivers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk T800 PLUS 8MP Eyepiece Imaging Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLevenhuk T800 PLUS Specs | Imaging Sensor | 1/2.5" CMOS color | | Pixel Size | 1.67 x 1.67 mm | | Resolution | 3264 x 2448, 1600 x 1200, 800 x 600 | | Frame Rate | 1.9 fps @ 3264 x 2448
8 fps @ 1600 x 1200
27 fps @ 800 x 600 | | Exposure Range | 0.4 - 2000 ms | | Dynamic Range | 65.2 dB | | Image Format | .jpg, .bmp, .png, .tif | | Video Format | .wmv, .avi, .h264 (Win 8 or later), .h265 (Win 10 or later) | | Barrel Diameter | 1.25", with nosepiece | | Mounting | Threaded | | Power Requirement | Powered by USB 2.0 cable | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Weight | Not specified by manufacturer | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.0 x 5.9 x 4.0" |
