User Manual for Levenhuk Zeno D3 3.5x 12x Desktop Magnifier Click to enlarge the picture
Contents of the user manual for the Levenhuk Zeno D3 3.5x 12x Desktop
- Product category: Magnifiers, Loupes & Accessories Levenhuk
- Brand: Levenhuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Levenhuk Magnifiers, Loupes & Accessories
 |
User manual for the Levenhuk Zeno D3 3.5x 12x Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Levenhuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Levenhuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Levenhuk product will considerably shorten its lifespan!
|

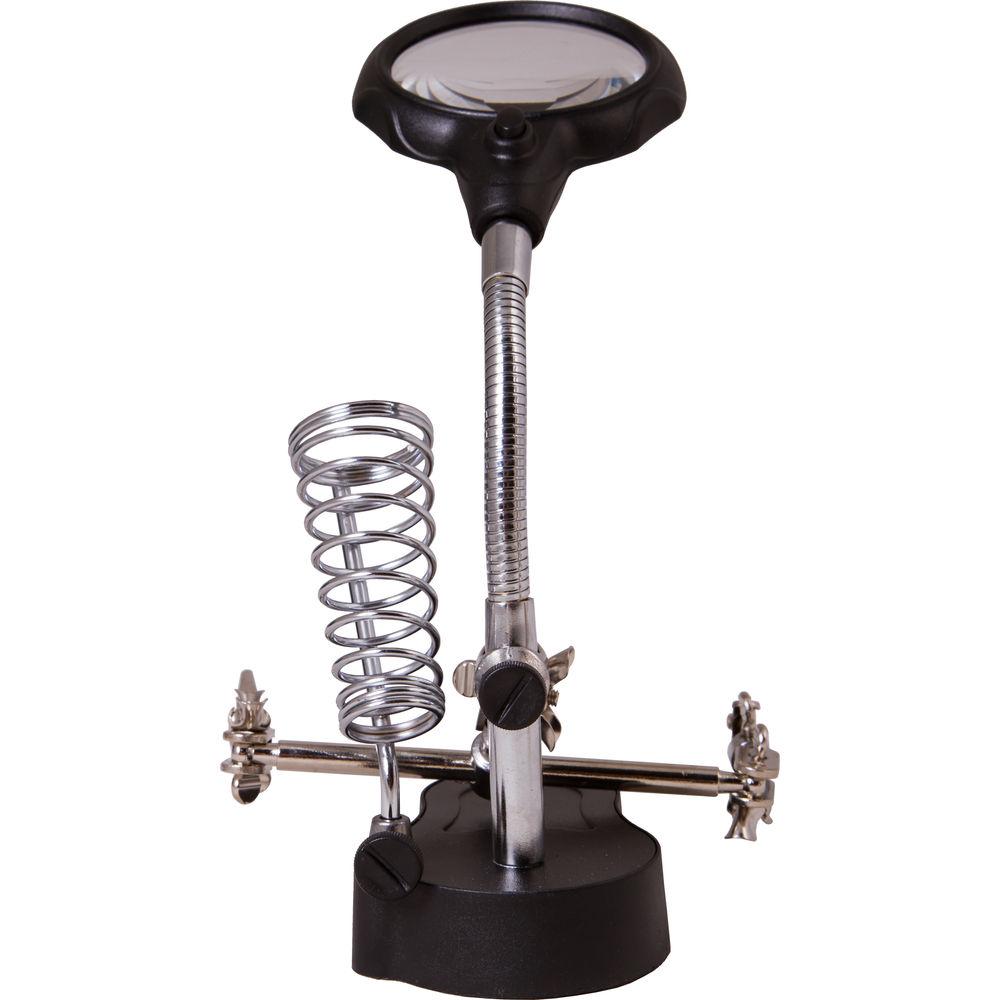

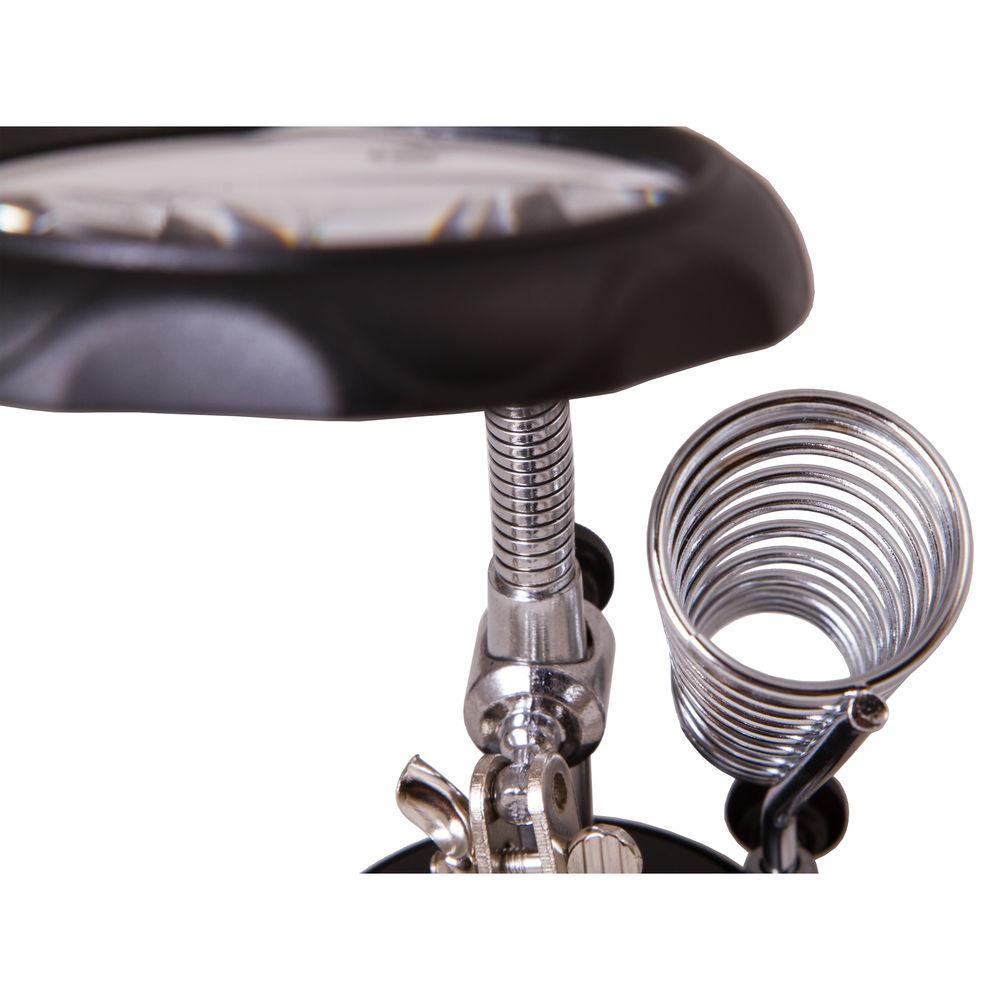

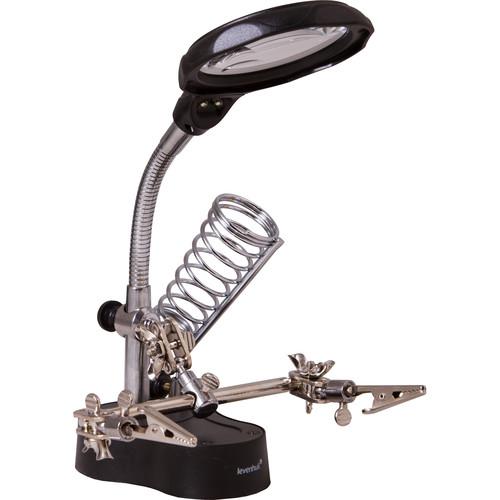

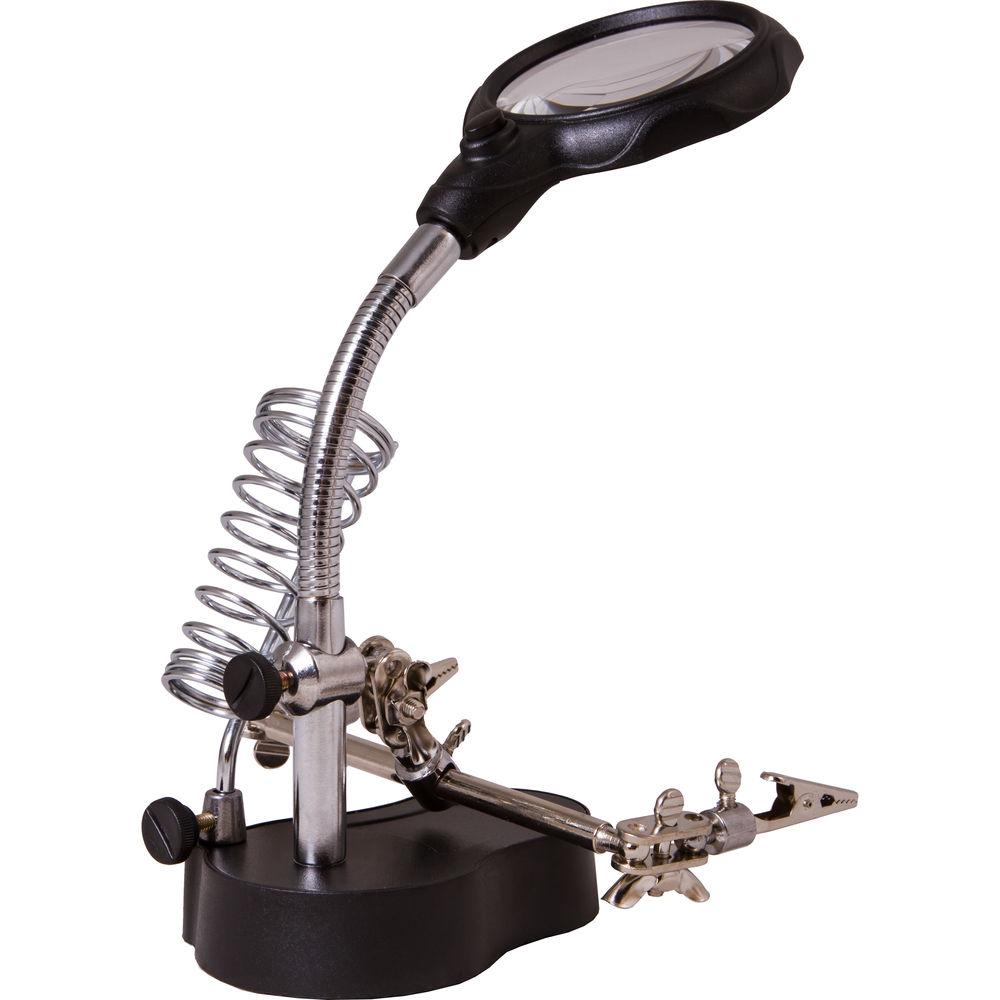

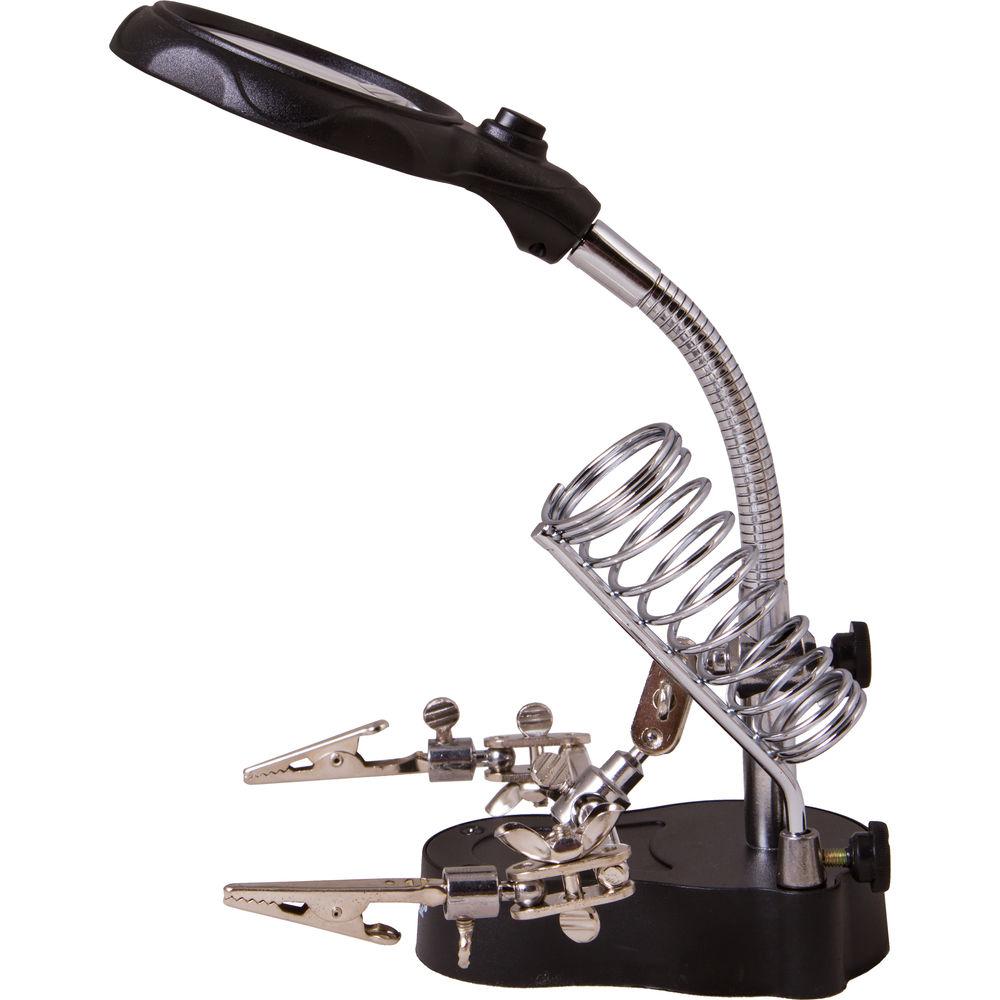

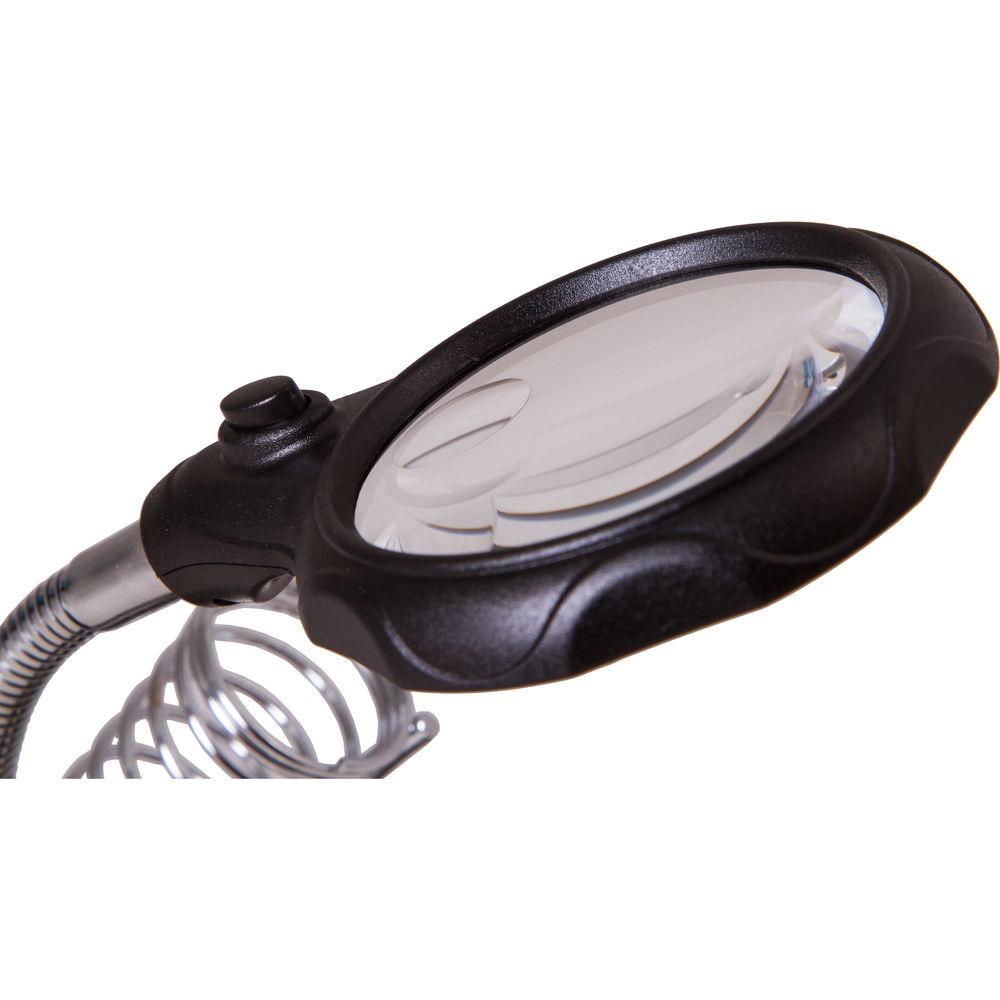

Product description The Zeno D3 3.5x/12x Desktop Magnifier by Levenhuk is a 65mm wide bifocal glass optical lens with 3.5x magnification and a smaller, more powerful inset lens with 12x magnification. Under the magnifying glass are two LED lights, which help to illuminate your subject. With its flexible gooseneck, this magnifier can be positioned above the object to bring small details into a larger view, so arts-and-crafters, hobbyists, jewelry makers, and watch repair technicians can work with precision on small objects.The tool holder located to the right of the gooseneck is essential in holding different tools such as a screwdriver, soldering iron, or blade, and the horizontal bar with the two mini clamps is height adjustable along the length of the gooseneck. Each mini clamp can also slide side-to-side to accommodate and hold the object you are viewing or working on. This magnifier is designed primarily for desktop use, but with its plastic base is lightweight and portable. - 65mm wide glass diameter with bifocal lens of 3.5 and 12x magnification

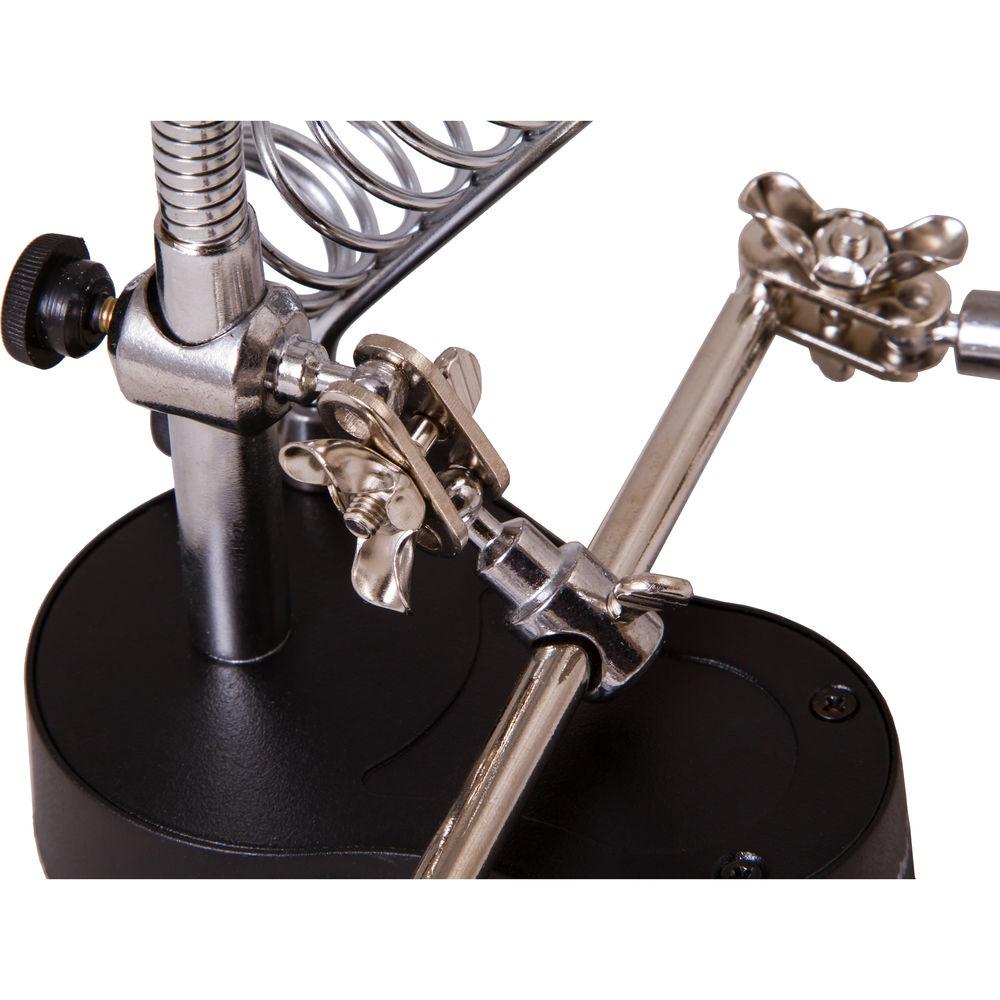

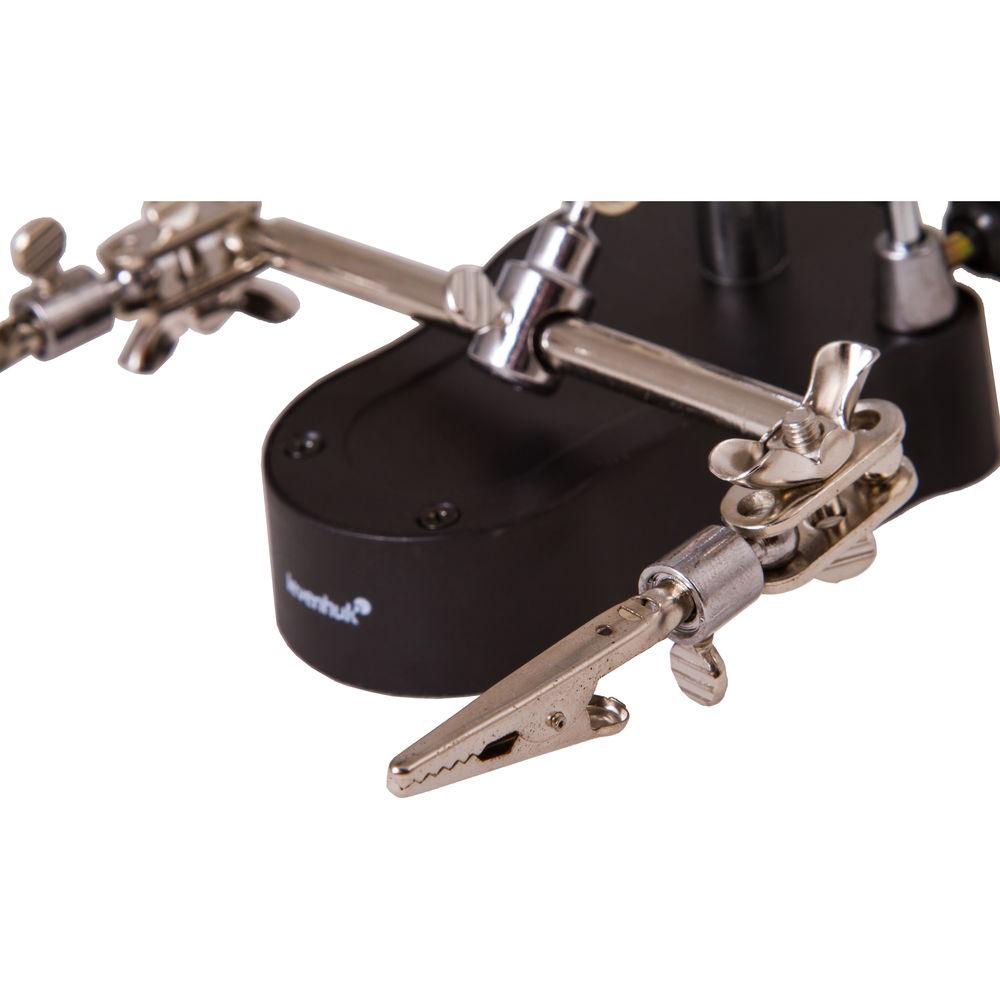

- Flexible gooseneck with a height-adjusting crossbar attached to the neck with two sliding mini clamps to hold an object
- Two battery-powered LED lights located under the glass to illuminate your subject
- Tool holder provided to hold a soldering iron, screwdriver, or blade

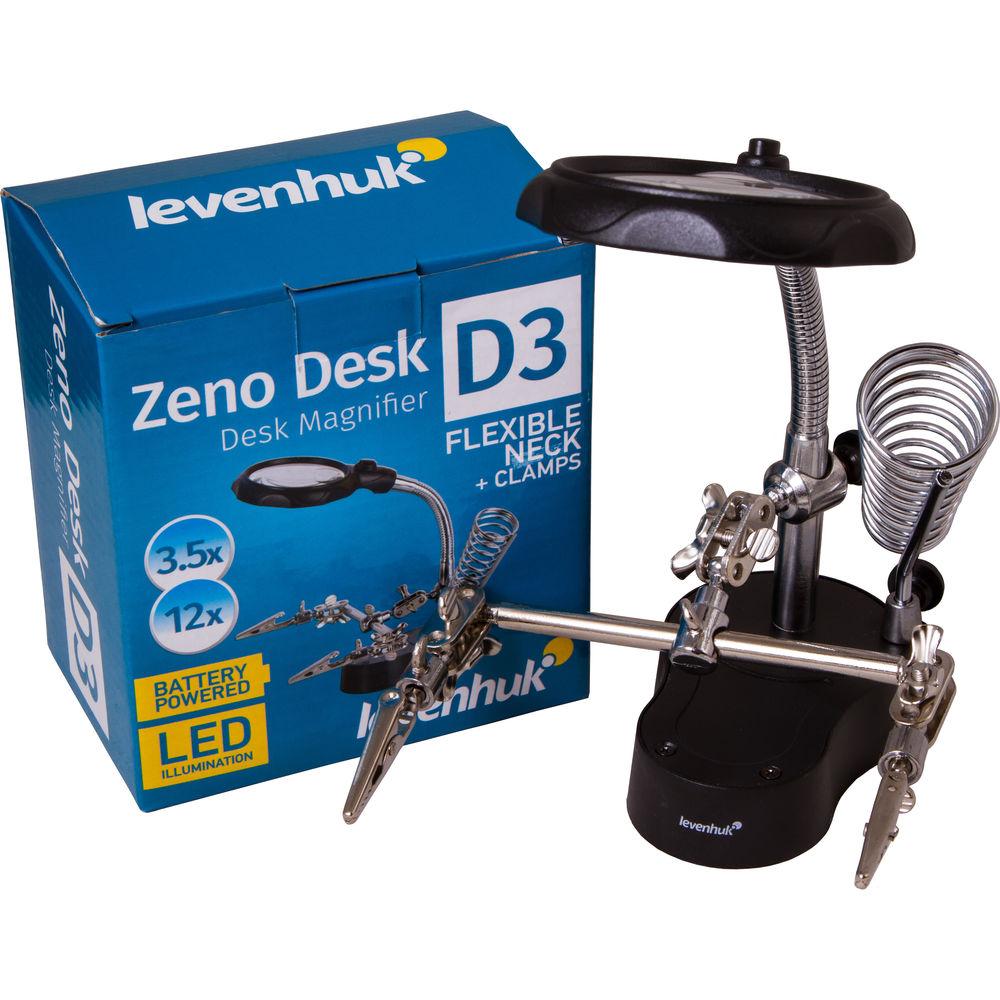

UPC: 611901506043 In the Box Levenhuk Zeno D3 3.5x/12x Desktop Magnifier Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Levenhuk Zeno D3 3.5x 12x Desktop Magnifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

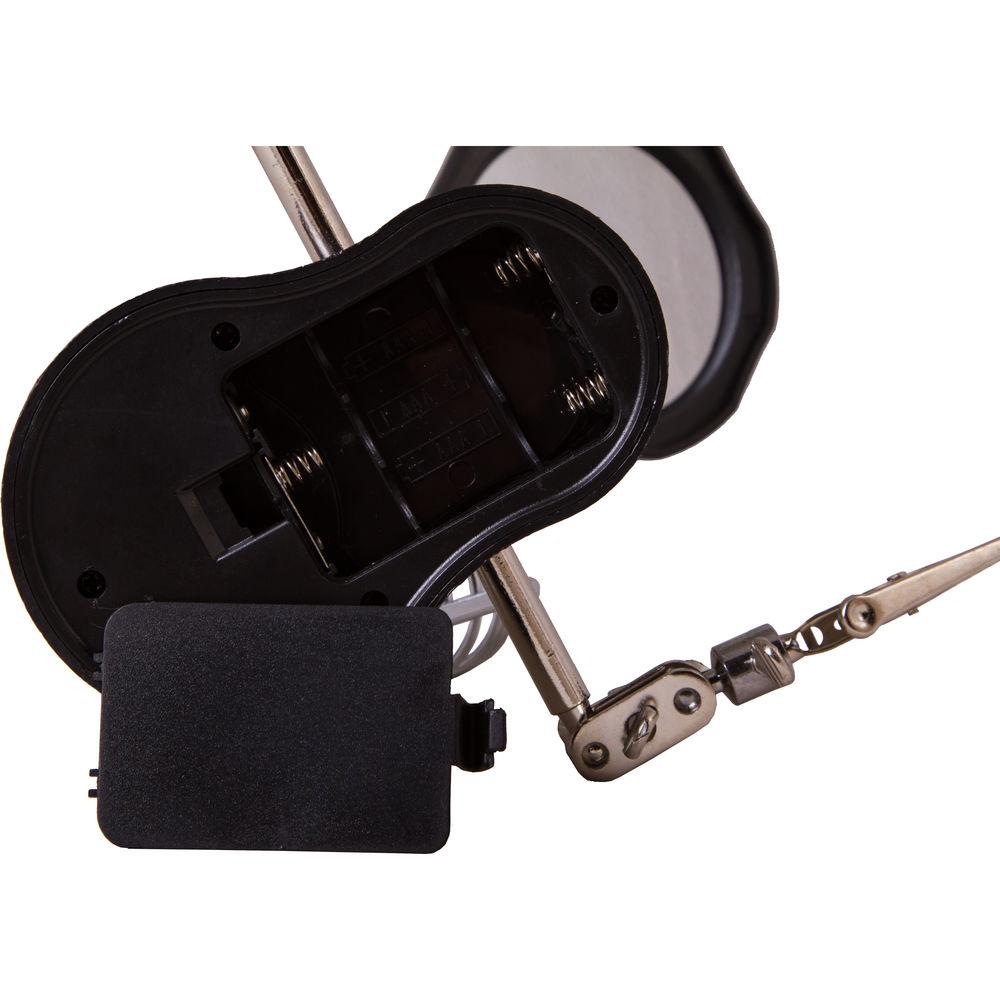

Technical parametersLevenhuk D3 Specs | Material of Construction | Optical glassPlasticMetal | | Magnification | Main Lens: 3.5x Inset Lens: 12x | | Diameter | Main Lens: 2.6" / 65 mmInset Lens: 0.7" / 17 mm | | Illumination | 2 LEDs | | Power Supply | 3 AAA (not included) | | Dimensions | Not specified by manufacturer | | Weight | 0.8 lb / 0.36 kg | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 5.25 x 4.85 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
