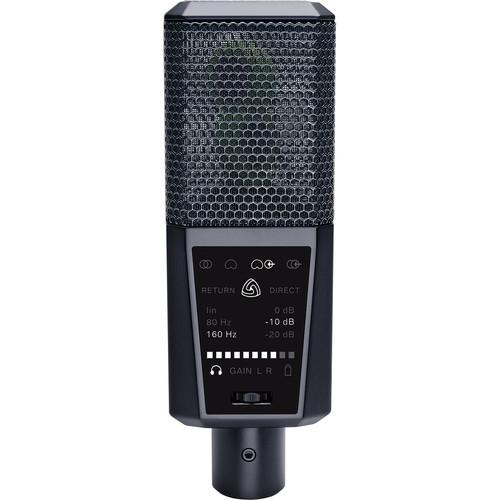

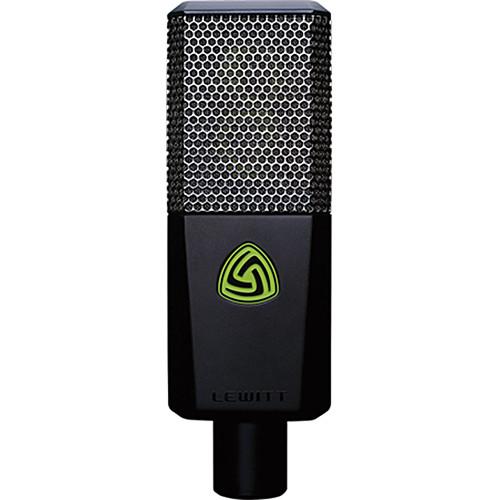

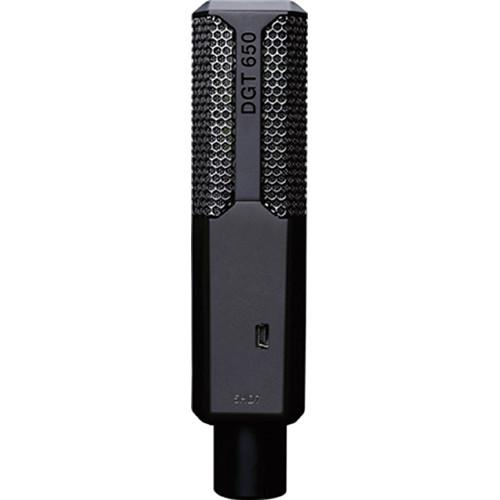

User Manual for Lewitt DGT 650 USB Microphone Click to enlarge the picture
Contents of the user manual for the Lewitt DGT 650 USB Microphone
- Product category: USB Microphones Lewitt
- Brand: Lewitt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lewitt USB Microphones
 |
User manual for the Lewitt DGT 650 USB Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lewitt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lewitt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lewitt product will considerably shorten its lifespan!
|
Product description - LEWITT DGT 650 vs. 2 LCT 550 Stereo Recording Comparison
- Supa Dups and Mitchum "Khan" Chin testing Lewitt USB Microphone
- Lewitt DGT 650
For capturing audio the DGT 650 USB Microphone by Lewitt is a good choice. As a USB microphone it can be used for recording directly to mobile devices and supports ASIO for Windows and OS X Core audio. It features a frequency range of 20 Hz to 20 kHz, and can be powered by a built-in lithium-ion battery. In addition, it is built with a headphone output, analog preamp, two condenser capsules, switchable high-pass filter, two pre-attenuation settings, and four different recording modes.In stereo mode, the two condenser capsules provide a 90° XY stereo signal. Cardioid mode offers a polar pattern for recording speech or singing. The DGT 650 can also put out both a mono signal and a line signal. For the stereo line-in mode there's a stereo input that makes it possible to have two-channel recording from a mixer or other line source. With a dynamic range of 110 dB-A and 24-bit resolution, this microphone is suitable for many applications. - Suitable for an all-in-one home recording solution
- Dynamic range exceeds 110 dB-A and has 24-bit resolution
- Four recording modes including a singer/songwriter mode for simultaneous vocal and instrument recording, stereo mode, cardioid mode and stereo line-in mode. MIDI available in all four modes
- Supports ASIO for Windows and OS X Core Audio
- Built in lithium-ion battery for mobile applications
- Noiseless pushwheel and illuminated user interface for quick and easy handling even in dark environments
- Extra-large hexagonal ruthenium-galvanized steel-mesh grille provides an open acoustic environment and prevents unwanted internal reflections

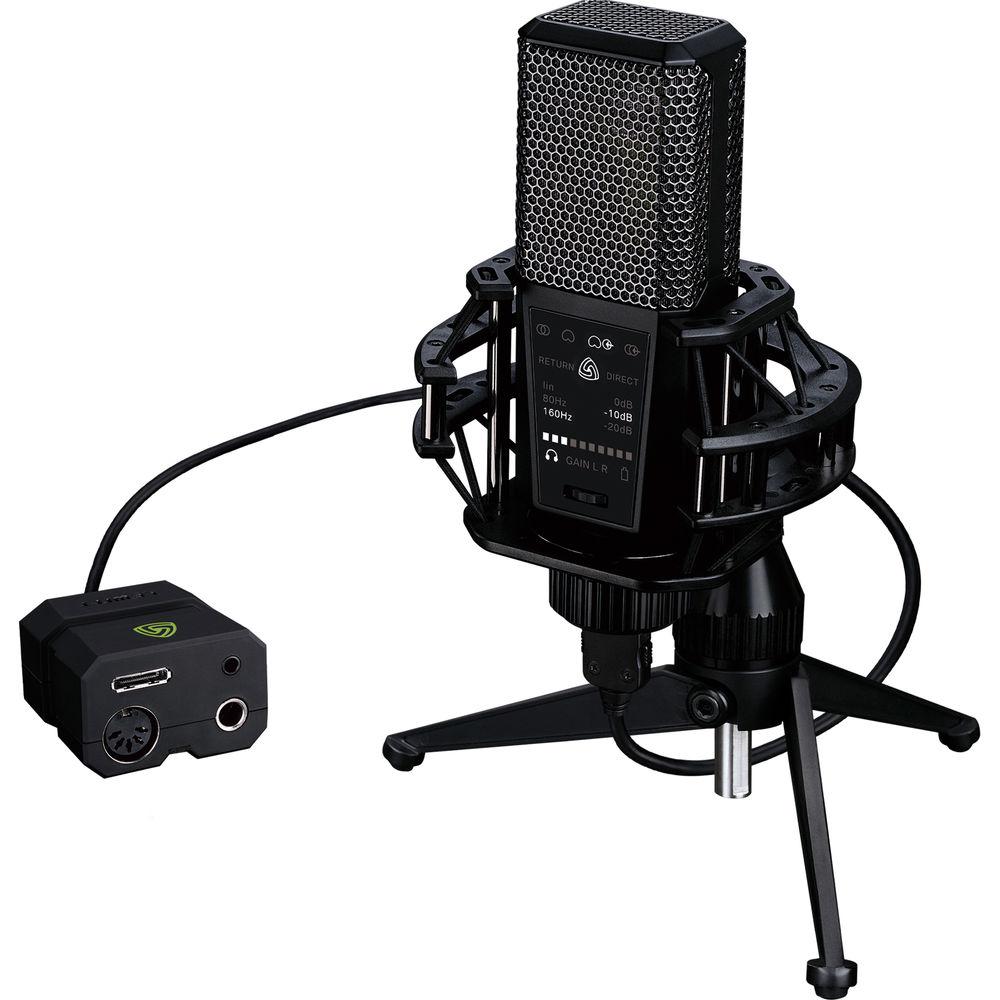

UPC: 847986001290 In the Box Lewitt DGT 650 USB Microphone Carrying Case Shockmount Windshield Artificial Leather Bag Limited 2-Year Warranty User Manual PDF 687.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt DGT 650 USB Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt DGT 650 Specs | | | Operating Principle | Pressure Gradient | | Diaphragm | 0.67" / 17.02 mm | | Polar Pattern | Cardioid, Stereo Mode | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 31.6 dB
29.2 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB
-20 dB | | Impedance | 1000 kOhms | | Sensitivity | -45.6 dBFS | | Low-Cut Filter | 12 dB/Octave @ 80 Hz
12 dB/Octave @ 160 Hz | | Dynamic Range | 110 dB A-Weighted | | | | Bit Depth | 24-Bit | | Sample Rate | 44.1 kHz
48 kHz
96 kHz | | | | Output Connectors | 1 x USB (Type Unspecified) | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Operating Current Consumption | 275 mA | | Operating Voltage | 5 V | | Length | 5.43" / 137.92 mm | | Diameter | 2.04" / 51.82 mm | | Weight | 10.9 oz / 309 g | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 13.4 x 7.5 x 4.4" |
