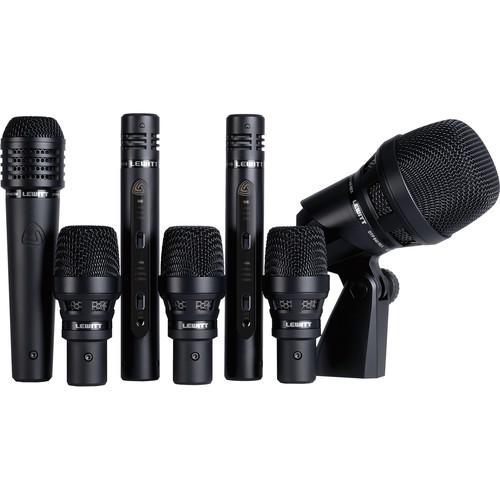

Lewitt DTP Beat Kit Pro 7

User Manual for Lewitt DTP Beat Kit Pro 7

• Product category: Instrument Microphones Lewitt
• Brand: Lewitt
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lewitt Instrument Microphones

Product description

• DTP 640 REX Dual-Element Bass Drum Microphone The DTP 640 REX Dual-Element Bass Drum Microphone from Lewitt incorporates both dynamic, and back-electret condenser elements to provide a full-bodied low-frequency audio quality well suited for kick drums, percussion, bass guitar cabinets, woodwinds and other instruments.The dynamic element effectively captures the punch, while the condenser element captures the detail, warmth and tonal quality of the instrument. The cardioid polar pattern minimizes off-axis feedback and noise.
  • Innovative dual-element design featuring a dynamic and a back-electret condenser capsule
  • Optimized for kick drum applications
  • Extraordinary maximum SPL of 168 dB
  • Selectable -10 dB and -20 dB attenuation
  • Selectable HPF settings
  • Ruthenium-galvanized (black) hexagonal steel-mesh grille
  • Gold-plated 5-pin XLR output connector
  • Integrated microphone stand and compact design for convenient positioning
  • Comes in a cardboard box with foam layers; includes DTP 40 TRS cable, and DTP 40 LB artificial leather bag

  Top Applications

  • Bass instruments
  • Live applications
  • Recording
  UPC: 847986000859
• DTP 340 TT Dynamic Instrument Microphone The DTP 340 TT Dynamic Instrument Microphone from Lewitt is a rugged, dynamic microphone well suited for capturing drums, percussion, amplifier cabinets, woodwinds, and other instruments in both live sound reinforcement and recording applications. Its wide frequency response yields uniform results, while the supercardioid polar pattern provides maximum gain-before-feedback at the side and rear sections. The DTP 340 TT's high SPL handling reproduces transient (peaking) audio signals without distortion. The microphone comes with a drum mount, shock mount, and artificial leather storage bag.
  • Uniform supercardioid pickup pattern ensures high gain before feedback
  • Frequency response optimized for percussion applications
  • Gold-plated 3-pin XLR output connector
  • Durable steel-mesh grille
  • Features a ruthenium-galvanized (black) finish
  • Solid die-cast body with matte-black finish
  • Comes in a cardboard box with foam layers, including DTP 40 MTS shock mount, DTP 40 MT drum mount, and DTP 40 LB artificial leather bag.

  Top Applications

  • Instrument amps
  • Drums and percussions
  • Woodwinds
  • Live sound
  UPC: 847986000170
• LCT 340 Polarized Condenser Microphone with Cardioid Capsule The LCT 340 Polarized Condenser Microphone from Lewitt features a cardioid capsule and an externally polarized condenser design. The LCT 340 is suitable for project and professional recording applications, and can be used for drum capturing, percussion, overheads, amplifier cabinets, group vocals, and stereo recordings. The microphone offers a wide frequency response and dynamic range for detail and clarity. An attenuation (Pad) switch enhances headroom and minimizes noise and distortion, and a 4-position low-frequency roll-off switch (HPF) minimizes low-frequency noise. The LCT 340 contains a transformerless output stage for minimizing electromagnetic interference (RFI) from WiFi, cell phones, and other electronic devices.
  • 0.8" small-diaphragm capsule for precise, characteristic sound
  • Dynamic range of 124 dB and low self-noise level of 15 dB
  • LED display for quick visual indication
  • Transformerless output stage minimizes electromagnetic interference
  • Duarable black die-cast body ensures long life
  • Hexagonal steel-mesh grille with ruthenium-galvanized finish (black)
  • Gold-plated 3-pin XLR output connector
  • Includes DTP 40 MTS shockmount, LCT 40 WS windshield, and DTP 40 LB leather bag
  UPC: 847986000033

• Microphone Stand Mount

• DTP 40 TRS Cable

• DTP 40 LB Artificial Leather Bag

• Limited 2-Year Warranty

• DTP 40 MT Drum Mount

• DTP 40 MTS Shock Mount

• DTP 40 LB Artificial Leather Bag

• Limited 2-Year Warranty

• DTP 40 MTS Shockmount

• LCT 40 WS Windshield

• DTP 40 LB Leather Bag

• Limited 2-Year Warranty

Also Includes

• MTP 440 DM Dynamic Microphone
• 5 x DTP 40 MTS Shock Mounts
• 2 x LCT 40 WS Windshields
• 4 x DTP 40 MT Drum Mounts
• MTP 40 MCS Shock Mount
• Protective Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DTP 640 REX Dual-Element Bass Drum Microphone

  THD	0.5%

  Output Connectors	1 x 5-Pin XLR
  Cable Length	4.95' / 1.5 m
  Operating Voltage	48 V ± 4 V

  Box Dimensions (LxWxH)	9.7 x 7.5 x 6.9"

• DTP 340 TT Dynamic Instrument Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 16 kHz
  Impedance	500 Ohms
  Sensitivity	1.4 mV/Pa

  Output Connectors	1 x 3-Pin XLR
  Length	3.7" / 93.98 mm
  Diameter	1.6" / 40.64 mm
  Weight	5.82 oz / 165 g

  Box Dimensions (LxWxH)	9.7 x 7.5 x 3.3"

• LCT 340 Polarized Condenser Microphone with Cardioid Capsule

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.80" / 20.32 mm
  Polar Pattern	Cardioid, Omnidirectional
  Pattern Selection	Switched
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	79 dB A-Weighted
  Equivalent Noise Level	Cardioid: 15 dB A-Weighted Omnidirectional: 16 dB A-Weighted
  Maximum SPL	139 dB SPL 145 dB SPL 151 dB SPL 157 dB SPL
  Pad	-6 dB -12 dB -18 dB
  THD	0.5%
  Impedance	150 Ohms
  Load Impedance	1000 Ohms
  Sensitivity	Cardioid: -41 dBV/Pa Omnidirectional: -42 dBV/Pa
  Low-Cut Filter	12 dB/Octave @ 40 Hz 6 dB/Octave @ 150 Hz 6 dB/Octave @ 300 Hz
  Dynamic Range	124 dB A-Weighted

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	6.6 mA
  Operating Voltage	48 V ± 4 V
  Diameter	6.30" / 160.0 mm
  Weight	7.05 oz / 200 g

  Box Dimensions (LxWxH)	9.6 x 7.5 x 3.2"
