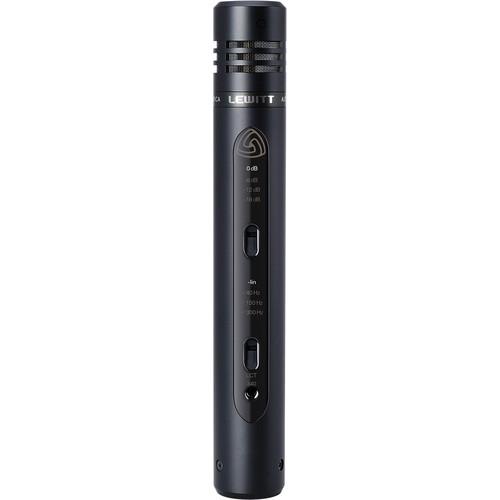

User Manual for Lewitt LCT 340 Polarized Condenser Microphone with Cardioid Capsule Click to enlarge the picture
Contents of the user manual for the Lewitt LCT 340 Polarized Condenser Microphone
- Product category: Small Diaphragm Condenser Lewitt
- Brand: Lewitt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lewitt Small Diaphragm Condenser
|
User manual for the Lewitt LCT 340 Polarized Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lewitt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lewitt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lewitt product will considerably shorten its lifespan!
|
Product description The LCT 340 Polarized Condenser Microphone from Lewitt features a cardioid capsule and an externally polarized condenser design. The LCT 340 is suitable for project and professional recording applications, and can be used for drum capturing, percussion, overheads, amplifier cabinets, group vocals, and stereo recordings. The microphone offers a wide frequency response and dynamic range for detail and clarity. An attenuation (Pad) switch enhances headroom and minimizes noise and distortion, and a 4-position low-frequency roll-off switch (HPF) minimizes low-frequency noise. The LCT 340 contains a transformerless output stage for minimizing electromagnetic interference (RFI) from WiFi, cell phones, and other electronic devices. - 0.8" small-diaphragm capsule for precise, characteristic sound
- Dynamic range of 124 dB and low self-noise level of 15 dB
- LED display for quick visual indication
- Transformerless output stage minimizes electromagnetic interference
- Duarable black die-cast body ensures long life
- Hexagonal steel-mesh grille with ruthenium-galvanized finish (black)
- Gold-plated 3-pin XLR output connector
- Includes DTP 40 MTS shockmount, LCT 40 WS windshield, and DTP 40 LB leather bag
UPC: 847986000033 In the Box Lewitt LCT 340 Polarized Condenser Microphone with Cardioid Capsule DTP 40 MTS Shockmount LCT 40 WS Windshield DTP 40 LB Leather Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt LCT 340 Polarized Condenser Microphone with Cardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt 340 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.80" / 20.32 mm | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | Cardioid: 15 dB A-Weighted
Omnidirectional: 16 dB A-Weighted | | Maximum SPL | 139 dB SPL
145 dB SPL
151 dB SPL
157 dB SPL | | Pad | -6 dB
-12 dB
-18 dB | | THD | 0.5% | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: -41 dBV/Pa
Omnidirectional: -42 dBV/Pa | | Low-Cut Filter | 12 dB/Octave @ 40 Hz
6 dB/Octave @ 150 Hz
6 dB/Octave @ 300 Hz | | Dynamic Range | 124 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 6.6 mA | | Operating Voltage | 48 V ± 4 V | | Diameter | 6.30" / 160.0 mm | | Weight | 7.05 oz / 200 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.6 x 7.5 x 3.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
