Product description
LEWITT LCT 540 S // Better Than Human Hearing
Recording a full song with 1 mic (Lewitt LCT 540 Subzero) - Warren Huart: Produce Like A Pro
Review - Lewitt LCT540S Condenser Microphone
LCT 540 S // LEWITT Sound Sample // Female Vocals
LCT 540 S // LEWITT Sound Sample // Male Vocals
LCT 540 S // LEWITT Sound Sample // Piano
LCT 540 S // LEWITT Sound Sample // Acoustic Guitar

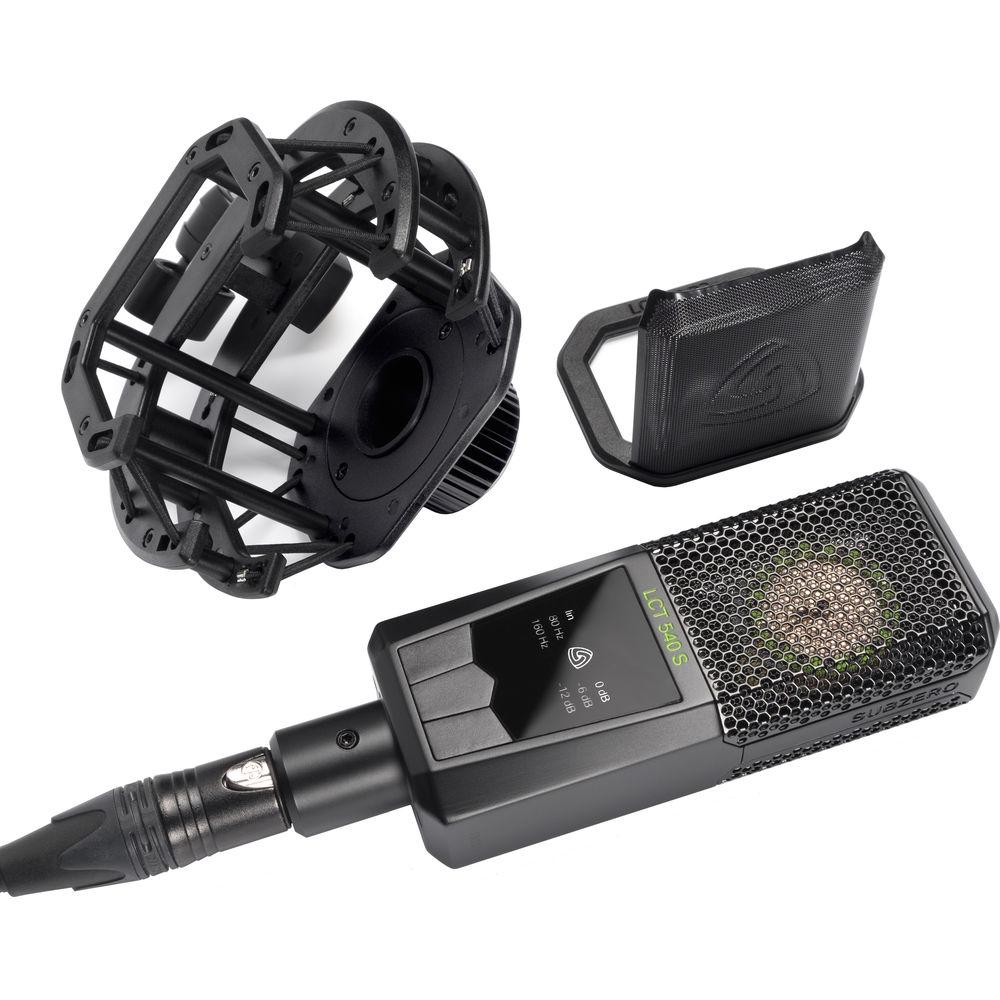

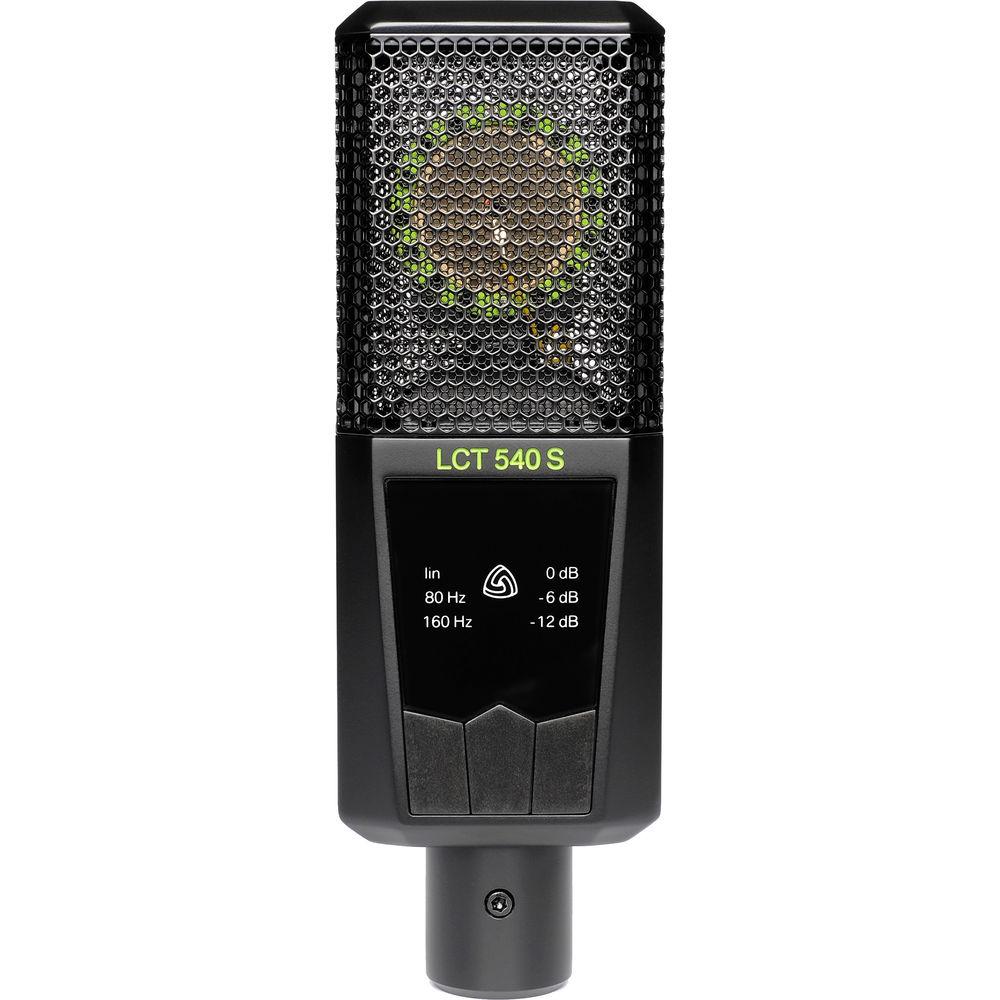

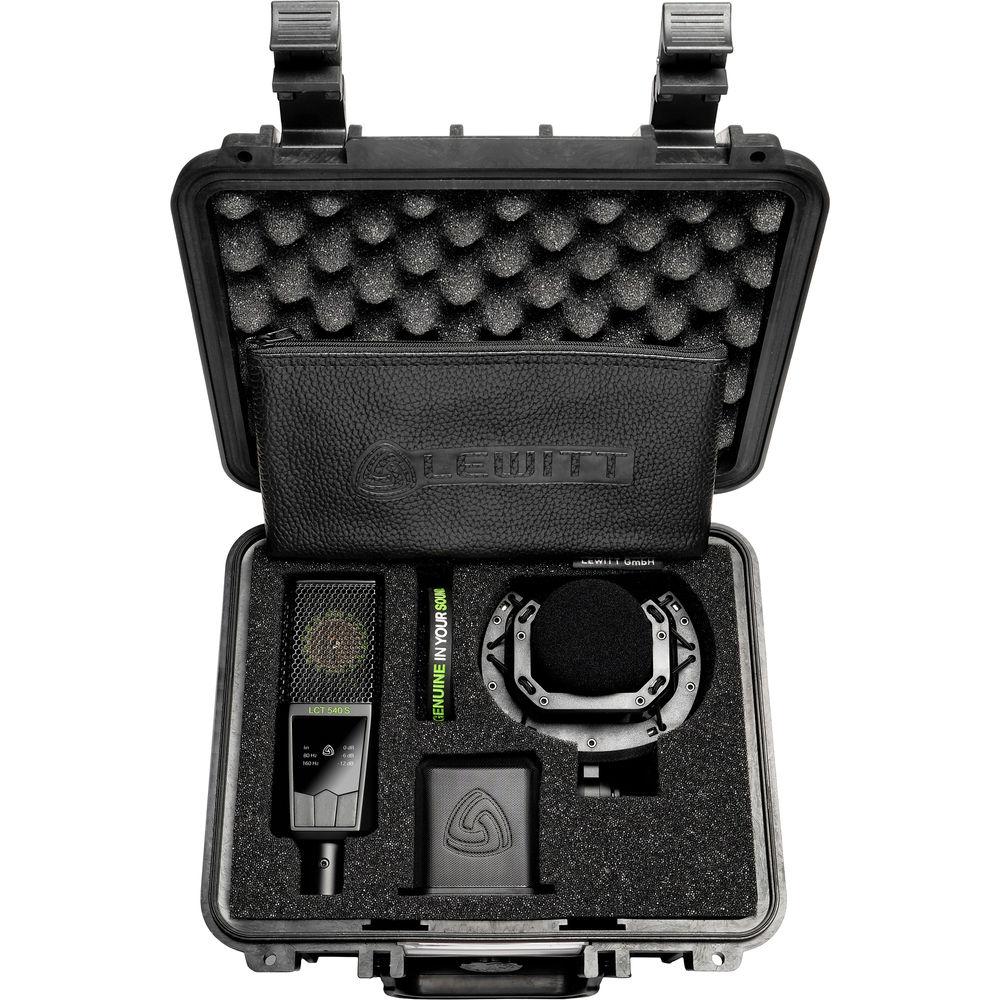

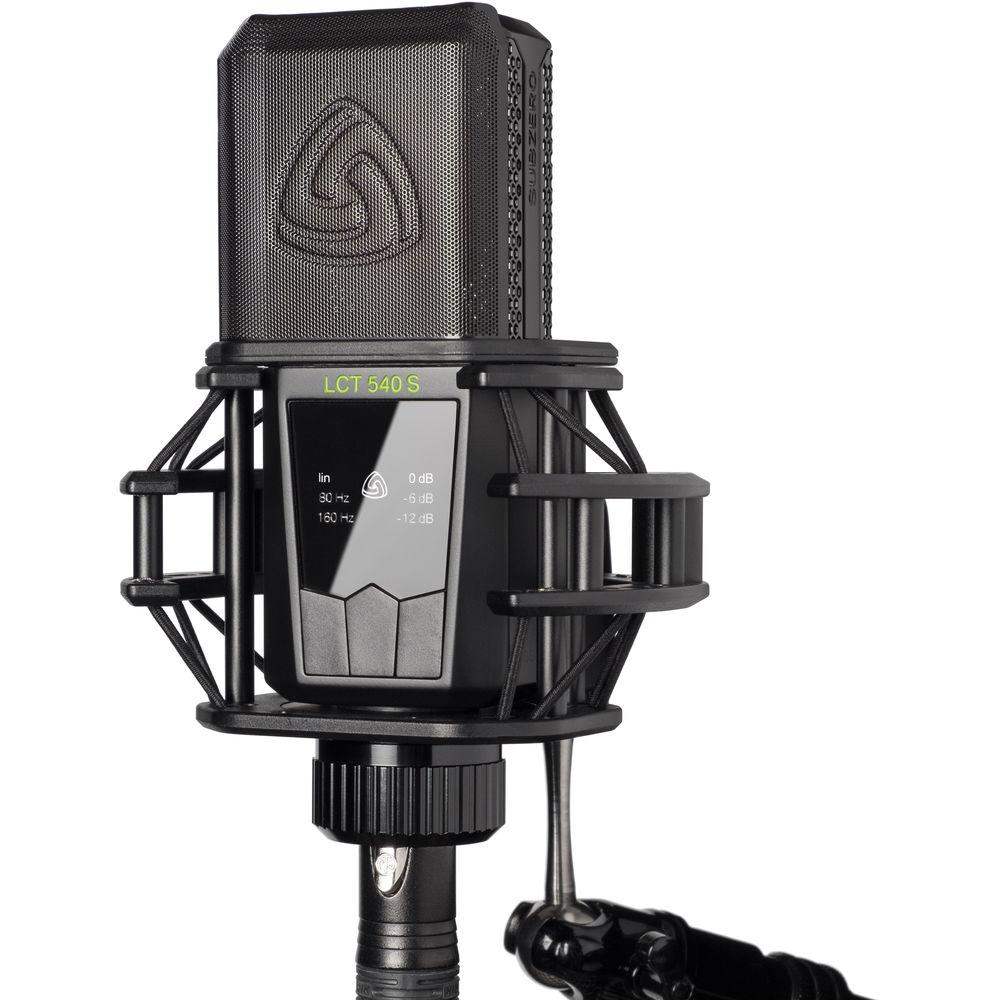

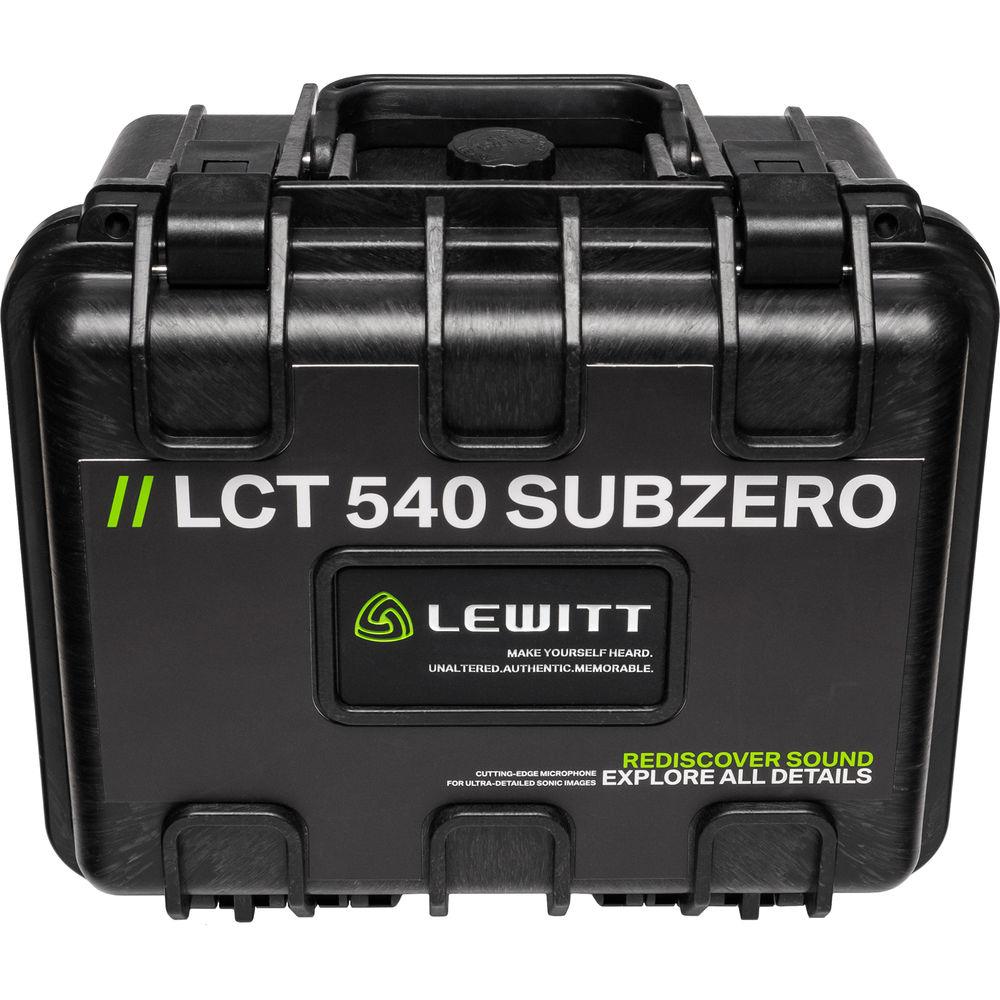

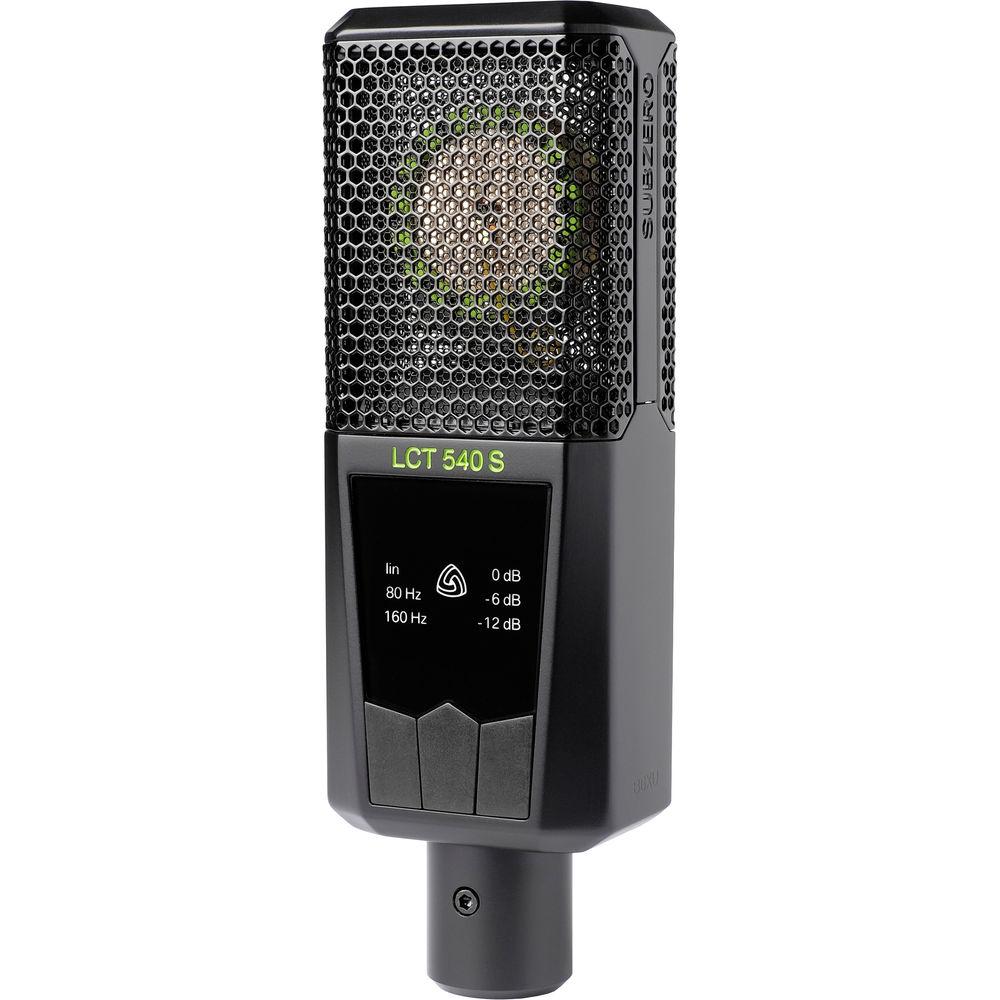

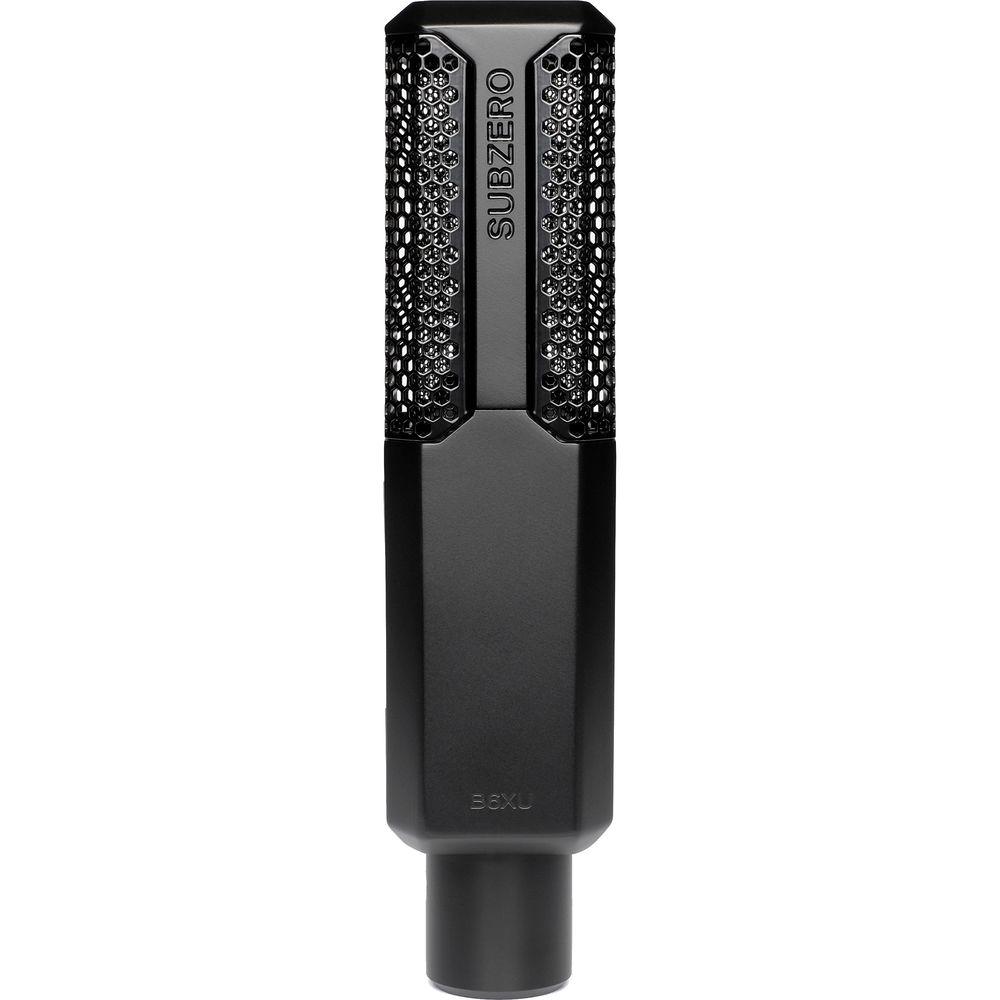

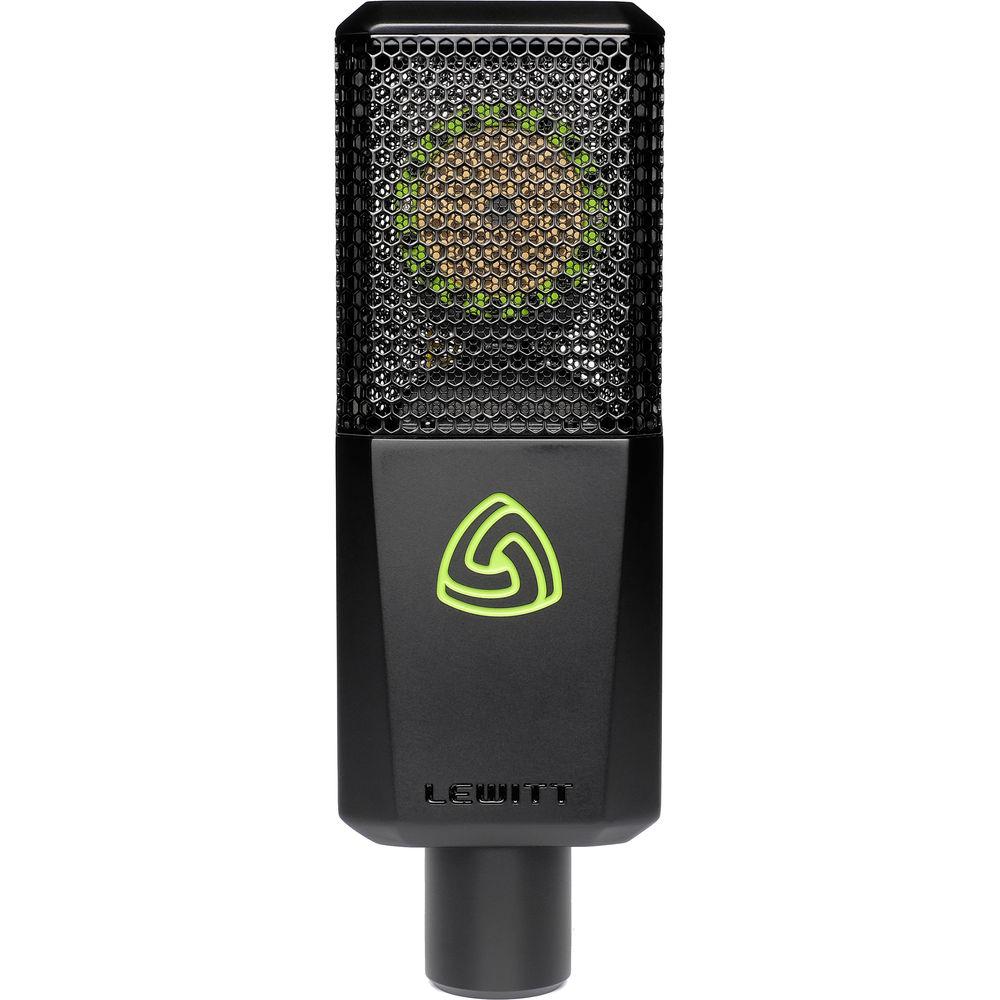

The LCT 540 Subzero Cardioid Condenser Microphone from Lewitt features a pressure-gradient transducer, has a frequency response of 20 Hz to 20 kHz, and is equipped with a 3-micron, gold-sputtered Mylar 1" diaphragm. It can be used in various environments to capture audio for home recording and pro-studio applications. The LCT 540 Subzero microphone captures every sound source with precision. It is built with an integrated clipping indicator, automatic attenuation, and low-cut filter, all of which assist in helping you capture every performance. The microphone is powered with 48V phantom power supplied via the 3-pin XLRM connector. A military-grade protective case, a shockmount that reduces structure-borne noise to a minimum, a foam windscreen, and a magnetic pop filter are also included. UPC: 847986001856 In the Box Lewitt LCT 540 Subzero Cardioid Condenser Microphone
Large Cylindrical Foam Windscreen for LCT Series Microphones
LCT 40 SHX Shock Mount
LCT 50 PSx Magnetic Pop Filter
DTP 40 Lb Cushioned Leather Mic Pouch
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Lewitt LCT 540 Subzero Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Lewitt LCT 540 Specs
Sound Field
Mono
Operating Principle
Pressure Gradient
Transducer
Condenser
Diaphragm
1" / 25.40 mm
Polar Pattern
Cardioid
Frequency Range
20 Hz to 20 kHz
Signal to Noise Ratio
90 dB A-Weighted
Equivalent Noise Level
4 dB A-Weighted
Maximum SPL
136 dB SPL RMS
Pad
-12 dB
Impedance
68 Ohms
Sensitivity
41 mV/Pa
Low-Cut Filter
6 dB/Octave @ 80 Hz
Dynamic Range
132 dB A-Weighted
Output Connectors
1 x 3-Pin XLR
Operating Current Consumption
3.6 mA
Operating Voltage
48 V
Length
6.22" / 157.99 mm
Diameter
2.04" / 51.82 mm
Weight
13.1 oz / 371 g
Package Weight
4.45 lb
Box Dimensions (LxWxH)
10.4 x 9.1 x 7.0"
