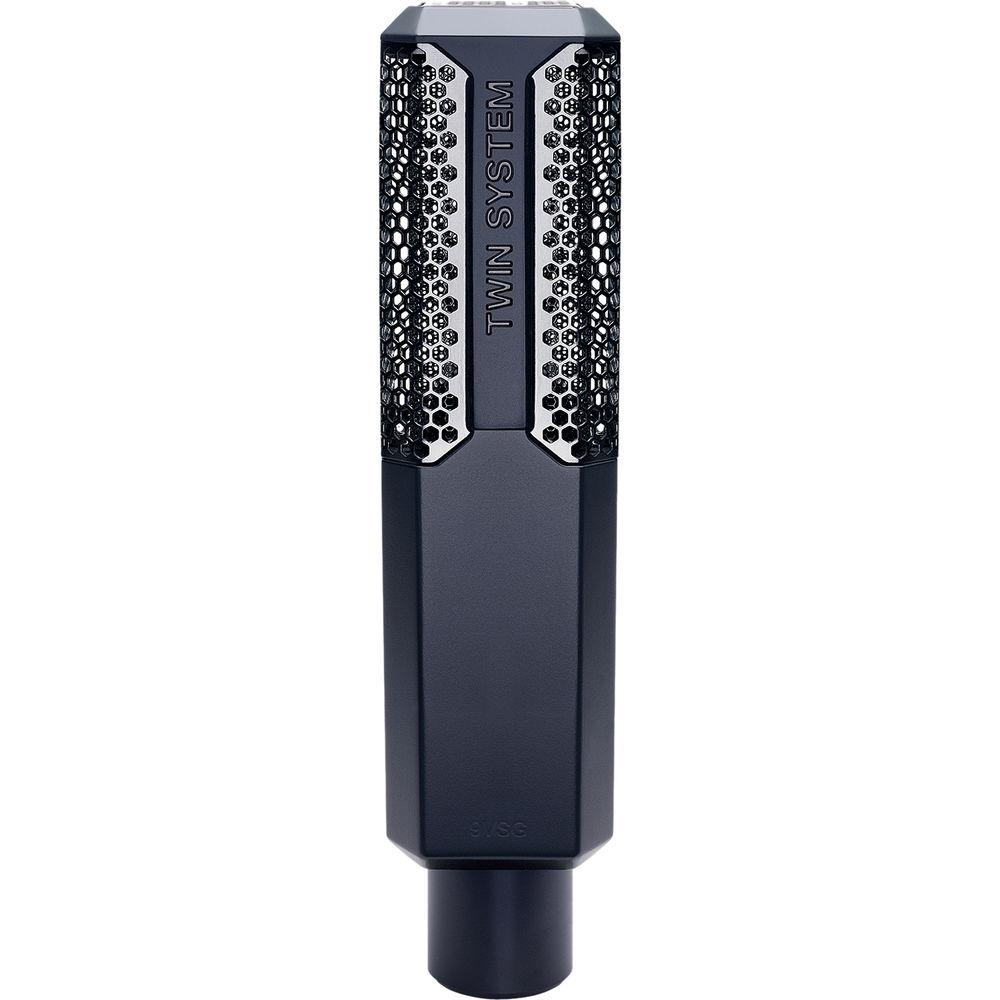

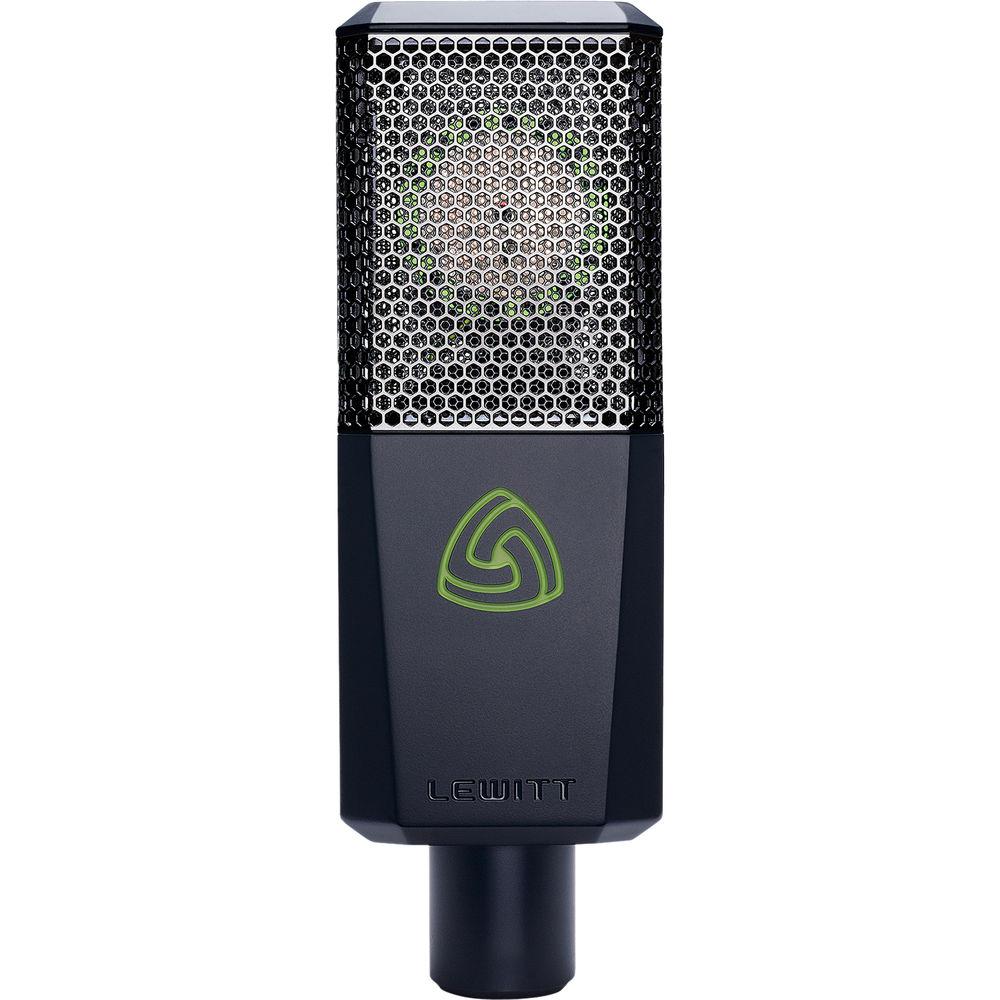

Product description The LCT 640 TS Dual-Output-Mode Condenser Microphone from Lewitt is a large-diaphragm condenser microphone with five polar patterns. It is designed so that the front and back diaphragm have outputs with different circuitries, but in single-output mode features omni, wide cardioid, cardioid, supercardioid, and figure-8 polar patterns for use in the recording process.Set to dual-output mode, the microphone allows you to record Mid-Side stereo with one LCT 640 TS microphone, which is usually only possible with two microphones. Other features include Lewitt's Polarizer plug-in to tweak the material already recorded in your DAW. Clipping history, four low-cut and pre-attenuation settings round off the features of the LCT 640 TS microphone. - Powerful Dual-Output Mode

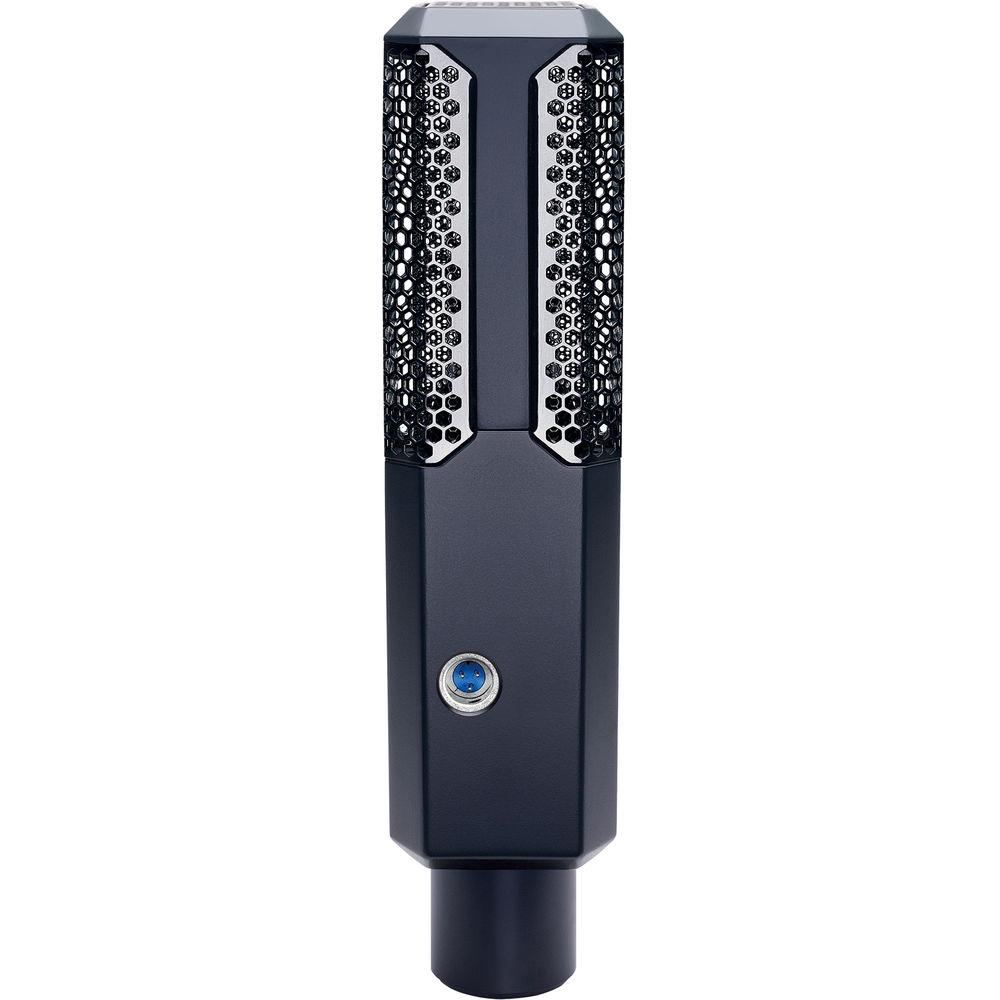

- The LCT 640 TS provides the signal of the front and the back capsule separately. In addition to your standard XLR cable, plug in the included mini 3-pin XLR and experience all the possibilities of this true next-gen microphone. Use both outputs to capture the whole session instead of committing to a single source
- Polarizer Plug-In
- After recording with the LCT 640 TS, use our plug-in to change the pattern. Jump back and tweak your material
- Standard Multi-Pattern Mode
- Plug in a standard 3-pin XLR cable and you have a large-diaphragm multi-pattern condenser mic featuring the following polar patterns: Omni, wide cardioid, cardioid, supercardioid, and figure-8
- Magnetic Pop Filter
- The filter hides nothing and captures everything except plosives and hisses. This efficient magnetic pop filter will reduce pops and hisses without covering 2/3 of your vocal artist's face. It is a subtle and convenient way to get the most out of every single recording
- MS Stereo with One LCT 640 TS
- Definitely. Usually, mid-side stereophony can only be done with two microphones. But now it is easier to use one LCT 640 TS. Just point the side of the microphone to the signal source and record both outputs on a stereo track in your DAW. Change the panorama for both signals to adjust the stereo width
- Accurate Match Technology
- Any two LCT 640 TS microphones will always form a matched pair. Add another one and you will get a "matched triplet," and so on. Every single LCT 640 TS undergoes a series of measurements followed by adjustment of the polarization voltage to achieve exactly the same sensitivity in every microphone

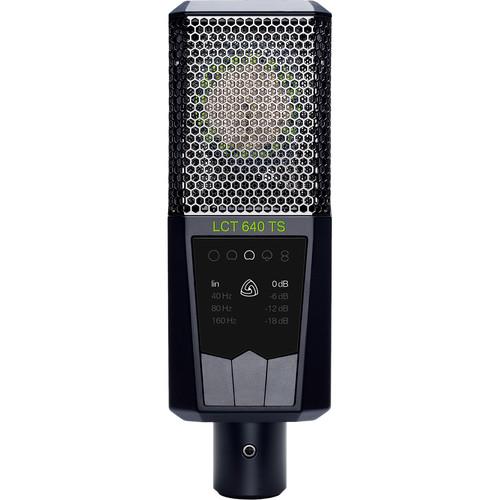

- Low-Cut and Attenuation
- The mic enables you to adapt to every situation
Low-cut: Linear, 40, 80, and 160 Hz

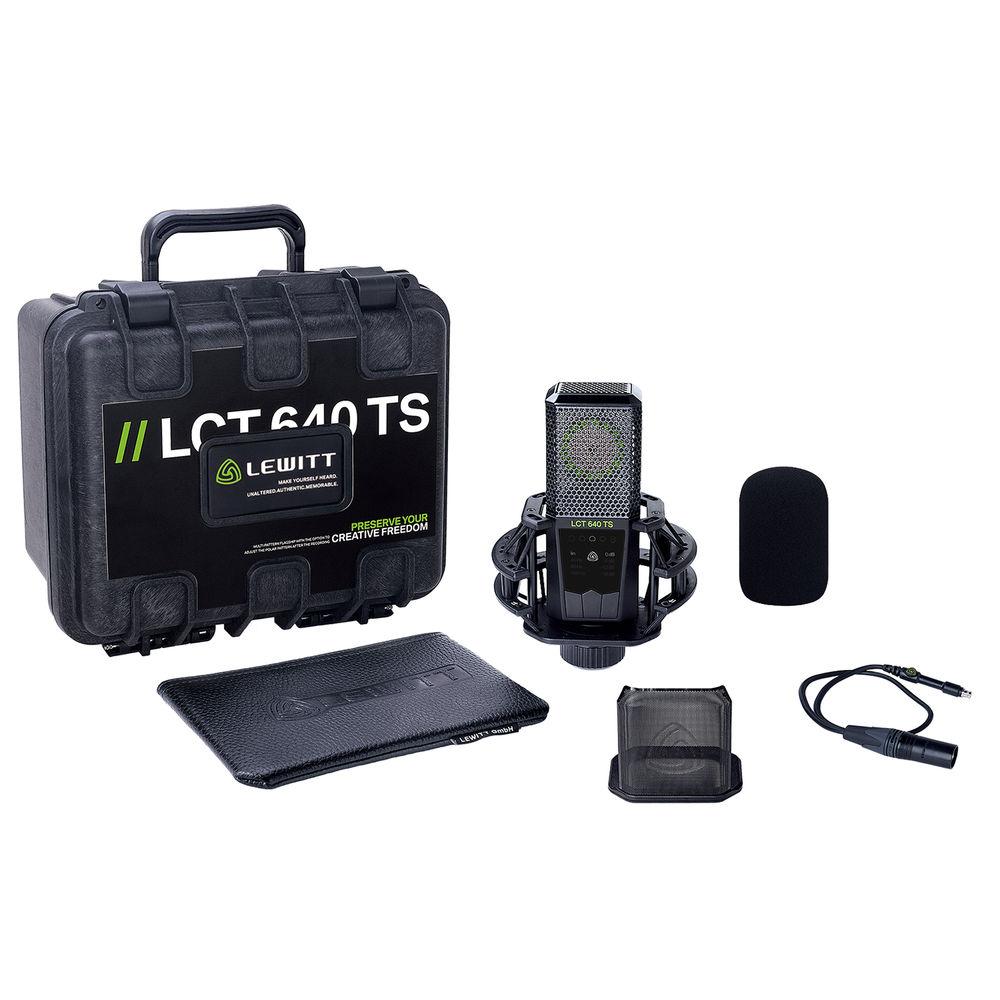

Attenuation: 0, -6, -12, and -18 dB UPC: 847986001498 In the Box Lewitt LCT 640 TS Dual-Output-Mode Condenser Microphone LCT 50 PSx Magnetic Pop Filter LEC 40 Wx Windscreen LCT 40 SHx Shockmount LCT 40 TS Mini 3-pin XLR Cable DTP 40 Lb Cushioned Mic Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt LCT 640 TS Dual-Output-Mode Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt LCT-640-TS Specs | | | Sound Field | Mono, Stereo | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid, Figure-8, Omnidirectional, Supercardioid, Wide-Angle Cardioid | | Pattern Selection | Switched | | Signal to Noise Ratio | 83 dB A-Weighted | | Equivalent Noise Level | Cardioid: 11 dB A-Weighted | | Maximum SPL | 132 dB SPL RMS | | Pad | -6 dB
-12 dB
-18 dB | | Impedance | 1000 Ohms | | Sensitivity | 28 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 40 Hz
12 dB/Octave @ 80 Hz
6 dB/Octave @ 160 Hz | | Dynamic Range | 121 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR
1 x 3-Pin LEMO | | Operating Current Consumption | 5.5 mA | | Operating Voltage | 48 V | | Length | 6.22" / 157.99 mm | | Diameter | 1.42" / 36.07 mm | | Weight | 14.9 oz / 422 g | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 10.6 x 9.1 x 7.0" |
