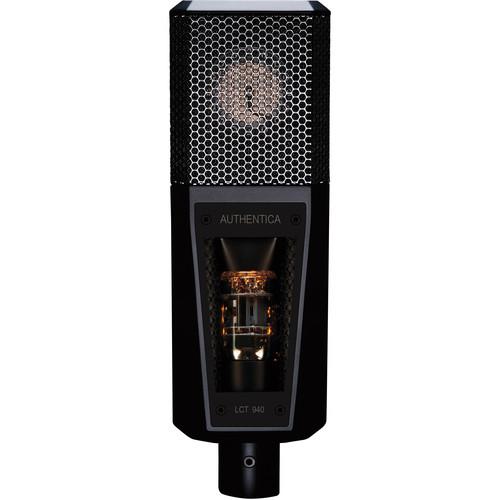

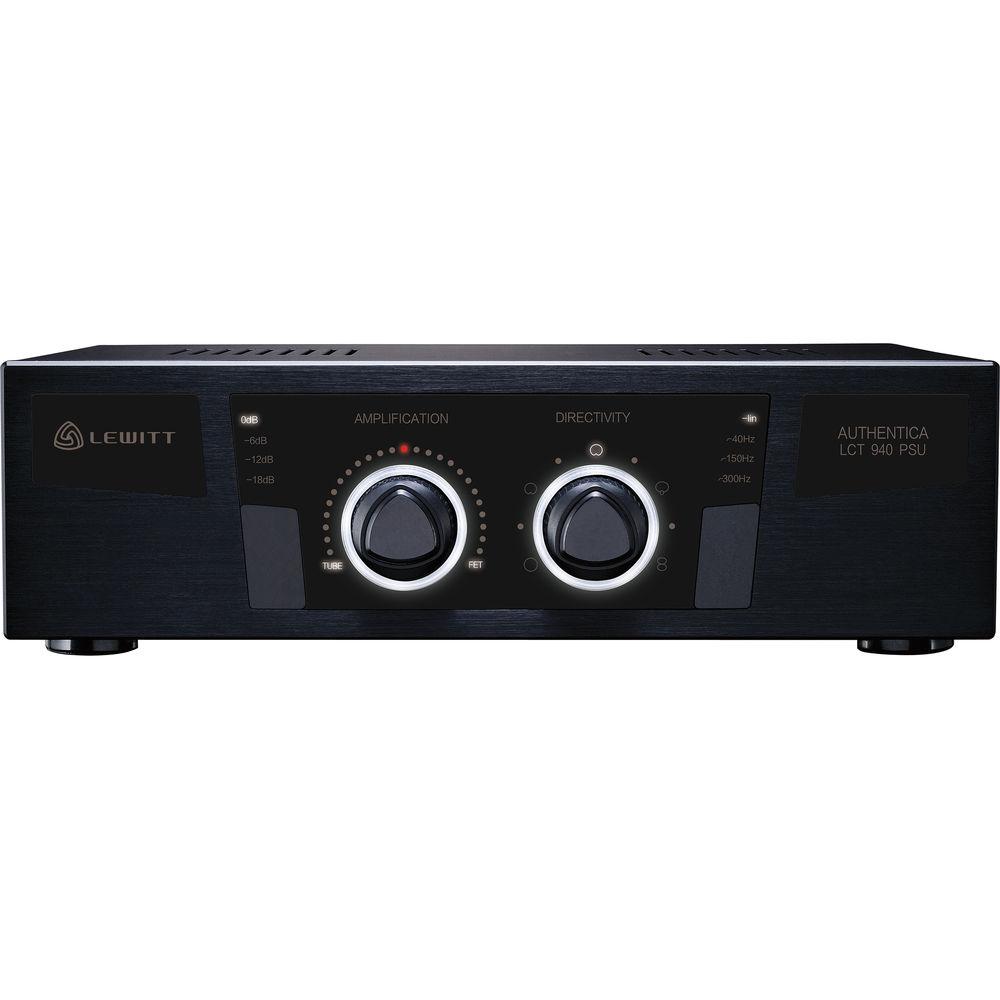

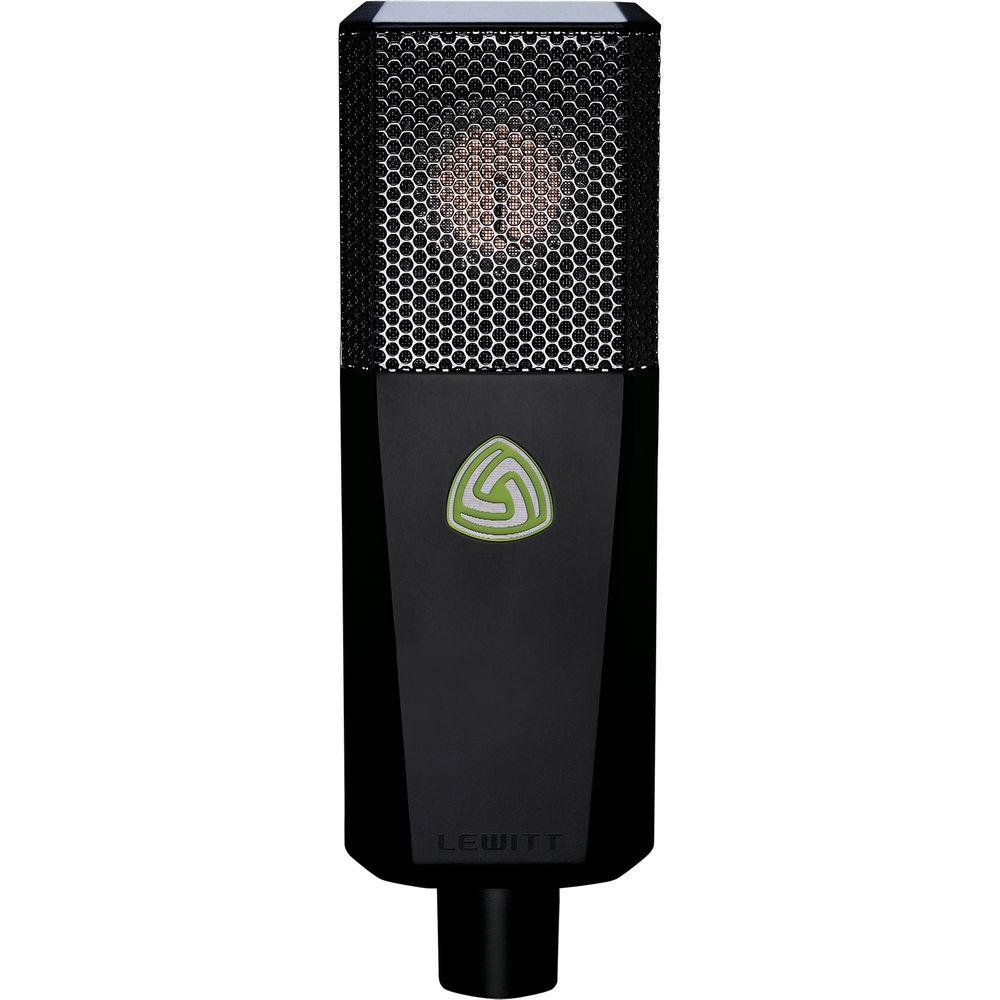

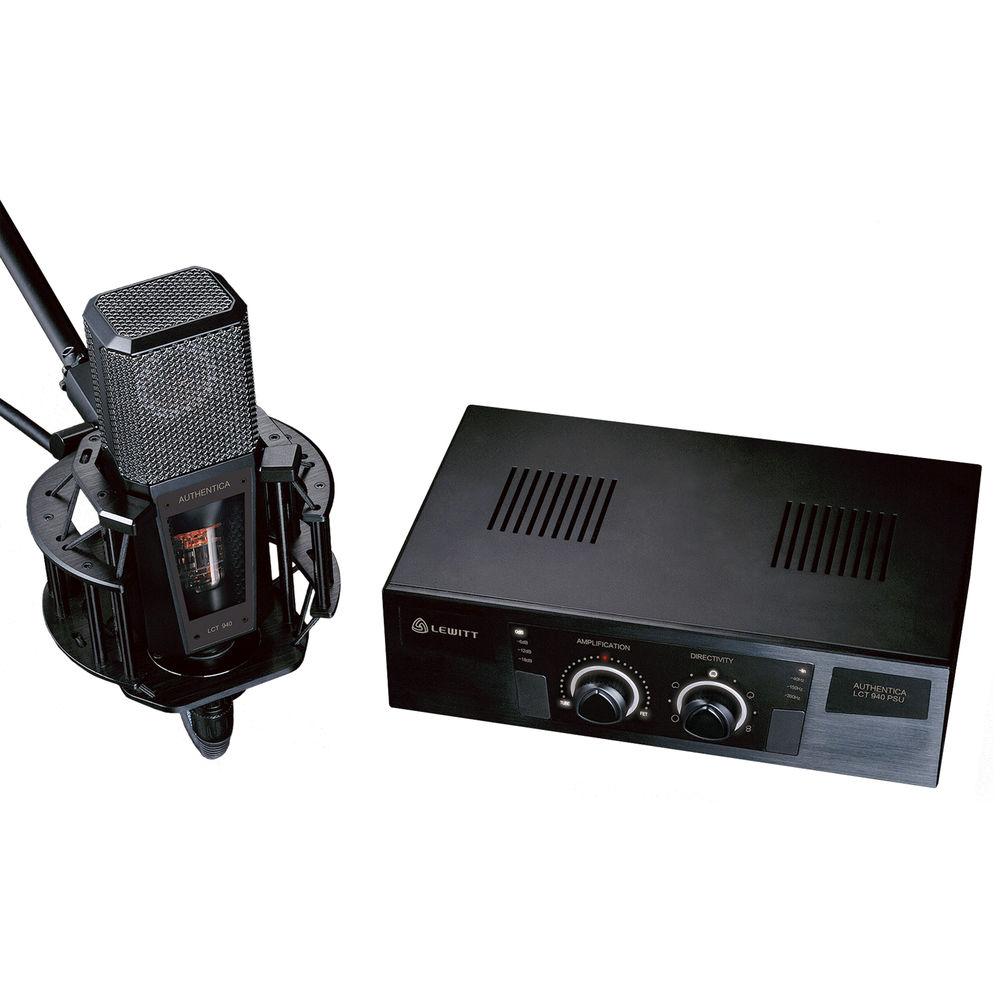

Product description The LCT 940 Premium Large-Diaphragm FET Condenser and Tube Microphone from Lewitt combines the specific characteristics of a premium large-diaphragm FET condenser microphone and tube microphone in one housing. You can choose between the two main settings ("FET" and "Tube") or mix and merge the characteristics of the two, providing various creative possibilities for artists and producers. The LCT 940 also features a total of nine different polar patterns: cardioid, omnidirectional, figure-8, wide-cardioid, super-cardioid, and four additional intermediate patterns. The microphone's PSU (power supply unit) offers four levels of attenuation and four switchable high-pass filters, indicators, and push buttons for noiseless handling. Additional attributes are automatic attenuation and clipping history. The microphone and the PSU are connected via an included 26' 11-pin XLR cable. - Combines the sonic characteristics of a tube and a FET mic in one single housing for maximum creative freedom and an undisturbed workflow
- Ability to continuously switch and merge the tube and FET sound via rotating potentiometer
- 1-inch externally biased, dual-system capsule with ultra-thin gold-layered low-mass diaphragms combined with a dual triode tube ensures accurate transient response while providing smooth, warm and airy tube sound
- Nine consistent directional characteristics: cardioid, omnidirectional, figure-8, broad cardioid, supercardioid, and four intermediate patterns for maximum flexibility in a wide variety of recording applications
- Superior dynamic range of 128 dBA (Tube) / 135 dBA (FET) and exceptionally low self-noise of 12 dBA (Tube) / 8 dBA (FET) for ear-catching realism and distortion-free sonic depth
- 4-position switchable pre-attenuation pad (0 dB, 6 dB, 12 dB and 18 dB) for handling extremely high sound pressure levels and 4-position high-pass filter
- Illuminated user interface and jog dials for easy handling, even in dark environments
- Noiseless pushbuttons for quick and easy attenuation and HPF selection
- Unique features like clipping history and automatic attenuation provide error-free studio recording and ease of use

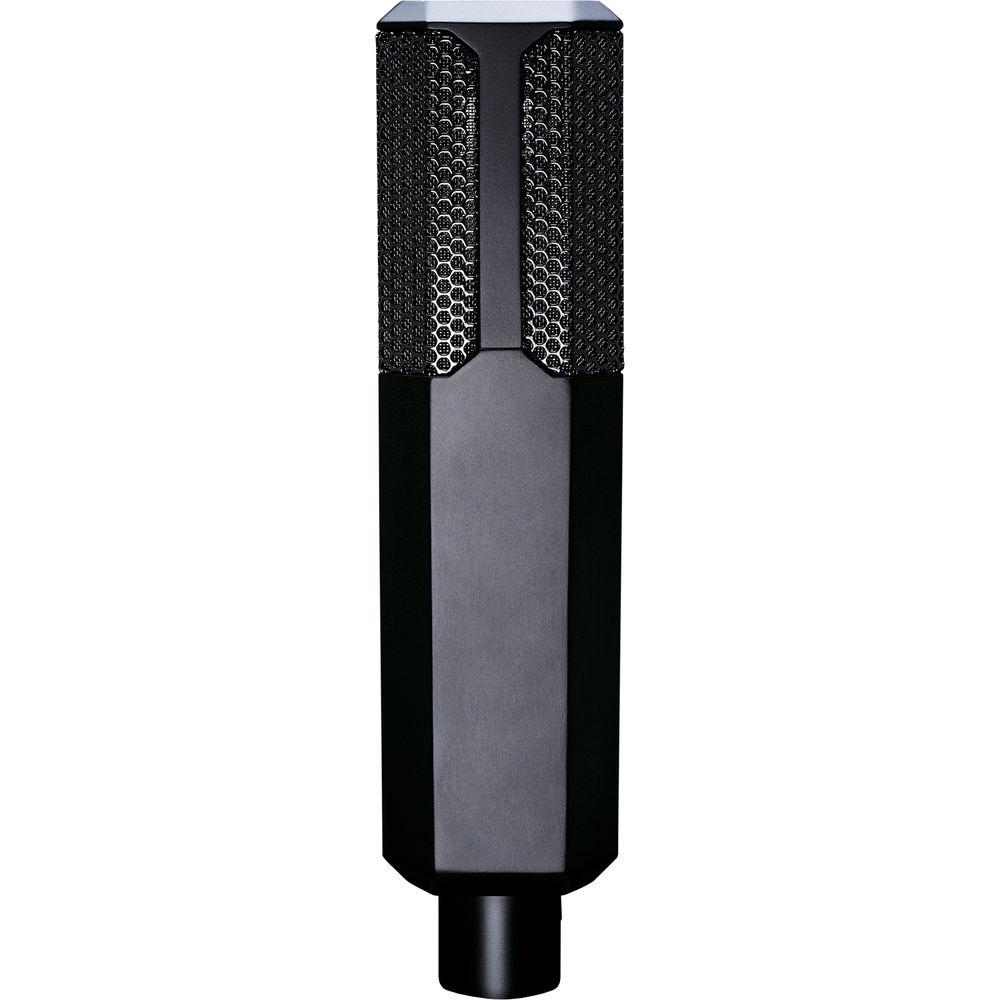

- Solid die-cast metal body with an oversized tube inspection window coated for protection against electromagnetic interference
- Extra-large hexagonal ruthenium-galvanized steel mesh grille provides an open acoustic environment and prevents unwanted internal reflections
- Corrosion-resistant gold-plated 3-pin XLR output connector

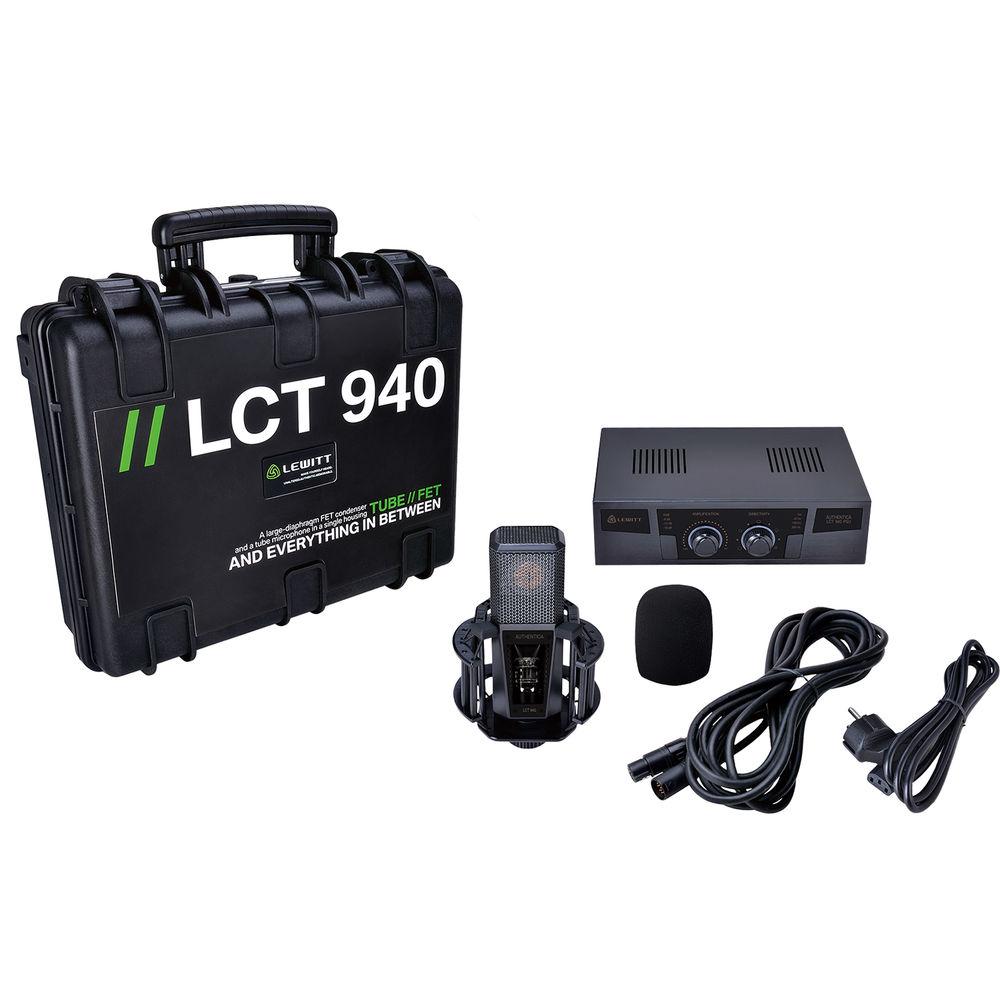

UPC: 847986000071 In the Box Lewitt LCT 940 Premium Large-Diaphragm FET Condenser and Tube Microphone Black Carrying Case PSU 940 Power Supply Unit LCT 40 SHxx Microphone Shockmount 11-pin Gold-plated XLR Audio Cable (26') Large Cylindrical Foam Windscreen for LCT Series Microphones Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt LCT 940 Premium Large-Diaphragm FET Condenser and Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt LCT 940 Specs | | | Acoustic Principle | Pressure gradient transducer, externally polarized | | Transducer | 1.0" (25.4 mm) | | Directional Pattern | Omni, broad-cardioid, cardioid, super-cardioid, figure-8, and an additional four intermediate patterns | | Frequency Range | 20 Hz - 20 kHz | | Sensitivity | 23 mV / Pa (-33 dBV), cardioid
20 mV / Pa (-34 dBV), omni
23 mV / Pa (-33 dBV), figure-8 | | Signal / Noise | FET: 86 dBA
Tube: 82 dBA | | Equivalent Noise Level | FET:
8 dBA, cardioid (IEC 61672-1)
9 dBA, omni (IEC 61672-1)
8 dBA, figure-8 (IEC 61672-1)
Tube:
12 dBA, cardioid (IEC 61672-1)
13 dBA, omni (IEC 61672-1)
12 dBA, figure-8 (IEC 61672-1) | | Dynamic Range | FET: 135 dBA
Tube: 128 dBA | | Maximum SPL for 0.5% THD | FET:
143 dB, 0 dB pre-attenuation
149 dB, 6 dB pre-attenuation
155 dB, 12 dB pre-attenuation
161 dB, 18 dB pre-attenuation
Tube:
140 dB, 0 dB pre-attenuation
146 dB, 6 dB pre-attenuation
152 dB, 12 dB pre-attenuation
158 dB, 18 dB pre-attenuation | | Pad | 6 dB, 12 dB, 18 dB switchable, selectable via remote control | | Bass Cut Filter | 12 dB / octave at 40 Hz
6 dB / octave at 150 Hz
6 dB / octave at 300 Hz | | Gain Control | Pre-attenuation pad: 6 dB, 12 dB, 18 dB | | Impedance | < 200 Ohms (rated) | | Load Impedance | > 1 kOhm (rated) | | Dimensions | 7.5 x 2.4 x 1.8" (192.0 x 60 x 46 mm) | | Net Weight | 1.45 lb (0.66 kg) | | | | Supply Voltage | 230 VAC, 50 Hz
110 VAC, 60 Hz | | Current Consumption | 170 mA | | Connectors | Back Panel:
1 x 3-pin XLR female, microphone output
1 x 11-pin XLR female, microphone input
1 x EIC male, power connector | | Controls | Front Panel:
1 x Pre-attenuation push button
1 x High-pass filter push button
1 x Stageless amplification, rotary knob
1 x Polar pattern selection via jog-dial
Back Panel:
1 x Voltage selection switch
1 x On/Off switch | | Indicators | Front Panel:
1 x Pre-attenuation
1 x High-pass filter
1 x Polar pattern
1 x Stageless amplification | | Dimensions | 9.8 x 5.9 x 2.8" (250.0 x 150.0 x 70.0 mm) | | Net Weight | 4.25 lb (1.93 kg) | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 19.0 x 17.0 x 7.0" |
