User Manual for Lewitt MTP 350 CMs Handheld Condenser Vocal Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the Lewitt MTP 350 CMs Handheld Condenser
- Product category: Handheld Performance Microphones Lewitt
- Brand: Lewitt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lewitt Handheld Performance Microphones
 |
User manual for the Lewitt MTP 350 CMs Handheld Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lewitt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lewitt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lewitt product will considerably shorten its lifespan!
|

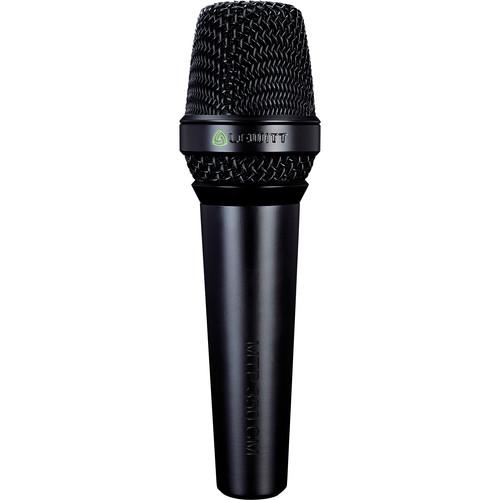

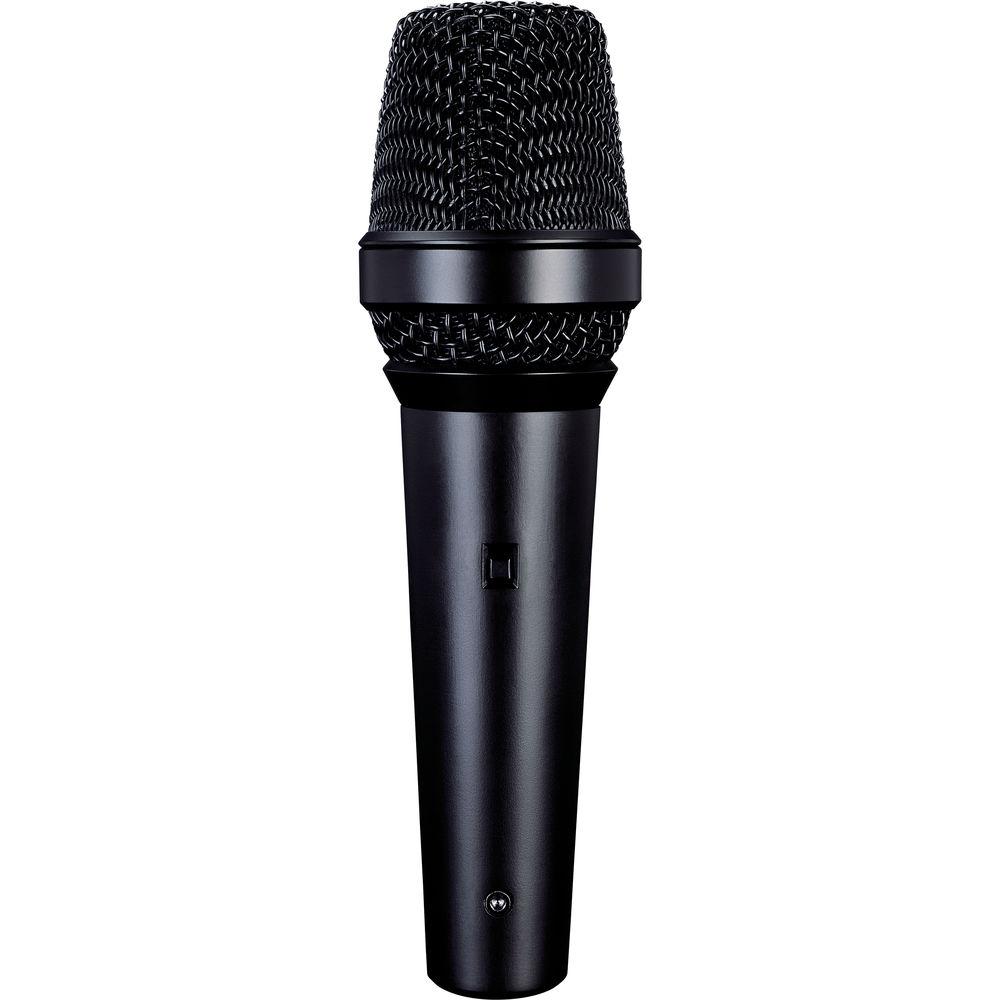

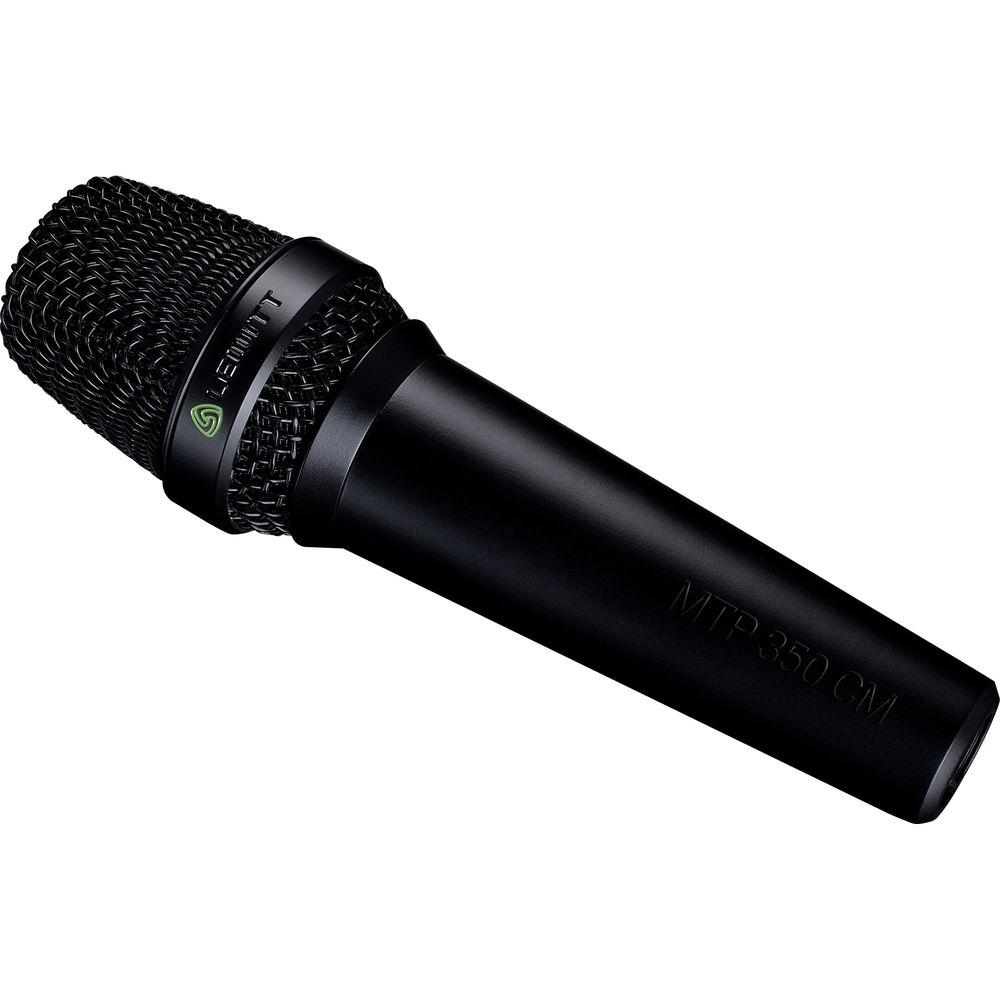

Product description The Lewitt MTP 350 CMs is a professional handheld vocal condenser microphone that can be used for a variety of live performance applications for bands, singers, venues, lecturers, and more. It features a convenient recessed On/Off switch, gold-plated XLR output connector, and a cardioid polar pattern.

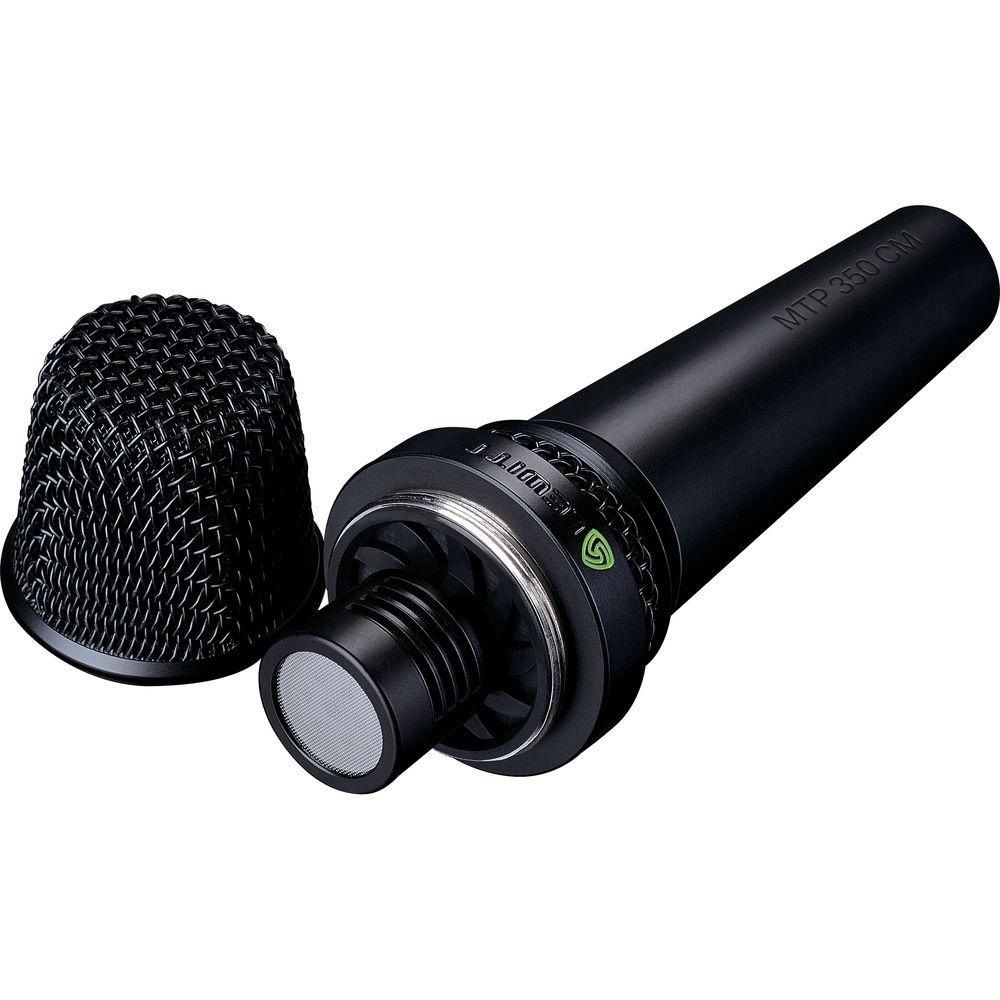

The mic includes an internal shock mount and a fully rubber-mounted capsule, enabling low handling noise. A built-in spherical wind and pop filter helps to help catch vocal plosives. -
- Frequency response shaped specifically for demanding vocal applications, with brightened midrange and bass roll-off
- Rich and detailed condenser sound for accurate reproduction
- Uniform cardioid pickup pattern for maximum isolation of the main sound source
- Withstands high sound pressure levels
- Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity
- Full-metal, die-cast body for rough daily touring routine
- Hardened hexagonal ruthenium-galvanized steel mesh grille to prevent wear and abuse
- Minimally affected by varying load impedance
- Corrosion-resistant gold-plated 3-pin XLR output connector
- Includes MTP 40 MCs shock mount and DTP 40 Lb artificial leather bag
UPC: 847986001429 In the Box Lewitt MTP 350 CMs Handheld Condenser Vocal Microphone with On/Off Switch MTP 40 MCs Shock Mount DTP 40 Lb Artificial Leather Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt MTP 350 CMs Handheld Condenser Vocal Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt MTP-350 Specs | Operating Principle | Pressure gradient transducer, permanently polarized | | Directional Pattern | Cardioid | | Frequency Range | 90 - 20,000 Hz | | Sensitivity | 3.1 mV / Pa (-50 dBV) | | Equivalent Noise Level | 25 dB (A) (IEC 61672-1) | | Maximum SPL | 141 dB, 1% THD
150 dB, 3% THD | | Rated Impedance | < 200 ohms | | Rated Load Impedance | > 1,000 ohms | | Supply Voltage | 48 V +/-4 V (IEC 61938) | | Current Consumption | 5.3 mA (IEC 61938) | | Connector | Gold-plated 3-pin XLR | | Dimensions | 1.9 X 6.9" (49 X 175 mm) | | Weight | 11.6 oz (330 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.7 x 7.6 x 3.2" |
