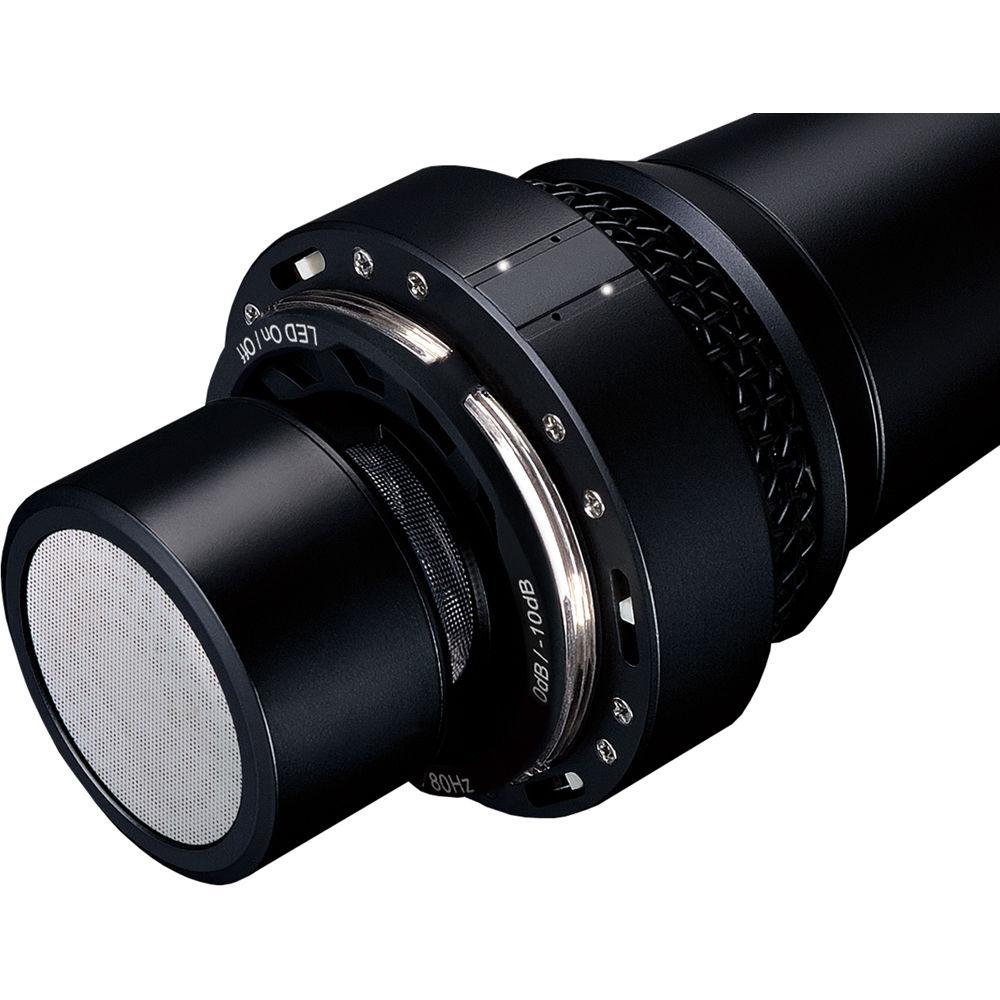

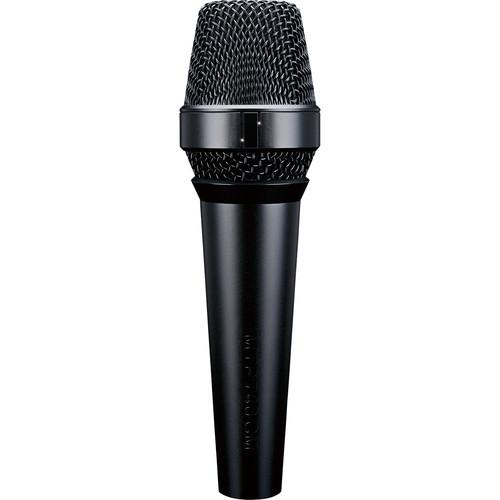

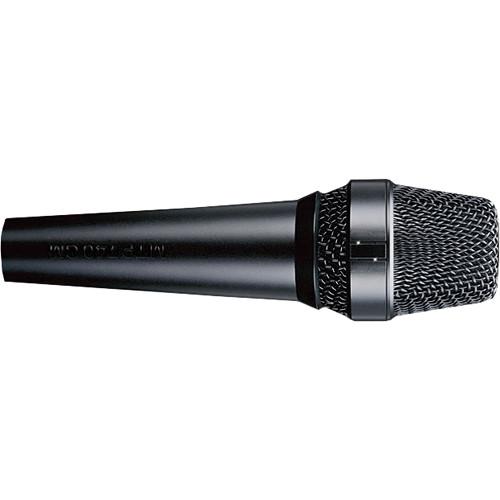

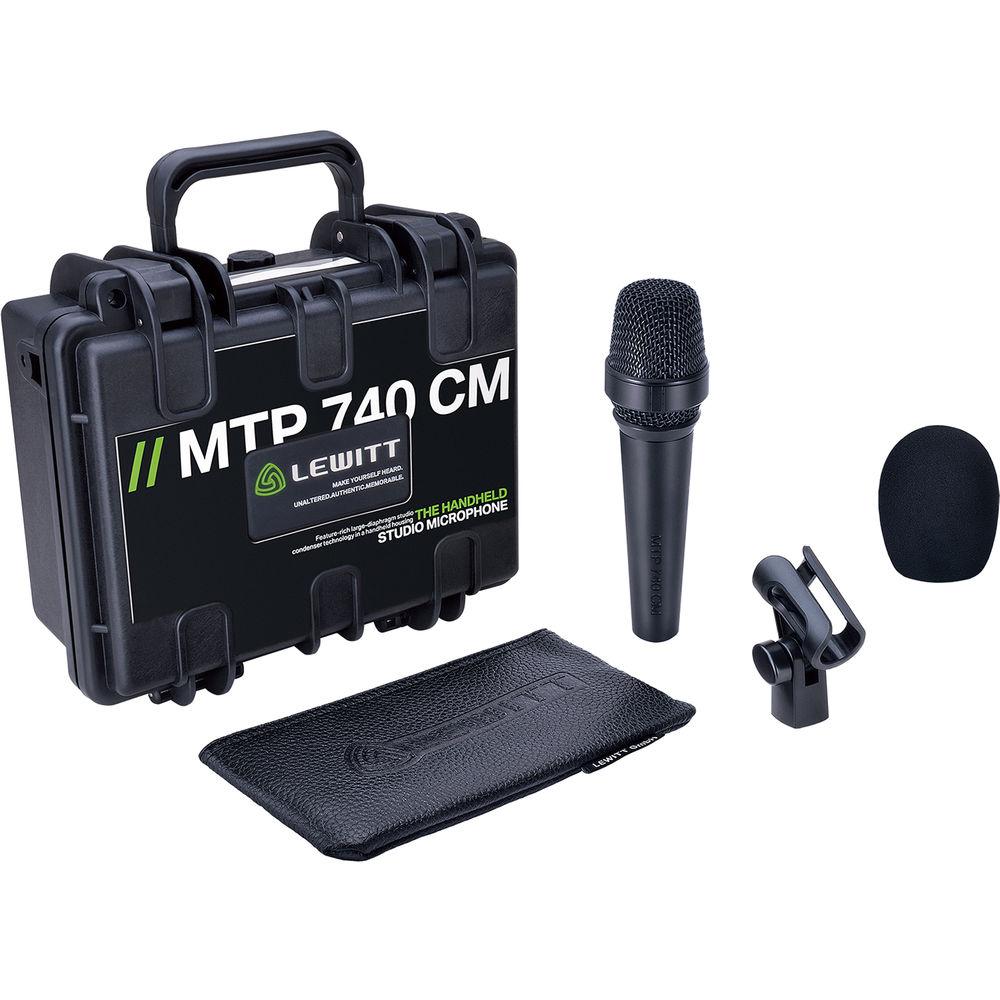

Product description The MTP 740 CM from Lewitt is a handheld cardioid condenser microphone for capturing audio. It can be used in various environments for audio applications such as live stage, theater, recording studios, and more. The microphone features a dynamic range of 138 dBA, and has a switchable 10 dB pad. The MTP 740 CM is built with a 3-pin XLRM jack. A microphone mount and a carry bag are also included. UPC: 847986001351 In the Box Lewitt MTP 740 CM Handheld Condenser Performance Microphone MTP 40 MCs Small Microphone Mount Artificial Leather Carry Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt MTP 740 CM Handheld Condenser Performance Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt MTP-740-CM Specs | Type | Condenser | | Operating Properties | Pressure gradient transducer, externally polarized | | Transducer Size | 1.0" (25.4 mm) | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 9 mV/Pa (-41 dBV), cardioid | | Signal to Noise Ratio | 79 dBA | | Equivalent Noise Level | 14 dBA, cardioid | | Dynamic Range | 138 dBA | | Maximum SPL for 0.5% THD | 153 dB, 0 dB pre-attenuation
163 dB, 10 dB pre-attenuation | | Pad | 0 dB, -10 dB switchable | | Low-Cut Filter | Linear: 80 Hz (6 dB/oct) | | Rated Impedance | < 150 Ohms | | Rated Load Impedance | > 1,000 Ohms | | Supply Voltage | 48 V ± 4 V | | Current Consumption | 5.5 mA | | Connector | Gold-plated 3-pin XLR | | Dimensions (L x Diam) | 7.2 x 2.0" (183 x 51 mm) | | Weight | 11.7 oz (332 g) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 9.8 x 8.3 x 4.3" |
