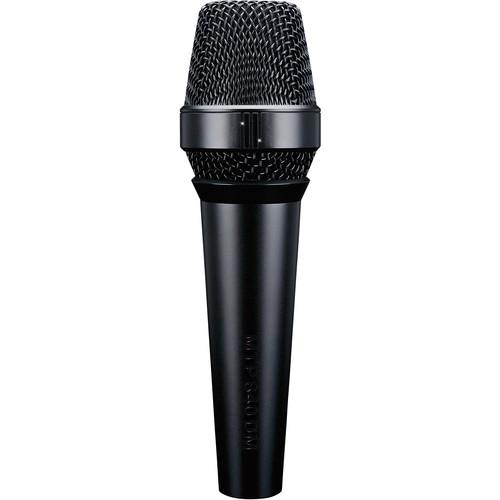

User Manual for Lewitt MTP 840 DM Dynamic Supercardioid Performance Microphone Click to enlarge the picture
Contents of the user manual for the Lewitt MTP 840 DM Dynamic Supercardioid
- Product category: Dynamic Microphones Lewitt
- Brand: Lewitt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lewitt Dynamic Microphones
 |
User manual for the Lewitt MTP 840 DM Dynamic Supercardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lewitt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lewitt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lewitt product will considerably shorten its lifespan!
|

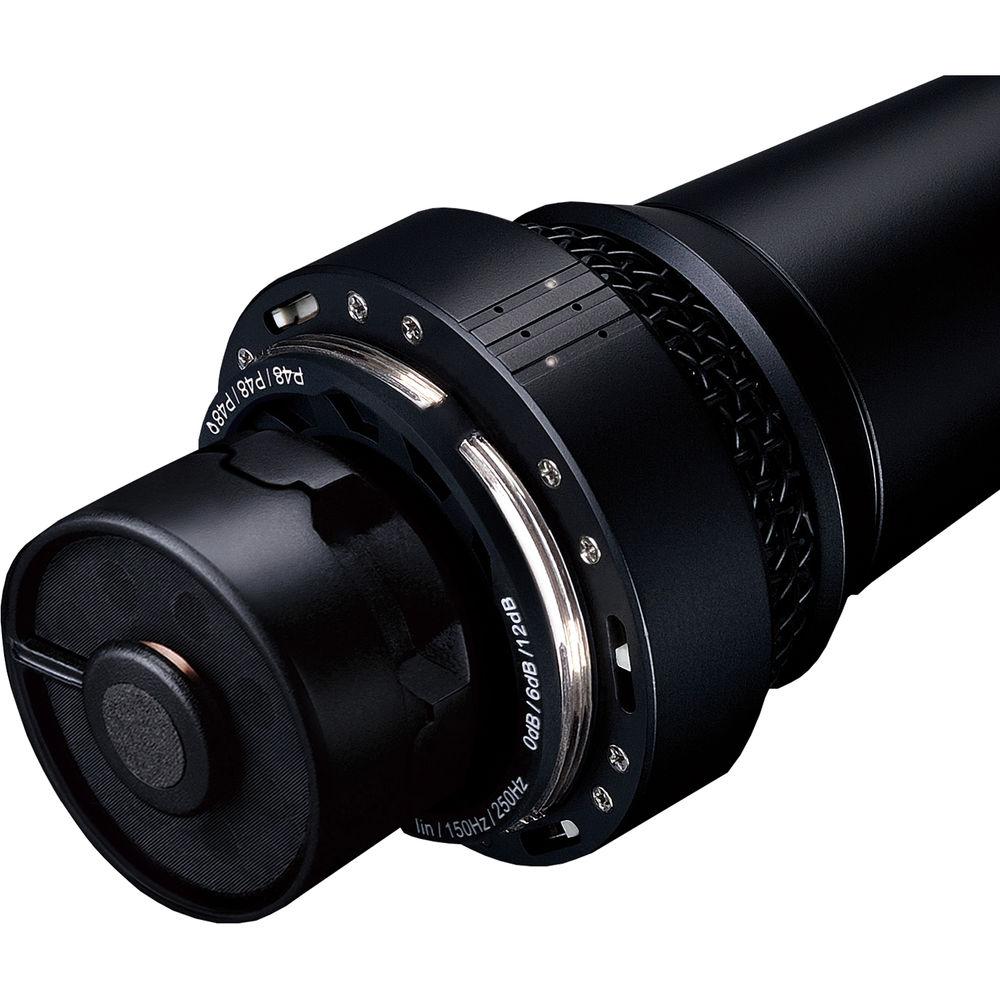

Product description The MTP 840 DM Dynamic Supercardioid Performance Microphone by Lewitt Audio is for capturing audio in various environments, including applications such as live sound, studio recording, lead vocals, background vocals, conference rooms, lecture halls, boardrooms and more. It features a switchable sensitivity, a multi-step high-pass filter, supercardioid pickup pattern and a frequency response of 40 Hz to 18 kHz. This makes for a unique tool for onstage and in the studio. The MTP 840 DM's high-pass filter directly influences proximity effect, allowing adaption of the mic to an individual's requirement. The built-in three-position switchable amplifier allows lossless recording of far off sources. Built-in LEDs that can be turned off make checking this mic's numerous settings a simple matter, even in the dark. This microphone is powered by 48V phantom power. It has an integrated acoustic pop and windshield built-in for protection without compromising high-frequency clarity. It is also built with a solid full metal die-cast body for rough daily touring. It features a corrosion-resistant gold-plated 3-pin XLR output connector. A shock mount and carrying pouch are included. - 3-position switchable high-pass filter for direct adjustment of proximity effect according to application and artist
- Illuminated indication of microphone settings for quick and easy handling even in dark environments
- Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity
- The frequency response is shaped specifically for demanding vocal applications, with brightened midrange and bass roll-off
- Uniform supercardioid pickup pattern for maximum isolation of the main sound source
- Optional active mode provides superior dynamic range of 121 dB-A and extremely low self-noise of 19 dB-A for ear-catching realism and distortion-free sonic depth
- Hardened steel mesh grille to prevent wear and abuse
- Great for lead and background vocals and demanding live and studio applications

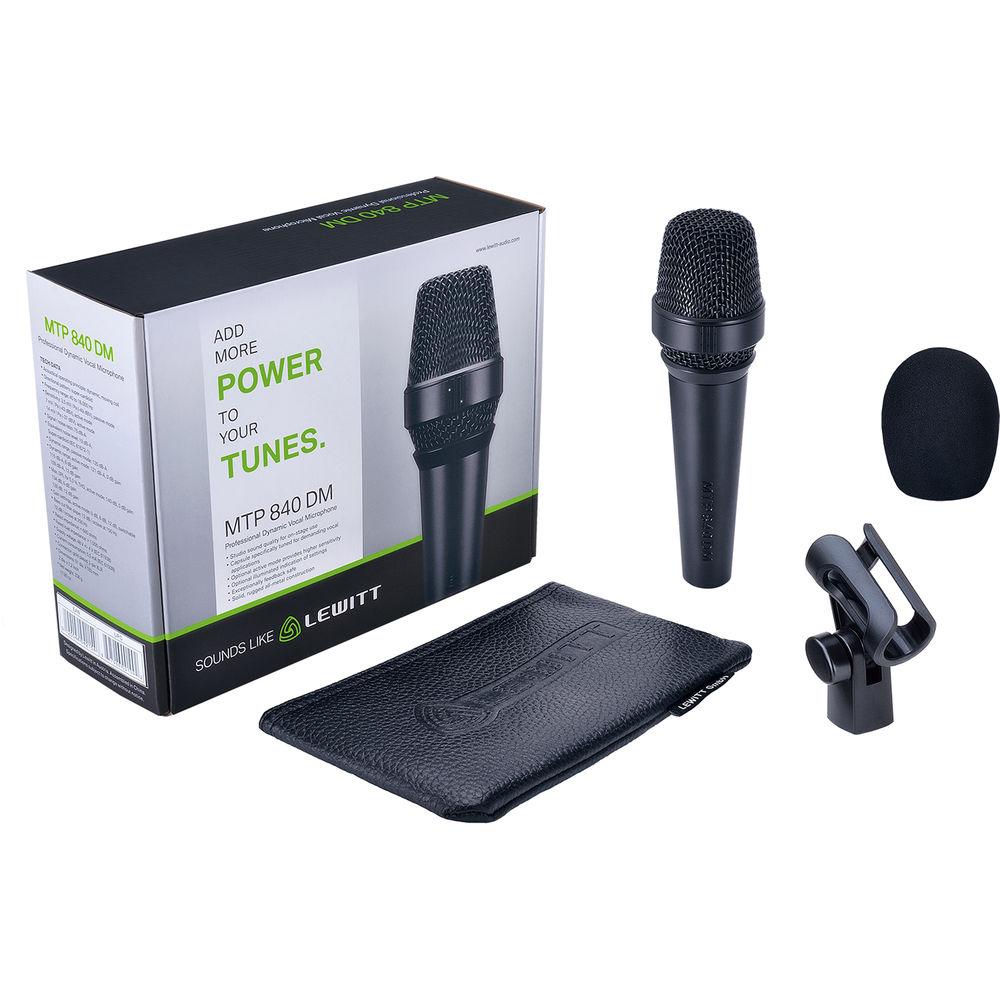

UPC: 847986001092 In the Box Lewitt MTP 840 DM Dynamic Supercardioid Performance Microphone MTP 40 MCs Shock Mount DTP 40 LB Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt MTP 840 DM Dynamic Supercardioid Performance Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt MTP 840 DM Specs | Operating Principle | Dynamic, moving coil | | Directional Pattern | Supercardioid | | Frequency Range | 40 Hz to 18 kHz | | Sensitivity | 3.5 mV / Pa (-49 dBV), passive mode
7 mV / Pa (-43 dBV), active mode
14 mV / Pa (-37 dBV), active mode | | Signal to Noise Ratio | 75 dB-A | | Equivalent Noise Level | 19 dB-A, supercardioid (IEC 61672-1) | | Dynamic Range | Passive Mode:
135 dB-A
Active Mode:
121 dB-A, 0 dB gain
115 dB-A, 6 dB gain
109 dB-A, 12 dB gain | | Max SPL For .5 % THD | Active Mode:
140 dB, 0 dB gain
134 dB, 6 dB gain
128 dB, 12 dB gain | | Gain | Active Mode: 0 dB, 6 dB, 12 dB, switchable | | Bass Cut Filter | Slope:
12 dB / octave at 150 Hz
12 dB / octave at 250 Hz | | Impedance | Rated: < 600 Ω | | Load Impedance | Rated: > 1.000 Ω | | Supply Voltage | 48 V +/- 4 V (IEC 61938) | | Connector | Gold plated 3-pin XLR | | Dimensions (Diam. x H) | 2.0 x 7.2" (51 x 183 mm) | | Weight | 11.85 oz (336 g) | | | | Package Weight | 1.745 lb | | Box Dimensions (LxWxH) | 9.7 x 7.6 x 3.25" |
