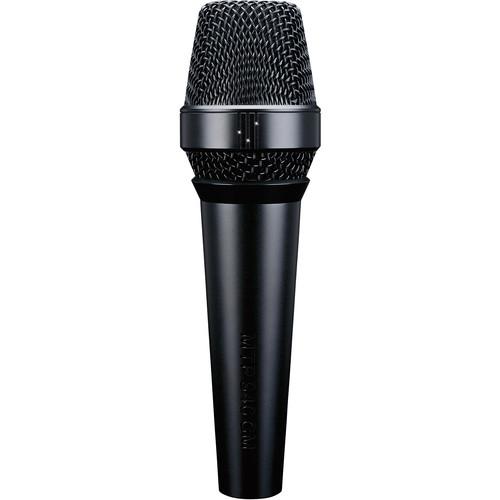

User Manual for Lewitt MTP 940 CM Condenser Performance Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Lewitt MTP 940 CM Condenser Performance
- Product category: Dynamic Microphones Lewitt
- Brand: Lewitt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lewitt Dynamic Microphones
 |
User manual for the Lewitt MTP 940 CM Condenser Performance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lewitt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lewitt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lewitt product will considerably shorten its lifespan!
|
Product description The MTP 940 CM Condenser Performance Handheld Microphone by Lewitt Audio is for capturing audio. It is used for applications such as live sound, studio recording, lead vocals, background vocals, conference rooms, lecture halls, boardrooms, and more. It features three switchable polar patterns; wide cardioid, cardioid, and supercardioid. It is designed to capture most sound sources from lead vocals and choirs to classic unplugged situations with a singer and an acoustic instrument. This MTP 940 CM microphone has a frequency response range of 20 Hz to 20 kHz and is powered by 48V phantom power. It is built with a three-step high-pass filter that makes it possible to directly influence the proximity effect, adapting it in the best possible way to the sound source. It also features a three-position pre-attenuation pad that allows for extreme SPL environments. LEDs can be switched off if desired, but when switched on allow you to check microphone settings quick and easy. If you're looking for a studio mic to use onstage or when recreating a live atmosphere in the studio, the MTP 940 CM is a good choice. The connector is a gold-plated 3-pin XLR. A shock mount and carrying pouch are included. - Three consistent directional characteristics - cardioid, wide cardioid, supercardioid - for maximum flexibility in a variety of live and recording applications
- LED indication of microphone settings for quick and easy handling even in dark environments
- Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity

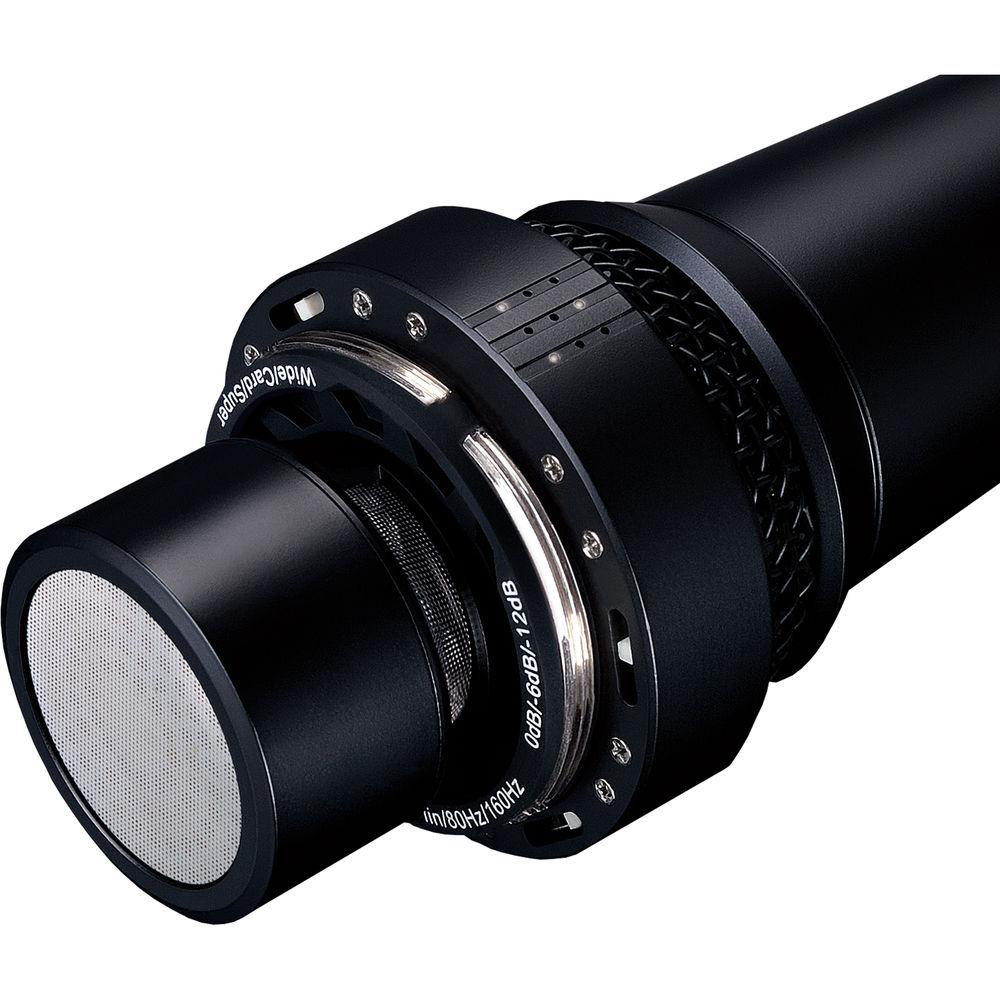

- Recessed slide switches prevent unintended change of settings
- Rock-solid full-metal, die-cast body for rough daily touring routine
- Corrosion-resistant gold-plated 3-pin XLR output connector
- Hardened steel mesh grille to prevent wear and abuse

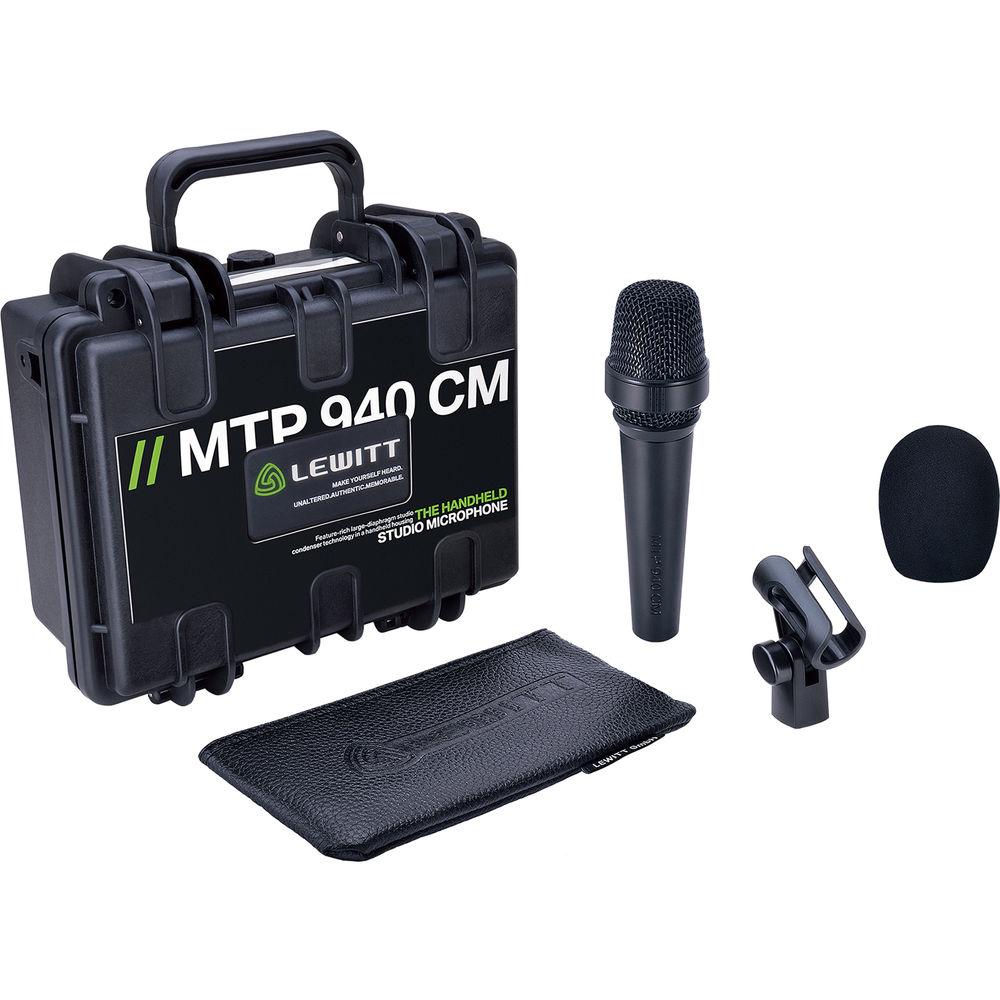

UPC: 847986001108 In the Box Lewitt MTP 940 CM Condenser Performance Handheld Microphone MTP 40 MCs Shock Mount DTP 40 LB Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lewitt MTP 940 CM Condenser Performance Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLewitt MTP 940 CM Specs | Operating Principle | Acoustical: Pressure gradient transducer, externally polarized | | Directional Pattern | Cardioid, wide cardioid, supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 10 mV / Pa (-40 dBV), cardioid | | Signal to Noise Ratio | 85 dB-A | | Equivalent Noise Level | 9 dB-A, cardioid (IEC 61672-1) | | Dynamic Range | Mic Amp: 135 dB-A | | Maximum SPL for 0.5% THD | 144 dB, 0 dB pre-attenuation
150 dB, 6 dB pre-attenuation
156 dB, 12 dB pre-attenuation | | Pad | Pre-Attenuation: 6 dB, 12 dB, switchable | | Bass Cut Filter | Slope:
12 dB / octave at 80 Hz
12 dB / octave at 160 Hz | | Impedance | Rated: < 150 Ω
Rated Load Impedance: > 1000 Ω | | Supply Voltage | 48 V +/- 4 V (IEC 61938) | | Current Consumption | 5.5 mA (IEC 61938) | | Connector | Gold-plated 3-pin XLR | | Dimensions (Diam. x H) | 2.0 x 7.2" (51 x 183 mm) | | Weight | 11.7 oz (332 g) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 9.8 x 8.3 x 4.3" |
