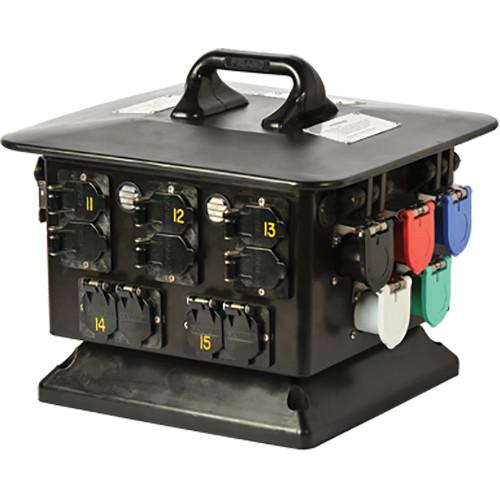

User Manual for Lex Products PowerHOUSE 100A 3-Phase Pagoda to 15 Duplex Receptacle Distribution Box Click to enlarge the picture
Contents of the user manual for the Lex Products PowerHOUSE 100A 3-Phase Pagoda
- Product category: AC Power Supplies Lex Products
- Brand: Lex Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lex Products AC Power Supplies
|
User manual for the Lex Products PowerHOUSE 100A 3-Phase Pagoda contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lex Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lex Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lex Products product will considerably shorten its lifespan!
|
Product description The Lex Products PowerHOUSE 100A 3-Phase Pagoda to 15 Duplex Receptacle Power Distribution Box can be powered from a generator or panel. Thanks to the NEMA 3R rating, this box can be used for both indoor and outdoor applications. It can accept up to 30 NEMA 5-20, 20A Edison cords for powering lights, effects, and audio equipment for events including small concerts. Applications also include powering light tools and computers. - Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, and corrosion
- Breakers are mounted under hinged lid for enhanced safety
- Stackable and compact for easy storage and portability
- Elevated base keeps receptacles above ground level
- Suitable for use in applications such as industrial, shipyards, live events, concert touring, convention centers, and film/television production
In the Box Lex Products PowerHOUSE 100A 3-Phase Pagoda to 15 Duplex Receptacle Distribution Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lex Products PowerHOUSE 100A 3-Phase Pagoda to 15 Duplex Receptacle Distribution Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLex Products DB100NP-ABB-S3 Specs | Rating | 100 A, 3-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC | | Environmental Rating | NEMA 3R weather resistant | | Input | 1 set of (5) 16 Series Cam-type color-coded panel mount inlets | | Output | 15 x NEMA 5-20, 20 A, 2-pole, 3-wire, 125 VAC, duplex receptacles | | Overcurrent Protection | 15 x 20 A, single-pole branch-rated circuit breakers | | Dimensions (L x W x H) | 14.5 x 14.5 x 13.0" (36.8 x 36.8 x 33.0 cm) | | Weight | Approximately 32 lb (14.51 kg) | | | | Package Weight | 41.75 lb | | Box Dimensions (LxWxH) | 19.8 x 16.6 x 14.9" |
