User Manual for Lexar 480GB NM600 M2. 2280 NVMe SSD Click to enlarge the picture
Contents of the user manual for the Lexar 480GB NM600 M2. 2280 NVMe
- Product category: Internal Drives Lexar
- Brand: Lexar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexar Internal Drives
 |
User manual for the Lexar 480GB NM600 M2. 2280 NVMe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexar product will considerably shorten its lifespan!
|

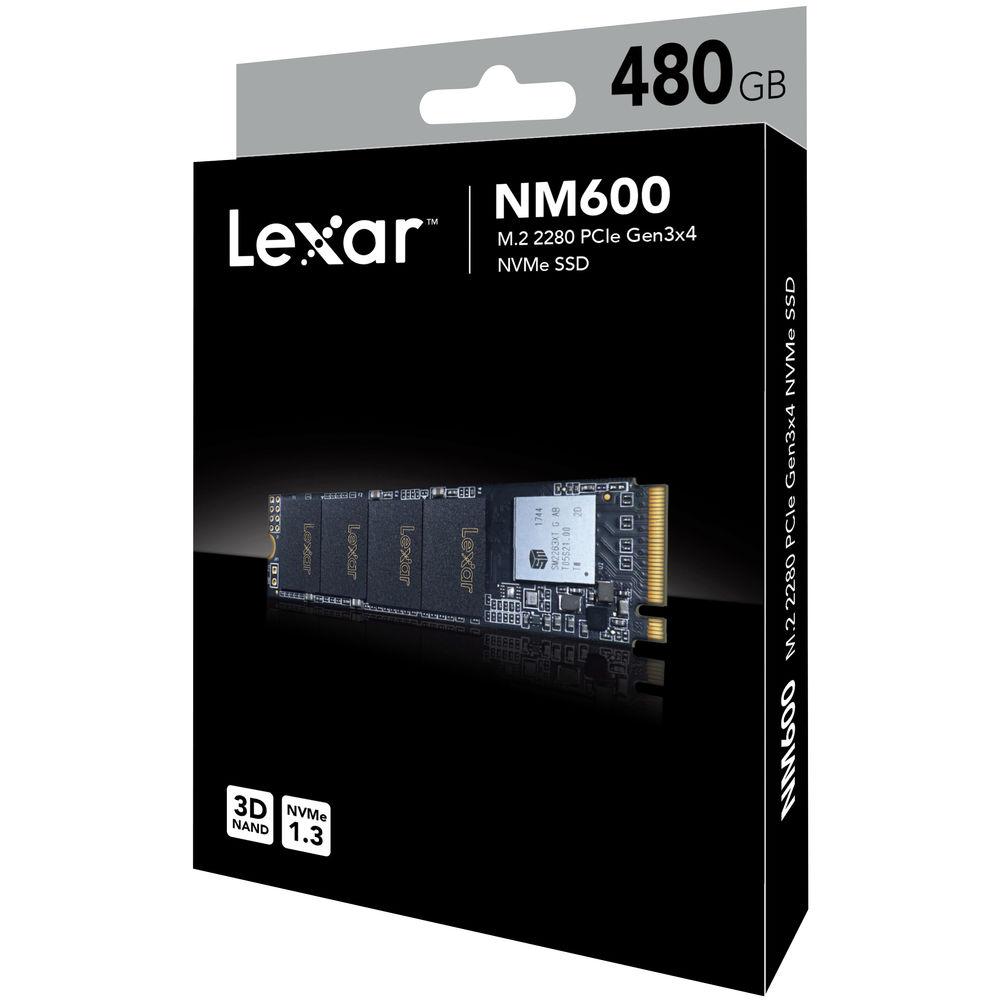

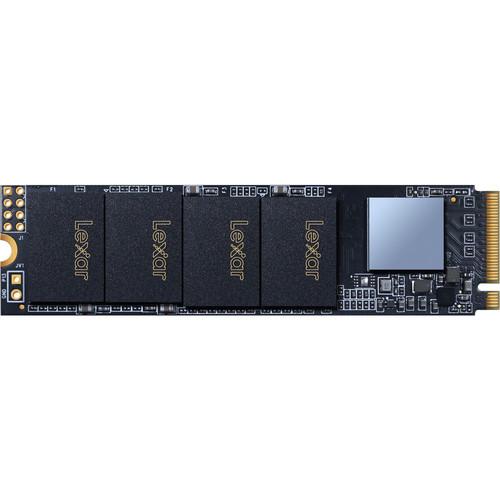

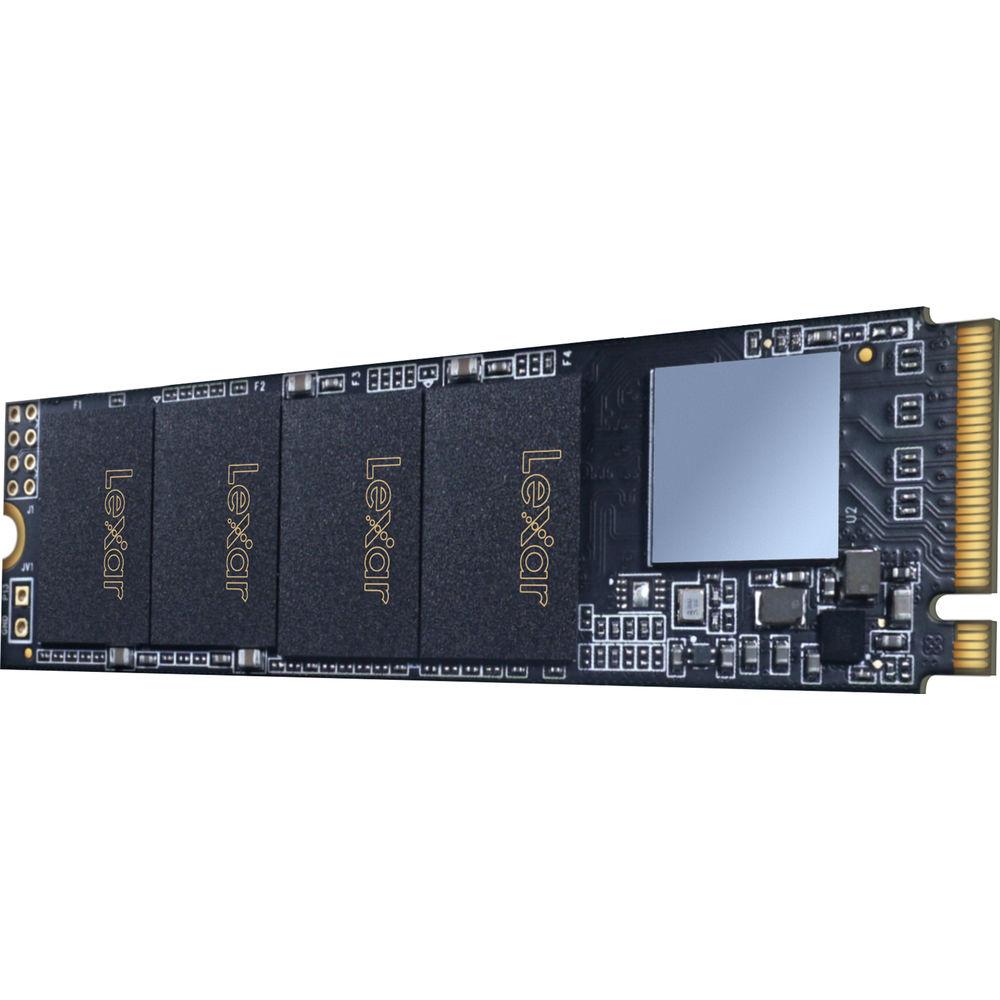

Product description Hard Drives by Application: Which Is Best for You? Read More The 480GB NM600 M2. 2280 NVMe SSD from Lexar is a durable and power-efficient solution to improve your system's performance. Aside from offering 480GB of storage capacity, NVMe solid-state drives operate much faster than traditional hard drives and even SATA SSDs, allowing you to boot-up, transfer data, and load applications quickly. Because this drive uses the PCIe 3.0 x4 interface, which has a high bandwidth, it can achieve read and write speeds of 2100 MB/s and 1600 MB/s respectively. You can also use the optional Lexar SSD Dash software to monitor your drive's health, lifespan, as well as to securely erase data. - Lexar SSD Dash
-
- Disk Information - View information about your drive including size, temperature, and interface.
- Life Span - Lets you know how much life (TBW) is left on the drive.
- S.M.A.R.T - Self-Monitoring, Analysis, and Reporting Technology allows you to tech the health of your drive.
- Secure Erase - Permanently removes all data on the drive.
In the Box Lexar 480GB NM600 M2. 2280 NVMe SSD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexar 480GB NM600 M2. 2280 NVMe SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexar NM600 Specs | | | Interface | PCIe 3.0 x4 | | Maximum Read Speed | 2100 MB/s | | Maximum Write Speed | 1600 MB/s | | Sequential Read Speed | 2100 MB/s | | Sequential Write Speed | 1600 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | SMART Support | Yes | | TRIM Support | Yes | | | | Endurance (Total Bytes Written) | 240 TB | | Mean Time Between Failures (MTBF) | 1.5 Million Hours | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Vibration | 20 G / 10 to 2000 Hz | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | | | Dimensions (W x H x D) | 3.1 x 0.9 x 0.1" / 80.0 x 22.0 x 2.3 mm | | Weight | 0.3 oz / 9 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
