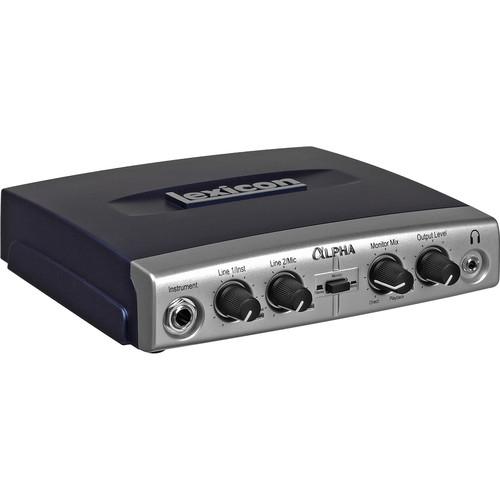

Product description The Alpha Studio from Lexicon is extremely compact, desktop recording studio that includes a USB powered I/O mixer/interface with Cubase LE recording software from Steinberg and the Lexicon Pantheon VST reverb plug-in. The interface has four inputs, with two channel recording and playback. A separate headphone output provides the freedom to not only record but also mix anywhere. Steinberg's Cubase LE production suite software for PC and Mac computers offers integrated multi-track recording, editing and mixing of up to forty-eight audio tracks, sixty-four MIDI tracks (interface has no MIDI I/O,) VST instruments and plug-in support and an array of additional features. Lexicon's Pantheon VST reverb plug-in delivers lush Lexicon reverbs that have been used on professional recordings for over thirty years. Alternatively, the Lexicon Alpha Studio may be used as an interface with almost any other major audio recording software such as Steinberg Nuendo, Cubase SX, MOTU Digital Performer, GarageBand, Cakewalk Sonar and many others. - Desktop recording system with USB interface and bundled software
- Low-noise microphone preamp with balanced XLR input (no phantom power)
- Stereo line inputs for keyboards, drum machines or analog output of a CD/MP3 player
- High-impedance front panel input for electric guitar or bass

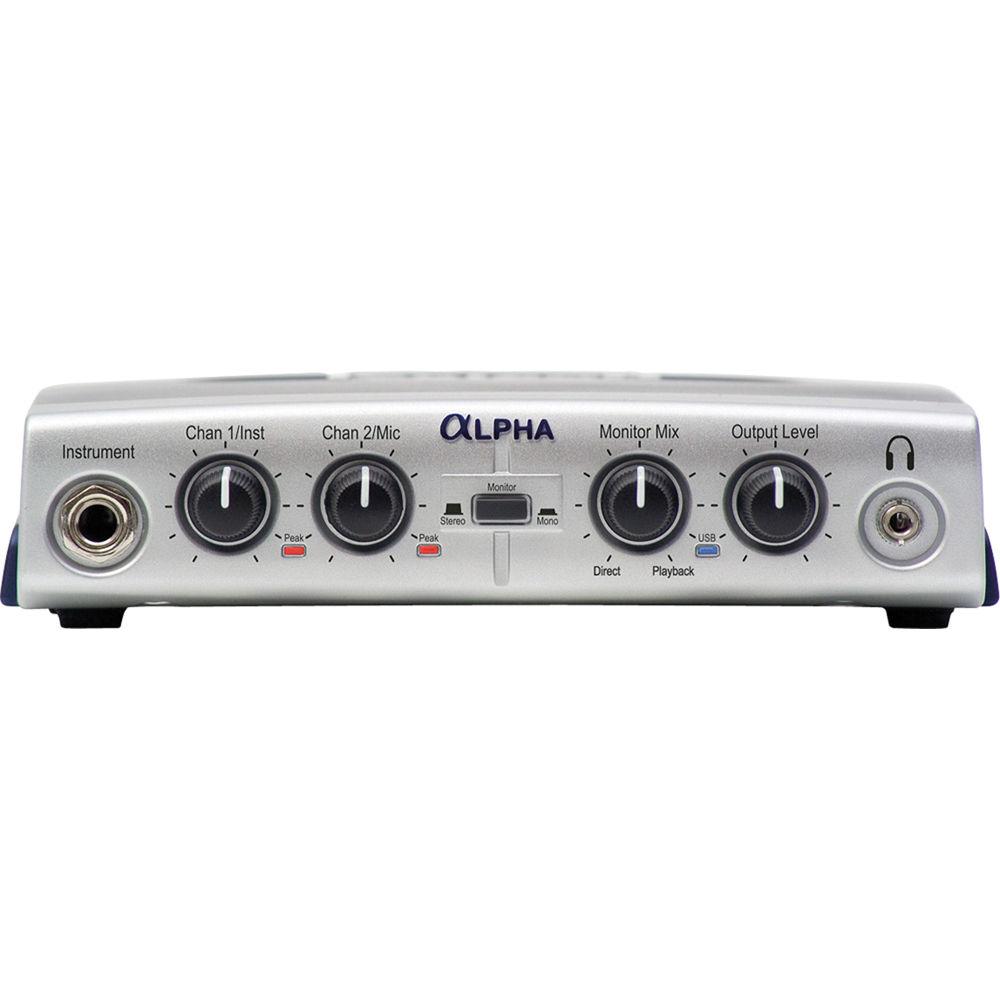

- Separate microphone and line level input controls with individual peak indicators
- Monitor mix control for balancing an audio source between live input and playback mix level while recording. Can be switched to stereo or mono
- High-powered headphone amp offers ultra-clear fidelity while delivering ample power for any type of headphones
- Cubase LE software with Lexicon Pantheon reverb plug-in included
UPC: 691991500206 In the Box Lexicon Alpha Studio - 4 Input (2 Channel Record) / 2 Output Desktop Recording Studio with Bundled Software - Mac OS X and Windows XP Audio Interface USB Cable CD-ROM with Cubase LE Recording Software, USB Drivers and Lexicon Pantheon Reverb Plug-in One (1) Year Warranty User Manual PDF 1.7mbftbduuyscveeetftsa Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon Alpha Studio - 4 Input 2 Output Desktop Recording Studio with Bundled Software - Mac OS X and Windows XP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

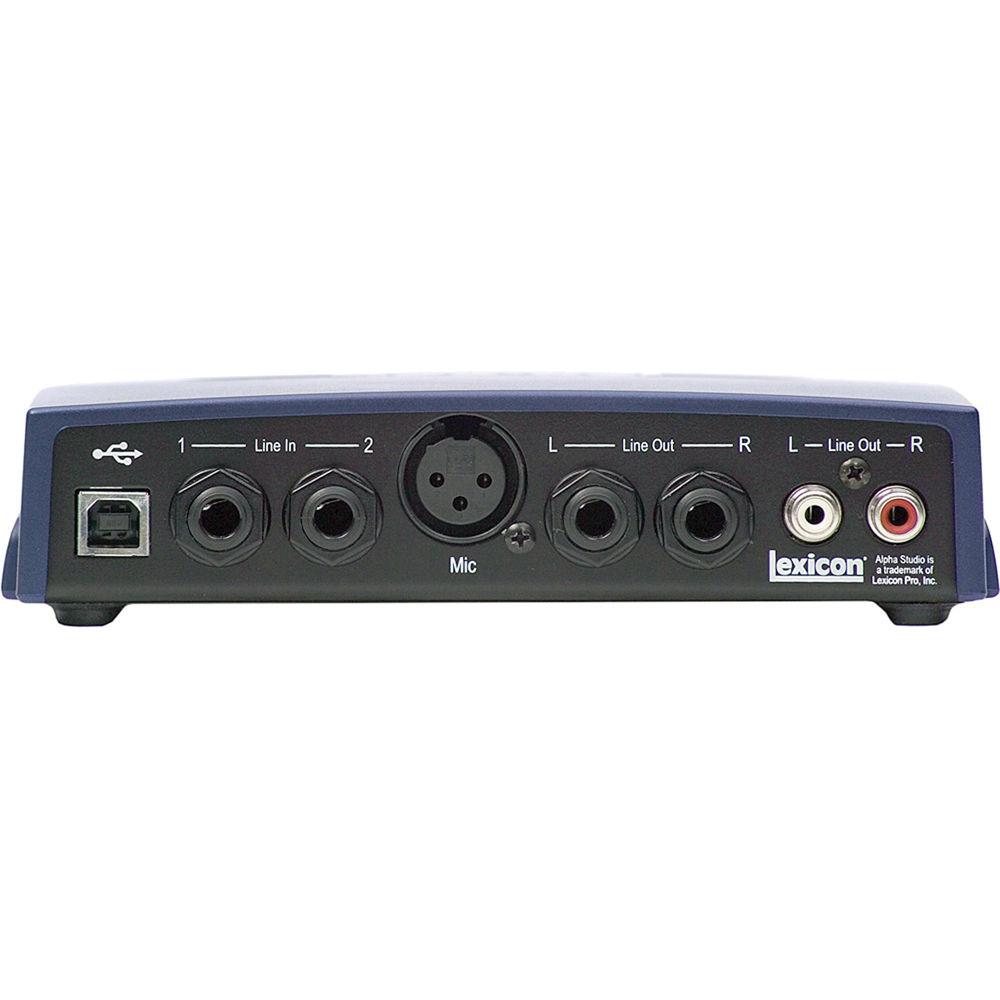

Technical parametersLexicon Alpha Specs | | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 1.0) | | Analog I/O | 1 x XLR 3-Pin Mic Input
2 x 1/4" (6.3 mm) TRS Line Input
1 x 1/4" (6.3 mm) TS Hi-Z Input
1 x 1/8" (3.5 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Output
1 x Stereo RCA Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | 20 Hz to 20 kHz +0/-1 dB | | Dynamic Range | 100 dBA | | THD+N | < 0.009% | | | | Sample Rates | 44.1 and 48 kHz | | Bit Depth | 24-Bit | | | | OS Compatibility | macOS 10.2.8 or Later
Windows XP | | Processor Requirement | Mac:
450 MHz PowerPC G4
PC:
500 MHz Intel Pentium III
AMD Athlon | | RAM Requirements | 256 MB | | Storage Requirements | 1 GB | | | | Dimensions | 6.75 x 6.5 x 1.62" / 17.14 x 16.51 x 4.12 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.93 lb | | Box Dimensions (LxWxH) | 9.25 x 8.85 x 3.95" |
