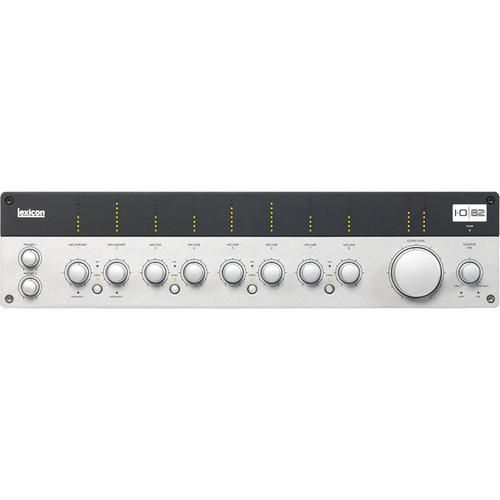

User Manual for Lexicon I-O 82 - USB 2.0 Desktop Recording Studio Click to enlarge the picture
Contents of the user manual for the Lexicon I-O 82 - USB 2.0
- Product category: Audio Interfaces & Systems Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Audio Interfaces & Systems
 |
User manual for the Lexicon I-O 82 - USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|
Product description The I-O 82 from Lexicon is an 8 input, 2 output USB 2.0 desktop recording studio, compatible with any DAW including Pro Tools 9. It includes an interface and all the necessary software needed to start recording. Performance driven analog-to-digital and digital-to-analog converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.
The interface features dbx 60V high-voltage, ultra-low noise microphone preamps on all eight channels. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range.

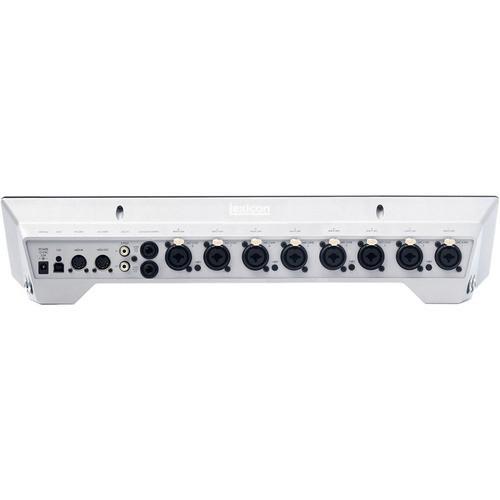

The I-O 82 can record eight tracks at once and includes eight combi microphone/line inputs with switchable 48V phantom power, two balanced line outputs, two Hi-Z instrument inputs, two 1/4" high power headphone outputs, coaxial S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels. - USB 2.0 desktop recording studio
- 44.1kHz to 96kHz sample rates, 24-bit resolution
- Pantheon II VST/Audio Units reverb plug-in with 6 legendary Lexicon reverbs
- dbx 60V high-voltage, ultra-low noise microphone preamps on all channels
- Eight analog combi-jacks for microphone/line inputs
- Two 1/4" TS phone instrument inputs (side panel)
- Two analog 1/4" TRS phone balanced outputs
- Streamlined monitor form factor puts all recording controls at your fingertips
- Separate level meters and gain control per channel
- Two headphone outputs with dedicated volume adjustment (side panel)
- Stereo S/PDIF digital I/O
- Includes Cubase LE multi-track recording software, Tootrack EZ Drummer Lite virtual instrument and the XILS3 SE software synthesizer
UPC: 691991500336 In the Box Lexicon I-O 82 - USB 2.0 Desktop Recording Studio External Power Supply USB Cable Software DVD One (1) Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon IO 82 Specs | Mic Preamps | 8 | | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.4 and 96kHz | | Inputs | 8 x Combo XLR female
2 x 1/4" TS phone Instrument
1 x RCA coaxial S/PDIF | | Input Impedance | Microphone: 3kΩ balanced
Line: 20kΩ balanced, 13kΩ unbalanced
Instrument: 1MΩ | | Maximum Input Level | Microphone: +20dBu @ minimum input gain
Line: +32dBu
Instrument: +13dBu | | Gain | Microphone: +58dB | | Outputs | 2 x 1/4" TRS phone
2 x 1/4" TRS phone Headphone
1 x RCA coaxial S/PDIF | | Output Impedance | 32Ω balanced, 16Ω unbalanced | | Maximum Output Level | Line: +18dBu
Headphone: 350mW/channel @ 50Ω | | MIDI | 2 x 5-pin DIN I/O | | Dynamic Range | A/D (24-bit): 102dB typical, A-weighted, 20Hz to 20kHz (44.1kHz sample rate)
D/A (24-bit): 106dB typical, A-weighted, 20Hz to 20kHz
A/D/A (24-bit): 101dB typical, A-weighted, 20Hz to 20kHz | | THD + N | Microphone: <0.01% 20Hz to 20kHz, +4dBu input level, +4dBu output (mic input to main output), <0.008% 1kHz, +4 Bu input level, +4dBu output, (mic input to main output)
Line Input: <0.015%, 20Hz to 20kHz, +4dBu (line input to main output)
Instrument Input: <0.05%, 20Hz to 20kHz, +4dBu input level, +4dBu output, (instrument input to main output | | Noise | Microphone EIN: -125dBu @ 58dB gain typical (150Ω source) -128dBu @ 58dB gain typical A-weighted (150Ω) | | Frequency Response | Microphone: 20Hz to 20kHz, +/-1.0dB
Line Input: 20Hz to 20kHz, +/-1.0dB
Instrument Input: 20Hz to 20kHz, +/-1.0dB | | Phantom Power | 48V | | Controls | Phones Level
Trim
48V
Stereo
Output Level
Monitor Mix | | Power | 12 VDC external power supply (included) | | Compatibility | ASIO, Core Audio, WDM, MME and multi-client drivers | | System Requirements | Mac
Intel multi-core system (required)
OS X 10.4.9 or later
1GB RAM
USB 2.0 Port
1024 x 768 pixels display resolution
DVD-ROM drive
Internet connection
PC
1.8GHz CPU or faster
Windows XP SP2, Vista 32, Windows 7
1GB RAM
USB 2.0 Port
DVD-ROM drive
Internet connection | | Dimensions (WxDxH) | 18 x 3.75 x 4" (457 x 95 x 102mm) | | Weight | 3.7 lb (1.7kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 19.0 x 6.7 x 6.4" |
