User Manual for Lexicon Lambda Studio - 5 Input 2 Output Desktop Recording Studio with Bundled Software - Mac OS X and Windows XP Click to enlarge the picture
Contents of the user manual for the Lexicon Lambda Studio - 5 Input
- Product category: Audio Interfaces & Systems Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Audio Interfaces & Systems
 |
User manual for the Lexicon Lambda Studio - 5 Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|

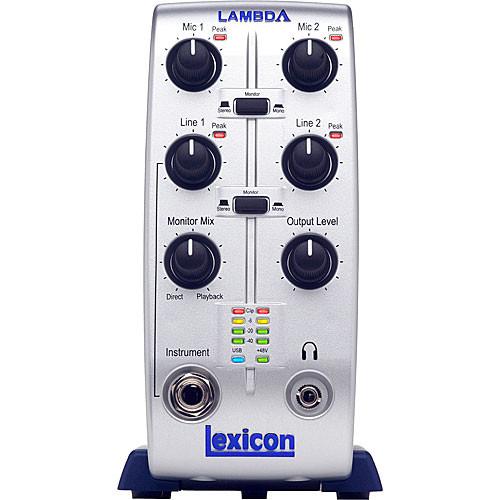

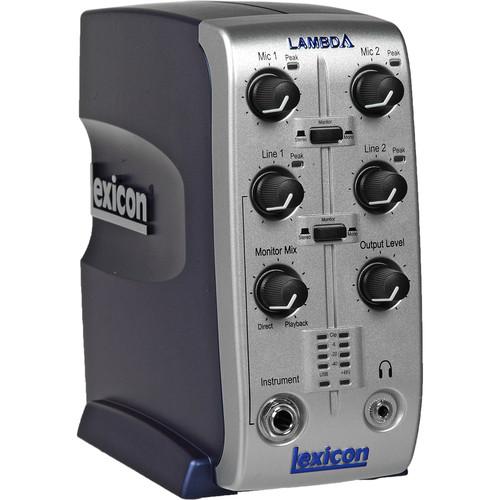

Product description The Lambda Studio from Lexicon is extremely compact, desktop recording studio that includes a USB powered I/O mixer/interface with Cubase LE recording software from Steinberg and the Lexicon Pantheon VST reverb plug-in. The interface has five inputs with two channel recording and playback. It includes two studio quality balanced microphone inputs with phantom power for professional condenser microphones and channel inserts that allow for patching in outboard equipment such as compressors or equalizers. Balanced analog line outputs can connect to powered monitor speakers or a mastering deck. A separate headphone output provides the freedom to not only record but also mix anywhere. MIDI I/O is also included. Steinberg's Cubase LE production suite software for PC and Mac computers offers integrated multi-track recording, editing and mixing of up to forty-eight audio tracks, sixty-four MIDI tracks, VST instruments and plug-in support and an array of additional features. Lexicon's Pantheon VST reverb plug-in delivers lush Lexicon reverbs that have been used on professional recordings for over thirty years. Alternatively, the Lexicon Lambda Studio may be used as an interface with almost any other major audio recording software such as Steinberg Nuendo, Cubase SX, MOTU Digital Performer, GarageBand, Cakewalk Sonar and many others. - Desktop recording system with USB interface and bundled software
- Dual low-noise microphone preamps with balanced XLR inputs and phantom power
- Stereo line inputs for keyboards, drum machines or analog output of a CD/MP3 player
- High-impedance front panel input for electric guitar or bass
- Separate microphone and line level input controls with individual peak indicators
- Monitor mix control for balancing an audio source between live input and playback mix level while recording. Can be switched to stereo or mono
- High-powered headphone amp offers ultra-clear fidelity while delivering ample power for any type of headphones
- Cubase LE software with Lexicon Pantheon reverb plug-in included
UPC: 691991500190 In the Box Lexicon Lambda Studio - 5 Input (2 Channel Record) / 2 Output Desktop Recording Studio with Bundled Software - Mac OS X and Windows XP Audio Interface USB Cable CD-ROM with Cubase LE Recording Software, USB Drivers and Lexicon Pantheon Reverb Plug-in One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon Lambda Studio - 5 Input 2 Output Desktop Recording Studio with Bundled Software - Mac OS X and Windows XP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

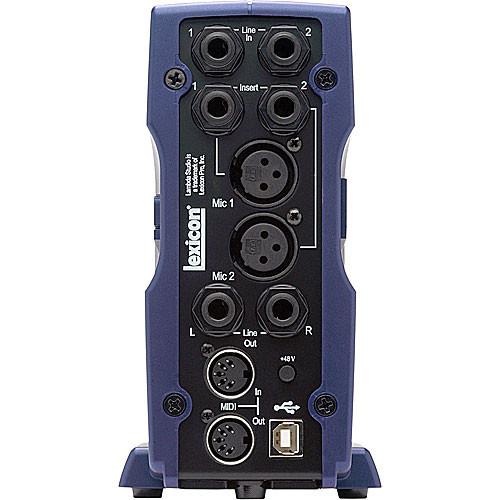

Technical parametersLexicon Lambda Specs | Converters | 24-bit | | Sample Rates | 44.1 and 48kHz | | Analog Input | 2 x XLR Microphone
2 x 1/4" TRS phone
1 x 1/4" TS phone
2 x 1/4" TRS phone Insert | | Analog Output | 2 x 1/4" TRS phone | | Digital Input | USB | | Digital Output | USB | | MIDI In/Out | Yes | | Sync In/Out | No | | Headphone Output | 1/8" TRS mini phone | | THD + N | <.009% A/D, 20Hz to 20kHz (line inputs) | | Dynamic Range | A/D: 104dB typical, A-weighted, 20Hz to 20kHz
D/A: 96dB typical, A-weighted, 20Hz to 20kHz | | Frequency Response | 20Hz to 20kHz, +0/-1dB referenced 1kHz | | System Requirements | Mac:Power PC G4 450MHz or faster
OS X 10.2.8 or higher
256MB RAM minimum (512MB recommended)
1GB available hard disk space
7200RPM hard disk type or betterPC:Pentium III 500MHz or AMD K7 processor, or better (Pentium 4/Athlon 1GHz or faster recommended)
Windows XP Home/Professional
256MB RAM minimum (512MB recommended)
1GB of available hard disk space
7200RPM hard disk type or better | | Dimensions (WxDxH) | 3 1/2" x 6 3/4" x 6 1/2" | | Weight | 1.92 lbs | | Specialties | Includes Steinberg's Cubase LE and Pantheon Reverb Plug-In | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 9.2 x 8.8 x 5.5" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
