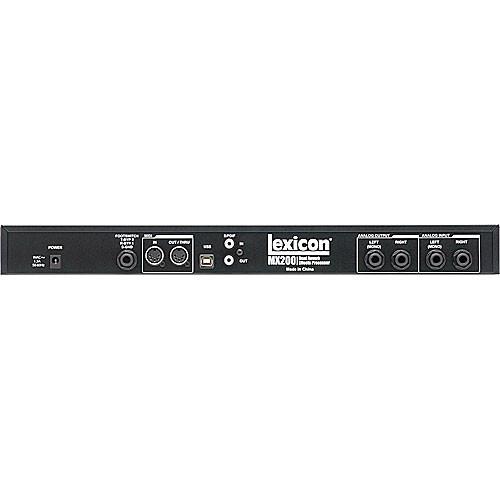

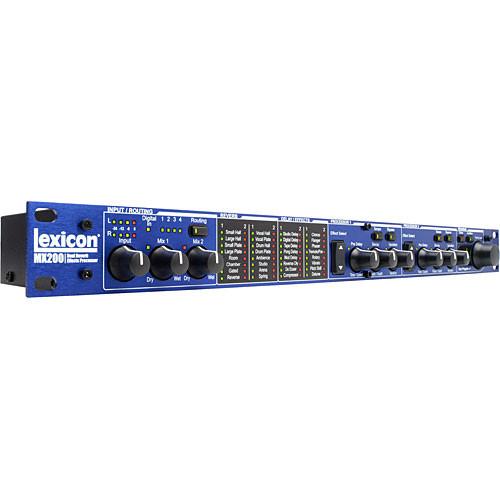

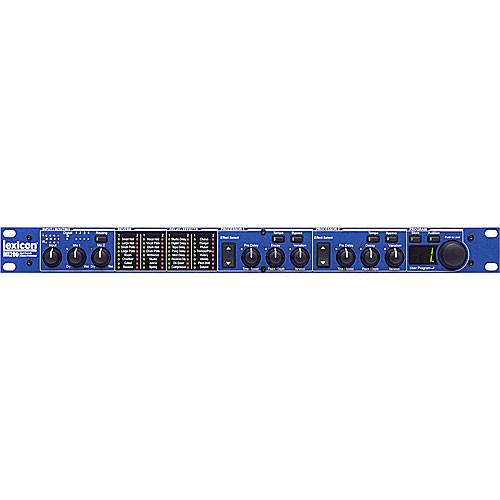

User Manual for Lexicon MX-200 24-Bit Dual DSP, Dual Channel Multi Effects Processor with Computer Control for Mac VST and Audio Units and Windows VST Based Applications Click to enlarge the picture
Contents of the user manual for the Lexicon MX-200 24-Bit Dual DSP, Dual
- Product category: Effects Processors Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Effects Processors
 |
User manual for the Lexicon MX-200 24-Bit Dual DSP, Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|
Product description The Lexicon MX200 dual reverb/effects processor is designed with both live sound reinforcement and home recording in mind. The unit features the deep, rich reverb and effects algorithms that Lexicon has been know for, while adding increased versatility with specialty effects and dbx dynamics. Each of the thirty-two reverbs and effects and their parameters are all instantly accessible within a single button-push or knob-turn on the front panel without wading through bank after bank of menus. With the addition of a powerful editor/librarian and VST/Audio Units software, the MX200 brings the Lexicon heritage to the desktop. Advances in computer-based recording have led many to value the control and simplicity of plug-in effects. However, reverb plug-ins are either processor hogs or don't sound great. The MX200 solves this dilemma by providing a USB interface with intuitive cross-platform VST and Audio Unit plug-in windows, allowing the unit to function as a "hardware plug-in" within VST and Audio Units-compatible DAWs with complete programmability and recall. Those using the MX200 in the live arena will appreciate its intuitive front panel layout, with an Active Reverb/Effects Matrix that constantly displays which two of the thirty-two available effects are active. All functions are available within a single button-push or knob-turn. - 16 legendary Lexicon reverbs
- Four routing configurations. Dual Mono, Cascade, Dual Stereo (Parallel) and Mono Split
- 99 factory and 99 user programs
- USB "Hardware Plug-In" feature
- MX-Edit editor/librarian software
UPC: 691991500169 In the Box Lexicon MX-200 24-Bit Dual DSP, Dual Channel Multi Effects Processor with Computer Control for Mac VST and Audio Units and Windows VST Based Applications External Power Supply Software CD ROM One (1) Year Warranty User Manual PDF 2.8mbecwdusvzaeuruubuayydeffqtdvsweuawqer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon MX-200 24-Bit Dual DSP, Dual Channel Multi Effects Processor with Computer Control for Mac VST and Audio Units and Windows VST Based Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon MX-200 Specs | Effects Type | Multi (reverb, pitch, dynamics and delay type effects) | | Channels | 2 | | Effect Variations | Sixteen reverb algorithms
Six types of delay
Eight modulated/pitch effects
Two dbx dynamics algorithms | | Presets | 99 | | User Memory | 99 | | Inputs | 2 x 1/4" TRS phone (balanced/unbalanced)
1 x RCA coaxial S/PDIF
USB | | Output | 2 x 1/4" TRS phone (balanced/unbalanced)
1 x RCA coaxial S/PDIF
USB (shared with input) | | AD/DA Conversion | 24-bit, 48kHz | | MIDI | MIDI In, Out/Thru | | External Storage | Sys-Ex
VST/Audio Units plug-in GUI interface | | Display | 2-character LED | | Frequency Response | 20Hz to 20kHz, reference 1kHz +/-1dB | | Dynamic Range | >108dB | | Noise | THD+N: <.007% 20Hz to 20kHz | | Dimensions (WxDxH) | 19" x 4 3/4" x 1 3/4" | | Weight | 3.75 lbs | | Specialties | Includes Windows XP/Mac OSX VST/Audio Units GUI interface | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 22.3 x 11.4 x 4.1" |
