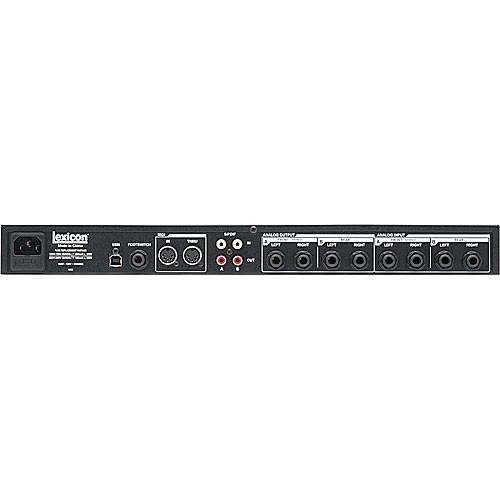

Product description The MX400 from Lexicon is a stereo/surround multi-FX processor offering rich, luscious reverbs, delays and modulation effects in a hardware unit with the flexibility of DAW VST/AU plug-in integration and without bogging down your CPU or resorting to expensive processing cards. The quad processing unit is equipped with four 1/4" inputs and outputs, two digital RCA (S/PDIF) inputs and outputs, and a USB cable, which provides control of all automation and recall parameters as you would with a software plugging, but with the sonic benefits that only Lexicon hardware can offer.

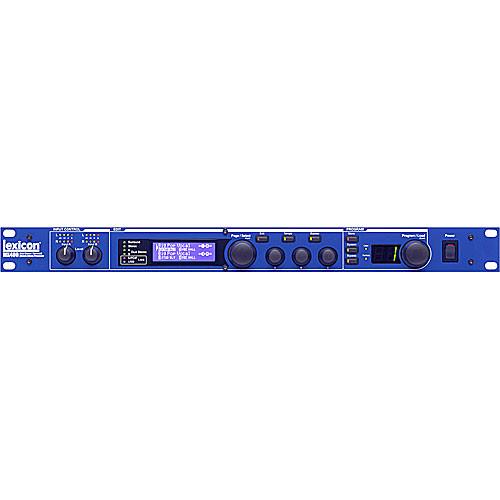

Also included with the "hardware plug-ins" for Mac and PC (32-bit only) is a copy of MX-Edit Librarian software, which allows you to store and recall custom programs or pull up your choice of 223 genuine Lexicon settings including 25 dedicated Surround Programs. There are seventeen Lexicon reverbs, seven delays and eight modulation effects plus dbx compression and de-essing available. For non-computer operation, the unit provides a generous LCD display with large knobs for quick navigation and easy programming. The MX400 ships with a power cord, USB cable, and a MX Edit/USB driver CD. - General Features
-
- 17 legendary Lexicon reverbs
- Lexicon delays & modulation effects
- dbx compression and de-essing
- Quad-processor design
- 7 effect routing options
- 99 Factory/99 user programs for Stereo mode
- 99 Factory/99 user programs for Dual-Stereo mode
- 25 Factory/25 user surround programs
- USB “Hardware Plug-In” feature with VST and Audio Units plug-in software
- MX-Edit Editor/Librarian software
- Dual S/PDIF Digital Input/Output
- 24 bit, 48 kHz/44.1 kHz sample rates
- Large front panel LCD display
- MIDI IN and THRU
- 1/4" / 6.35 mm TRS balanced or unbalanced I/O
- Effects
-
- Reverbs
- Small Hall
- Large Hall
- Surround Hall
- Small Plate
- Large Plate
- Room
- Chamber
- Gated
- Reverse
- Vocal Hall
- Vocal Plate
- Drum Hall
- Drum Plate
- Ambience
- Studio
- Arena
- Spring
- Delays
- Studio Delay
- Digital Delay
- Tape Delay
- Pong Delay
- Mod Delay
- Reverse Delay
- 2-Tap Delay
- dbx Dynamics
- Modulated Effects
- Chorus
- Flanger
- Phaser
- Tremolo/Pan
- Rotary
- Vibrato
- Pitch Shift
- Detune
UPC: 691991500237 In the Box Lexicon MX400 Dual Stereo/Surround Multi-FX Processor with DAW Integration (1/4" Connectors) AC Power Cable MX-Edit Editor/Librarian CD USB Cable Limited 1-Year Warranty User Manual PDF 3.6mbuffadecedzfbacrcydtyfsutrbatdaxbtttyws Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon MX400 Dual Stereo Surround Multi-FX Processor with DAW Integration in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon MX400 Specs Analog Audio Inputs | Connectors: 4x 1/4" / 6.35 mm TRS balanced or unbalanced Impedance: 50 kOhms balanced, 25 kOhms unbalanced Input Level: +4 dBu nominal, +24 dBu maximum, 48 kHz or 44.1 kHz A/D Conversion: 24-bit, 48 kHz, 128x oversampling | Analog Audio Output | Connectors: 4x 1/4" / 6.35 mm TRS balanced or unbalanced Impedance: 2 kOhms balanced, 1 kOhms unbalanced Output Level: +4 dBu or 10 dBV nominal (software adjustable), 24 dBu maximum, 48 kHz or 44.1 kHz D/A Conversion: 24-bit, 48 kHz, 128x oversampling | Analog Audio Performance | Frequency Response: 10 Hz to 20 kHz +0/-0.5 dB THD+N: <0.0019% 10 Hz to 20 kHz Dynamic Range: >109 dB (A-weighted) A/A Crosstalk: Typical <-80 dB 20 Hz to 20 kHz | Digital Inputs and Outputs | Connectors: Dual RCA phono (S/PDIF) Format: S/PDIF 24-bit Sample Rate: 44.1 or 48 kHz Processing Delay: 3.7 ms @ 48 kHz Frequency Response: 10 Hz to 22 kHz, ±0.5 dB @ 48 kHz | Control Interface | USB: USB 1.0 for MX-EDIT Editor/Librarian and VST/Audio Units plug-ins MIDI: In/Out 5-pin DIN Foot Pedal: 1/4" / 6.35 mm phone jack | Power | 117 or 230 VAC, 18 W | Dimensions (W x H x D) | 19.0 x 1.8 x 7.3" / 482.6 x 44.5 x 184.2 mm | Weight | 5.8 lb / 2.6 kg | | Package Weight | 7.8 lb | Box Dimensions (LxWxH) | 22.2 x 11.5 x 3.8" |
