User Manual for Lexicon PCM92 - Reverb Processor Click to enlarge the picture
Contents of the user manual for the Lexicon PCM92 - Reverb Processor
- Product category: Effects Processors Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Effects Processors
 |
User manual for the Lexicon PCM92 - Reverb Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|

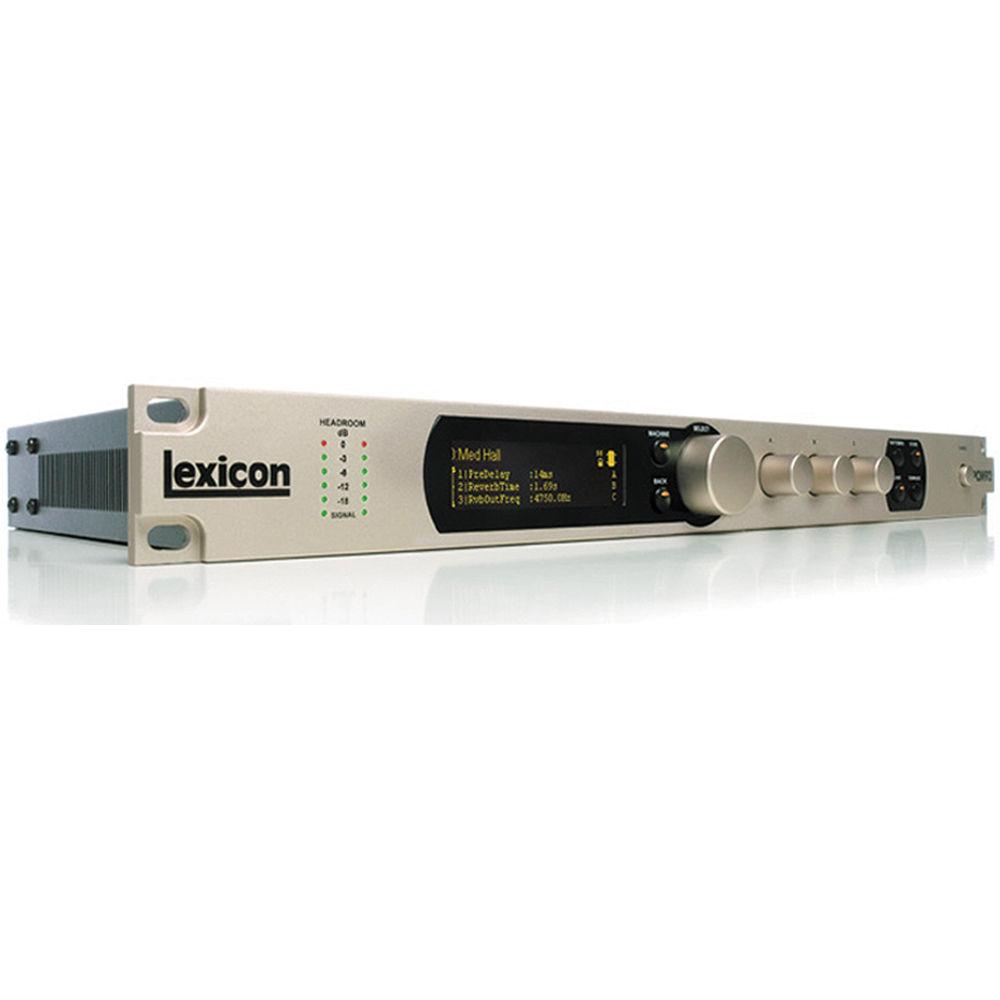

Product description The PCM92 from Lexicon is a stereo reverb/effects processor that is built on the legendary design of the PCM81 and PCM91, and the technology of the PCM96. The unit delivers 28 new and legendary Lexicon reverbs, delays and modulation effects, and is equally suitable for a front-of-house rack as well as a recording suite. The PCM92 provides new capabilities to traditional reverbs by adding multi-mode filters in the audio chain. This allows more exact shaping of the reverb while still maintaining the distinctive Lexicon sound. All reverbs also have an "Infinite" switch that allows the reverb to run forever, a useful feature for creating unusual backgrounds and sound effects. The new Room algorithm allows Reflection patterns to be easily selected, scaled and equalized, all while simultaneously passing audio. They can be instantly reversed or combined with a traditional reverb to extend the decay, or to bring a stronger sense of space surrounding the source material. With 2 channels of analog and 2 channels of AES/EBU digital input and output, as well as MIDI and Ethernet connectivity, the PCM92 easily fits into a variety of recording and live sound environments. - Stereo reverb processor with 28 Lexicon studio-standard reverbs, delays, and modulation effects
- Comprehensive collection of over 1200 finely-crafted factory presets from Lexicon's immense library of sounds
- Lexicon's new Room algorithm, used to generate a vast array of room-related effects for music and post
- Full system configuration and control with HiQnet System Architect
- 44.1 to 96 kHz sample rate with 32-bit floating point processing
- Ethernet connectivity and full MIDI control
- Foot controller inputs make it easy to change presets and adjust parameters during live performances
- High-resolution OLED display is easy to read in all light conditions
UPC: 691991500398 In the Box Lexicon PCM92 - Reverb Processor AC Power Cable Software CD-ROM One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon PCM92 - Reverb Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon PCM92 Specs | Effects Type | Reverb | | Channels | 2 | | Effect Variations | Chamber
Random Delay
Random Hall
Plate
Dual Delay
Resonant Chords
Chorus/Flange
Concert Hall
Room
Hall
Signal Generator
VSO Pitch

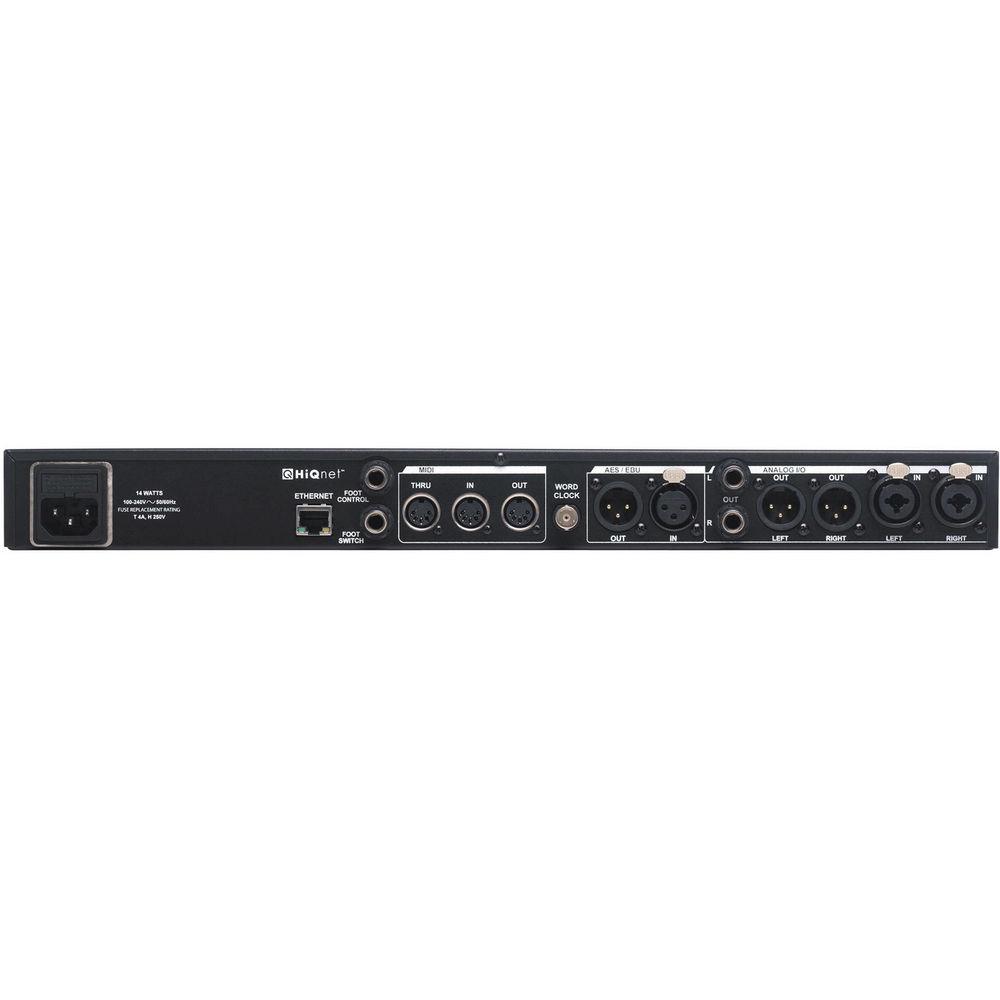

Multivoice Pitch | | Presets | 1200 | | User Memory | Shared with presets | | Inputs | 2 x 1/4" TRS/XLR combi analog
1 x XLR AES/EBU
1 x BNC Wordclock | | Output | 2 x XLR analog
2 x 1/4" TRS phone analog
1 x XLR AES/EBU | | Other Connectors | 1 x RJ-45
1 x 1/4" TRS phone Momentary Footswitche
1 x 1/4" TRS phone Foot Pedal | | MIDI | In/Out/Thru | | AD/DA Conversion | 24-bit | | External Storage | SysEx | | Display | High-resolution, high-contrast OLED | | Frequency Response | 20Hz to 40KHz, +0/-3.0dB @ 96kHz | | Dynamic Range | 112dB unweighted
115dB A-weighted | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 19 x 9.5 x 1.75" (483 x 241 x 45mm) | | Weight | 8 lbs (3.6 kg) | | Specialties | 32/64-bit floating point internal audio DSP | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 24.0 x 14.8 x 4.7" |
