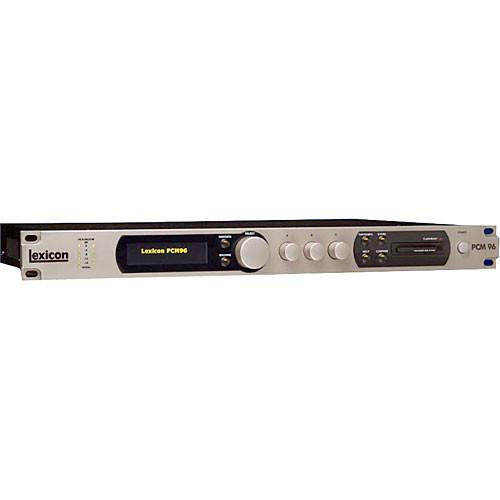

User Manual for Lexicon PCM96 - Reverb Processor Click to enlarge the picture
Contents of the user manual for the Lexicon PCM96 - Reverb Processor
- Product category: Effects Processors Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Effects Processors
|
User manual for the Lexicon PCM96 - Reverb Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|
Product description The PCM96 from Lexicon is a hardware stereo reverb/effects processor that provides a blend of both heritage and innovation. The processor delivers 28 algorithms drawn from new and reworked legendary Lexicon reverbs, delays and modulation effects. The former include completely new Room and Hall algorithms. The new Room algorithm allows Reflection patterns to be easily selected, scaled and equalized, all while simultaneously passing audio. They can be instantly reversed or combined with a traditional reverb to extend the decay, or to bring a stronger sense of space surrounding the source material. The addition of multi-mode filters at several spots in the audio flow provides new capabilities to Lexicon's traditional reverbs by allowing more exact shaping of the reverb, while still maintaining the distinctive Lexicon sound. All reverbs also have an "Infinite" switch that allows the reverb to run forever, a useful feature for creating unusual backgrounds and sound effects for post. For Mac users, the unit can function as a control-only insert, or FireWire streaming audio plug-in inside any VST or Audio Units software. With two channels XLR analog and two channels XLR AES/EBU digital input and output, as well as MIDI, Ethernet and FireWire connectivity, the PCM96 easily fits into a variety of recording and live sound environments. - Stereo reverb processor built on a rich heritage of processing that includes the 480L and 960L, along with the PCM series, but designed for the modern studio environment
- Includes 28 new and legendary Lexicon reverbs, delays and modulation effects
- New "Room" algorithm, used to generate a vast array of room-related effects for music and post
- Over 1,200 factory presets, including recognizable classics from Lexicon's immense library of sounds
- Seamless automation and control via Ethernet or FireWire
- Hardware Plug-In capability inside Mac VST and Audio Units production software
- 32-bit floating point processing
- 2 channel XLR analog input and output
- 2 channel XLR digital AES/EBU input and output
- Compact Flash Card compatibility for additional storage
UPC: 691991500268 In the Box Lexicon PCM96 - Reverb Processor AC Power Cable Ethernet Cable Software CD-ROM One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon PCM96 - Reverb Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon PCM96 Specs | Effects Type | Reverb | | Channels | 2 | | Effect Variations | Chamber (stereo and mono)
Random Delay (stereo and mono)
Random Hall (stereo and mono)
Plate (stereo and mono)
Dual Delay (stereo and mono)
Resonant Chords (stereo and mono)
Chorus/Flange (stereo only)
Concert Hall (stereo only)
Room (stereo and mono)
Hall (stereo and mono)
Signal Generator (stereo and mono) | | Presets | 1,200 | | User Memory | 768 internal
1,536 on optional memory card | | Inputs | 2 x XLR analog
1 x XLR AES/EBU
1 x BNC Wordclock | | Output | 2 X XLR analog
1 x XLR AES/EBU | | Other Connectors | 2 x FireWire
2 x RJ-45 | | AD/DA Conversion | 24-bit | | MIDI | In/Out/Thru | | External Storage | Type I Compact Flash | | Display | High-resolution, high-contrast OLED | | Frequency Response | 20Hz to 40KHz, +0/-3.0dB @ 96kHz | | Dynamic Range | 112dB unweighted
115dB A-weighted | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 19 x 12.5 x 1.75" (483 x 318 x 45mm) | | Weight | 8.65 lbs (3.9 kg) | | Specialties | Four-channels FireWire streaming out of and return to a Mac based DAW | | | | Package Weight | 12.46 lb | | Box Dimensions (LxWxH) | 24.0 x 15.5 x 4.5" |
