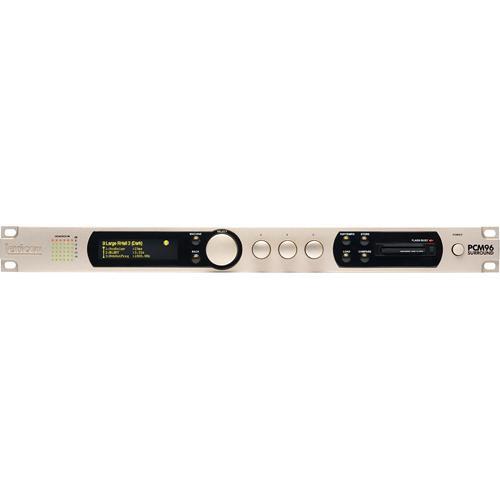

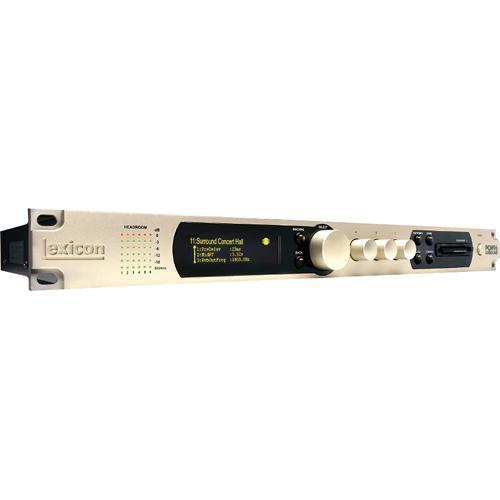

User Manual for Lexicon PCM96 Surround - Reverb Processor Click to enlarge the picture
Contents of the user manual for the Lexicon PCM96 Surround - Reverb Processor
- Product category: Effects Processors Lexicon
- Brand: Lexicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lexicon Effects Processors
 |
User manual for the Lexicon PCM96 Surround - Reverb Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lexicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lexicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lexicon product will considerably shorten its lifespan!
|
Product description The PCM96 Surround from Lexicon is a parallel stereo and surround hardware reverb/effects processor that builds on the success of the PCM96, while once again providing a blend of both heritage and innovation. The processor delivers 50 legendary Lexicon reverbs, delays and modulation effects, as well as new pitch algorithms and a new Surround Room. The addition of multi-mode filters at several spots in the audio flow provides new capabilities to Lexicon's traditional reverbs by allowing more exact shaping of the reverb, while still maintaining the distinctive Lexicon sound. All reverbs also have an "Infinite" switch that allows the reverb to run forever, a useful feature for creating unusual backgrounds and sound effects for post. For Mac users, the unit can function as a control-only insert, or FireWire streaming audio plug-in inside any VST, Audio Units or RTAS software. With 6 channels of analog and digital input/output, as well as MIDI, Ethernet and FireWire connectivity, the PCM96 Surround easily fits into a variety of recording and post production sound environments. - Parallel stereo and surround reverb processor built on a rich heritage of processing that includes the 480L and 960L, along with the PCM series, but designed for the modern studio environment
- 6 analog inputs and 6 analog outputs on 25-pin D-Sub connectors
- Includes 50 legendary Lexicon reverbs, delays and modulation effects
- "Surround" algorithm, used to generate a vast array of room-related effects for music and post
- Over 2,200 factory presets, including recognizable classics from Lexicon's immense library of sounds
- Seamless automation and control via Ethernet or FireWire
- Hardware Plug-In capability inside Mac VST, Audio Units or RTAS production software
- 32-bit floating point processing
- External BNC Wordclock input
- Compact Flash Card compatibility for additional storage
UPC: 691991500282 In the Box Lexicon PCM96 Surround - Reverb Processor (Analog and Digital I/O) AC Power Cable Ethernet Cable Software CD-ROM One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lexicon PCM96 Surround - Reverb Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLexicon PCM96 Specs | Effects Type | Reverb | | Channels | 6 | | Effect Variations | Stereo and Surround:
Room
Hall
Chamber
Random Delay
Classic (Random Hall)
Plate
Dual Delay
Ambience
Resonant Chords
Chorus/Flange
Concert Hall
Signal Generator
Pitch | | Presets | 2200+ | | User Memory | 768 internal

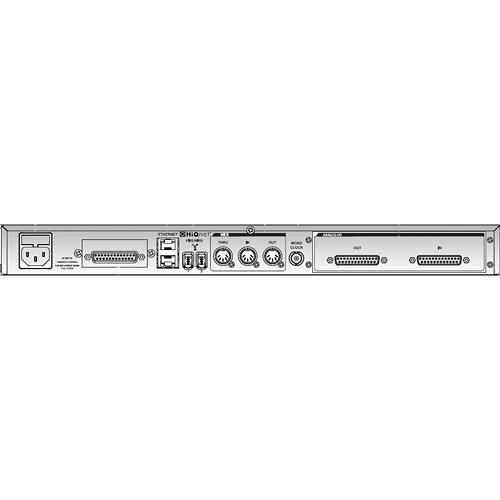

2048 on optional memory card | | Analog Input | 1 x 25-pin D-Sub | | Analog Output | 1 x 25-pin D-Sub | | Digital Input | 1 x 25-pin D-Sub (shared with output) | | Digital Output | 1 x 25-pin D-Sub (shared with output) | | Other Connectors | 2 x FireWire
2 x RJ-45
1 x BNC Wordclock input | | AD/DA Conversion | 24-bit | | MIDI | In/Out/Thru | | External Storage | Type I Compact Flash | | Display | High-resolution, high-contrast OLED | | Frequency Response | 20Hz to 46kHz, +0/-0.5dB @ 96kHz | | Dynamic Range | 112dB unweighted
115dB A-weighted | | Noise | THD: <0.002% 20Hz to 20kHz @ +4dBu | | Power Requirements | 100/120~220/240VAC, 50/60Hz | | Dimensions (WxDxH) | 19 x 12.5 x 1.75" (483 x 318 x 45mm) | | Weight | 14.25 lbs (6.5 kg) | | Specialties | Seamless automation and control via Ethernet or FireWire | | | | Package Weight | 16.3 lb | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 4.5" |
