User Manual for LG 20CAV37K-B 20" 16:10 V-Series Zero Client TERA2 IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 20CAV37K-B 20" 16:10 V-Series Zero
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 20CAV37K-B 20" 16:10 V-Series Zero contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

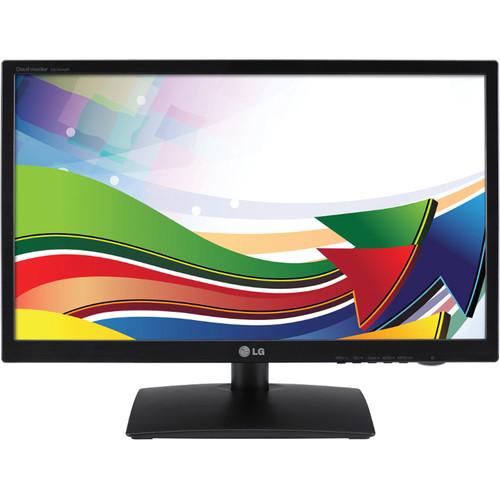

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The black 20CAV37K-B 20" 16:10 V-Series Zero Client TERA2 IPS Monitor from LG utilizes the Teradici TERA 2 Chipset with Amazon WorkSpaces to provide a high-performance, secure, and easy-to-manage cloud desktop solution. The V-Series Monitor allows advanced computing with high security, while reducing system building and maintenance costs. Its LED backlight technology also provides a bright and clear display to facilitate a comfortable computing experience for daily office work and multimedia applications. The LG Cloud Monitor (Zero Client) combined with a Teradici PCoIP Processor and Amazon WorkSpaces results in an innovative PCoIP Virtual Computing solution. - Ultra Secure
-
- PCoIP Zero Client significantly reduces the risk of virus, spyware, and hacking because all data, storage, and memory are stored at the central data center
- Data never leaves the data center but it only transmits pixels, making our zero clients suitable for security critical organizations such as financial firms
- Unique USB authorization provides enhanced security
- Zero Client Flexibility
-
- PCoIP Zero Clients combined with Amazon WorkSpaces are secure and easy to manage desktops, providing an outstanding user experience
- Virtual computing via LAN/WAN utilizes existing enterprise servers, workstations, and blade personal computers
- Allows any user to quickly utilize the latest OS and software installed on the host
- Additional Features
-
- Tera2321 Processor
- Built-in speakers provide true all-in-one solution
- Wide viewing capabilities of IPS (In-Plane Switching) with the remarkable picture quality of LED backlighting
- Six USB 2.0 inputs offer various usage options
- Upgraded usability with UPoE ready
- TAA compliant
- Reader Mode
- Flicker Safe
- Wake On LAN
UPC: 719192200715 In the Box LG 20CAV37K-B 20" 16:10 V-Series Zero Client TERA2 IPS Monitor Power Cord RGB Cable Limited 3-Year Warranty More from Manufacturer dudbvtqfsqtzdscqtvvasuxturwcezfs Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 20CAV37K-B 20" 16:10 V-Series Zero Client TERA2 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 20CAV37K-B Specs | Panel Size | 20" (51 cm) | | Panel Type | AH-IPS | | Processor | Teradici Tera2321 PCoIP Chip | | RAM | 512 MB | | Protocol | PCoIP | | Networking | 10 / 100 / 1000 | | Color Depth | 16.7 million | | Pixel Pitch (H x V) | 0.2907 x 0.2915 | | Aspect Ratio | 16:10 | | Resolution | 1440 x 900 | | Brightness | 250 cd/m2 | | Contrast | 1000:1 (Typical)
5,000,000:1(DFC) | | Response Time | 14 ms (GtG) | | Viewing Angle | 178°/178° | | Surface Treatment | Non-glare | | D-SUB | Yes | | DVI Output | Extend, cloning | | USB | 6 x USB 2.0 (4 x back, 2 x side) | | Audio I/O | Mic in
Headphone out | | Power | Type: Adapter (19 VDC)
Input: 100 to 240 VAC
Normal: 18 W (monitor), 23 W (cloud)
Power Saving Mode: 0.5 W (monitor), 5.5 W (cloud)
DC Off: 0.5 W (monitor), 0.5 W (cloud) | | Frequency | H-Frequency (Analog): 30 to 69 kHz
V-Frequency (Digital): 57 to 63 Hz | | Speakers | 2 x 5 W | | Certifications | UL(cUL), TUV-Type, FCC-B, CE, RoHS | | Stand | Base detachable
Tilt: -5-35°
Swivel: Yes
Height: 5.1" (130 mm)
Pivot: 90° | | VESA Standard | 100 x 100 mm | | Dimensions (W x H x D) | With Stand: 17.8 x 14.5 x 10.2" (45.2 x 36.8 x 25.9 cm)
Without Stand: 17.8 x 11.8 x 2" (45.2 x 29.9 x 5.1 cm) | | Weight | With Stand: 9.3 lb (4.2 kg)
Without Stand: 7.8 lb (3.5 kg) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 20.3 x 14.5 x 7.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
