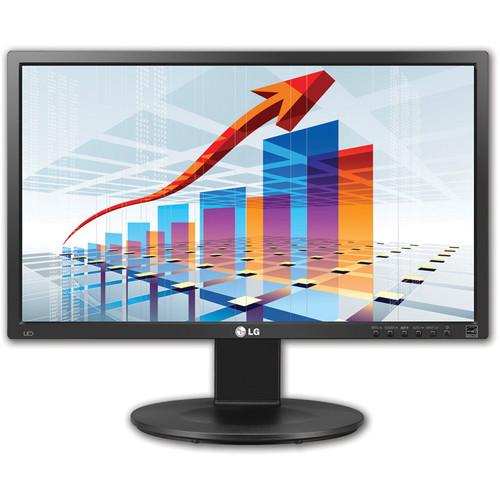

User Manual for LG 22MB35DM-I 22" LED Back-Lit Monitor with Built-In Speakers and DVI-D Input Click to enlarge the picture
Contents of the user manual for the LG 22MB35DM-I 22" LED Back-Lit Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 22MB35DM-I 22" LED Back-Lit Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 22" 22MB35DM-I LED Back-Lit Monitor from LG features a 16:9 aspect ratio with a 1920 x 1080 native resolution. In addition, this IPS (in-plane switching) monitor supports 178° horizontal and vertical viewing angles allowing for enhanced viewing with reduced distortion. This display supports a 1,000:1 contrast ratio and has a 5 ms response time designed to further enhance your photos, videos, and other content. The 22MB35DM-I has two built-in speakers. Its' rear panel features a DVI-D input, a D-Sub input, a PC audio input, and a headphone jack. The monitor has a detachable base, and is VESA compliant wall-mountable.
The monitors' Reader Mode is activated at the touch of a button. It allows the reduction of blue light emissions that can be harmful to the eye. The Flicker-Safe technology protects users' eyes from fatigue by reducing flickering. Through detailed color calibration testing, the monitor maintains its color standard with software calibration and a factory preset, minimizing differences in color space and expressions between the original images, monitor screen, and printed result. - Reader Mode
- Allows the reduction of blue light emissions that can be harmful to the eyes.
- Flicker-Safe
- Protects users' eyes from fatigue by reducing flickering
- Total Color Management
- Through detailed color calibration testing, the monitor maintains its' color standard with software calibration and a factory preset, minimizing differences in color space and expressions between the original images, monitor screen, and printed result
- Smart Energy Saving
- Conserves energy by using luminance compensation algorithm
UPC: 719192197084 In the Box LG 22MB35DM-I 22" LED Back-Lit Monitor with Built-In Speakers and DVI-D Input Power Cord D-Sub Cable DVI-D Cable PC Audio Cable Limited 3-Year Warranty User Manual PDF 9.5mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 22MB35DM-I 22" LED Back-Lit Monitor with Built-In Speakers and DVI-D Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 22MB35DM-I Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% CIE1976 | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 20 W (Eco)
0.3 W (Standby)
26 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.0 x 8.3 x 15.7" / 50.8 x 21.1 x 39.9 mm (With Stand)
20.0 x 12.0 x 2.4" / 50.8 x 30.5 x 6.1 mm (Without Stand) | | Weight | 6.8 lb / 3.1 kg (With Stand)
6.2 lb / 2.8 kg (Without Stand) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
