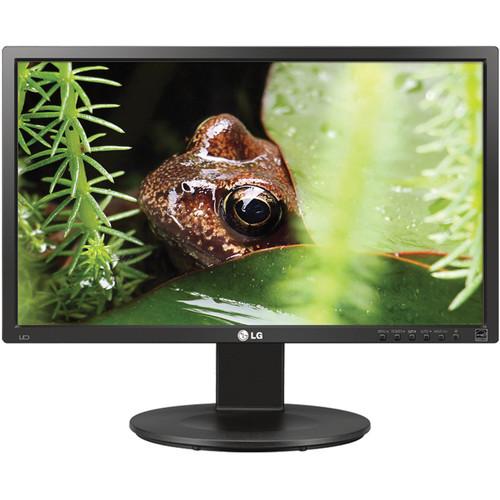

User Manual for LG 22MB35V-I 22" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 22MB35V-I 22" 16:9 IPS Monitor
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 22MB35V-I 22" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More racexbxv The black 22MB35V-I 22" 16:9 IPS Monitor from LG provides a clear picture with its 1920 x 1080 native resolution, while a 5ms response time helps to reduce lag and ghosting when viewing movies or videos. The IPS (In-Plane Switching) panel provides enhanced horizontal and vertical viewing angles of up to 178°, making it easy to view the screen from virtually any angle. Setup and configuration of this LG monitor has also been simplified as it comes equipped with HDMI and D-Sub inputs to connect to a variety of computer configurations. The featured Reader Mode allows the reduction of blue light emissions with a touch of a button. - Reader Mode
- With a touch of a button, Reader Mode allows the reduction of blue light emissions that can be harmful to the eyes.
- Flicker-Safe
- LG's Flicker-Safe technology protects your eyes from fatigue by reducing flickering to almost zero.
- HDMI
- HDMI input will provide a simple source connection for 1920 x 1080p resolution.
- Additional Features
-
- Original Ratio
- DDC/CI
- HDCP
- Intelligent Auto (Auto Resolution)
- Key Lock
- Plug-&-Play
- Color Calibrated
- Six Axis Control
UPC: 719192200623 In the Box LG 22MB35V-I 22" 16:9 IPS Monitor Power Cord HDMI Cable DVI-D Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 22MB35V-I 22" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 22MB35V-I Specs | Panel Type | IPS | | Panel Size | 22" (56 cm) Class
Viewable Image Area: 21.5" (54.6 cm) | | Pixel Pitch | 0.248 x 0.248 mm | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Color Gamut (CIE1976) | 72% | | Color Depth (Number of Colors) | 16.7 million colors | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic | 5,000,000:1 | | Viewing Angle (H x V) | 178°/178° | | Response Time (GtG) | 5 ms | | Surface Treatment | Anti-glare, 3H | | Inputs | D-Sub
DVI-D
HDMI | | Audio | Headphone output | | Power | Type: Built-in
Input: 100 to 240 V, 50/60 Hz
Normal On (EPA): 15.9 W
Normal On (Typical): 21.7 W
Power Save/ Sleep Mode: Maximum 0.3 W
DC Off: Maximum 0.3 W | | Frequency | H-Frequency (D-Sub): 30 to 83 kHz
V-Frequency (D-Sub): 56 to 75 Hz
H-Frequency (DVI-D): 30 to 83 kHz
V-Frequency (DVI-D): 56 to 75 Hz
H-Frequency (HDMI): 30 to 83 kHz
V-Frequency (HDMI): 56 to 61 Hz | | Certifications | Safety: TCO (6.0), UL (cUL), TUV-GS, TUV-Ergo, FCC-B, CE, ErP
ISO13406-2 (ISO 9241-307), ENERGY STAR, EPEAT Gold | | System Requirement | Windows 10 | | Tilt (Angle) | -5-20° | | Vesa Standard Mount Interface | 100 x 100 mm | | Dimensions | With Stand: 20 x 15.7 x 8.3" (50.8 x 39.9 x 21.1 cm)
Without Stand: 20 x 12 x 2.4" (50.8 x 30.5 x 6.1 cm) | | Weight | With Stand: 6.8 lb (3.1 kg)
Without Stand: 6.2 lb (2.8 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 23.0 x 14.5 x 5.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
