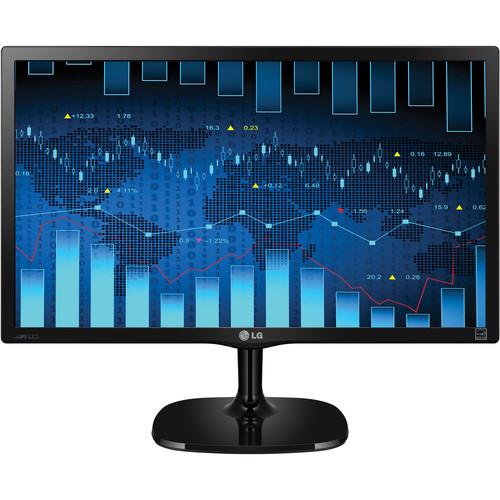

User Manual for LG 22MC57HQ-P 22" IPS Multi-Tasking LED Monitor Click to enlarge the picture
Contents of the user manual for the LG 22MC57HQ-P 22" IPS Multi-Tasking LED
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
|
User manual for the LG 22MC57HQ-P 22" IPS Multi-Tasking LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More yzfsuzqczv The 22MC57HQ-P from LG is a 22" IPS multi-tasking LED monitor featuring a 16:9 aspect ratio with a 1920 x 1080 native resolution. In addition, this IPS (in-plane switching) monitor supports 178° horizontal and vertical viewing angles allowing for enhanced viewing with reduced distortion. This display supports a 1,000:1 contrast ratio and has a 5 ms response time designed further enhance your photos, videos, and other content. The 22MC57HQ-P's rear panel features an HDMI and a D-Sub input. The monitor has a detachable base, and is VESA compliant wall-mountable. The 4-Screen Split feature allows you to run several programs and have multiple active windows on the screen at the same time. The Flicker-Free technology allows you to work for longer periods of time without straining your eyes. The Reader Mode is activated with a touch of a button. It allows the reduction of blue light emissions that can be harmful to the eyes, while the Color Wizard helps vision impaired viewers to adjust the RED and GREEN levels accordingly to easily distinguish colors. - 4-Screen Split
- Allows you to run several programs and have multiple active windows on the screen at the same time
- Flicker-Safe
- Protects users' eyes from fatigue by reducing flickering
- Reader Mode
- Allows the reduction of blue light emissions that can be harmful to the eyes
- Color Wizard
- Provides vision impaired viewers the ability to adjust the RED and GREEN levels accordingly to easily distinguish colors
- Smart Energy Saving
- Conserves energy by using a luminance compensation algorithm
UPC: 719192196483 In the Box LG 22MC57HQ-P 22" IPS Multi-Tasking LED Monitor (21.5" Diagonal) Power Cord D-Sub Cable Limited 3-Year Warranty User Manual PDF 7.7mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 22MC57HQ-P 22" IPS Multi-Tasking LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 22MC57HQ-P Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% CIE1976 | | Response Time | 14 ms
5 ms (Overdrive) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.24795 x 0.24795 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x HDMI
1 x VGA | | Supported Languages | Finnish
Korean
Hindi
Portuguese
Russian
English
Brazilian Portuguese
Spanish
German
Japanese
Swedish
Italian
Greek
Ukrainian
Traditional Chinese
Polish
French | | | | Power Consumption | 21 W (Eco)
24 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 20.1 x 16.2 x 7.7" / 51.1 x 41.1 x 19.5 mm (With Stand)
20.1 x 12.4 x 2.6" / 51.1 x 31.5 x 6.6 mm (Without Stand) | | Weight | 6 lb / 2.7 kg
5.5 lb / 2.5 kg (Without Stand) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 22.5 x 14.5 x 4.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
