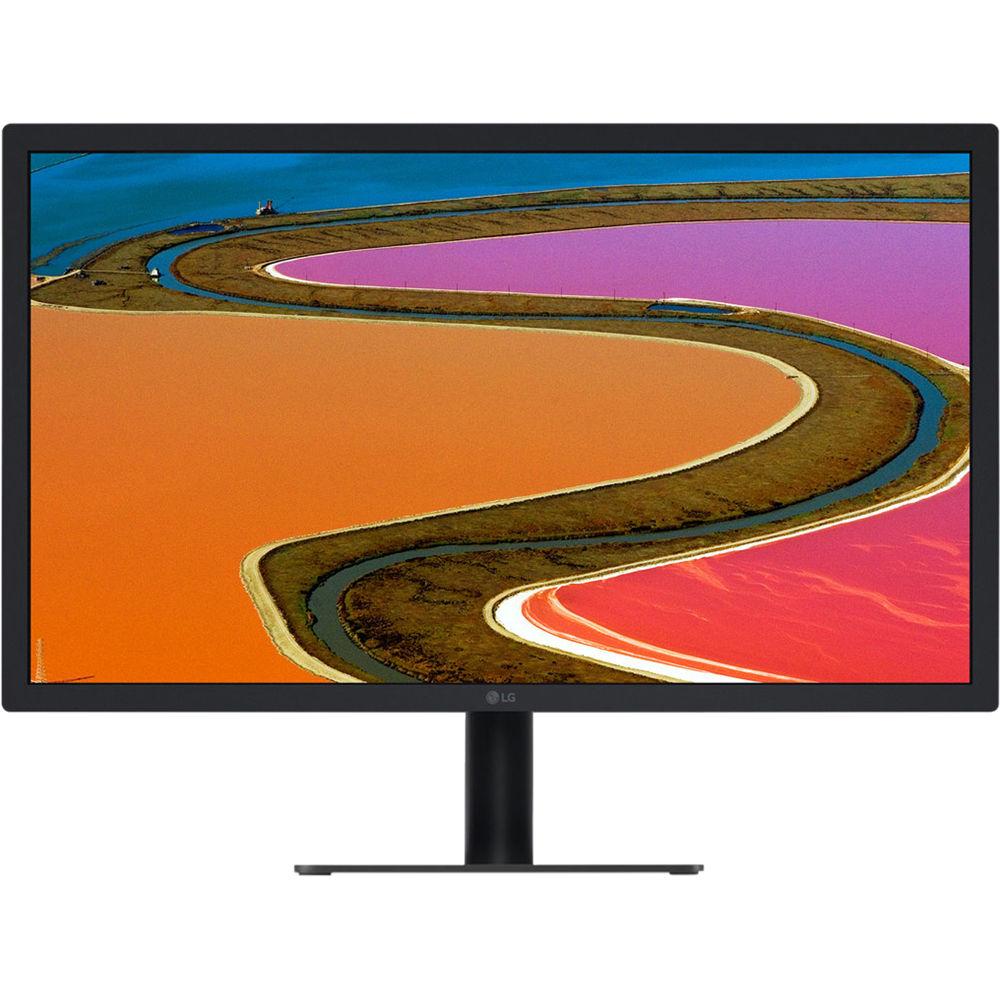

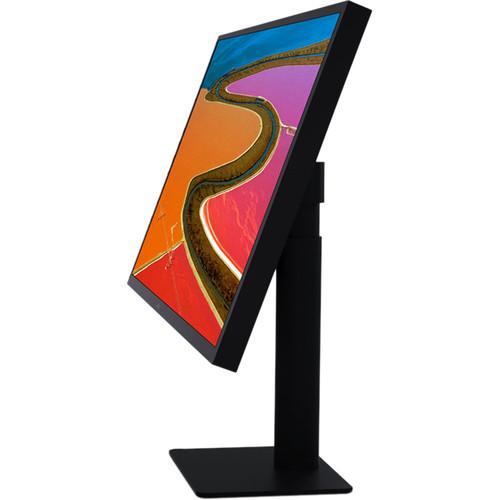

User Manual for LG 22MD4KB-B UltraFine 21.5" 16:9 4K IPS Monitor Click to enlarge the picture
Contents of the user manual for the LG 22MD4KB-B UltraFine 21.5" 16:9 4K
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 22MD4KB-B UltraFine 21.5" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

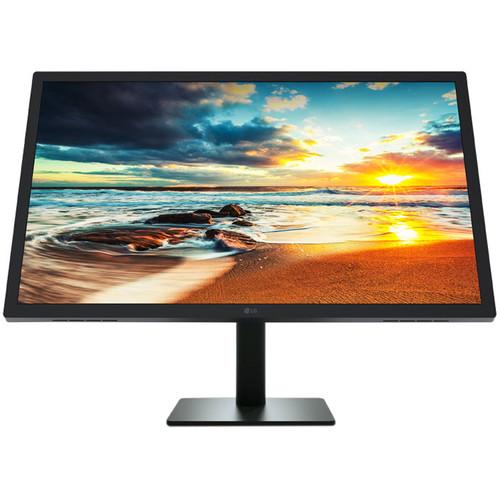

Product description LG Ultrafine 4K & 5K Monitors Offer USB Type-C Compatibility Read More drysqwsdfzvq The 22MD4KB-B UltraFine 21.5" 16:9 4K IPS Monitor from LG is a unique display that features only USB Type-C connectivity, which makes it suitable for Type-C equipped laptops such as the MacBook or MacBook Pro. Using the included Type-C cable, it supports 4K video, audio via its two 5W speakers, power delivery, as well as DisplayPort Alt Mode. Moreover, it has a 4096 x 2304 resolution for crisp and clear details and a 14 ms (GtG) response time.

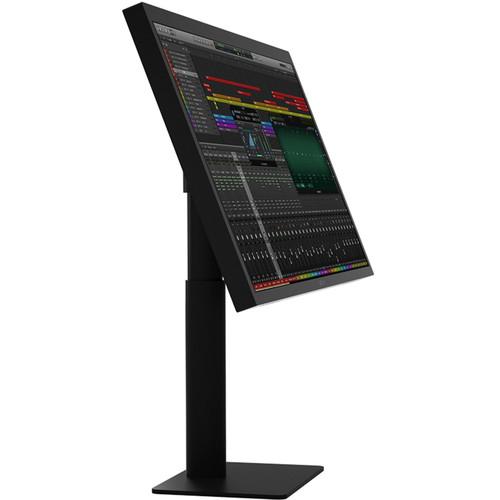

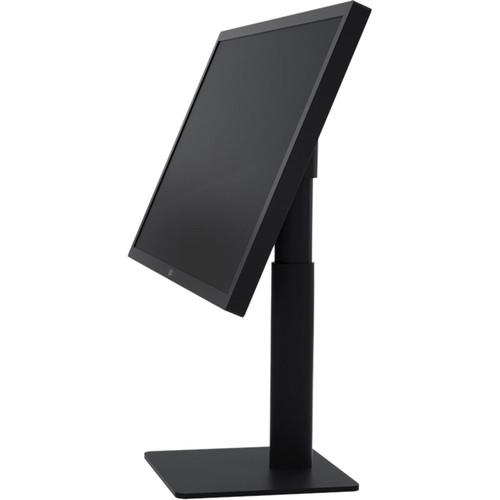

Built with an IPS (In-Plane Switching) panel, it offers wide 178° viewing angles and vivid colors. Combined with its 1200:1 static contrast ratio, 500 cd/m² brightness rating, and support for 8-bit color, you'll be able to enjoy deeper blacks and brighter bright colors for a livelier viewing experience. Once connected to your system, you can tilt and adjust its height to fit your viewing preference, or use its 100 x 100mm VESA mounting holes to install an optional mount, stand, or arm. - DCI-P3 99%

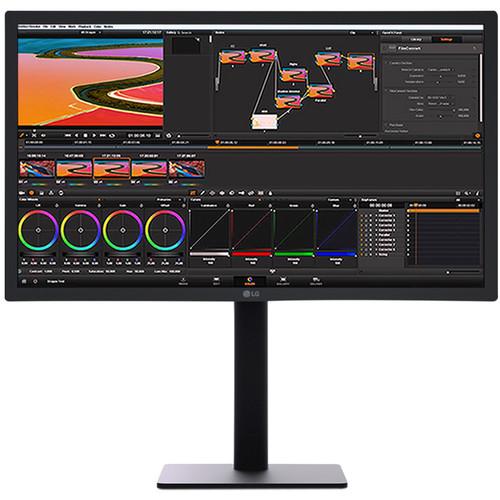

- DCI-P3 is a common RGB color space for digital movie projection, and with a 99% coverage, this monitor is suitable for users handling color-sensitive work.
- OnScreen Control
- Instead of fiddling with hardware buttons, OnScreen Control provides you with a simple user interface on your desktop that you can use to customize and adjust settings as needed.
- My Display Presets
- Save your display presets for brightness, contrast, and much more, and easily swap through them with set profiles.

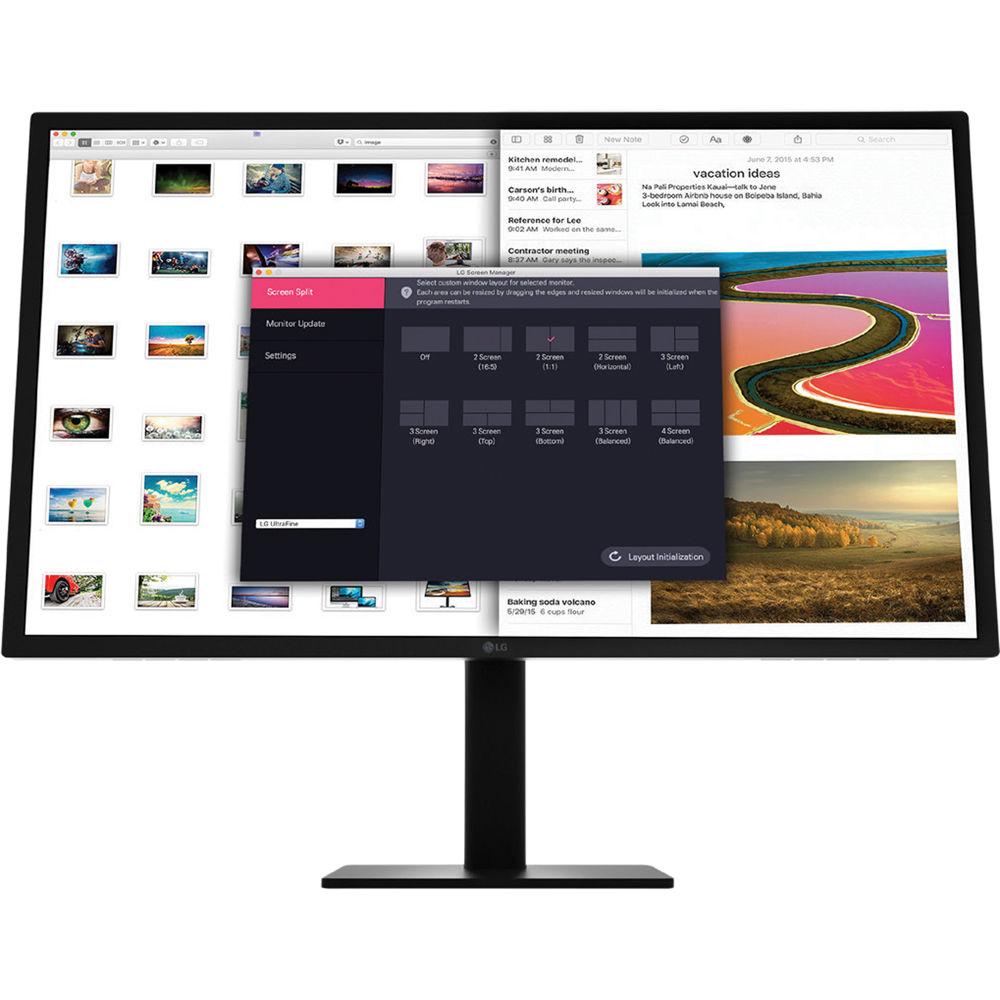

- Screen Split 2.0
- Screen Split 2.0 provides you with PIP (Picture-in-Picture) functionality, so you can multitask efficiently.
- Ambient Light Sensor
- The built-in ambient light sensor on this monitor lets it automatically adjust the brightness to match your surroundings for a more comfortable viewing experience.
In the Box LG 22MD4KB-B UltraFine 21.5" 16:9 4K IPS Monitor Power Cable USB Type-C Cable Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 drysqwsdfzvq Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 22MD4KB-B UltraFine 21.5" 16:9 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

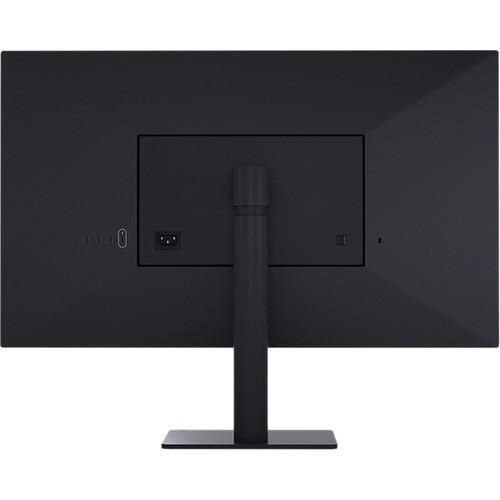

Technical parametersLG 22MD4KB-B Specs | Screen Size | 21.5" (54.61 cm) | | Panel Type | IPS (In-Plane Switching) | | Color Gamut (CIE1931) | DCI-P3 99% | | Color Depth (Number of Colors) | 8-bit, 16.7 million | | Pixel Pitch (H x V) | 0.11622 x 0.11622 mm | | Response Time | 12 ms, 14 ms (GtG) | | Horizontal Refresh Rate | 88-143 kHz | | Vertical Refresh Rate | 48-60 Hz | | Aspect Ratio | 16:9 | | Resolution | 4096 x 2304 | | Brightness | 500 cd/m² | | Static Contrast Ratio | 1200:1 | | Viewing Angles (H/V) | 178° / 178° | | Surface Treatment | Anti-Glare, 2H | | HDCP | HDCP 1.4 / 2.2 | | Audio | 2 x 5 W speakers, up to 76 dB | | Connectivity | 1 x USB 3.0 Type-C, upstream (supports Power Delivery and DP Alt Mode)
3 x USB 3.0 Type-C, downstream | | | | Detachable Base | Yes (one touch release button) | | VESA Compatibility | 100 x 100 mm | | Tilt | -5 to 25° | | Height Adjustment | 0 to 4.3" (0 to 11 cm) | | | | Type | 150 W, built-in power | | Input | 100-240 VAC, 50 / 60 Hz | | Power Consumption (Active) | 120 W | | Power Consumption (Standby/Sleep) | 1.2 W | | DC Off (Max) | 0.5 W | | | | Standards and Compliance | EPEAT Gold, UL(cUL), CB, FCC-B, CE, CCC, BSMI, KC, VCCI, RCM, EPA 7.0, China CEL, ROHS, REACH, USB-C | | Dimensions (W x D x H) | With Stand: 19.9 x 8.66 x 15.29" (50.55 x 22 x 38.84 cm)
Without Stand: 19.9 x 1.72 x 11.78" (50.55 x 4.37 x 29.92 cm) | | Weight | With Stand: 12.35 lb (5.6 kg)
Without Stand: 8.38 lb (3.8 kg) | | | | Package Weight | 17.7 lb | | Box Dimensions (LxWxH) | 23.0 x 18.5 x 10.5" |
