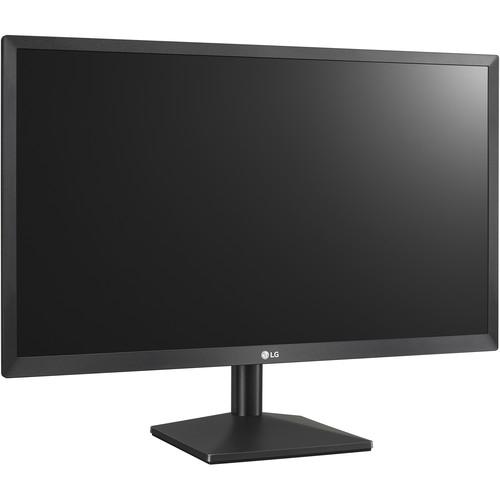

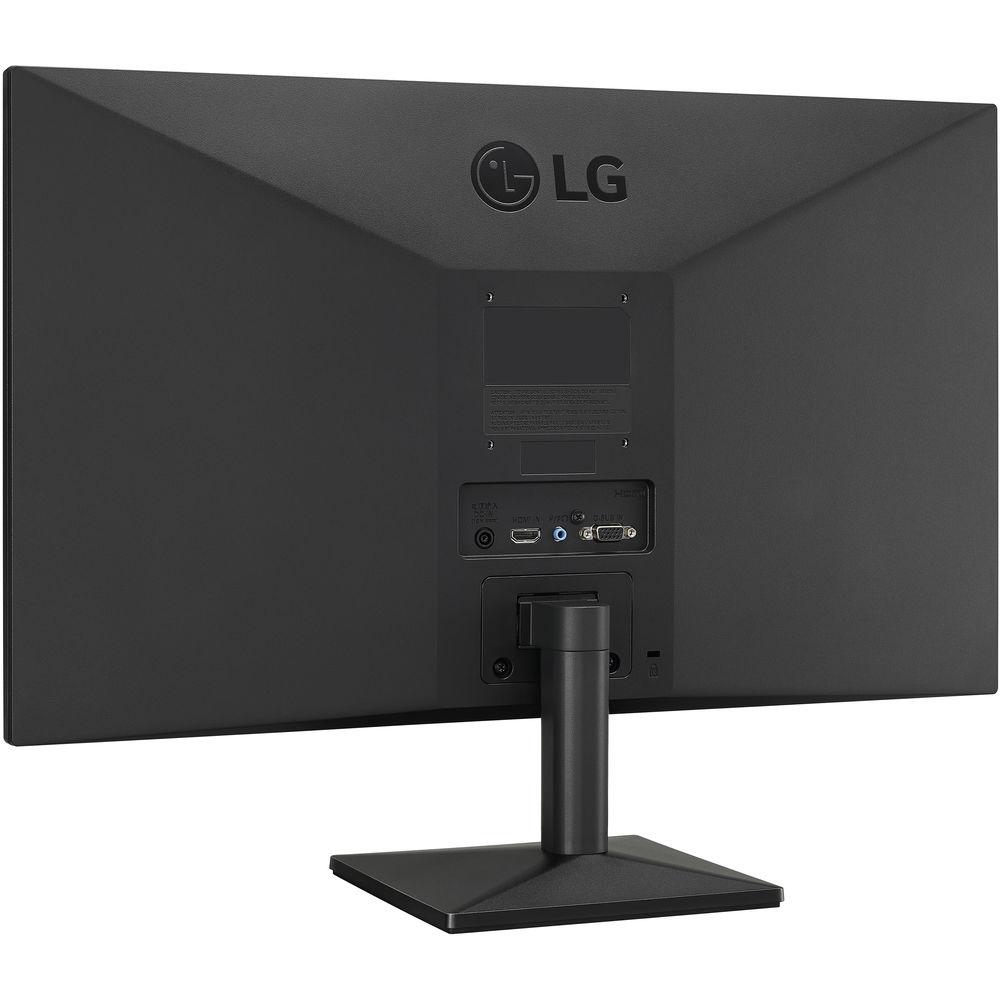

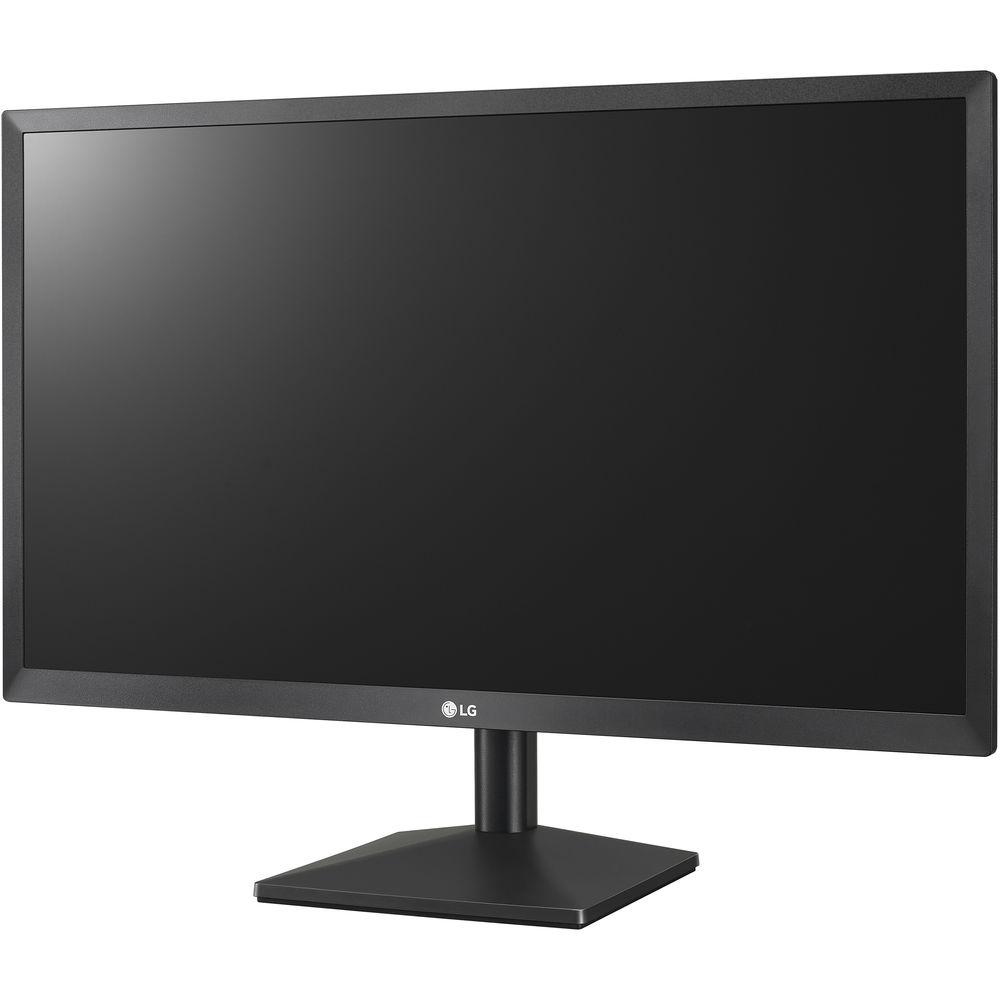

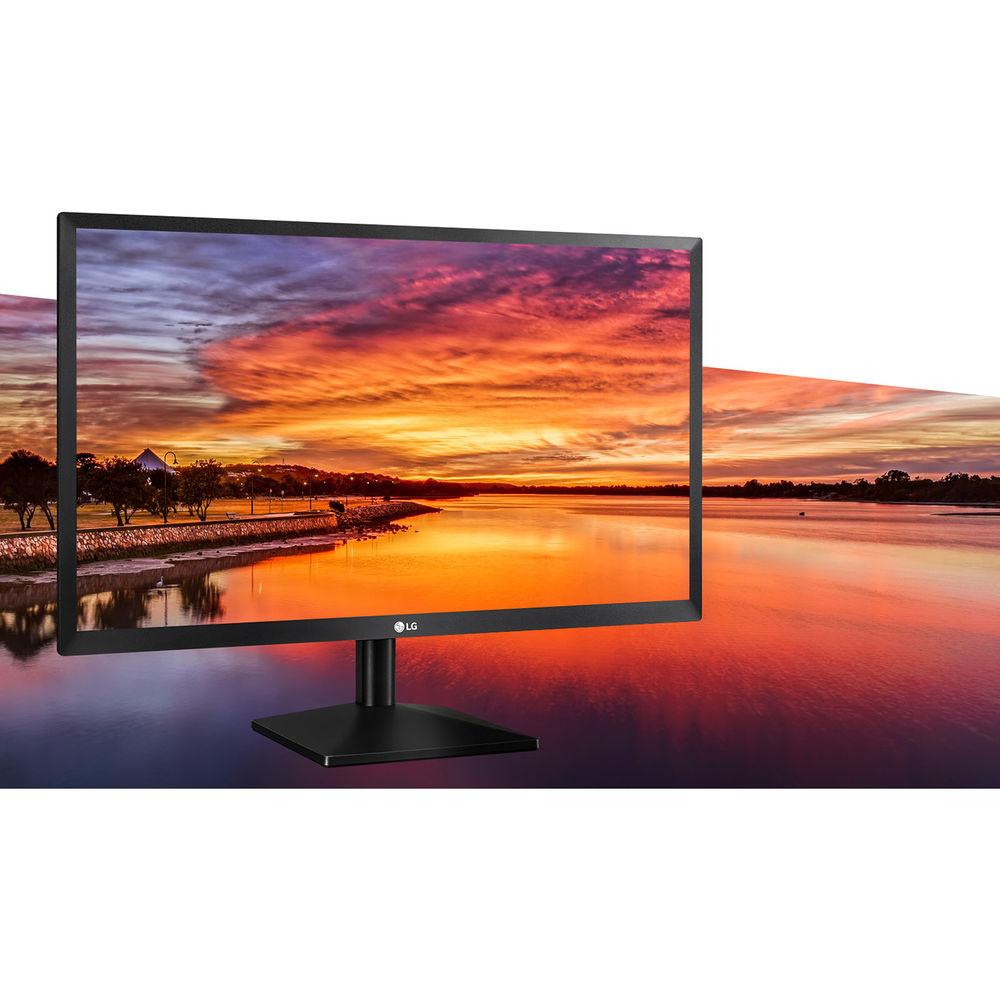

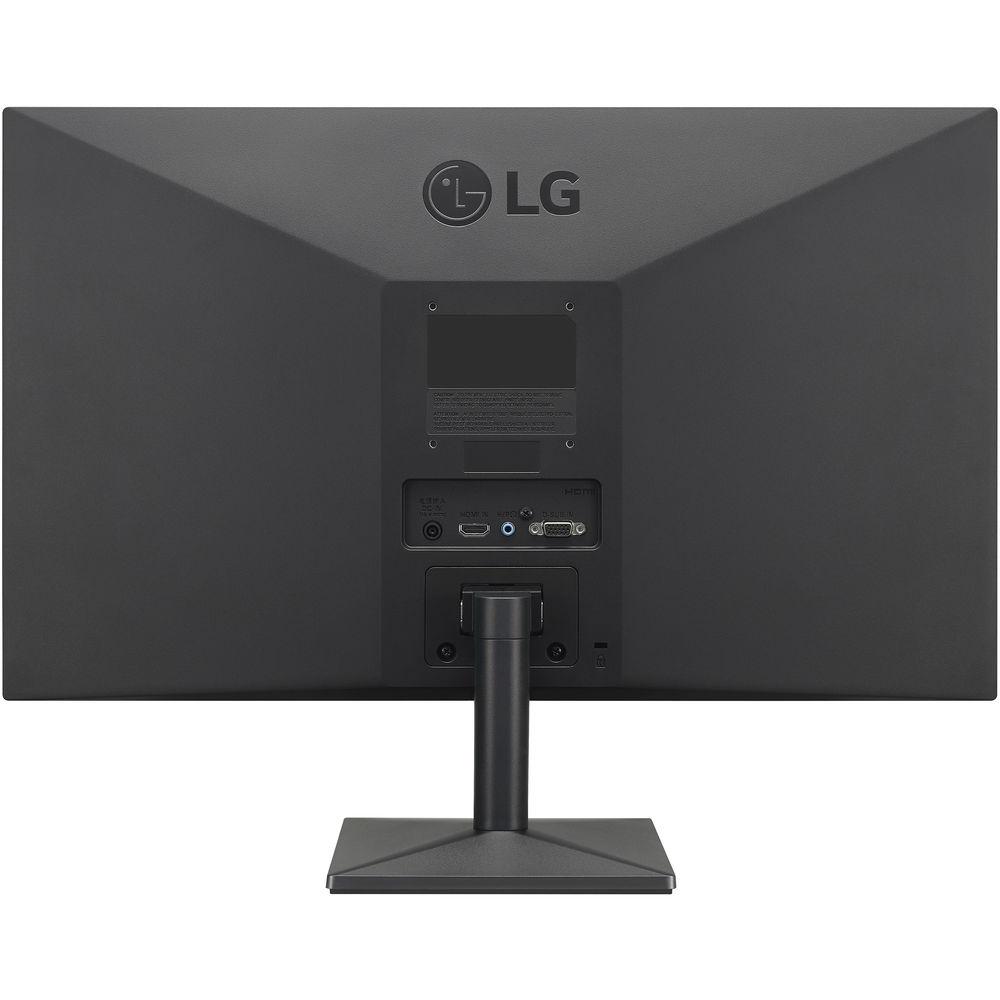

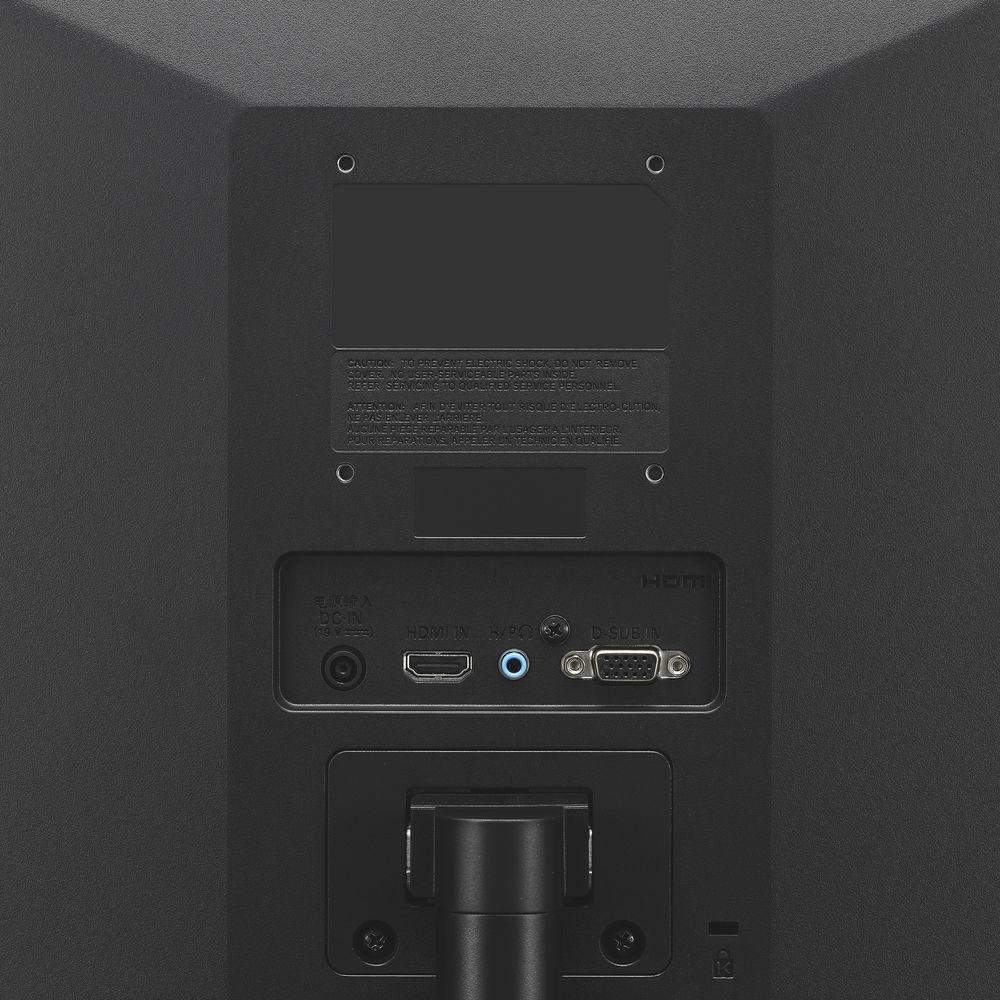

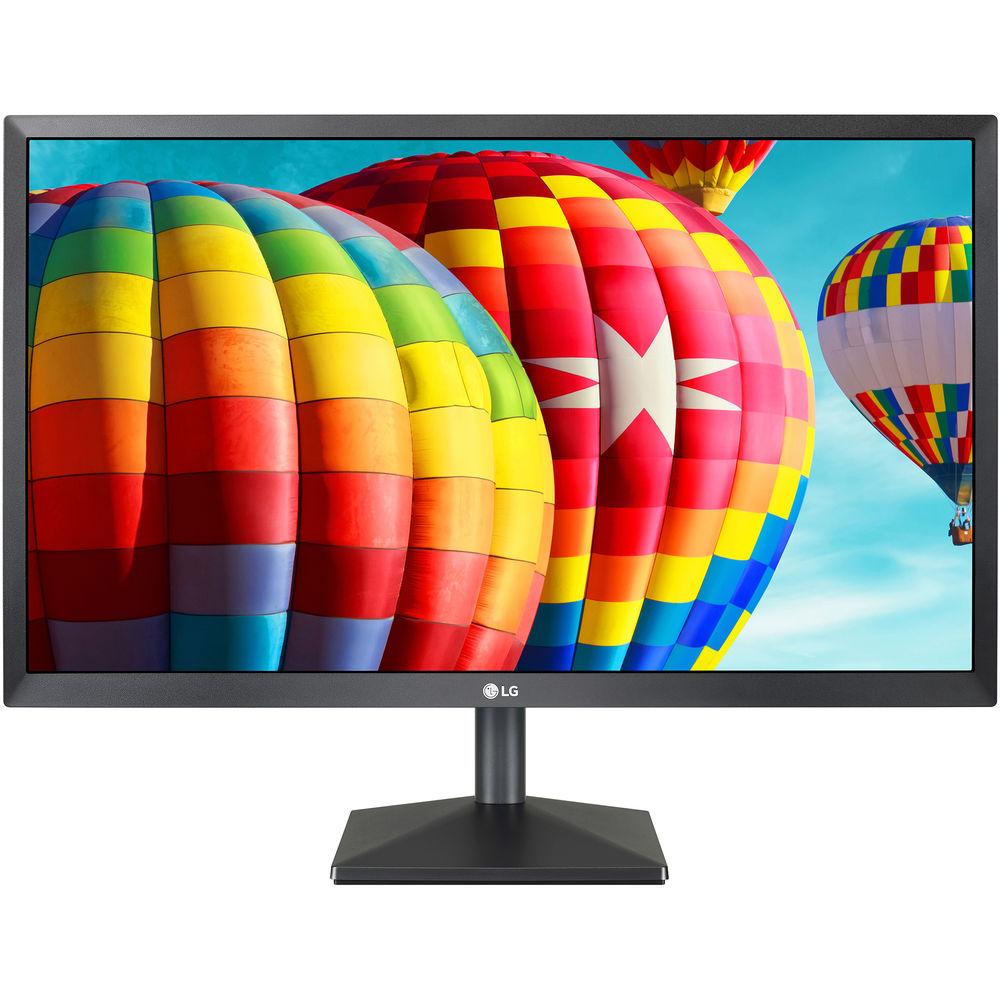

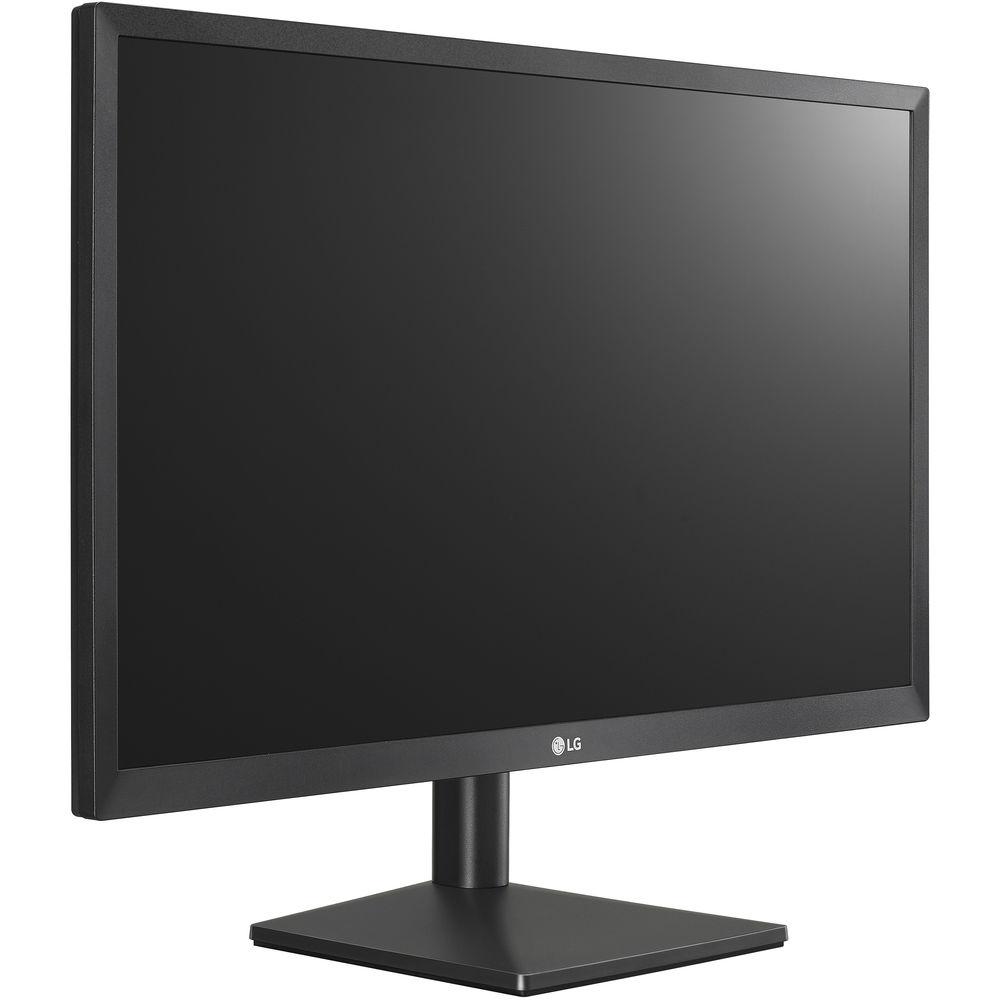

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Built as a gaming-focused display, the 22MK430H-B 21.5" 16:9 FreeSync IPS Gaming Monitor from LG features a native resolution of 1920 x 1080 with a 75 Hz refresh rate. It also features In-Plane Switching (IPS) technology, AMD FreeSync support, 8-bit support for 16.7 million colors, a 16:9 aspect ratio, an anti-glare coating with a 3H hardness rating, a typical contrast ratio of 1000:1, a typical brightness level of 250 cd/m2, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI 1.4 input, one VGA input, and a 3.5mm headphone jack.

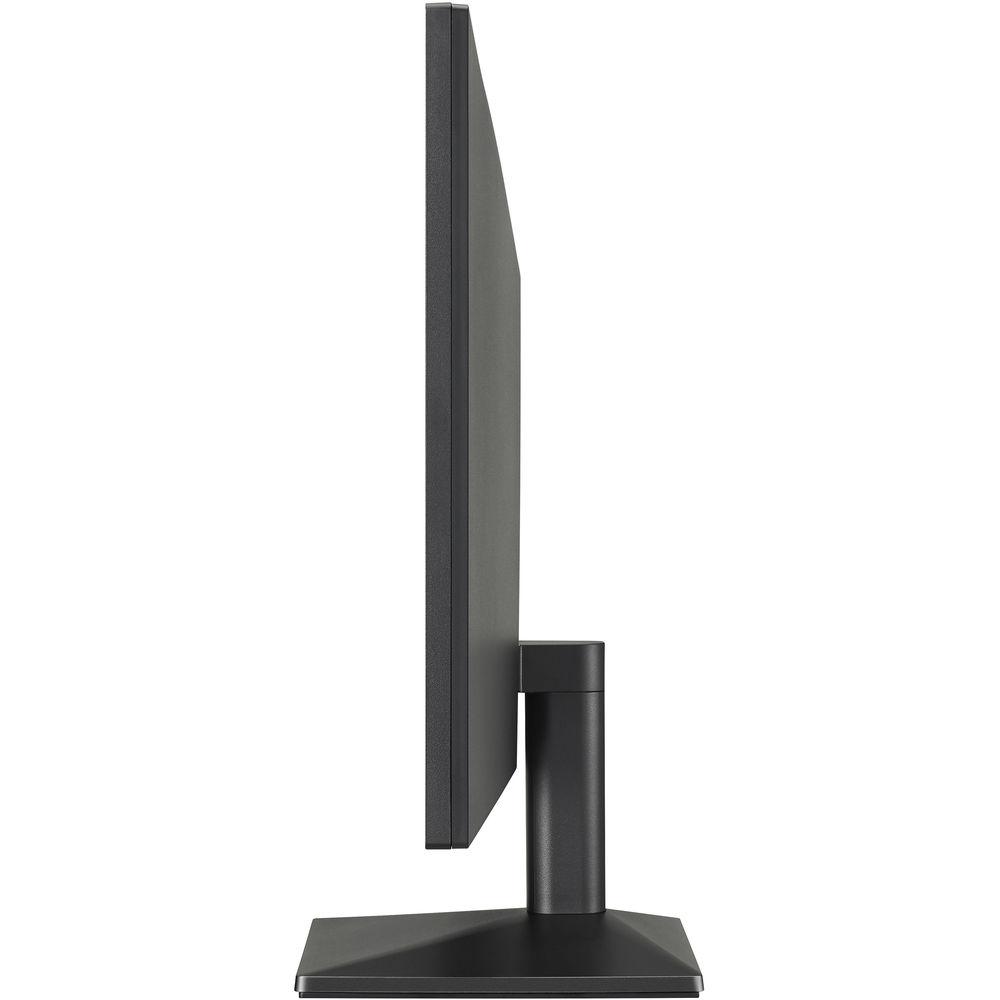

LG has engineered the 22MK430H-B with support for 72% of the CIE1931 color gamut. To further help improve viewing and accessibility, this display features a vertical tilt of -5 to 20° once mounted to the included stand base and stand body. Otherwise, you can install an optional 75mm VESA mount for wall mounting.
Note: AMD FreeSync is only available when using the HDMI port. It will not work with the VGA port. General Features - Full HD IPS Display
- IPS (In-Plane Switching) technology highlights the performance of liquid crystal displays. Response times are shortened, color reproduction is improved, and users can view the screen at virtually any angle.
- AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing ghosting and stuttering for a smoother gaming experience.
- Dynamic Action Sync
- Dynamic Action Sync minimizes input lag, so movements feel more fluid.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, so you can spot enemies that may be waiting for you in the dark.
- On-Screen Control
- Instead of hardware buttons, On-Screen Control lets you adjust monitor settings with your mouse, such as volume, brightness, picture mode presets, Screen Split 2.0, Dual Controller, and more.
- Wall Mountable
- This monitor gives you the freedom to take it off the desk and hang it on the wall. Liberate your viewing options and save desktop space with this wall-mountable LG monitor.
- Additional Features
-
- Picture Mode (Custom, Reader, Color Weakness, Photo, Cinema, Game)
- DDC/CI
- Response Time Control
- Crosshair
- Flicker Safe
- Automatic Standby
- Smart Energy Saving
- Super Resolution +
- DFC
- Gamma Control
- Color Temperature
- RGB Color Control
- OSD Lock
- Auto Adjustment (VGA Only)
UPC: 719192617629 In the Box LG 22MK430H-B 21.5" 16:9 FreeSync IPS Gaming Monitor Stand Base Stand Body Power Cable HDMI Cable Limited 1-Year Parts & Labor Warranty User Manual PDF 5.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 22MK430H-B 21.5" 16:9 FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 22MK430H-B Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 85 kHz (HDMI)
30 to 83 kHz (VGA) | | Vertical Frequency | 56 to 75 Hz (HDMI and VGA) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.24795 x 0.24795 mm | | | | Connectivity | 1 x HDMI 1.4 Input
1 x VGA Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | | | Power Consumption | 29 W (Typical)
25 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 19 VDC at 1.3 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | Storage Humidity | 0 to 85% | | Certifications | CE, ErP Lot 6, FCC, TUV, UL, VCCI, cUL, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 20.1 x 15.6 x 7.2" / 510.5 x 396.2 x 182.9 mm (With Stand)
20.1 x 12.0 x 1.5" / 510.5 x 304.8 x 38.1 mm (Without Stand) | | Weight | 6.2 lb / 2.81 kg (With Stand)
5.5 lb / 2.49 kg (Without Stand) | | | | Package Weight | 8.595 lb | | Box Dimensions (LxWxH) | 24.9 x 14.2 x 4.7" |
