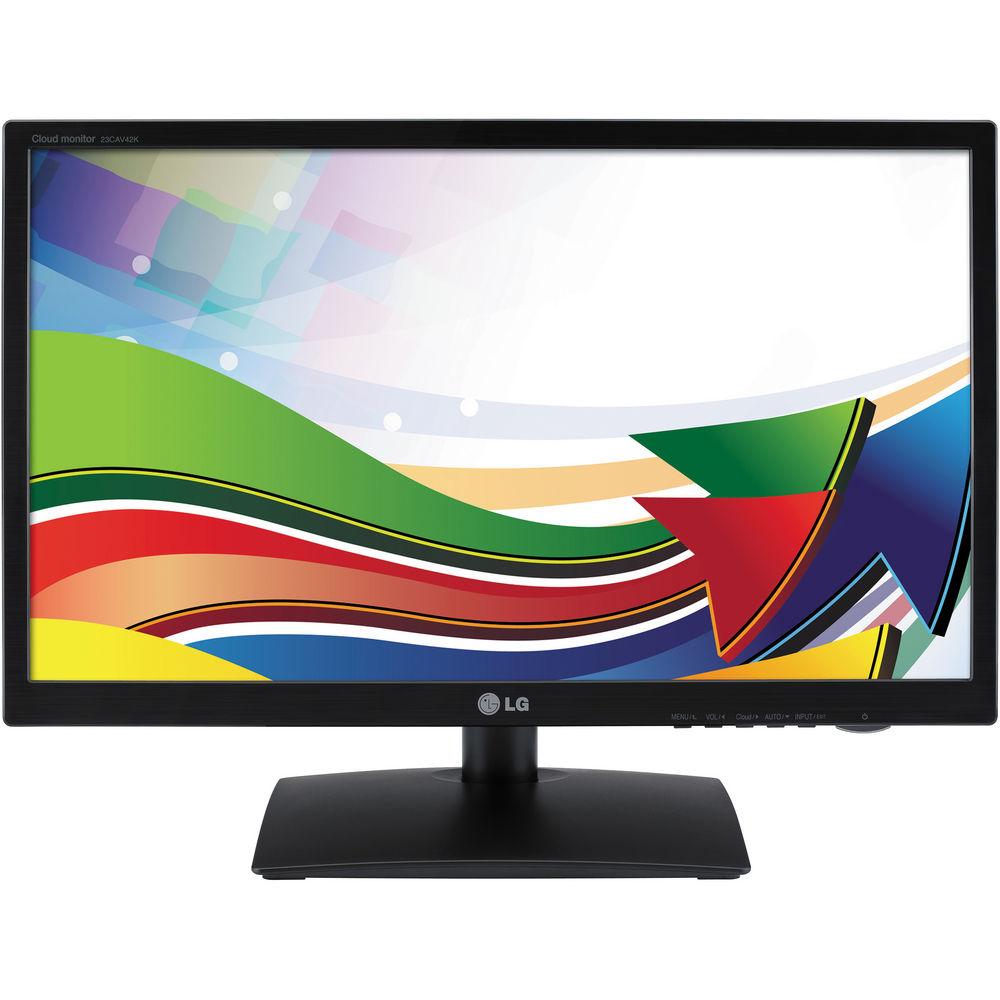

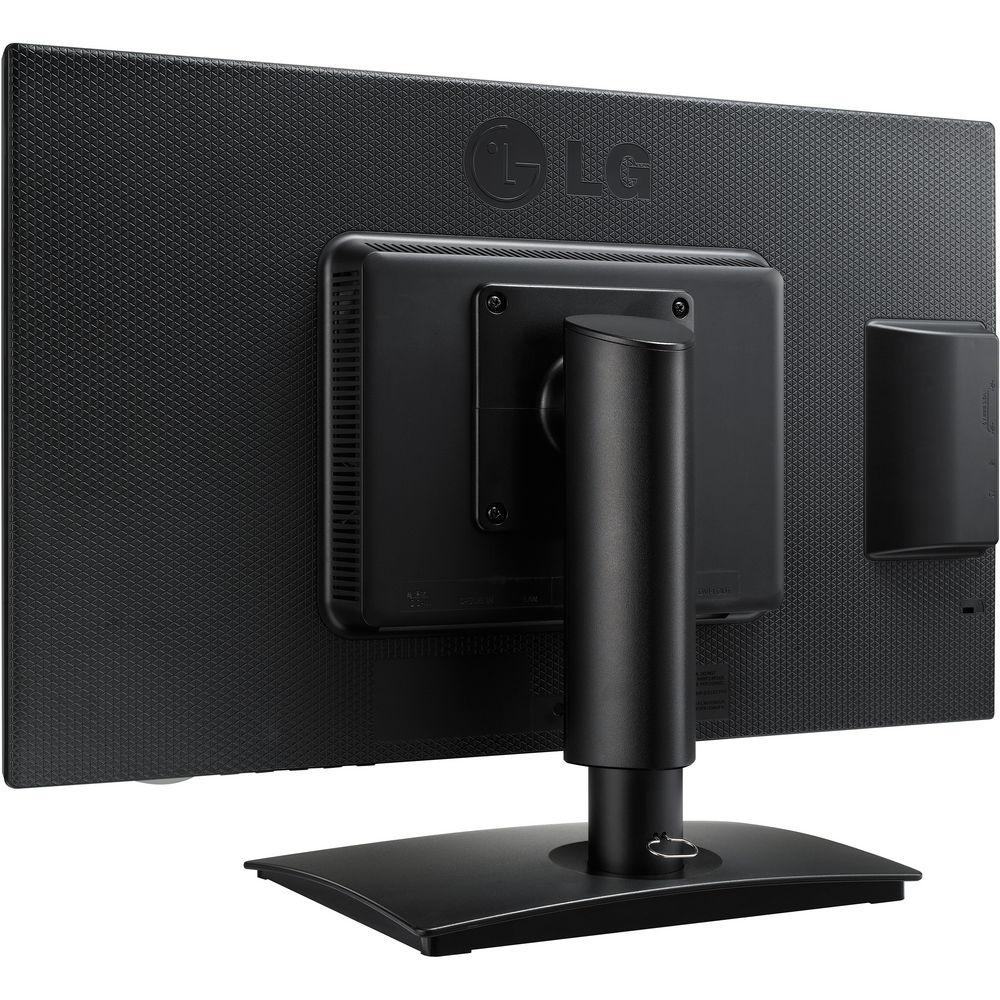

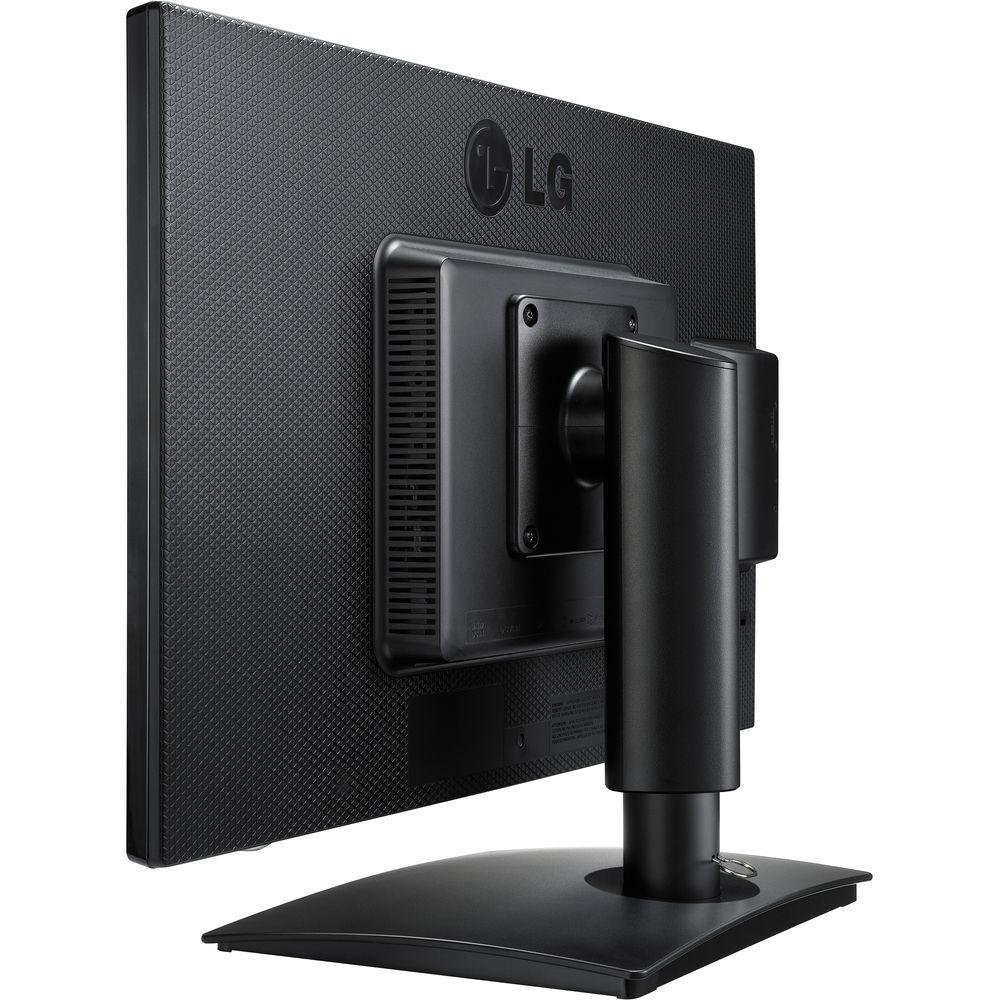

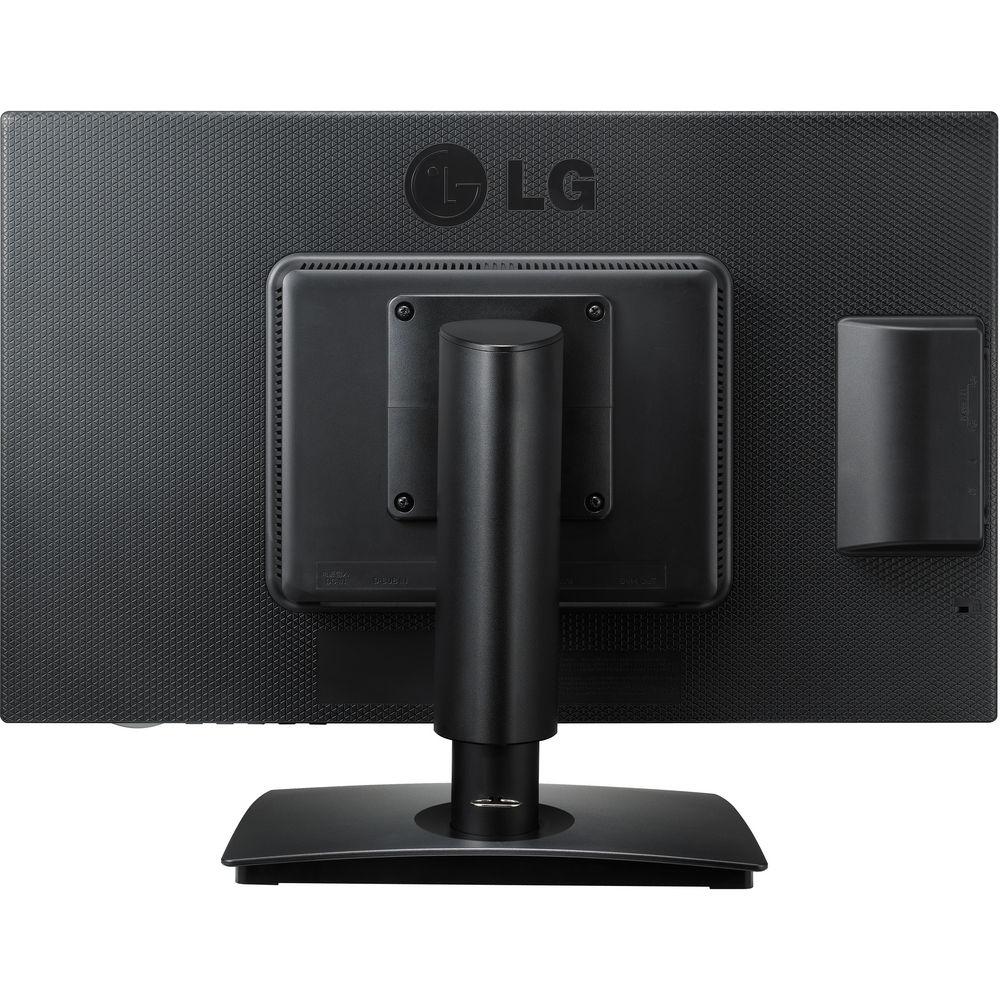

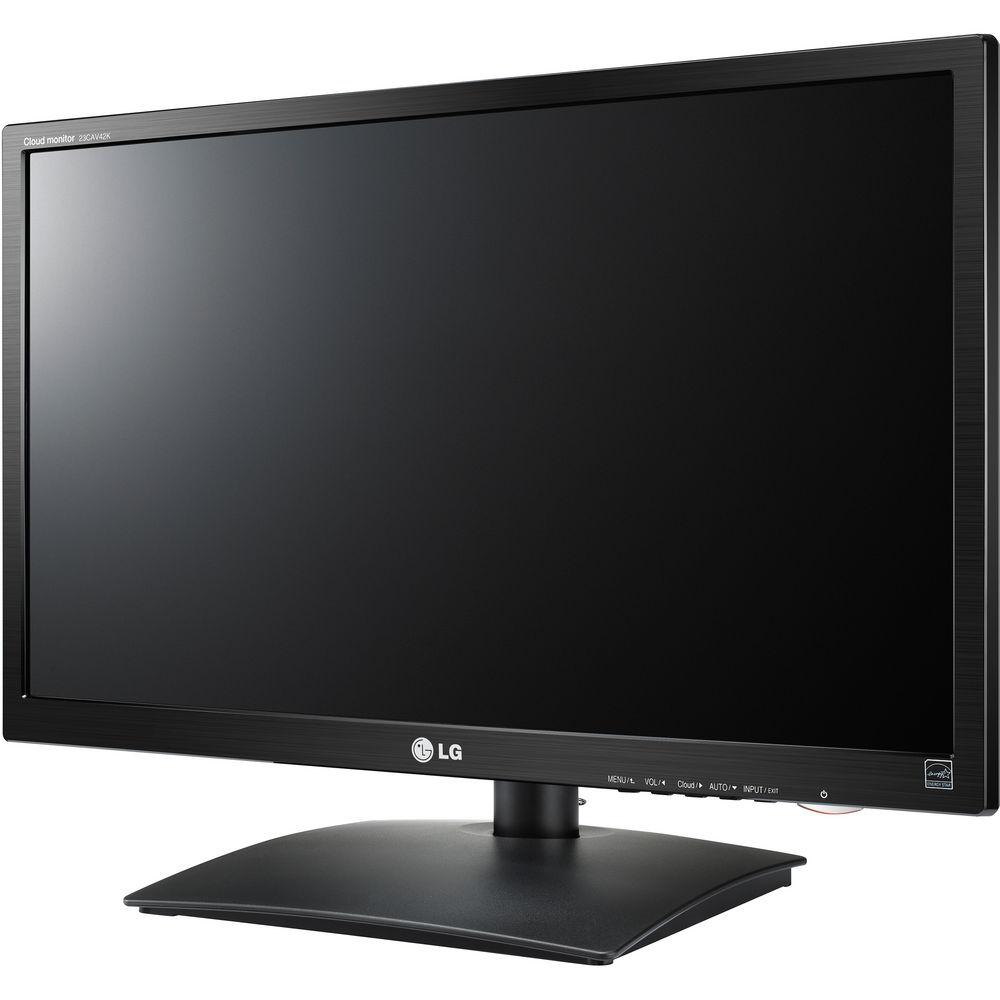

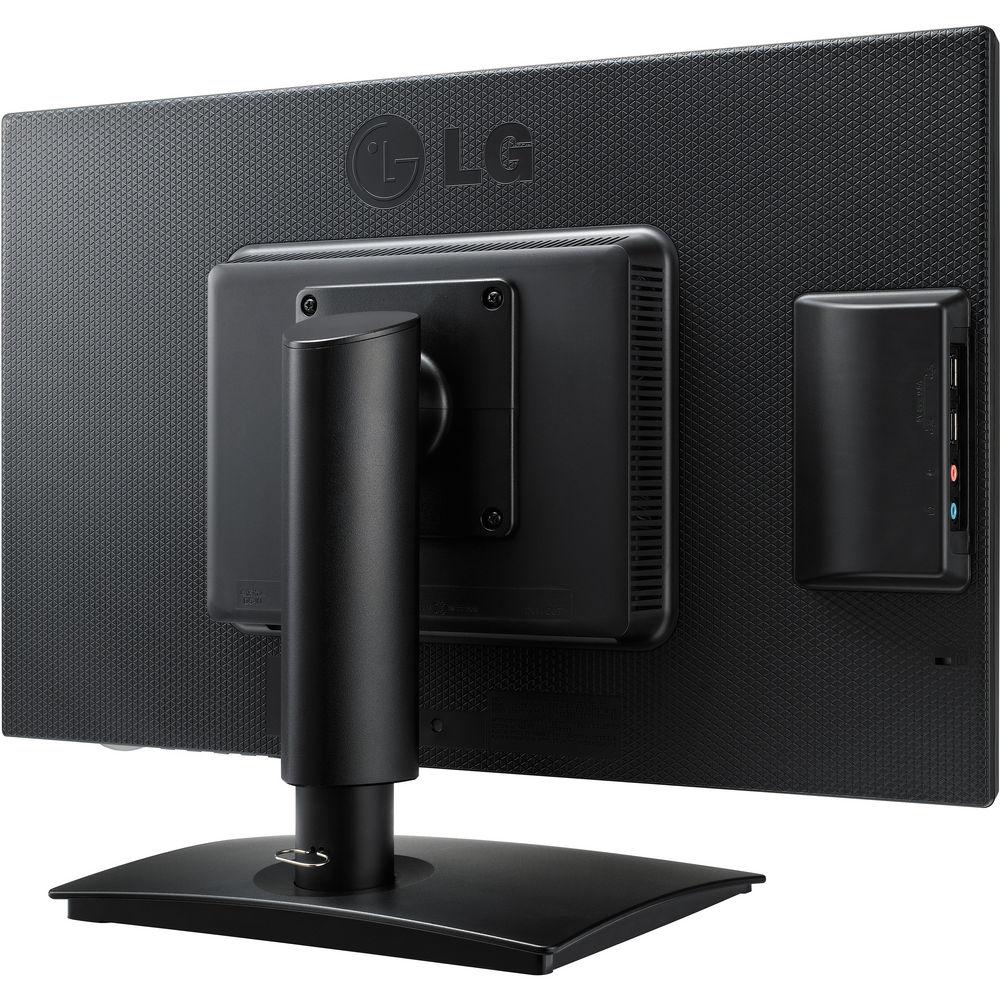

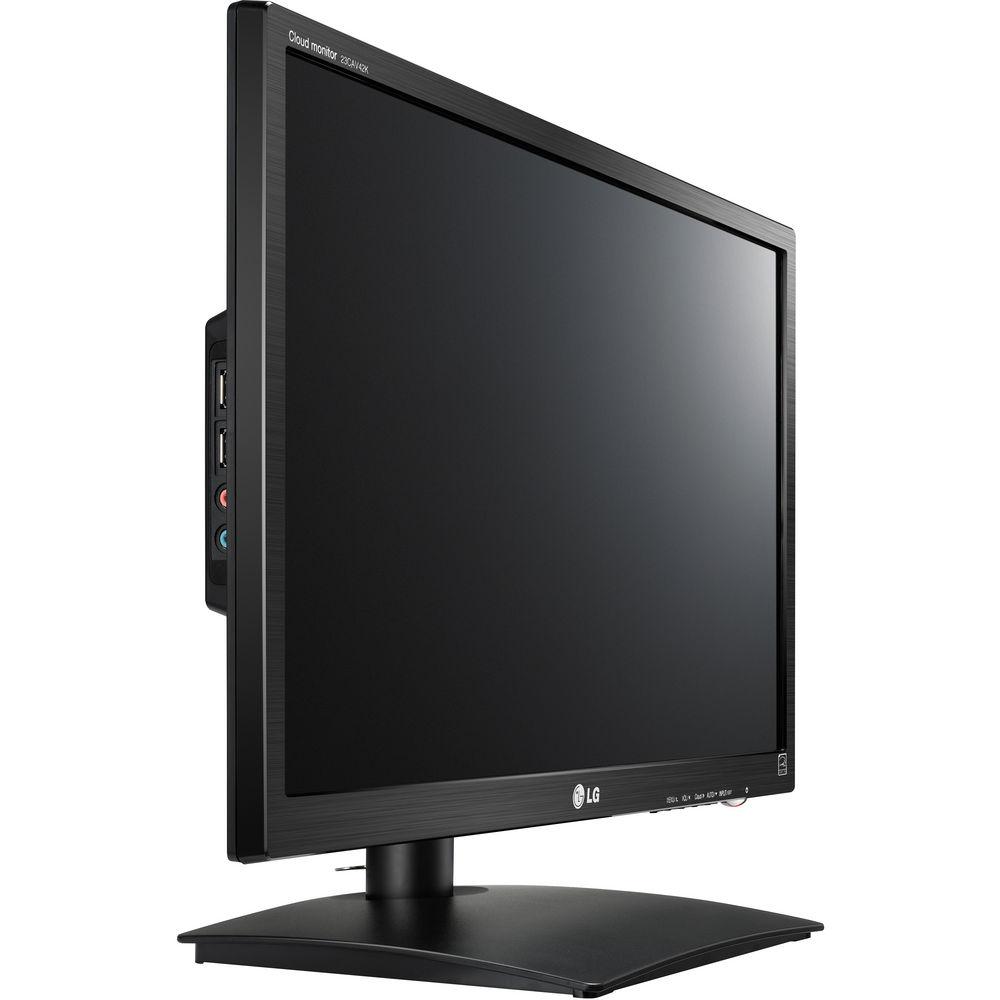

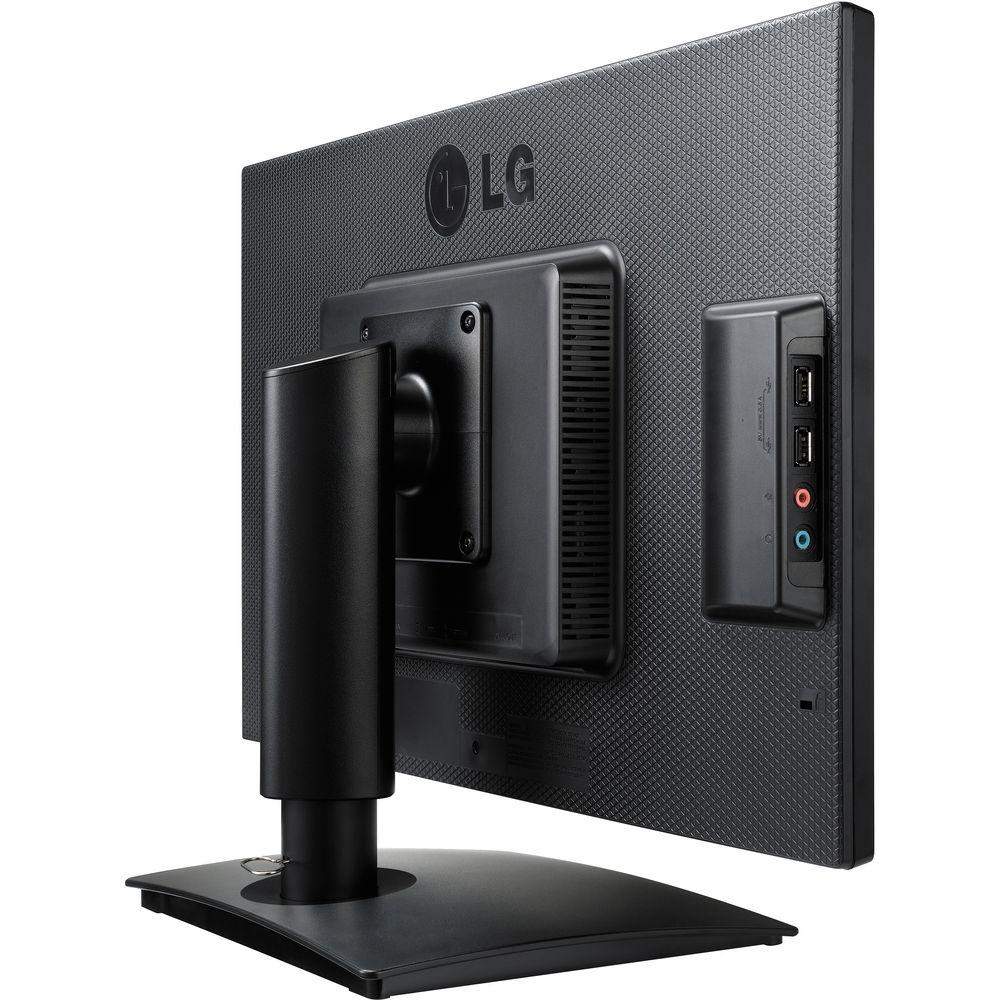

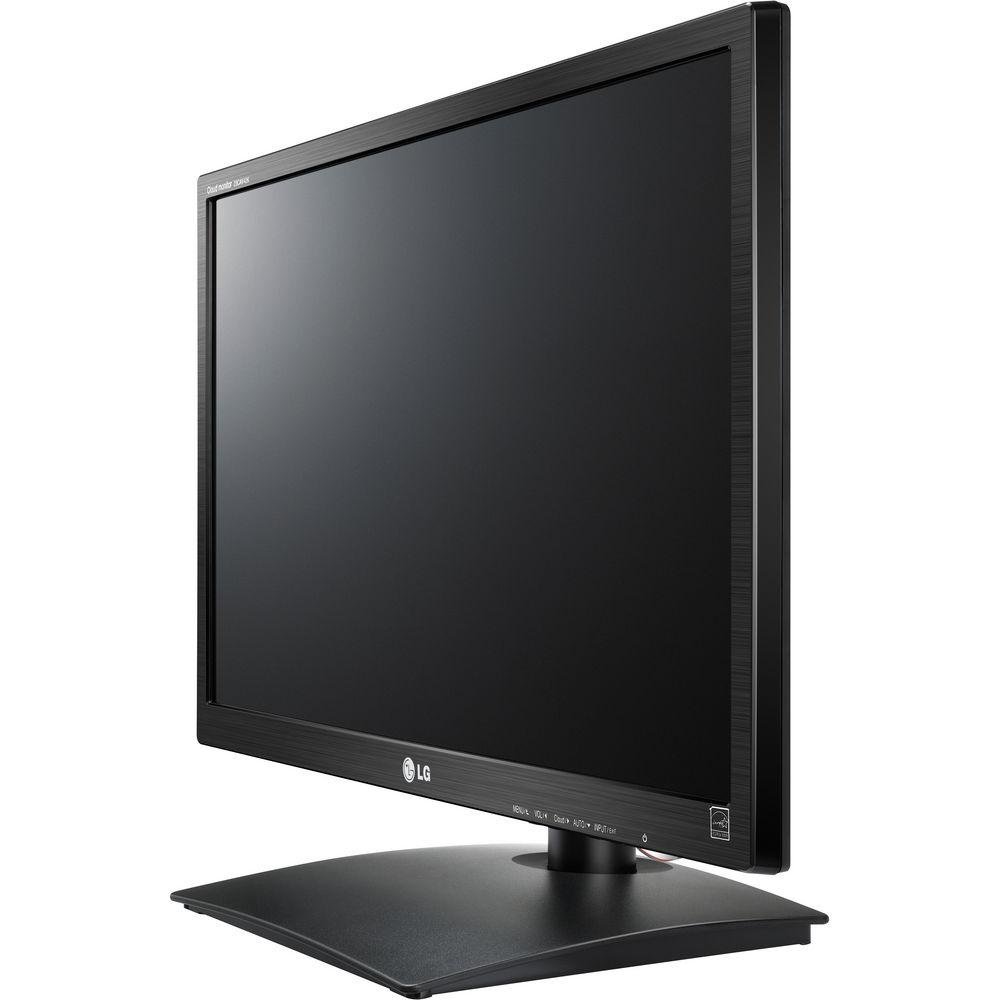

User Manual for LG 23CAV42K-BL V Series 23" Cloud LED Monitor Click to enlarge the picture
Contents of the user manual for the LG 23CAV42K-BL V Series 23" Cloud
- Product category: Terminal & Thin Clients LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Terminal & Thin Clients
 |
User manual for the LG 23CAV42K-BL V Series 23" Cloud contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description The 23CAV42K-BL V Series 23" Cloud LED Monitor from LG provides a better work environment in the office. The VMware-based zero client model allows you to conduct computing tasks without a desktop. The centralized network management supports easy maintenance and efficient business operations. Furthermore, it employs the Teradici TERA2 chipset to enhance the features offered by its predecessor. With the LG IPS technology, the monitor offers a clear image and wide viewing angles of 178°/178°. - The monitor features an advanced IPS LCD panel with full HD resolution
- Offers lifelike color, clear image and wide viewing angles of 178°/178°
- Provides smooth color change
- Features LED backlight technology
- Provides USB 2.0, D-Sub, DVI-I, LAN interfaces
- Employs Teradici Tera2 chipset with ready UPoE and VMware
UPC: 719192191624 In the Box LG 23CAV42K-BL V Series 23" Cloud LED Monitor Power Cord Adapter User Manual CD Stand Case Limited 3-Year Warranty User Manual PDF 7.4mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 23CAV42K-BL V Series 23" Cloud LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 23CAV42K-BL Specs | | | Size | 23" (58 cm) | | Type | LED AH-IPS | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 full HD | | Brightness | 250 cd/m2 | | Color Depth | 16:7 M colors | | Contrast Ratio | Dynamic: 5,000,000:1
Normal: 1000:1 | | Response Time | 14 ms (G to G) | | Viewing Angle (H/V) | 178°/178° (CR≥10) | | | | LAN Port | Gigabit Ethernet | | USB (EA) | 6 x USB 2.0 ports | | Audio In | Yes (Mic-in) | | D-Sub Input | Yes | | DVI-I Output | Yes (Extend) | | Headphone Output | Yes | | Built-in Speaker | 2 x 1 W | | | | VDI Support | VMware view | | Processor | TERA2 (Teradici 2321) | | RAM | 512 MB | | Ethernet | Gigabit Ethernet | | Protocol | PCoIP | | Standards | UL(cUL), TUV-Type, FCC-B(CE), EPA, VESA MOUNT, CCC, Energy Star, C-tick | | | | Type | Adapter | | Voltage | 100 ~240 V | | Consumption in On Mode | (Typical): 24 W (D-sub) / 29 W (PCoIP) | | Consumption in Sleep Mode | (Typical): 0.5 W (D-sub) / 7 W (PCoIP) | | Consumption in Off Mode | 0.5 W (D-sub) / 0.5 W (PCoIP) | | UPoE Ready | Yes (Optional) (DC 19 V, 60 W) | | | | VESA Compatibility | 100 x 100 mm | | Pivot | 90° | | Ergonomics | Tilt / Pivot / Swivel / Height Adjustable +5.1" (+130 mm) | | Dimensions (W x H x D) | With Stand: 21.41 x 15.23 x 5.15" (544 x 387 x 131 mm)
Without Stand: 21.41 x 13.07 x 1.85" (544 x 332 x 47 mm) | | Weight | With Stand: 12.25 lb (5.56 kg)
Without Stand: 7.38 lb (3.35 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
