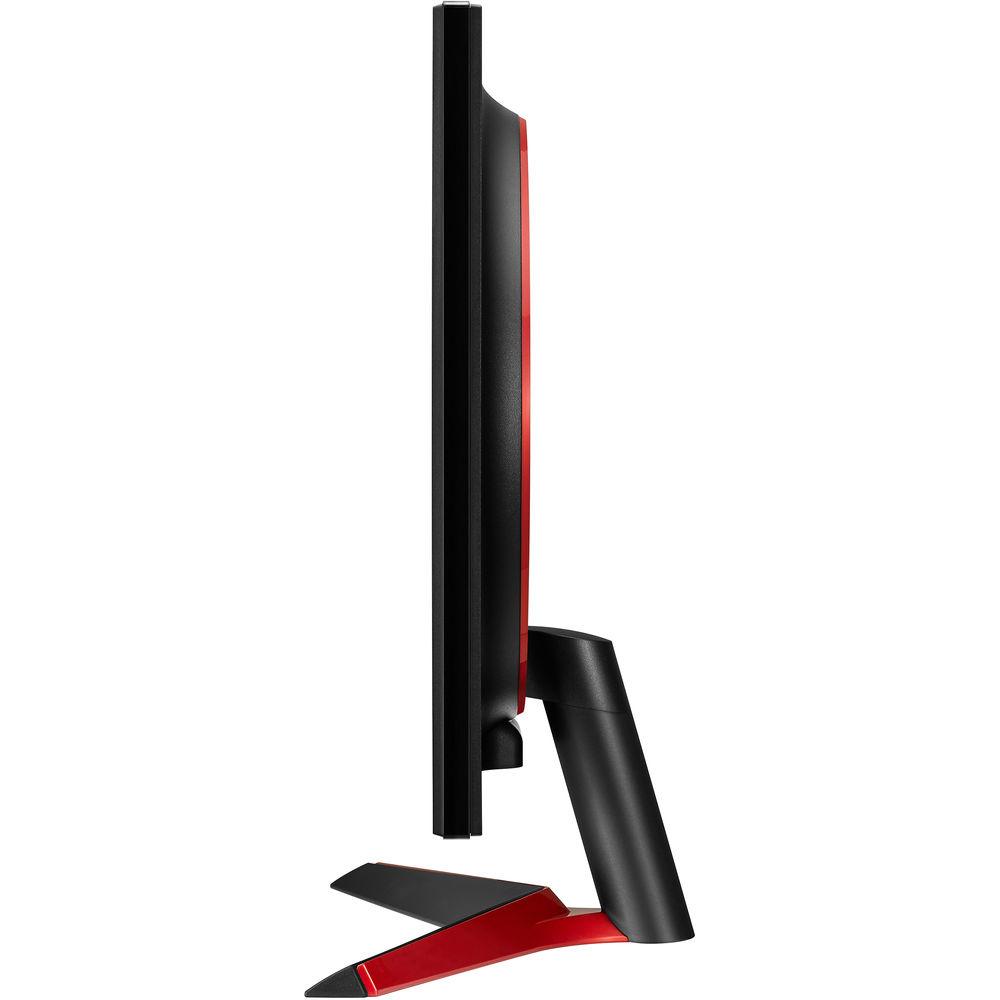

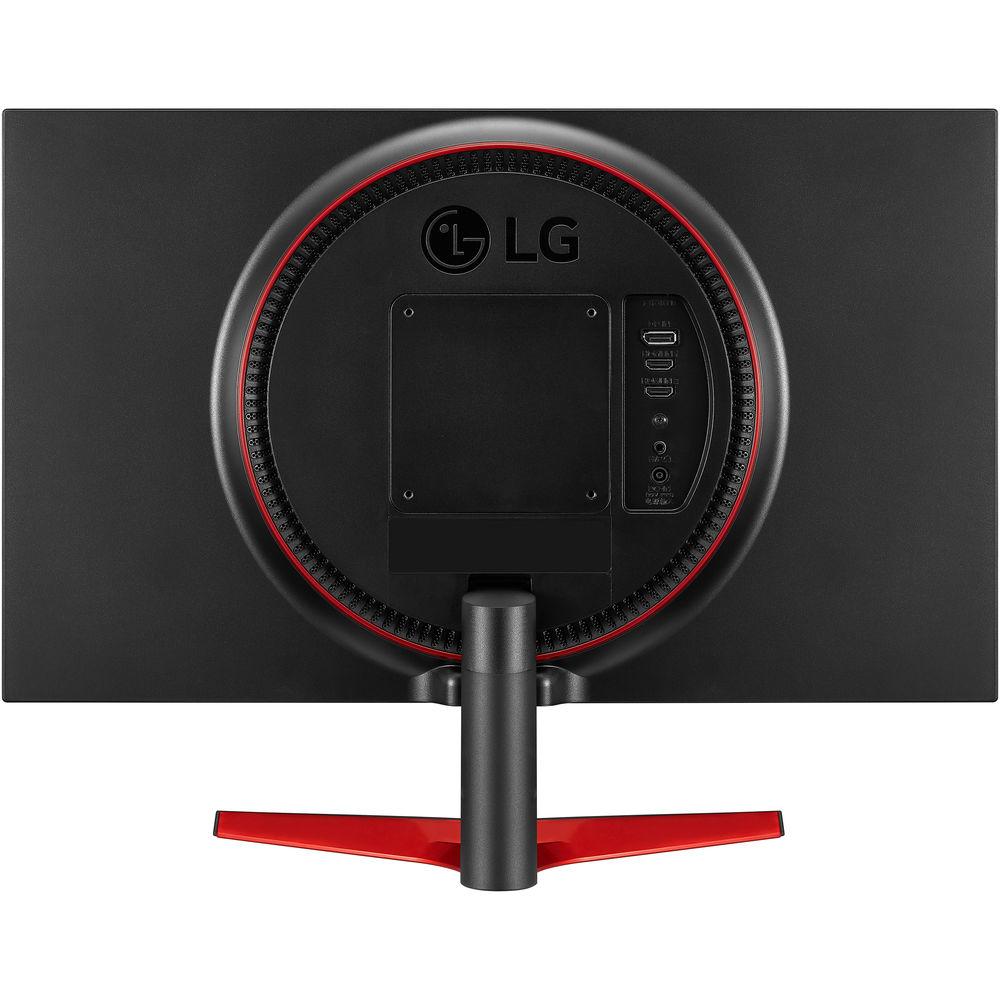

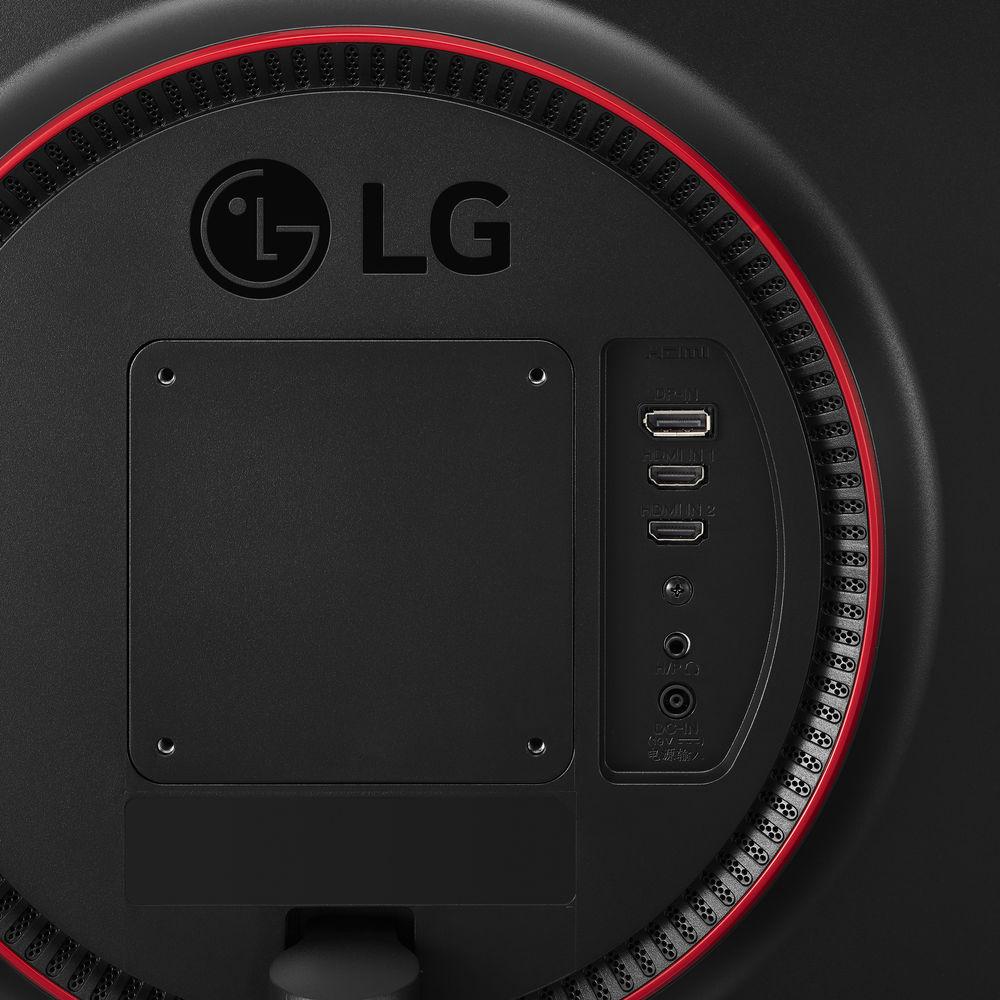

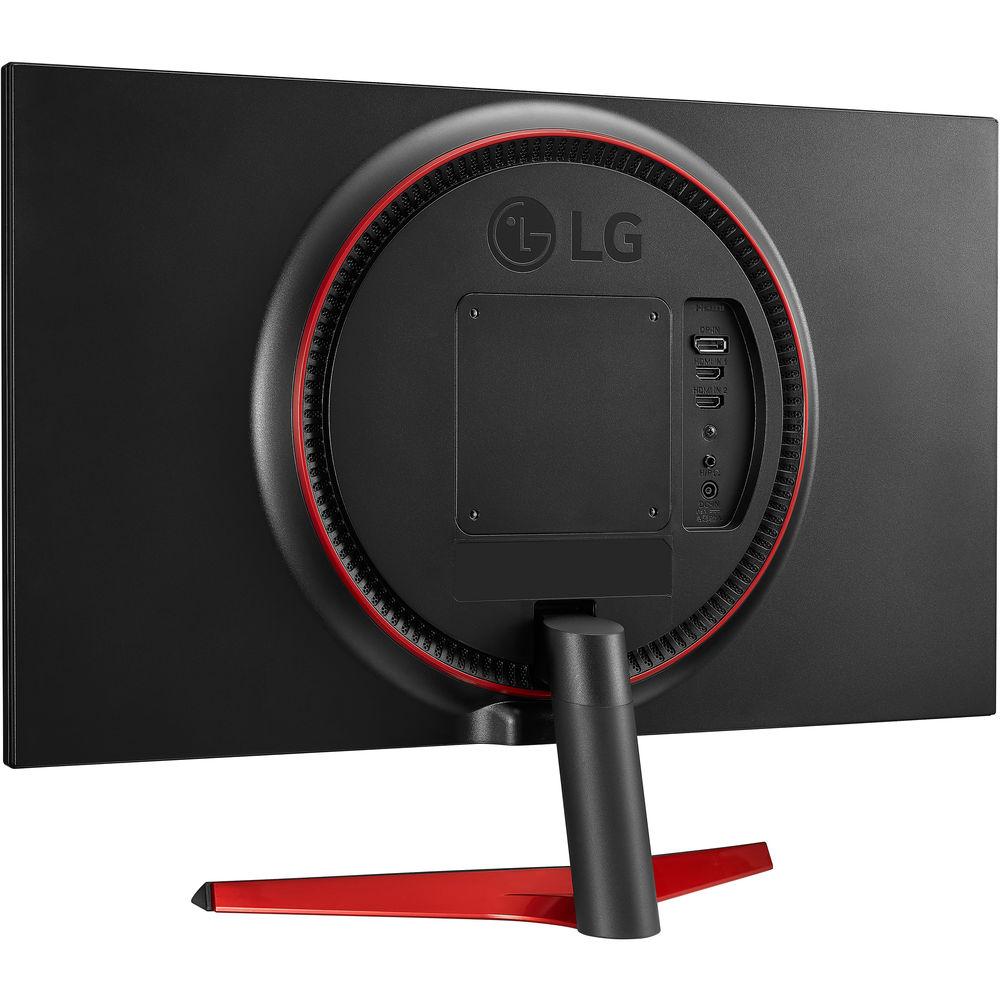

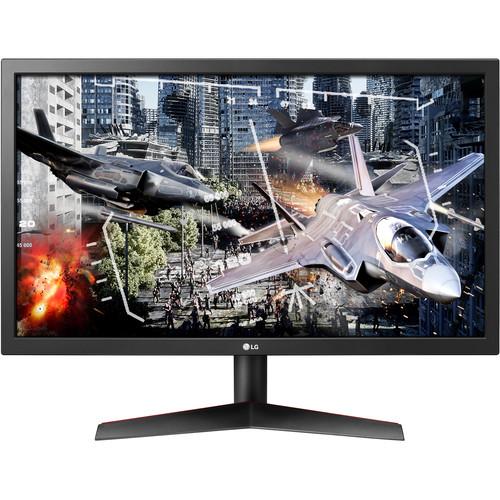

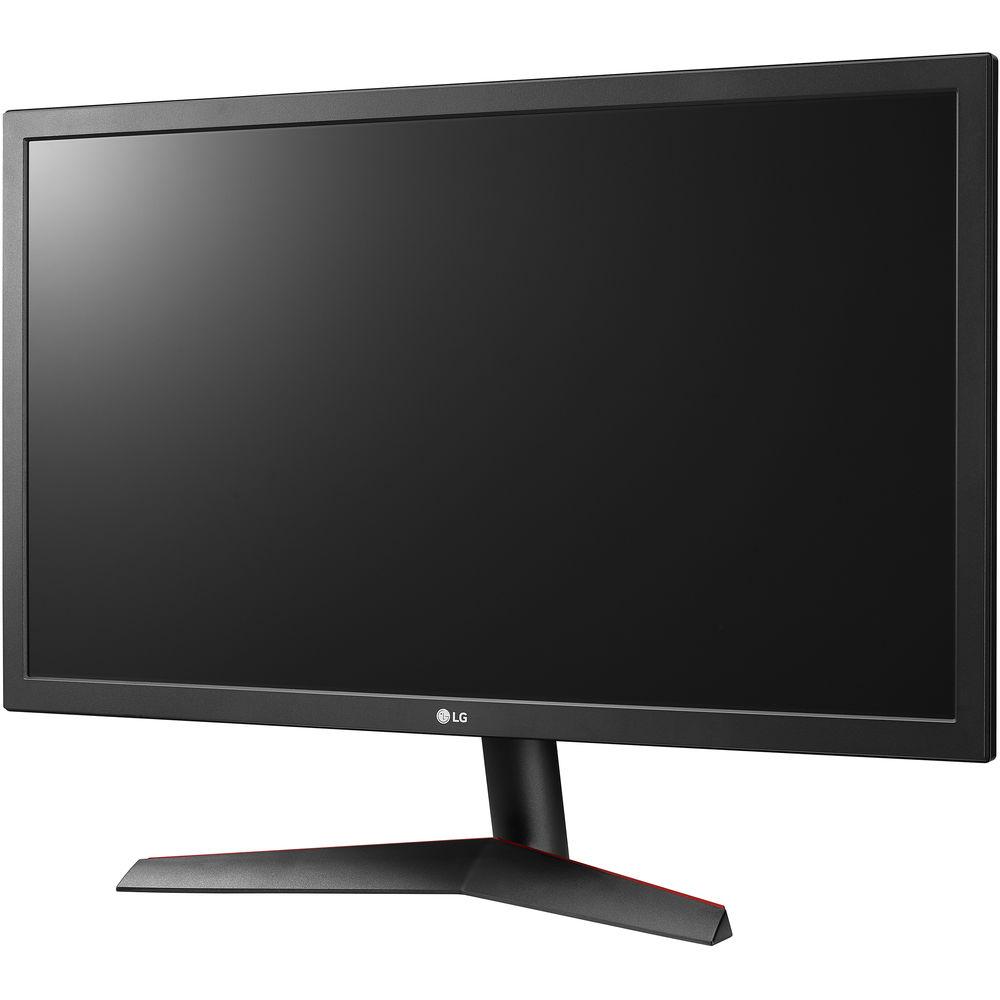

User Manual for LG 24GL600F 24" 16:9 144 Hz FreeSync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 24GL600F 24" 16:9 144 Hz
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24GL600F 24" 16:9 144 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 24GL600F 24" 16:9 144 Hz FreeSync LCD Gaming Monitor from LG has helpful features and add-ons designed for gamers. These include AMD FreeSync support, a fast 1 ms response time, a 144 Hz refresh rate, and more. Specs-wise, it's built with a Twisted Nematic panel featuring a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, and support for 16.7 million colors. With all of these combined, you'll be able to enjoy crisp, clear details and a fluid gaming experience. Once it's connected to your system via HDMI or DisplayPort, you can then tilt it to your viewing preference or mount it to a VESA-compatible stand. - AMD FreeSync Technology
- AMD FreeSync Technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a more fluid gaming experience.
- Black Stabilizer
- Black Stabilizer optimizes dark scenes for better visibility, allowing you to spot enemies that may be waiting for you in the dark.
- Dynamic Action Sync
- Dynamic Action Sync helps to reduce input lag for movements and commands that feel more fluid and on-time.
- Crosshair
- An on-screen crosshair overlay helps you pinpoint the center of the screen for some assistance in First-Person Shooter games.
- Flicker Safe & Reader Mode
- Flicker Safe and Reader Mode help to reduce eye strain and fatigue caused by flickering and blue light over extended viewing periods.
- On-Screen Control
- Rather than using built-in hardware buttons, you can use the On-Screen Control menu to easily adjust your monitor settings.
UPC: 719192625341 In the Box LG 24GL600F 24" 16:9 144 Hz FreeSync LCD Gaming Monitor HDMI Cable Power Cable Limited 1-Year Warranty User Manual PDF 3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24GL600F 24" 16:9 144 Hz FreeSync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG 24GL600F-B Specs | | | Size | 23.6" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC
72% CIE1931 | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2715 x 0.2715 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort 1.2
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 30 W (Typical)
40 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.9 x 16.5 x 7.1" / 556.8 x 419.8 x 180.6 mm (With Stand)
21.9 x 13.1 x 2.4" / 556.8 x 333.8 x 61.1 mm (Without Stand) | | Weight | 8.2 lb / 3.72 kg (With Stand)
7.1 lb / 3.22 kg (Without Stand) | | | | Package Weight | 10.925 lb | | Box Dimensions (LxWxH) | 24.4 x 15.2 x 5.4" |
