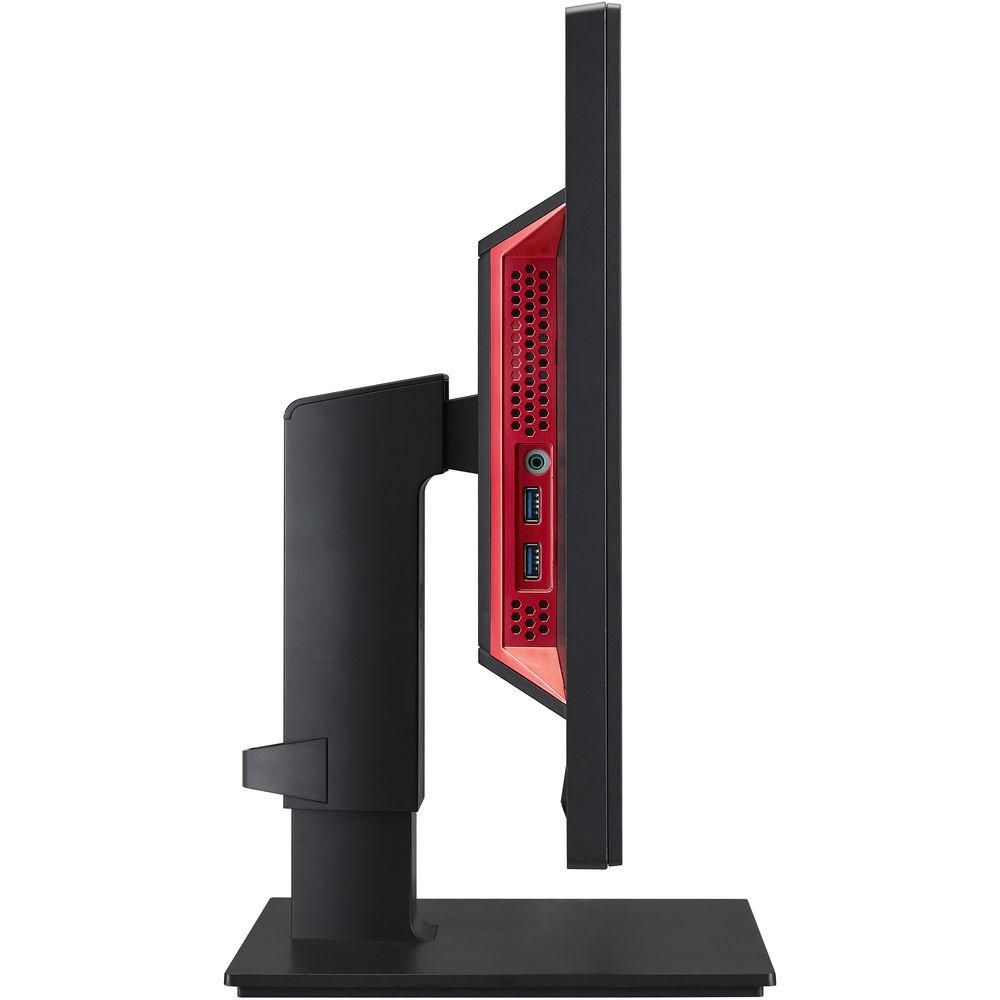

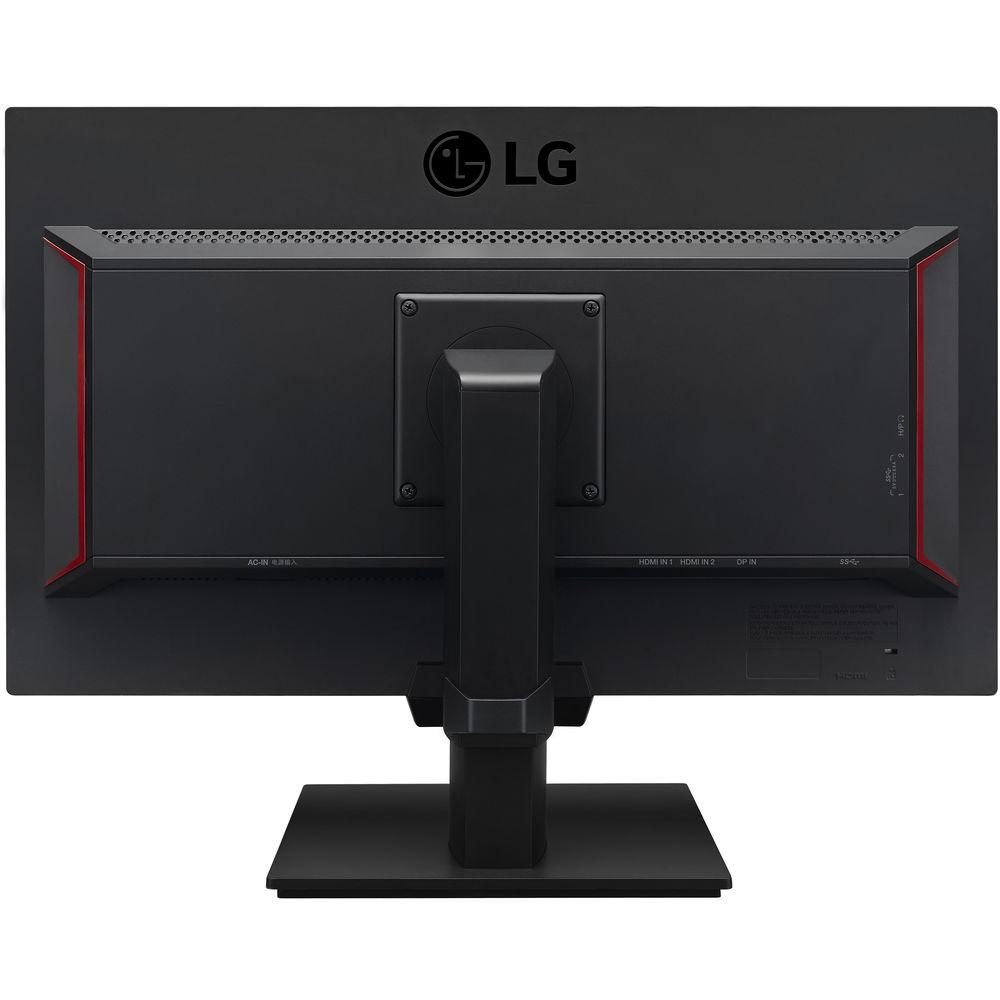

User Manual for LG 24GM79G-B 24" 16:9 FreeSync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG 24GM79G-B 24" 16:9 FreeSync LCD
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG 24GM79G-B 24" 16:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

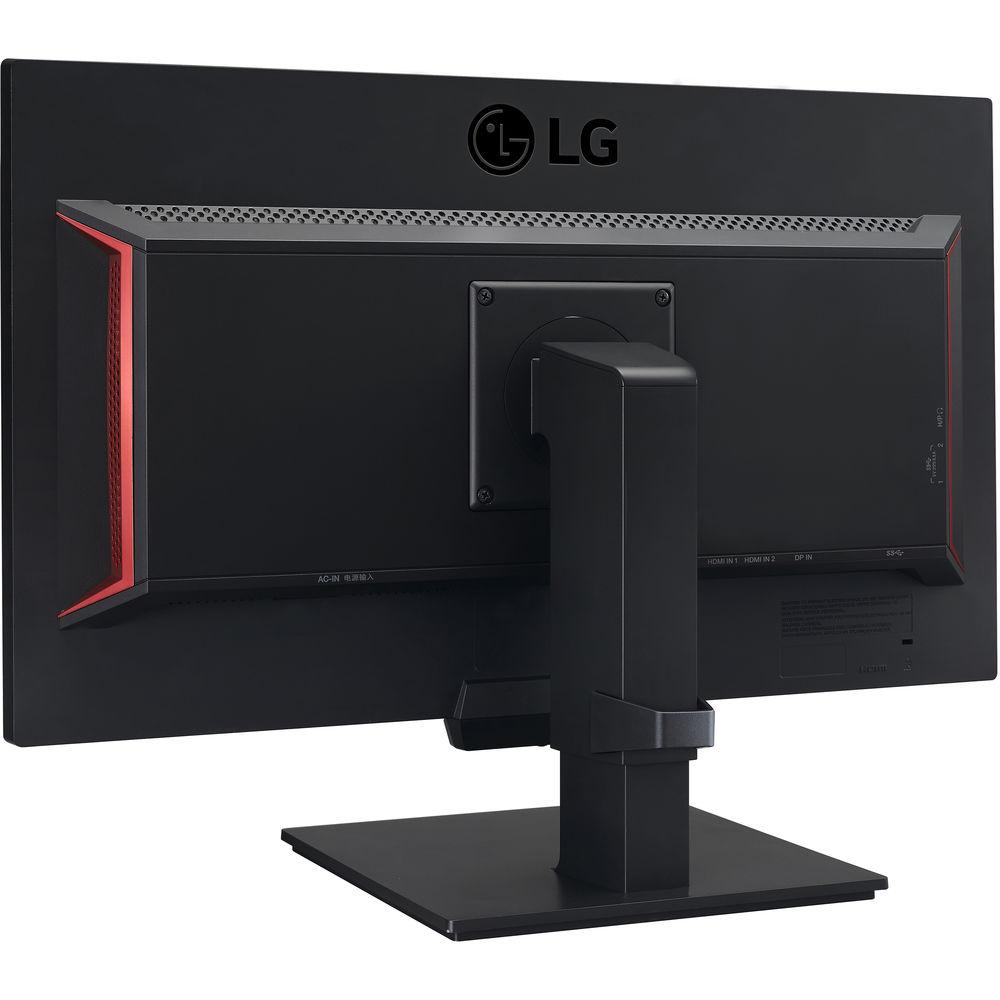

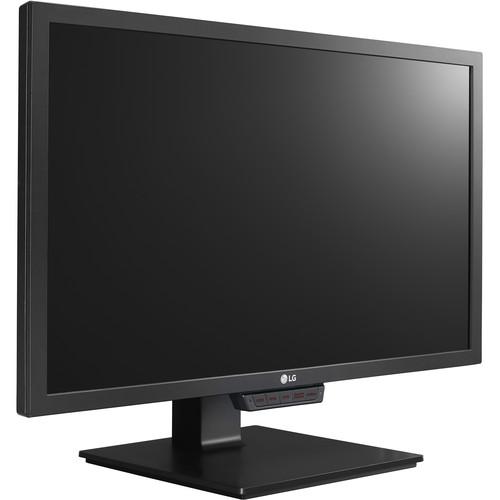

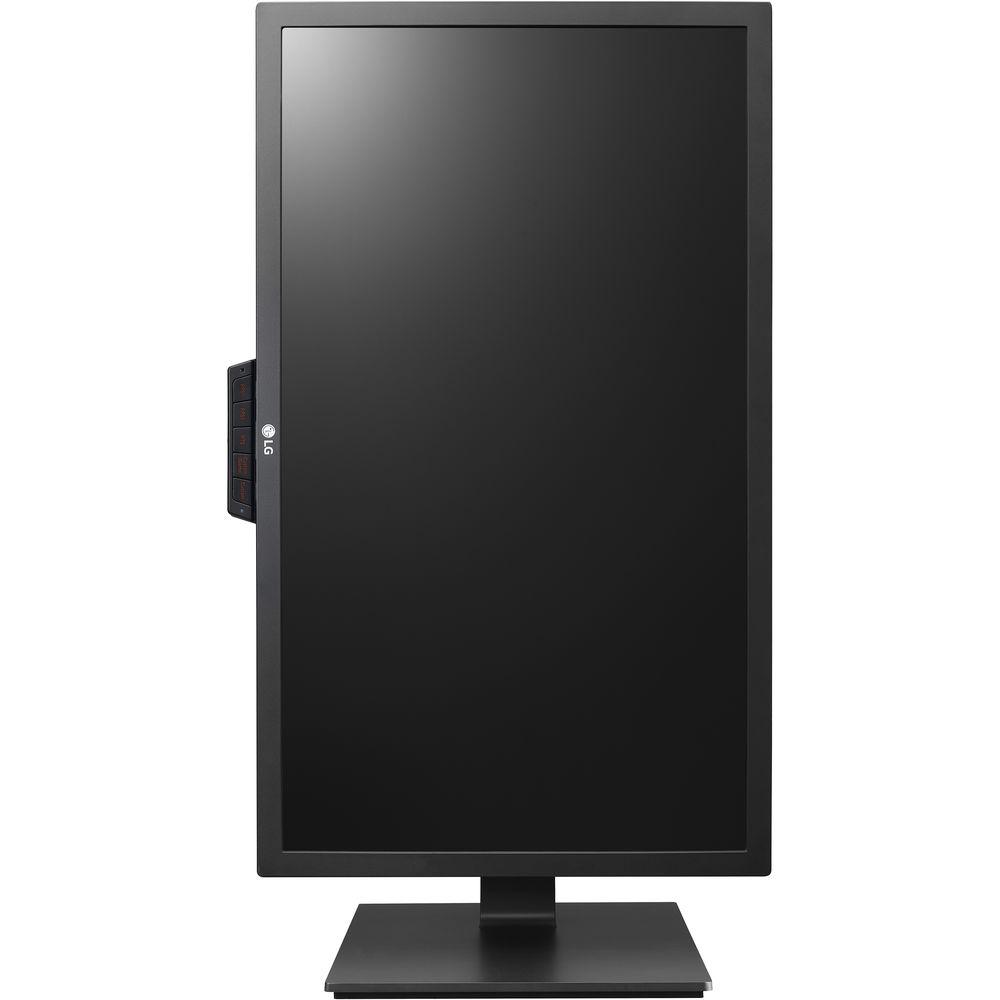

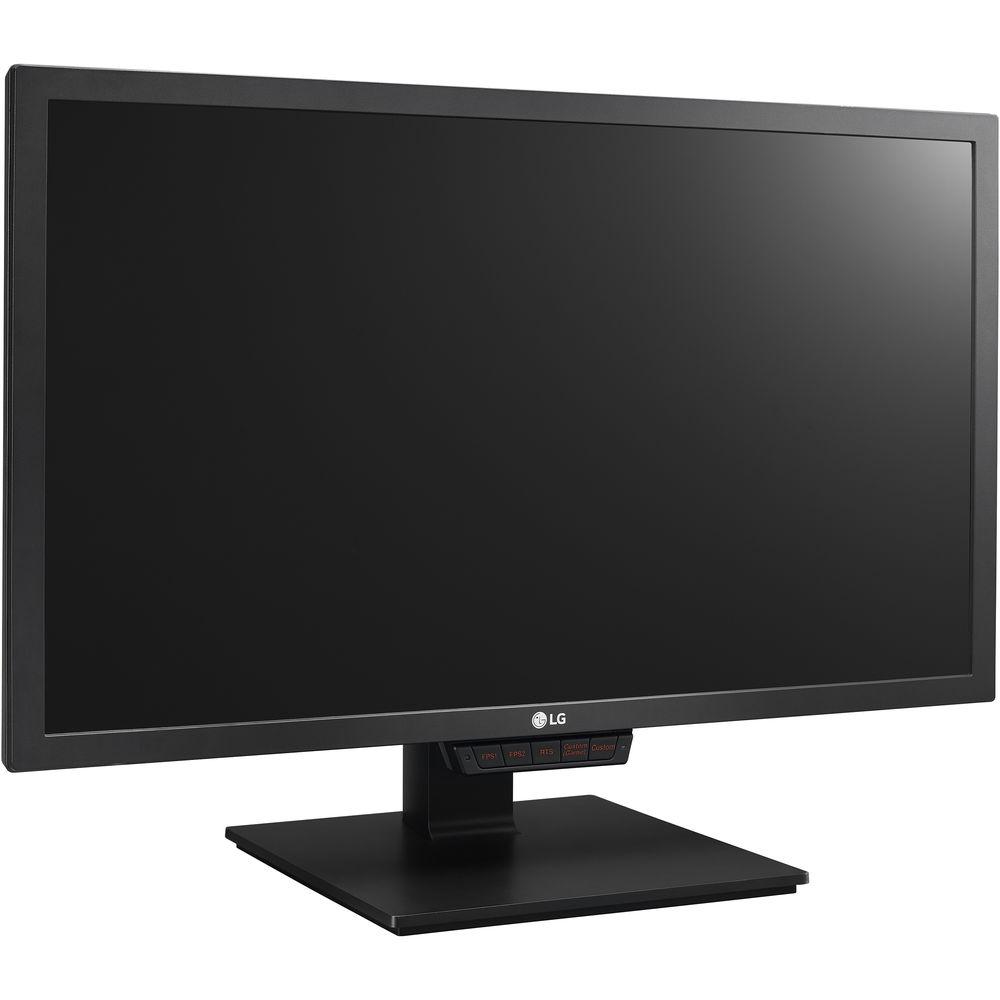

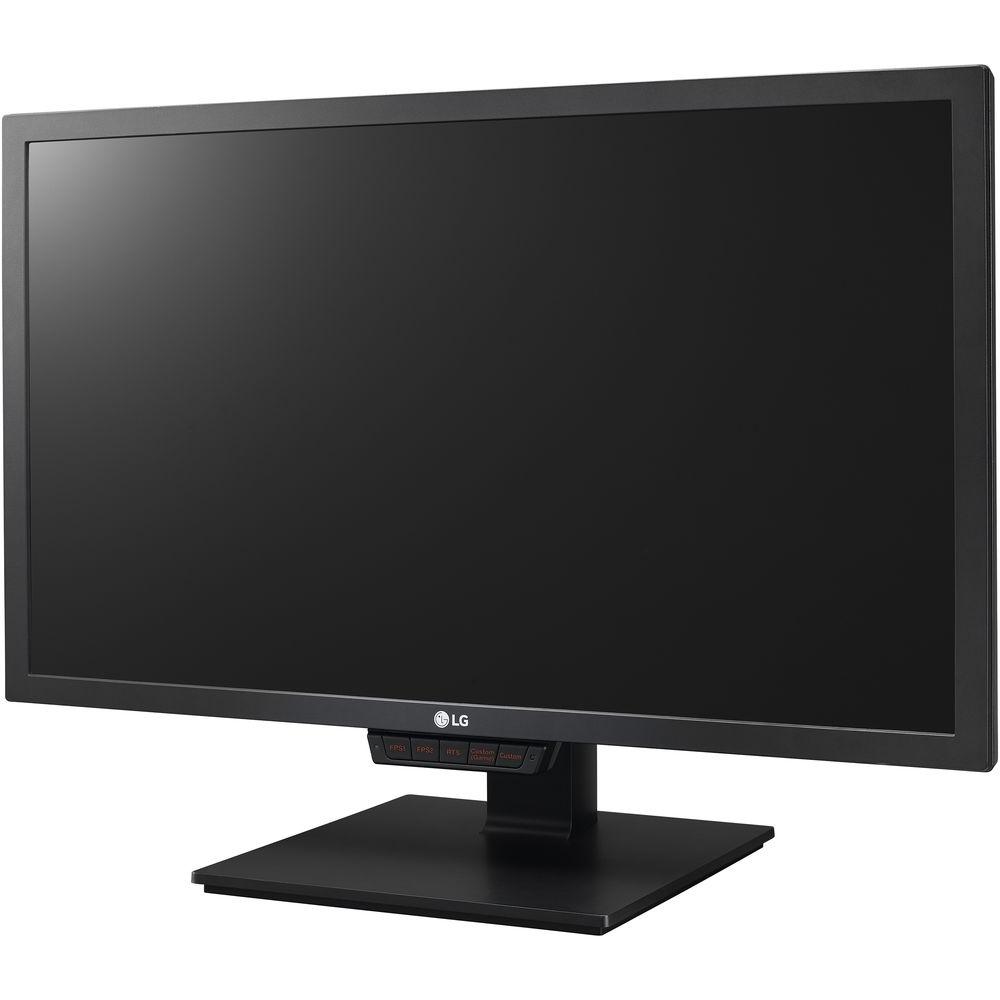

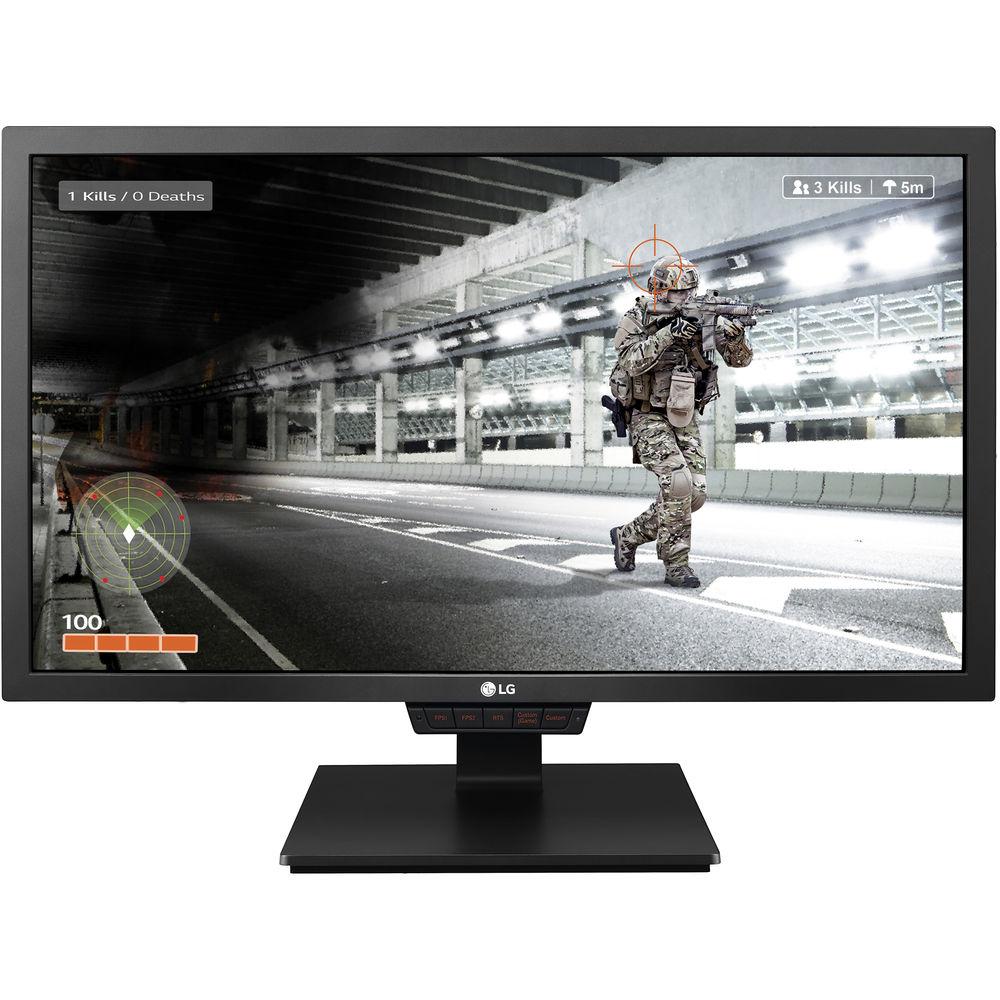

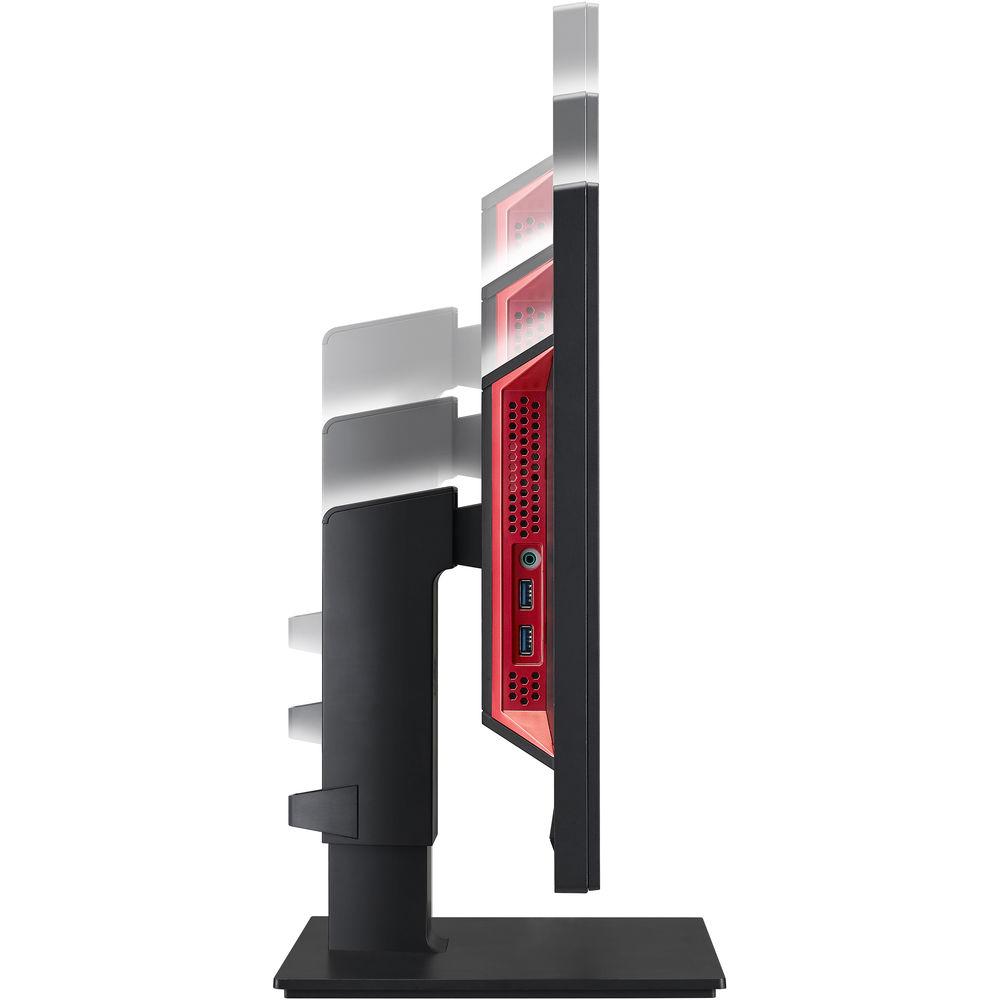

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cytvucqqzvfvtbuesrbd The 24GM79G-B 24" 16:9 FreeSync LCD Gaming Monitor from LG is packed with multiple features ideal for gamers. Built with a Twisted Nematic (TN) panel that has a 1920 x 1080 resolution, this display provides you with a fast response time and clear Full HD content reproduction. Moreover, it supports AMD FreeSync technology, which syncs the display's refresh rate with your graphics card's frame rate output to reduce tearing and stuttering for a smoother gaming experience. Connect it to your system via HDMI or DisplayPort and then tilt, pivot, or adjust its height to your viewing preference. Additionally, it has a built-in USB 3.0 hub so you can quickly and easily connect peripherals and other USB devices. - 1 ms Motion Blur Reduction
- Motion Blur Reduction Mode provides you with a 1 ms response time, reducing blurring and ghosting for smoother in-game actions.
- AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce tearing and stuttering for a more seamless gaming experience.
- Dynamic Action Sync
- Dynamic Action Sync helps to minimize input lag so inputs and commands will feel more responsive.
- Black Stabilizer
- Black Stabilizer senses dark scenes in games and makes them brighter so you can find the enemies waiting for you in the dark.
- Game Mode
- Game Mode optimizes the display to fit your current game. There are four modes: two FPS and one RTS, as well as a custom one.
- Other Features
- Picture Mode (Custom, Reader, Photo, Cinema, Color Weakness, FPS Game 1, FPS Game 2, RTS Game, Custom (Game)), DDC/CI, HDCP, Key Lock, Plug-&-Play, Response Time Control, Flicker Safe, Color Calibrated, Smart Energy Saving, Super+ Resolution, 4 Screen-Split, On-Screen Control, DAS Mode, Crosshair
UPC: 719192609167 In the Box LG 24GM79G-B 24" 16:9 FreeSync LCD Gaming Monitor Power Cord HDMI Cord Limited 1-Year Warranty User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG 24GM79G-B 24" 16:9 FreeSync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

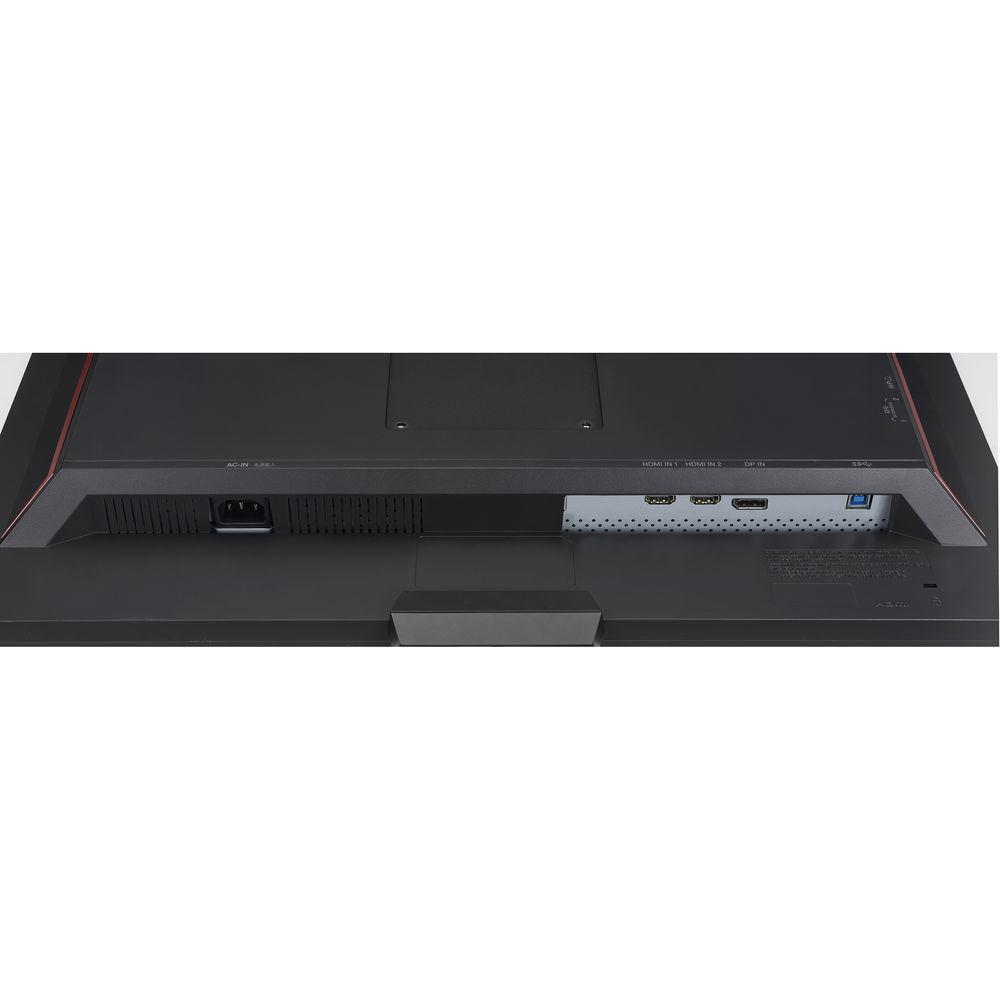

Technical parametersLG 24GM79G-B Specs | Screen Size | 24" (609.6 mm) | | Panel Type | Twisted Nematic (TN) | | Surface | Anti-glare 3H | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Response Time | 5 ms (GtG), 1 ms (MBR) | | Refresh Rate | 144 Hz | | Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | Mega | | Pixel Pitch (H x V) | 0.27675 X 0.27675 mm | | Color Gamut (CIE1931) | NTSC 72% | | Color Depth (Number of Colors) | 8-bit, 16.7 million | | Viewing Angles (H/V) | 170°/160° | | Inputs/Outputs | 2 x HDMI 2.0
1 x DisplayPort 1.2
3 x USB 3.0 (one up, two down) | | | | VESA Compatibility | 100 x 100 mm | | Tilt (Angle) | -5 to 35° | | Pivot | 90° | | Height Adjustment | 5.12" (130 mm) | | | | Input | 100 - 240 V, 50 / 60 Hz | | Power Consumption | 27 W | | | | Standards | UL(cUL), TUV-type, FCC-B, CE, ErP, Windows, DisplayPort | | Dimensions (W x H x D) | With Stand: 22.3 x 15.3 - 20.4 x 9.4" (566.42 x 388.62 - 518.16 x 238.76 mm)
Without Stand: 22.3 x 13.9 x 2.3" (566.42 x 353.1 x 58.42 mm) | | Weight | With Stand: 13.1 lb (5.94 kg)
Without Stand: 8.4 lb (3.81 kg) | | | | Package Weight | 17.9 lb | | Box Dimensions (LxWxH) | 24.75 x 19.75 x 6.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
